2024 Leeuwin 55' (16.76 m) 55
Cape Town, South Africa
Pilar X
2024 Leeuwin 55
Flag of Registry: United Kingdom
- Catamaran / Flybridge
- Power
- Used
- Gas/Petrol
- Fiberglass Hull
Vessel ID# Last Updated: 2025-11-07 18:26:06
Description

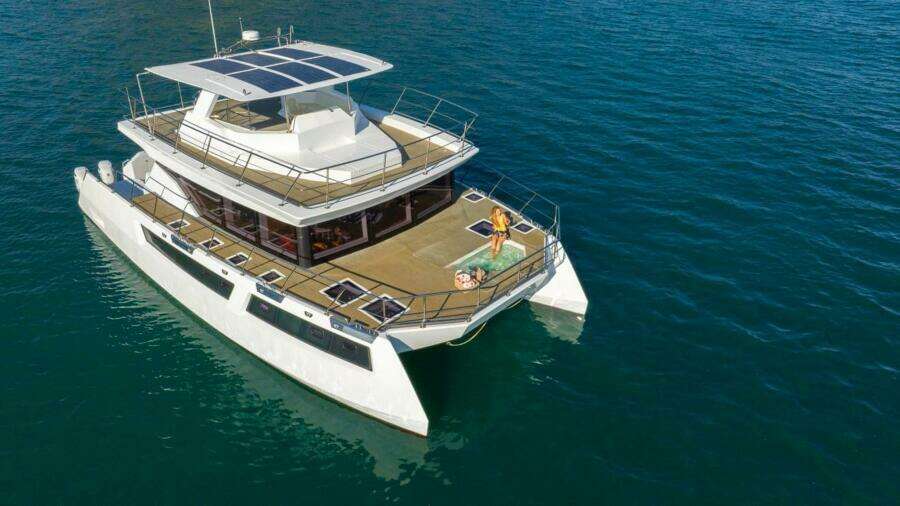

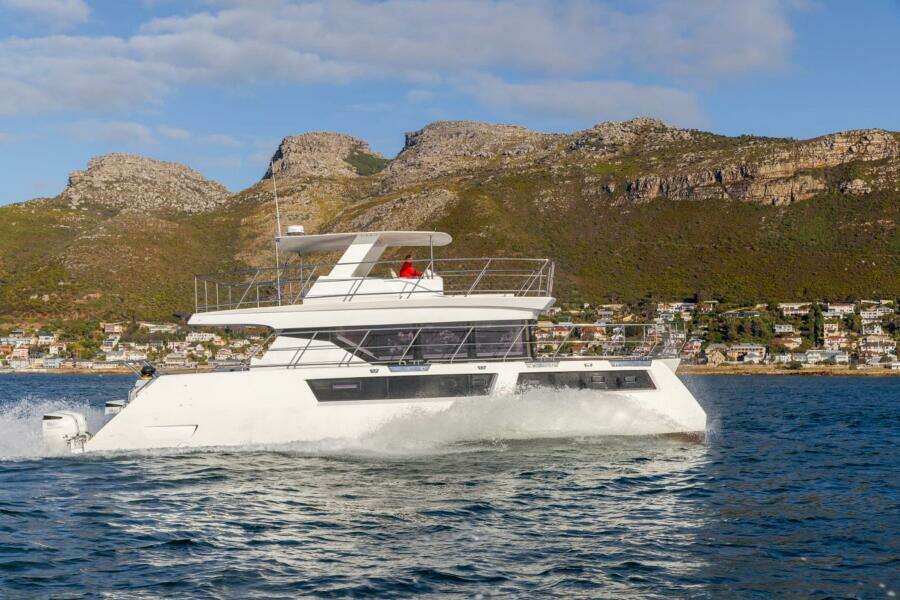

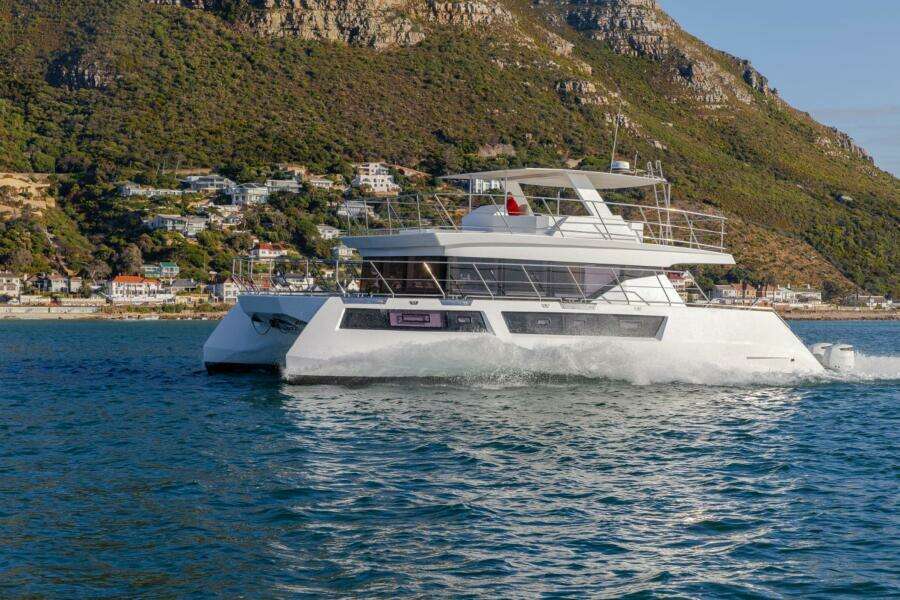

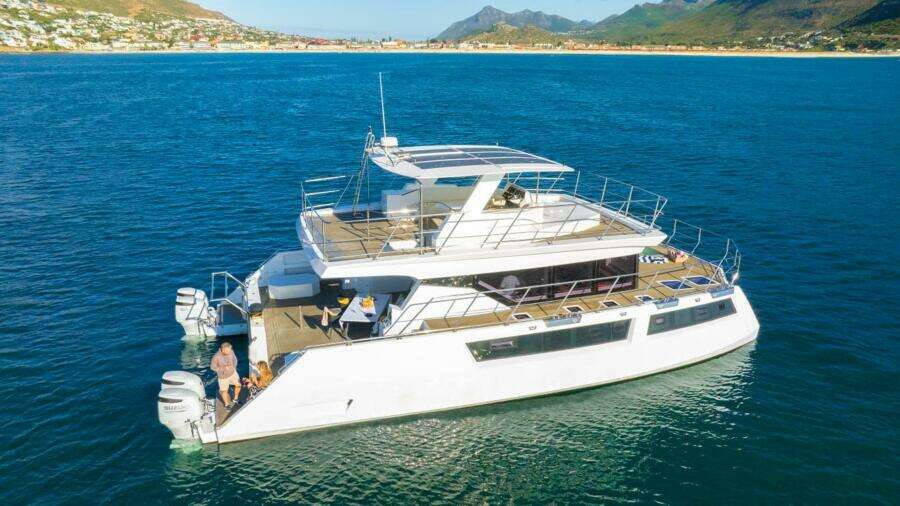

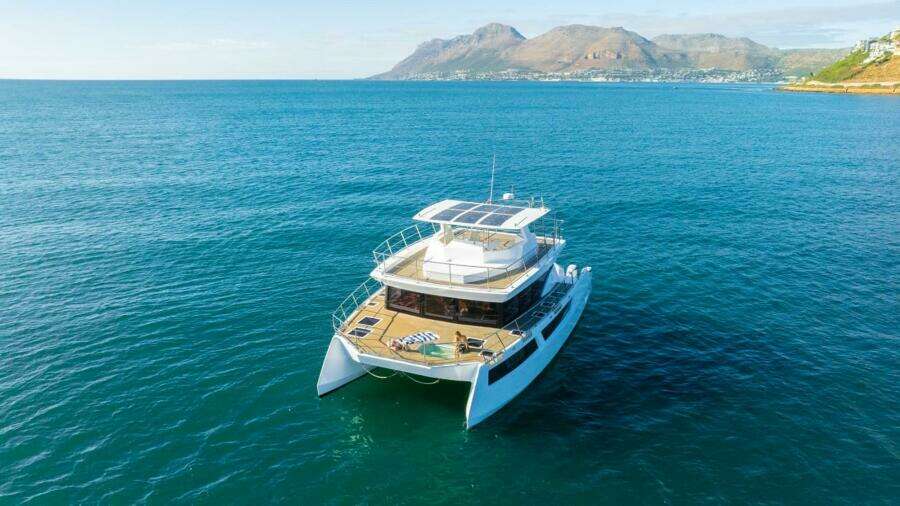

55 FT POWERCAT PILAR X, Performance that thrills!
Powered by four 300 hp Suzuki outboard engines, this vessel redefines the future of pleasure catamarans.
Pilar X is purpose-built for the island life, perfect for the Bahamas, Caribbean, or anywhere shallow water navigation is a must. She glides into lagoons, beach bars, and any hidden coves where most Yachts do not go, and she does it with style.
From the moment you open up the throttles on the four outboards, the difference is undeniable.

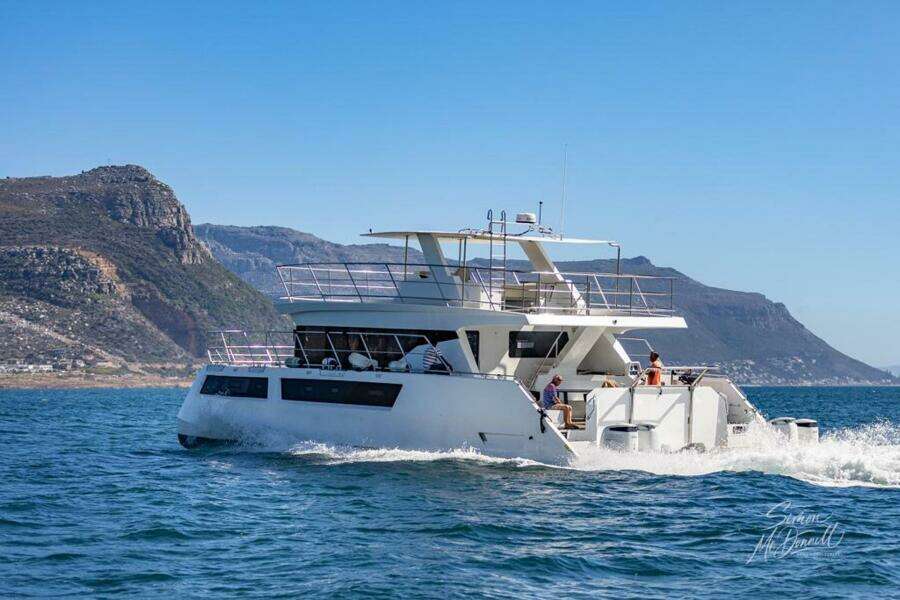

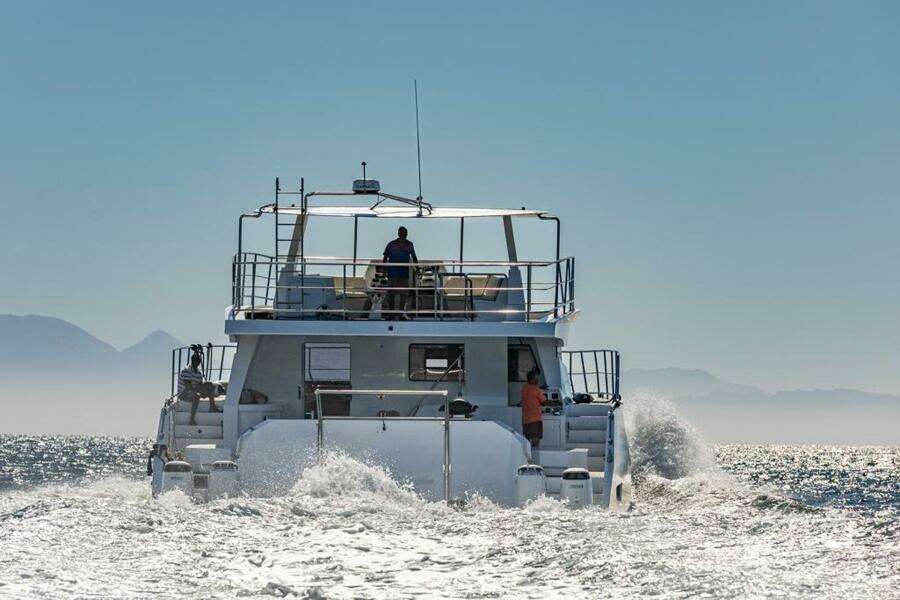

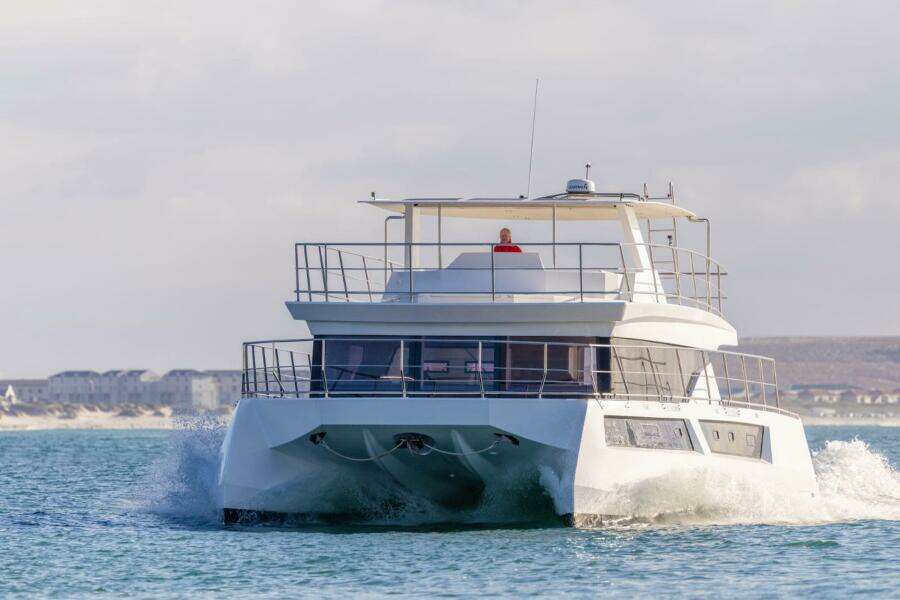

The Pilar X surges forward, reaching 27 knots in just over a minute. There is no industrial hum of a typical diesel engine. She is powerful, responsive, and whisper-quiet. With smart space and smart engineering, and no diesel inboards, the interior space is liberated, allowing for advanced comfort, storage, and liveaboard usability.
Maintenance is a dream, with no complex engine rooms to crawl through; outboards s are accessible, removable, and replaceable with ease.

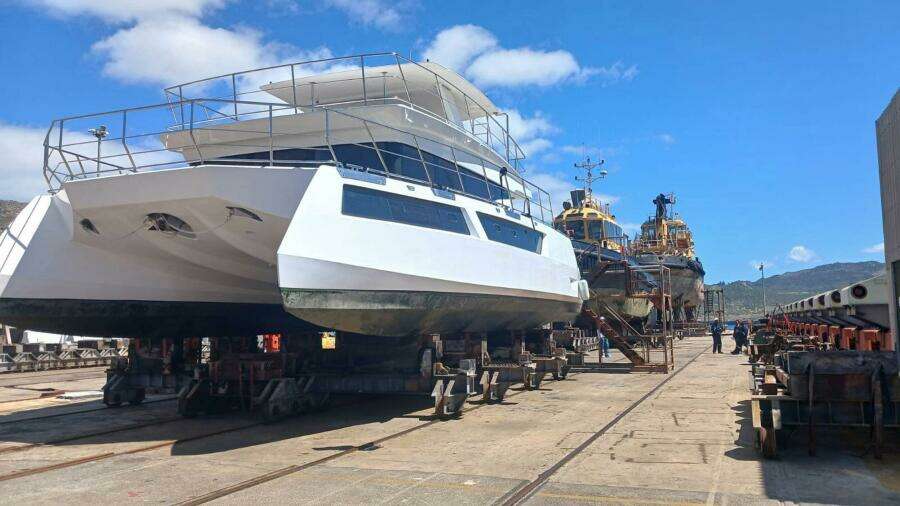

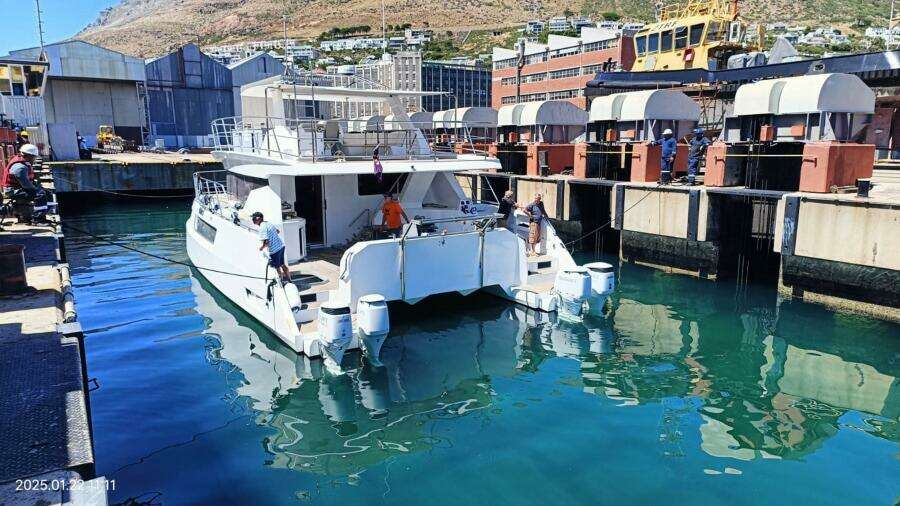

Cost-effective and practical, this power cat can be serviced on a slipway or beach. Float her in at high tide, clean her at low tide, and she's back in Action with zero yard time and no expensive haul-outs.
She's a captain's dream set-up - fast, efficient, and hassle-free.
CURRENT QUOTE TO SHIP FROM CAPE TOWN TO THE USA IS $75,000.
Brewer Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by United Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
LOA: 55' 2'' (16.81 Meters)
Type: Power- Used
Year: 2024
Beam: 27' 5''
LWL: 57' 5''
Draft Max: 3' 11''
Draft Min: 2' 6''
Cabins: 5
Sleeps: 10
Maximum Speed: 27 Knots
Cruise Speed: 12 Knots
Fuel Type: Gas/Petrol
Hull Material: Fiberglass
Hull Shape: Planing
Fuel Tank: 423 Gallons (1601.23 Liters)
Fresh Water: 105 Gallons (397.47 Liters)
Builder: Leeuwin
Seating Capacity: 12
Photos click to view all
Engines
Engine 1
- Engine Make: Suzuki
- Engine Model: DF300AP
- Engine Year: 2024
- Engine Type: Outboard 4 Stroke
- Power HP: 300.00
- Power KW: 223.71
- Fuel Type: Gas/Petrol
- Hours: 100.00
- Serial Number: 30002P-540729
- Engine Location: Port
Engine 2
- Engine Make: Suzuki
- Engine Model: DF300AP
- Engine Year: 2024
- Engine Type: Outboard 4 Stroke
- Power HP: 300.00
- Power KW: 223.71
- Fuel Type: Gas/Petrol
- Hours: 100.00
- Serial Number: 30002P-912705
- Engine Location: Port
Engine 3
- Engine Make: Suzuki
- Engine Model: DF300AP
- Engine Year: 2021
- Engine Type: Outboard 4 Stroke
- Power HP: 300.00
- Power KW: 223.71
- Fuel Type: Gas/Petrol
- Hours: 100.00
- Serial Number: 30002P-540731
- Engine Location: Starboard
Engine 4
- Engine Make: Suzuki
- Engine Model: DF300AP
- Engine Year: 2021
- Engine Type: Outboard 4 Stroke
- Power HP: 300.00
- Power KW: 223.71
- Fuel Type: Gas/Petrol
- Hours: 100.00
- Serial Number: 30002P-913608
- Engine Location: Starboard
Full Details
Interior
- SS interior handrails
- Solid surface, Galley, and bathroom countertops
- Draw systems and cabinet hinges
- Vinyl flooring on main deck, saloon/Galley/Cabin area
- Ceiling and wall panels in synthetic leather or light wood
- Manual blinds on all windows, motorized blinds, main cabins

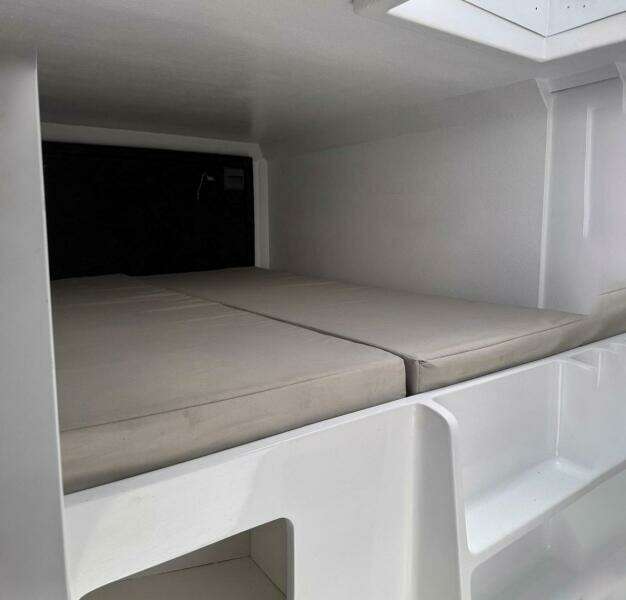

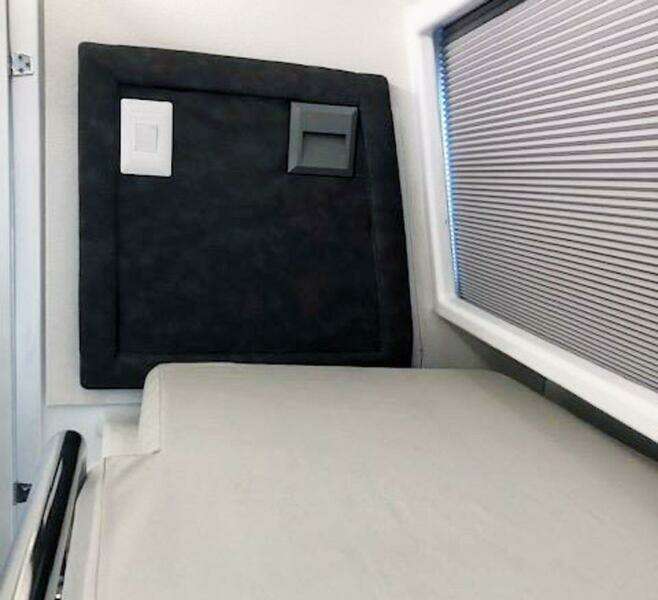

- 150 mm Memory for mattresses on all beds

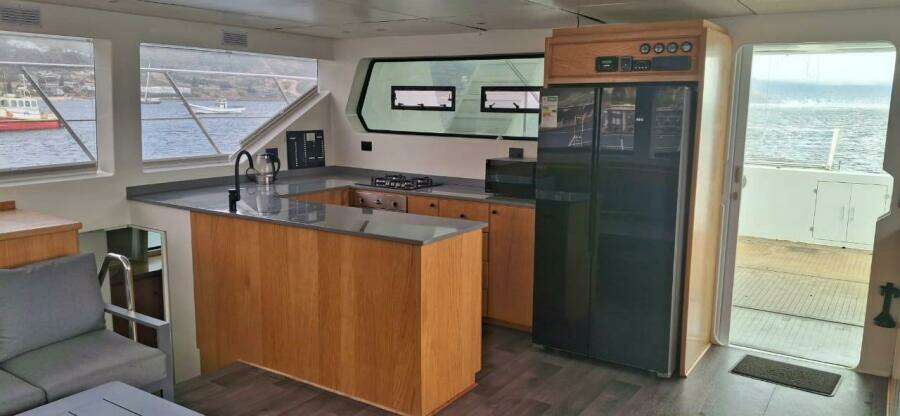

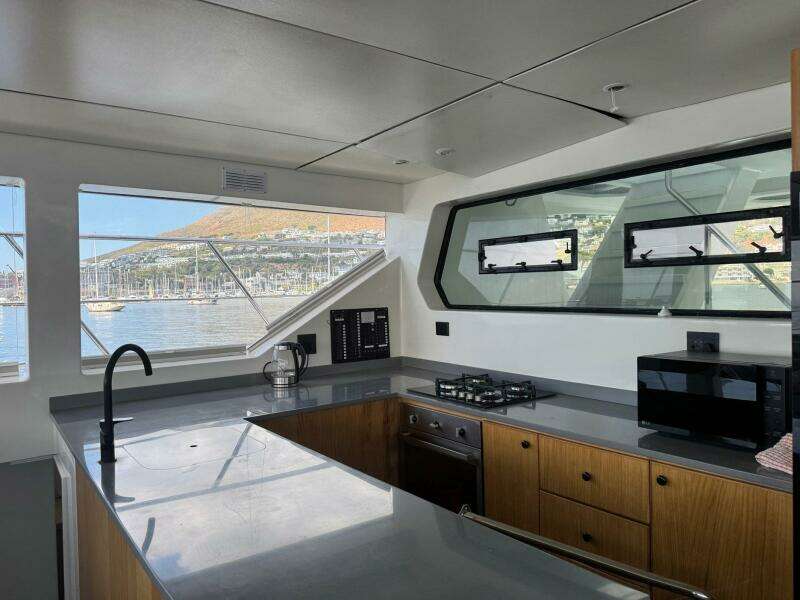

- Galley SS sink with water faucet, hood Siemens above the hob

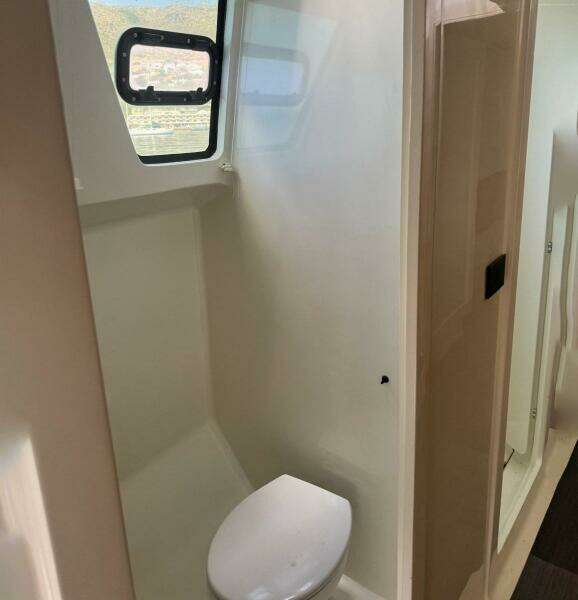

- Electric toilets with a macerator

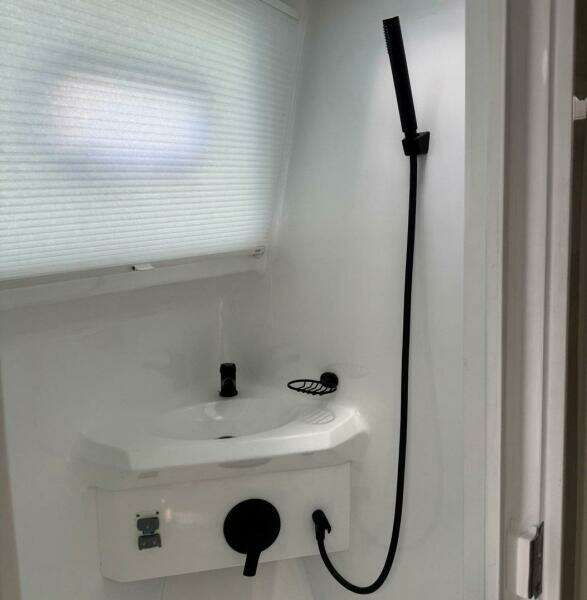

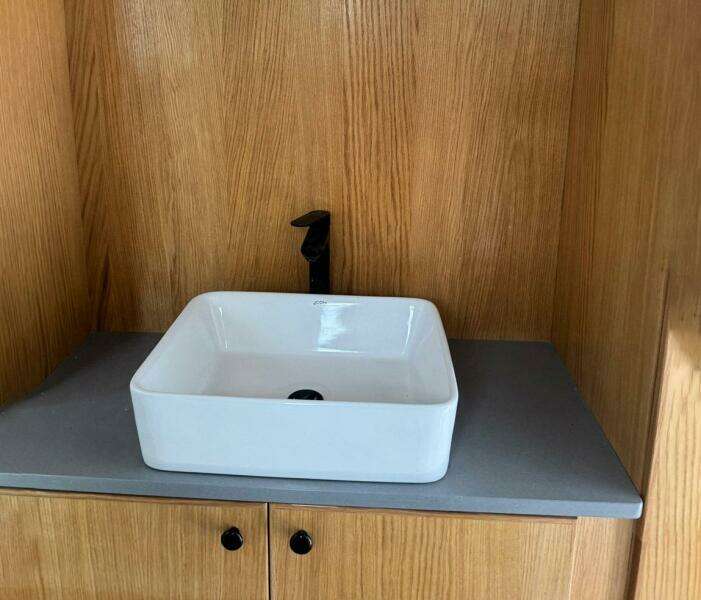

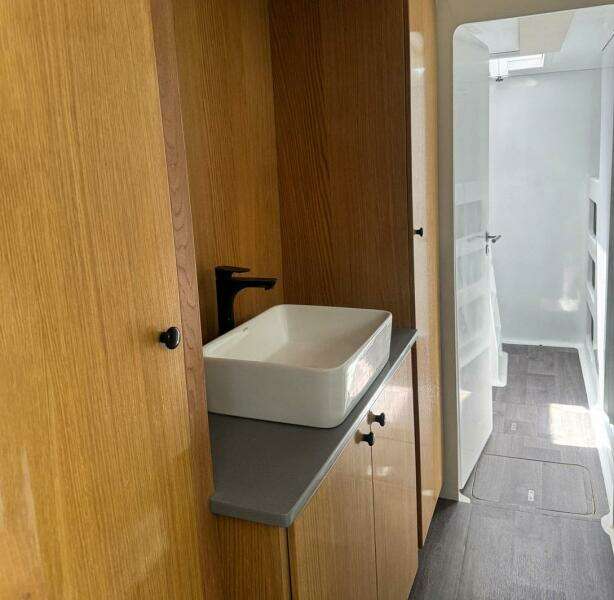

- Ceramic washbasins
- Bathroom and shower fixtures
- Separate shower stalls in each bathroom

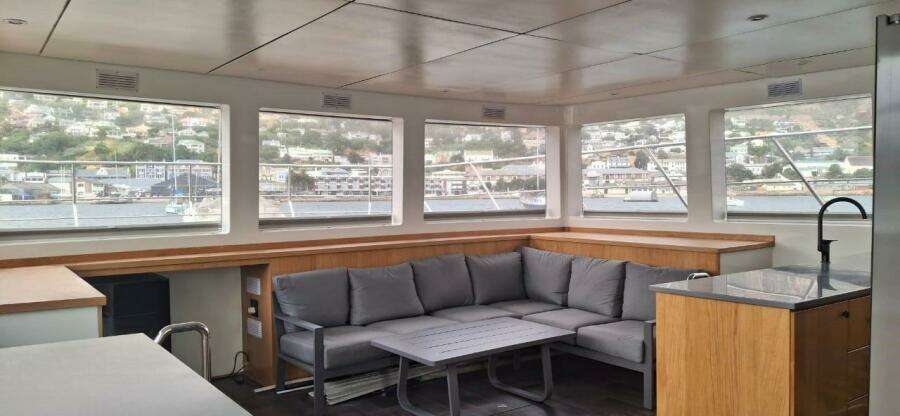

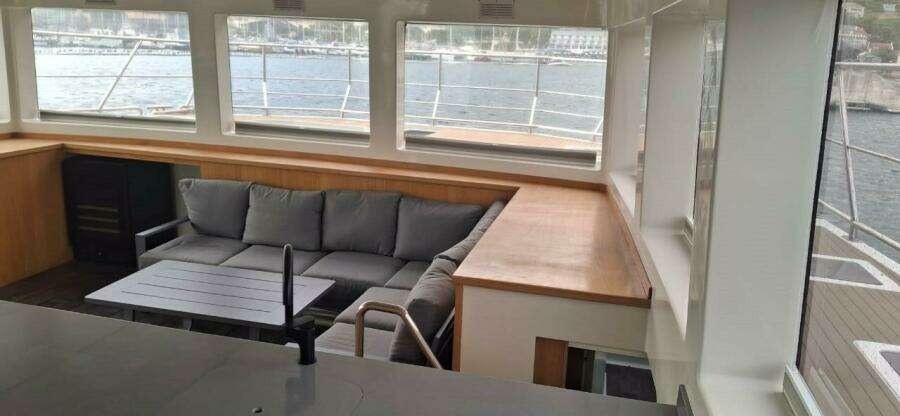

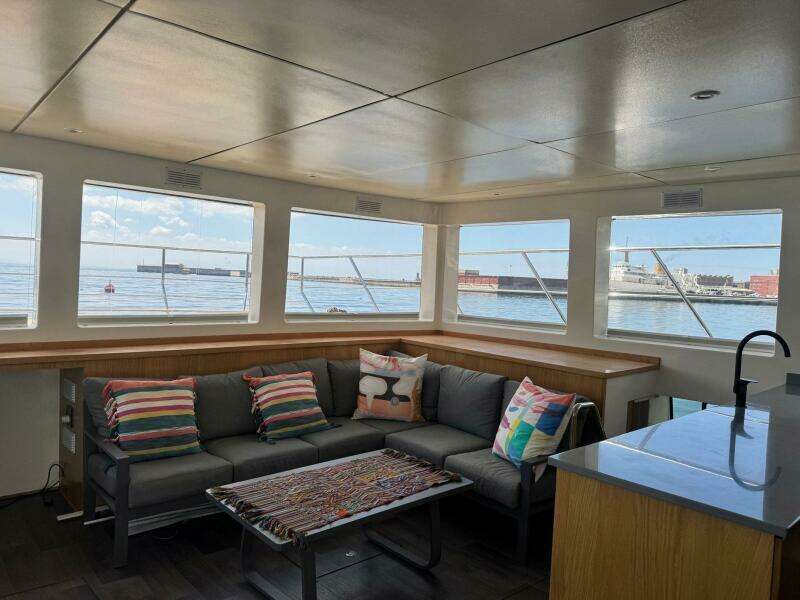

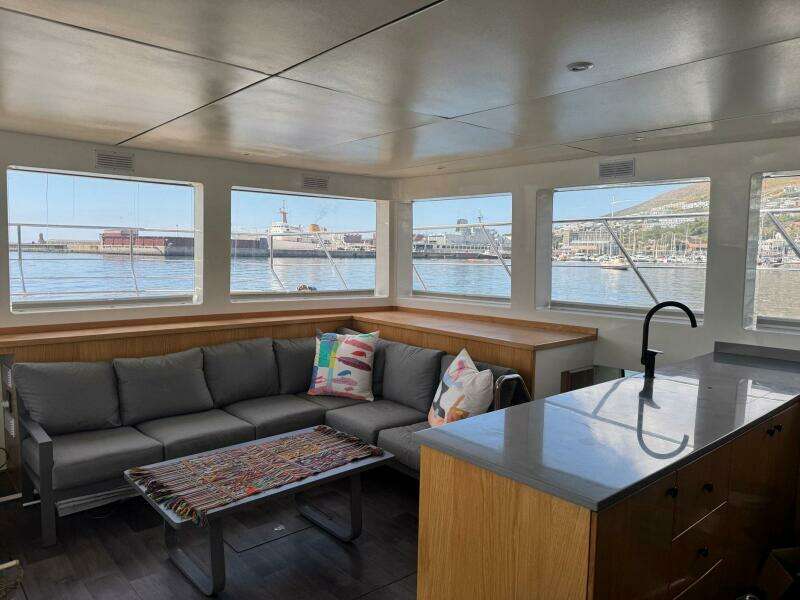

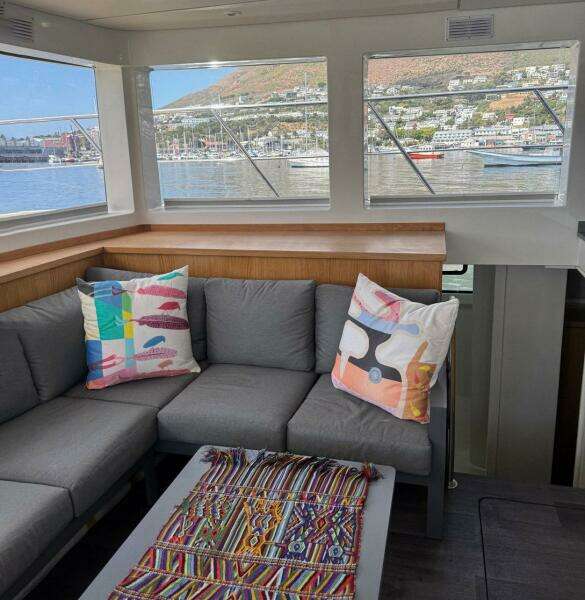

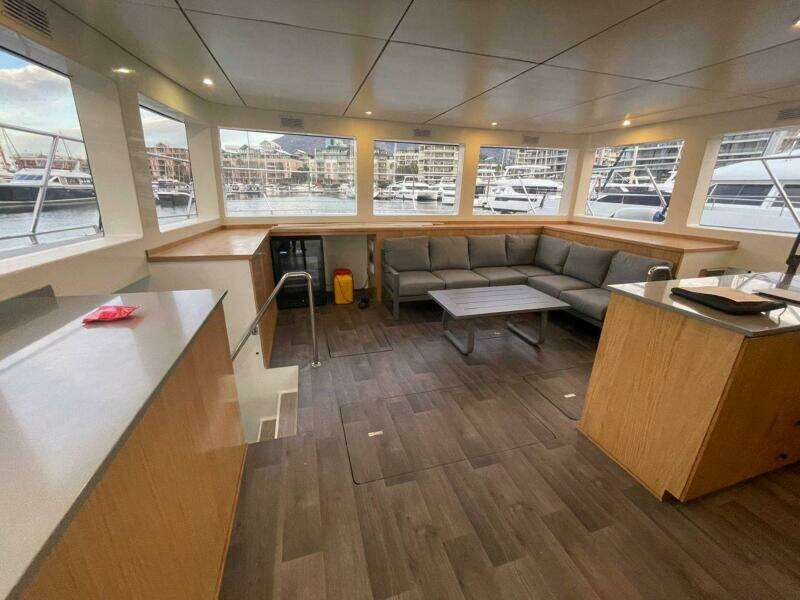

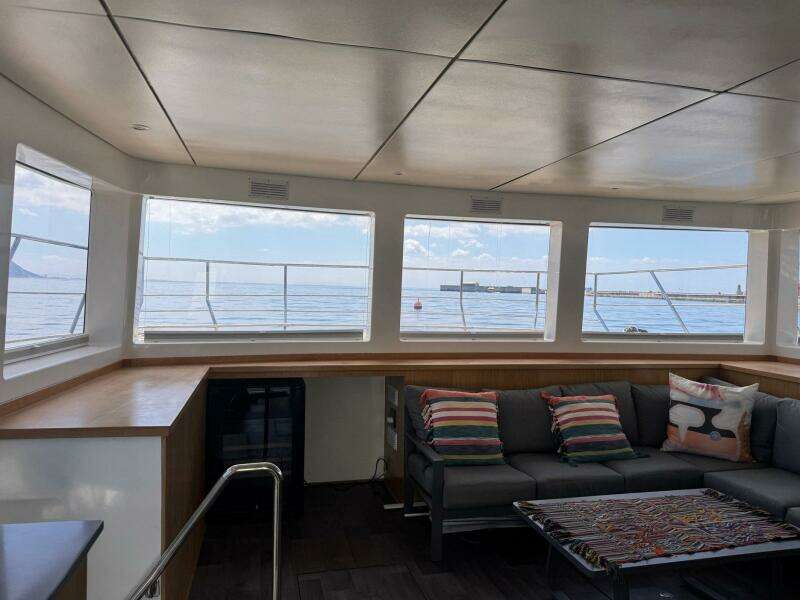

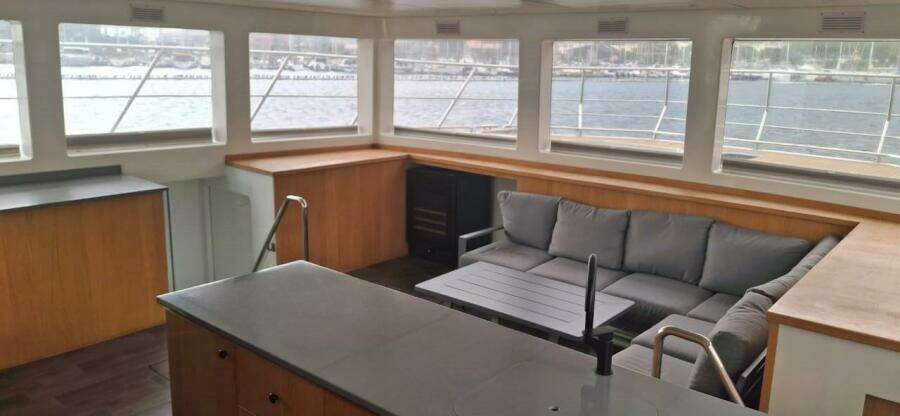

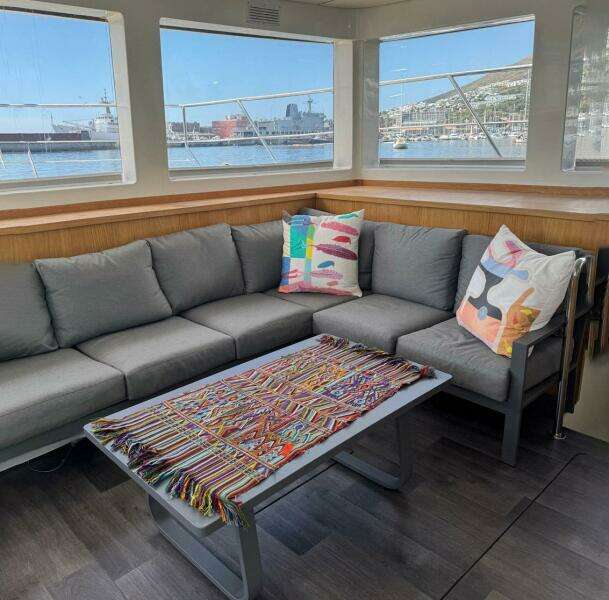

- Corner lounge suite
- Oak veneer panels, drawers, and lockers

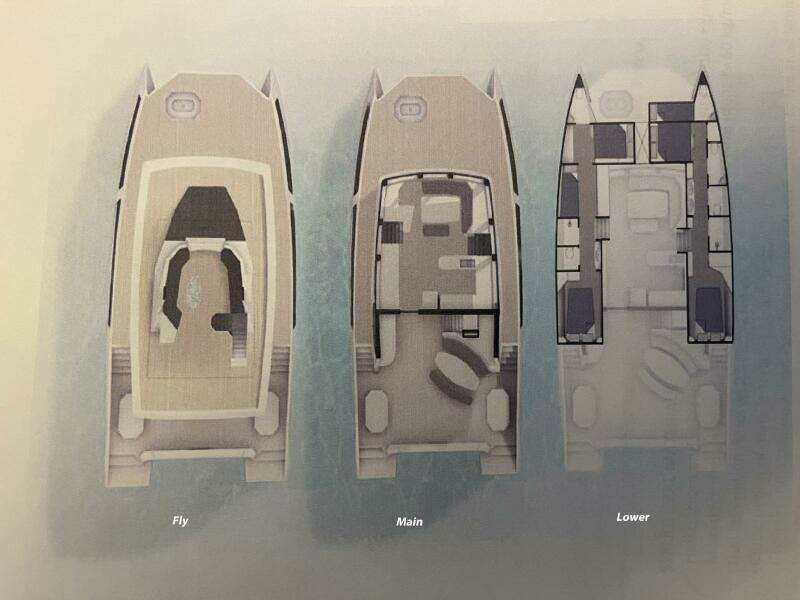

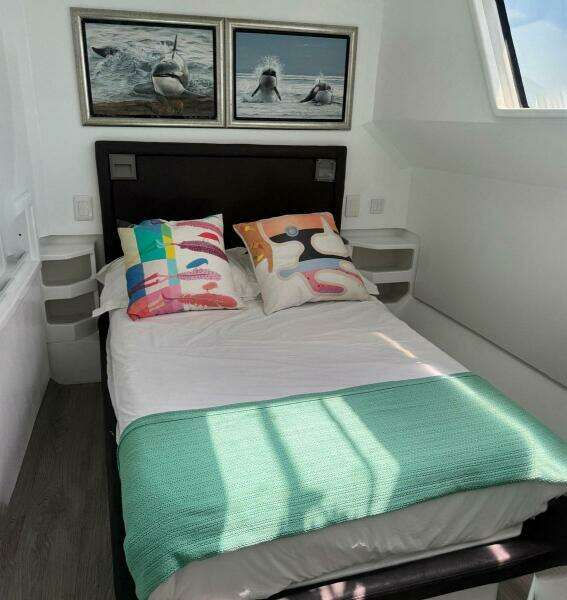

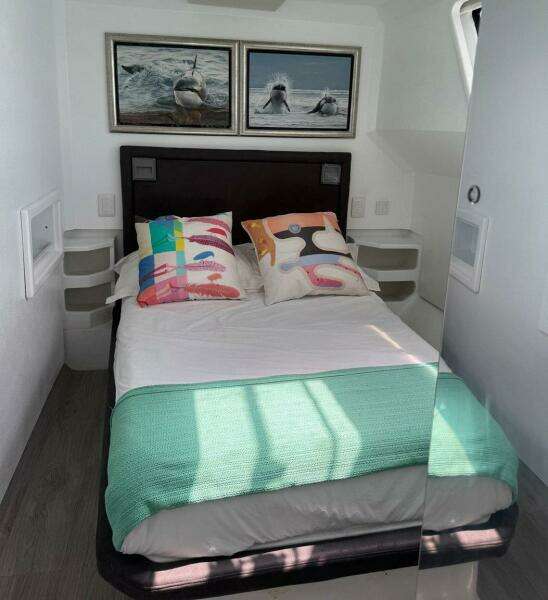

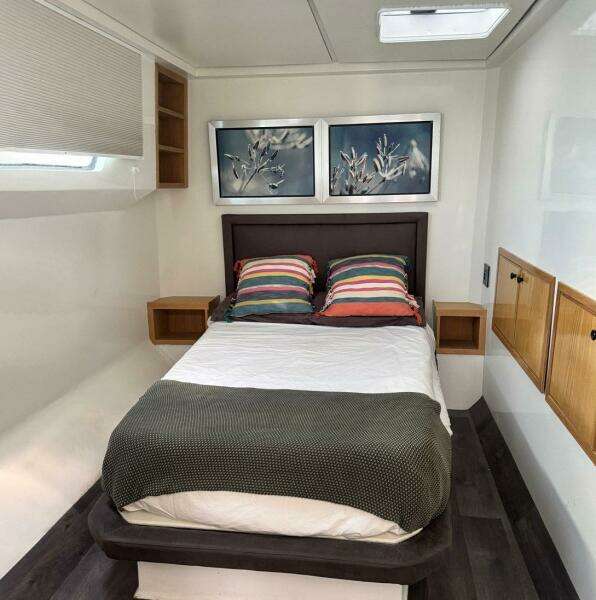

Accommodation:
Starboard:
- Master double Stern
- Guest double forward
Port:
- Double guest stern
- Double guest forward
Forward Port:
- 2 x Single bunks
- Crew cabin Starboard forwarwd 1 x single bunk
Appliances:

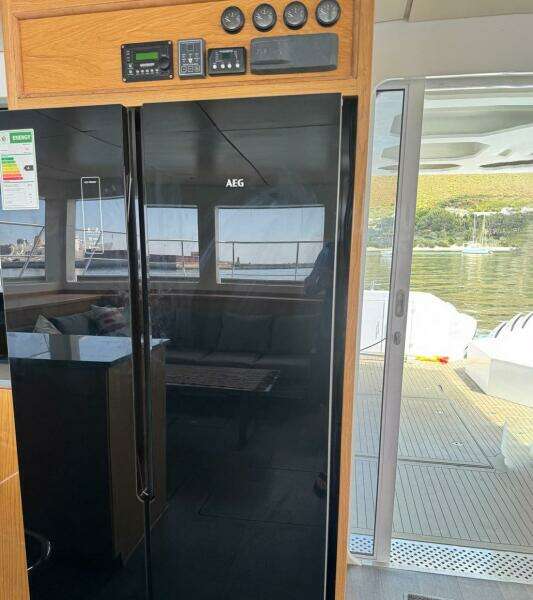

- Large main fridge/ freezer

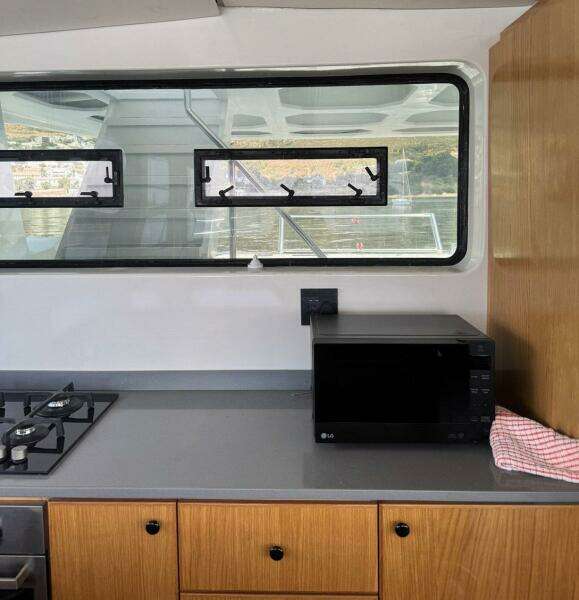

- Microwave

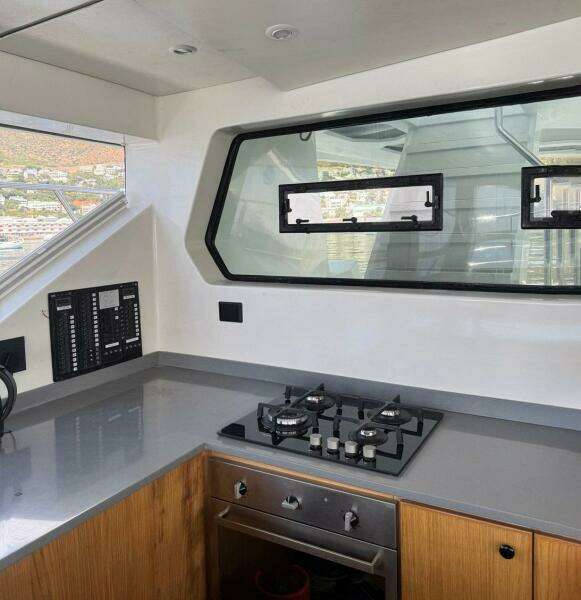

- Gas hob and oven
- Gas BBQ
- Coffee machine
- Solar batteries:
- 6×375 W Solar panels charging
- 5KW Lithium house battery
Helm Station:
- Customized flybridge, Garmin navigation helm station
- Engine controls, displays and instruments
- Magnetic compass
- Raymarine autopilot
- Q24C Radar
- VHS marine radio
- (2) Garmin MFD GPS map 722XS
- NMEA backbone and System
- Entertainment fusion sound system with Bose speakers
- Bow Thruster
Engines

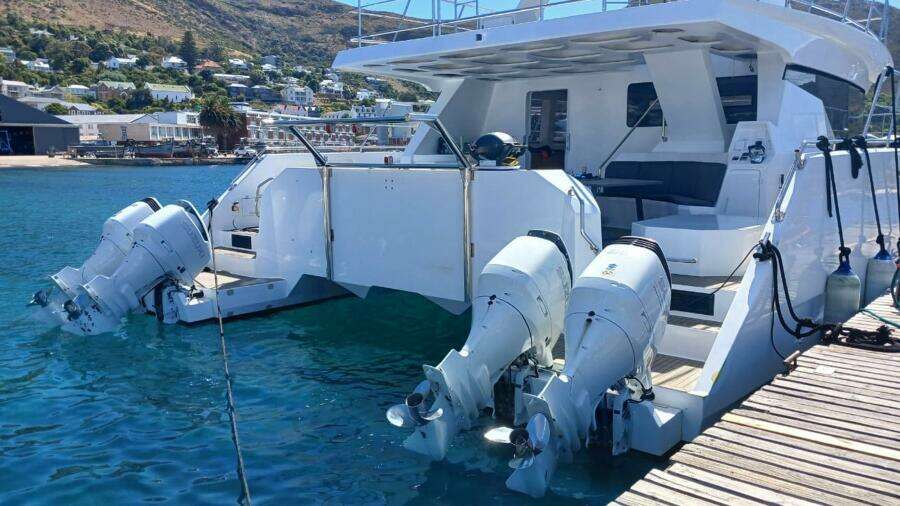

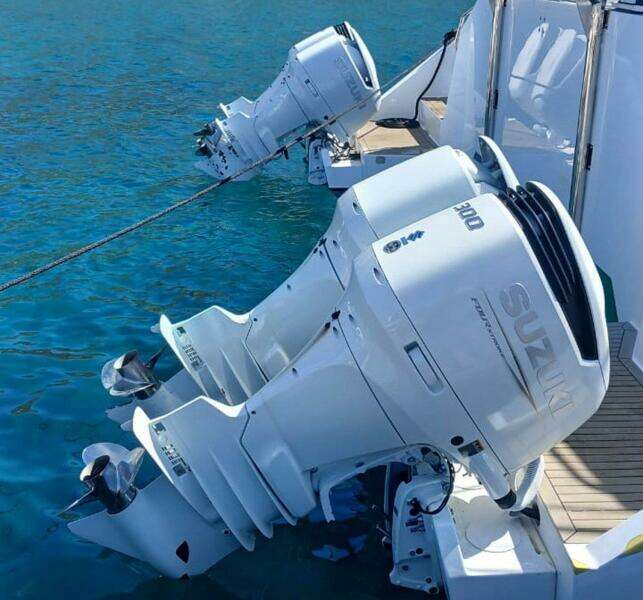

4 X 300HP Suzuki outboard engines.
Engine Room and Marine Systems:
- Wells with access from the hatch on the main deck
- Sea Star hydraulic steering helms with power assist unit
- (2) Extractors for the engine room, forced ventilation
- (4) Engine fuel filters 900 MA30
- (4) MR1100/24 Bilge pumps throughout the boat with high water alarm
- (2) 24L Water heaters
- (2) Freshwater pump Sureflow 2.5 bar
- (2) Gray water Sump pump and tank, whale BP2054 GW0831
- (2) Blackwater pumps whale
- (1) Deck wash points (Cockpit, bow, flybridge)
- (8) SS fuel tanks, 200 Lt each
- Fuel gauges
Exterior
- (8) SS Mooring cleats
- Vertical Windlass Quick, 2000W 24 V, with chain counter
- SS/ 316 Handrails on the main deck and flybridge
- Hot/cold shower faucet at Port Stern
- S/S Swim ladder
- (11) Flush hatches
- GRP Hard top with SS navigation mast
- Flybridge Helm Station
- All outdoor cushions are made of fabric
- All outdoor decking Seadeck EVA

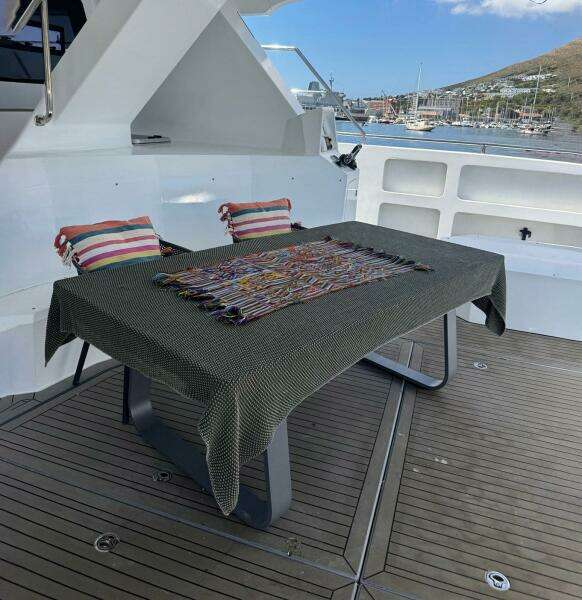

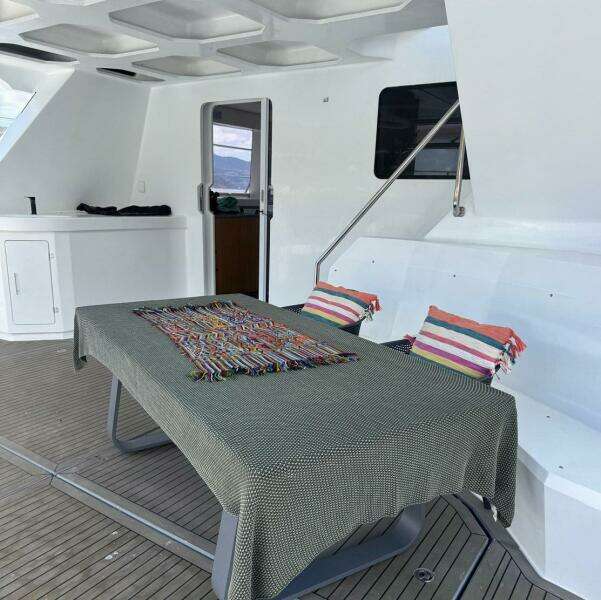

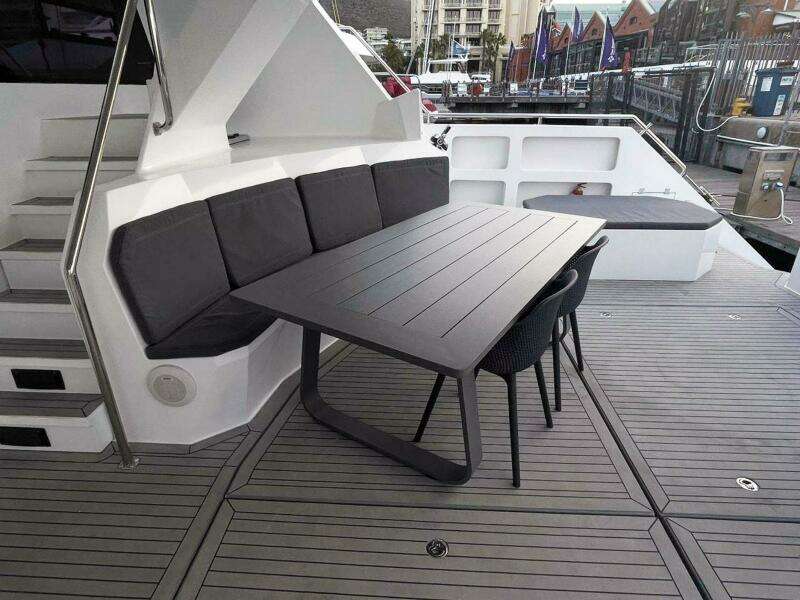

- Wooden table with eight foldable wooden canvas chairs
- Helm chair
- Hatches with Cushions as Sunbeds
- Flybridge coffee table
- Flybridge seating with cushions for 10 Pax
- Acrylic windows 12 mm with port lights

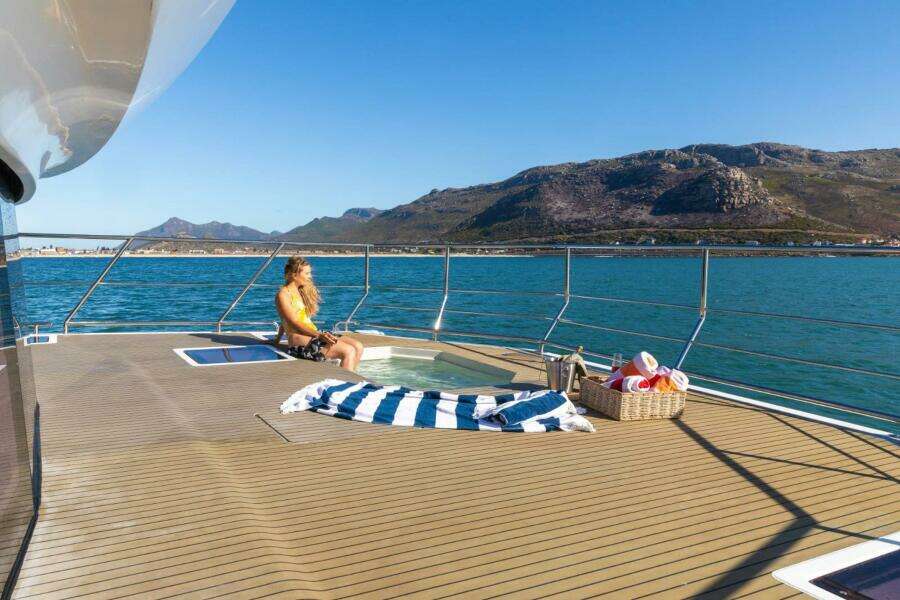

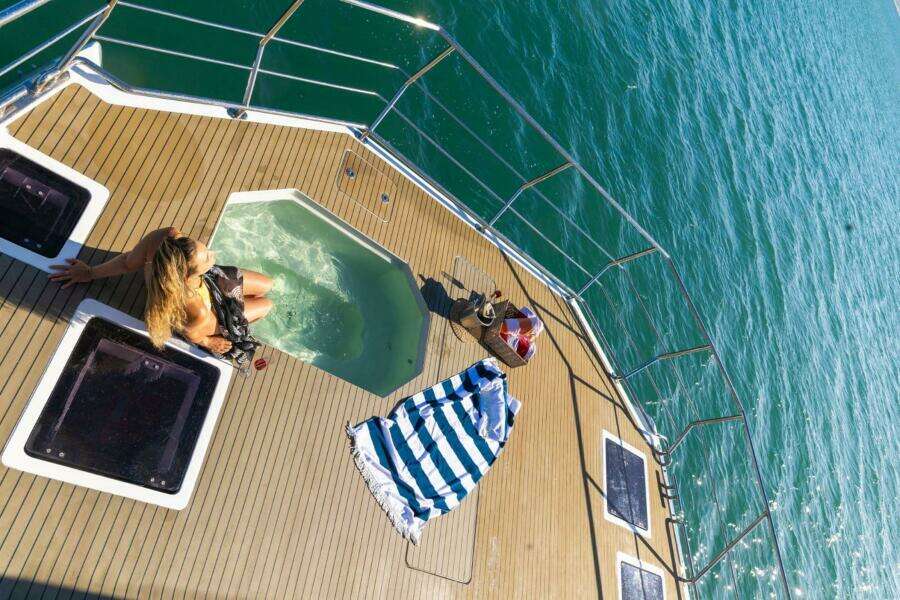

- Seawater splash pool/ tub on deck
- 2nd Helm Station
Electrical System
- Bonded electrical system with ground plate
- 48VDC, 230VAC Ship systems
- (2) Engine AGM gel type start batteries, 150 AH
- (1) 48 V House service batteries, 5000-amp hours
- Inverter/ charger Magnum 3KVA
- Circuit, breaker board, and fuses
- Interior/Exterior LED lights
- Hella Marine navigation and anchor lights
- Main distribution switchboard panels, AC/DC
- (2) Shore power connection 16 amp
- (2) Shore Power cords 32 amp
- 220 V Sockets/USB throughout the interior accommodation
- (6) 375 Walk-on solar panels
- Victron MPPT charger
- 9.5 KW Onan generator
- LED down lights
- Galvanic isolator
Safety Equipment
- Life raft 10 person
- Life jackets 11
- Life jacket horseshoe one
- Dan boy
- Cap size canister
- (4) Fire extinguishers
Fishing Equipment
- Bait station
- (6) SS rod holders
- Bait basin
- Small Live Bait tank in Fishing wall with seawater pump
Mooring and Anchor Equipment
- Anchor and winch 55 kg
- Lewmar 2000W winch
- Anchor roller and guide
- (8) Large fenders with ropes
- Anchor rope and chain
Structural Materials
- Hull bottom and sides in sandwich of GRP and PVC core (density 80/100 KG/m3)
- Main deck and deckhouse in Sandwich of GRP and PVC core (density 60 KG /M3)
- Hull lamination, Ampreg 23 epoxy resin
- Construction of Main laminates by infusion
- GRP Stiffeners laminated on PVC formers by infusion directly into the shell laminates
- Water-tight and structural bulkhead
- Independent, SS fuel tanks
- Independent freshwater tanks in stainless steel
- Gray and Black water tanks in PVC
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
