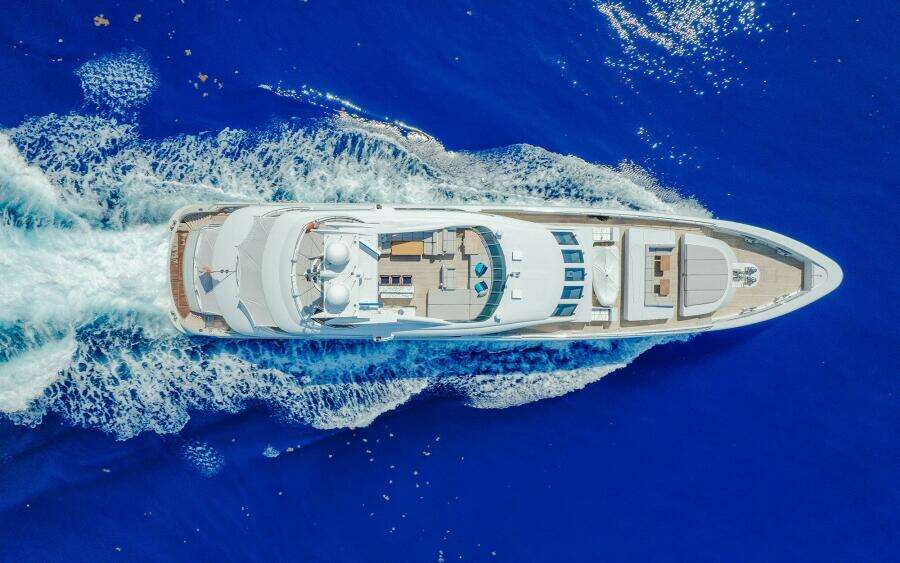

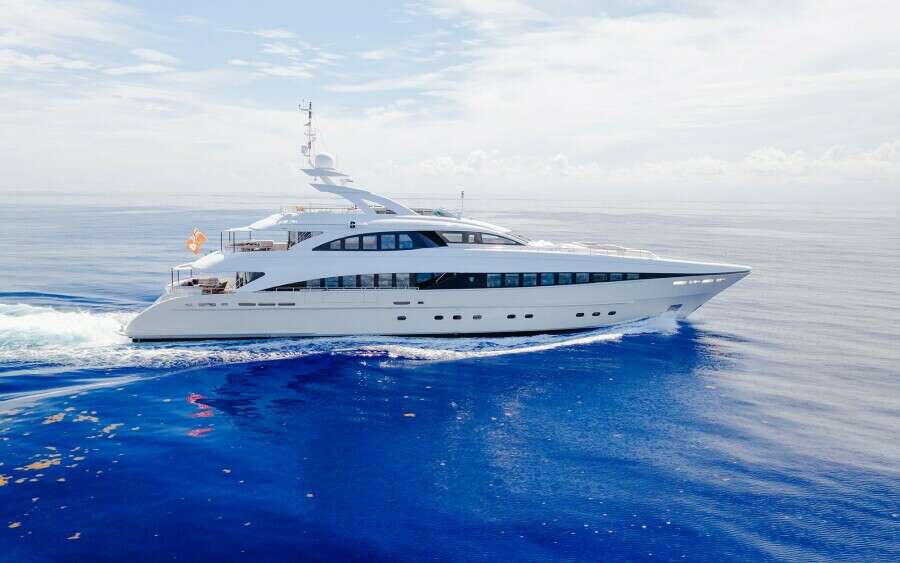

2011 Heesen Yachts 144' _{(43.89 m)}

Interior

Accommodations:

• SHARKFINN can accommodate up to 10 guests in 5 staterooms with 9 crew.
• An optional sixth cabin is located in the skylounge, featuring a hidden queen-size Murphy bed, allowing for a total of 12 guests when desired.

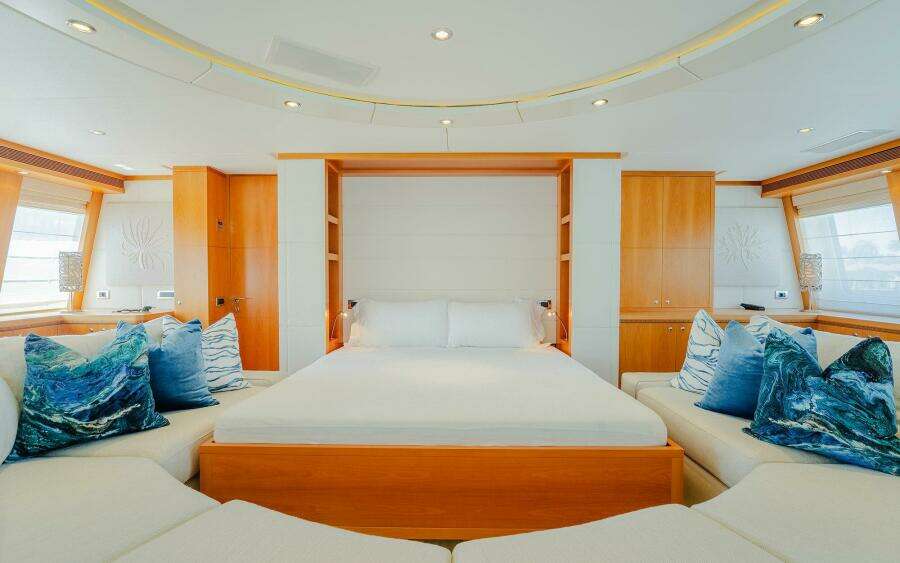

Owner's Suite:

• Main Deck Forward
• Full-Beam

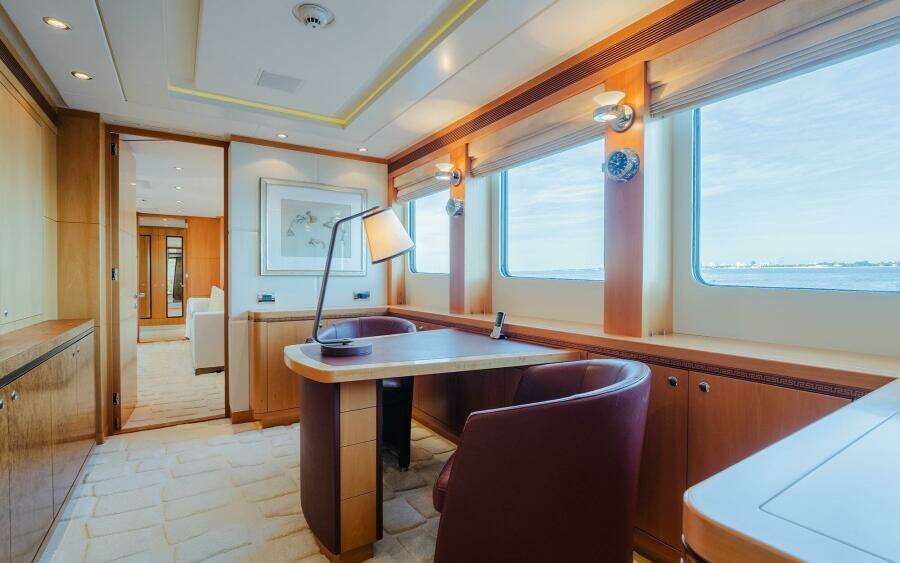

• Private Office

Guest Suites:

• Lower-Deck
• (2) VIP Suites

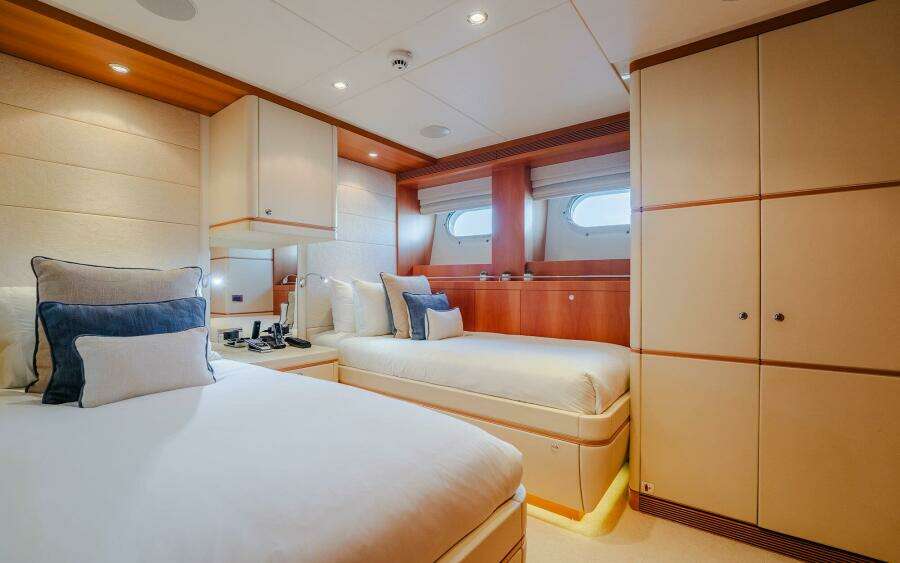

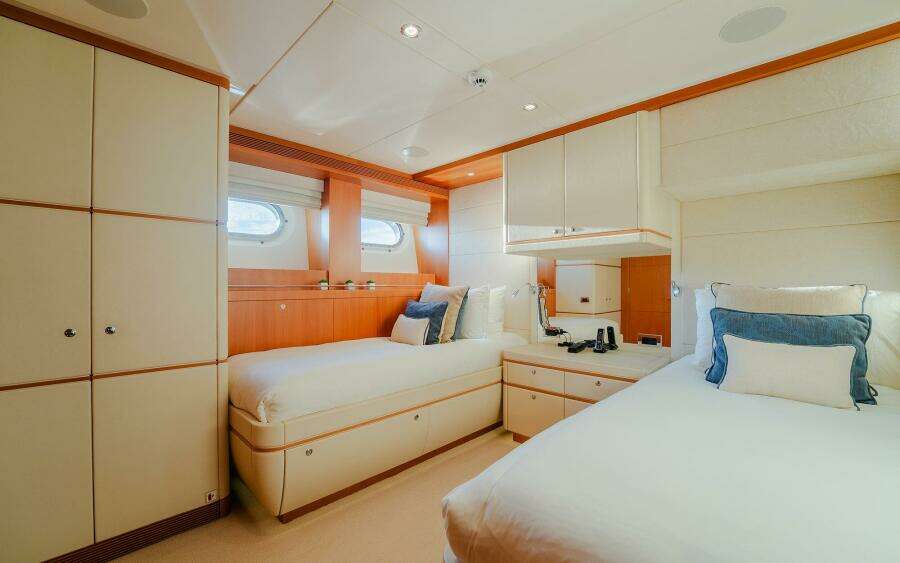

• (2) Twin Suites
• (1) Hidden Queen Murphy Bed in Skylounge to make 6th cabin

Social Areas:

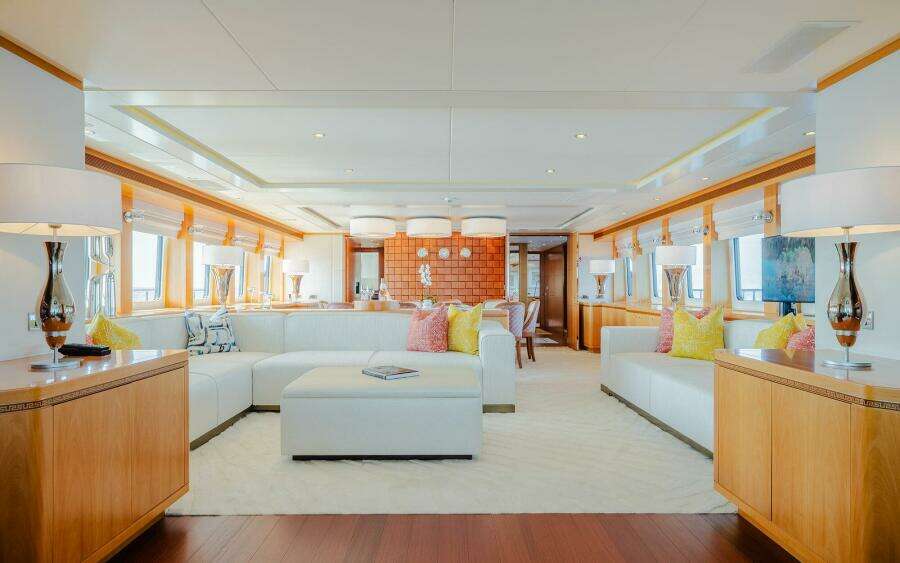

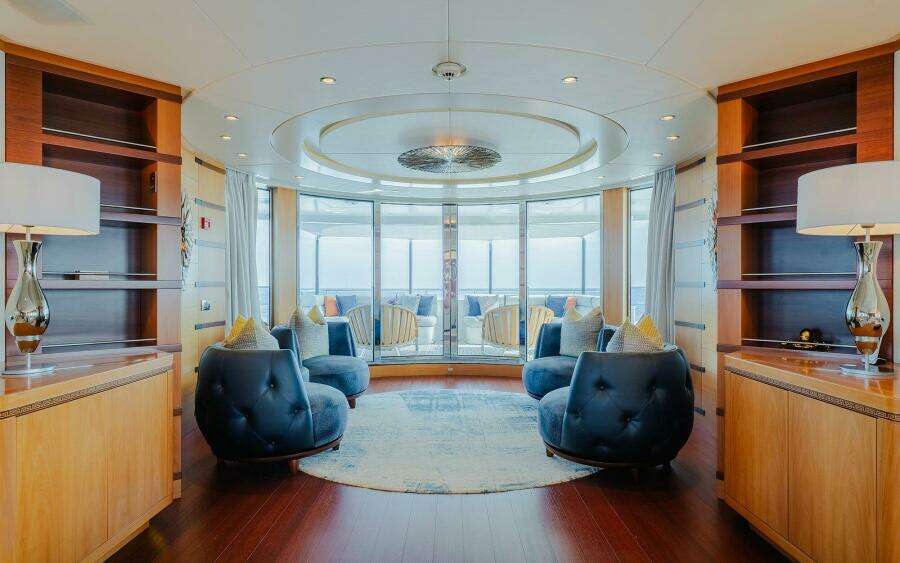

Main Salon:

• Spacious salon with additional lounge seating

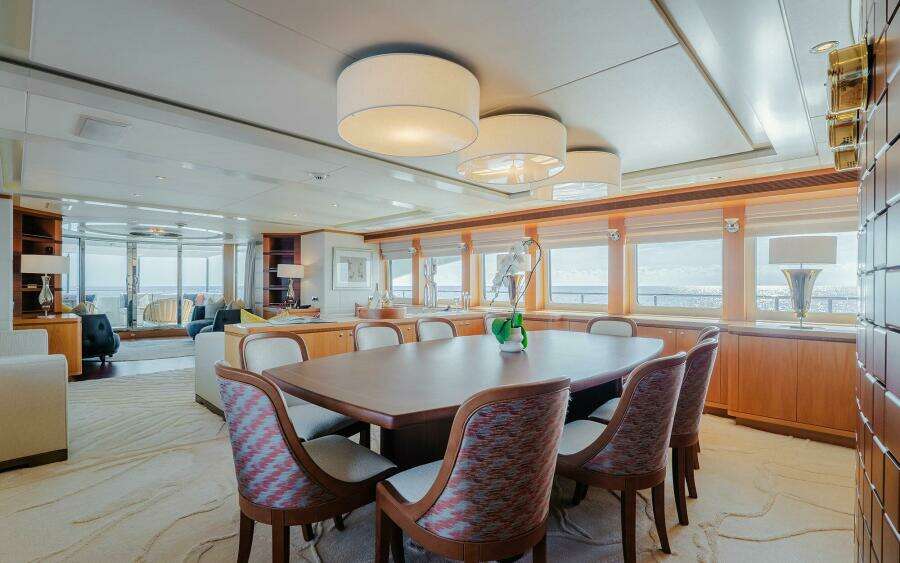

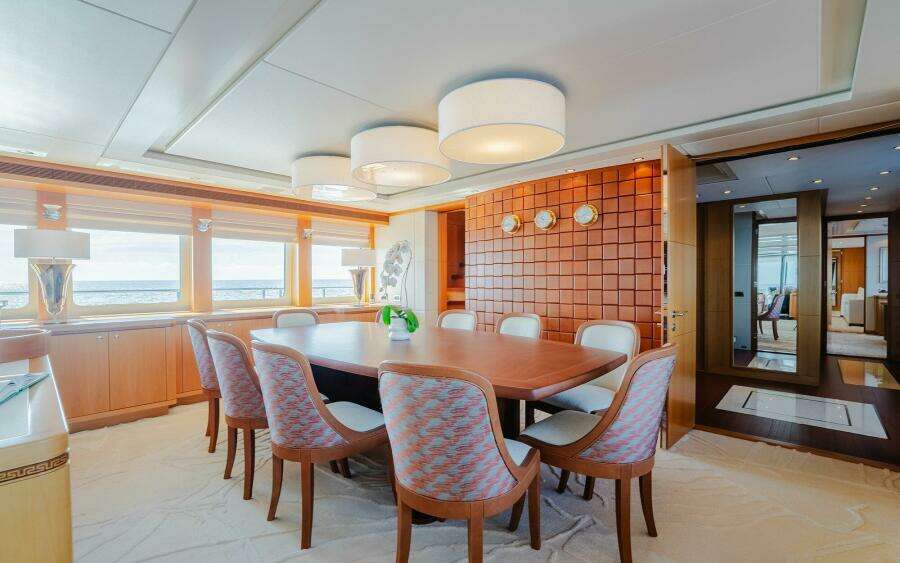

• Formal dining table for 10 guests
• Day Head
• Ample storage throughout

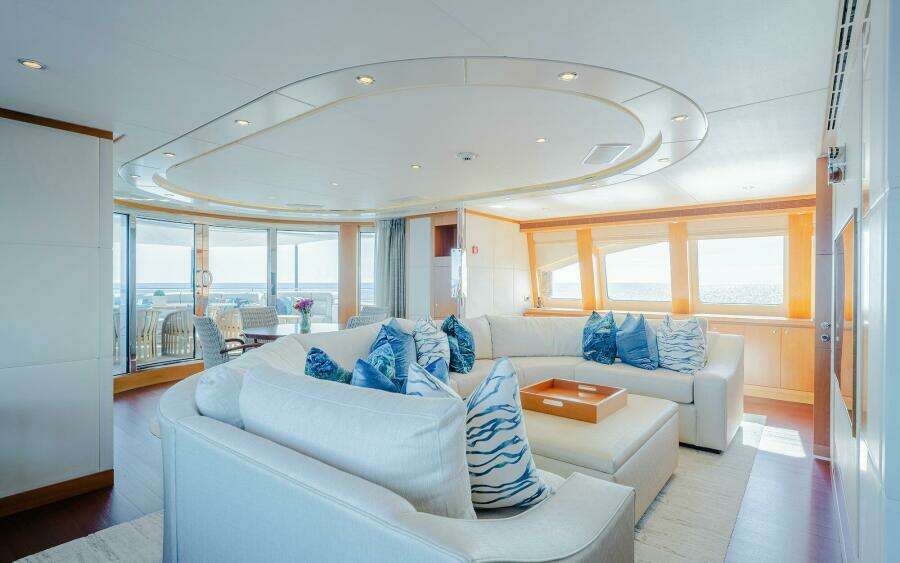

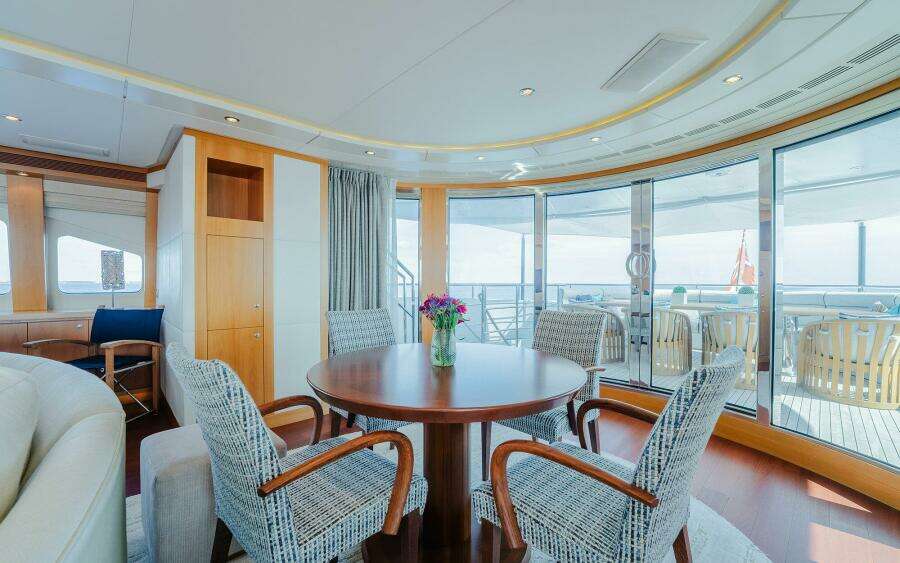

Sky Lounge:

• Large U-Sofa
• (1) Hidden Queen Murphy Bed with a full bathroom with shower
• Game Table

Exterior

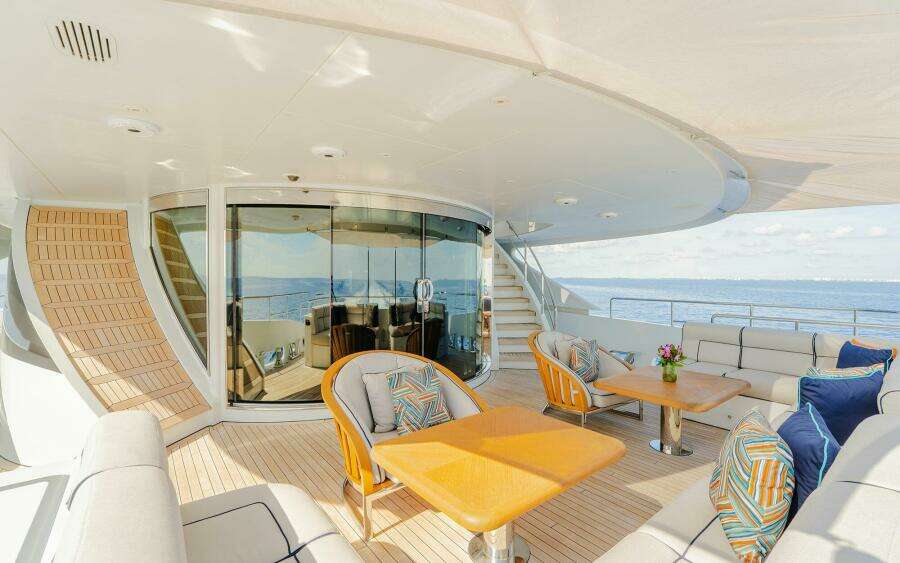

Main Deck Aft:

• Large aft deck lounge with two separate teak tables

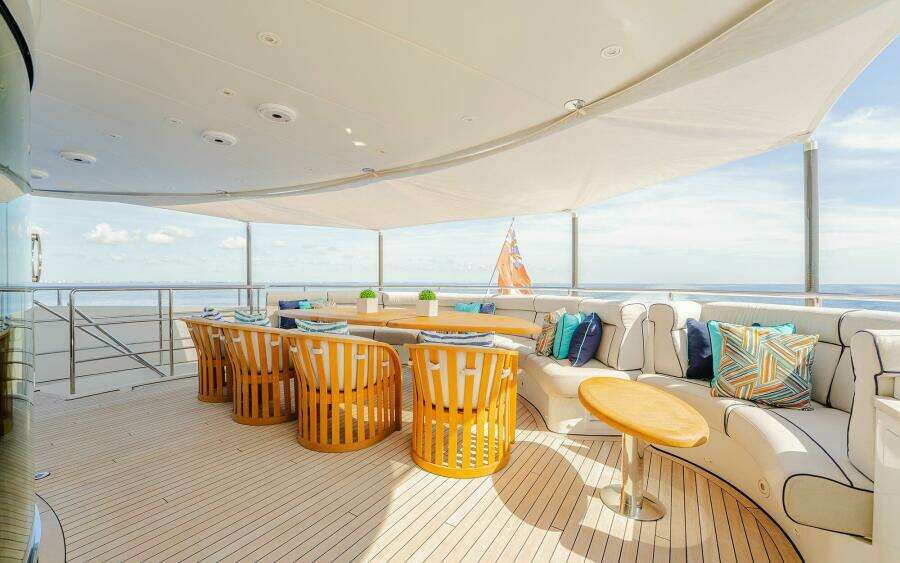

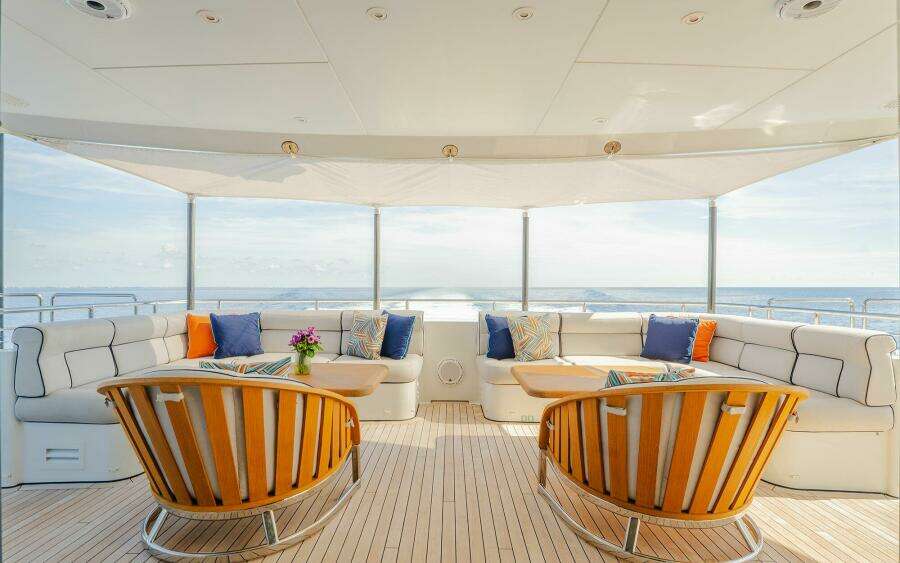

Bridge Deck Aft:

• Exterior aft deck seating area with shading option
• Exterior dining table for up to 12 guests with large oval table and semi-circle sofas

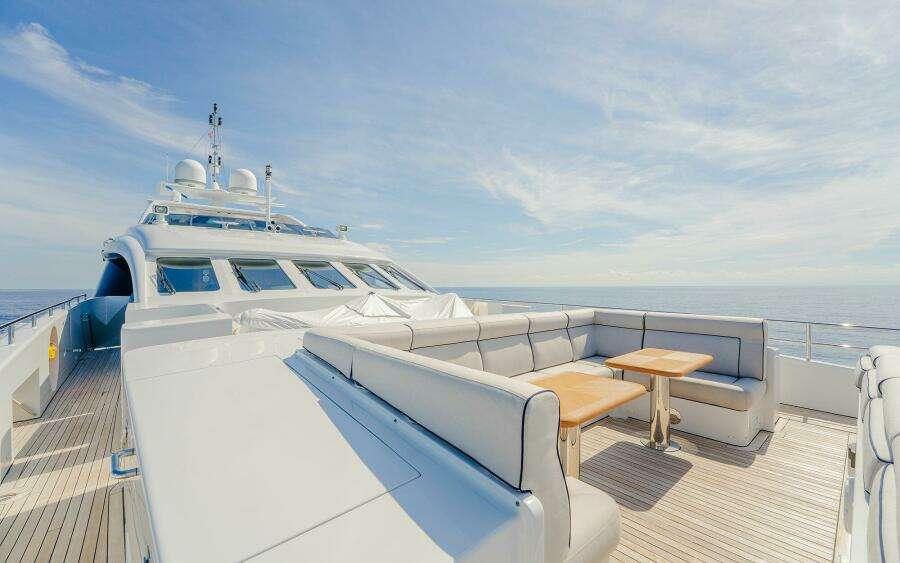

Forward Bridge Deck:

• U-Shaped sofa and two seperate teak tables
• Large "bunny pad" for sun lounging
• Hidden workshop and storage lockers on foredeck

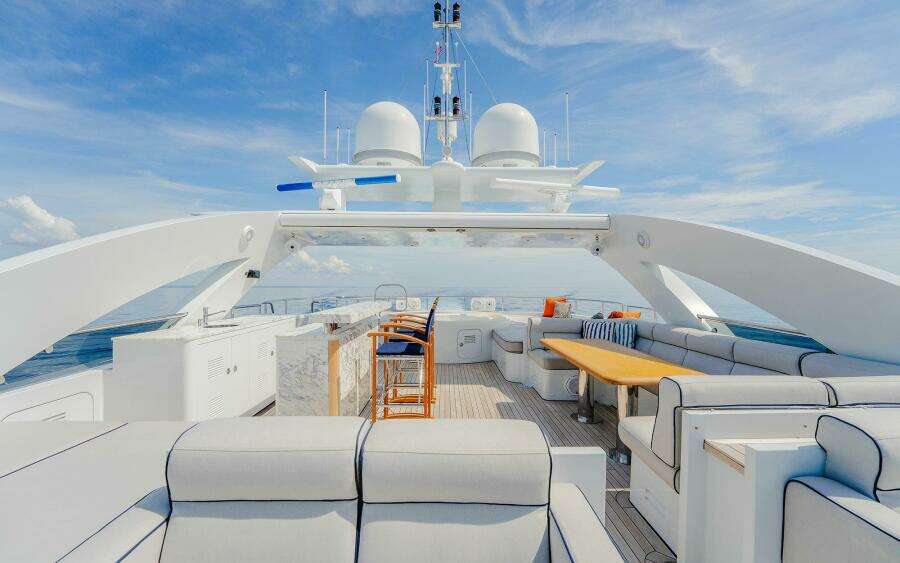

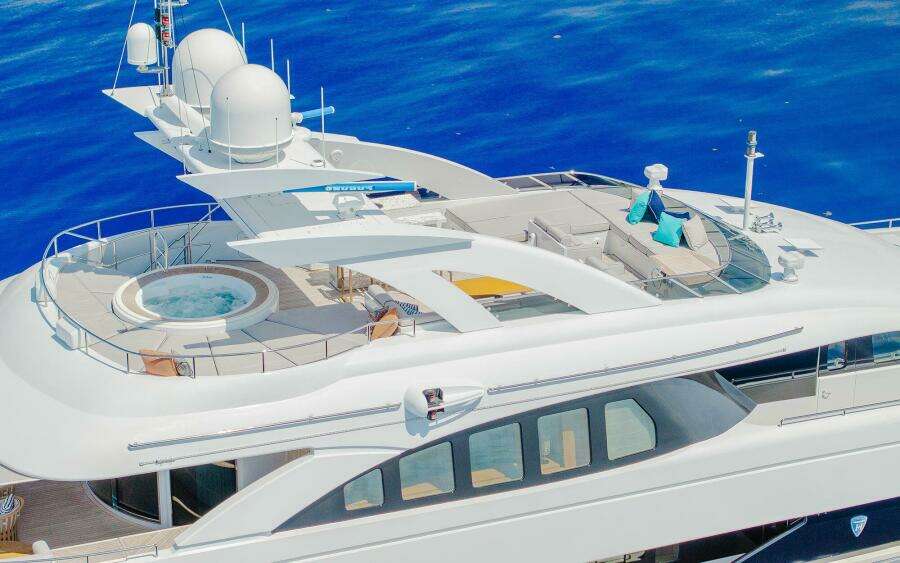

Sun Deck:

• Dining table for up to 8-10 guests
• Full wet-bar with additional bar seating

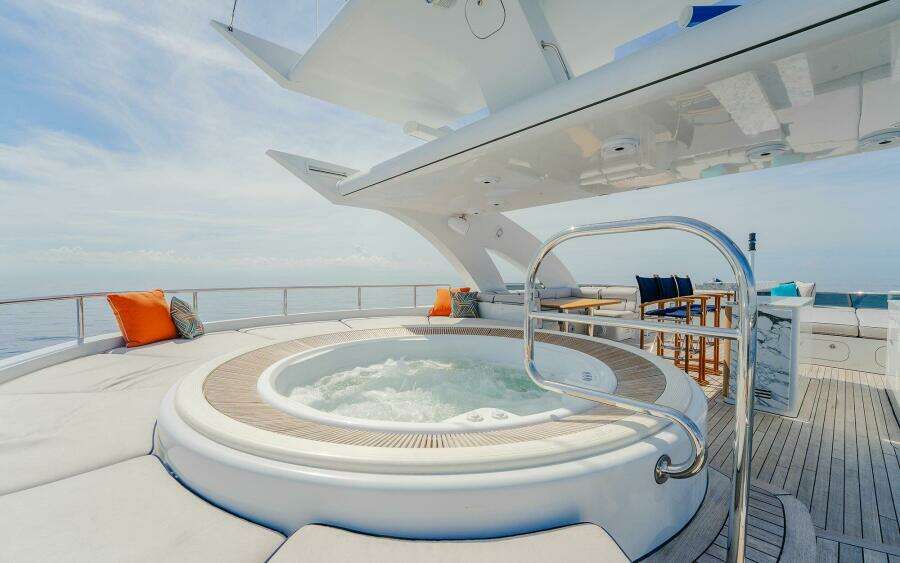

• Jacuzzi 1200L/317 Gal with hydromassage
• Sunbathing set-up throughout
• Helm Station

Mechanical Equipment

• (2) MTU 16V4000 M90 diesel engines, 3.647hp (2,720kW at 2,100 RPM)
• Engine hours: 3,528
• Gearboxes ZF, model BW 7550 P (PTO axial, vertically off-set)
• Direct Drive
• (2) Schaffran propellors - five 1,380 mm blades
• (2) 99 kW John Deere 50 Hz generators
• Electricity Three phase, 230/400 Volts, 3 wire, 1,500 rpm
• Batteries 5 in total, various types, GMDSS, emergency; Charges 8 in total, make Mass, different types
• (2) Water Maker HEM type 25/1400, new membranes in 2018
• Toilet System Jet vacuum system
• Sewage Treatment Hamann A6
• Fuel Separator Westfalia type OSD 2-02-137
• Stabilizer VT Naiad Marine system 820, stabilization at anchor and underway
• Bow Thruster HRP 1000 – 80 kW hydraulically driven
• Retractable stern thruster

Shore Power:

• 400 Volts, 3 phase

Hydraulics:

• (1) Main unit for transom door & gangway, side folding ladder
• (1) Unit for fore-crane operation
• (1) Unit for steering system

Air Conditioning:

• Heinen & Hopman
• (2) Chiller Units
• (2) Sea-water pumps
• Temperature controlled by thermostats fitted in each room

Ventilation:

• (2) Ventilation ribs on both sides of the engine room
• (2) ventilators/extractors on the starboard

Water System:

• (2) Electric hydrophor Lowara
• UVA treatment installation
• Silver ionizing system
• Carbon filter
• Softener
• (2) Electric boilers 200L each

Navigation and Communication Equipment

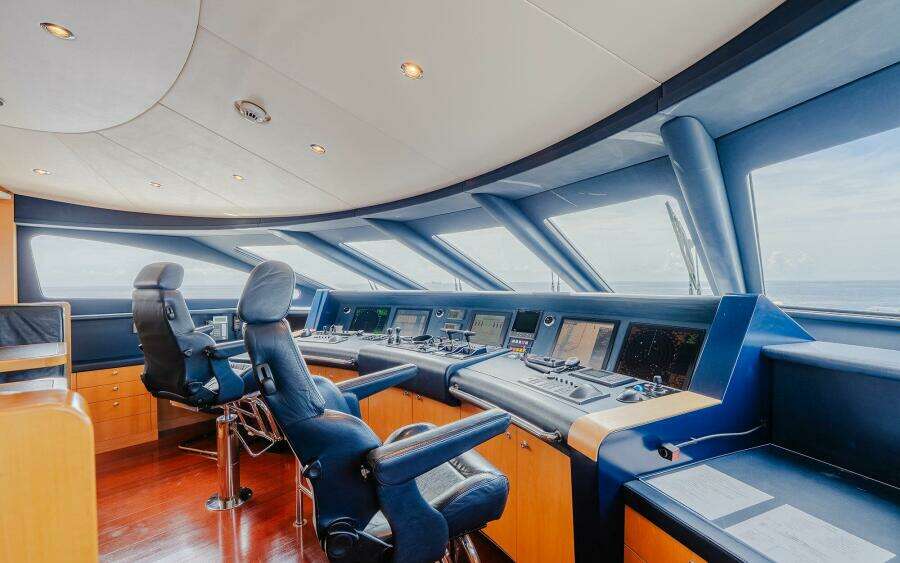

Navigation Equipment:

• Radar Furuno Black box x band radar, 12 kW with 6,5 scanner, type FAR-2117BB
• Compasses Furuno Satellite Compass/GPS; Navigat X MK1 C.Plath Gyrocompass
• GPS MX 420 Navigation System
• Autopilot Navipilot 4000
• DGPS Receiver AP NAVIGATOR MK12
• AIS Furuno Universal AIS FA - 150
• Navtex Furuno Navtex NX-700
• Depth Sounder Furuno dual frequency color video, type FCV-1100L
• Wind/Speed Log 3 x B&G Hydra-2000
• Electronic Chart Transas NS-3000
• BNWAS Watchkeeper
• Weather Station 4 x Furuno RD-30 repeater crew mess/captain cabin/engineer cabin/garage
• Ships Computer Network Heinen & Hopman
• Fog Horn Kahlenberg model T1
• Searchlights 2 x ARC Electronics RCL-600
• Windscreen Wipers 5 x marine type windscreen wipers Hollex 235 KS

Communication Equipment:

• Satcom SeaTel
• Inmarsat-C Sailor TT-3606E
• Loudhailer 1 x Icom IC-M421 simplex/duplex VHF crew mess
• Raytheon RAY-430
• AV System Plex Media Server with Philips Pronto control panels
• Telephone System 20 x portable phones Gigaset

Monitoring Equipment:

• Main monitoring system in wheelhouse
• (3) Fixed cameras, 1 x each side & 1 x aft
• (1) Motorized camera in engine room
• (1) Night vision camera mounted on Mast NUTi

VHF Equipment:

• (2) Handheld VHF radio Jotron TR20
• (1) Sailor simplex/semi-duplex RT-5022
• (1) Sailor duplex VHF station RT-4722
• (2) Icom simplex/semi-duplex VHF station for both wing stations IC-M59

Internet:

• VSAT Seatel
• (1) D-link DWR-921 modem 4G Mobile Internet
• (10) Internet signal booster throughout the boat

Deck Equipment

• Anchor Capstan 2 x electric stainless steel Staalart CAS23-17,5.ED
• Bollards 8 x stainless steel bollards on the main deck, 2 x on the swim platform
• Side Boarding Ladder 1 x electric/hydraulic operated, stainless steel and wood
• Swim Ladder 1 x Stainless steel swim ladder
• Gangway Hydromar, 5,95 meters length, hydraulic
• Elevator 1 x Lodige Dumbwaiter from main deck to upper deck

Anchor Chains:

• (2) 150 m chains Ø 17,5 mm
• Control box for 230V/200VAC 50 Hz 3ph-24VDC for anchor winch dual direction dual speed
• (2) Stainless steel chain stoppers mounted on baseplate of the anchor winch
• (2) Tensionless square chain roller
• (2) Stainless steel devil claws

Crain/Winches:

• (1) Hydraulic foredeck crane Hydromar

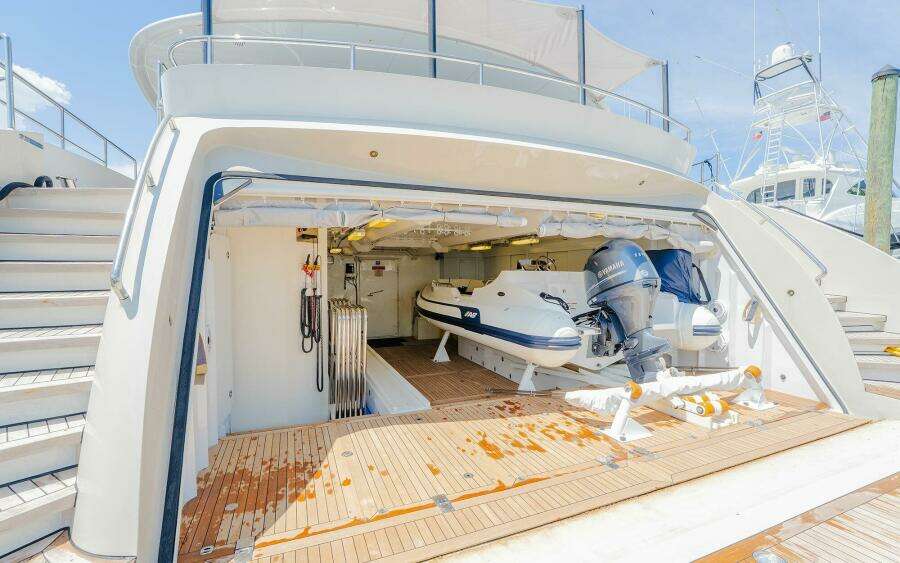

• (2) Winches for tender in the garage

Galley and Pantry Equipment

Galley & Pantry Equipment:

• Gaggenau oven/grill
• GIGA ceramic cooktop
• GIGA professional oven
• GIGA Tapenyaki Griddle
• Miele dishwasher
• (2) Foster Gastro refrigerator 600 litres (compressor in engine room)
• Foster Gastro freezer 600 litres (compressor in engine room)
• Liebher Comfort refrigerator 80 litres
• Eurocave wine cooler for 175 bottles
• Hoshizaki Ice Maker

Laundry Equipment:

• (2) Miele washer professional
• (2) Miele dryer professional

Other Equipment:

• (2) Frigonautica fridge in Master cabin and lowerdeck desk corridor
• GAMKO professional bar fridge 150 ltrs in Sky lounge
• Hoshizaki icemaker in Sky lounge bar
• Frigonautica fridge on the sundeck
• Hoshizaki icemaker on the sundeck

Safety and Fire Protection

Refit Log

Refit 2023:

• Repaired fire alarm system
• Tanks - removed all oils and fuel and cleaned
• Replacing of all pitted tank plating as required (and growing)
• Replaced NAIAD stabilizer seals
• Replaced rudder bearings and shafts
• Replaced galley flooring
• Removal of refrigerators and freezer
• Replacement of new air handlers in skylounge

Refit 2022:

• Bottom painted
• Replaced all the batteries
• Rebuilt starboard Gen Motor
• Rebuilt port Gen 368 hours since rebuild at 10,379 hours
• Replaced Tool chests
• Installed onboard monitoring system
• Replaced Starboard Radar
• Replaced KVH antenna
• Replaced VSAT antenna
• Replaced Flybridge monitor
• Installed new Nav software
• Replaced Furuno Sounder
• Replaced pilot house VHF Radio
• Replaced Nav computer and mouses
• Replaced GPS
• Installed K4 antenna
• Replaced Navigation Gyro compass
• Installed Dish Receivers
• Installed K4 TV remotes
• Replaced Main Salon TV
• Replaced Crew quarters bedding
• Replaced Interior & Exterior cushions
• Replaced exterior covers
• Replaced exterior sun screens
• Installed 3 remote Fusion stereo systems
• Repaired Ice Makers
• Replaced Hull/fuel tank plating
• Repaired oil leaks on Naiad system
• Repaired A/C
• Repaired Hamans system
• Repaired Fuel polisher
• Repaired and descaled black water lines
• Cleaned and repaired all fuel tanks
• Cleaned Black water tank
• Replaced crew quarters carpet
• Cleaned all a/c ducts
• Replaced hydraulic steering lines
• Repaired Stern thruster
• Replaced 3 air handlers
• Repaired Starboard Anchor capstan
• Repaired Garage door seal
• Replaced Life raft release cables
• Replaced Life Rings/Lights
• Replaced some fire equipment
• Updated Safety plan
• Conducted Converter Maintenance/Repair
• Replaced davit cable
• Repaired Freezer/Refrigerator
• Replaced deck lines
• Repaired horn
• Repaired crew dishwasher
• Repaired washers
• New Injectors on both engines
• Wax and Buff exterior

Refit 2018:

• Fully new paint hull
• Fully new paint superstructure
• Teak decks renewed
• Change deck lights to 120 dots LEDs
• PLEX media server installation
• New Gigaset phones
• All new TVs (Samsung LED Full HD)
• New audio and subwoofers installed on the sun deck
• Water pumps replacement
• New water purifying system: silver water ionizer, carbon filter, water softener
• 12 x bilge drying system valves change
• New emergency bilge pump
• Water makers serviced
• New compressors for Lowara freezer
• New freshwater pumps
• New sound system installation (JL audio sound and bass)
• New awning added to the sundeck (extending up to 2.7 meters)
• Exterior furniture re-upholstered with Sunbrella fabric
• New teak exterior armchairs with Sunbrella cushions
• New marble tables at the bar on the sun deck
• All new carpets made by silk, wool & bamboo fibers (by Oliver Treutilein, Germany)
• New Italian custom-made furniture by Ludovica Masceroni (sofas in salon and master bedroom)
• New lamps by Ludovica Masceroni
• New custom-made wall panels in salon, master bedroom and guest cabins
• Chemical cleaning of curtains and mattresses every year
• Marble polishing in all bathrooms
• New furniture at WC and showers
