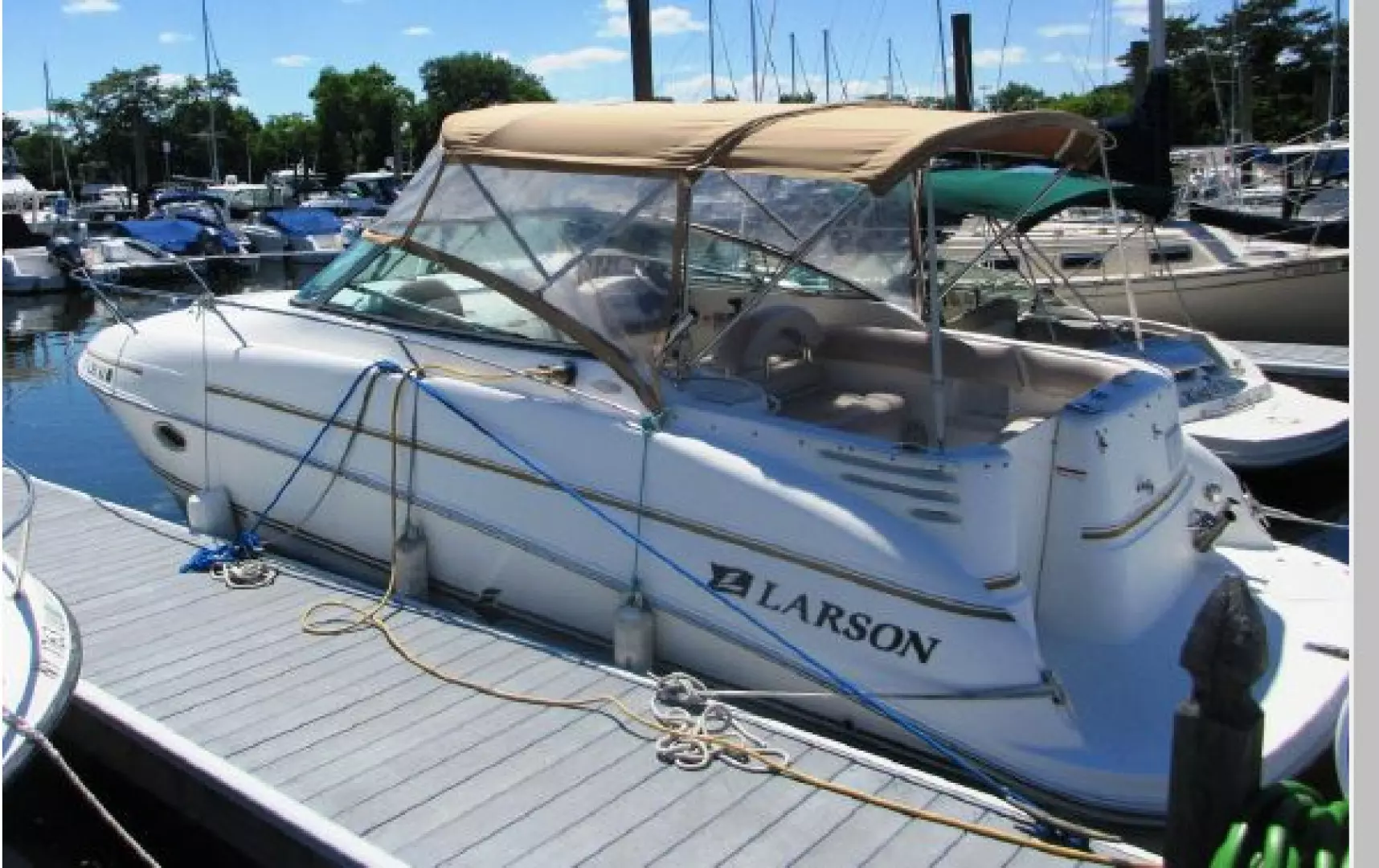

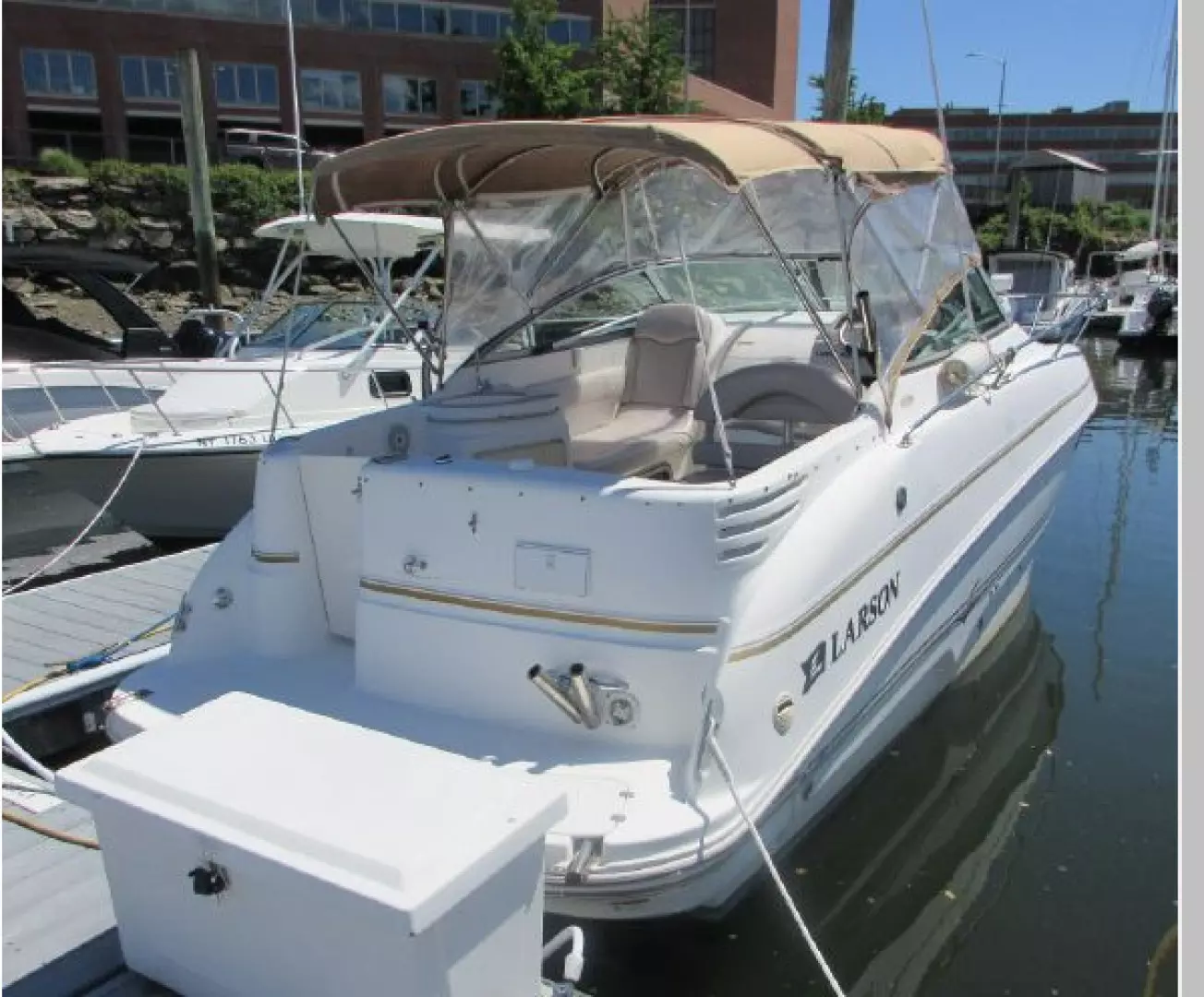

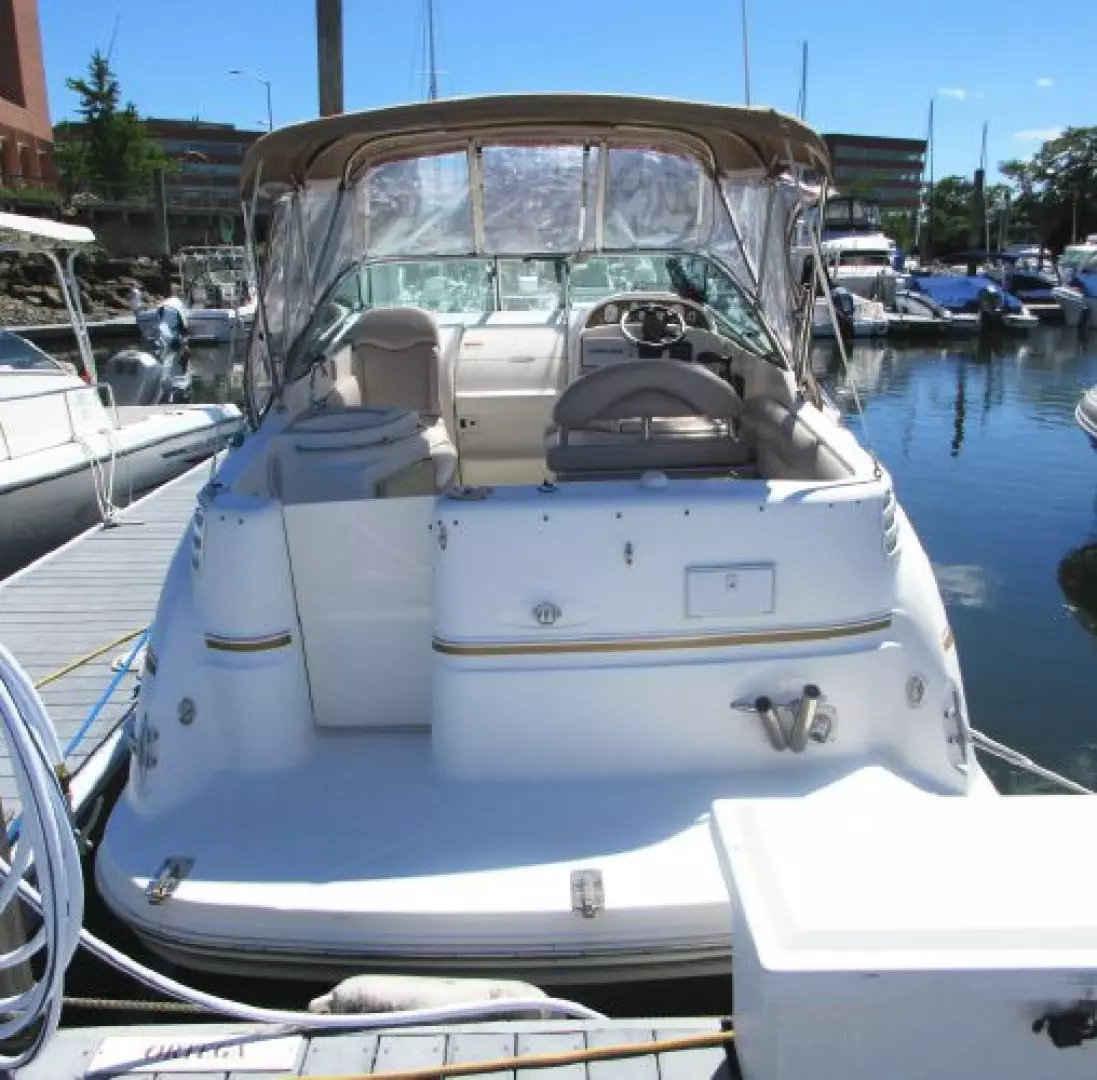

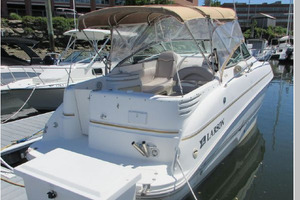

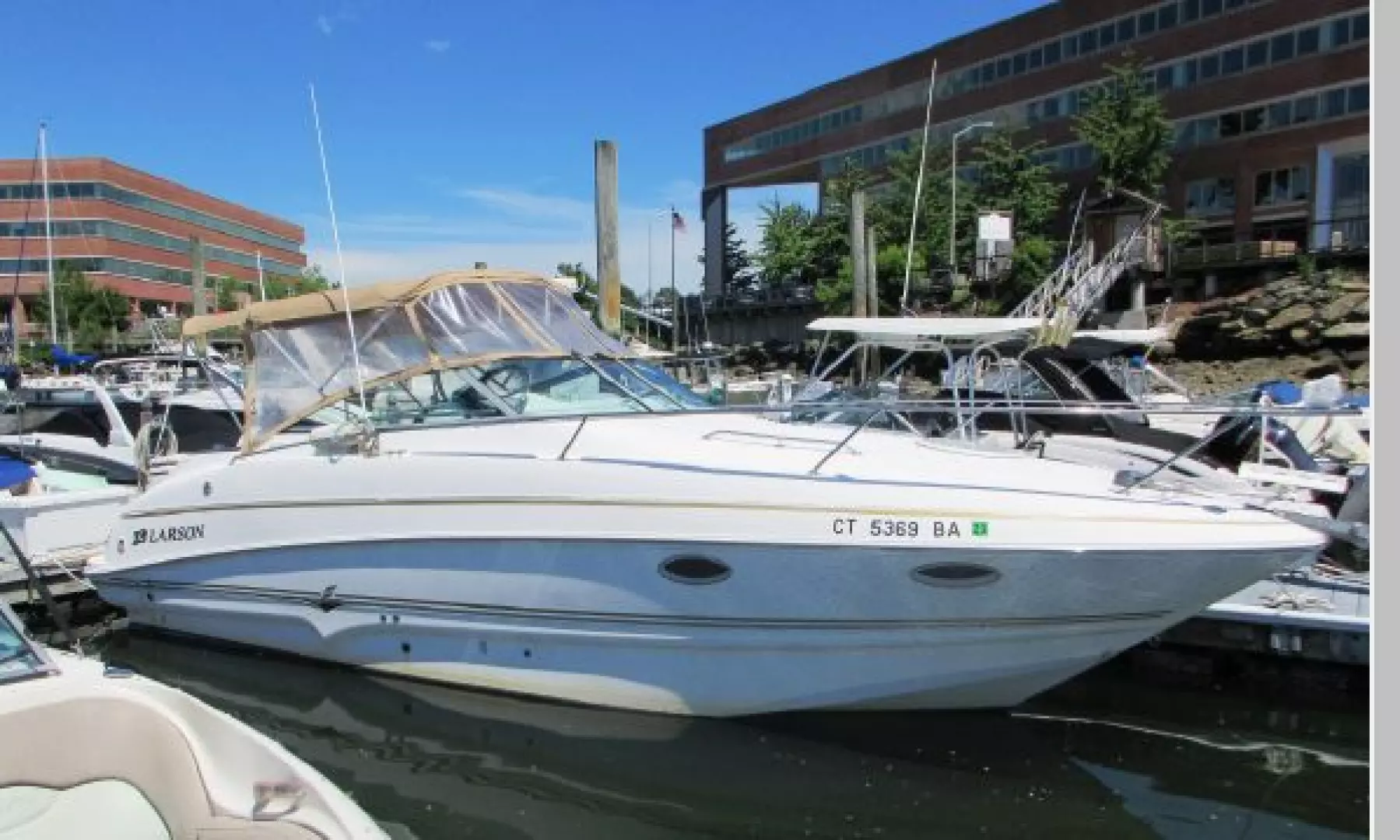

2005 Larson 28' _{(8.53 m)} 274

Overview

Hull, Deck & Cockpit

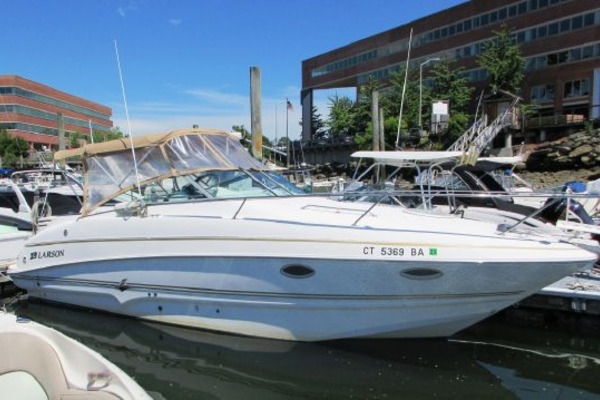

Hull

The Cabrio 274 has the LARSON BOATS proprietary DUO DELTA-CONIC notched hull underbody platform that provides, and as advertised, improved lift and results in a better top end speed, sea-keeping ability & ride comfort as well.

WHITE Topsides Gelcoat finish

SANDBAR Gold / Brown accent striping for the hull

(4) Opening ports

Swim platform w/ swim ladder, (4) step, stainless steel (note: Factory Option)

BLACK Boot-top

BLACK Bottom paint

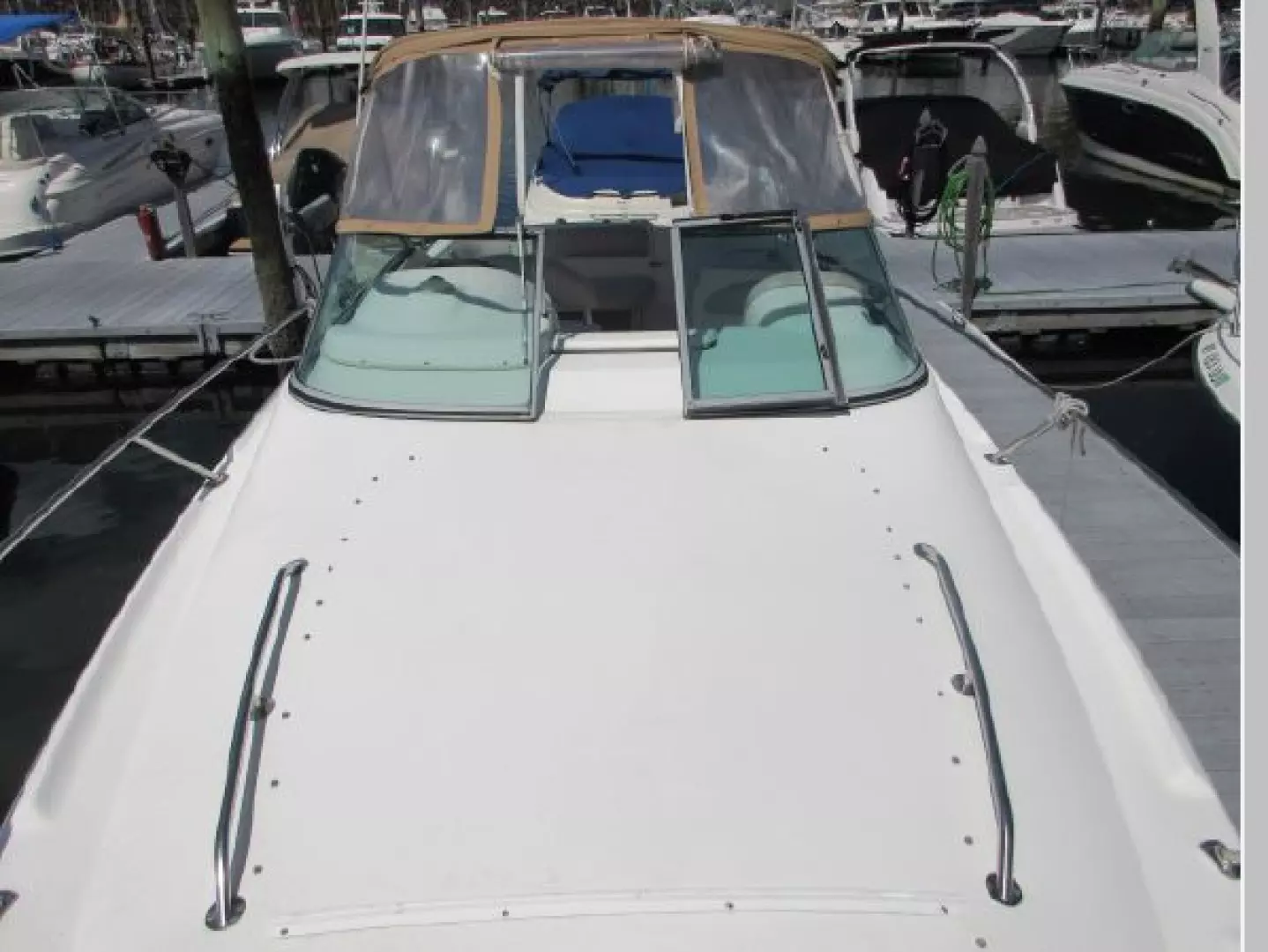

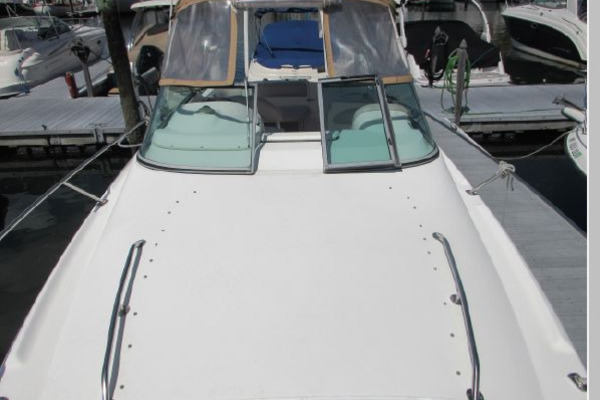

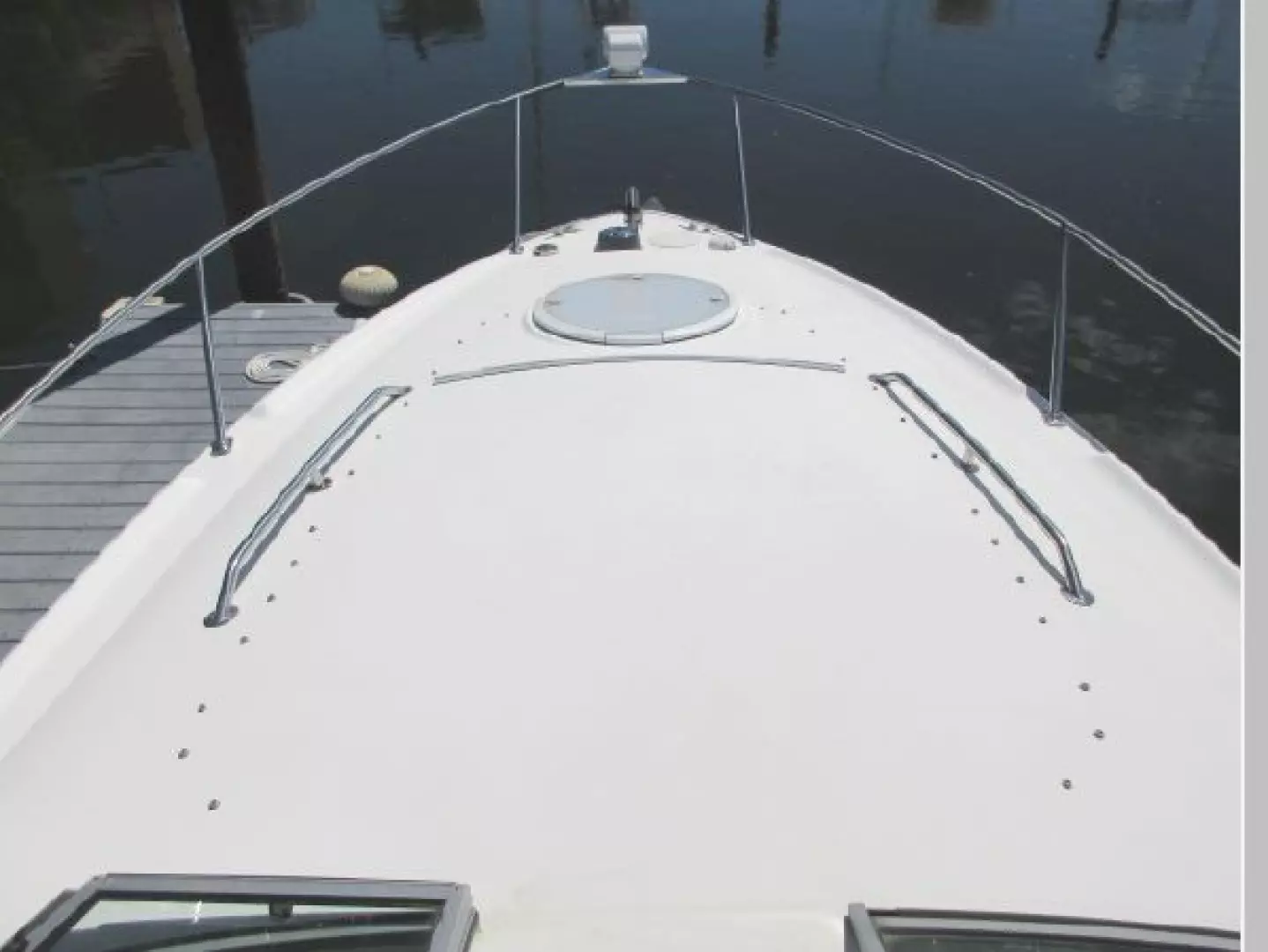

Deck

WHITE Gelcoat finish

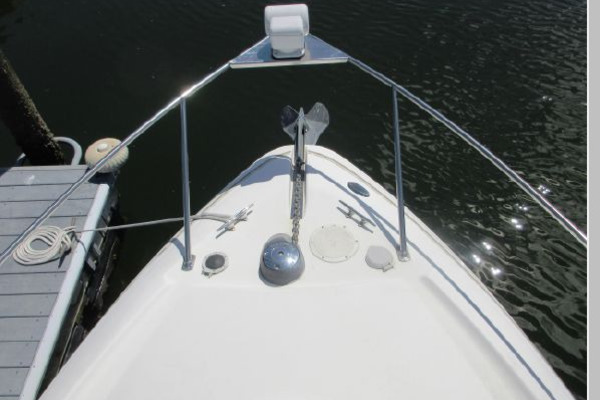

Bow pulpit, stainless steel

Safety rails (note: extend aft to Cockpit)

(6) Deck mooring line cleats, stainless steel

Deck hatch, BOMAR, opening

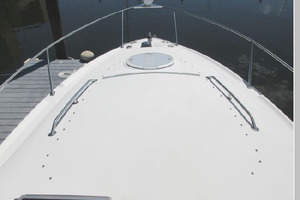

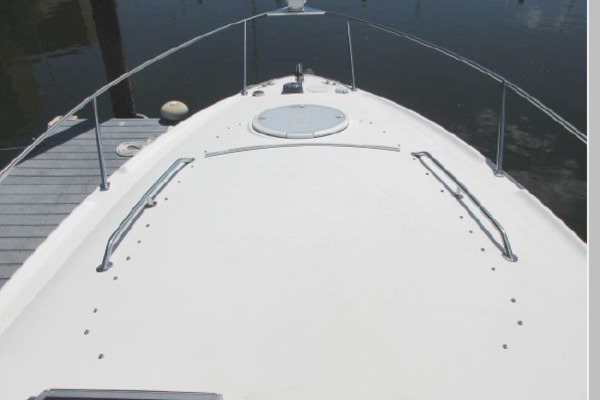

Sunpad area on Foredeck w/ (2) grab rails, stainless steel

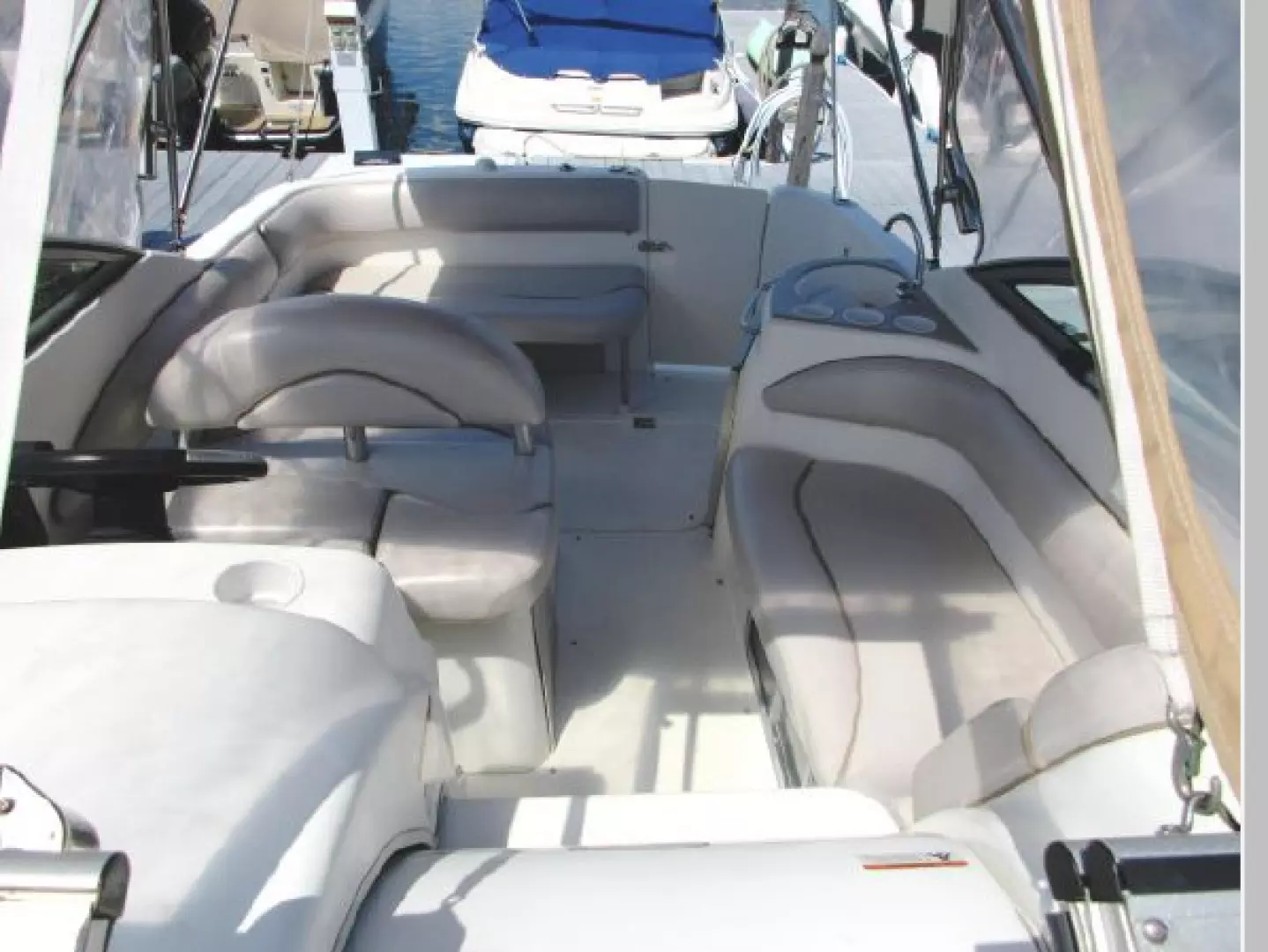

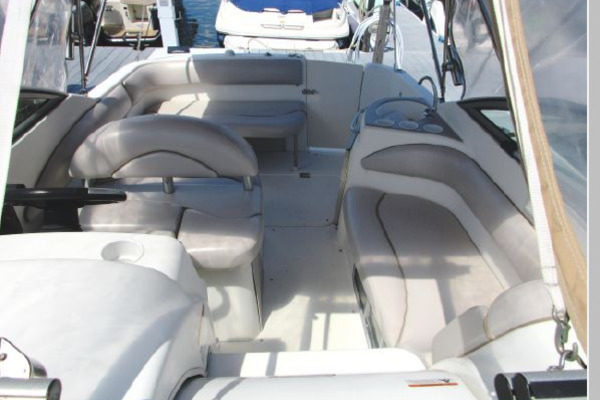

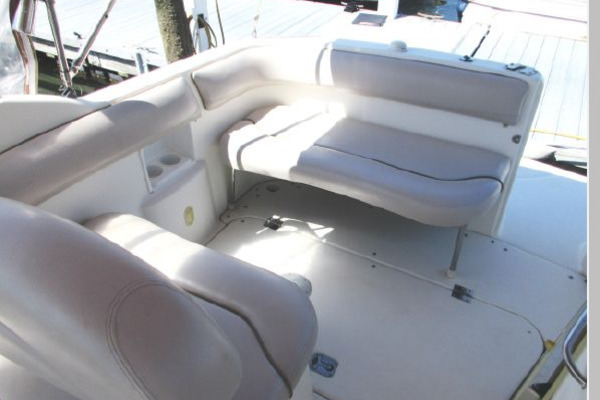

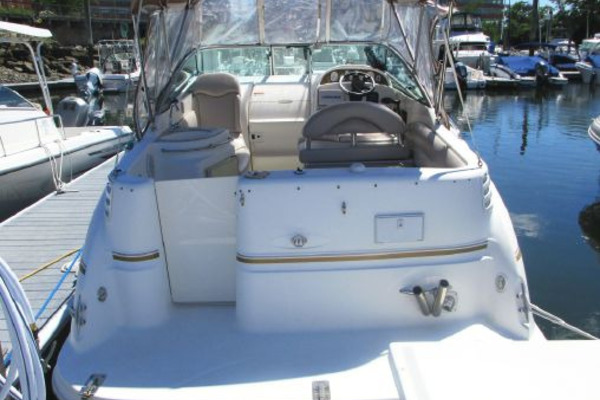

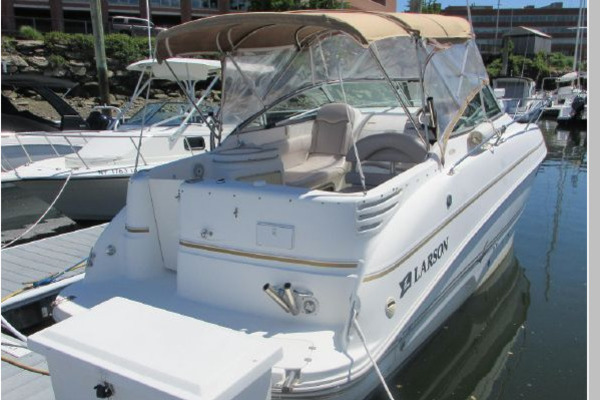

Cockpit

The Cockpit cushions .. including those for the Helm Station .. were all replaced in 2016 with Beige Leatherette cushions throughout.

WHITE Gelcoat finish

Access door, port side aft

Swim platform w/ integrated swim ladder (note: Factory Option)

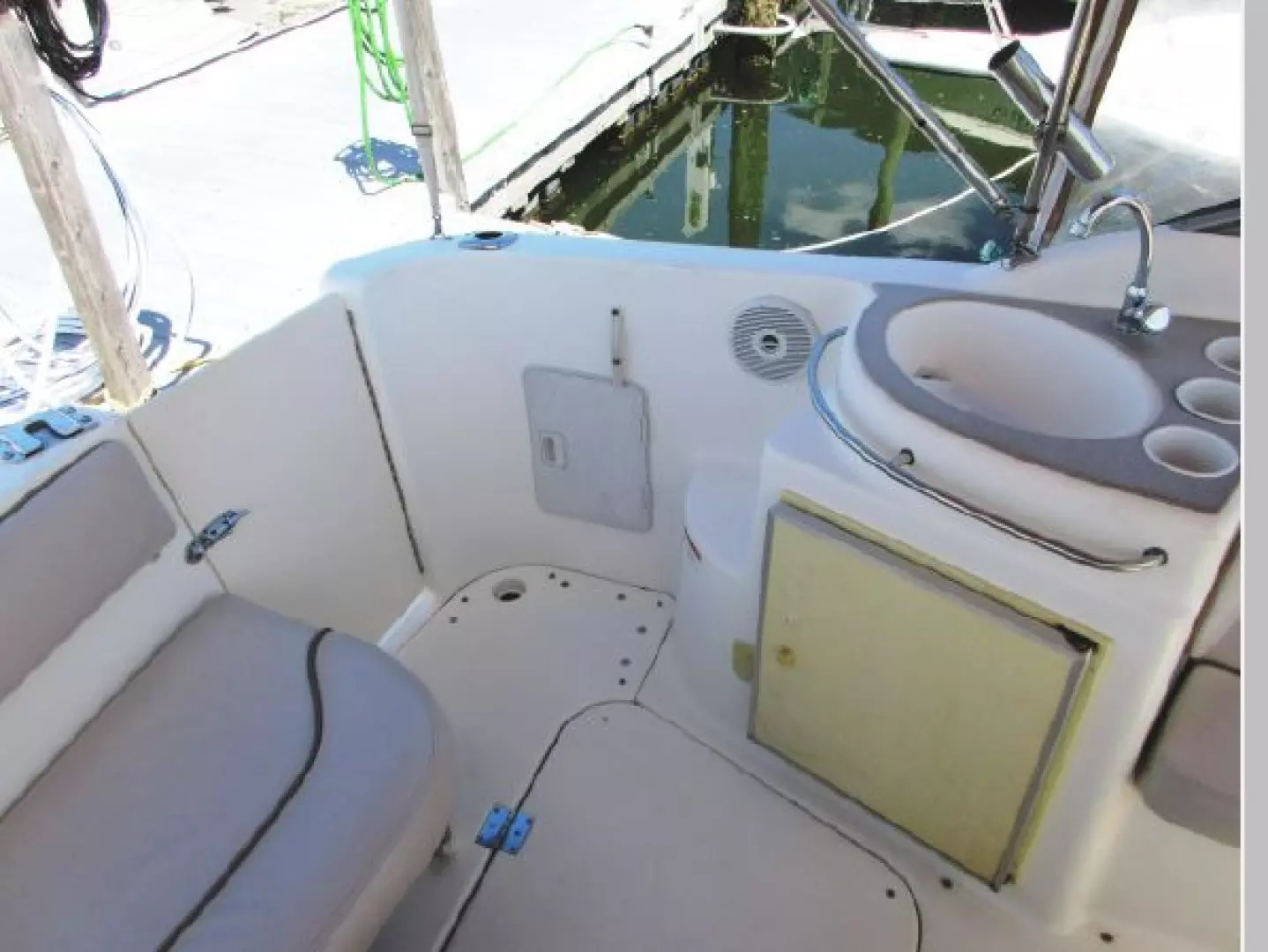

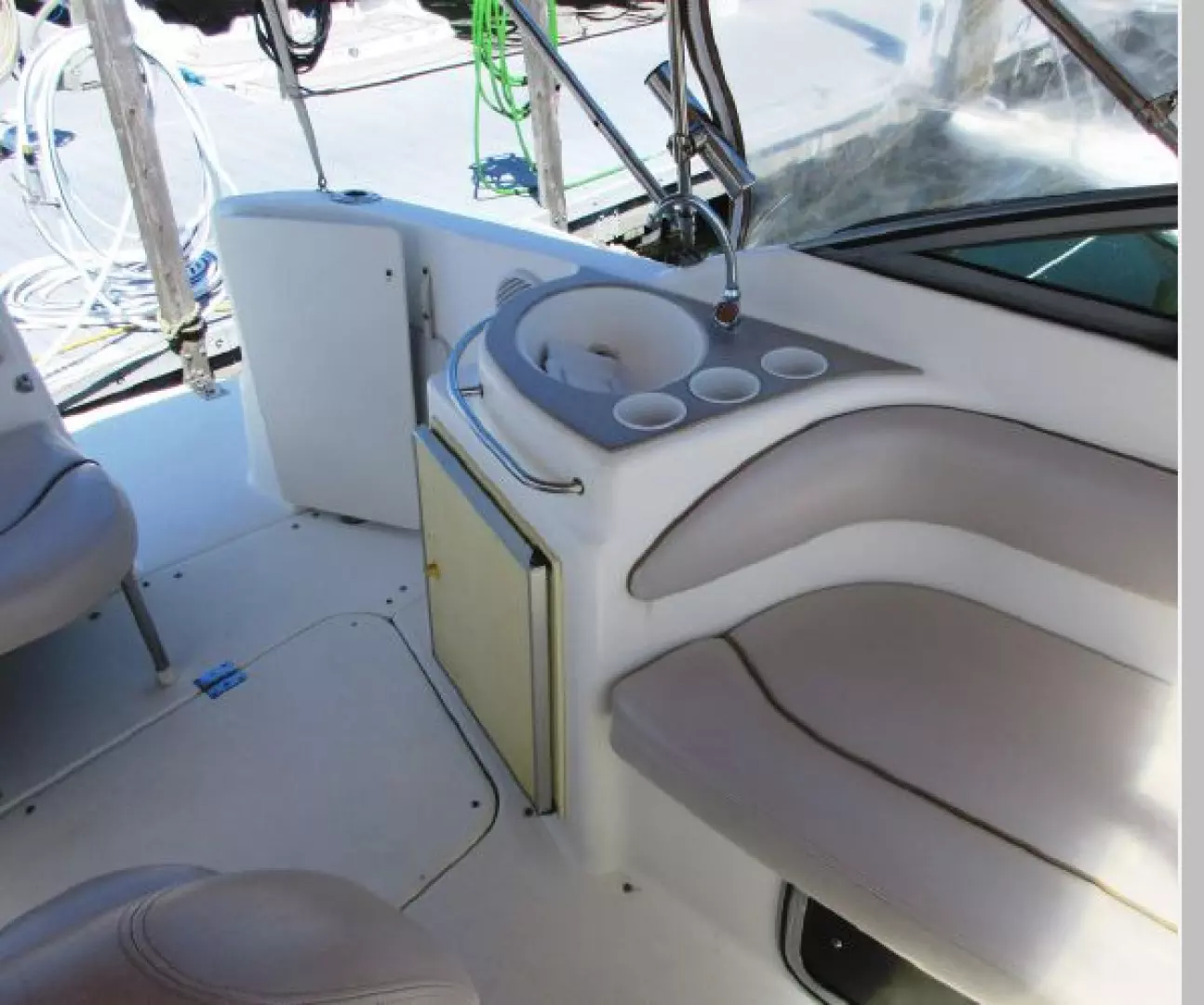

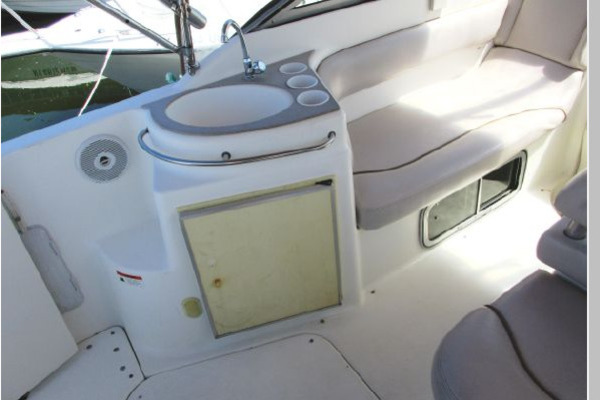

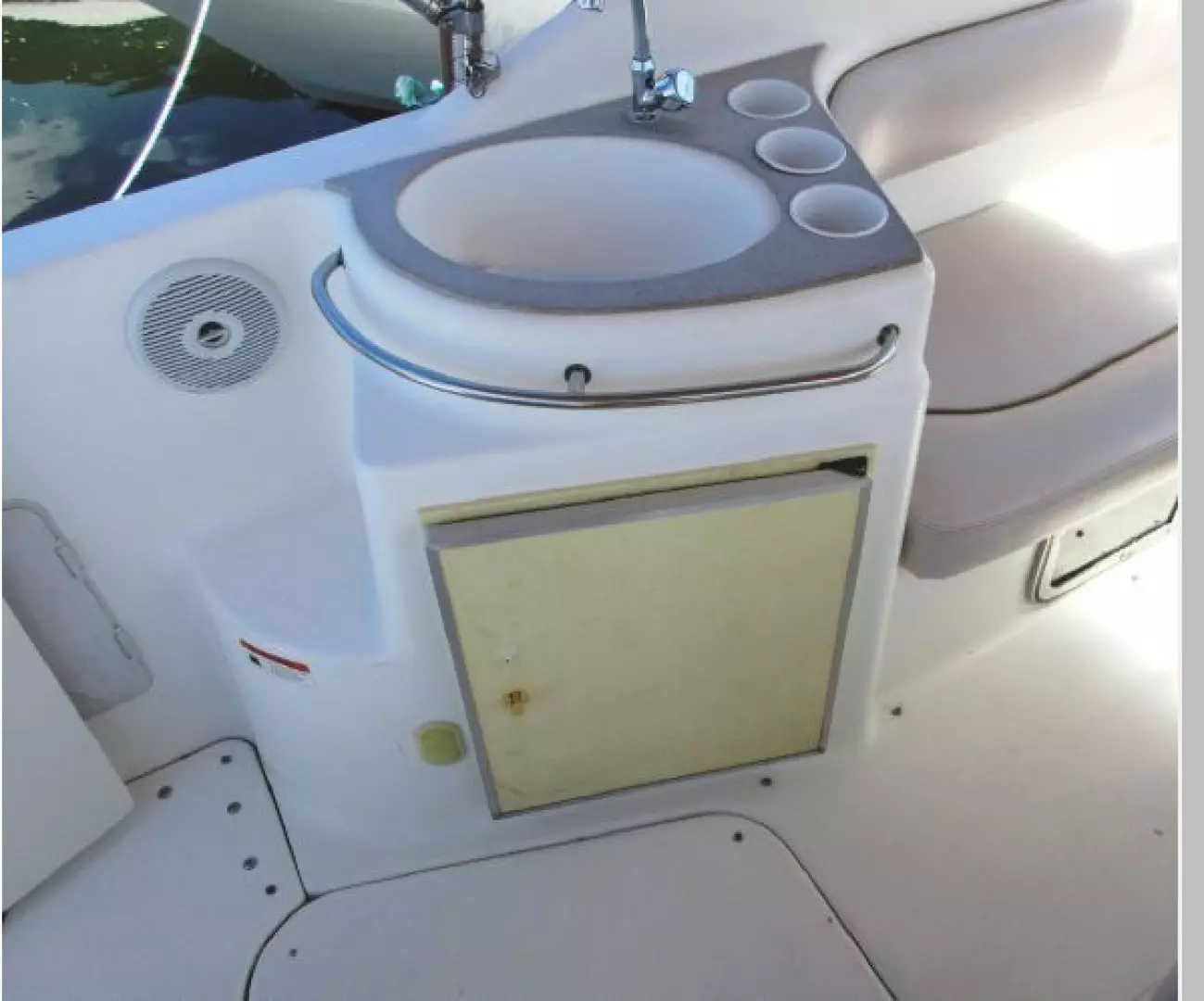

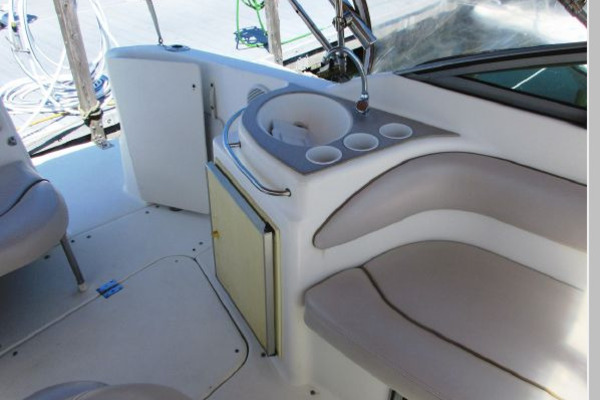

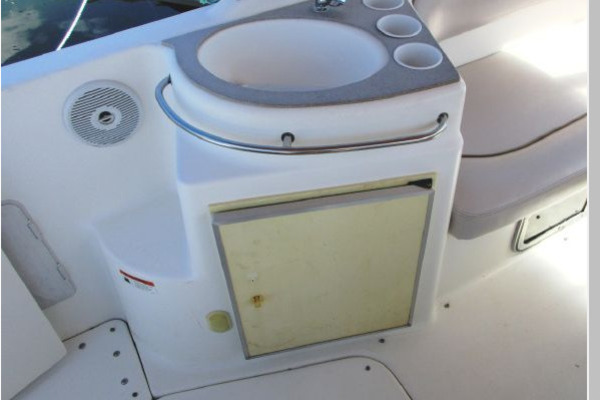

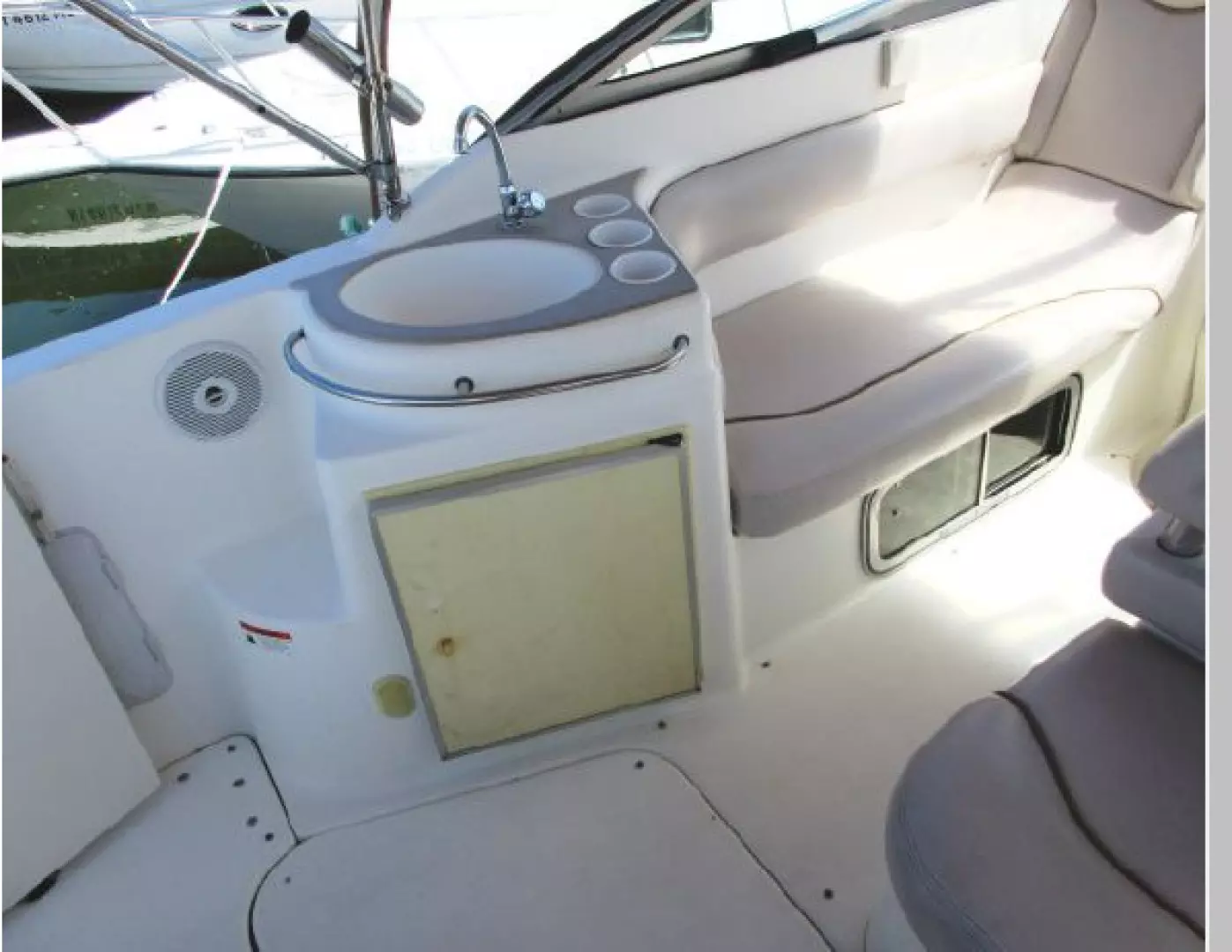

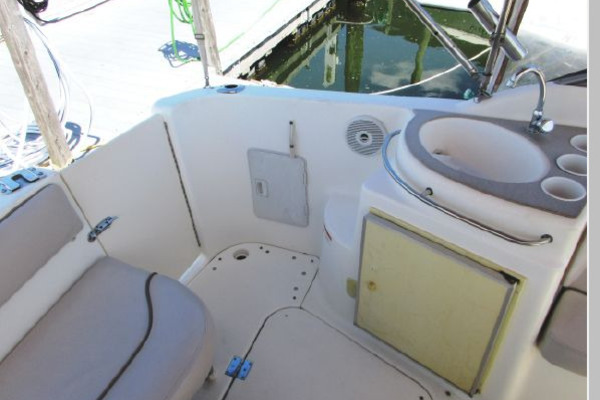

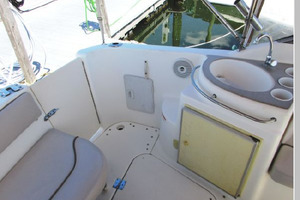

Wet Bar (note: Factory Option)

Countertop for Wet Bar, GRANULON w/ Gray Fleck finish

Grab rail for Wet Bar, stainless steel

Ice chest unit at Wet Bar (note: front-opening)

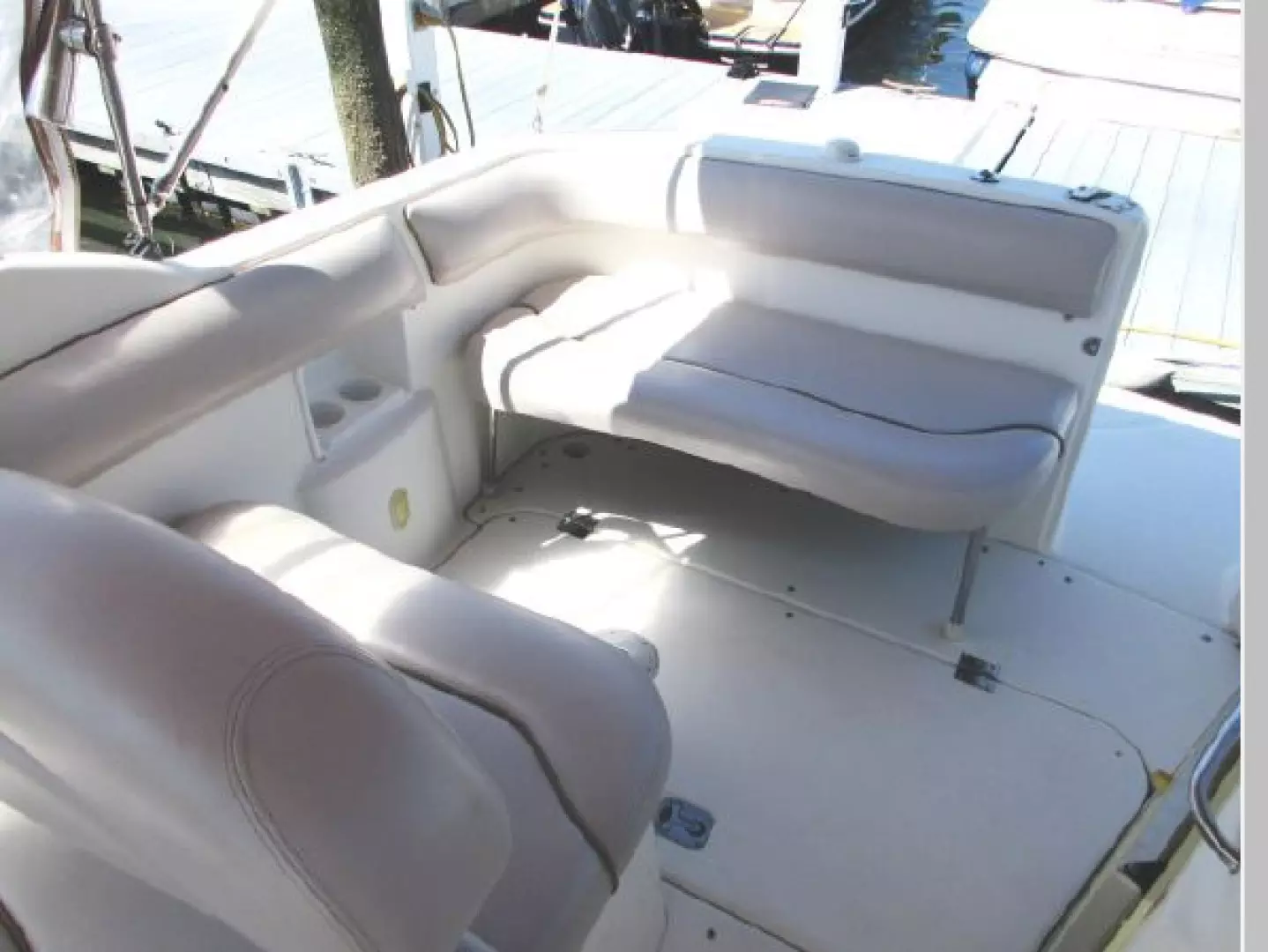

Cockpit seating aft, removable (note: Factory Option)

Bolster cushions for Cockpit coaming sides

Swim shower aft w/ hot & cold pressure water service (note: controls & handle in transom, starboard side)

Drink holders throughout, built-in

Cockpit cushions, Beige Leatherette (note: new, 2016)

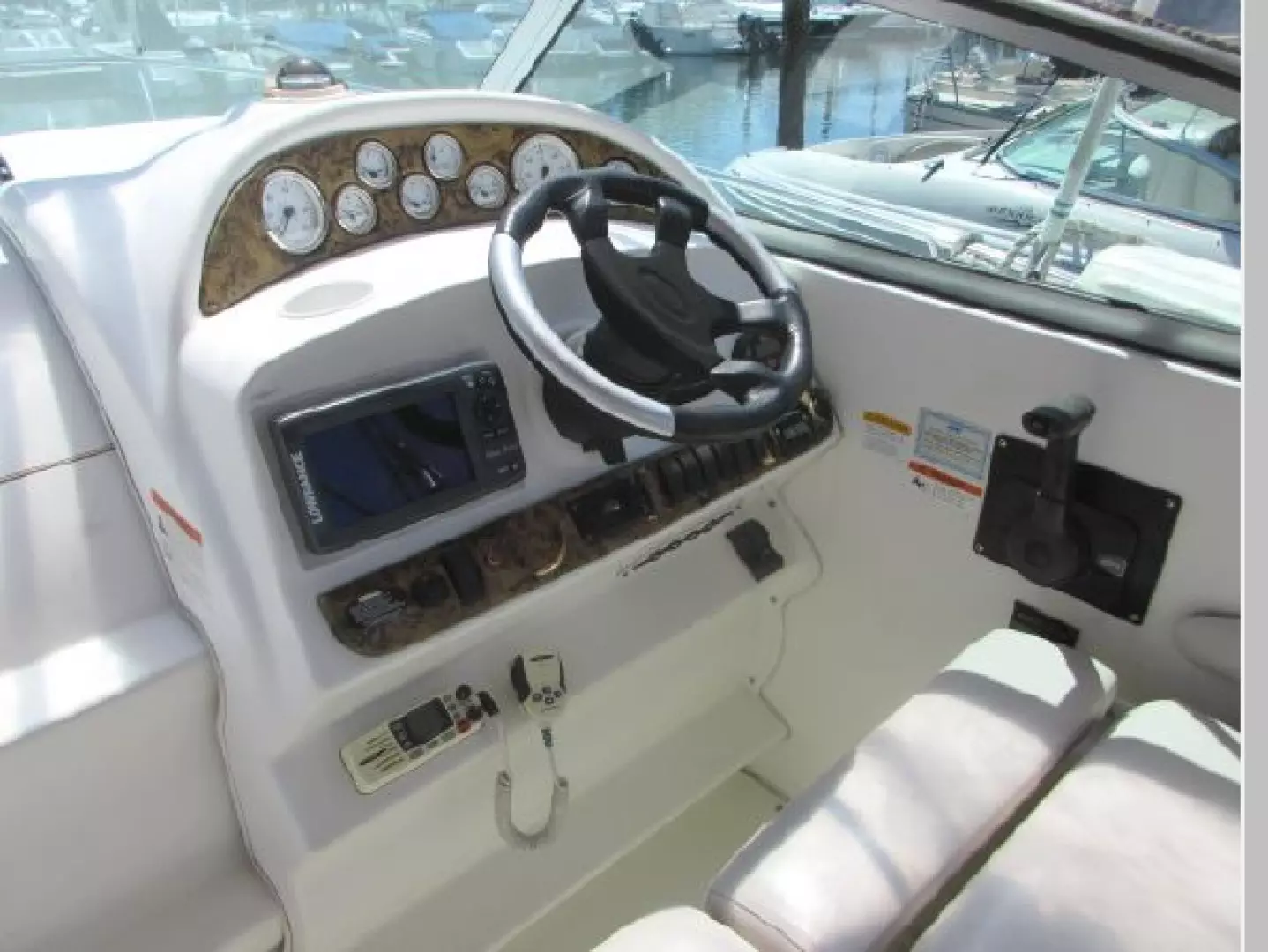

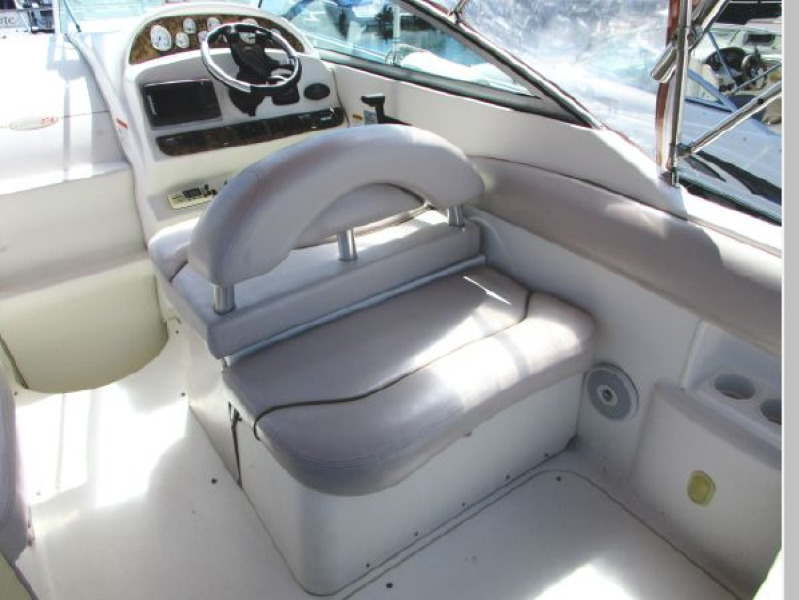

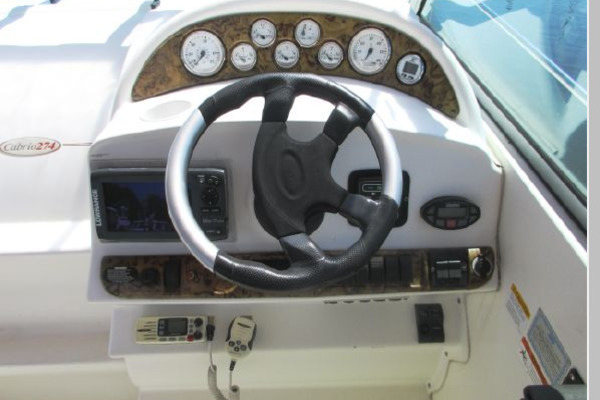

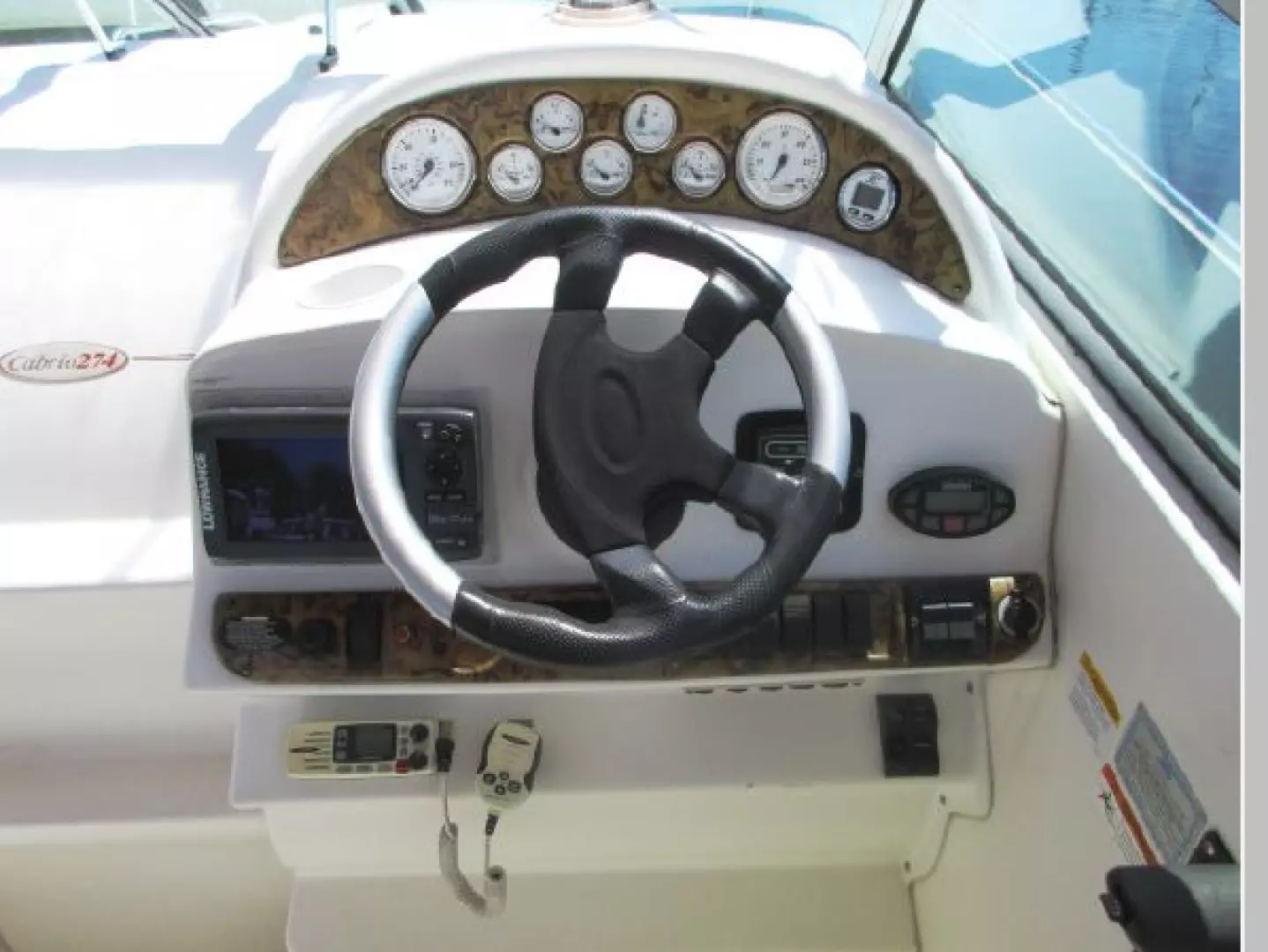

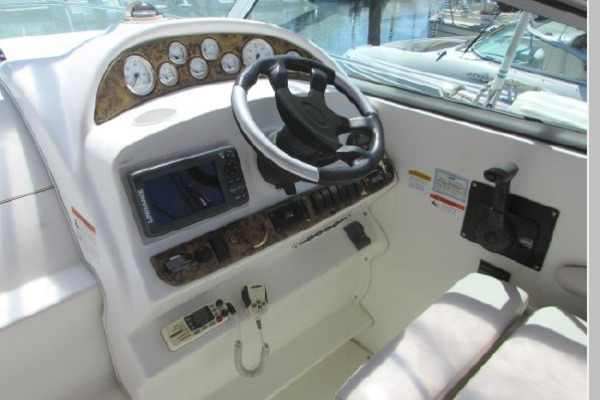

Helm Station

VOLVO PENTA Wheel steering w/ tilt control

Single-lever VOLVO-PENTA engine shift / throttle control w/ integrated switch for the I/O Drive "raise & lower" functions

Engine Instrumentation Console w/ Burled Wood finish

Engine instrumentation w/ "black on white" gauges: Boat Speed (in MPH) - Oil Temperature - Fuel Quantity - Alternator Output / Voltage - Trim Tab Indicator - Engine Coolant Temperature - Tachometer

Electronics installations (see "Electronics")

Windshield wiper, electric (note: for starboard side section)

RITCHIE Compass

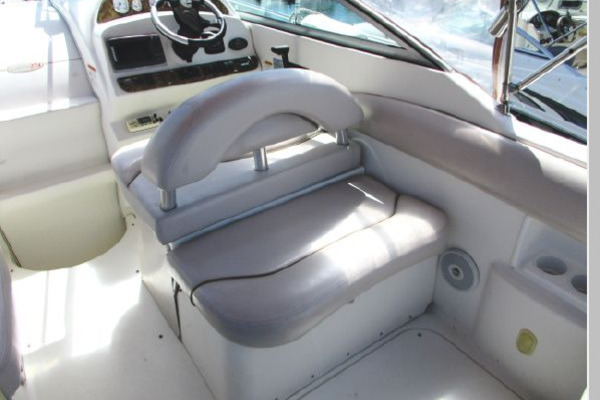

Dual Helm Seat, adjustable w/ flip-up bolster, provides seating for (2)

Foot rest for Helm Station

Windshield w/ "Walk-Thru" access to the Foredeck area

Companionway entrance door w/ built-in steps for "Walk-Thru" access

Cushions, Beige Leatherette (note: new, 2016)

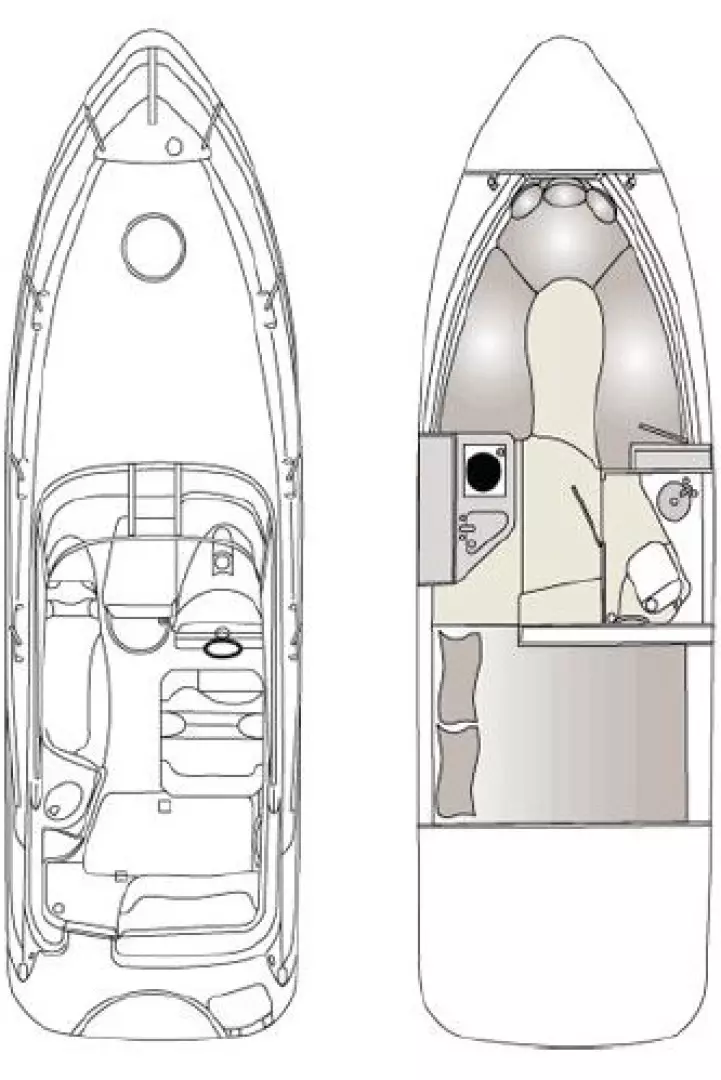

Accommodations

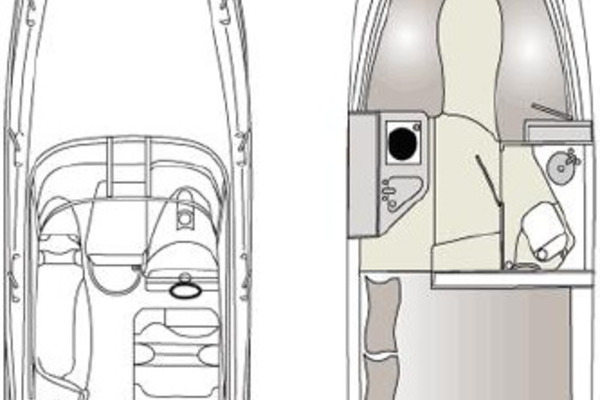

The LARSON Cabrio 274 Express Mid-Cabin offers an exceptionally roomy interior for a yacht of her type & size range. The interior is also well-ventilated and is light & airy with good ambient lighting.

Headroom: 6'2" (at Cabin entrance)

Interior furniture; CHERRY-finish laminate

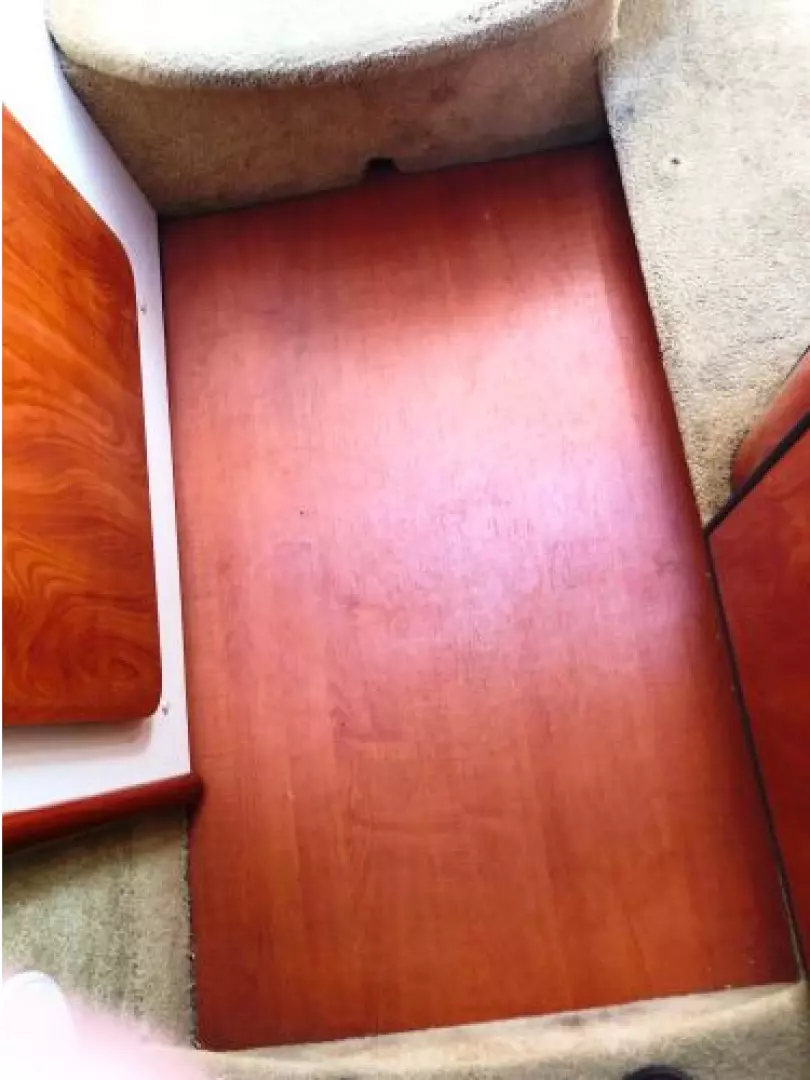

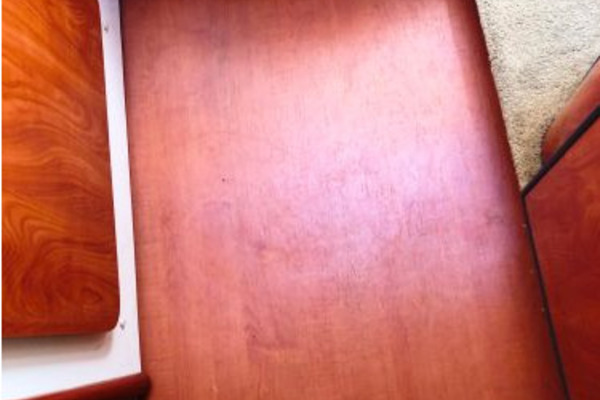

Composite wood-grain cabin sole at Companionway entrance to Galley area

Carpet at Companionway & sole areas aft & forward, Light Beige

Push-button latches for lockers & drawers

Interior cushions; Light Beige "leather-like" Vinyl throughout (note: all new, 2016)

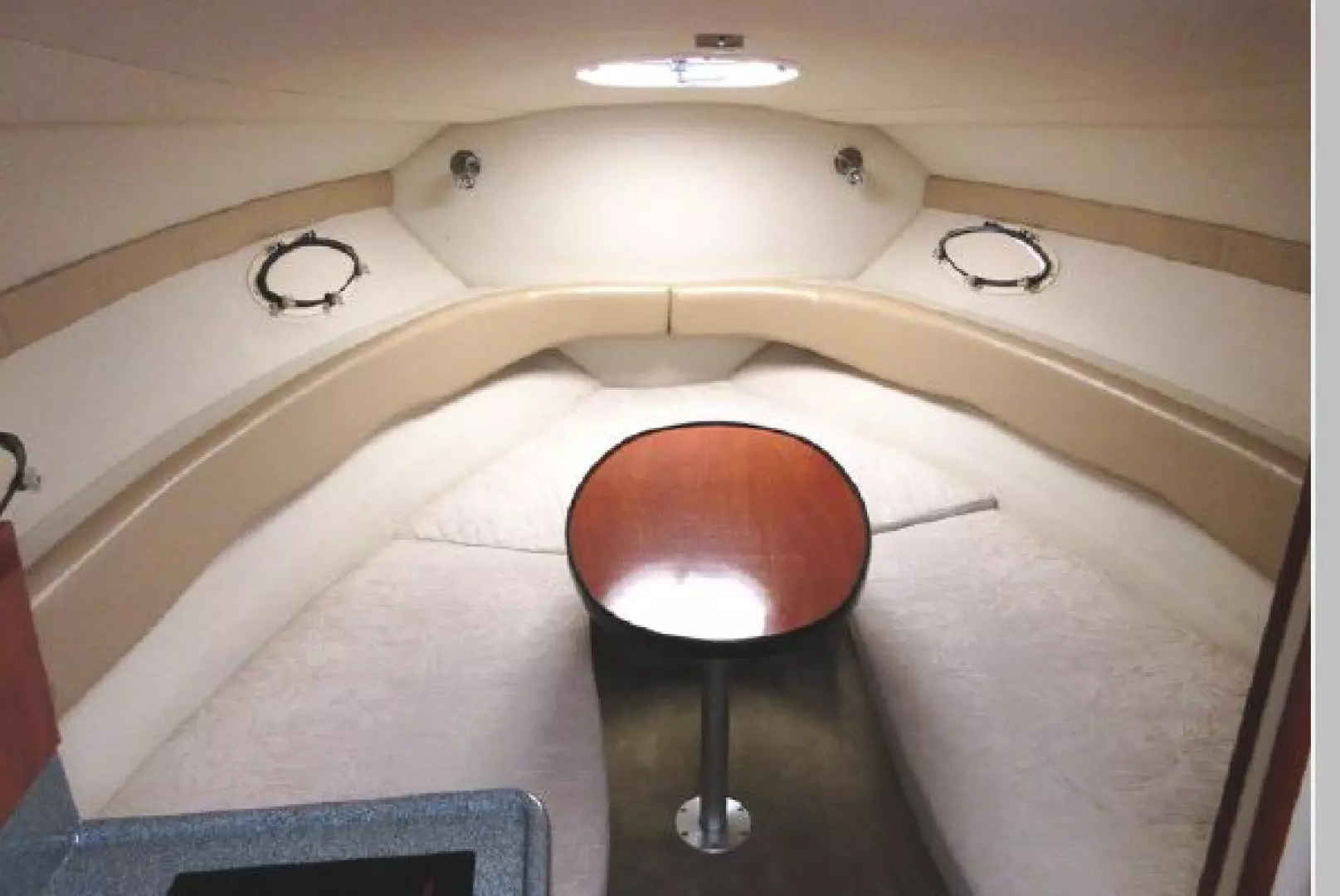

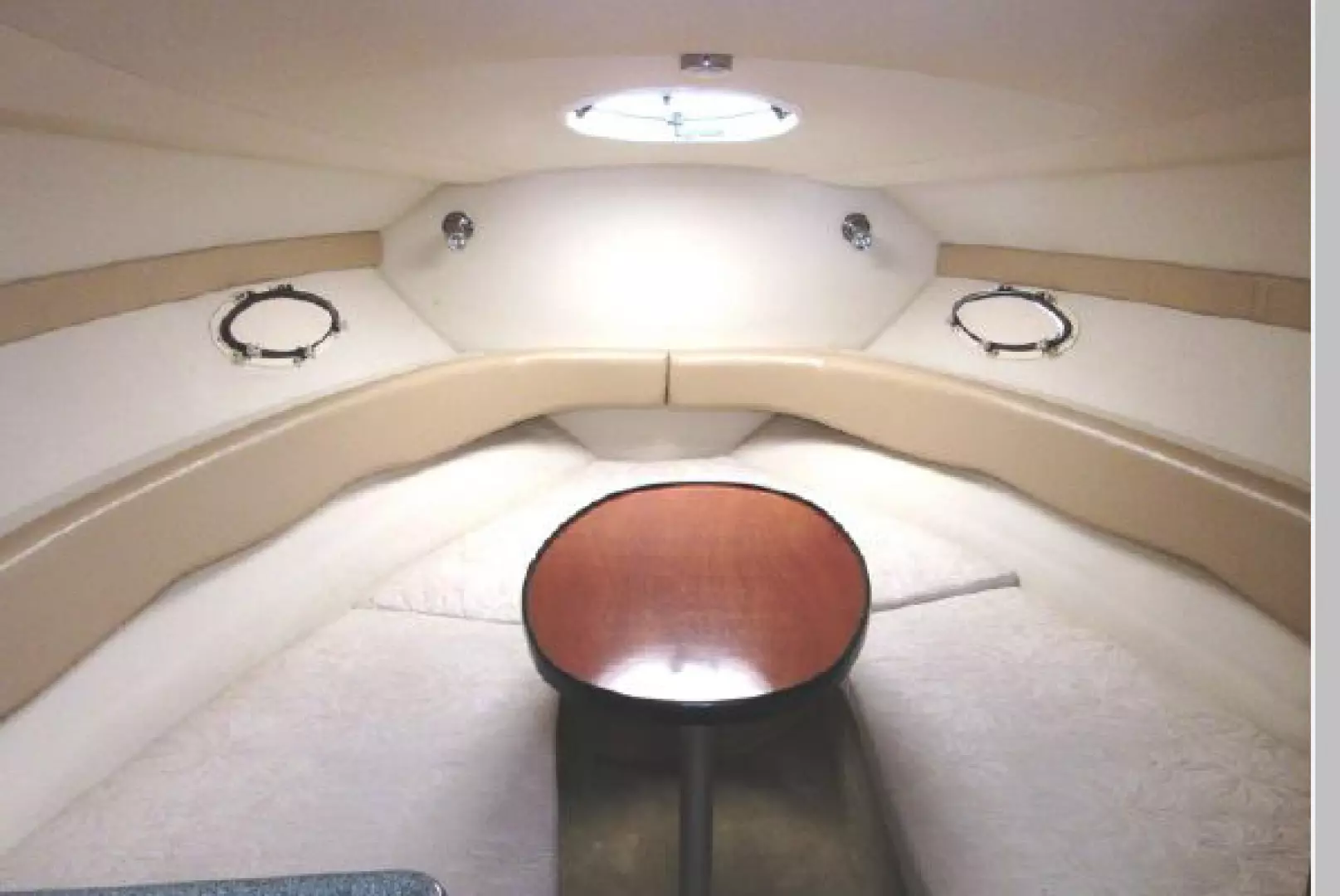

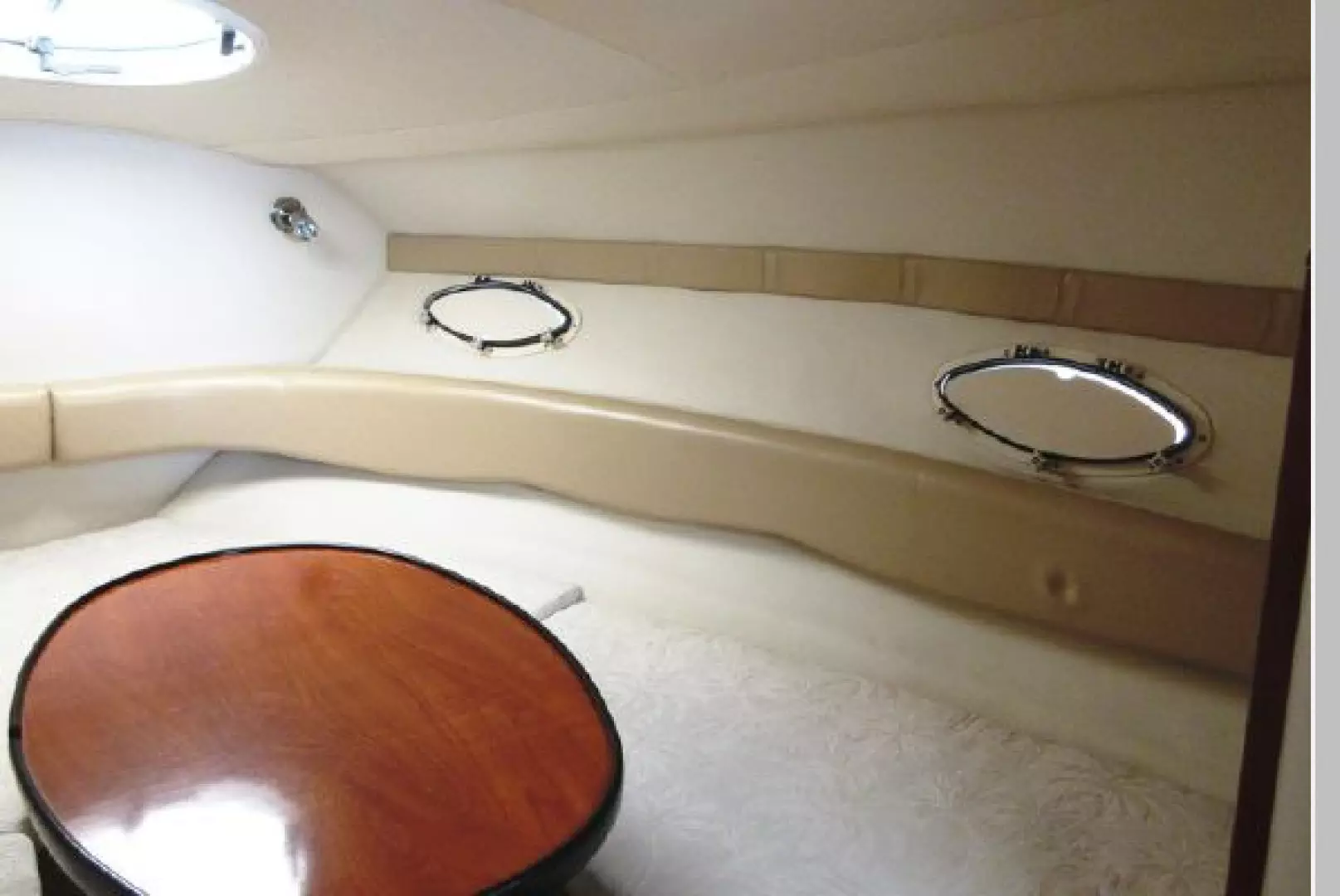

Cabin, Main

Berthing area; located forward & will sleep (2) comfortably

Dinette table (note: removes to accommodate a double berth)

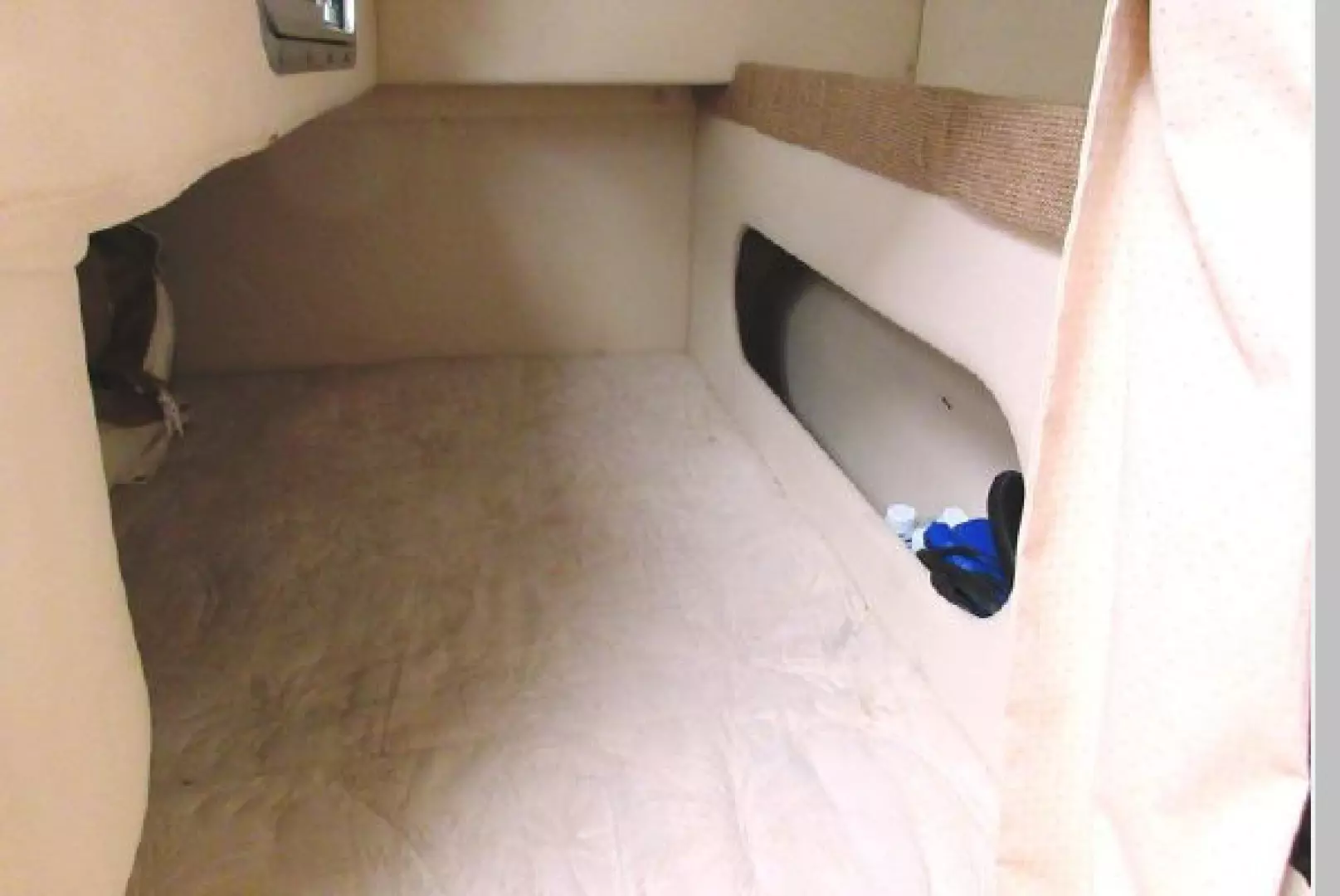

Cabin, Aft

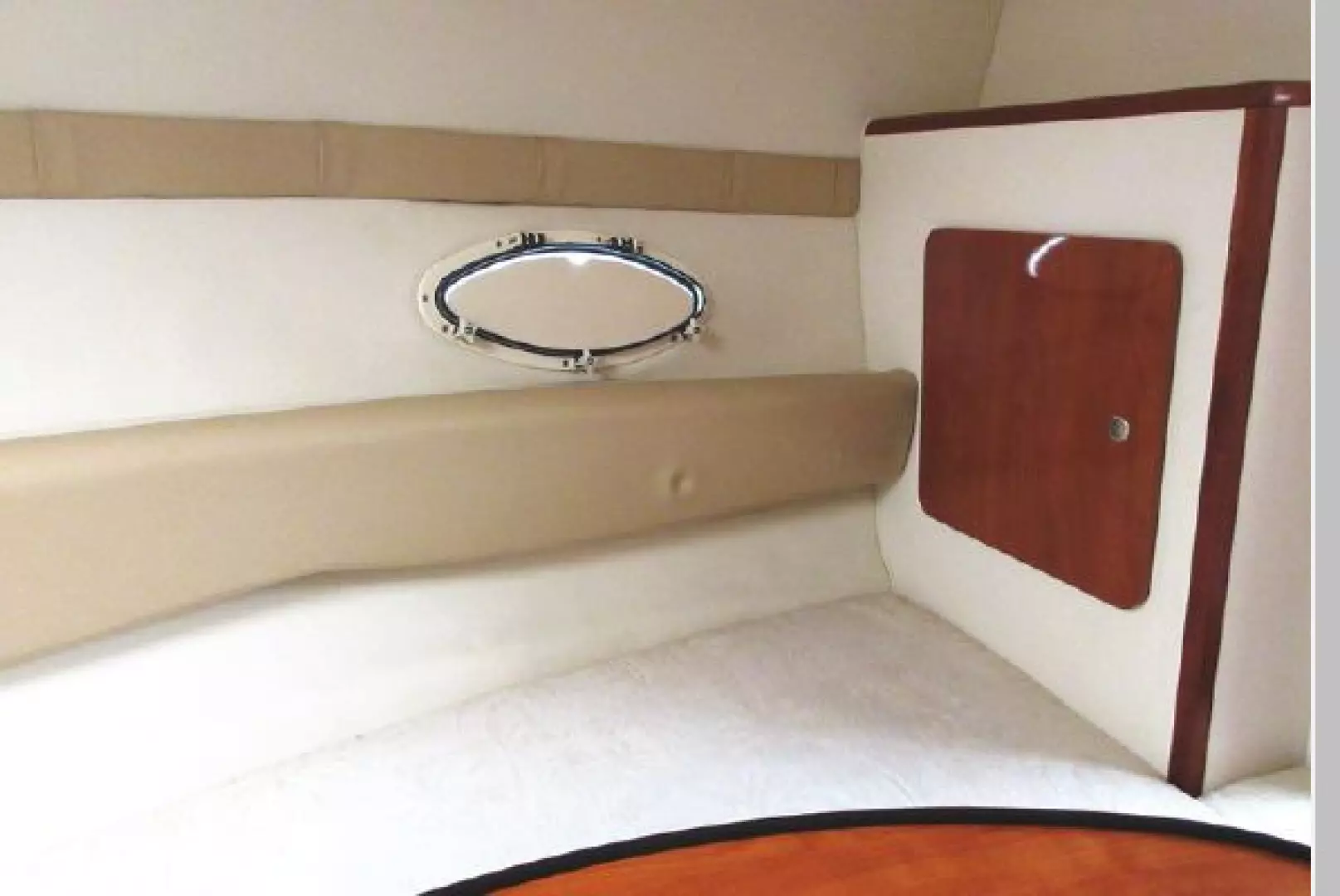

Mid-Cabin area aft of the Companionway entrance offers a double berth & good storage

Portlight for light & ventilation, sliding w/ screen

Privacy curtain, Light Beige fabric

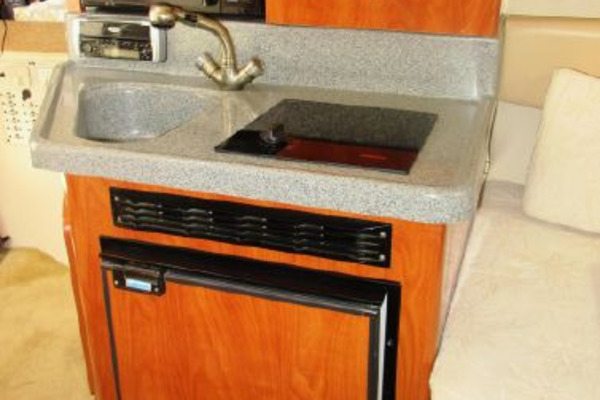

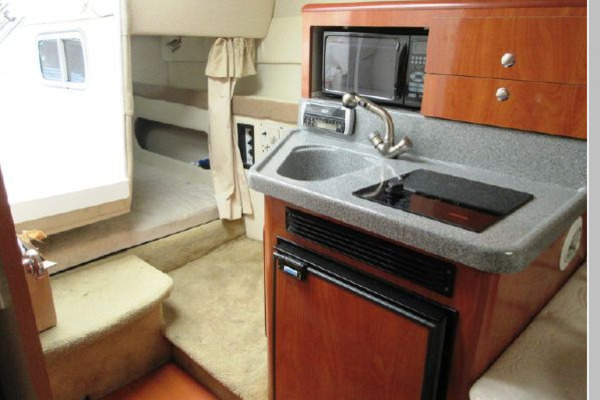

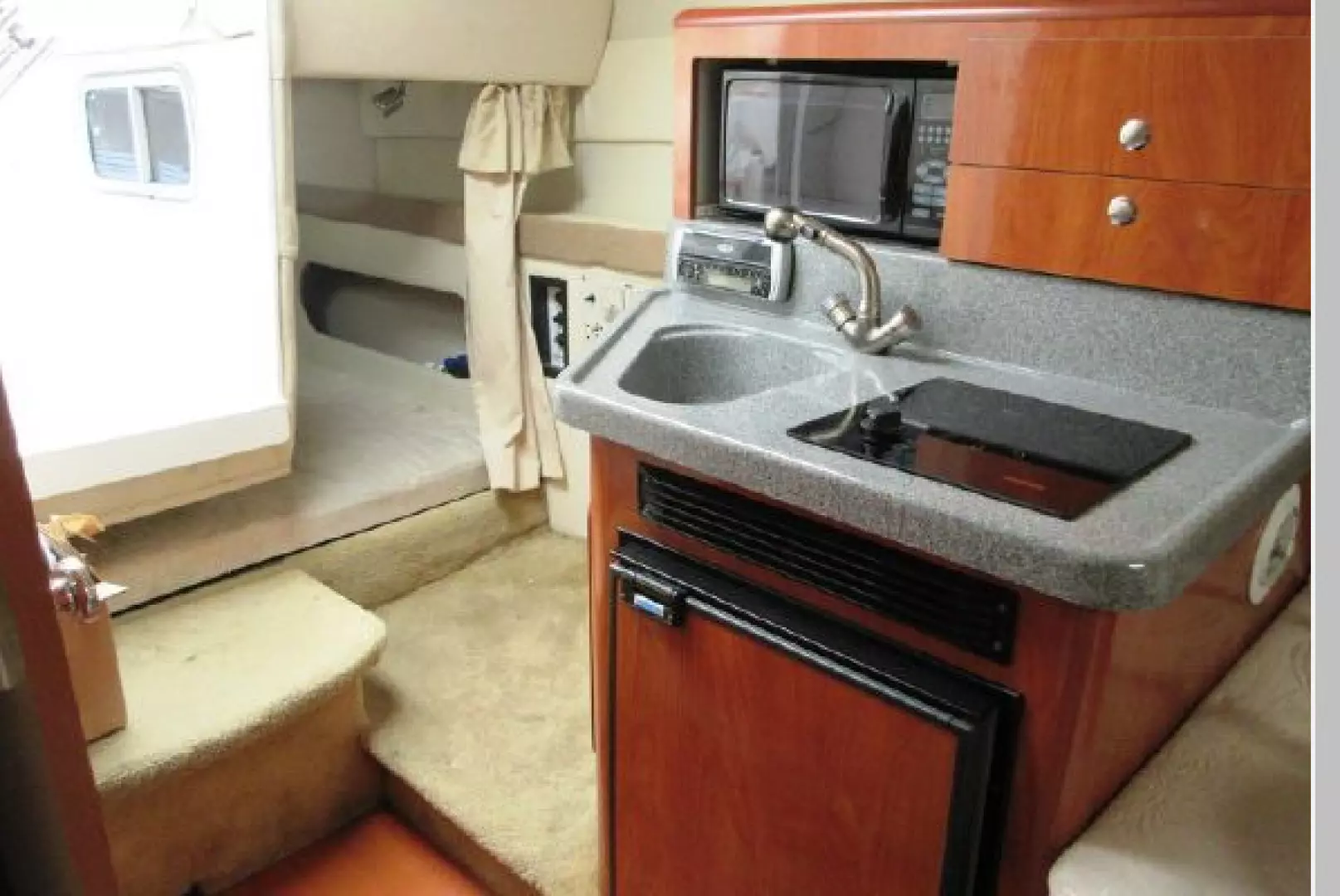

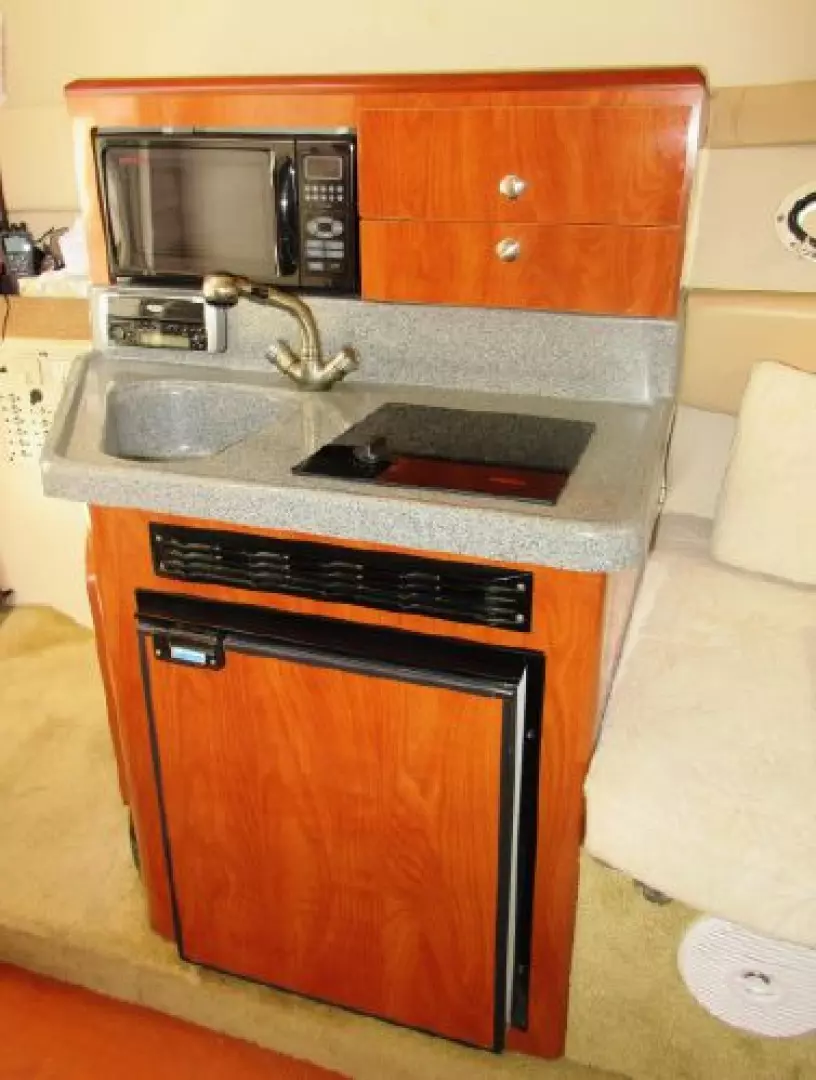

Galley

The Galley area is located amidships, port side.

Microwave oven, TAPPAN

Cook-top stove, single-burner, electric

Refrigeration, ISOTHERM, 12VDC

Hot & cold pressure water service w/ sink w/ single lever tap

Countertop & sink, GRANULON w/ Gray Fleck finish

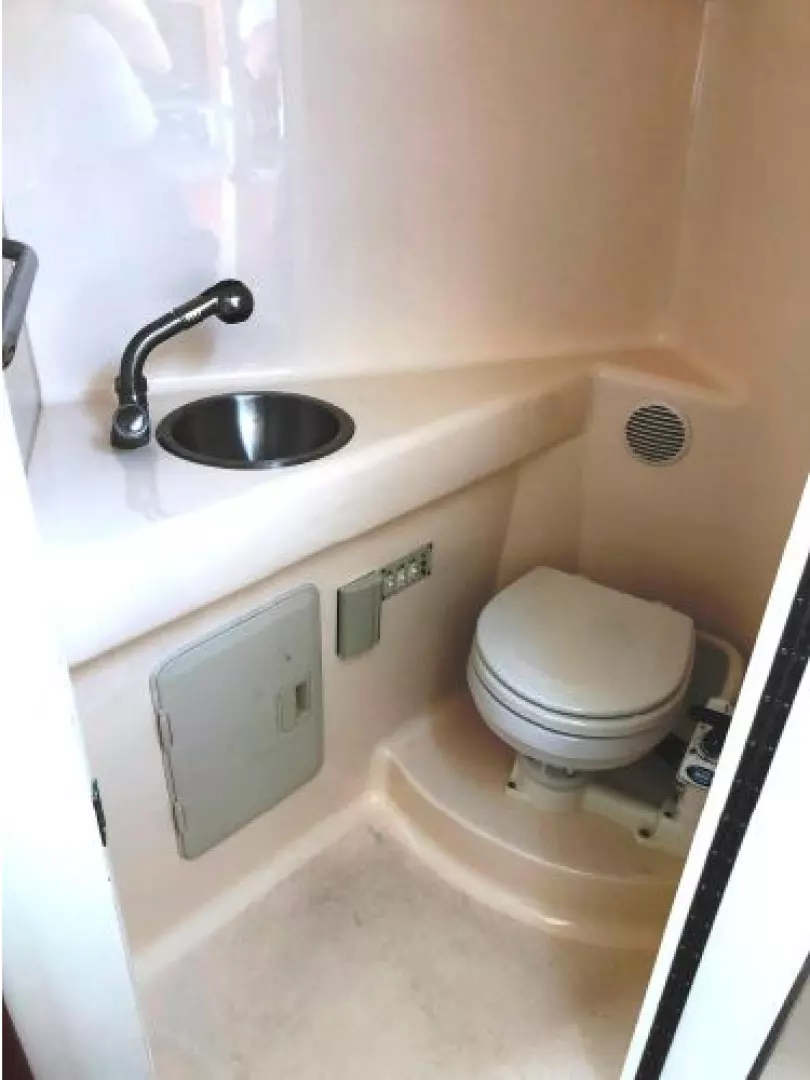

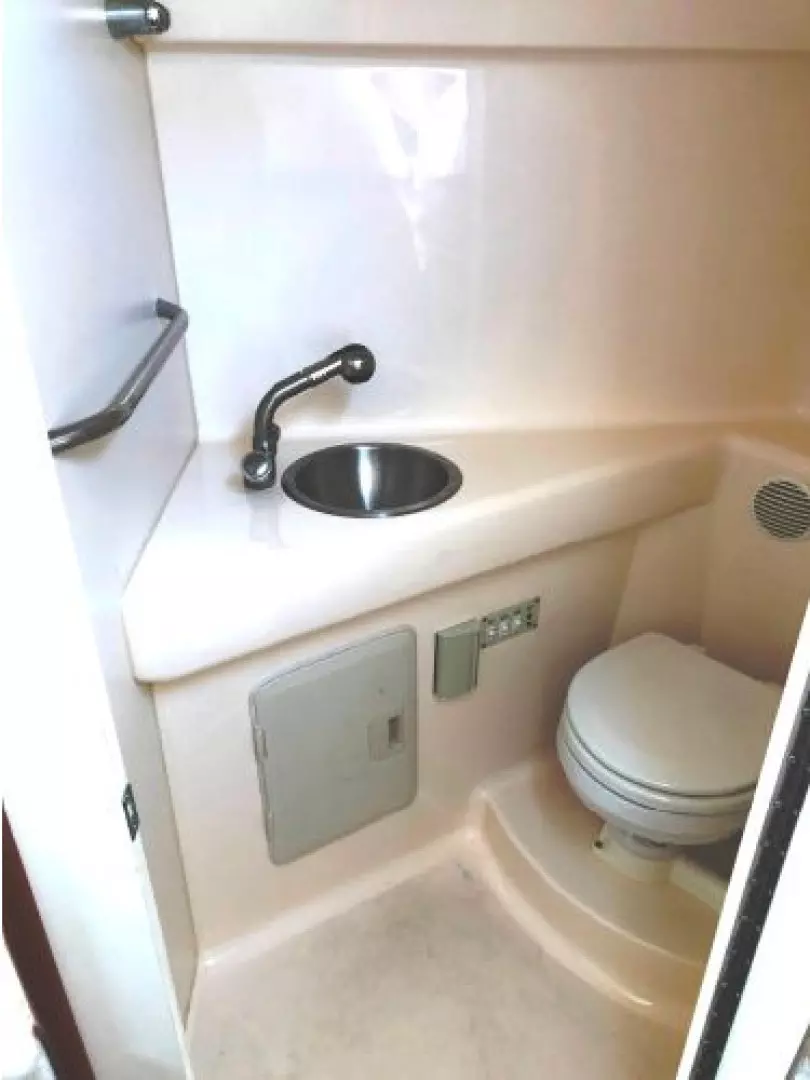

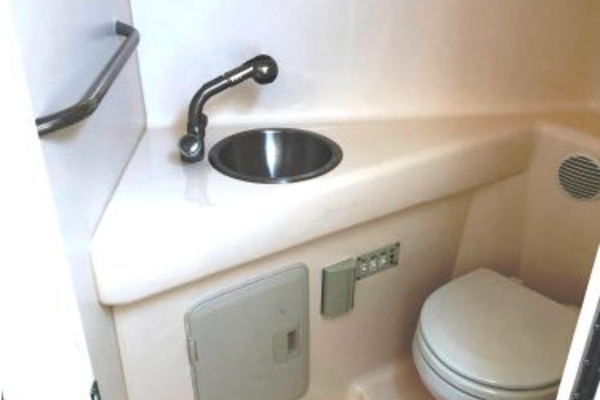

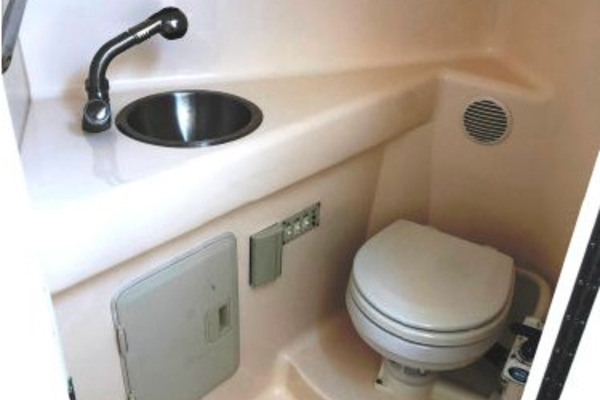

Head

There is a fully-enclosed Head that is located to starboard & just forward of the Companionway entrance.

Marine Head, JABSCO, manual

Holding Tank w/ both overboard (where permitted) & a deck discharge access

Hot & cold pressure water service for the sink & shower system

Electronics

Communication

VHF; UNIDEN Oceanis

Performance & Navigation

LOWRANCE Elite - 7 HDI GPS / Chartplotter / Fish-Finder

RITCHIE Compass

Entertainment

CLARION MARINE XMD3 Stereo System (note: remote control unit at Helm Station) w/ (6) disc CD changer & interior & exterior speakers (note: Factory Option)

TV, flat screen w/ DVD & CD (note: Factory Option)

SAFETY

SEAKEY Alarm System (note: for yacht movement while at rest or high water in the bilge)

Systems

Electrical

This Cabrio 274 Express Cruiser has both a 12VDC Ship's Service and a 115VAC Shore Power System,

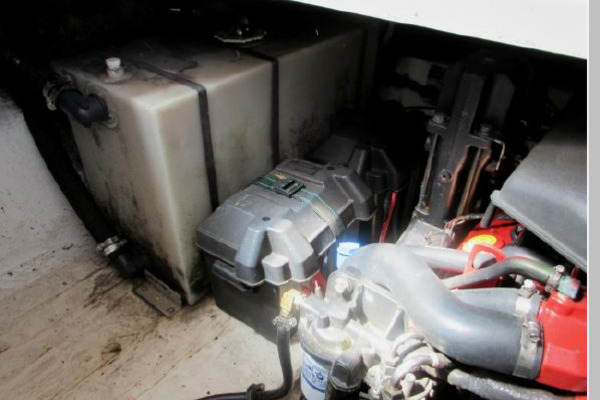

Batteries: (2) 12VDC w/ (1) for Ship's Service & (1) for Engine Start

Shore Power: 115VAC w/ 30' 30 AH cord

Battery charger

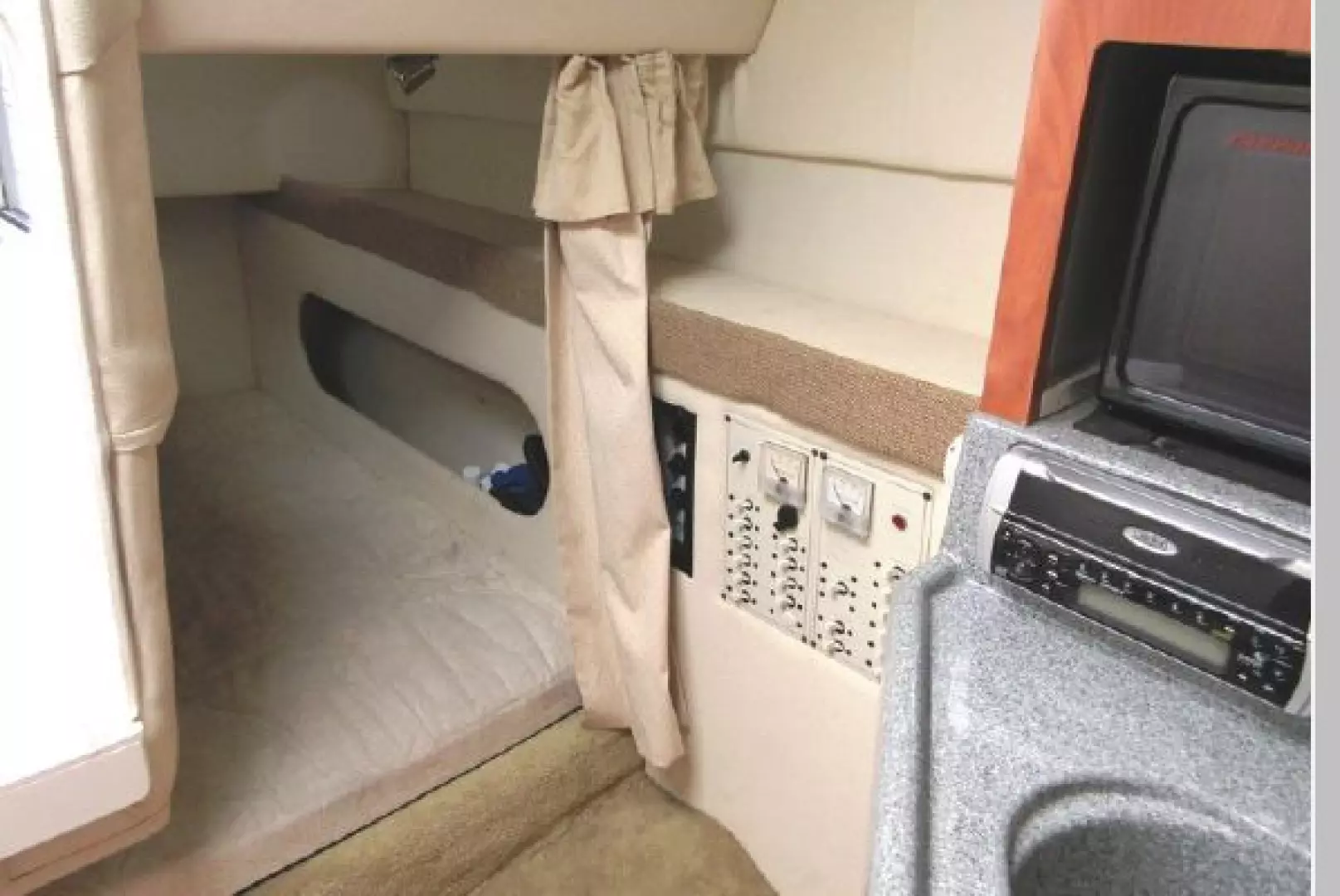

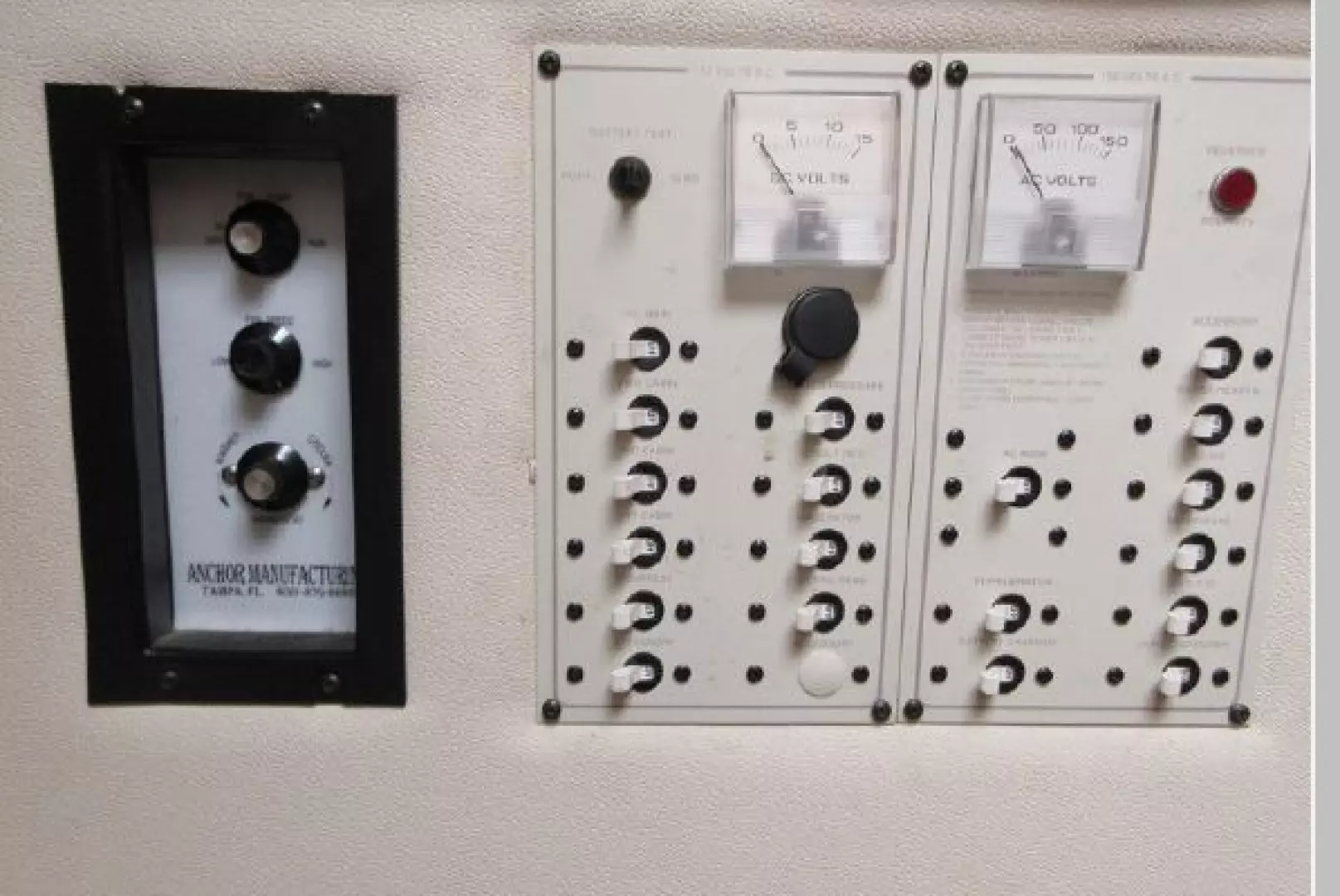

Electrical panel for 12VDC & 110VAC functions (note: located port side & just aft of Galley)

Lighting

Dome lights overhead in Cabin

Reading lights for berth areas, bulkhead-mounted

Light for Head

Nav Lights (note: stern light is removable)

Courtesy lights in Cockpit

Plumbing

Fresh Water Tank: (85) USG (note: plastic tank)

Hot & cold pressure water system (note: hot water tank disconnected & bypassed .. when functioning, hot water off the engine & shore power .. Owner stated "needs replacement")

Pressure water service to the Galley, Head & Cockpit Shower

Cockpit shower (note: located in locker in Transom, starboard side)

Pumps

Hot & cold pressure water pump

Bilge pump, 12VDC w/ auto float switch

Shower sump pump

HVAC

System w/ reverse-cycle heat & air-conditioning, single zone

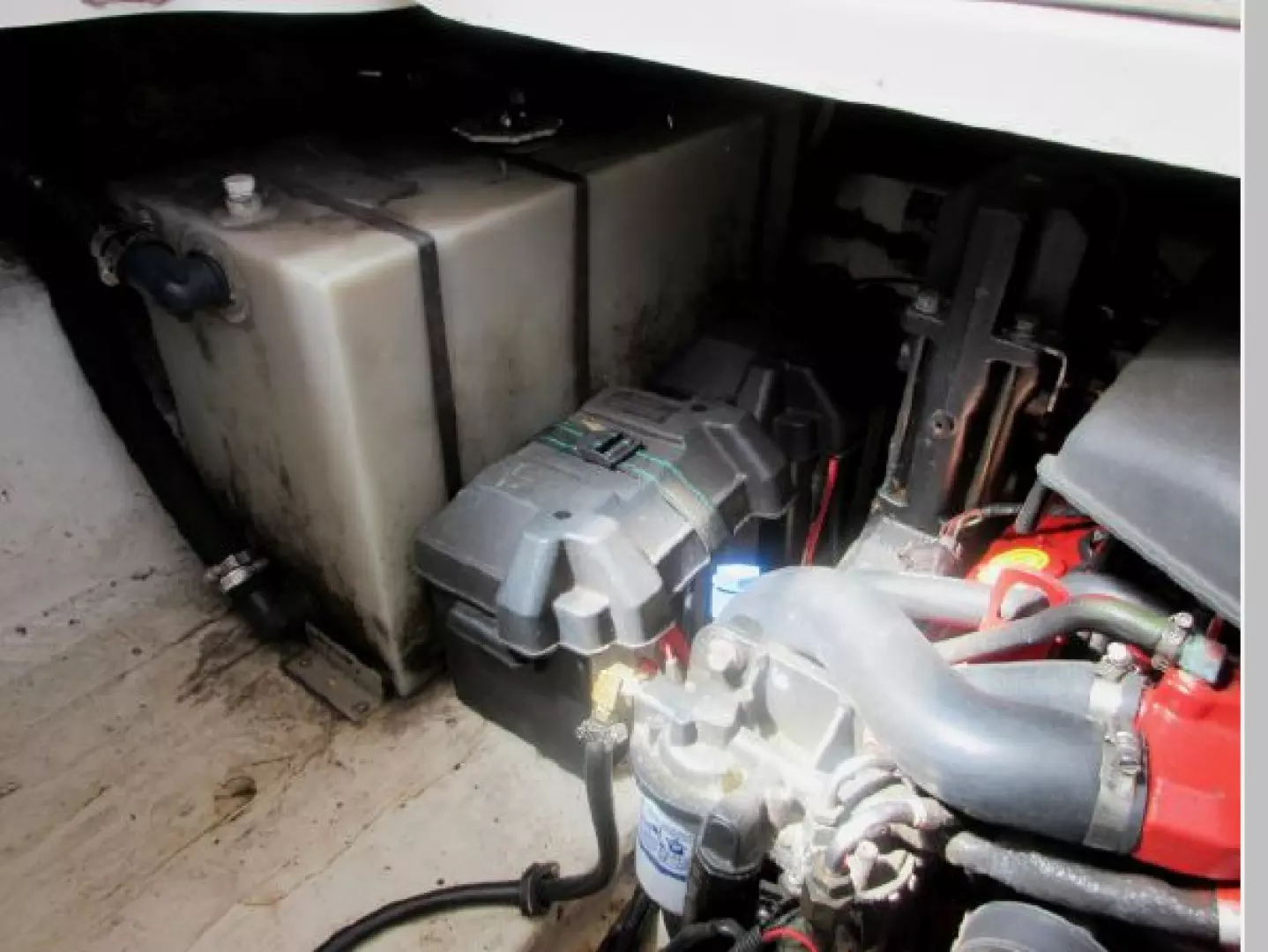

Propulsion

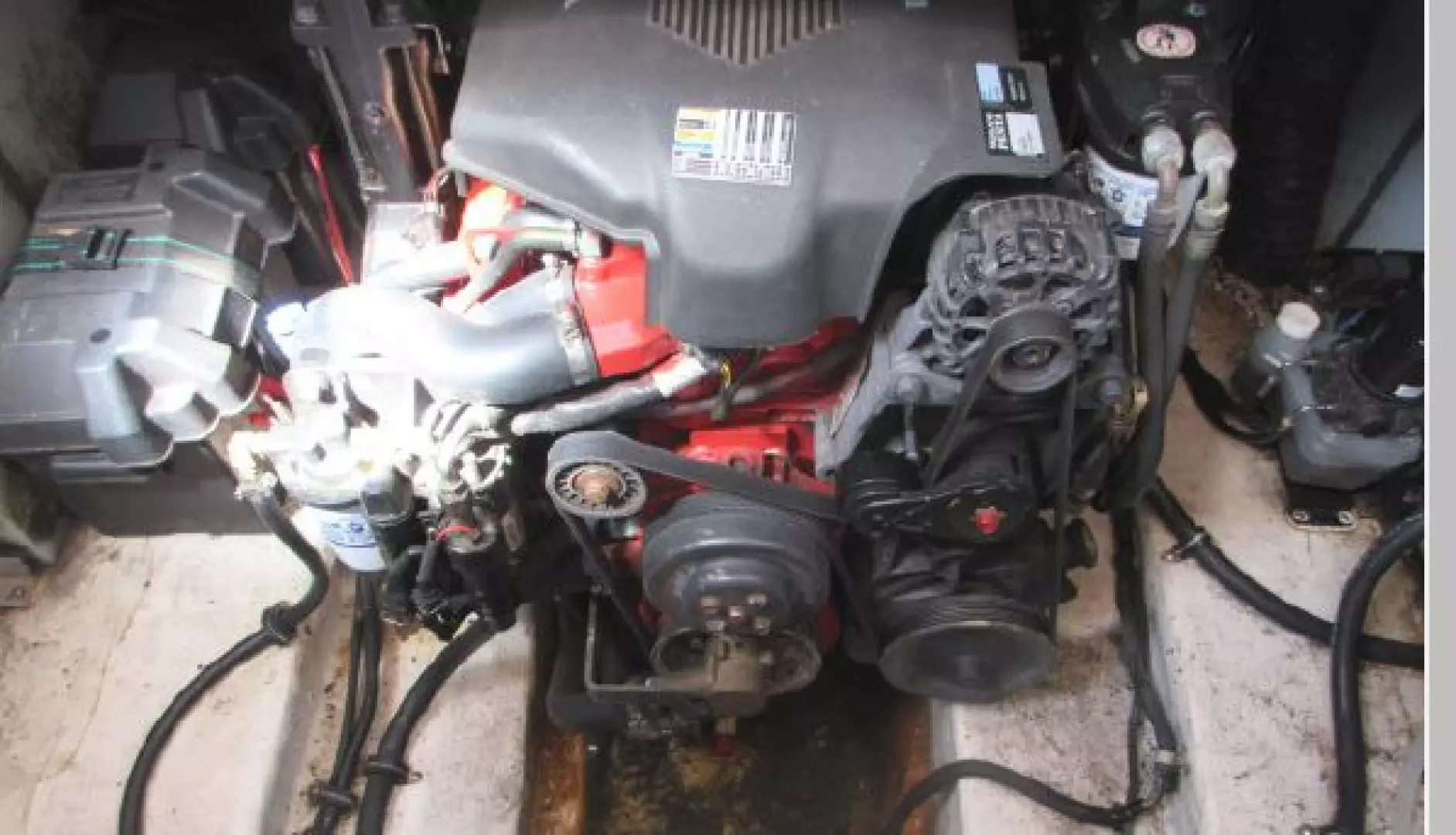

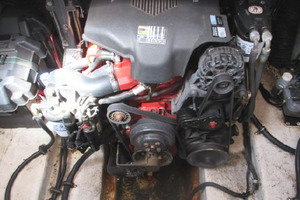

She's powered by a VOLVO-PENTA 5.7GI-DP 320 HP fuel-injected inboard gas engine with the integrated DP inboard-outboard drive unit.

Engines & inboard / outboard drives always professionally serviced since "day one" (note: service records available & include oil changes, impellers, plugs and so forth). This Owner purchased her as a "new boat" in 2005.

Engine Hours: 530

Engine Work (major); exhaust system including risers & manifolds, oil pan (note: 2019-2020 timeframe during storage period)

Inboard / outboard drive: removed & completely serviced, '21-'22

Propeller: (3) Blade, 22", stainless steel

Fuel Capacity: 85 USG (note: plastic tank)

RACOR Fuel filter

Bilge blower

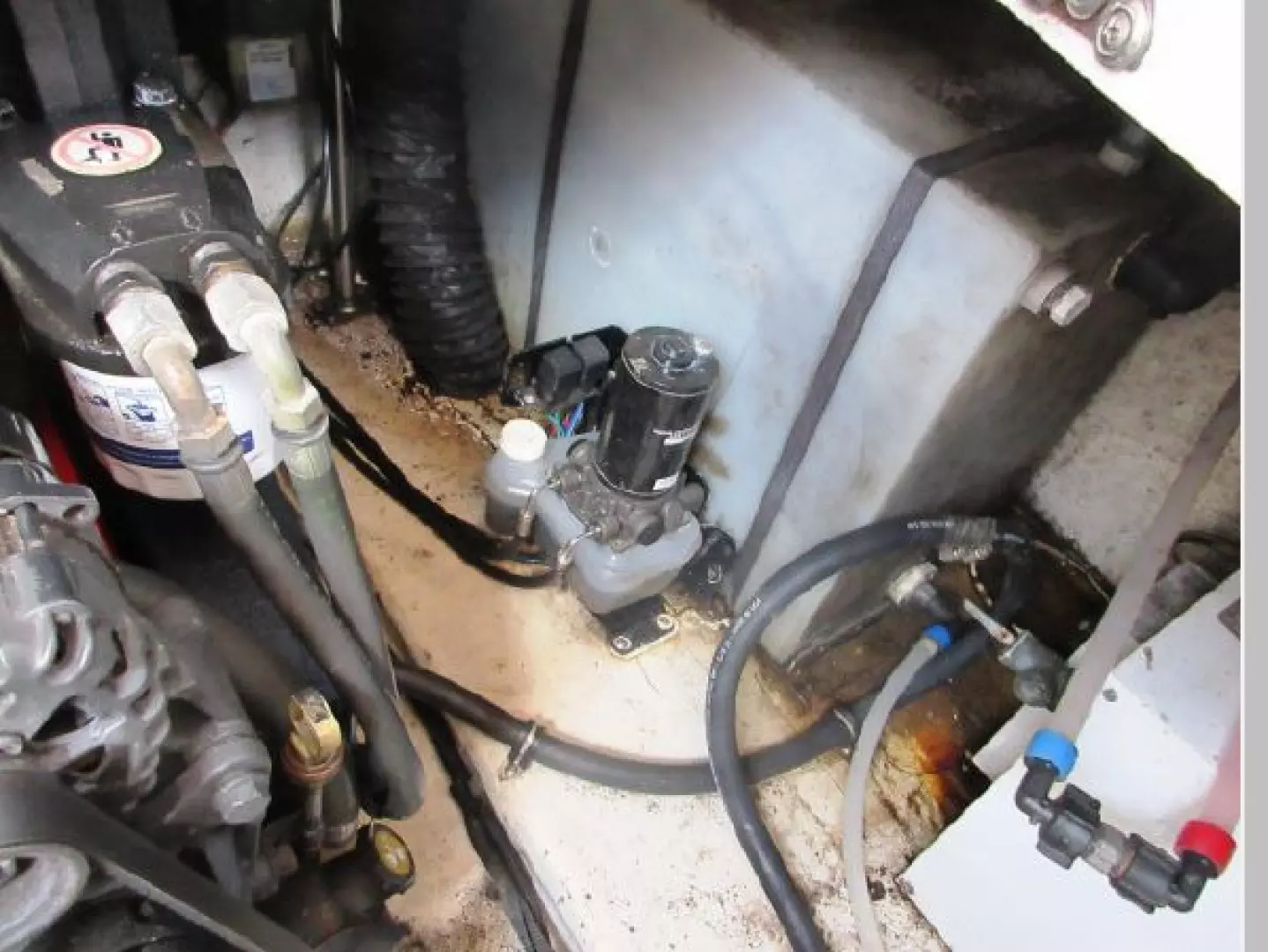

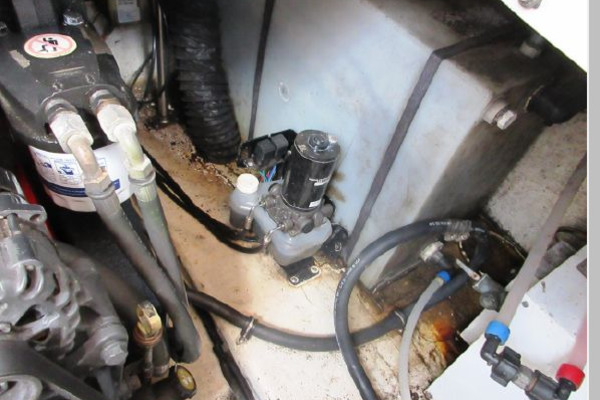

Engine room access hatch in Cockpit

Insulation for Engine Compartment

Trim tabs, electric / hydraulic

Inventory - Additional

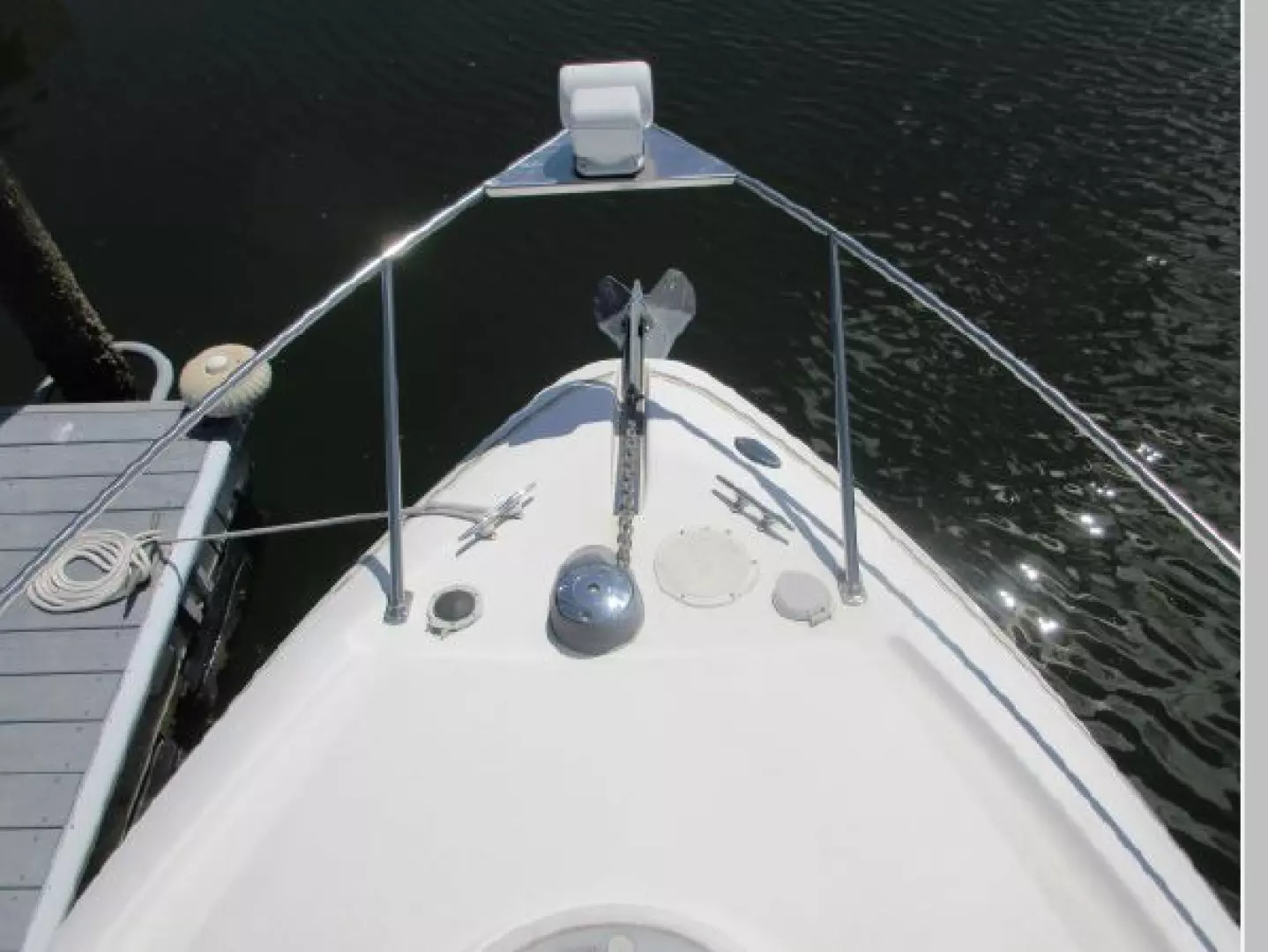

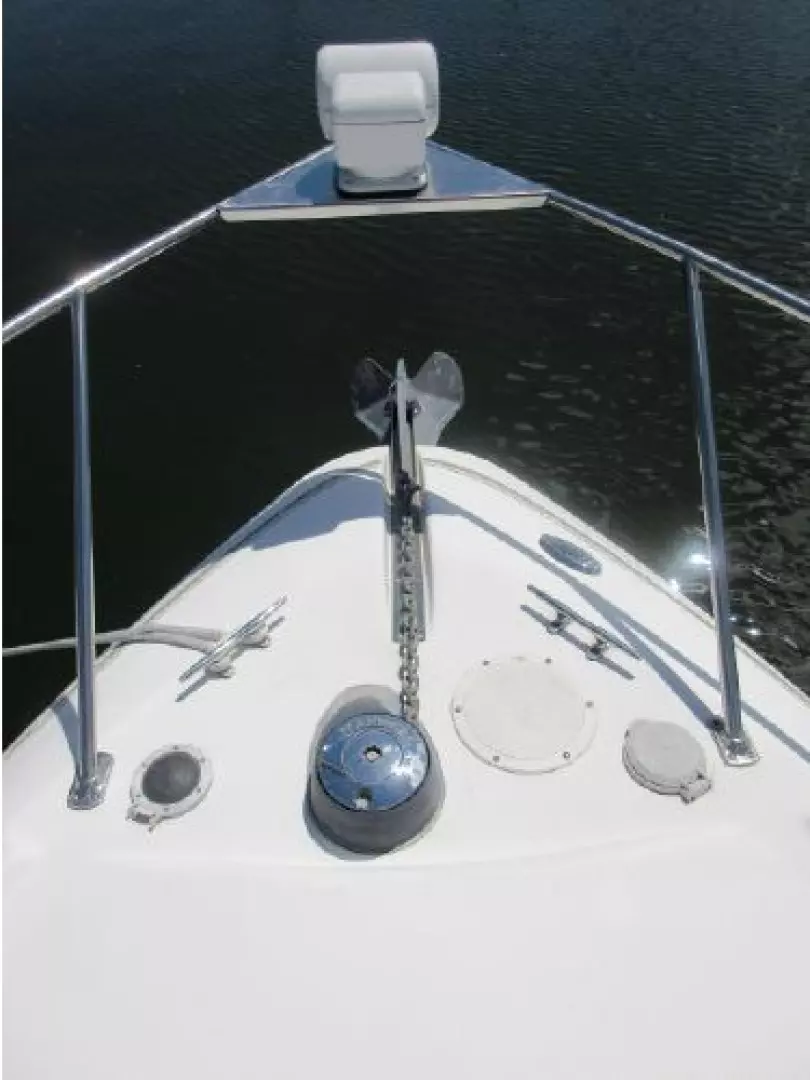

Ground Tackle

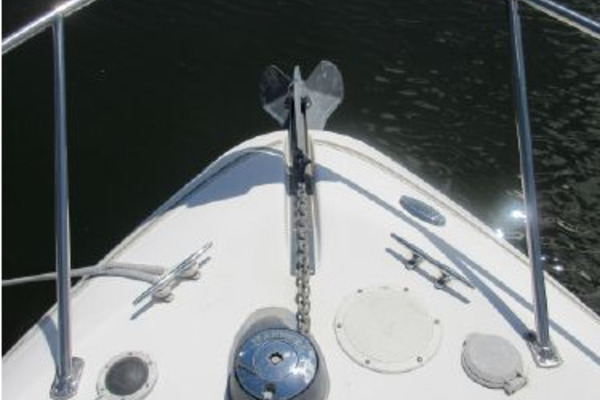

Anchor windlass, MAXWELL electric w/ foot control switch (note: Factory Option)

Anchor, plow-type & galvanized, w/ rode

Bow anchor roller, stainless steel

Canvas

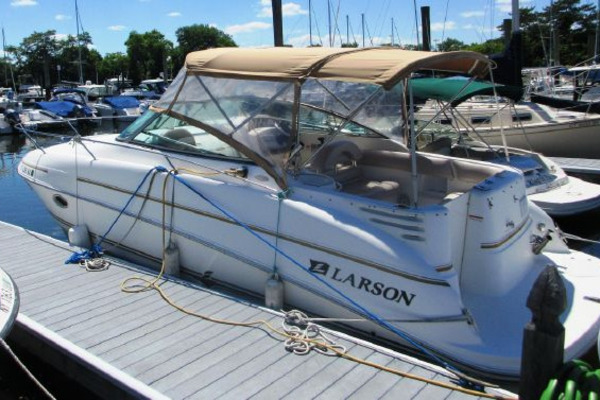

Full enclosure w/ Light Tan SUNBRELLA (note: new, 2016)

Safety

USCG Gear w/ PFD's

Fire Extinguishers

Horn, manual (hand-held)

Horn, electric (note: inoperative)

Misc

Search light, remote-controlled from Helm Station (note: mounted on bow area & Owner stated "not functioning")

Rod holders, stainless steel

Dock lines

Fenders

Cleaning gear
