Annapolis, Maryland, United States
1993

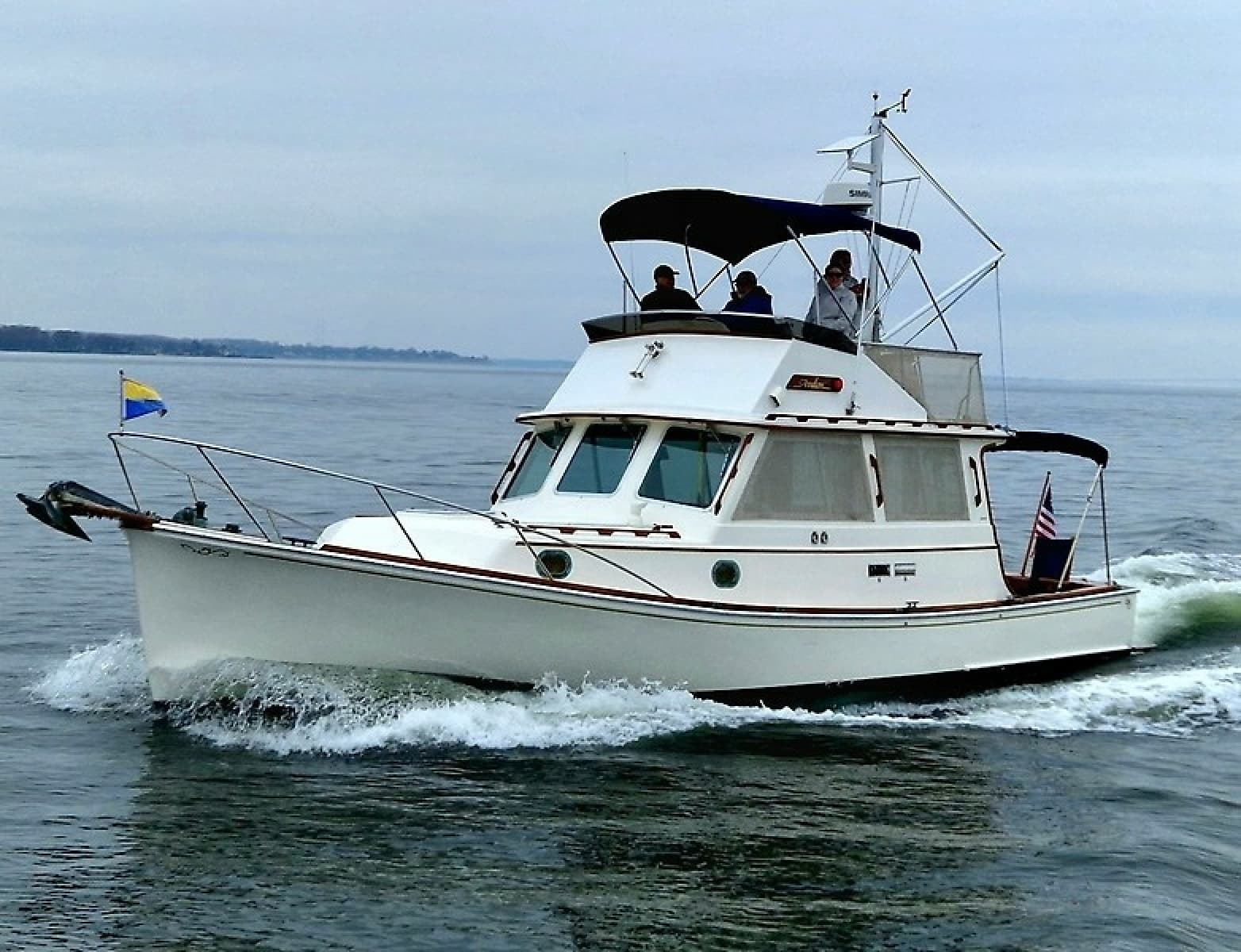

Shannon 36' Custom Downeast 36

"Avalon"

$249,900 USD
$344,249 CAD
36'Length
12'6"Beam
DieselFuel Type
FiberglassHull
DowneastCategory

Custom 1993

HIN/IMONHNDE3601A93

Overview

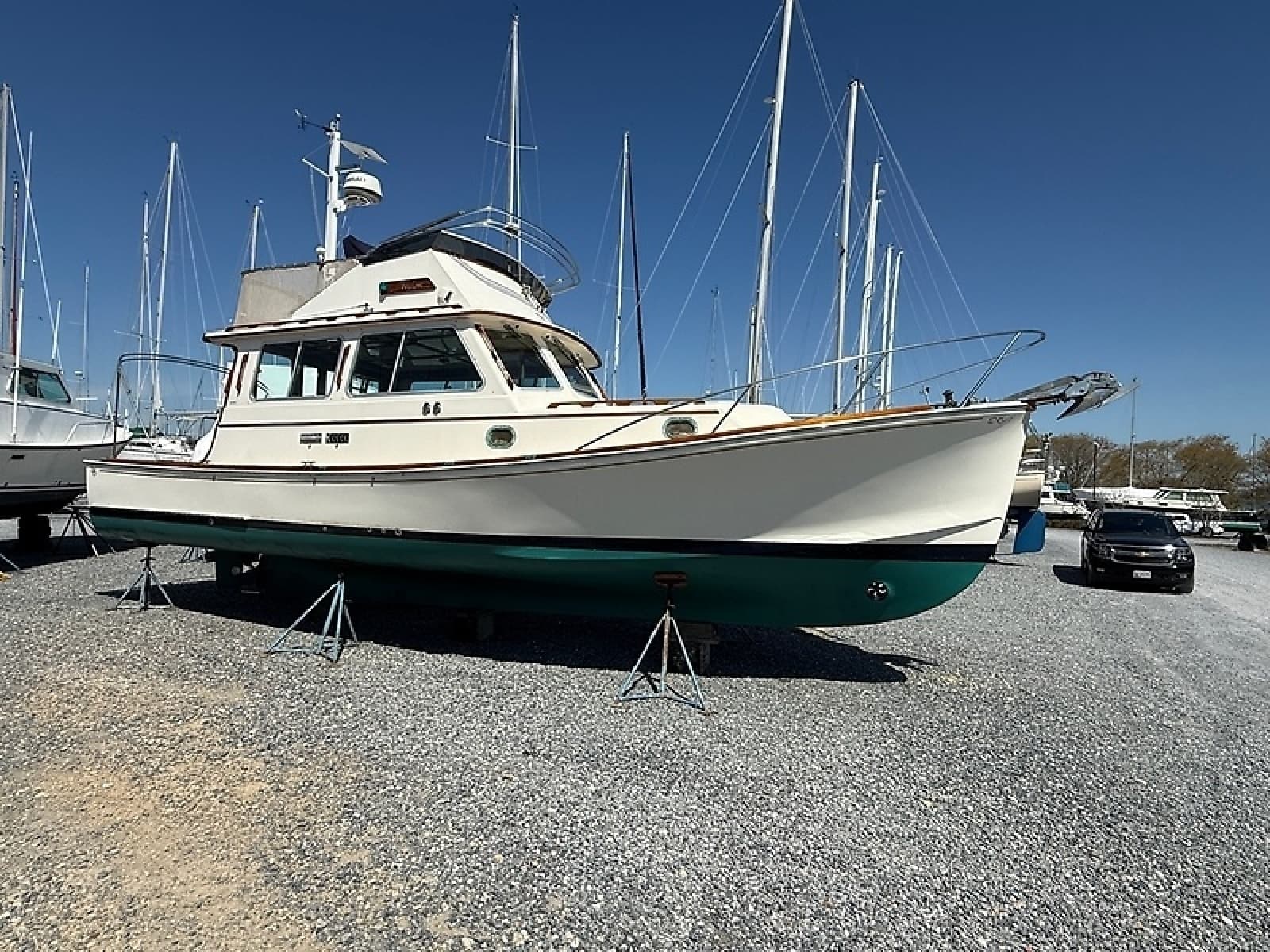

"Avalon" was custom built by Shannon Boat Company in Bristol, RI. She was designed by Royal Nowell. By previous builders this design was know as; Bruno Stillman 35, Harris Cuttyhunk 36 and the Nauset 36. Nauset improved and modified the original hull design by adding a molded forward chine/spray rail.

Her bottom is solid fiberglass layup below the waterline and cored above. Her chines are round in the stern, her propeller is protected with a fiberglass keal and bronze shoe that connects the keel and rudder in proper New England Lobster boat fashion.

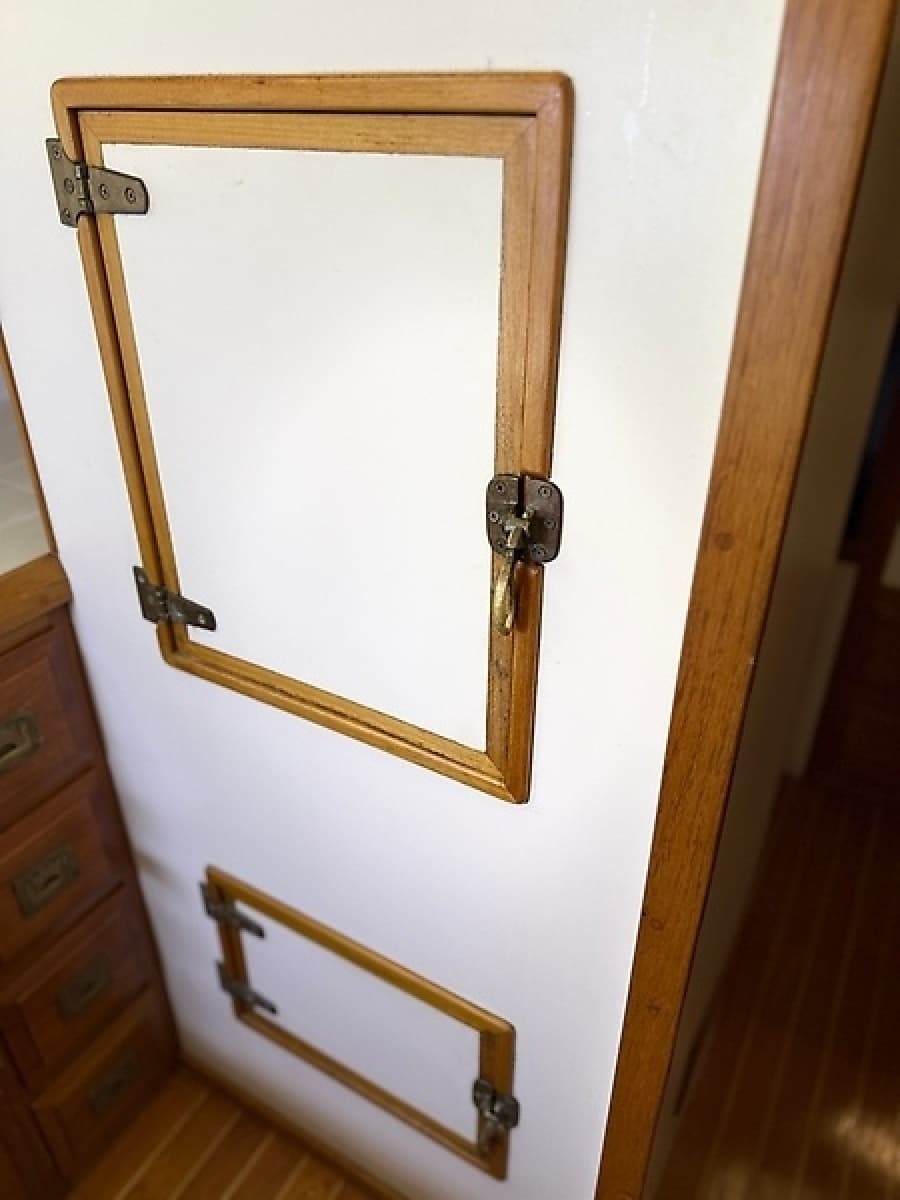

The interior is handcrafted. It is done in the classic style of white surfaces mixed with varnished hardwood joinery. (note: The cabin sole is not veneer. It is solid wood that is screwed and bunged) Every space available has been made accessible to maximize storage with drawers, doors and lockers.

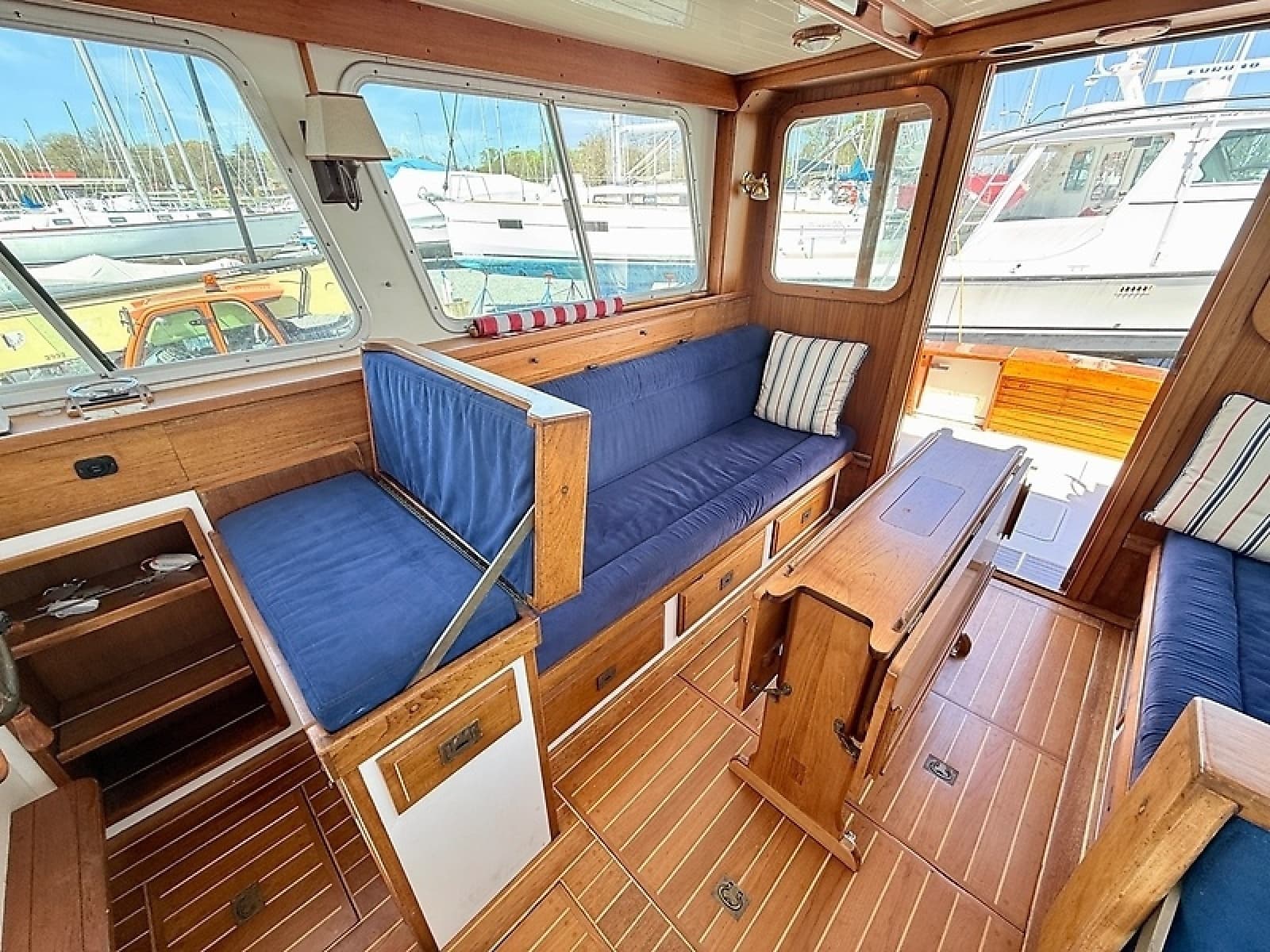

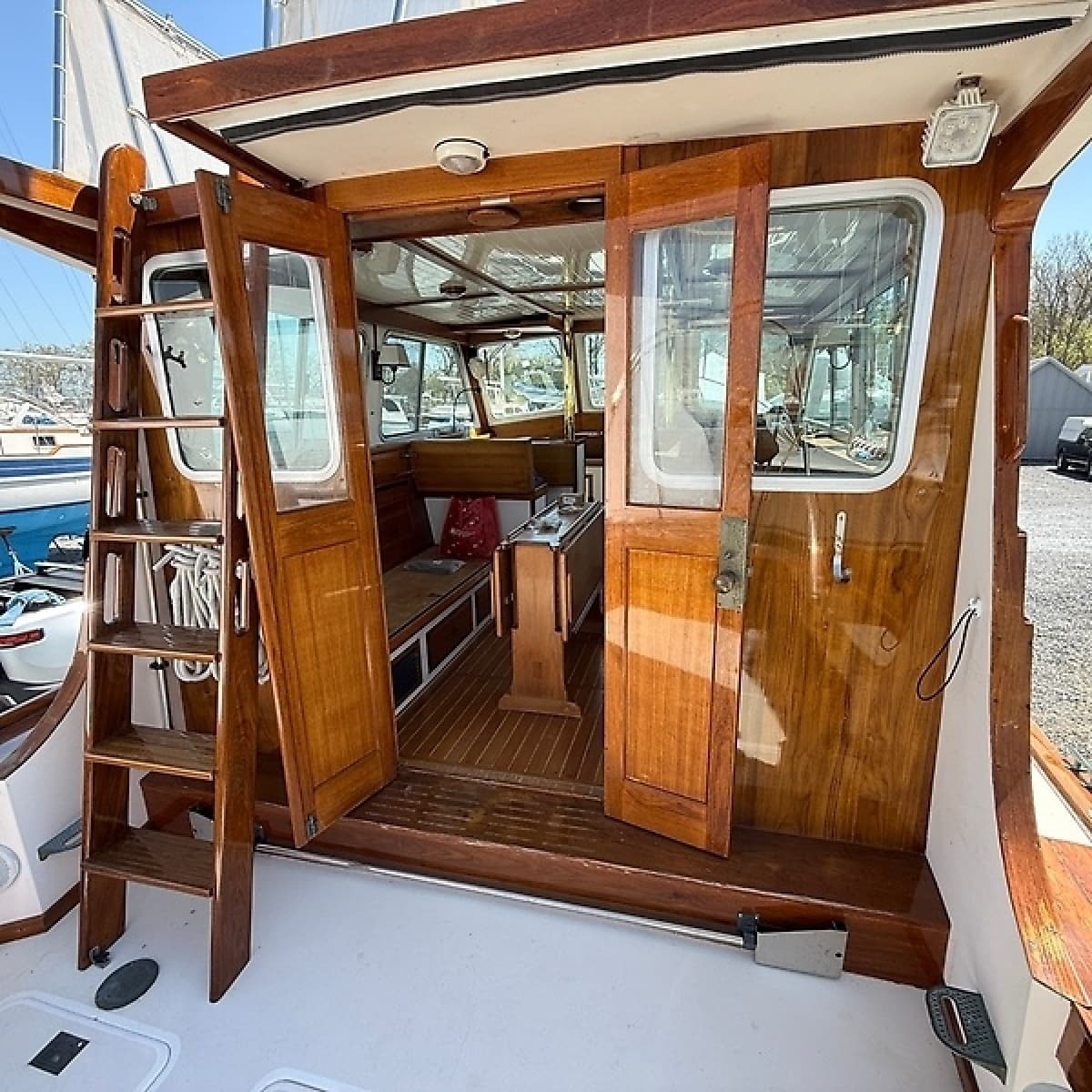

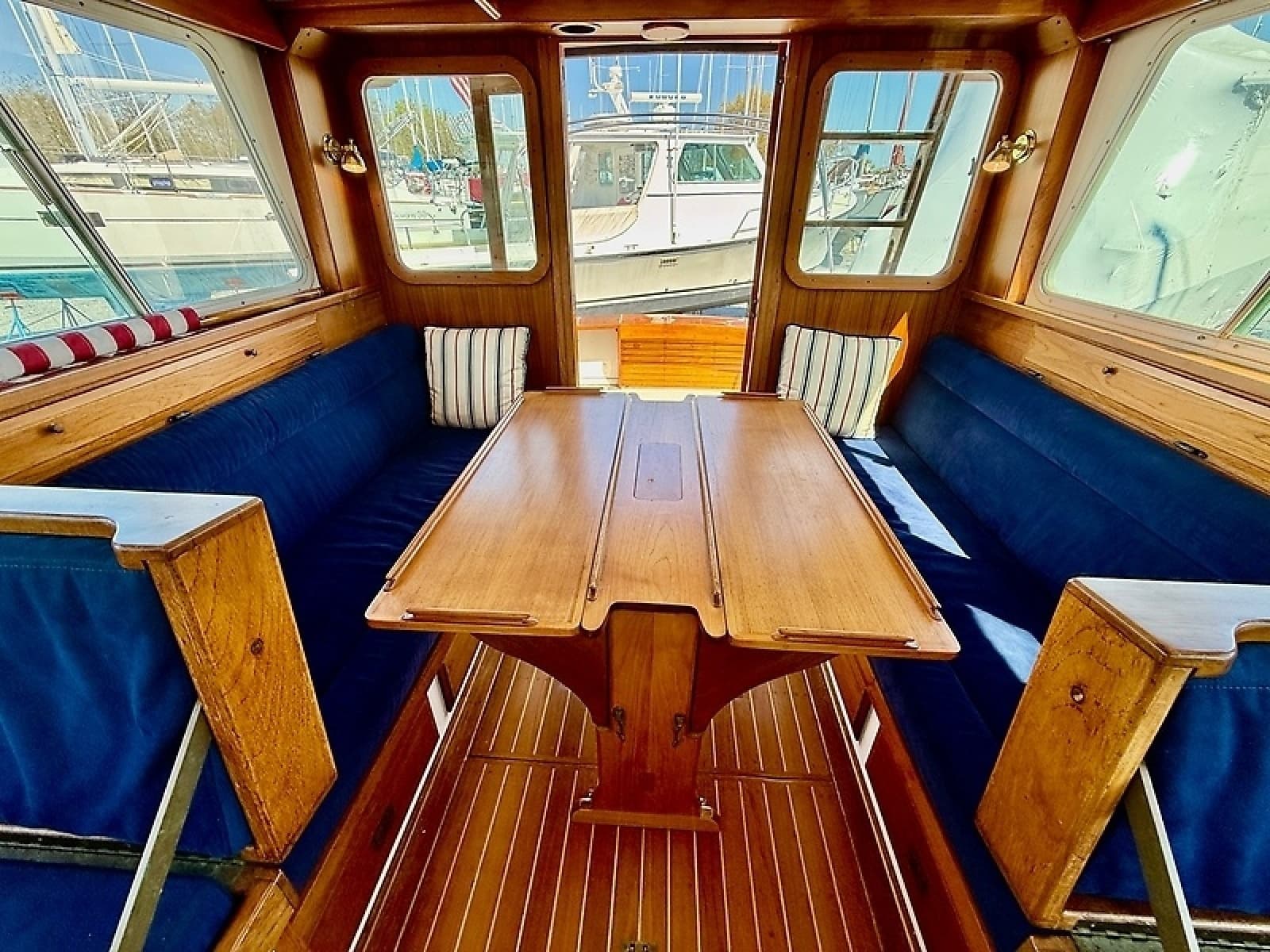

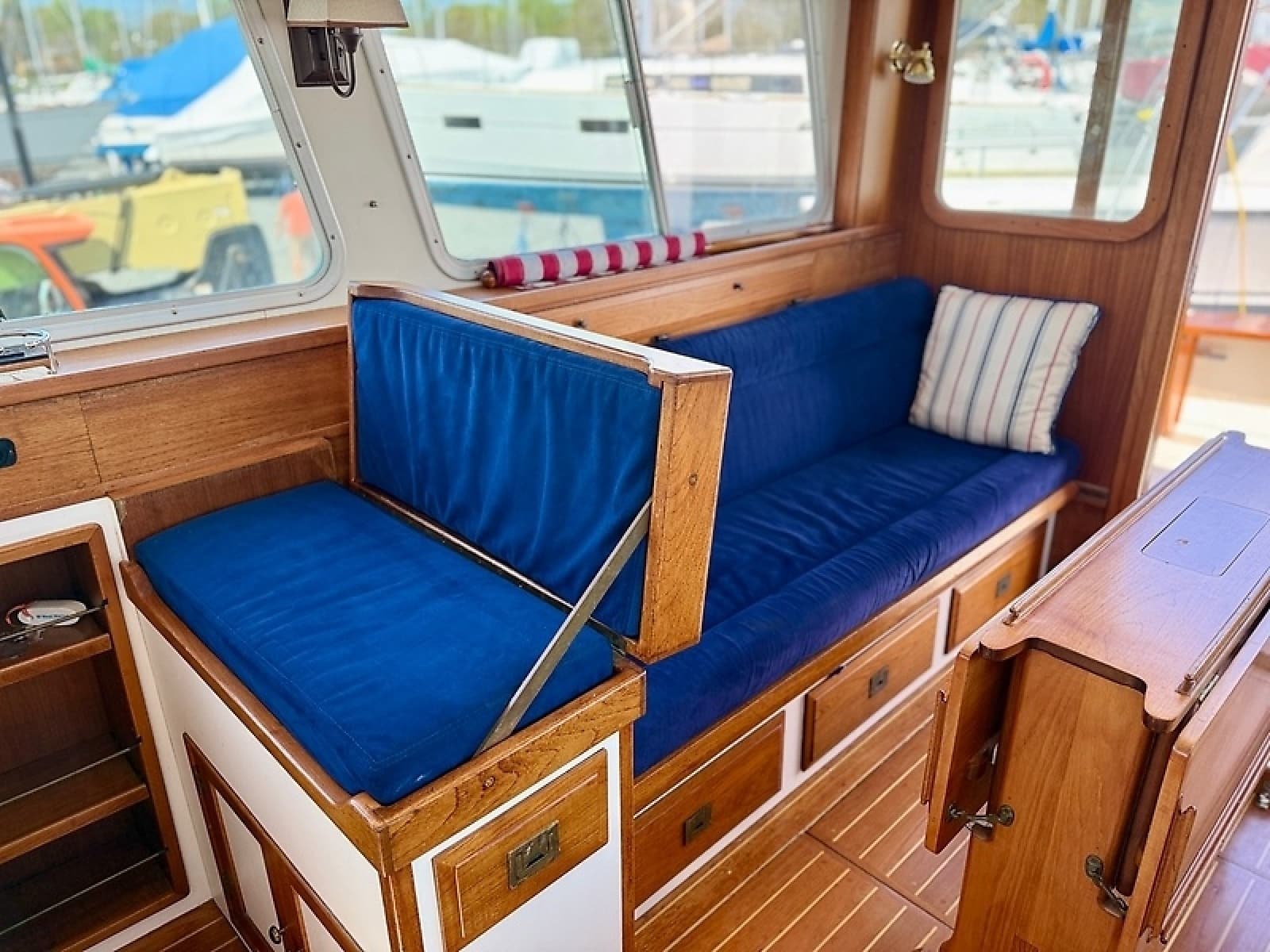

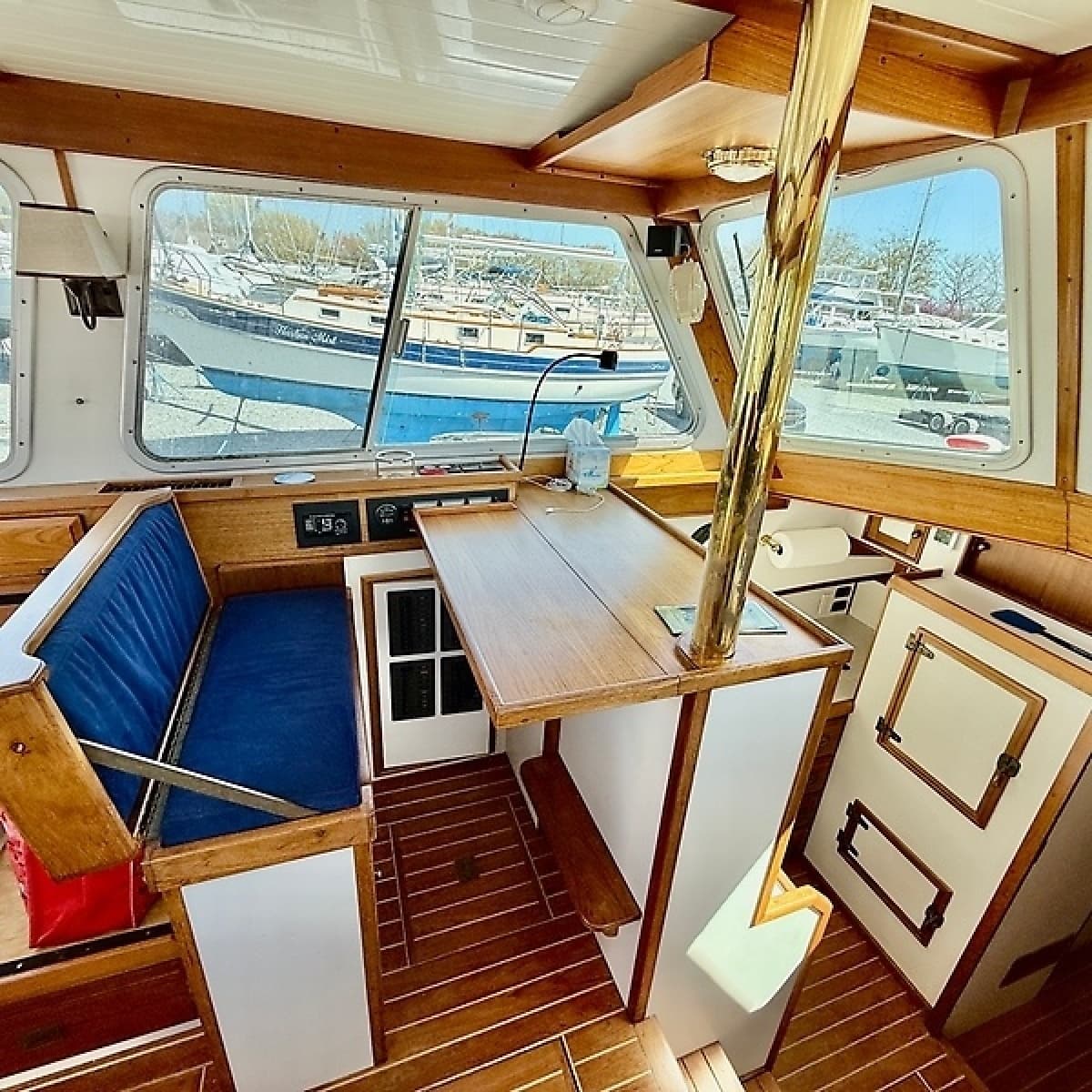

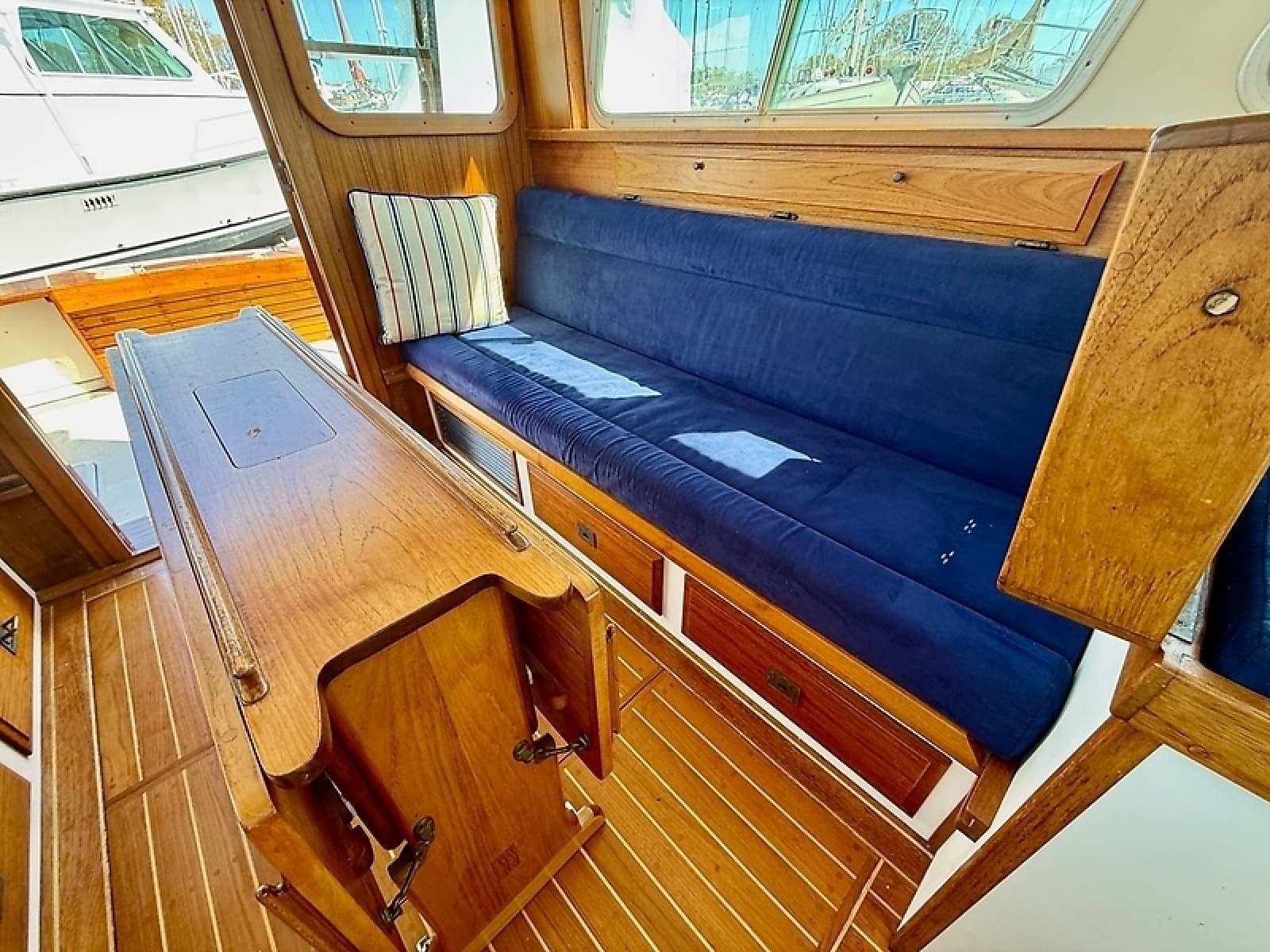

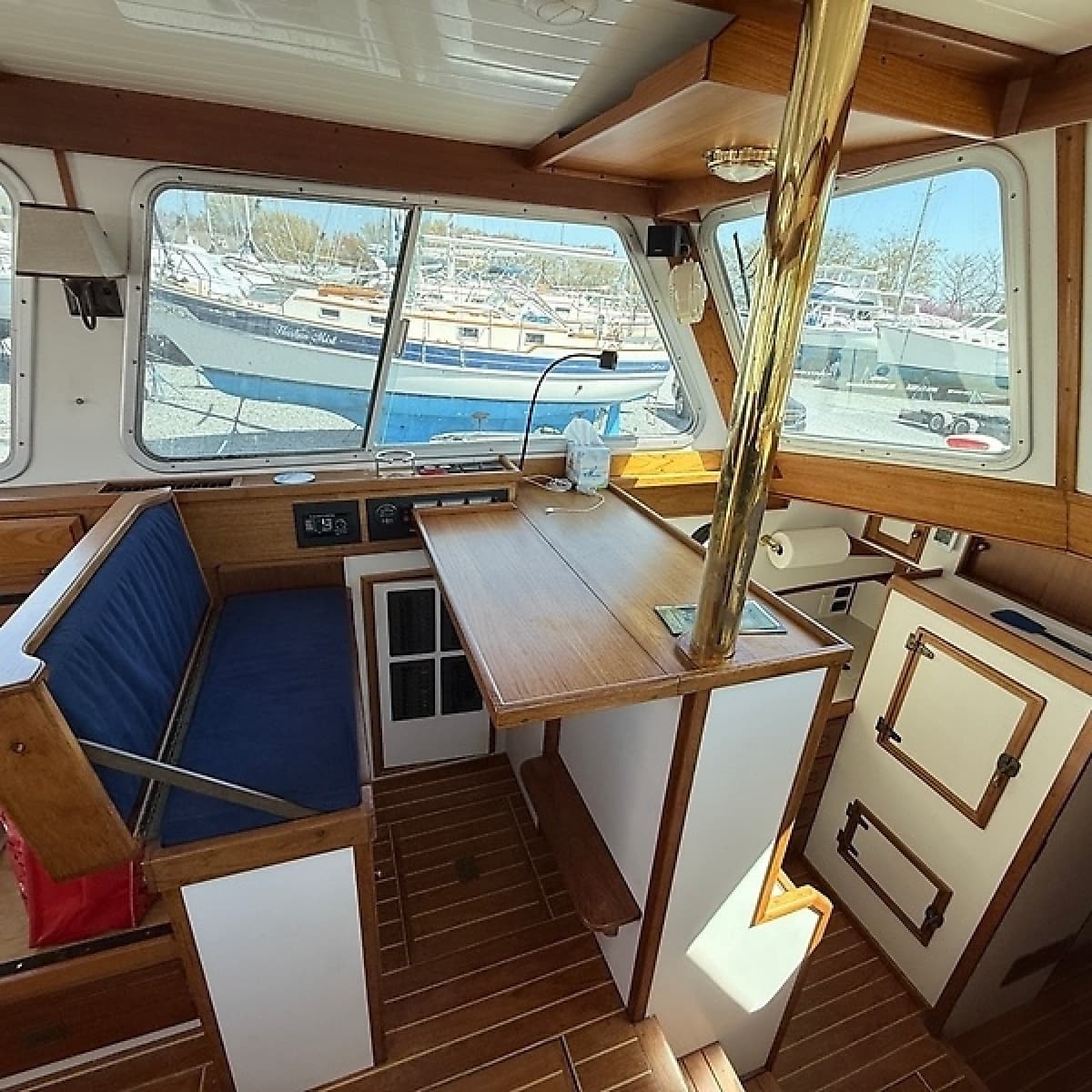

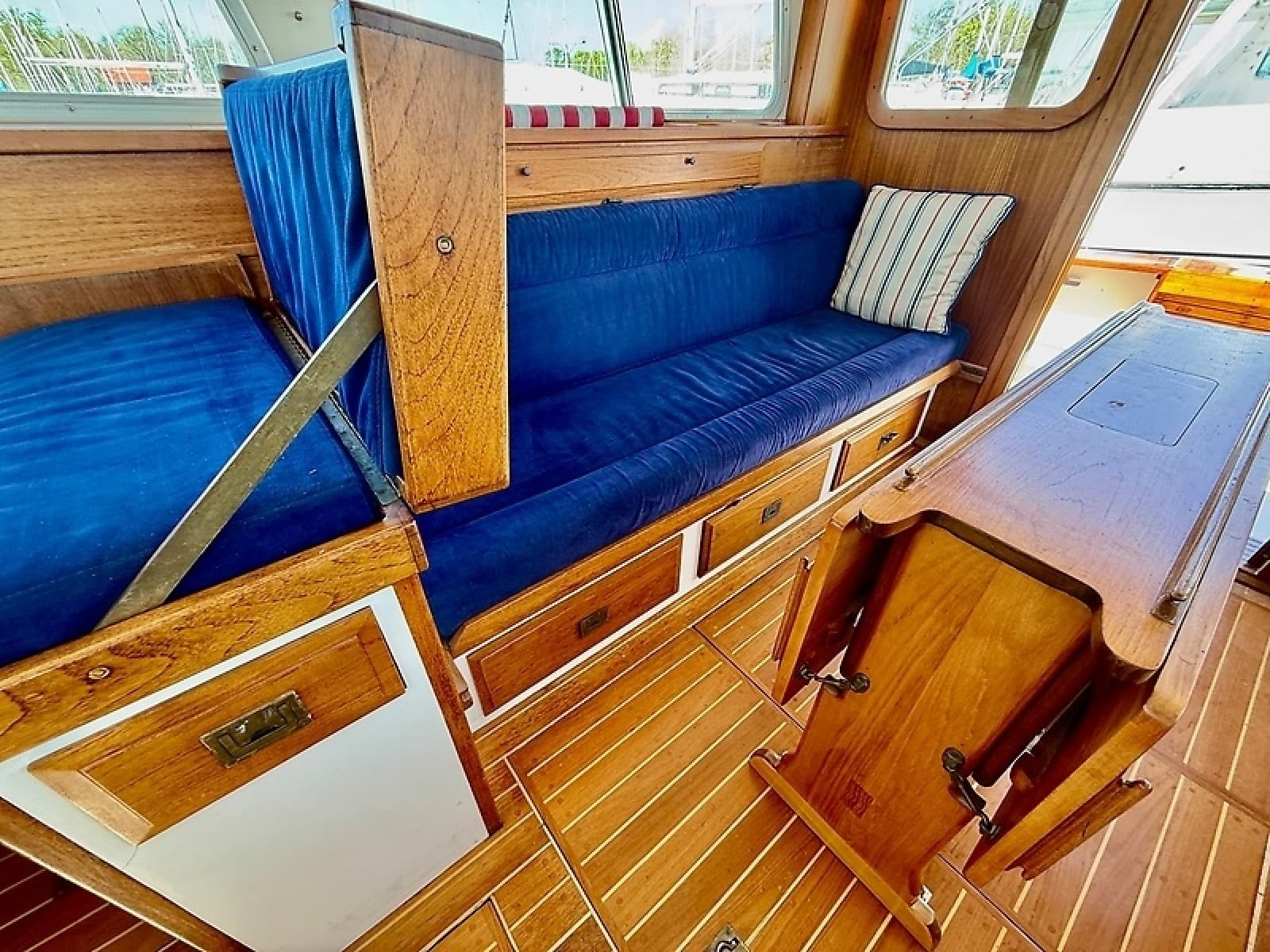

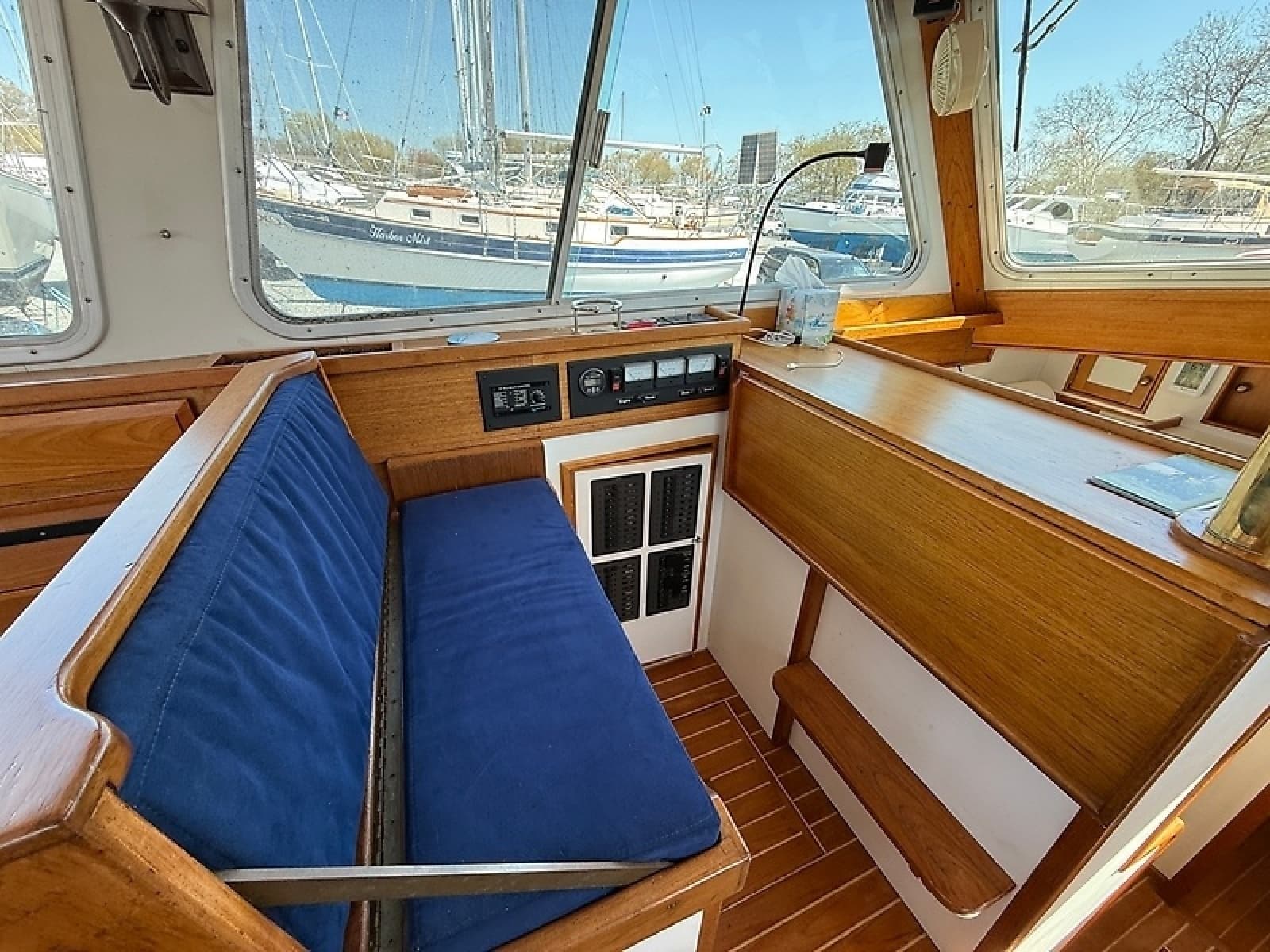

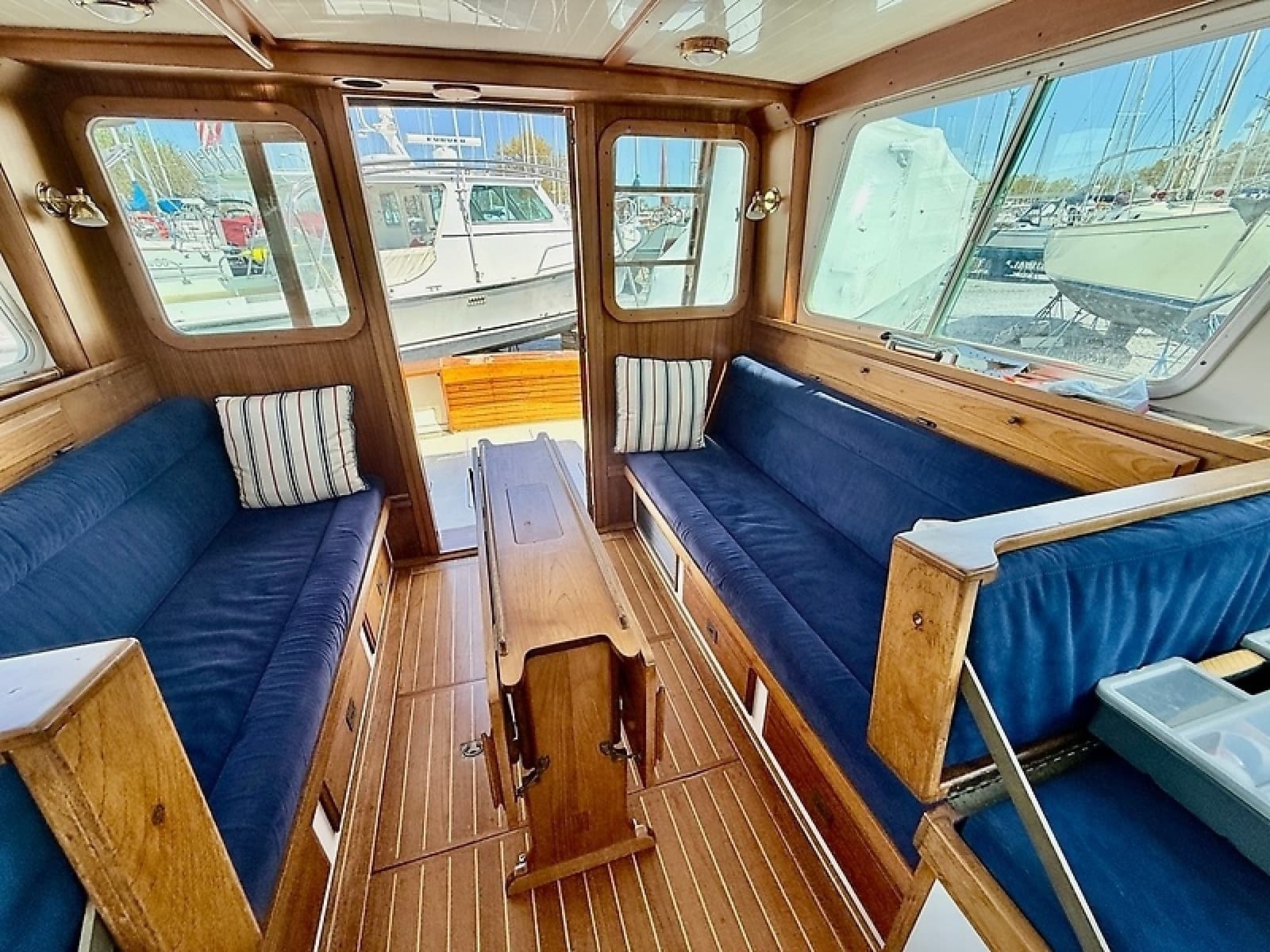

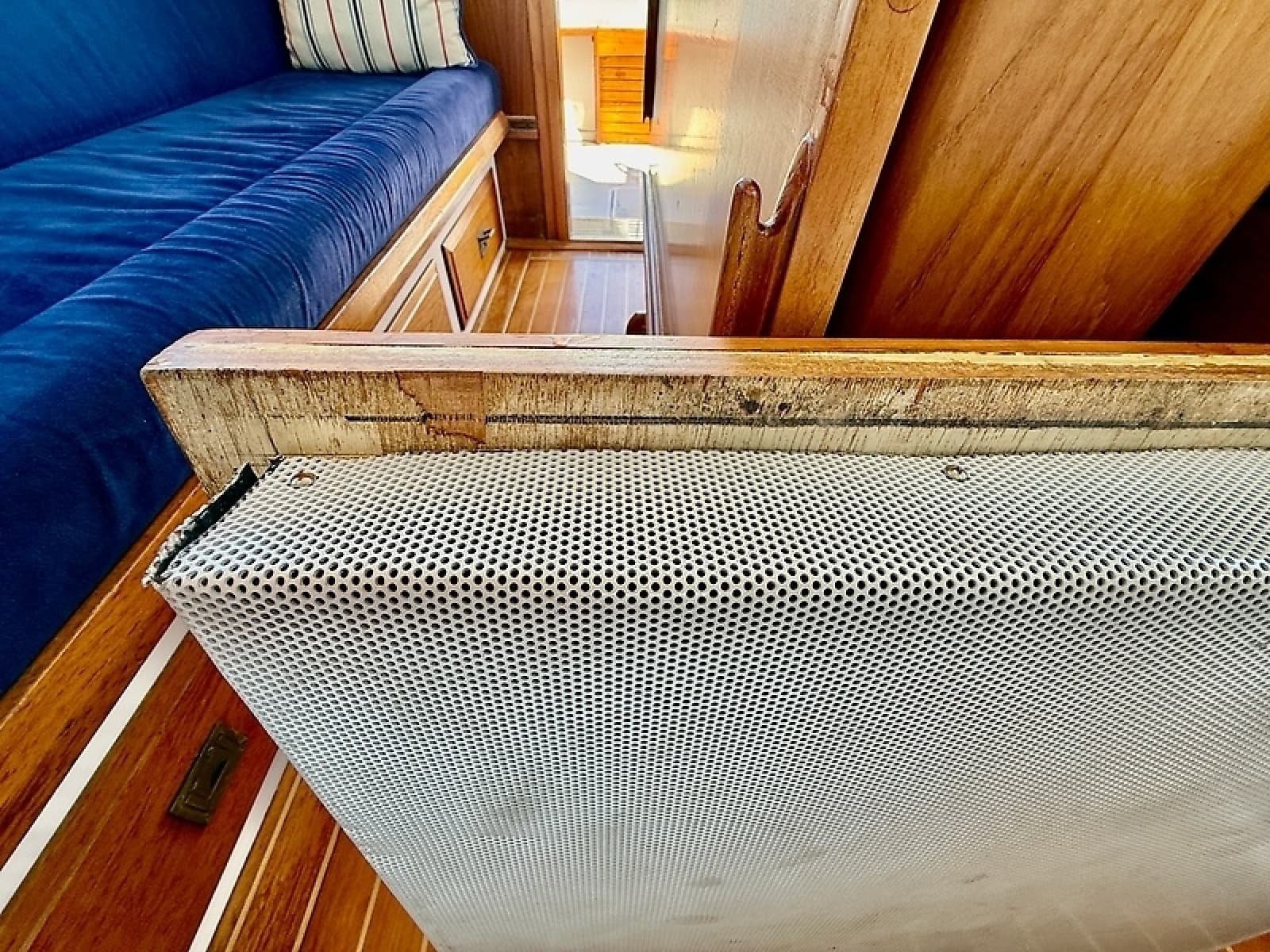

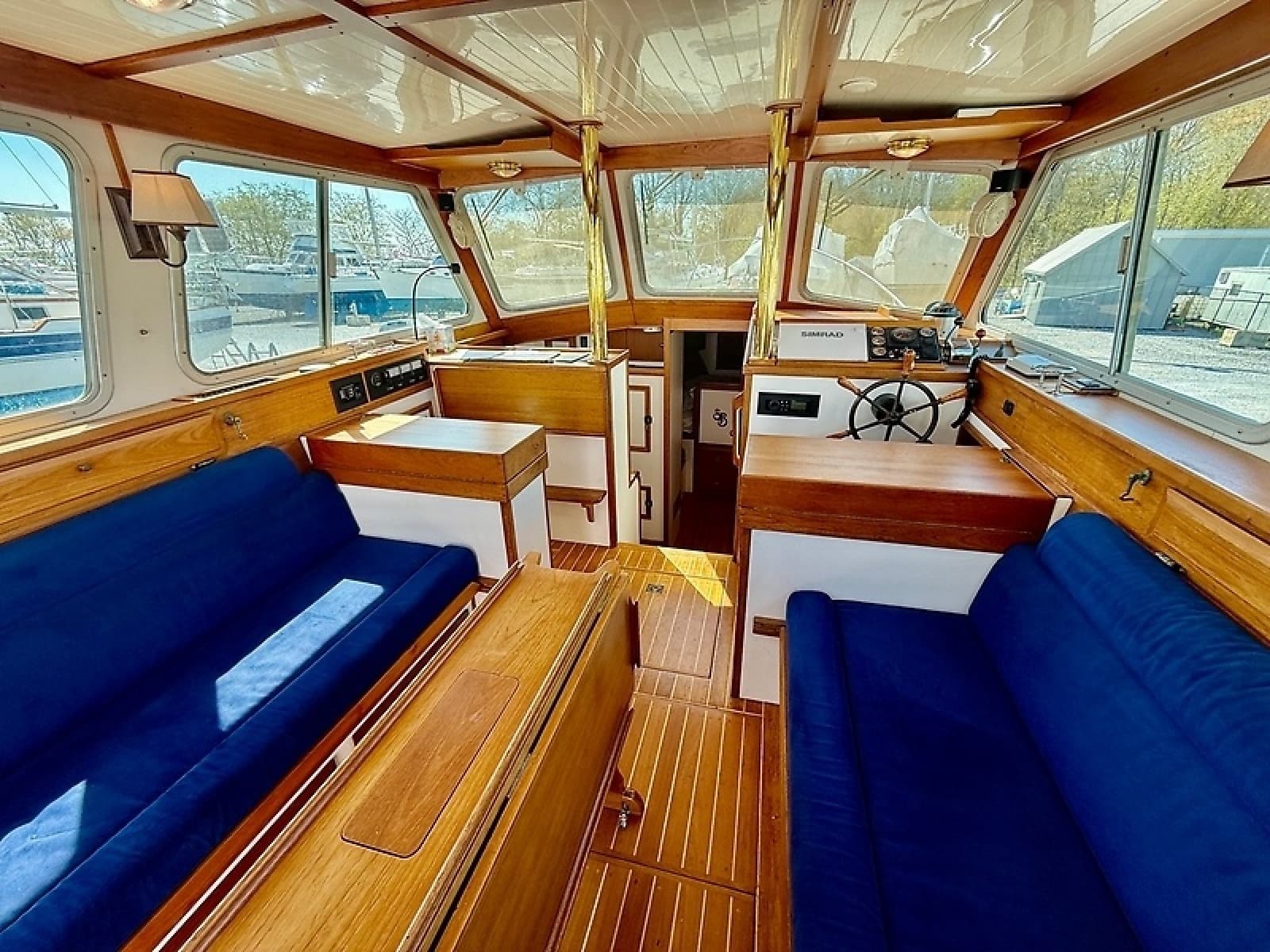

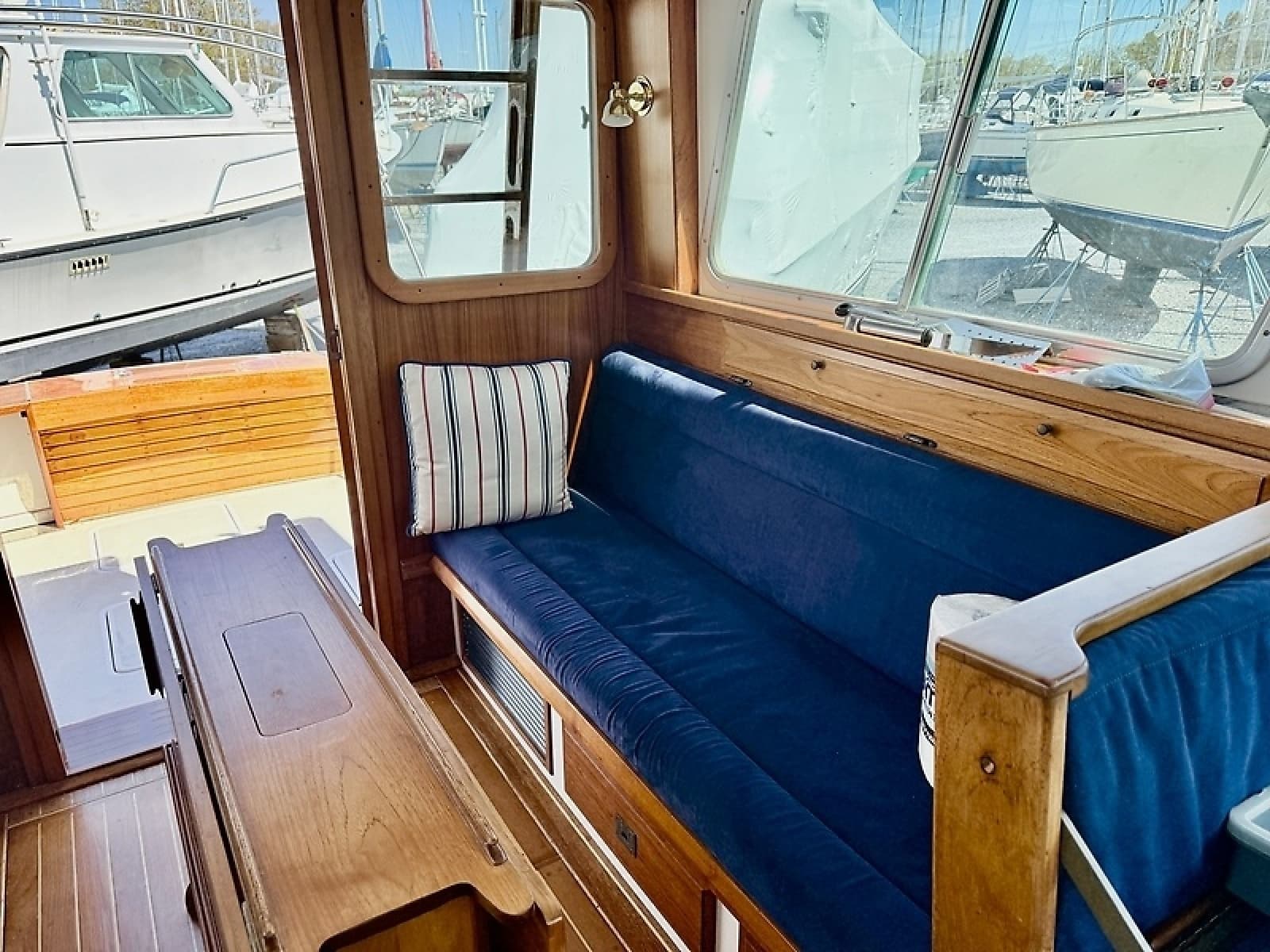

Entering the main cabin the salon has port and starboard settees with a centerline drop-leaf table. Both settees extend for that little extra room for when they are used for sleeping.

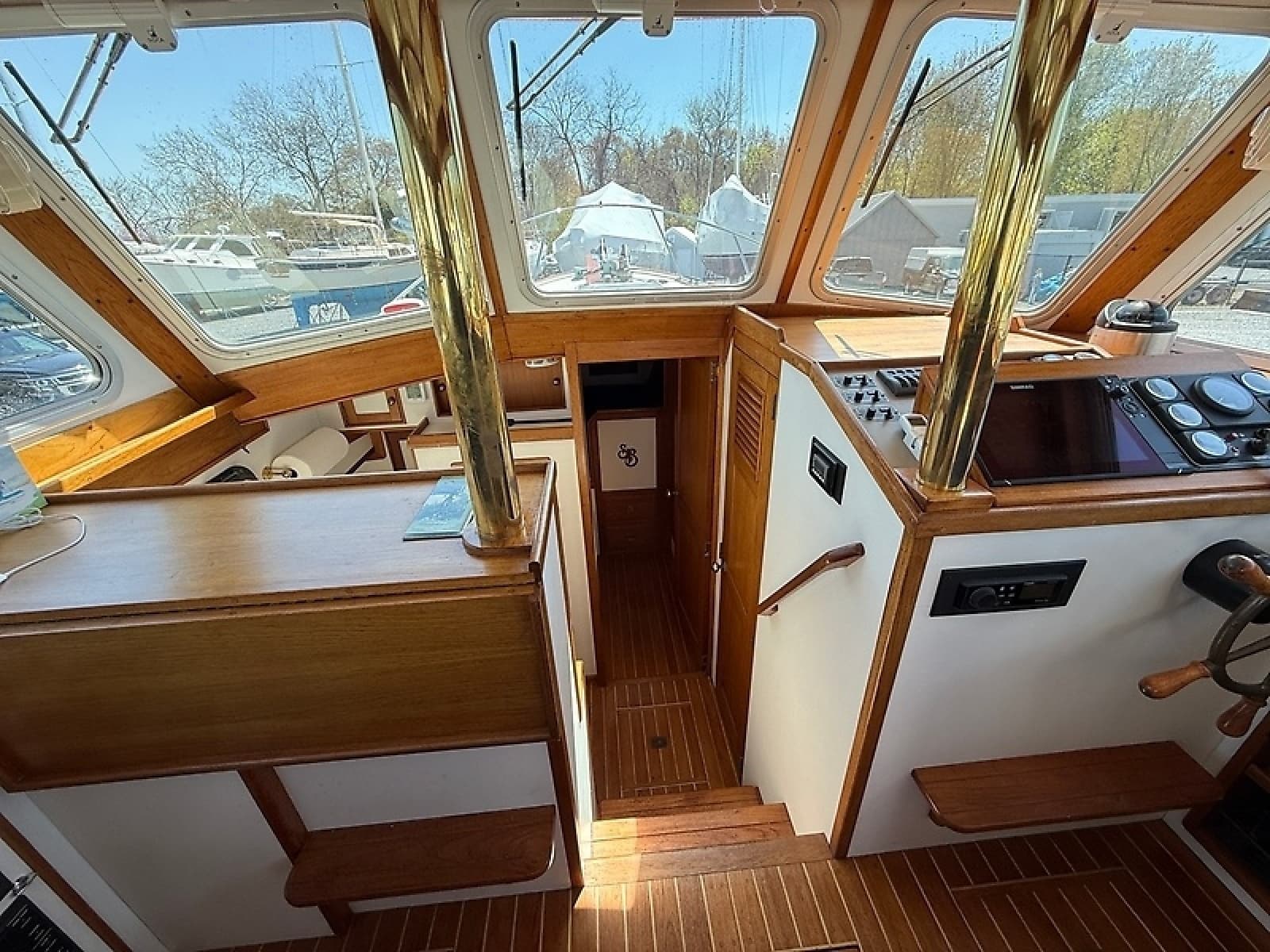

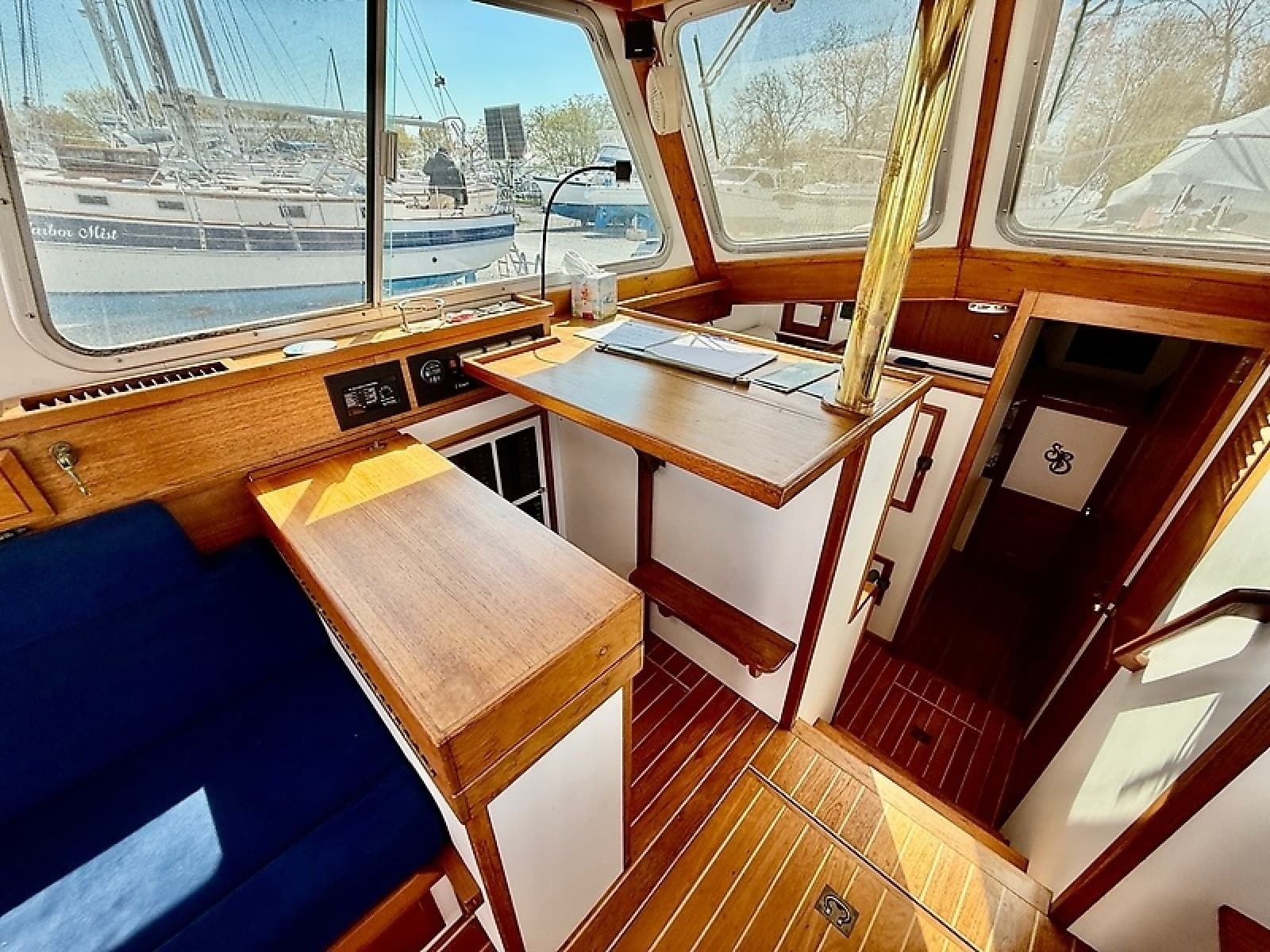

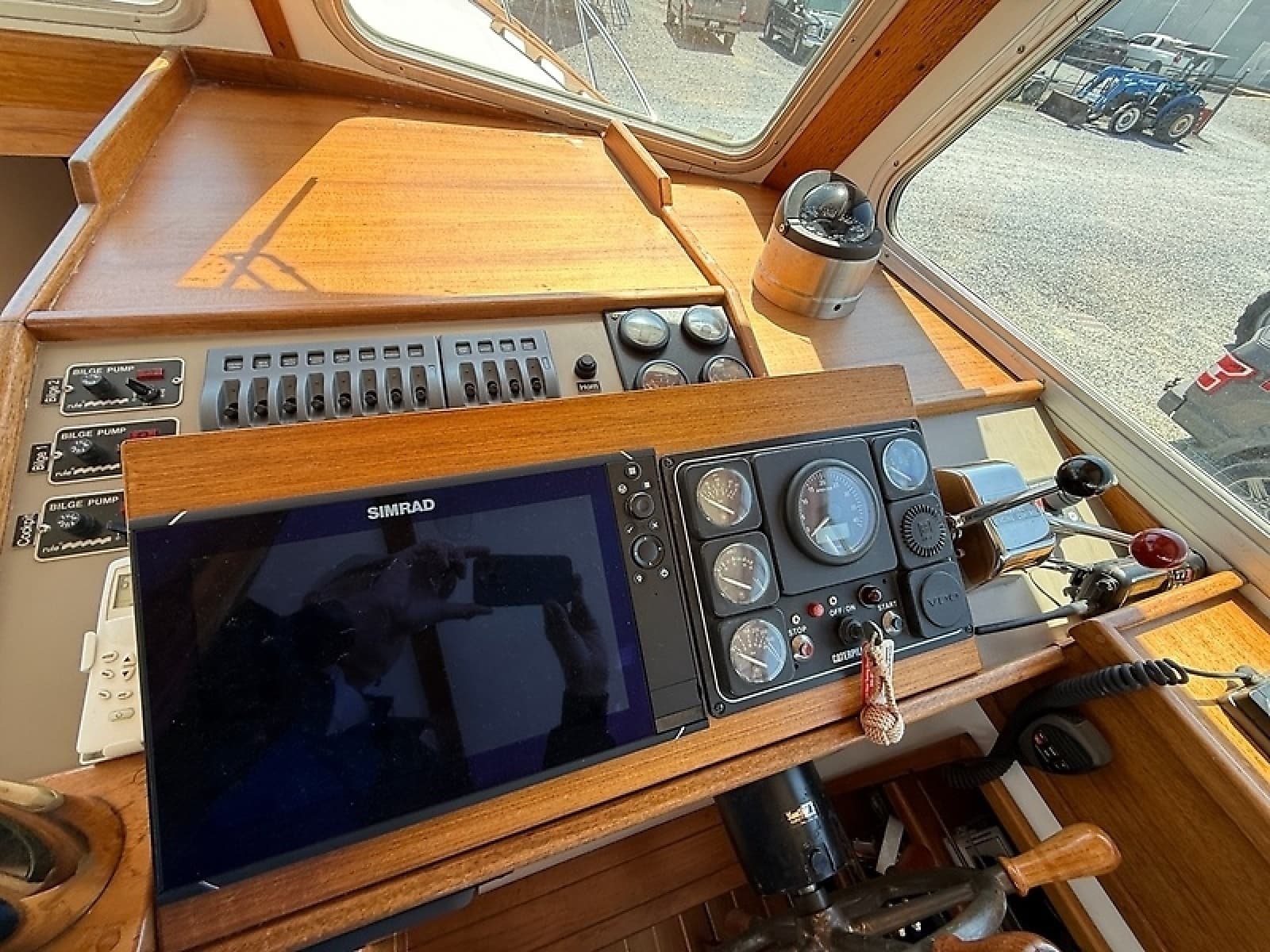

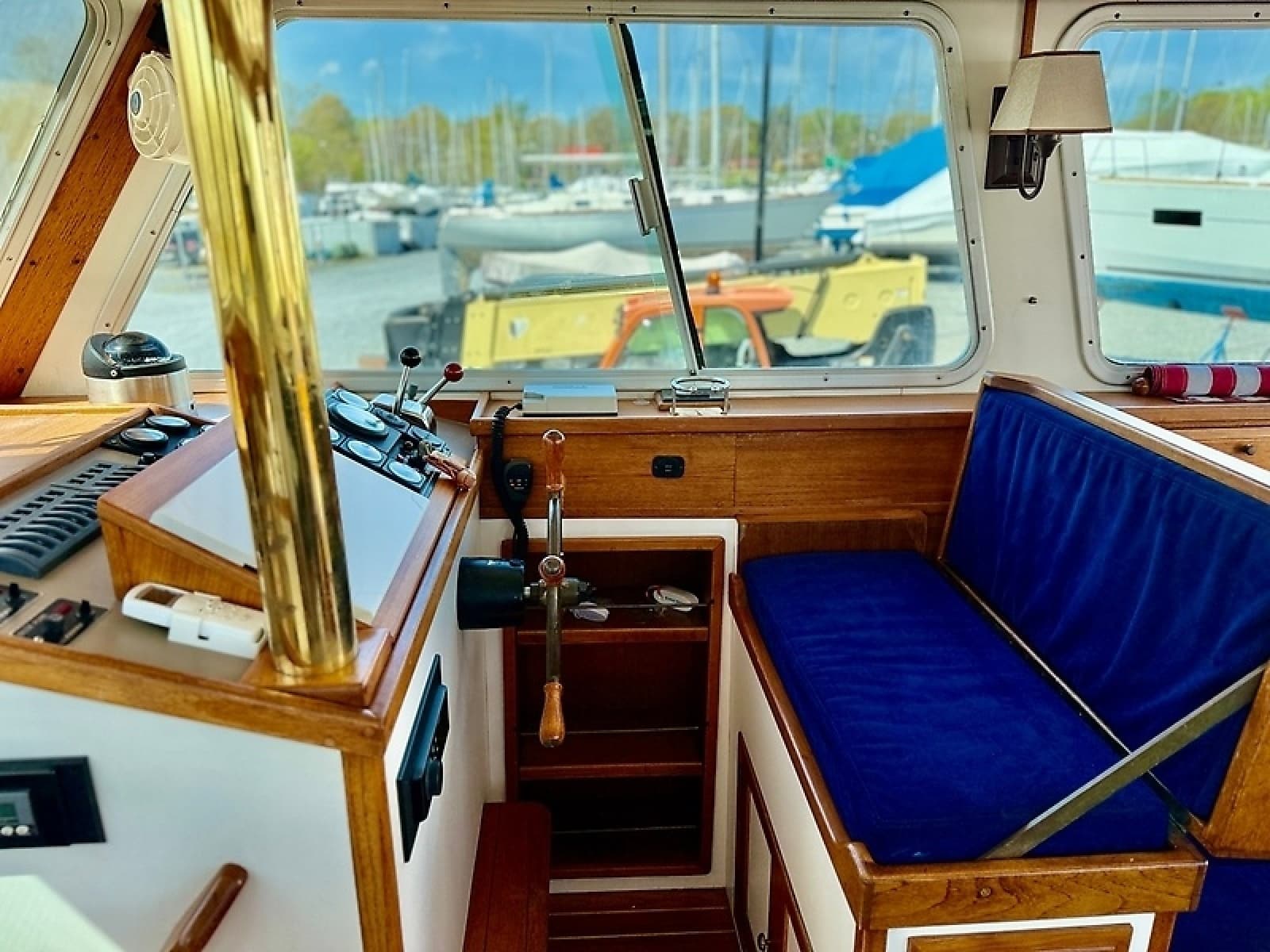

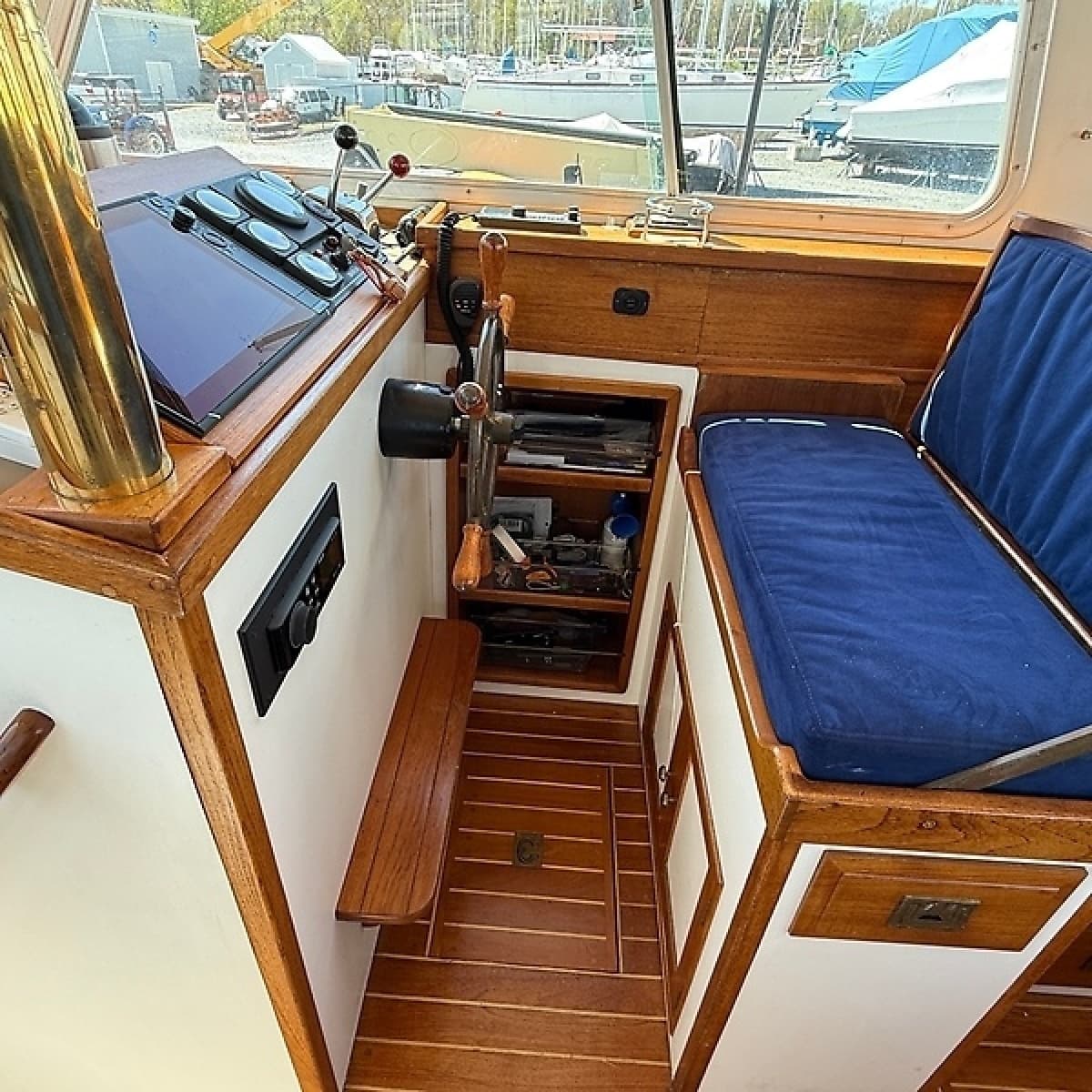

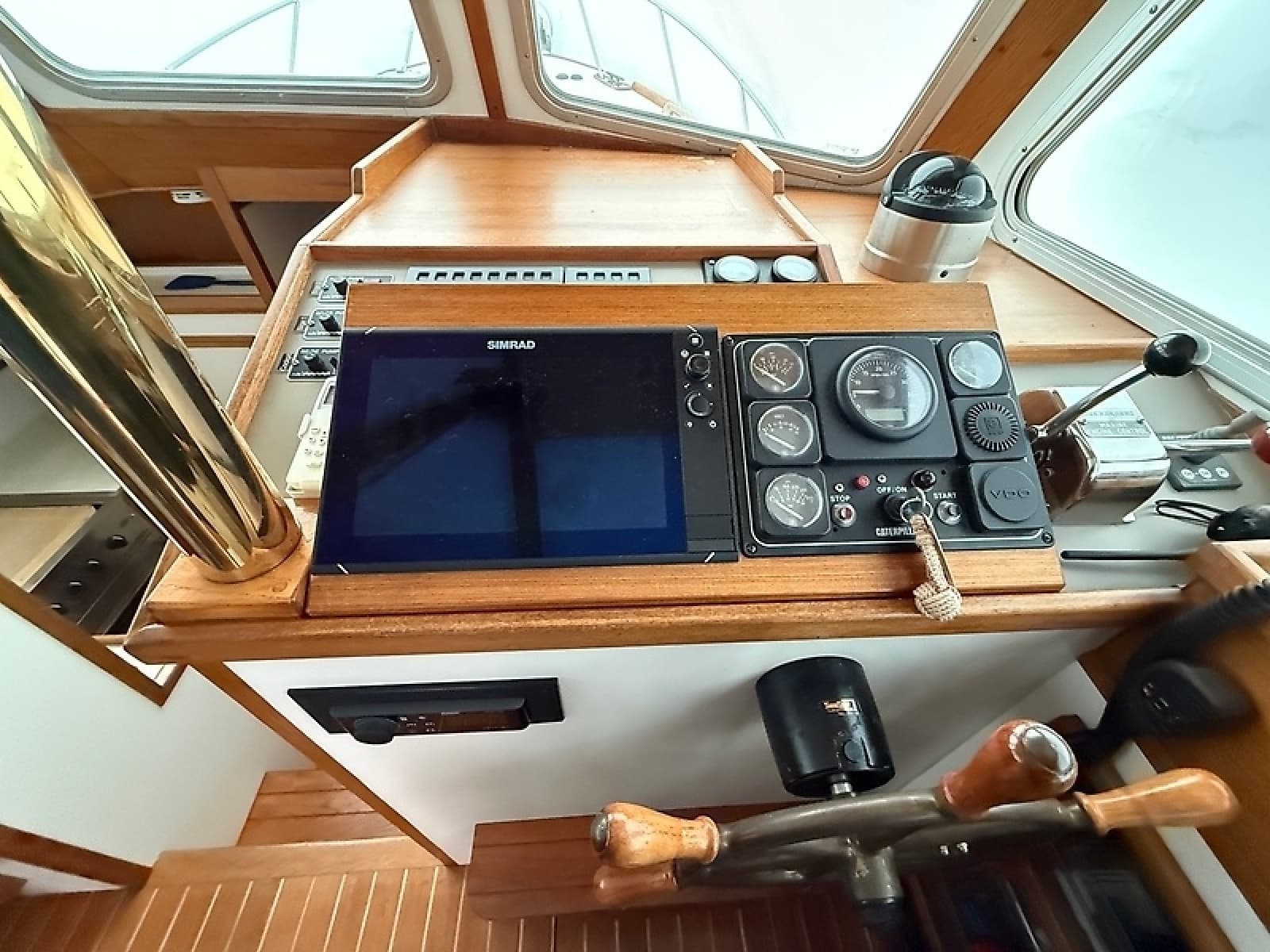

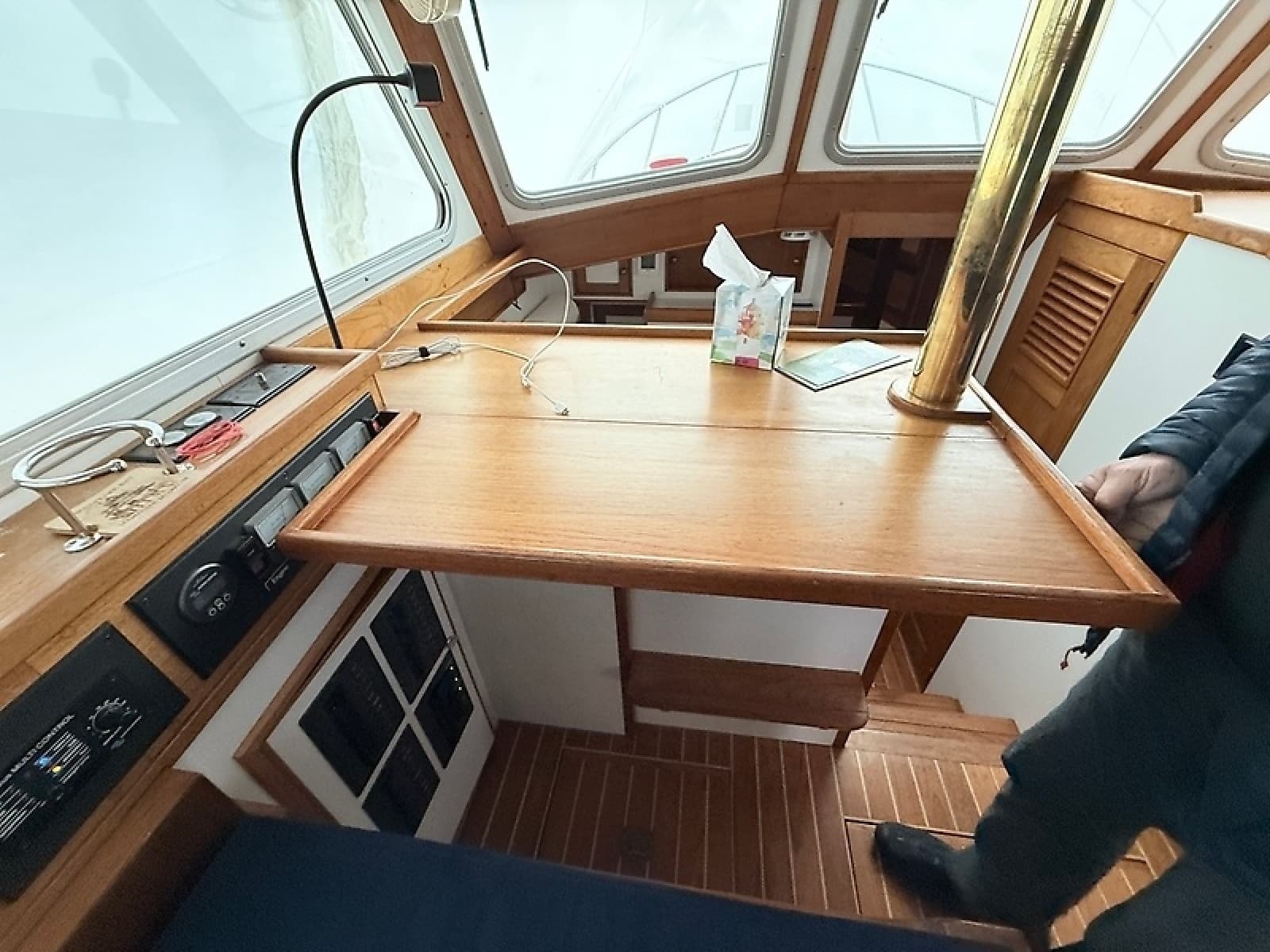

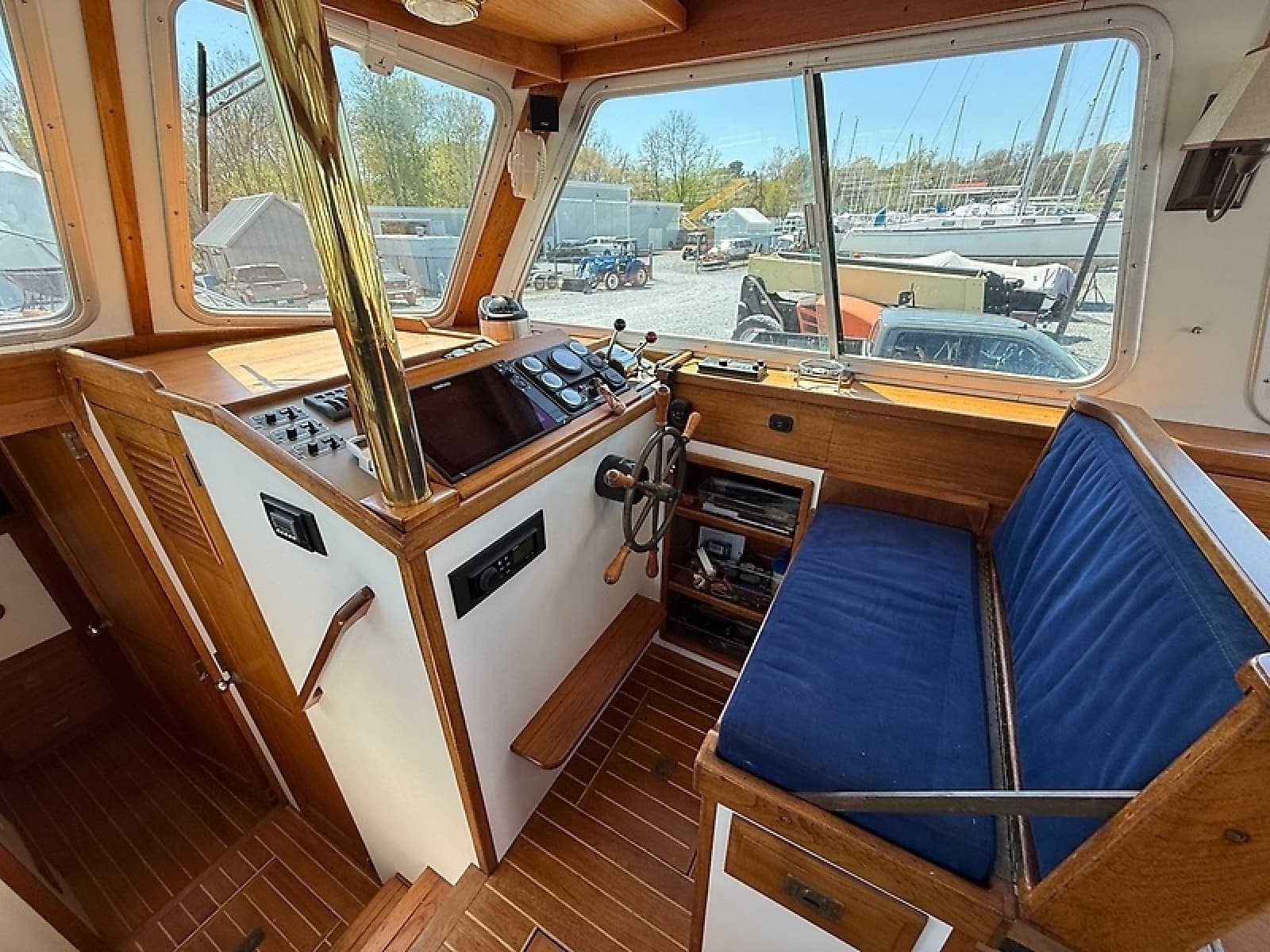

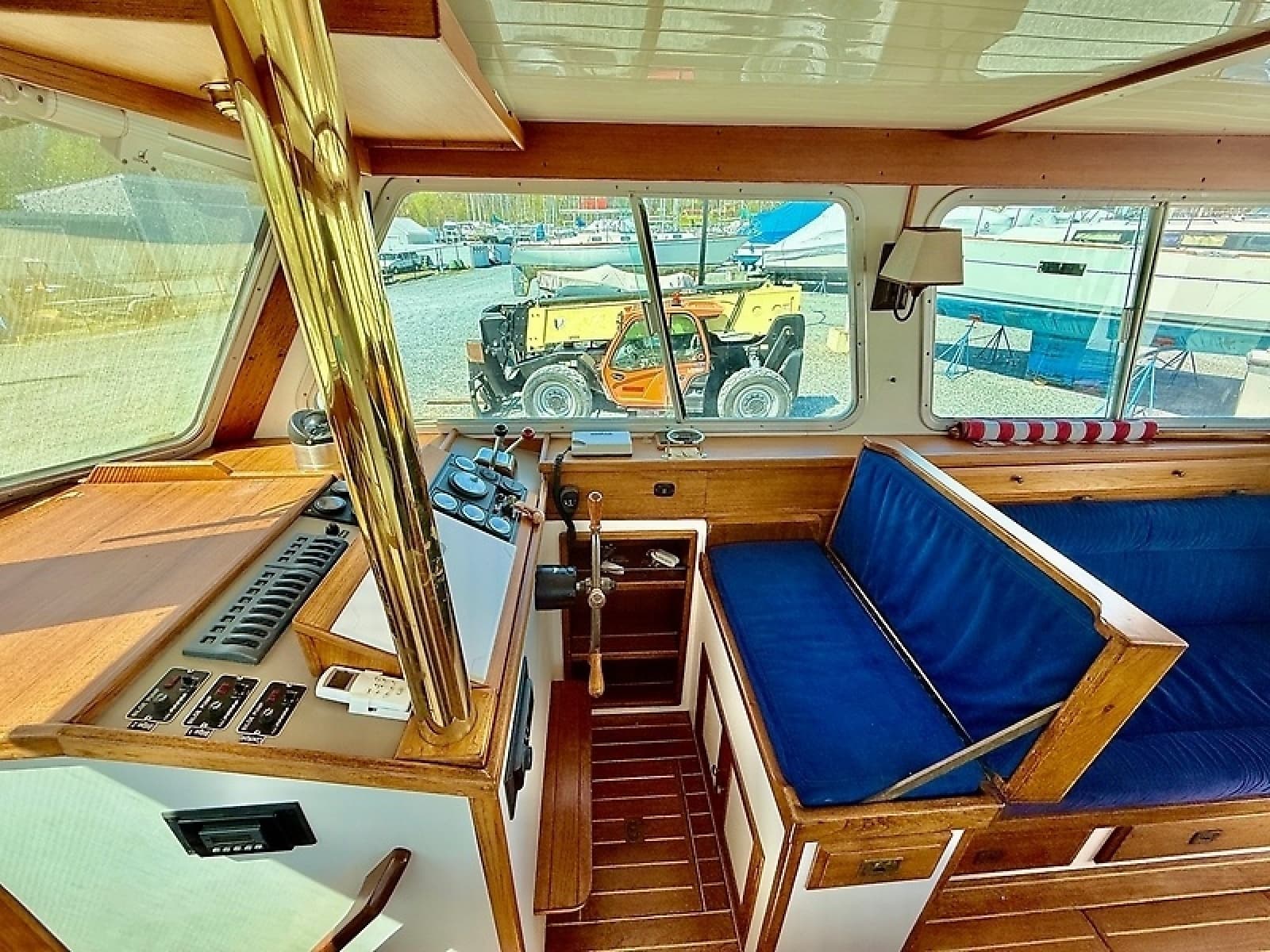

Forward in the salon is the lower helm station with seat to starboard and the companions navigation seat with flip-up chart table. Both of the seat-backs fold down for addition flat surfaces for use when entertaining or just lounging.

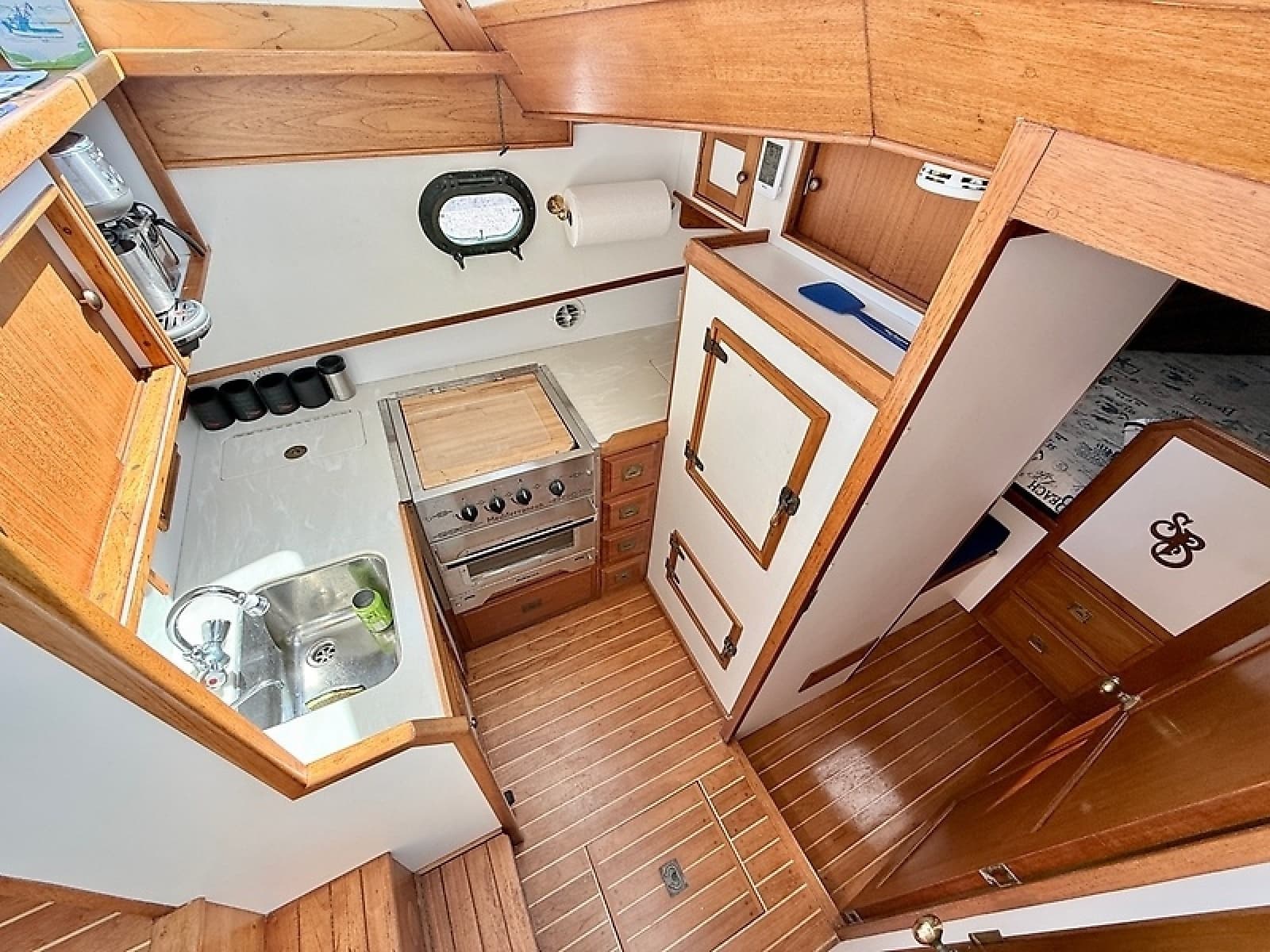

The galley is down and to port. However, it is not so low as too feel isolated from the main cabin. It is U-shaped and very efficient.

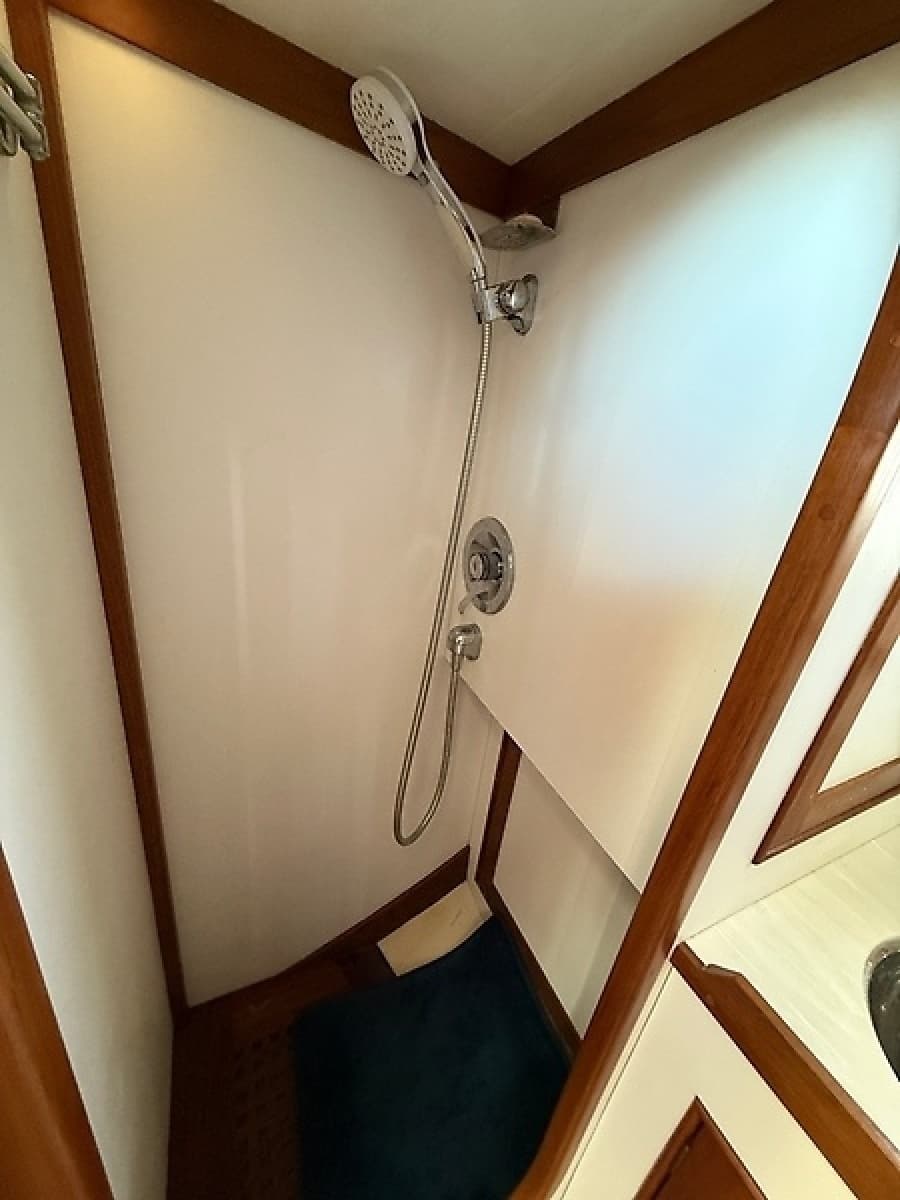

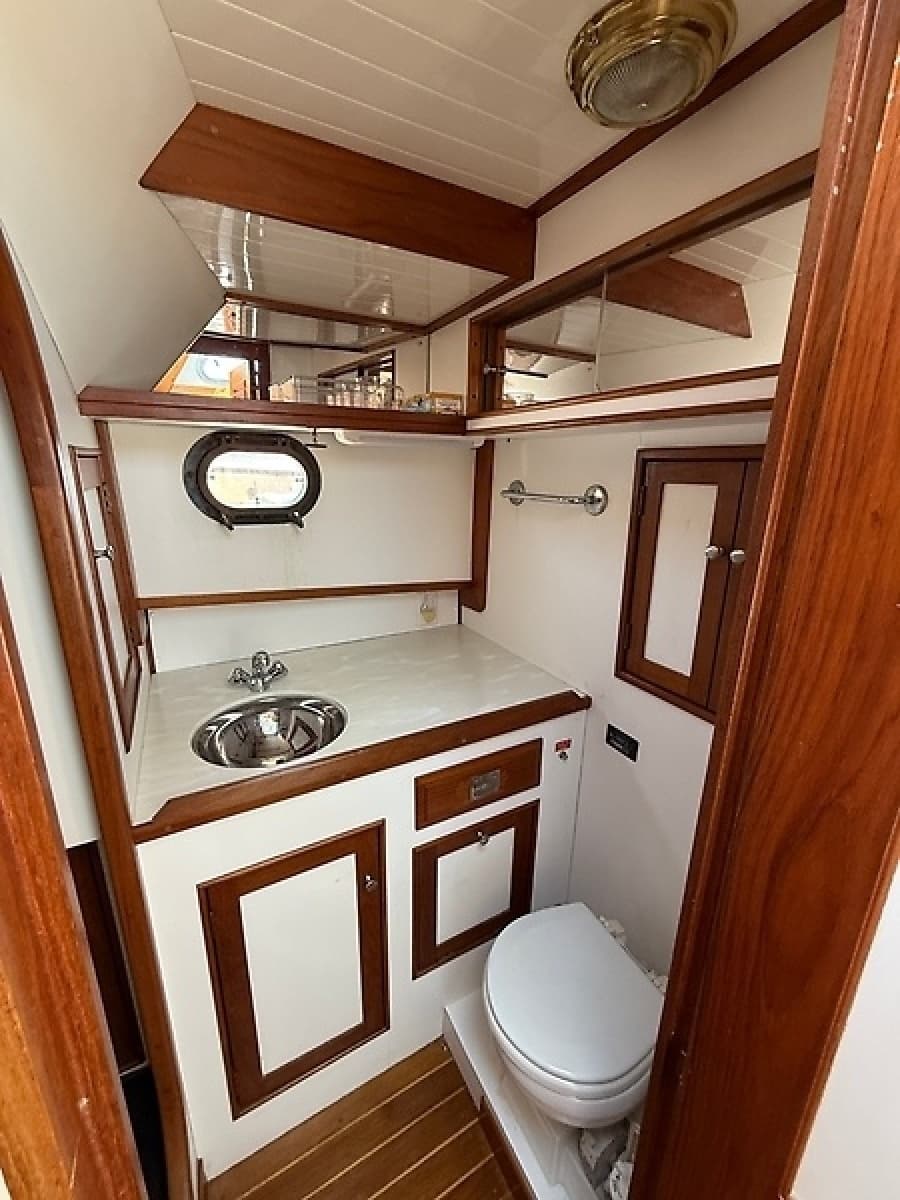

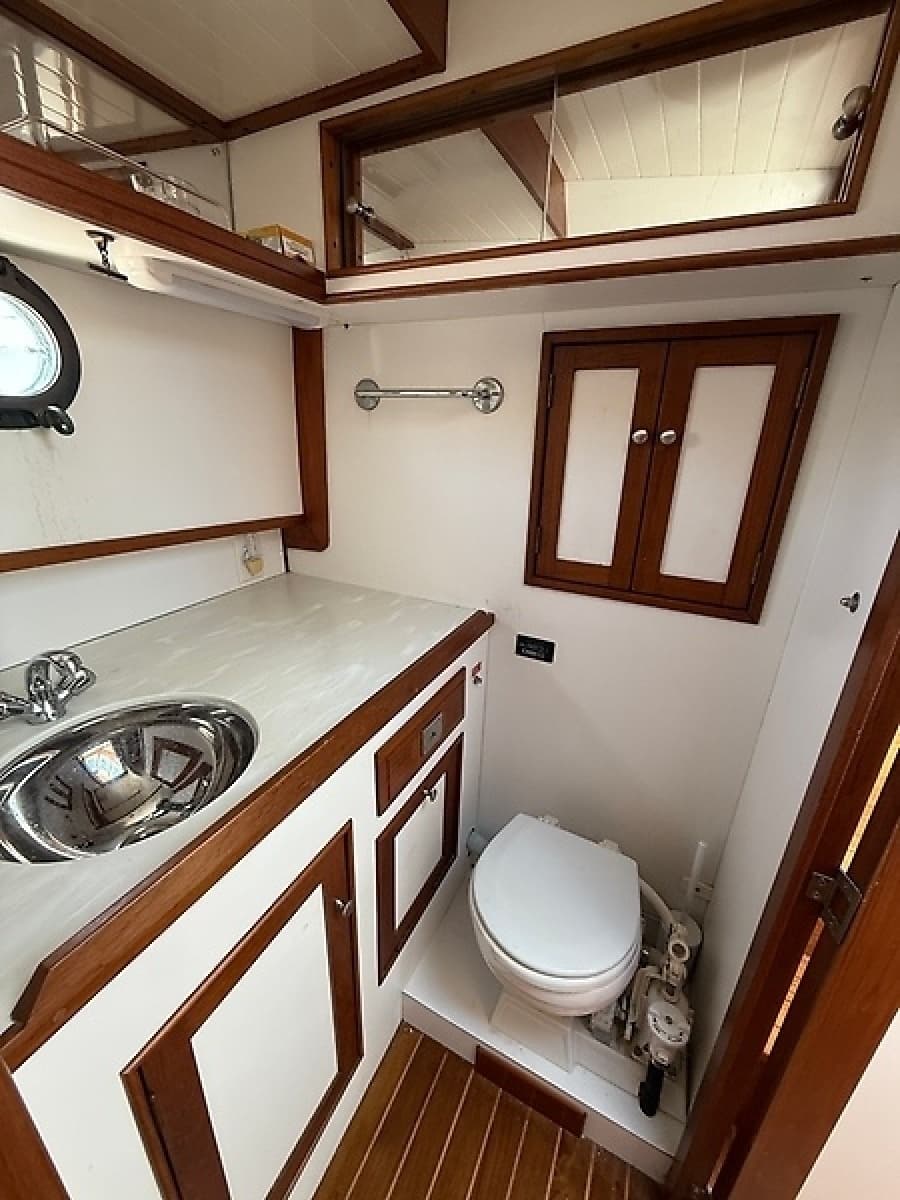

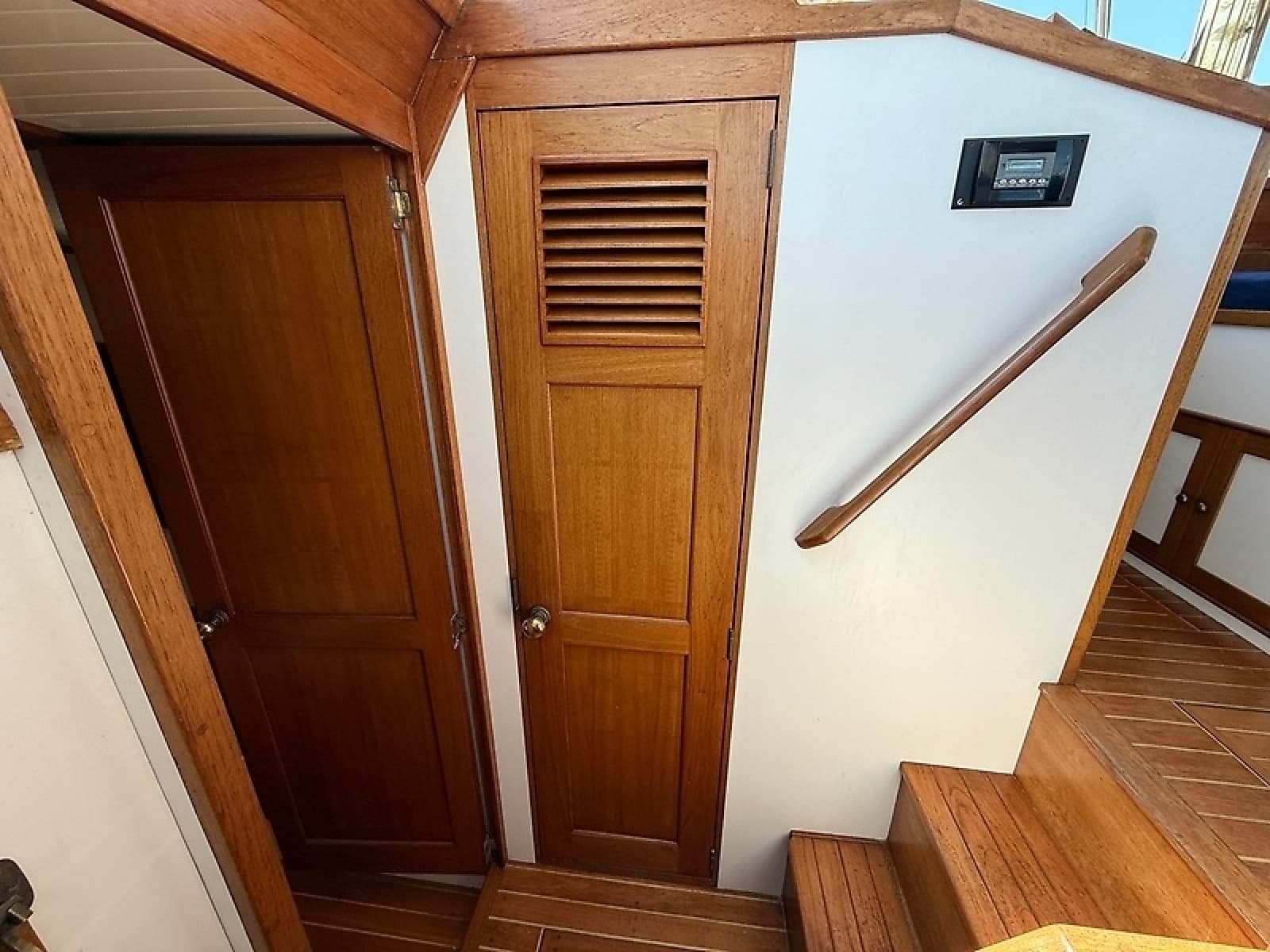

Across from galley is an enclosed head that unique in a boat of this size. It has the typical head, sink, vanity but it also has a separate stall shower.

  • Head is both electric or manual
  • Shower sump 12v
  • Y-valve with macerator for holding tack

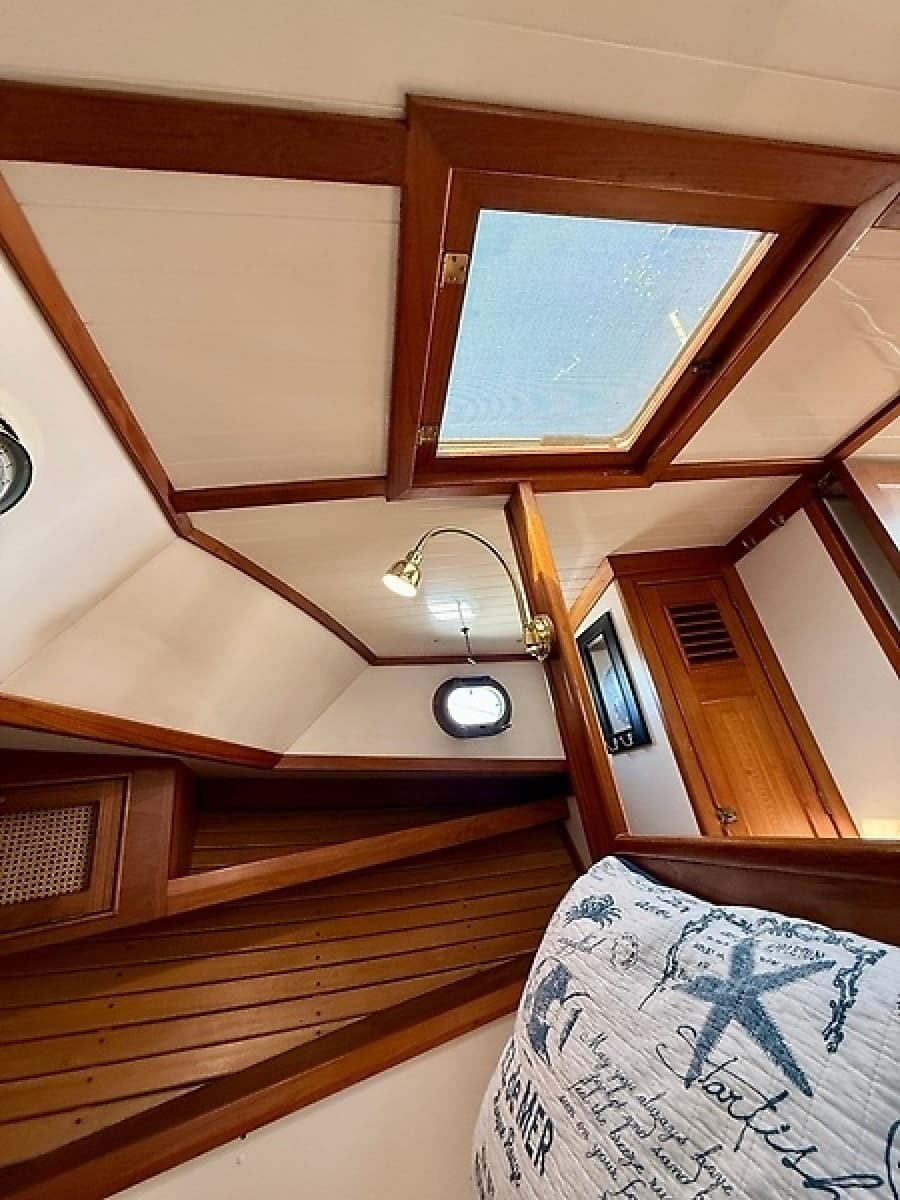

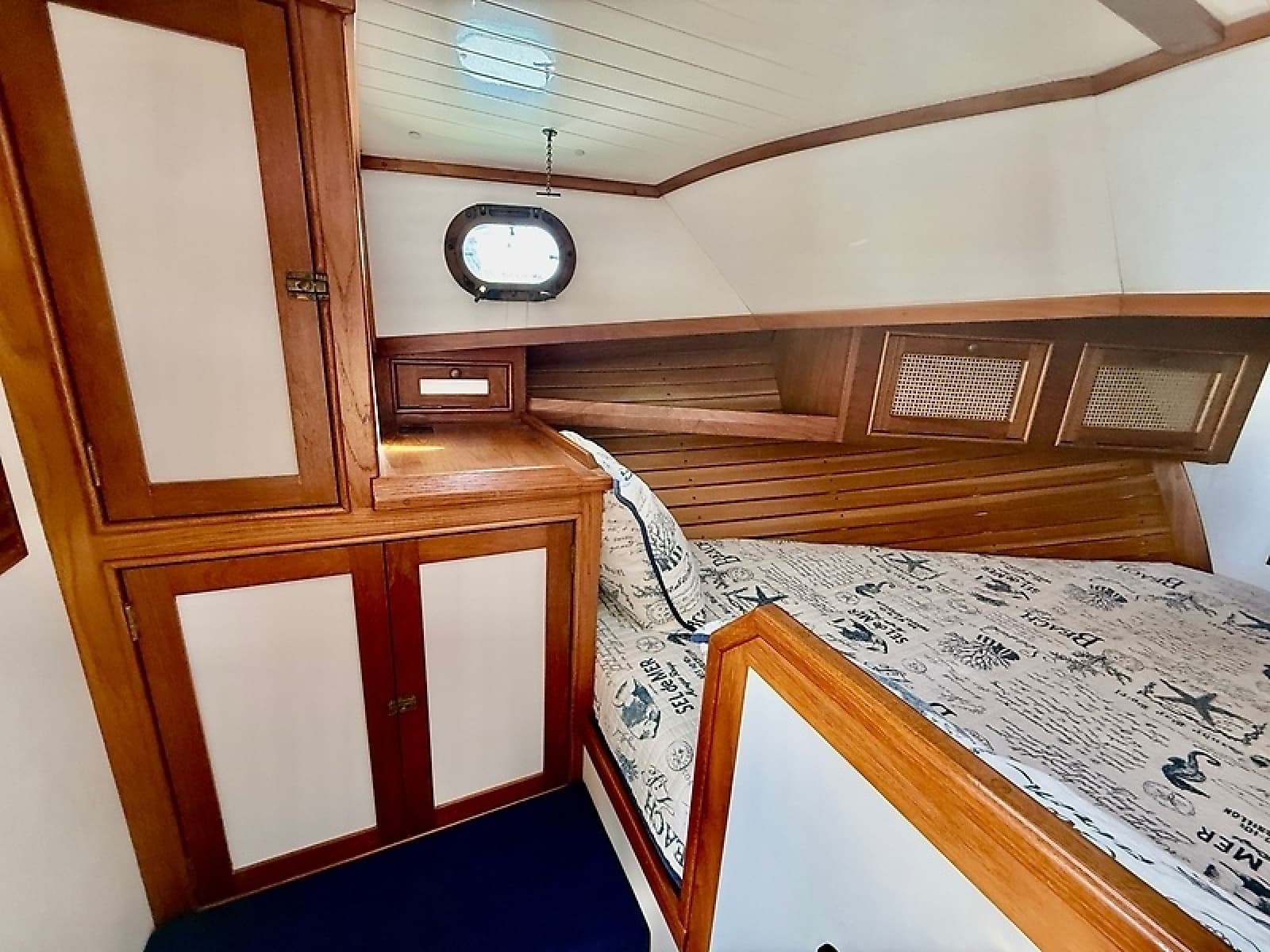

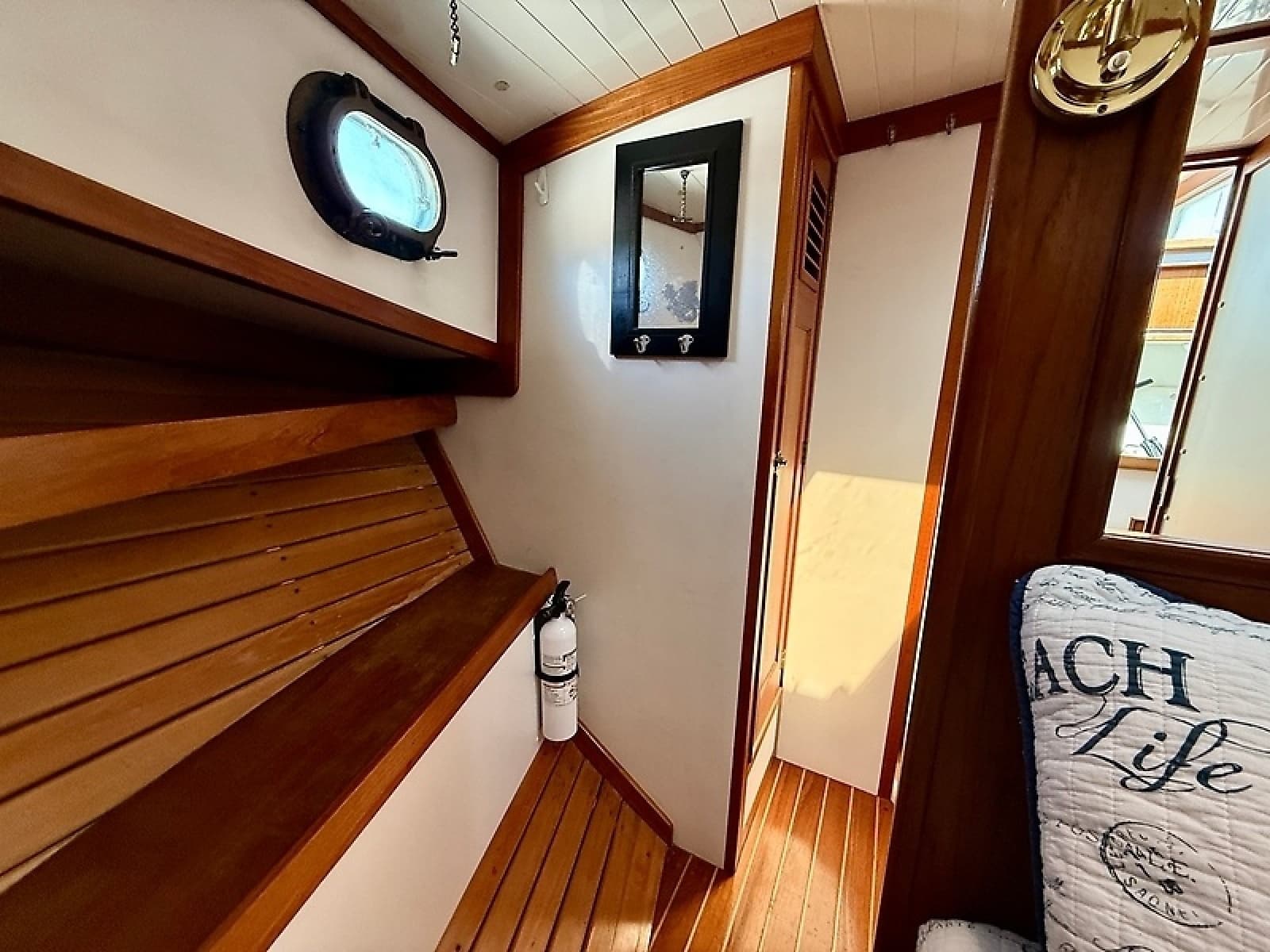

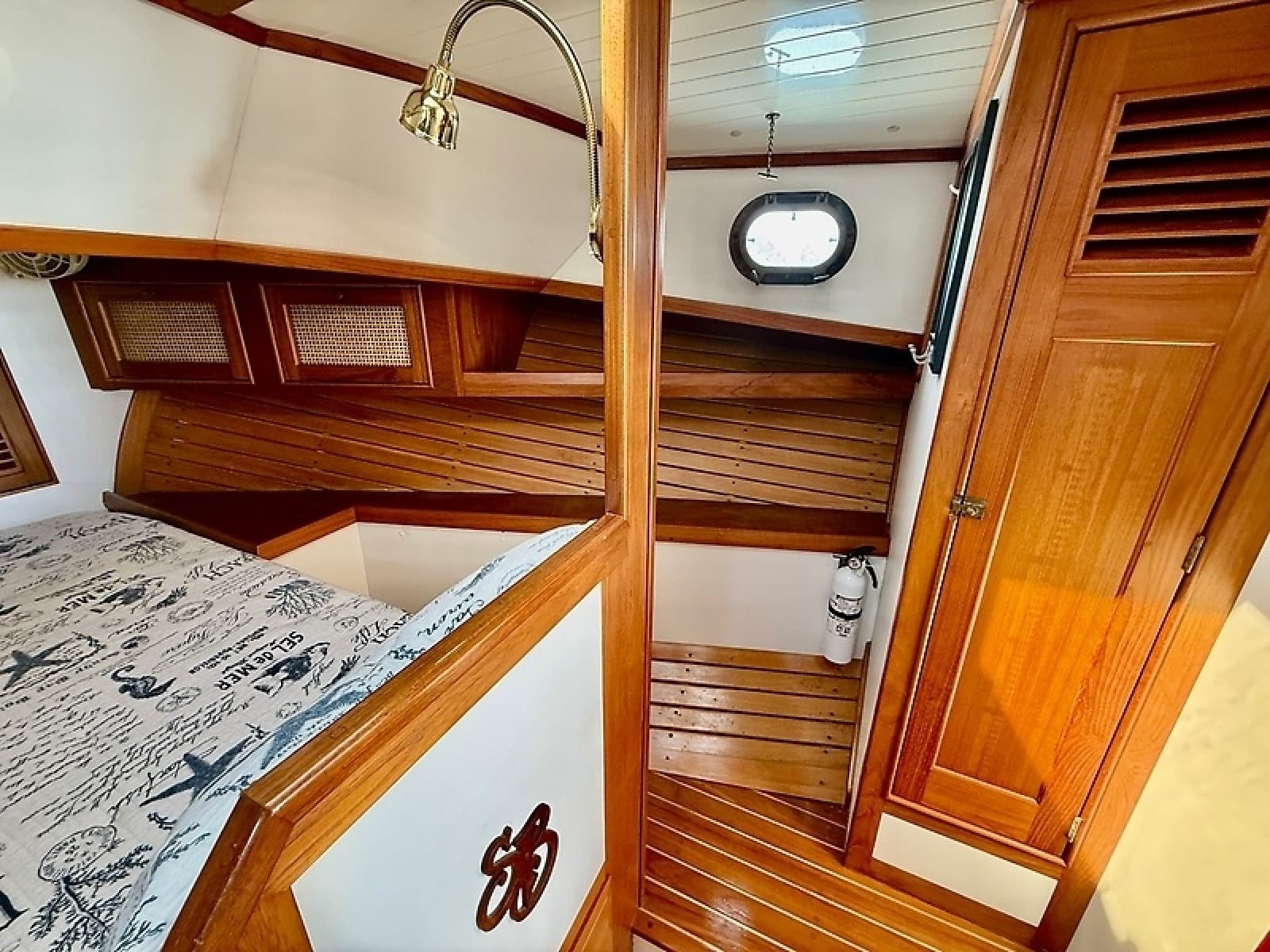

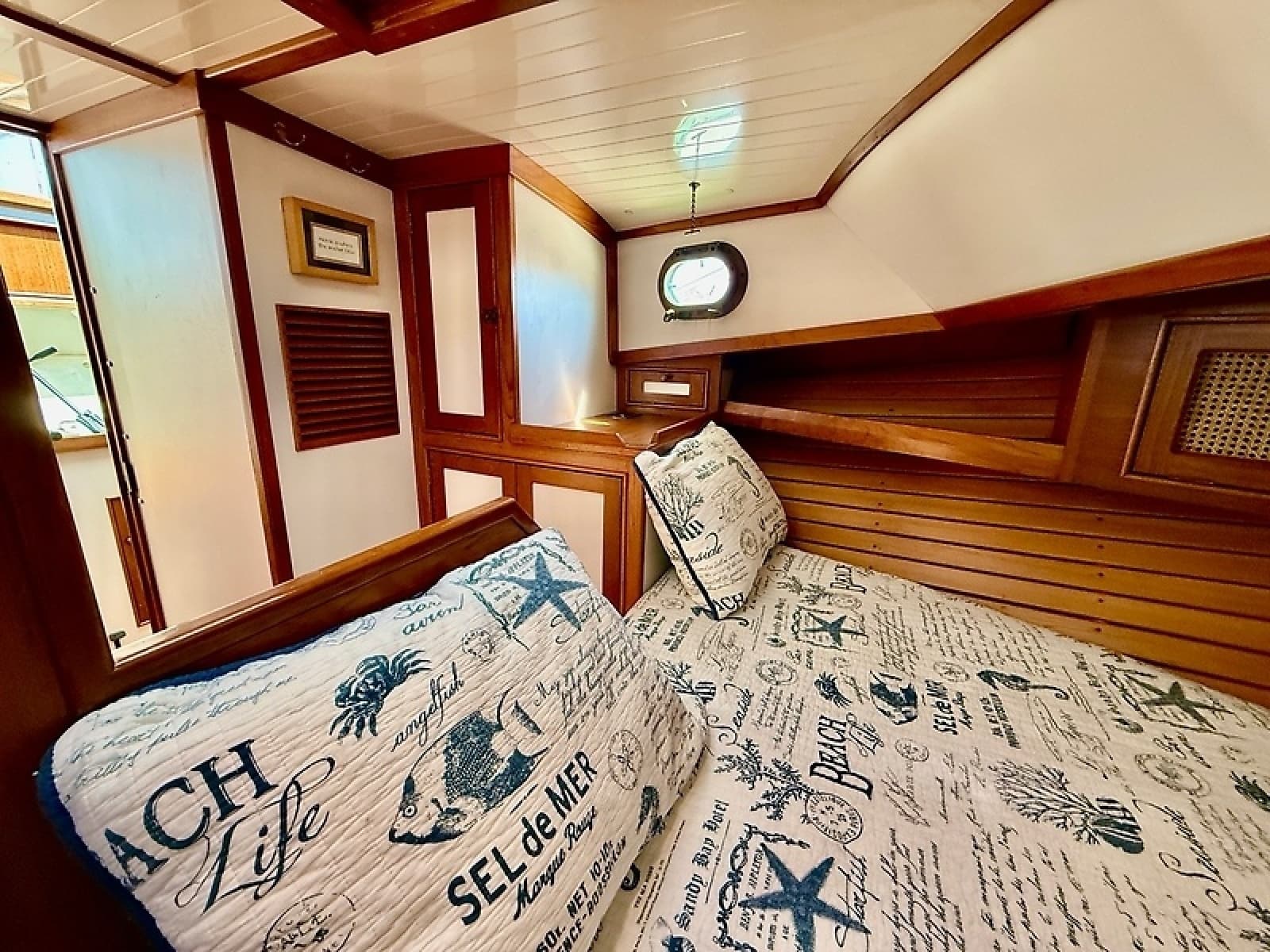

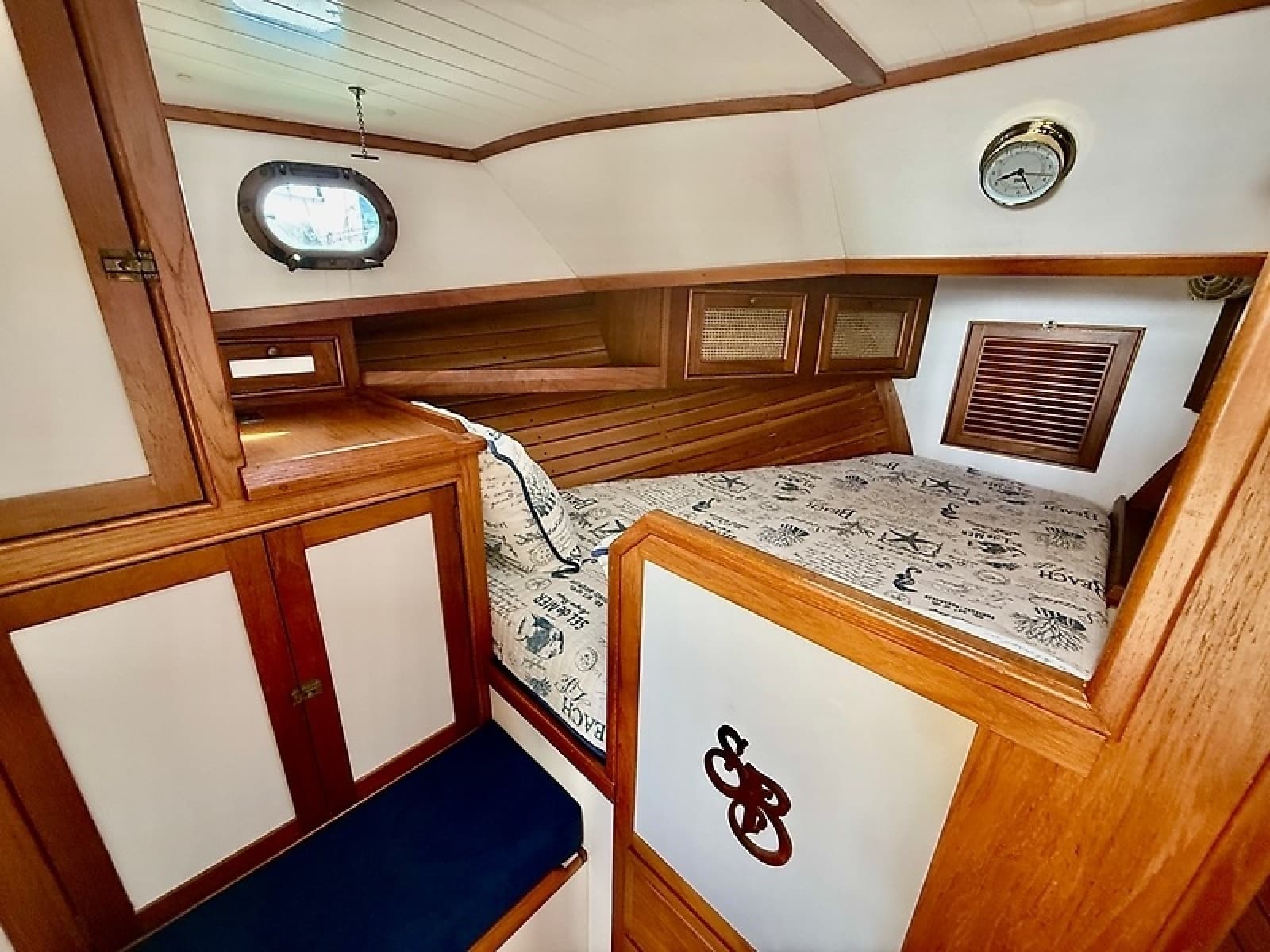

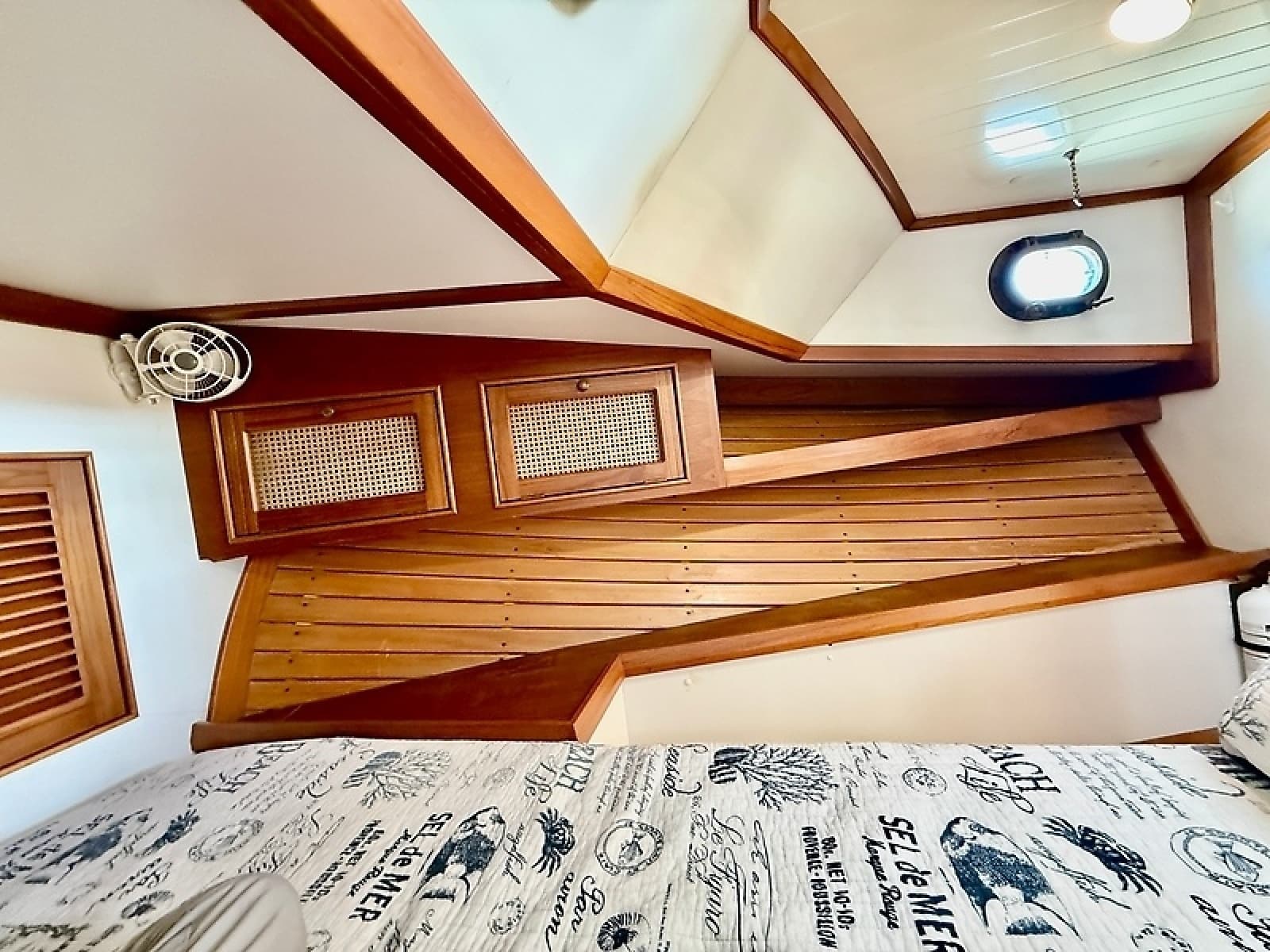

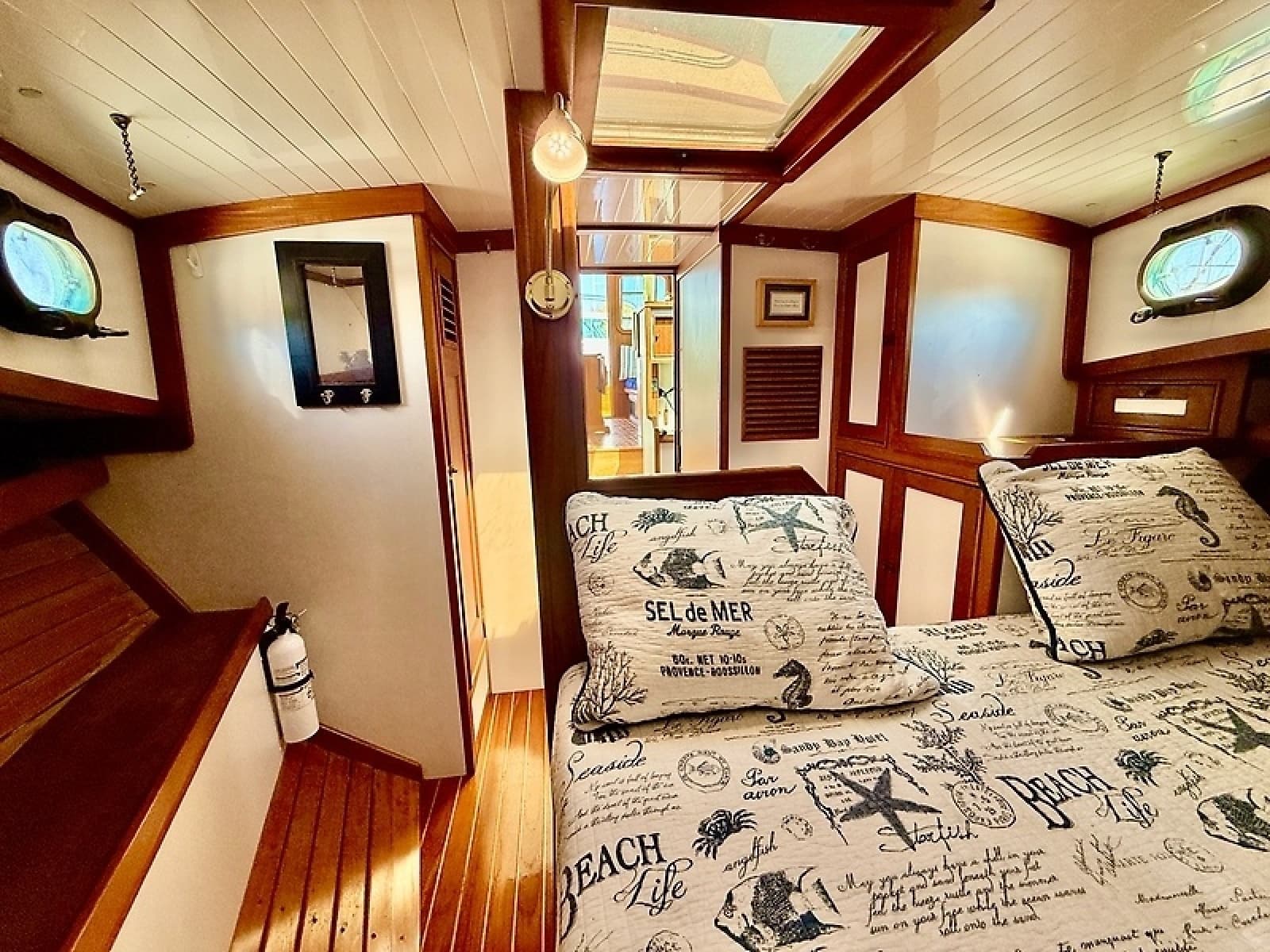

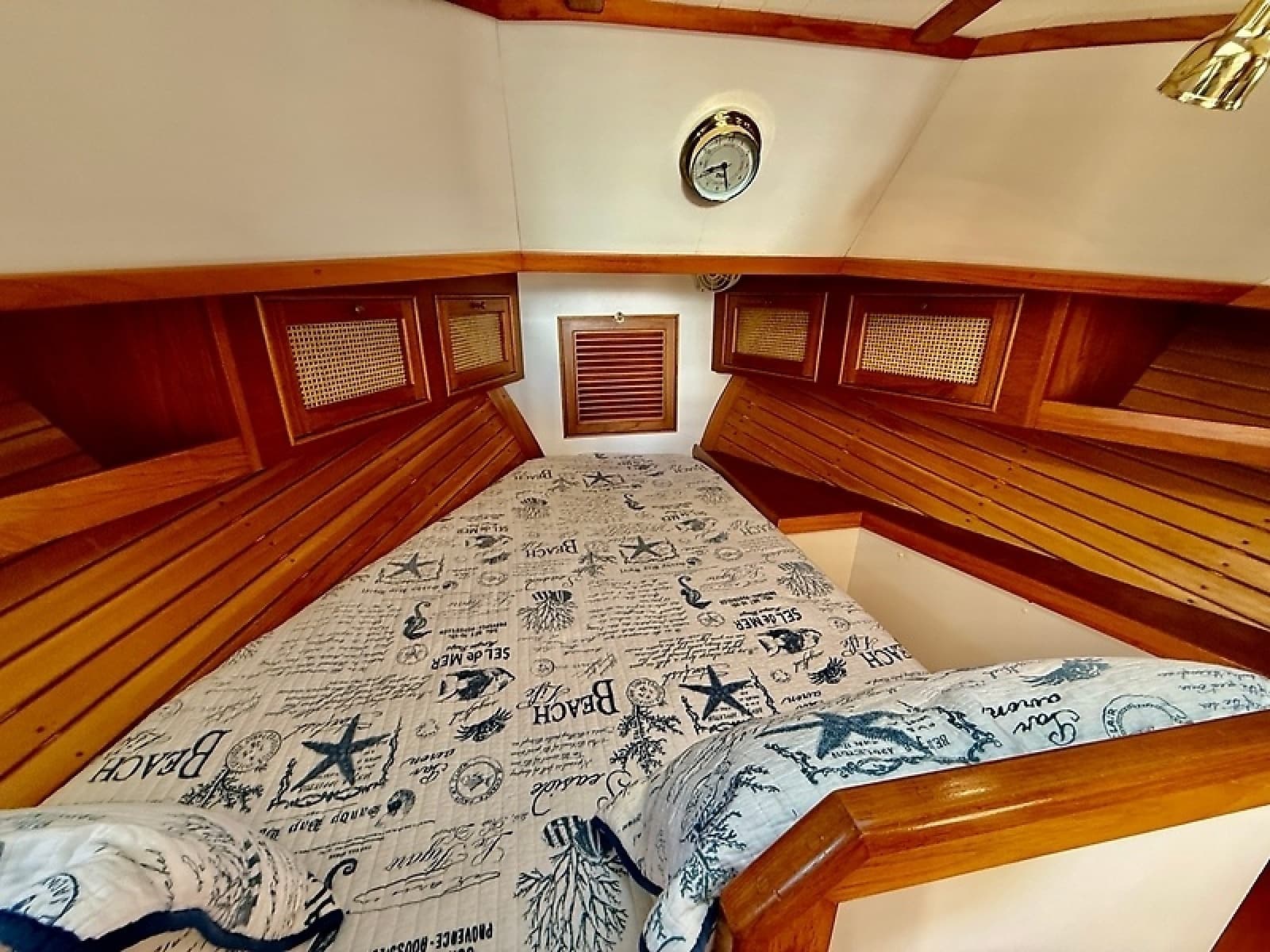

Forward is the owners cabin with an offset double berth, Hanging locker, drawers, shelves and lockers.

  • Custom Mattress and linens
  • Brass Clock
  • New upholstery and exterior canvas in 2018
  • Screens for opening ports and overhead hatch

"Avalon" is a multiple platinum winner at the Chesapeake Bay ACBS (Antique & Classic Boat Society) annual event held at the Chesapeake Bay Maritime Museum in St Michael's, MD.


Brewer Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Bluewater Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Specifications

Dimensions

Length Overall36' 0"
Display Length36'
Beam12' 6"
Draft3' "

Details

Year1993
CategoryDowneast
TypePower
Hull MaterialFiberglass

Performance

Fuel TypeDiesel
Cruise Speed13 Knots
Max Speed17 Knots

Weight

Displacement18,000 lbs

Tank Capacities

Fuel110 gal
Fresh Water40 gal
Holding35 gal

Registration

HINNHNDE3601A93

Photos81 images

Engines

Engine 1Caterpillar 3116 TA
Power HP350
Power KW261.00

Full Details

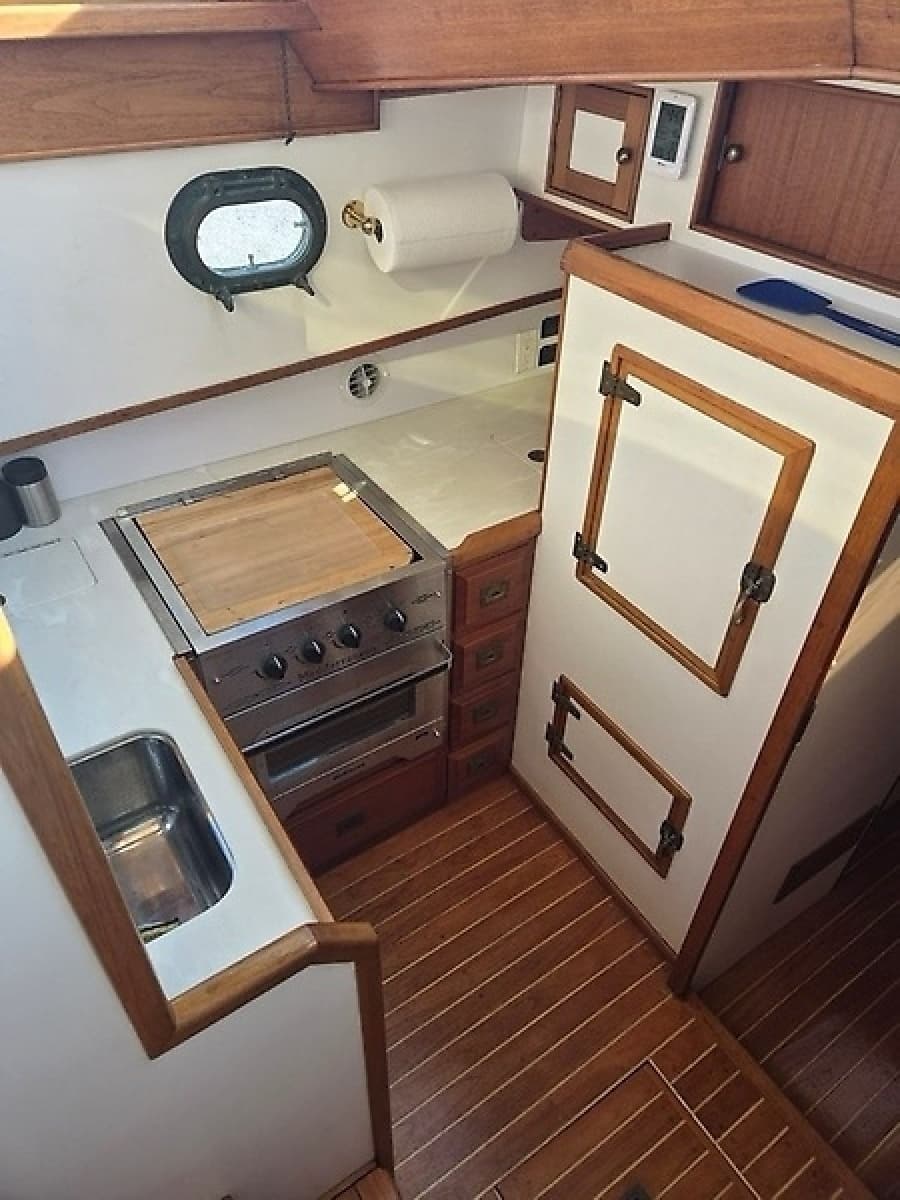

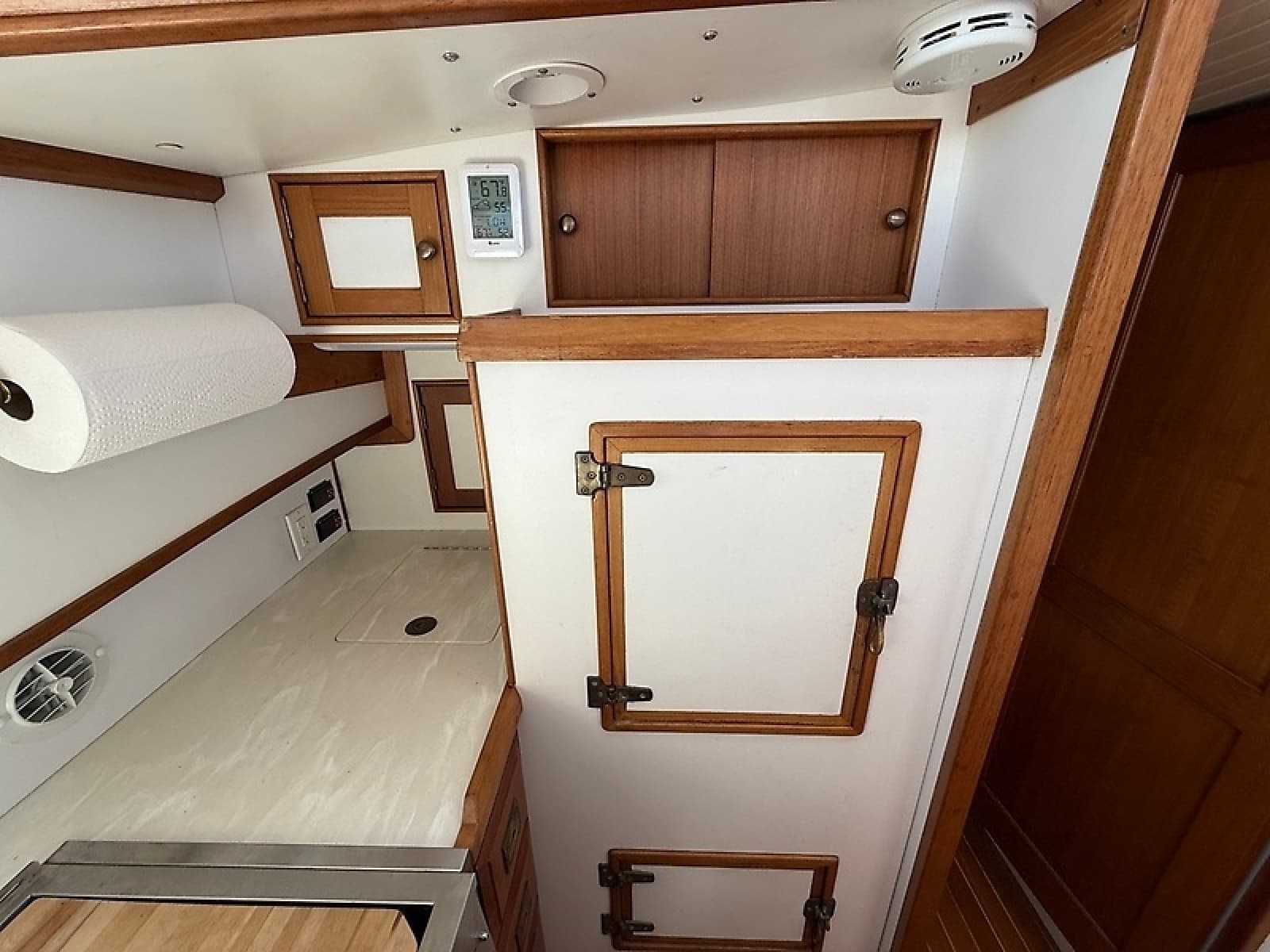

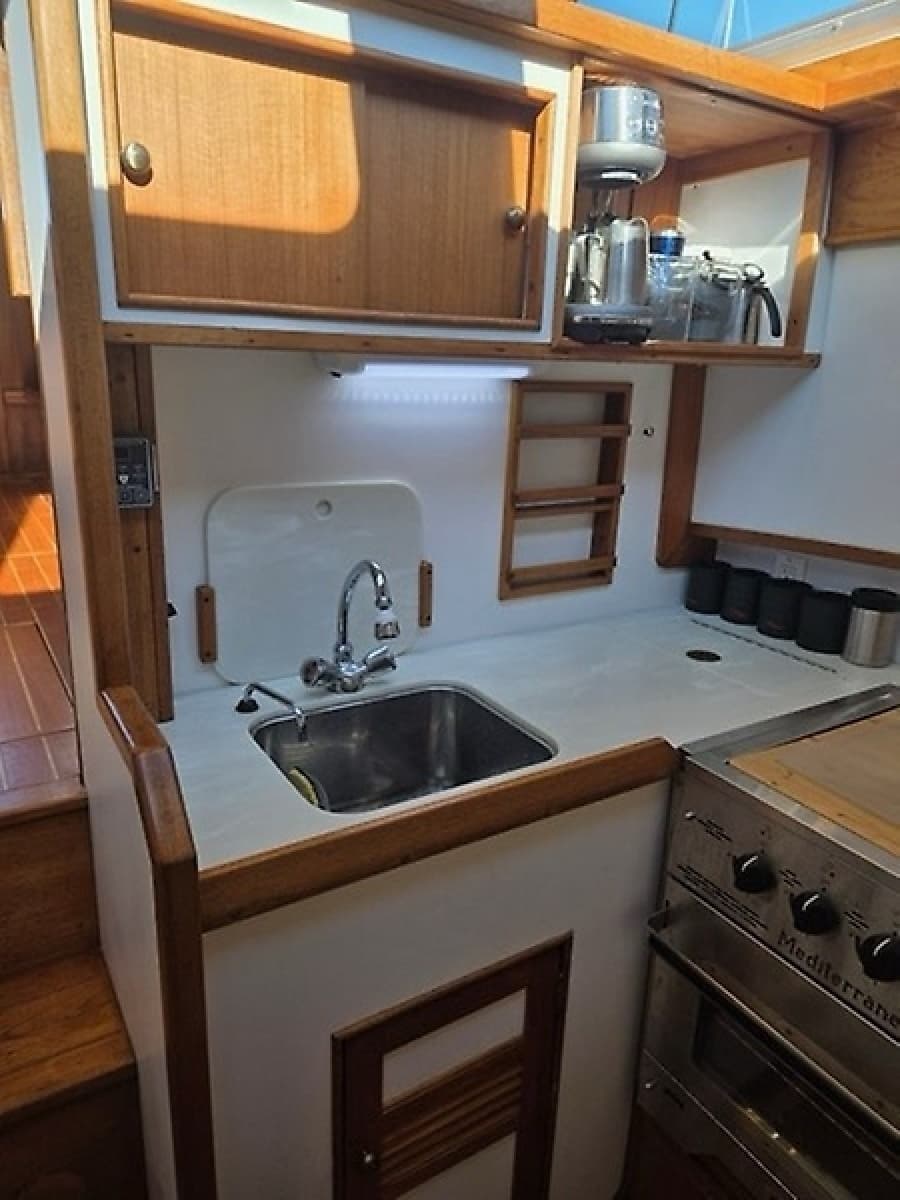

Galley

  • U-shaped
  • Sink with pressure and manual water pumps
  • Separate Refrigerator and Freezer 12v
  • Dickison 3 burner propane stove w/ oven and broiler (2025)
  • Corian counter tops
  • Abundant storage

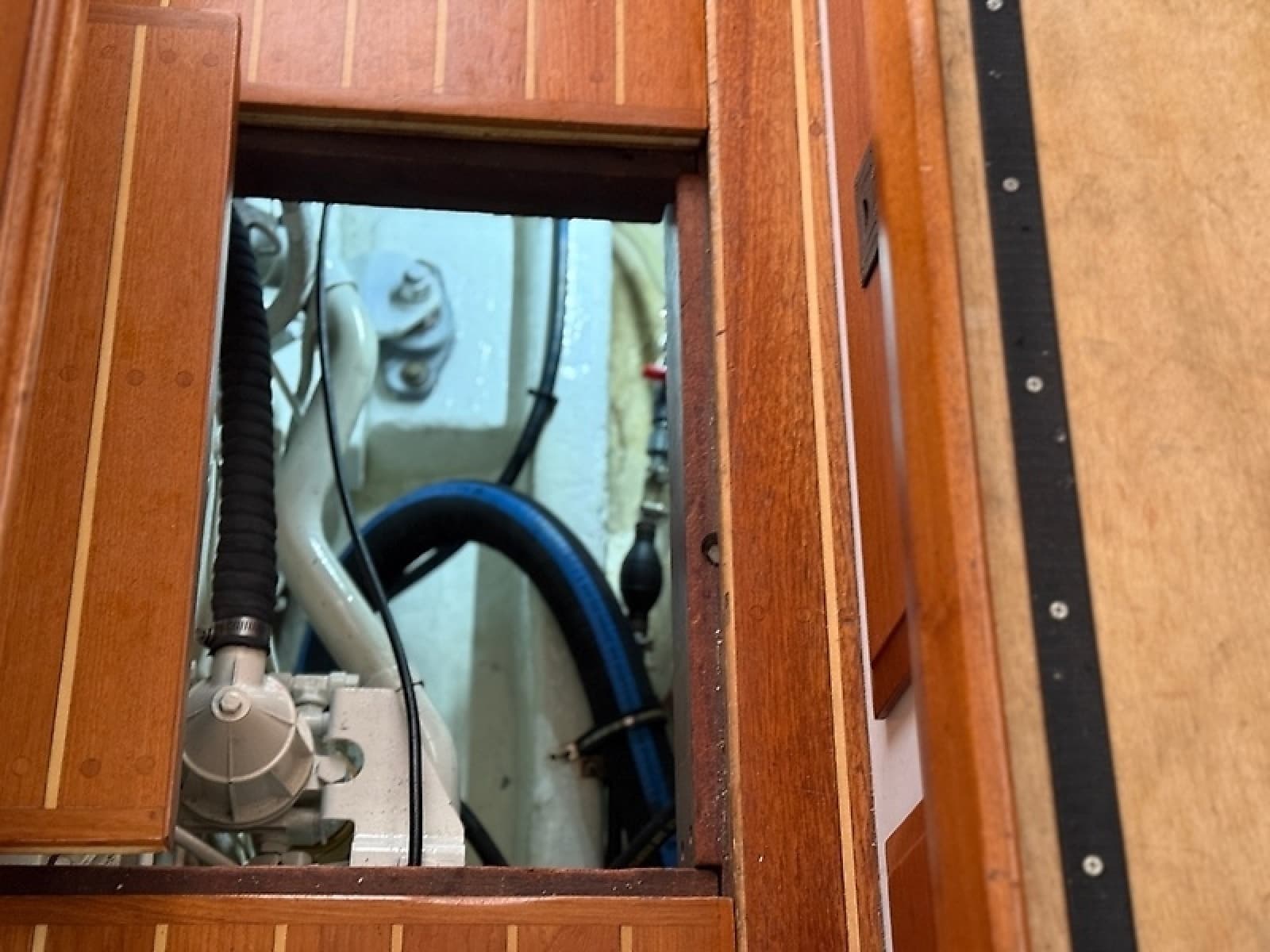

Mechanical

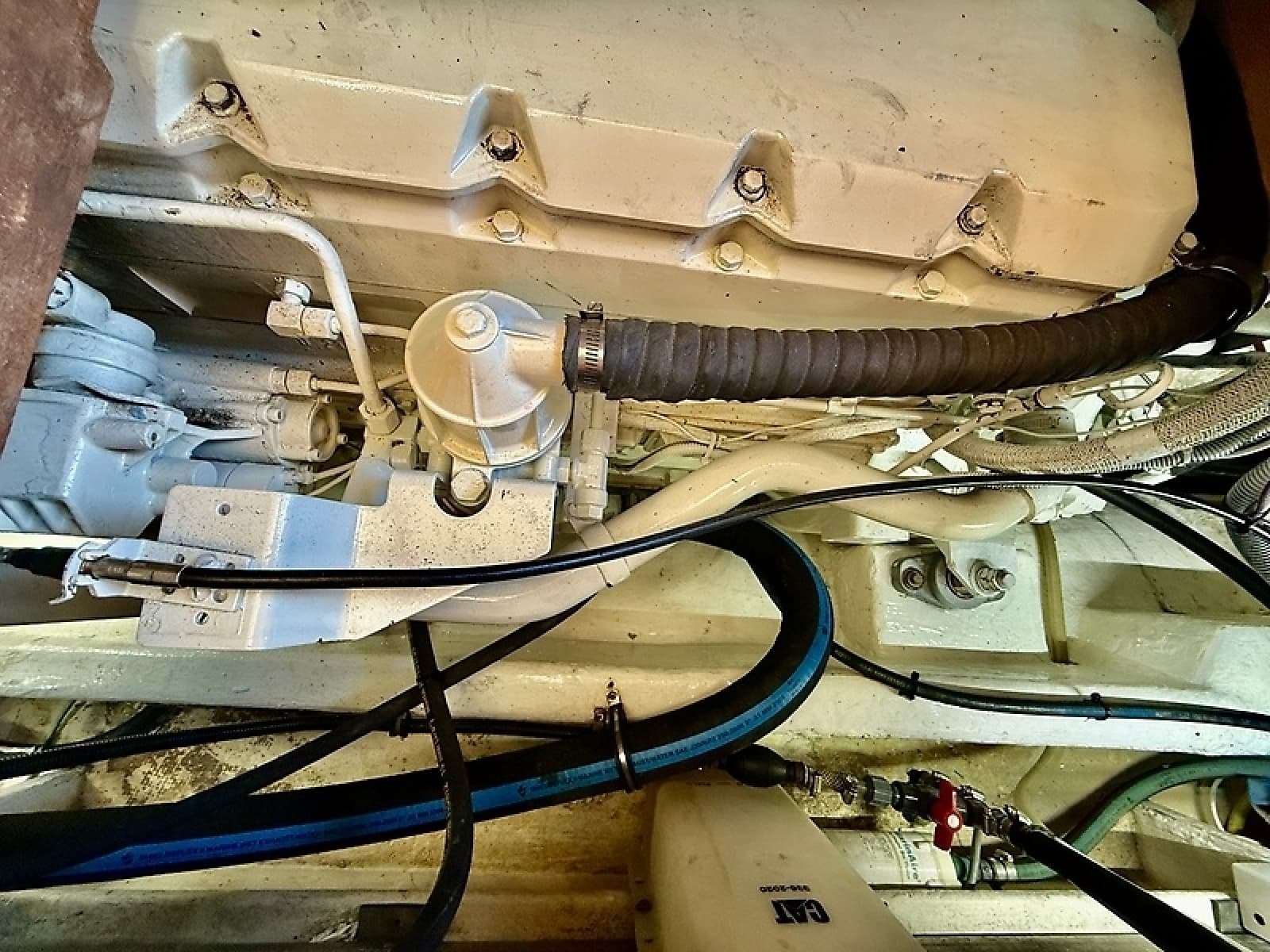

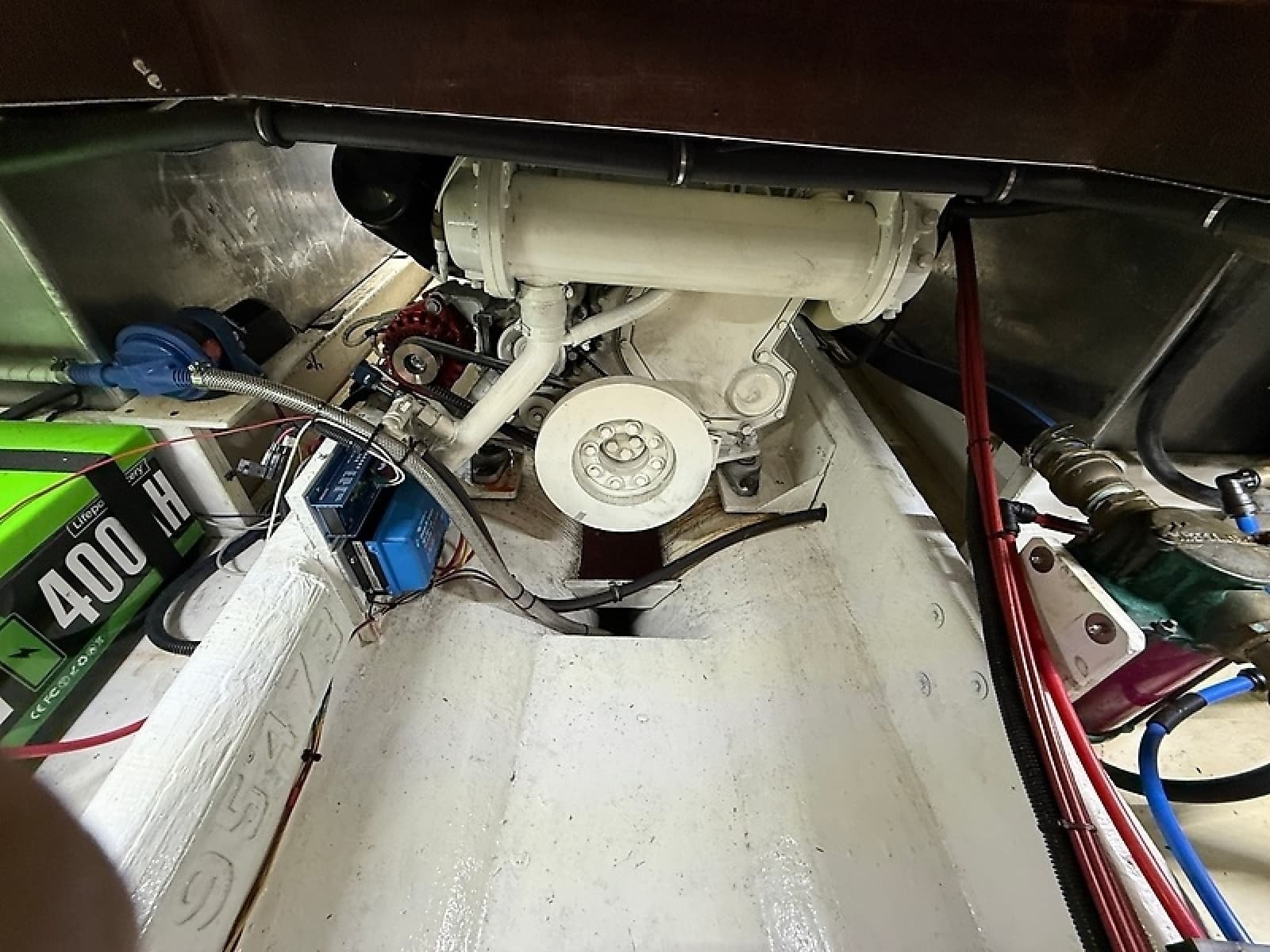

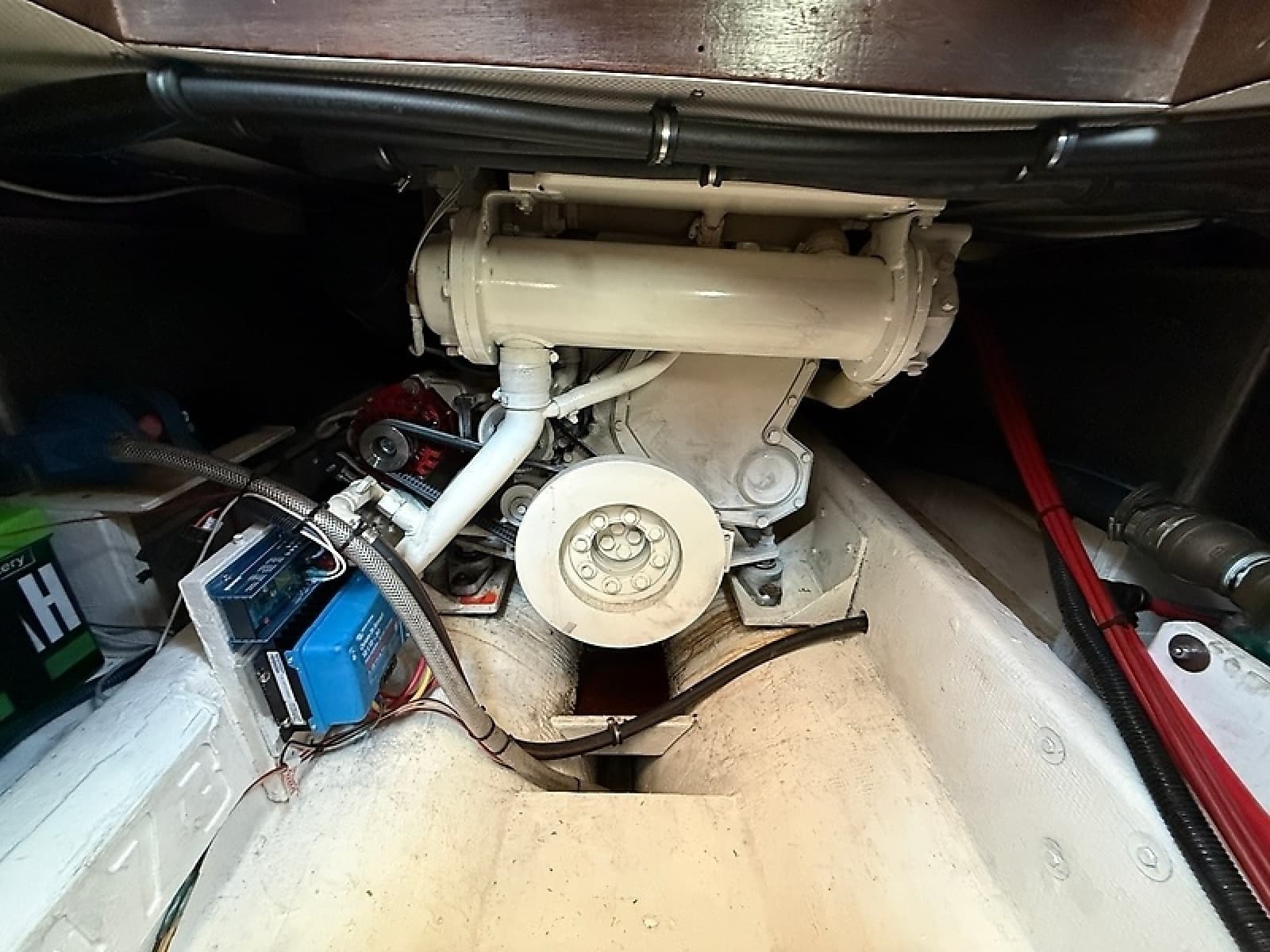

  • 2024 Caterpillar 3116 - Remanufactured
  • Work performed by T&S Marine, Crisfield, MD
  • Engine Hours as of 4/13/26/2026 - 343
  • 24x22 Propellor 4 blade - new 2023
  • New Shaft - 2023
  • New Balmar Alternator 165 amp w/ external regulator 2023

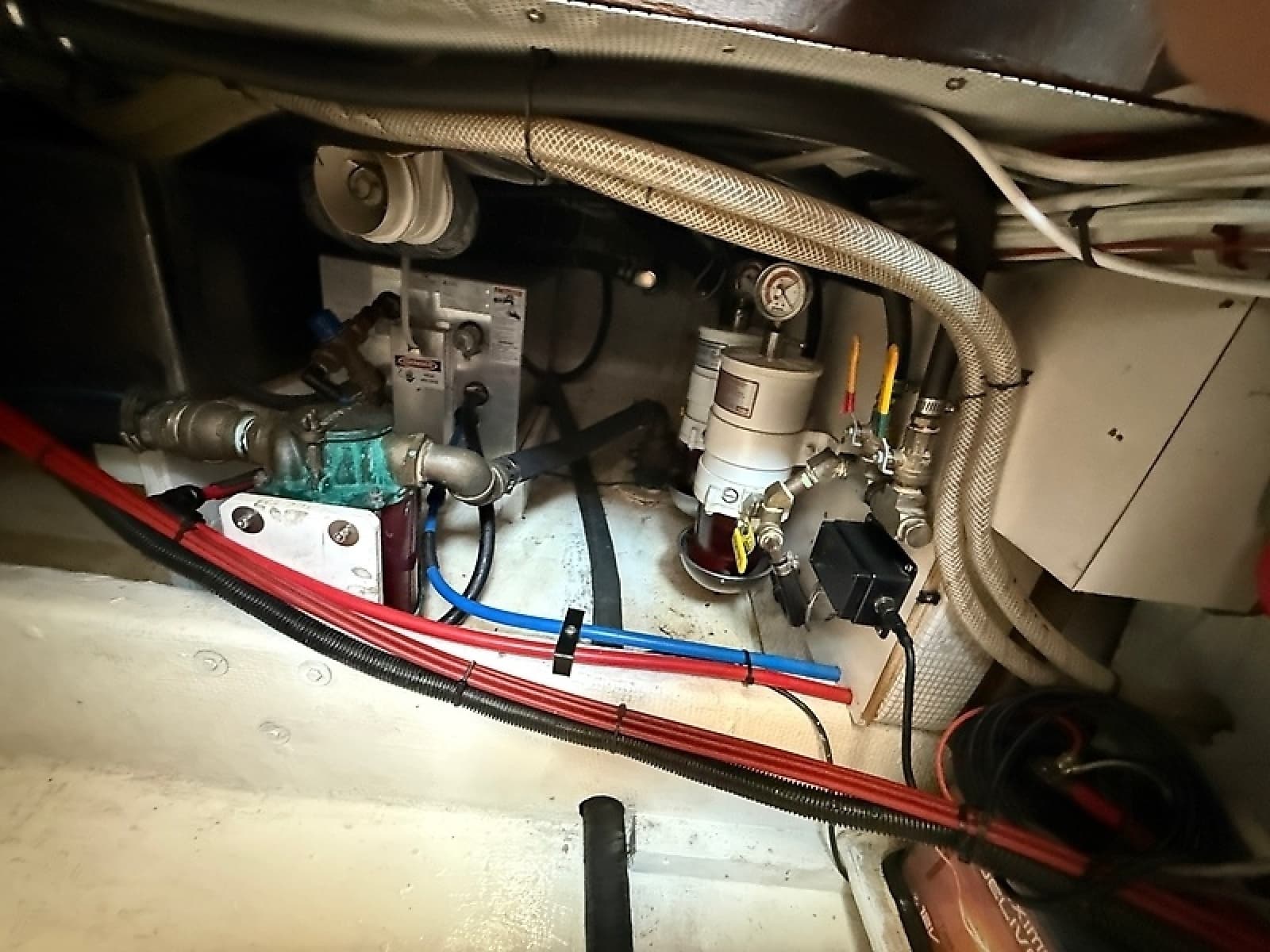

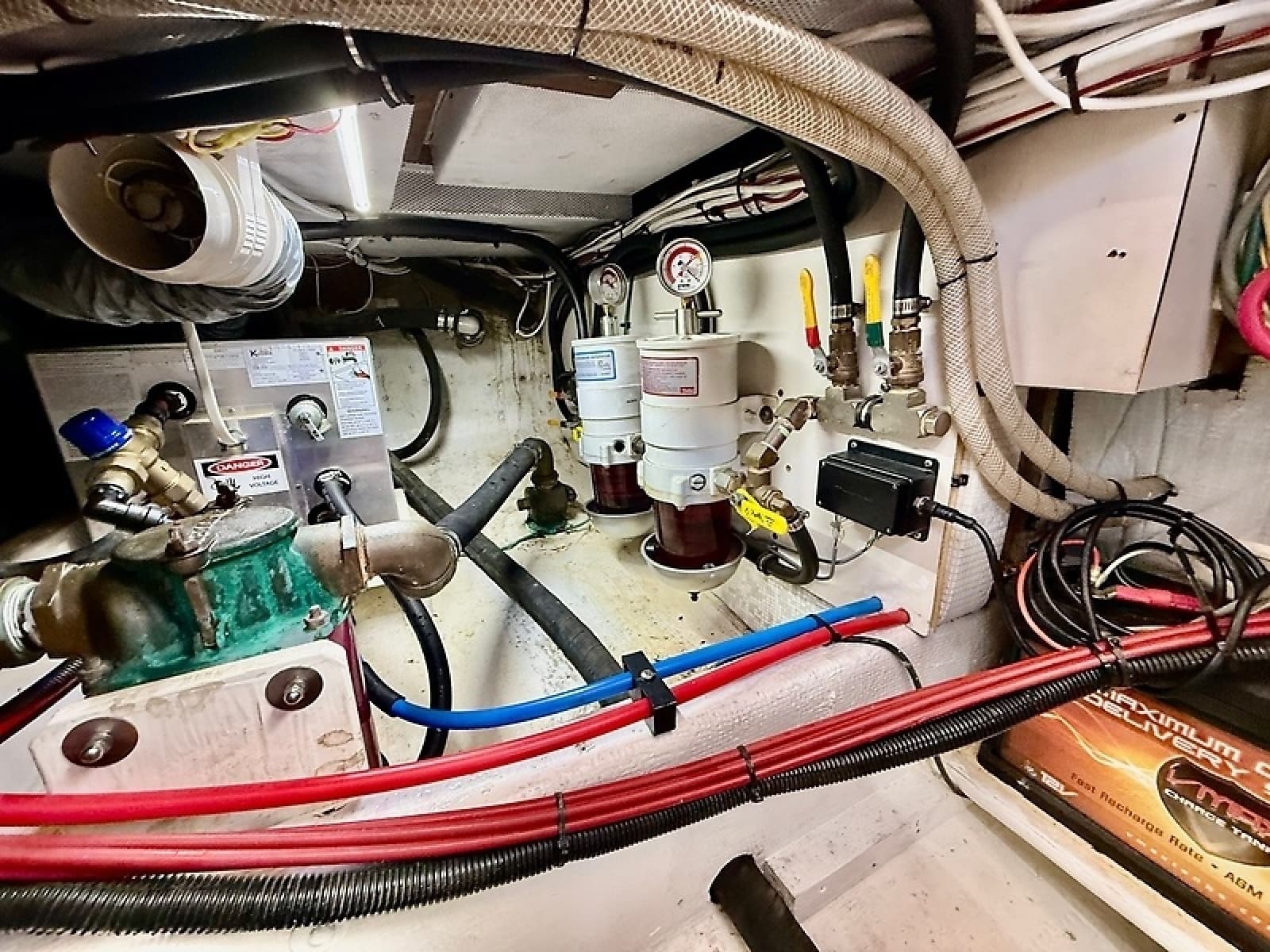

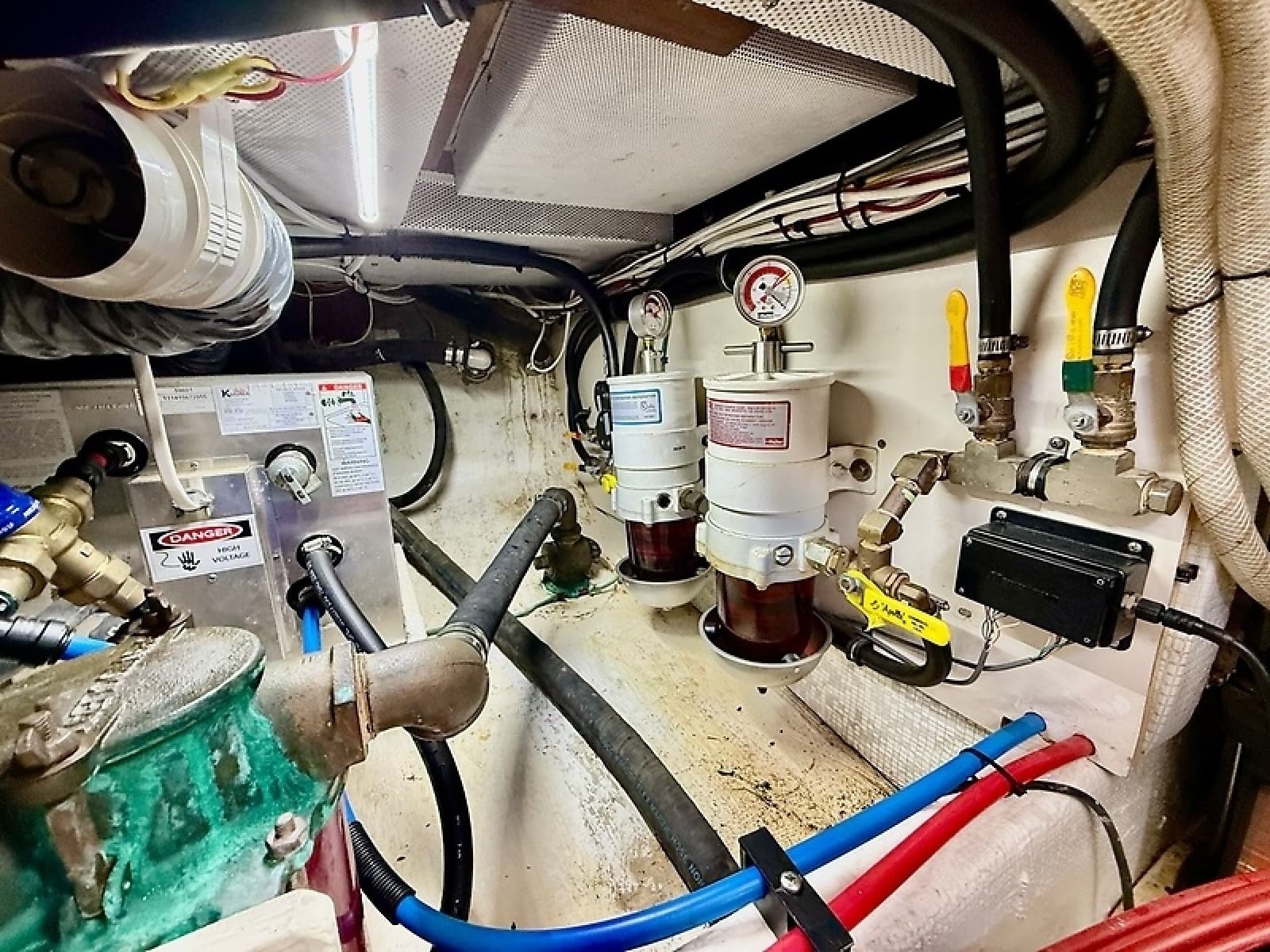

  • Dual Racor Fuel Filters w/ gauges and crossover valves
  • Maretron Fuel Meters

Crusing Speed - 13 knots at 2400 RPM 1.2 nautical miles per gallon

WOT - 17 knots at 2800 RPM 1.0 nautical miles per gallon

Electrical

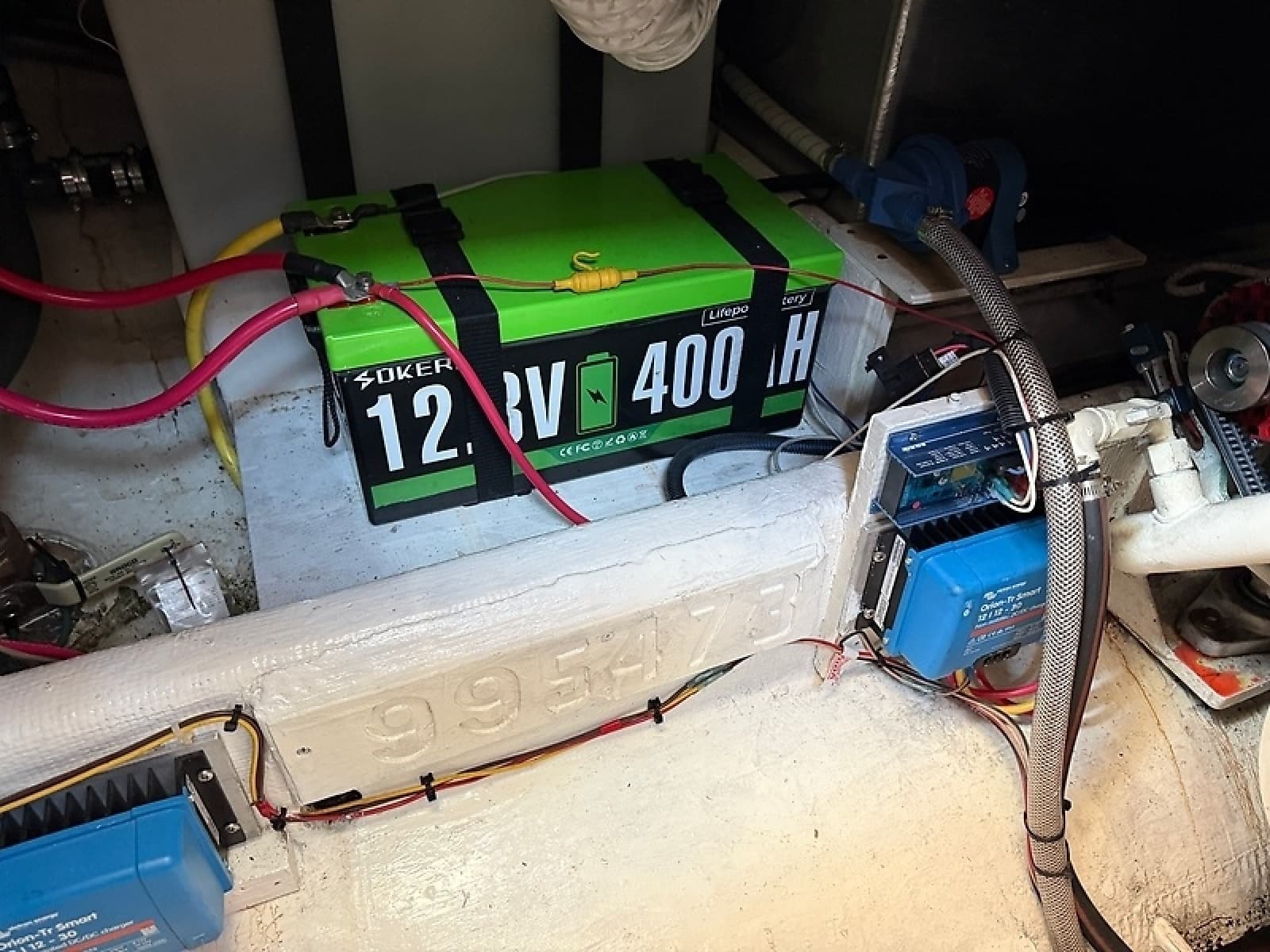

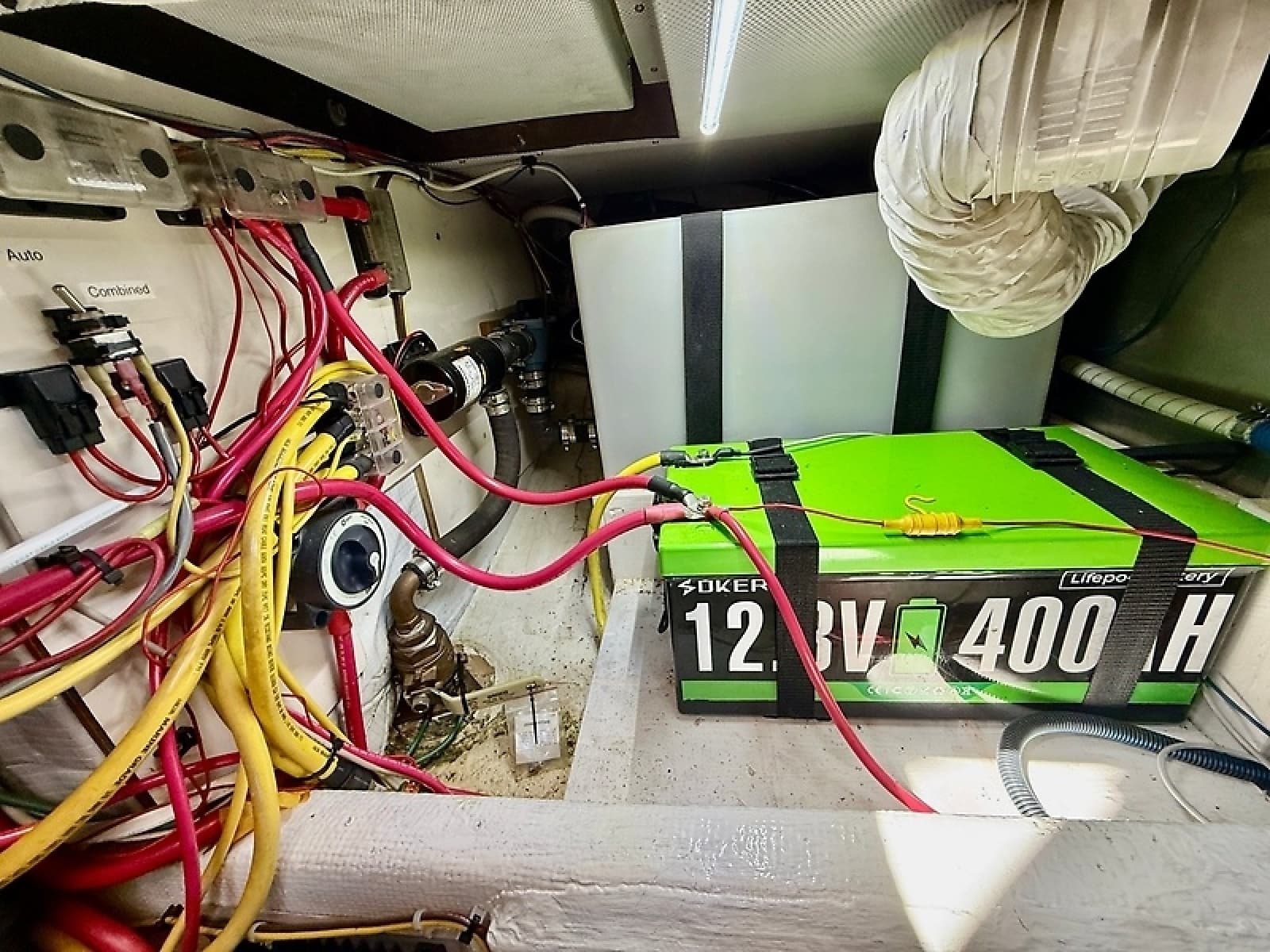

  • House Batteries 400 amp Lithium (2023)
  • Engine Start (2) Group 31 batteries
  • Bow thruster (1) Group 31 battery

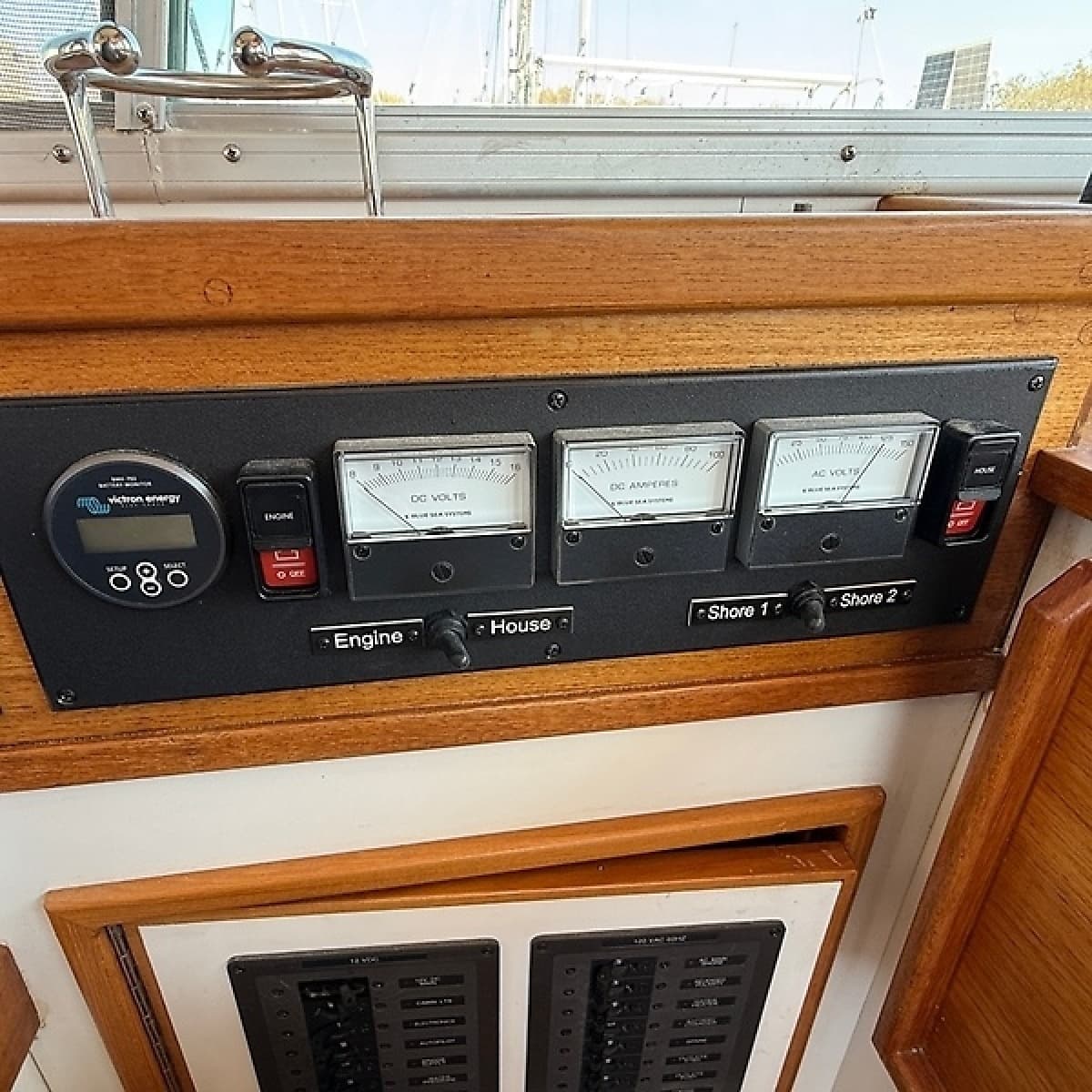

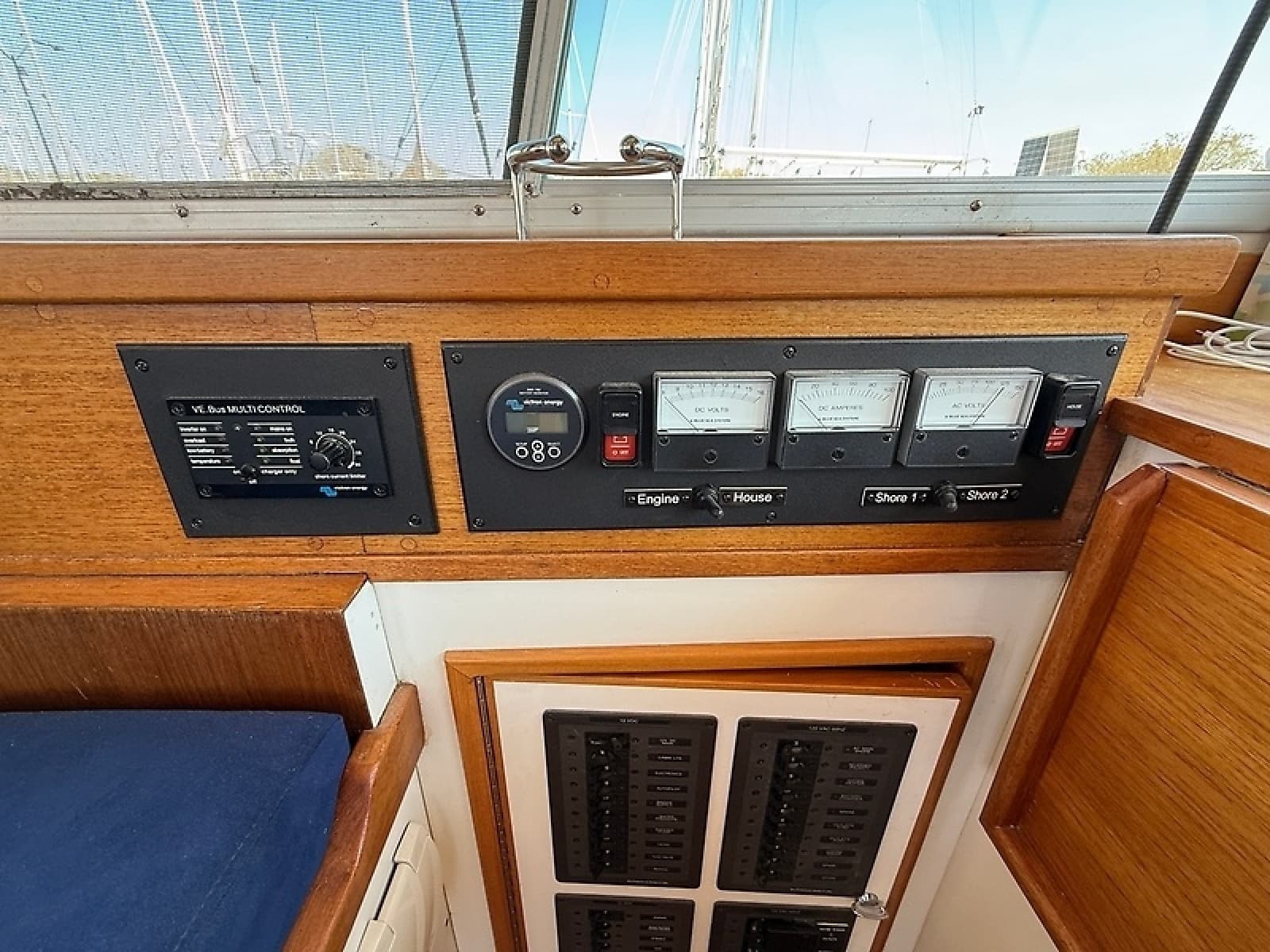

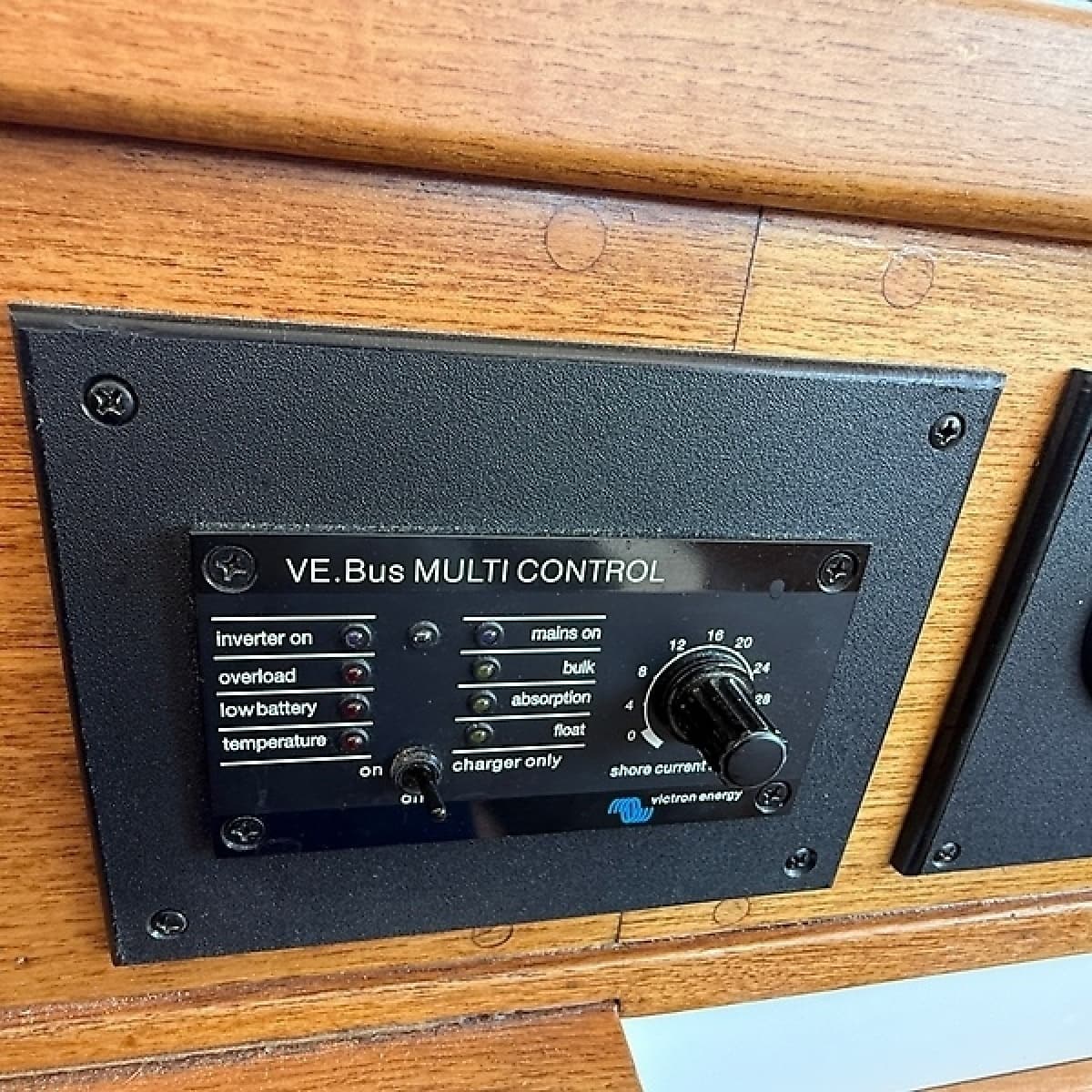

  • Victron Controller
  • Victron 3000 watt Inverter - Charger

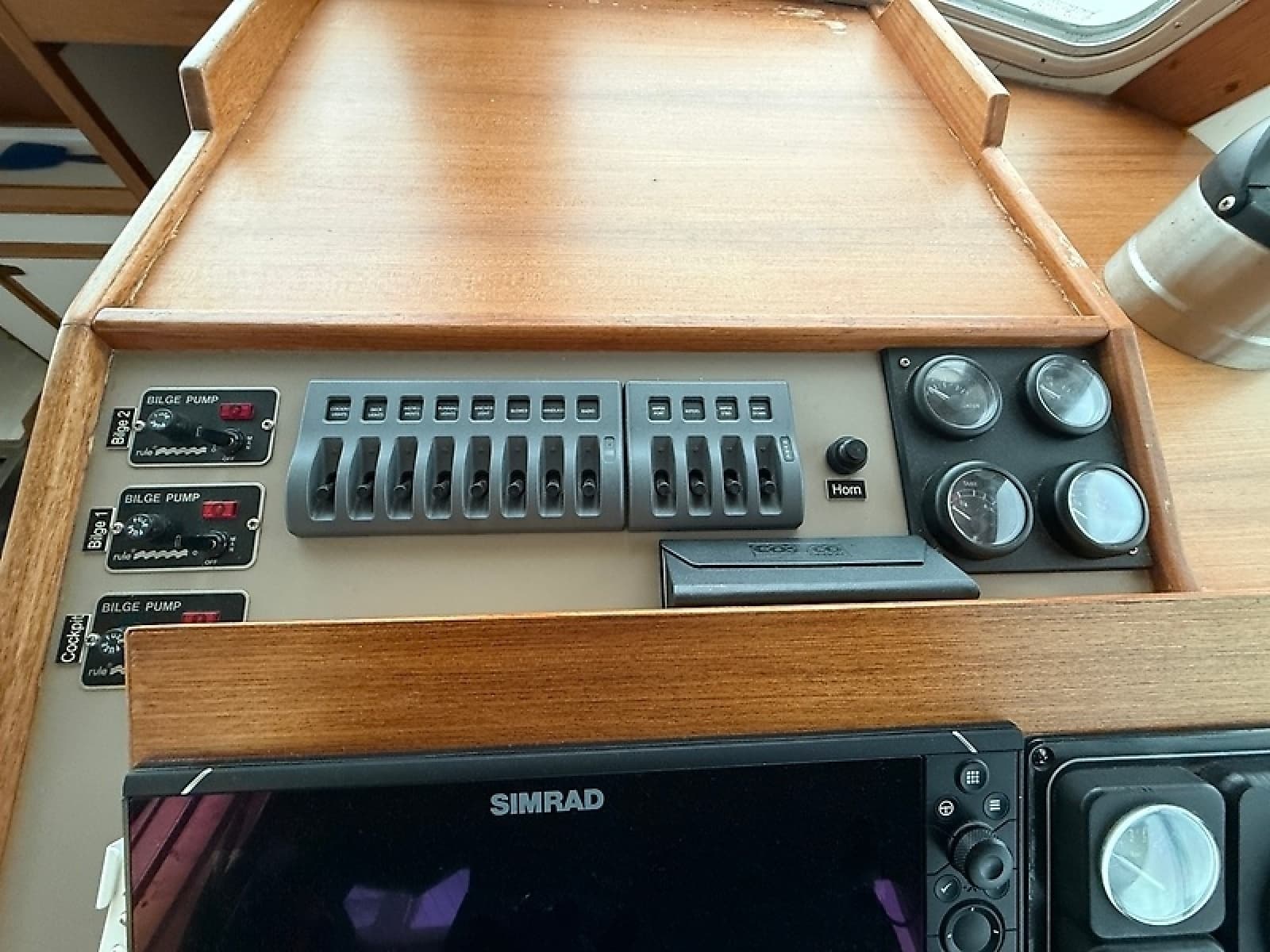

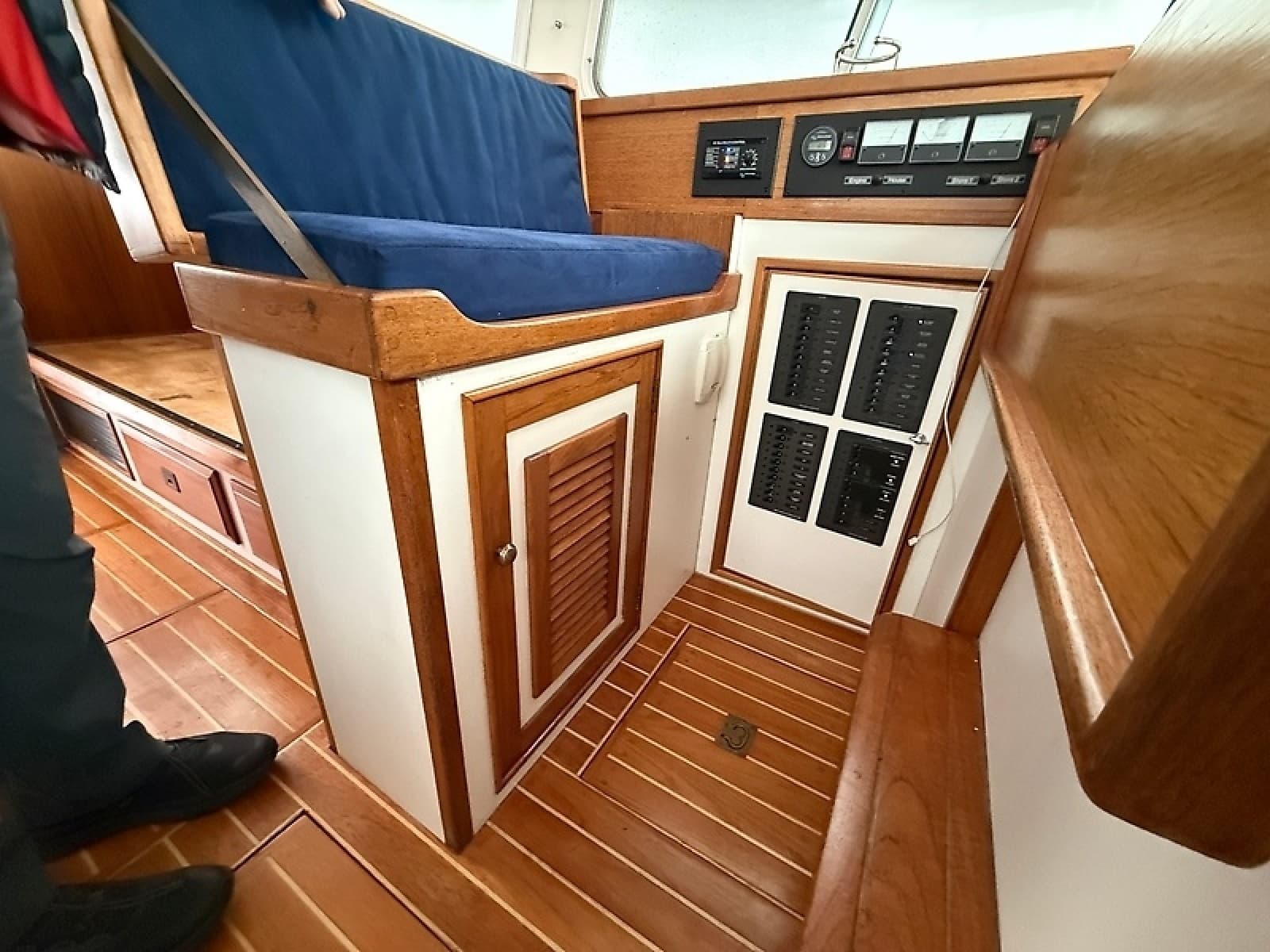

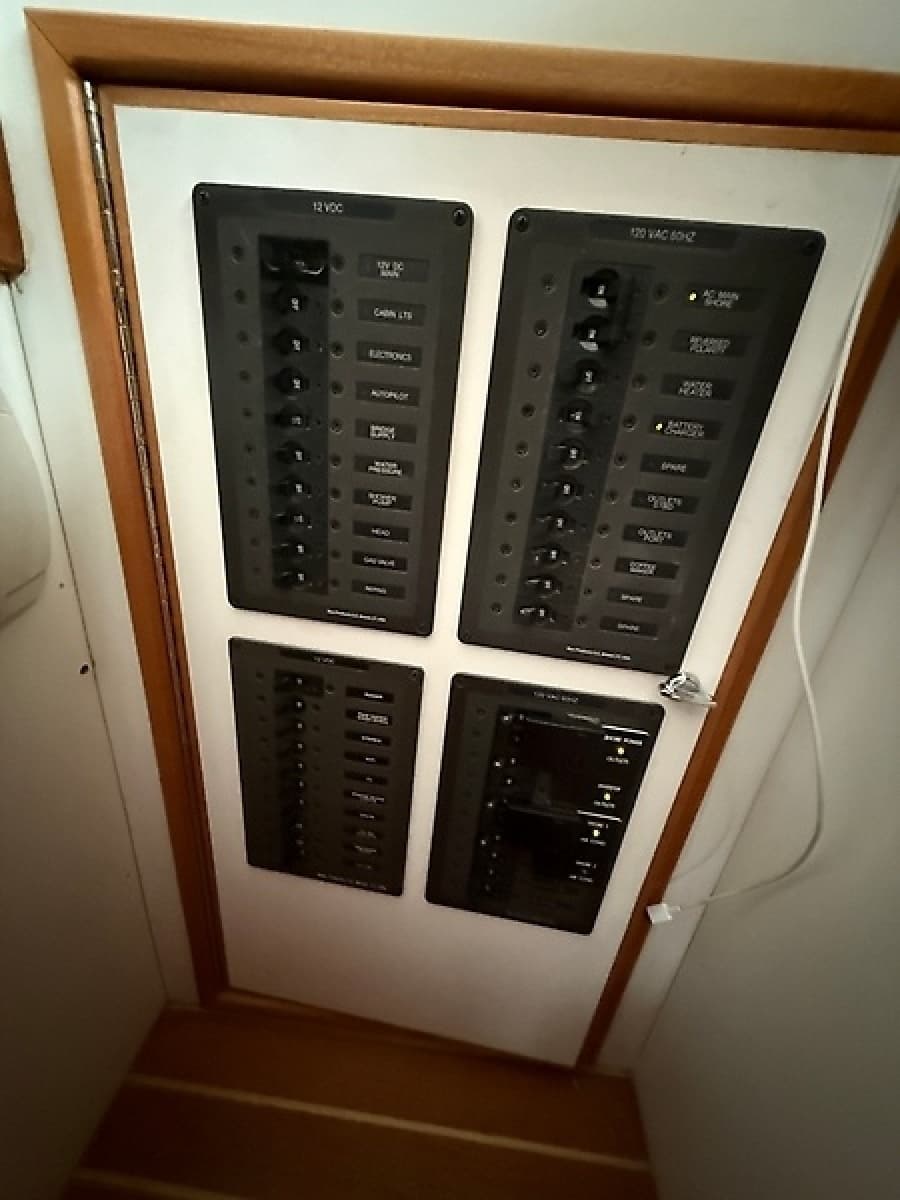

  • Updated AC and DC panels and wiring (2017)
  • All lighting updated to LED
  • (2) 30 amp shore power service w/cords


Electronics

  • Simrad MFD - NSS Evo3 plus (1) Lower helm (2) Flybridge helm (2024)
  • Simrad Radar (2024)

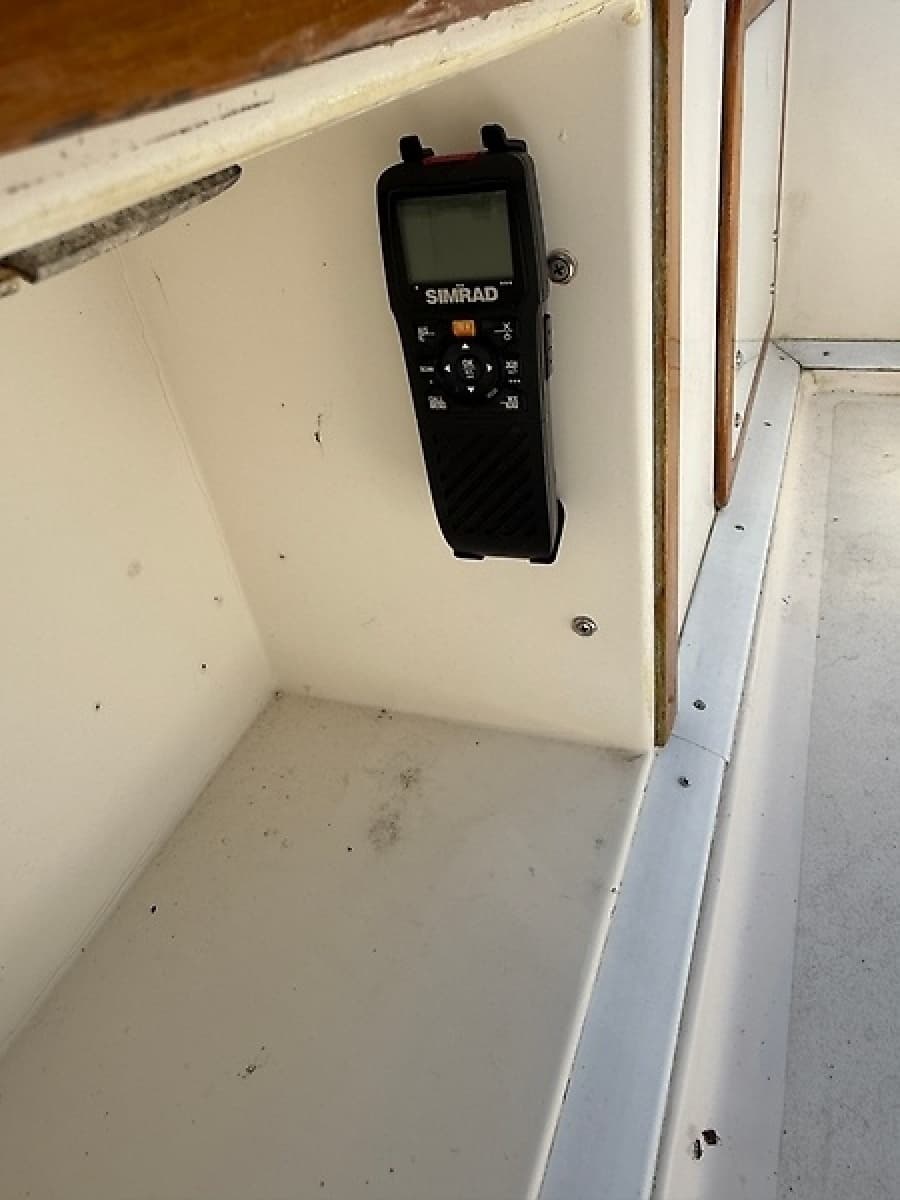

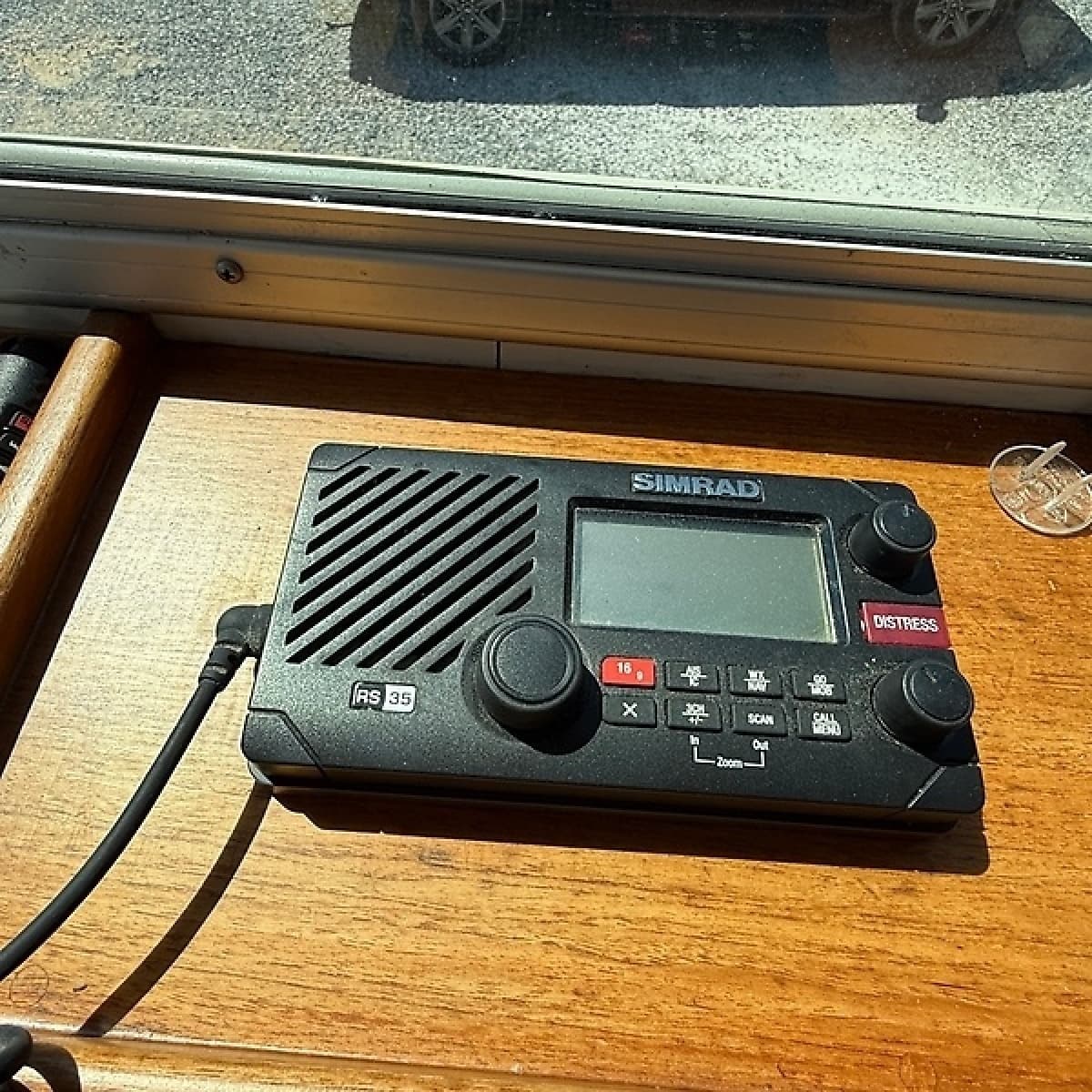

  • Simrad VHF - Lower helm w/ remote for Flybridge (AIS) (2018)
  • Simrad Autopilot - both helm stations (2024)
  • Simrad Wind speed and direction
  • Fushion stereo inside and outside speakers (main cabin speakers are Bose) 2024
  • USB outlet lower helm
  • Ritchie Compass both stations
  • Horn


Systems

  • Marine Aire Air conditioning 16,000 btu (2018)
  • Marine Aire "Soft Start" (2018)
  • Wehring Washdown pump (2021)
  • Upper Station Hydraulic Steering replaced (2024)
  • (2) 5052 Aluminum Fuel Tanks new (2015)
  • (2 ) 40 gal Stainless Steel 316L Water Tanks new (2015)
  • Raritan 6 gallon Hot Water Heater 110v or Heat Exchanger
  • (3) 12v Bilge pumps
  • (1) Maual Bilge pump
  • Oil Change pump
  • Macerator w/ Y valve
  • Shower sump (2024)

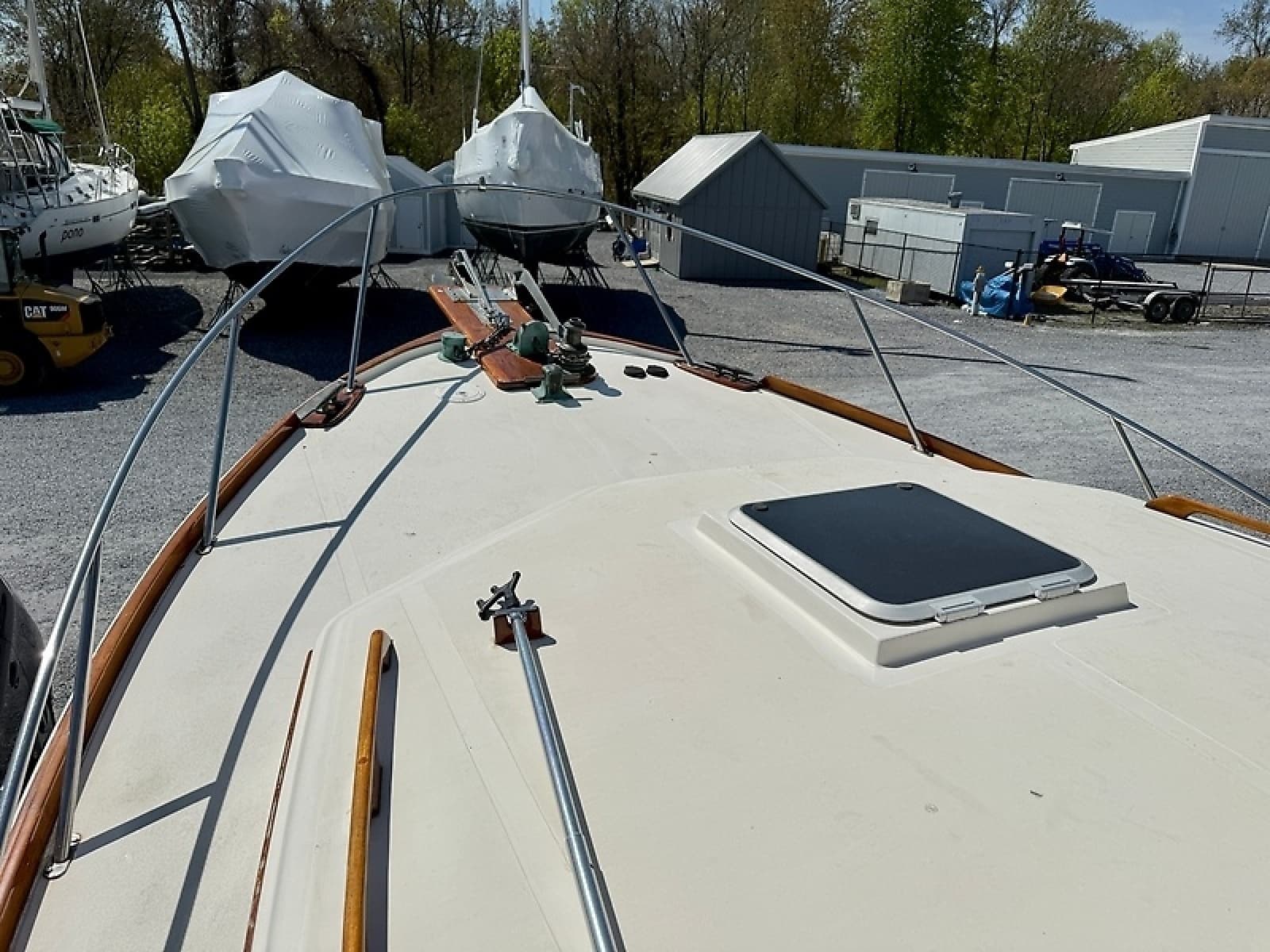

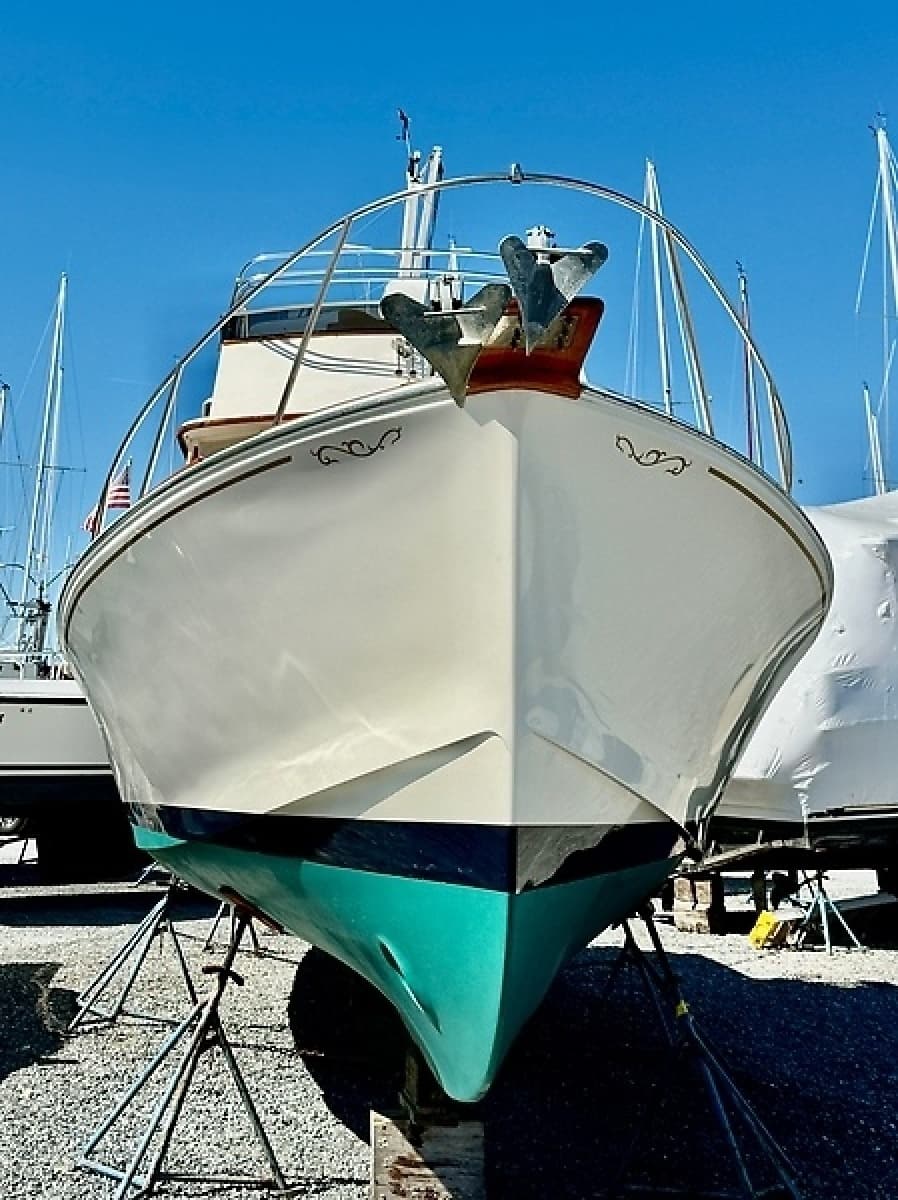

Deck and Hull

  • Hull is finished in Awlgrip
  • Bottom painted and zincs changed 4/2026

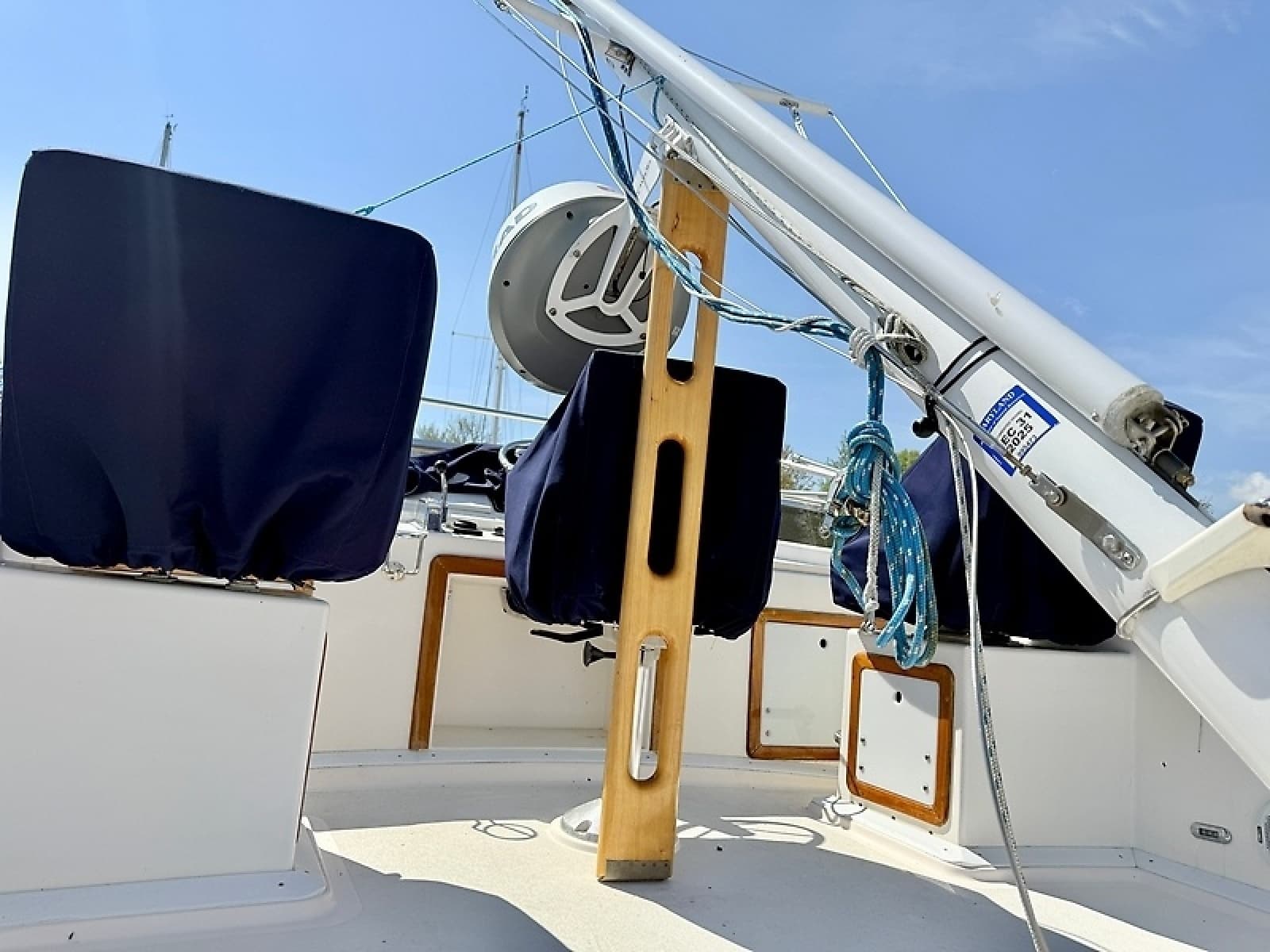

  • Hinged mast w/ boom and crutch Height-up 19' - Down - 16'

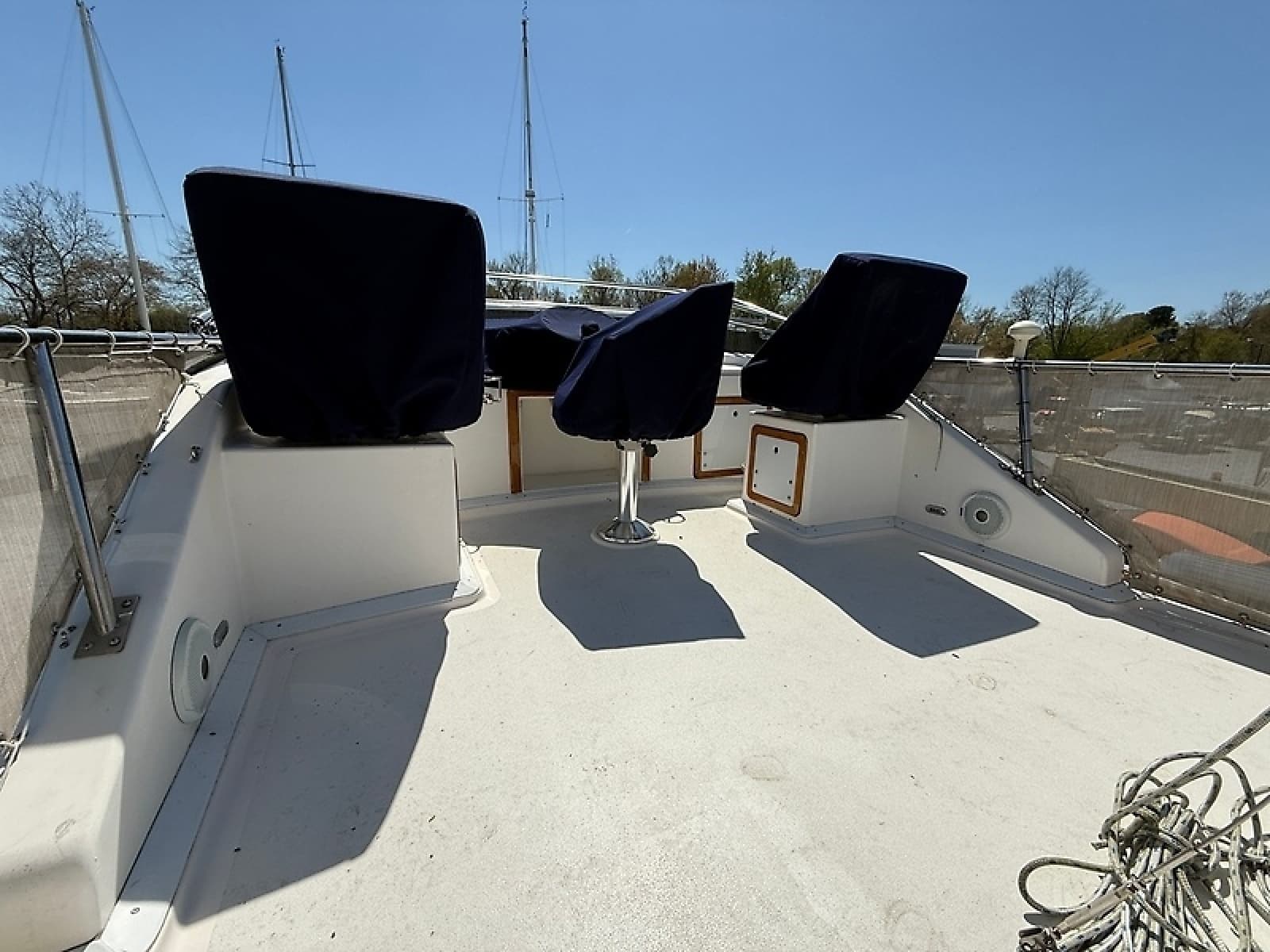

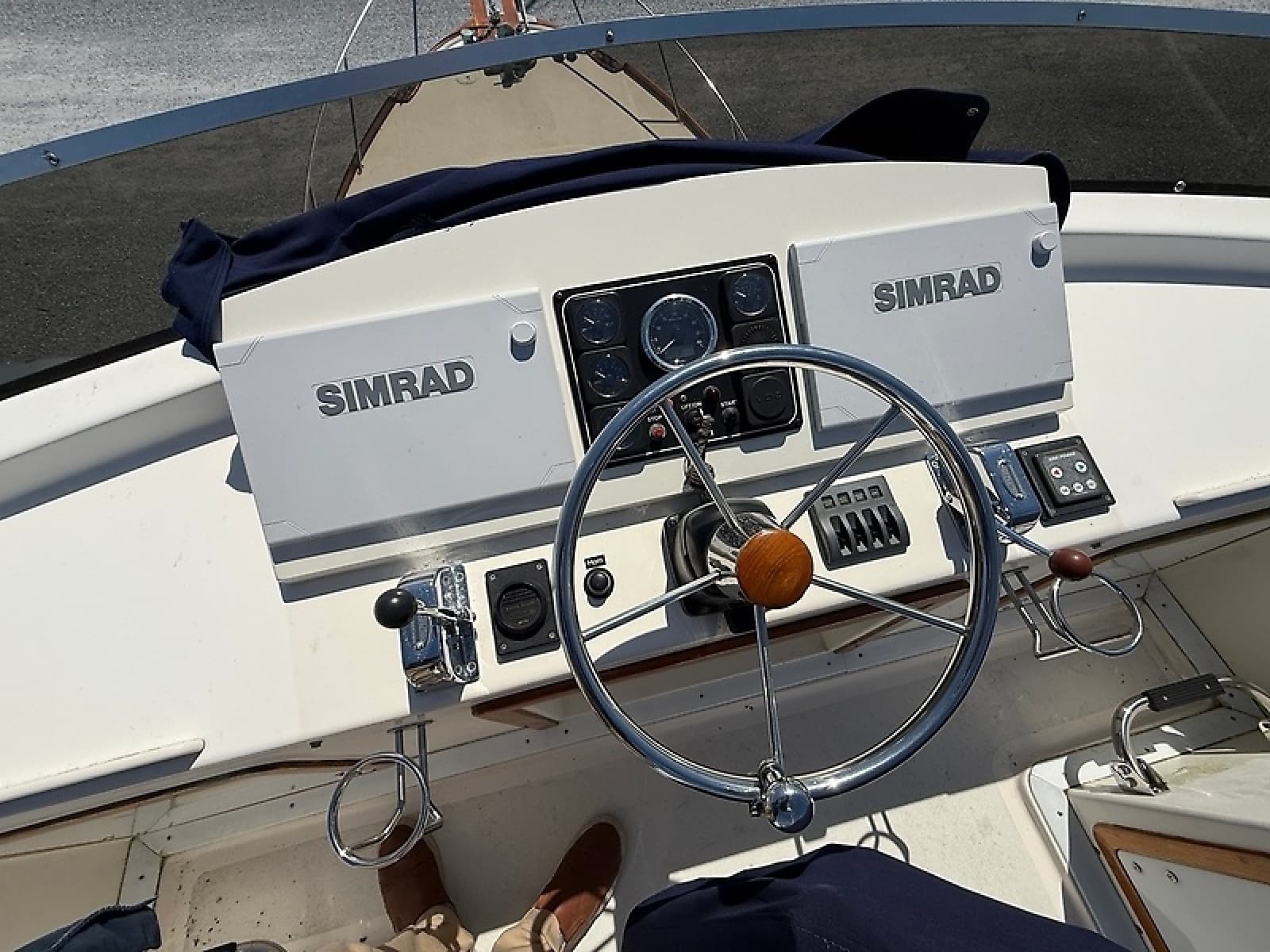

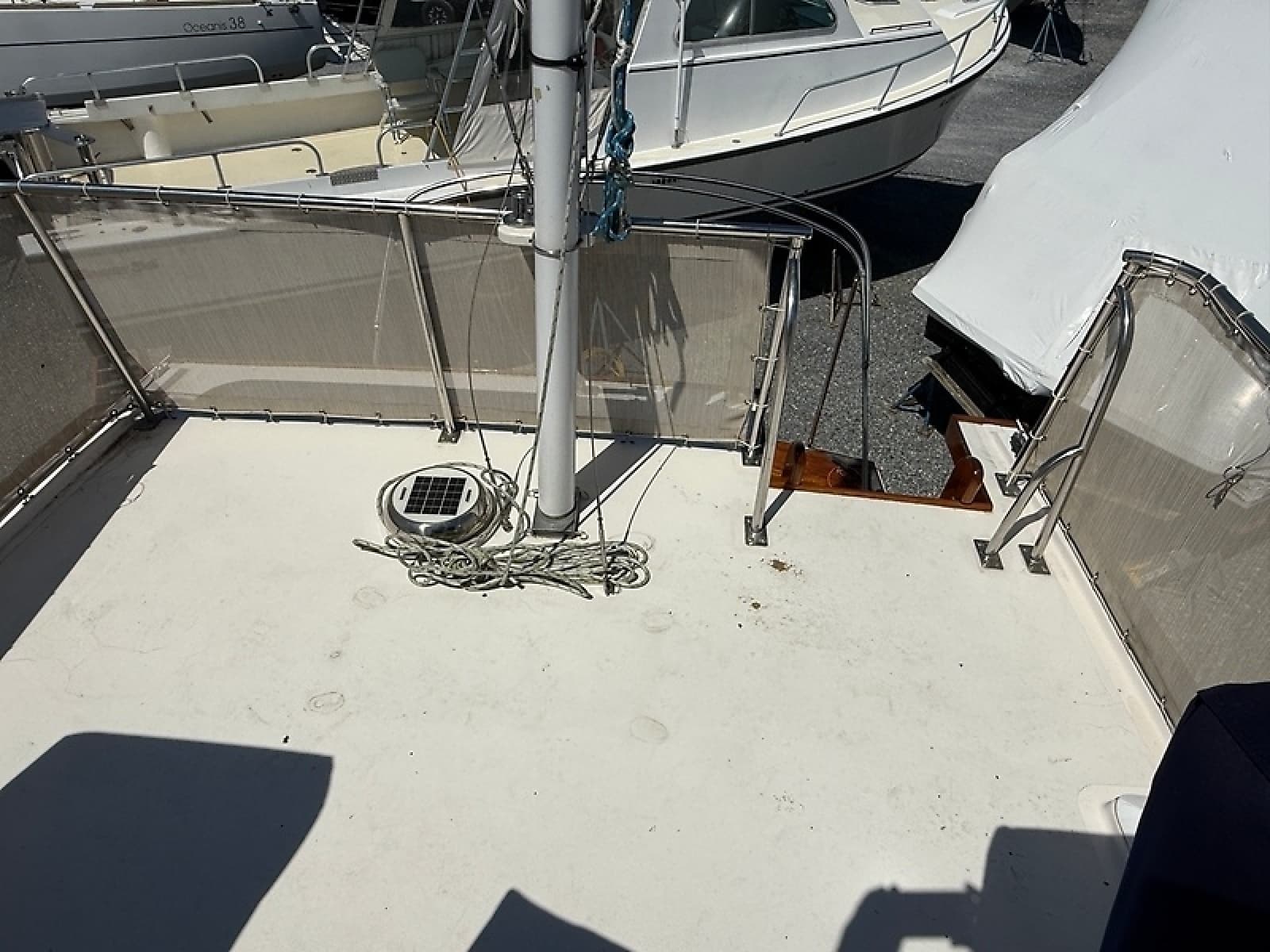

  • Flybridge Helm station with 3 seats

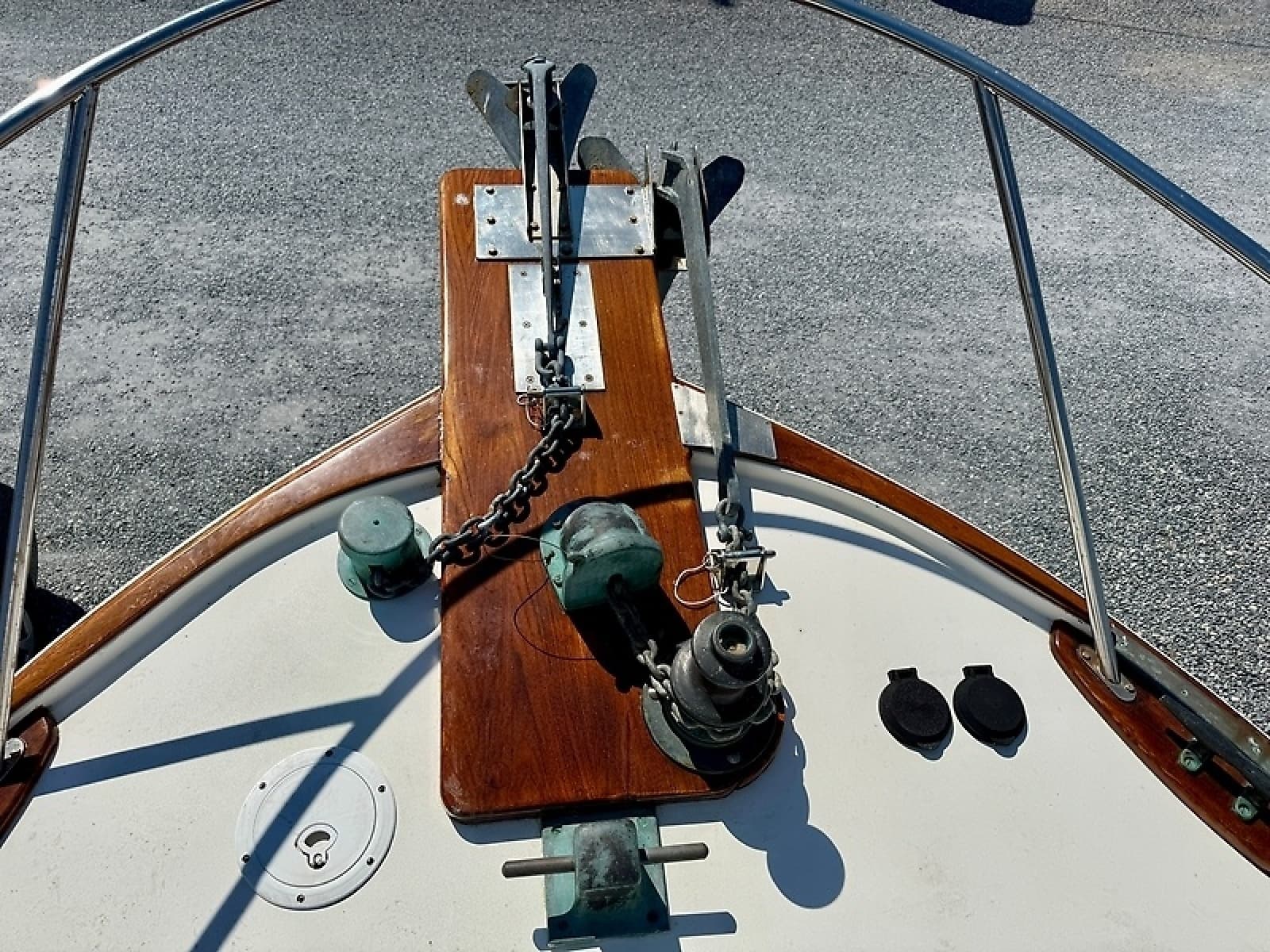

  • Electric windlass with foot controls

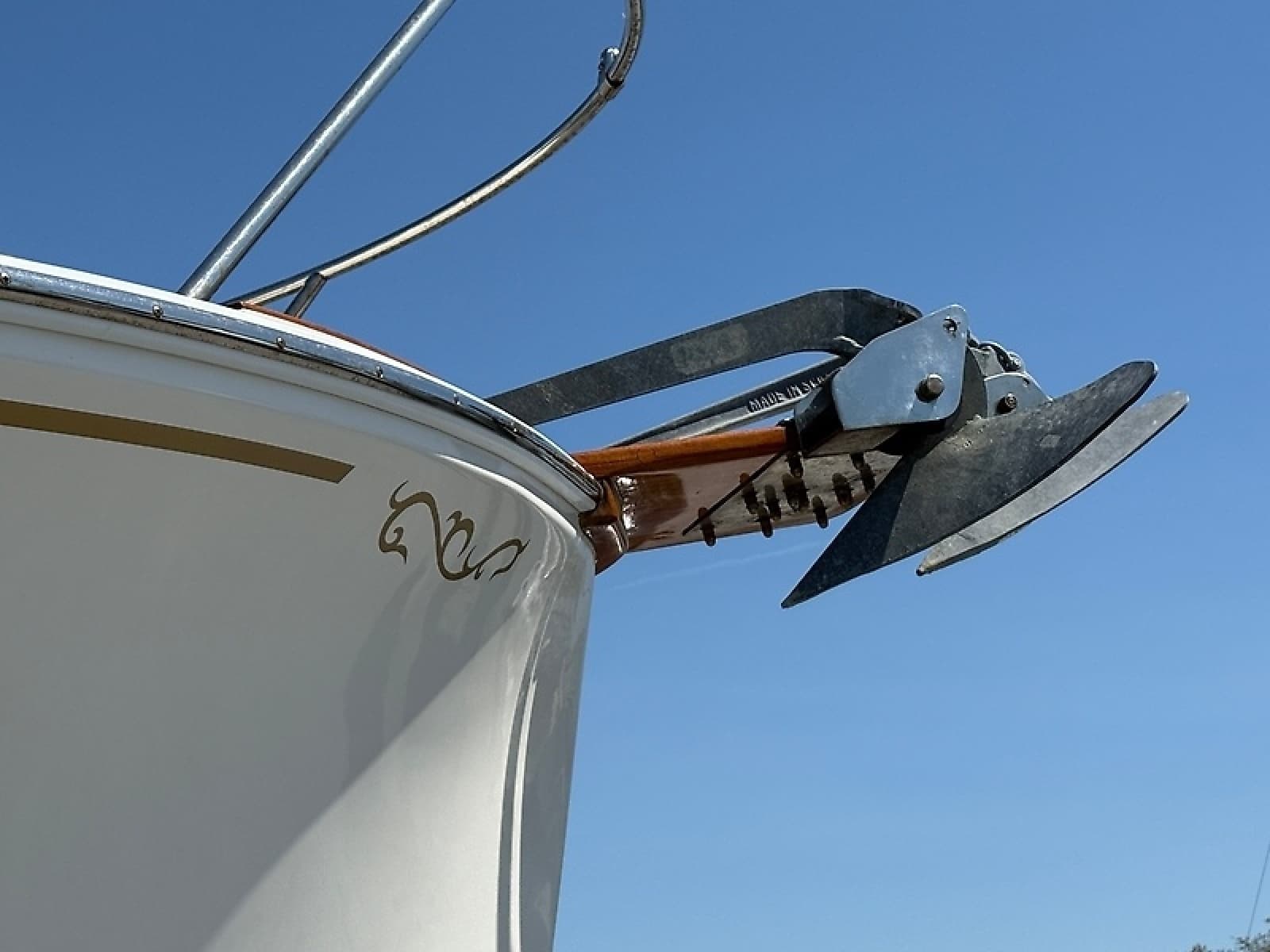

  • 35lb CQR with chain & rode
  • 25lb CQR with chain & rode

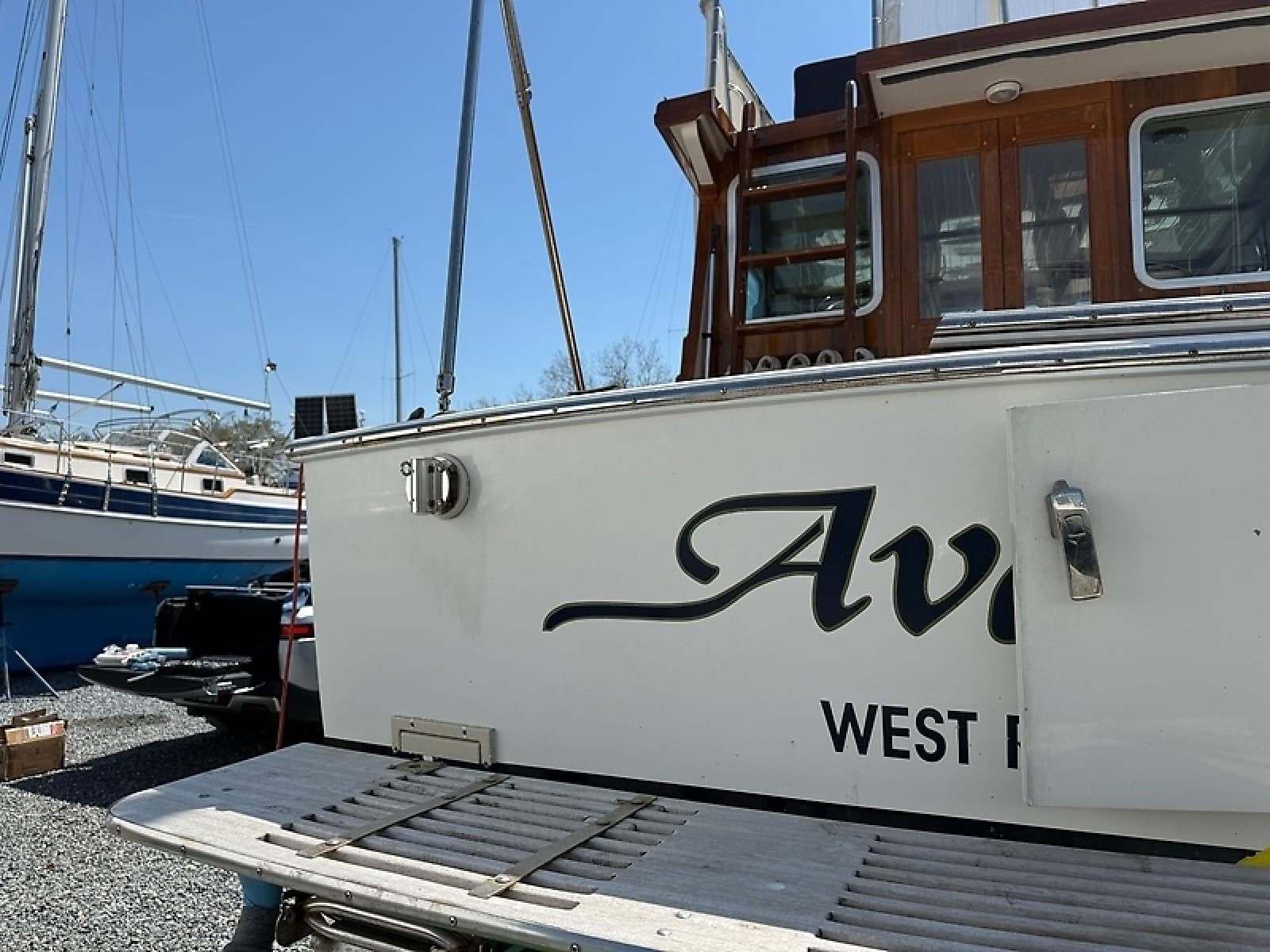

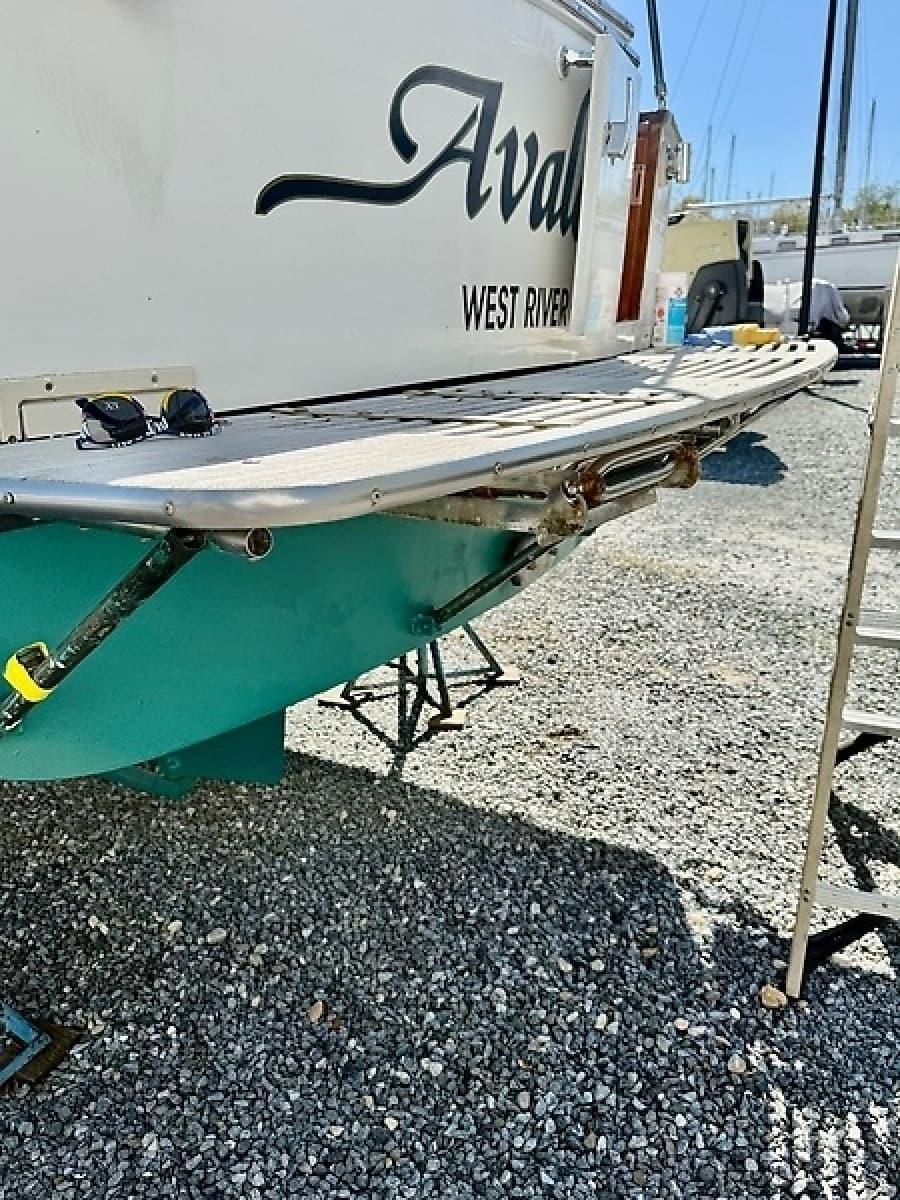

  • Swimplatform
  • Swimladder
  • Fire extinguishers
  • CO2 detecter
  • Coast Guard Safety gear
  • (2) Rod Holders
  • Flybridge bimini
  • Cockpit bimini
  • Removable St. Croix dinghy davits
  • Texiline window covers
  • FB Helm seat covers and dash cover
  • Hinged Mast and Boom w/ storage crutch (Height down 16")
