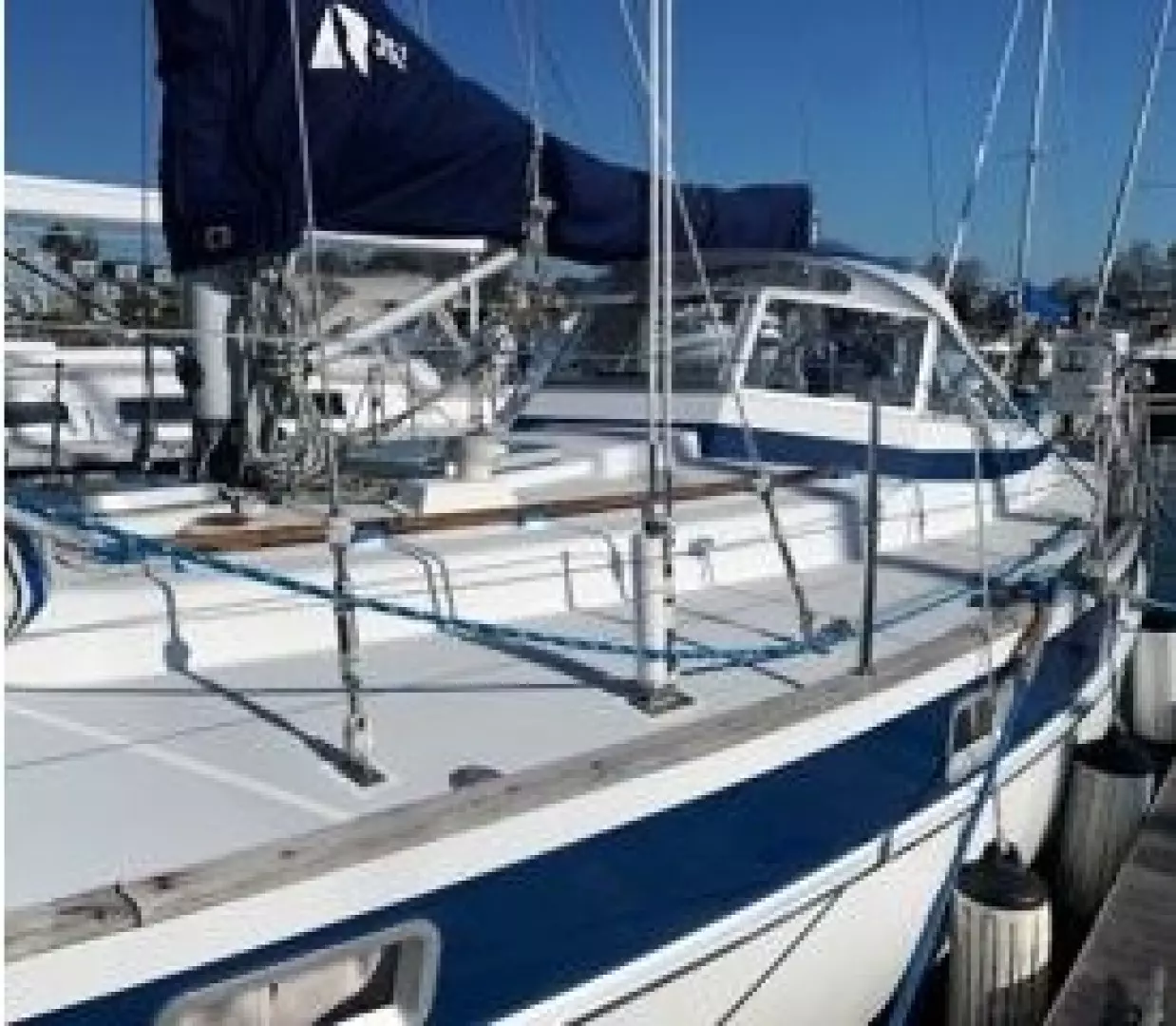

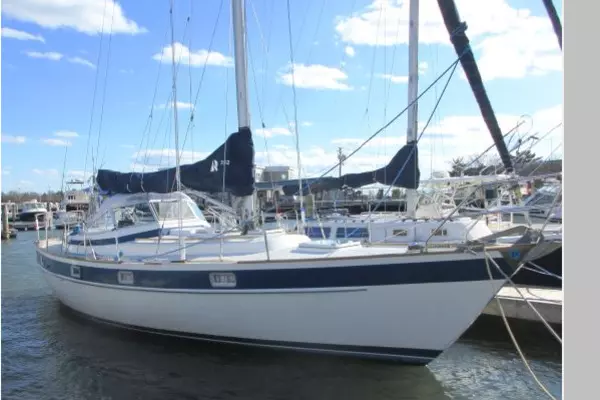

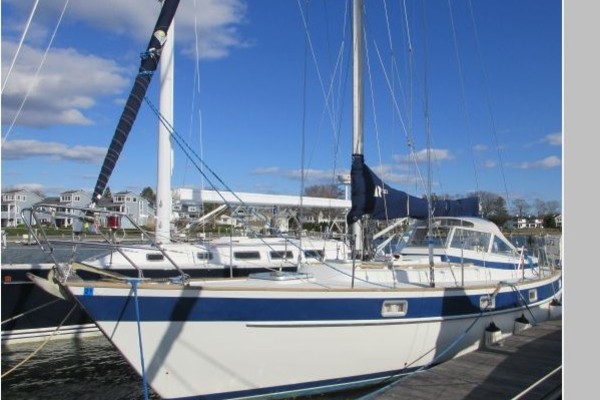

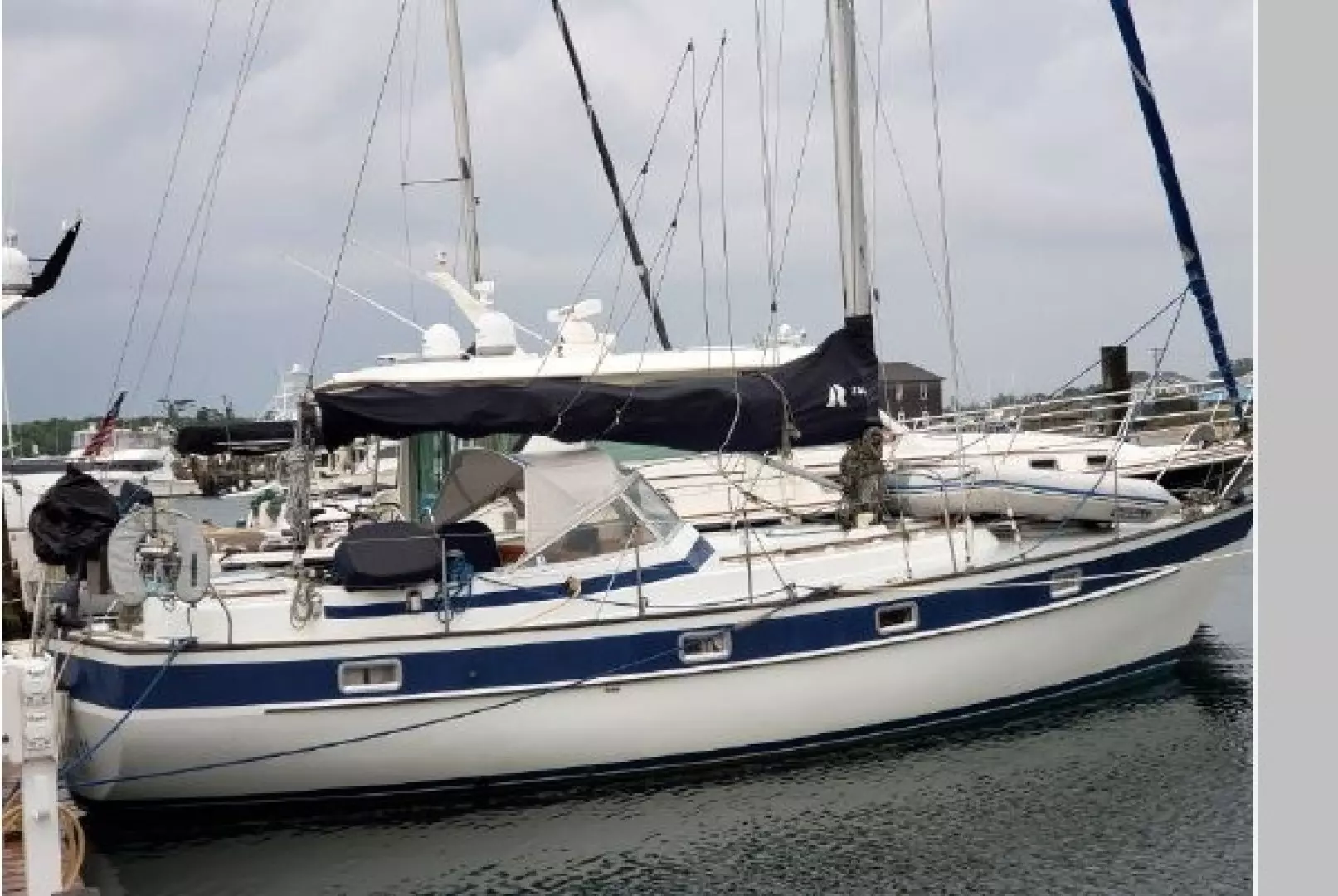

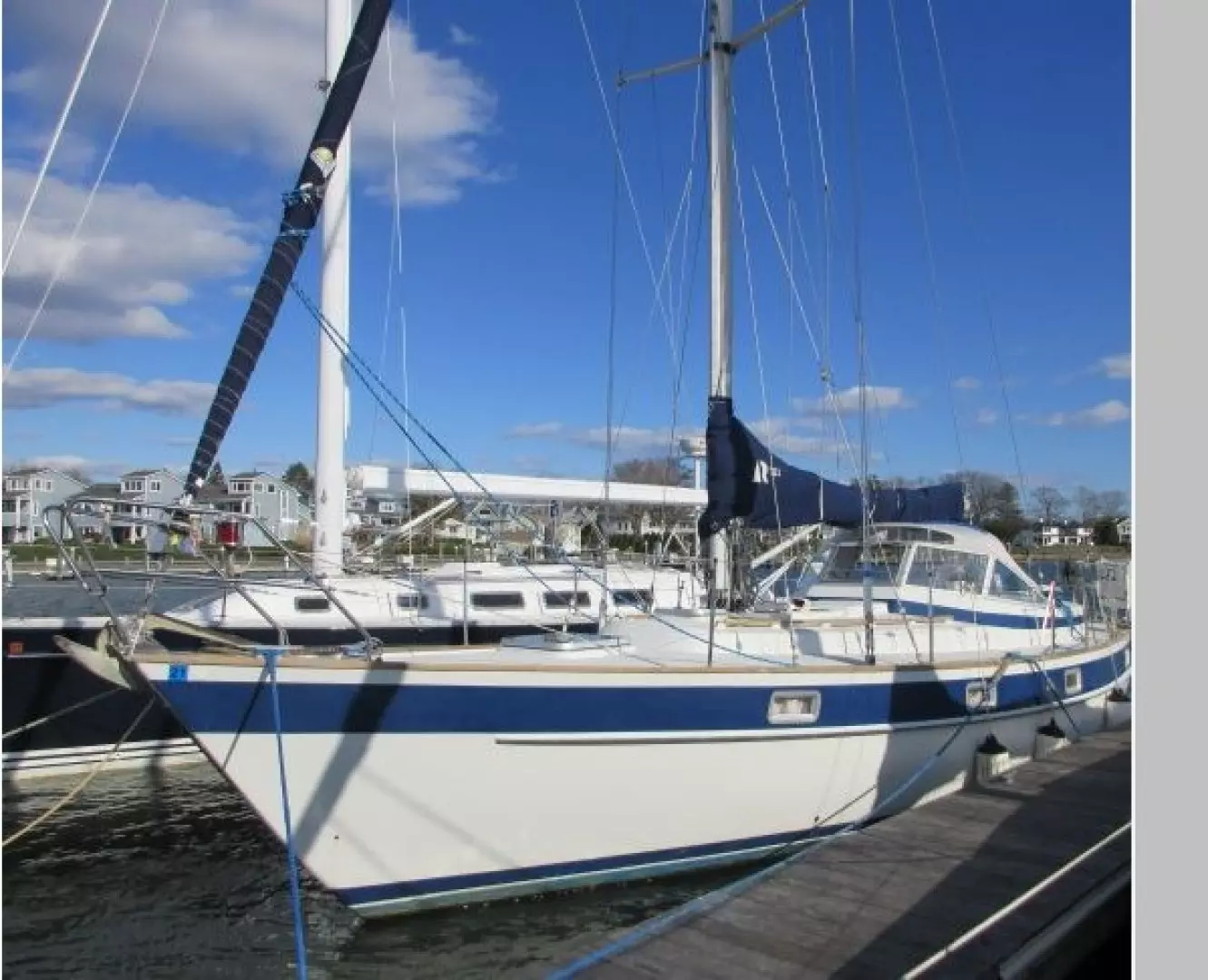

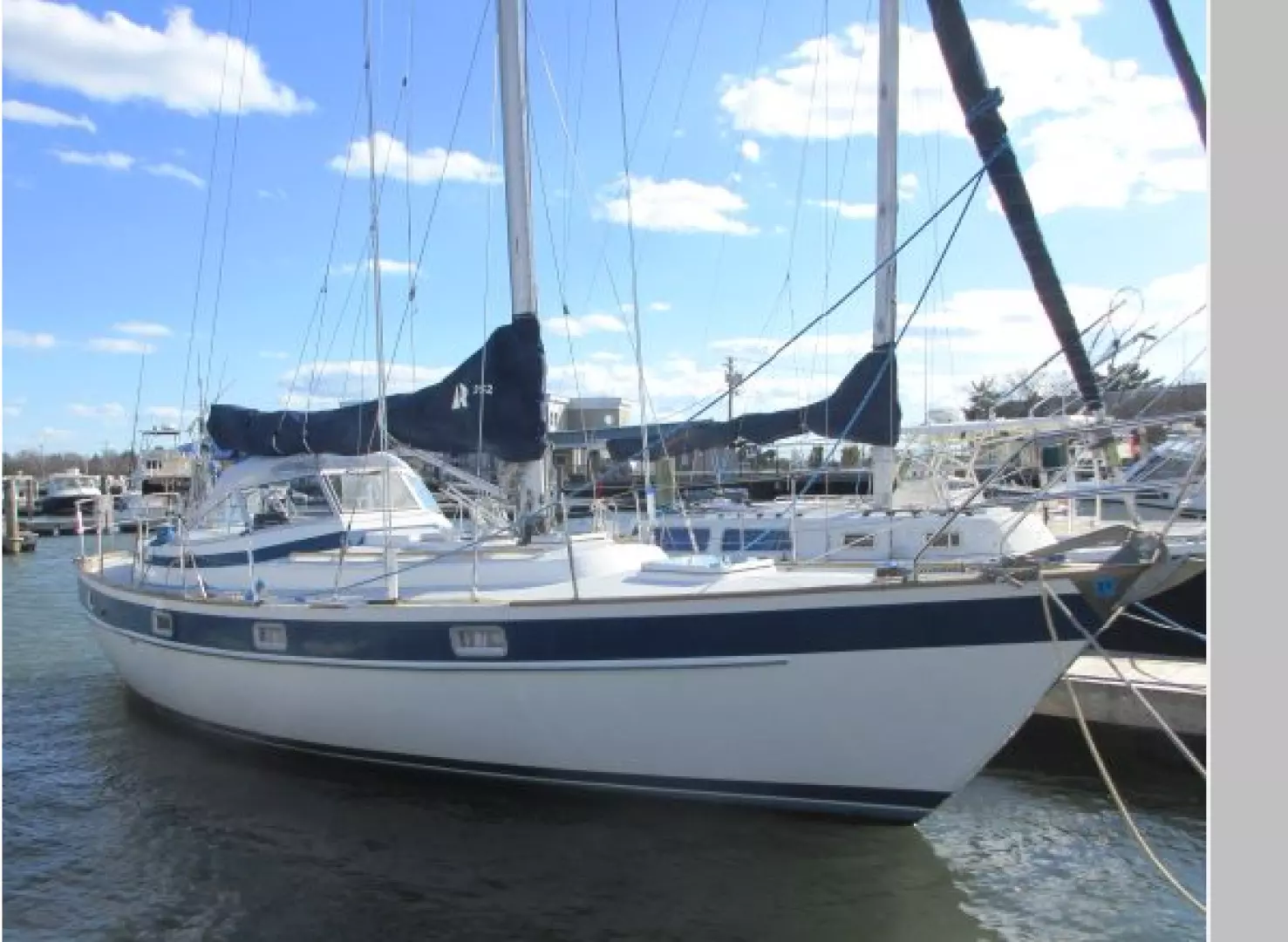

1988 Hallberg-Rassy 35' _{(10.67 m)} 352

Overview

Hull & Deck

• The Hallberg-Rassy 352 was produced with a hand laid-up fiberglass hull. There are internal stringers cored with DIVINYCELL foam built-in for additional structural integrity. WHITE AWLGRIP Topsides (2002)
• MARINE BLUE AWLGRIP Sheer stripe (2002)
• DARK BLUE AWLGRIP Boot-top (2002)
• Built-in rub strake w/ striker plate, bronze
• Skeg rudder w/ 40mm (about 1-3/4") rudder shaft
• Modified fin keel w/ "cutaway" underbody for reduced wetted surface drag, increased rudder efficiency & protection for the yacht's running gear (prop & shaft aperture)
• Keel. iron ballast, encapsulated w/ fiberglass

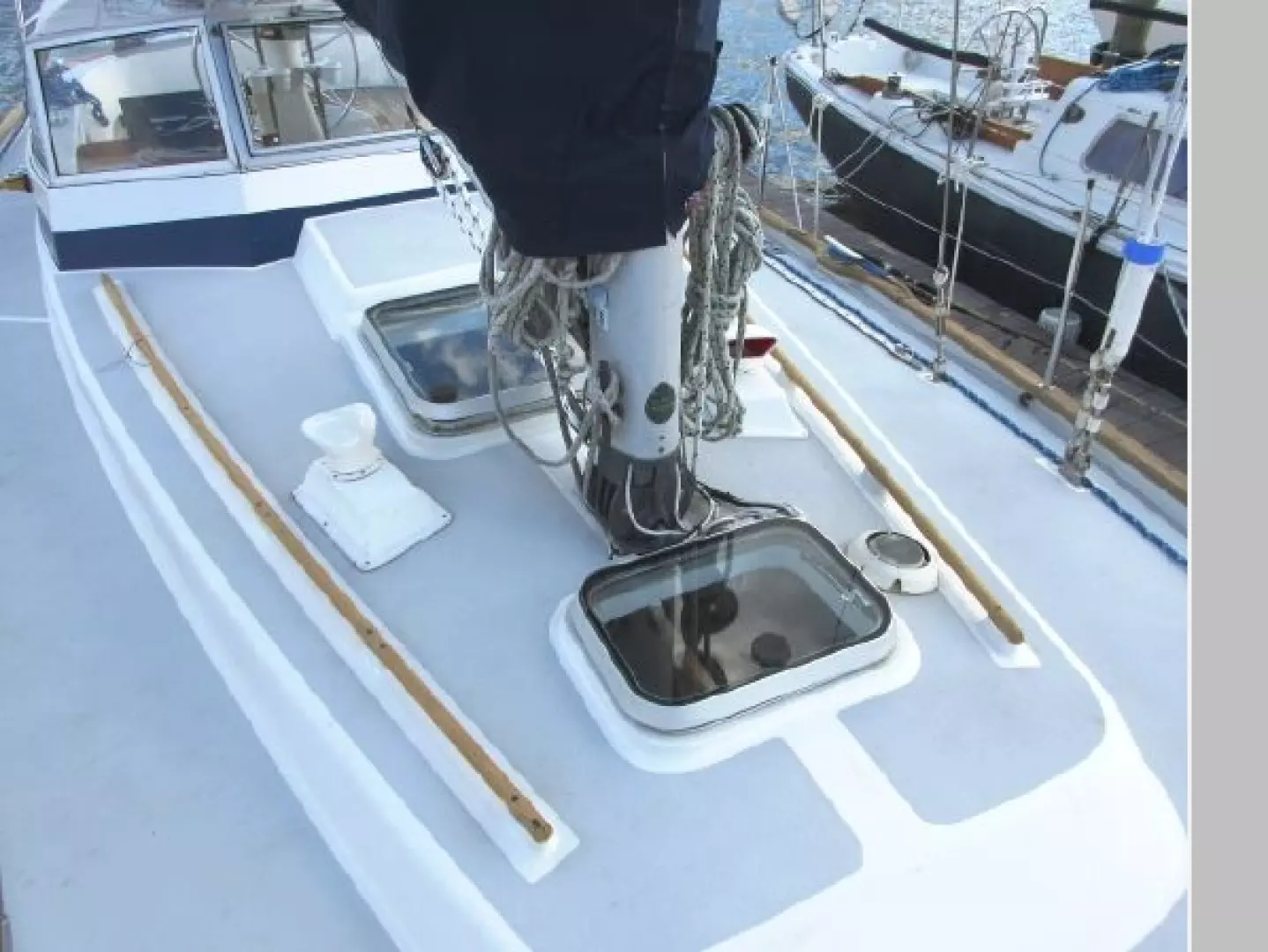

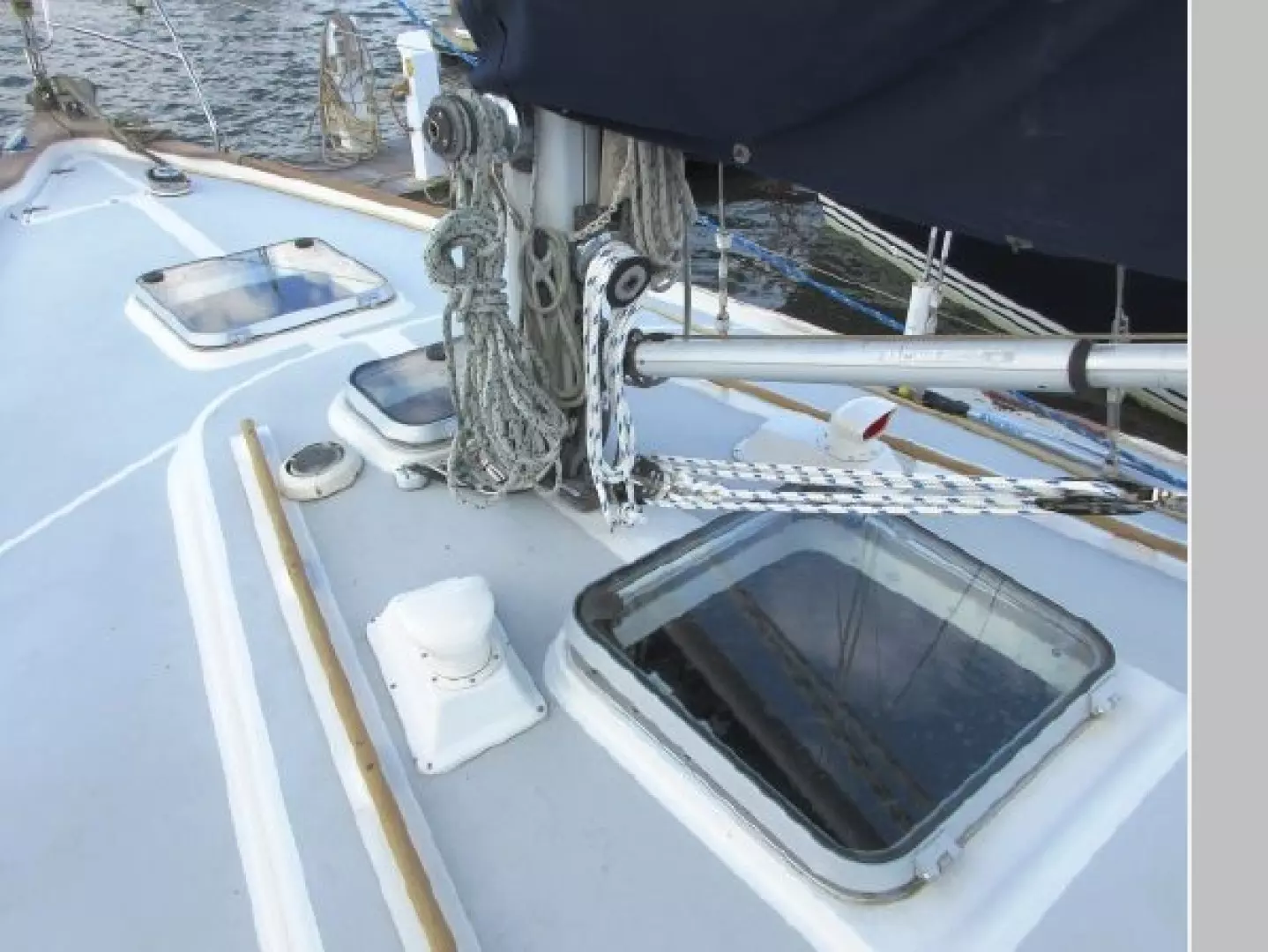

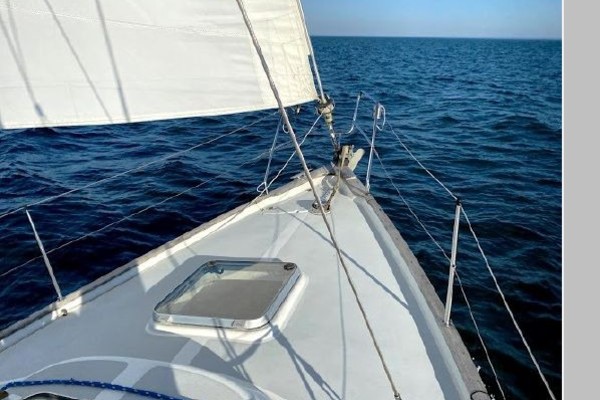

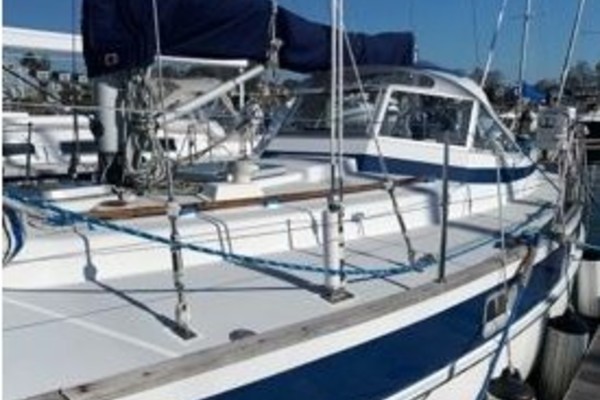

Deck

The decks are cored with a DIVINYCELL high-density foam material for strength & insulation.

The original teak decking was removed in 2012 & the decks were refinished as noted below.

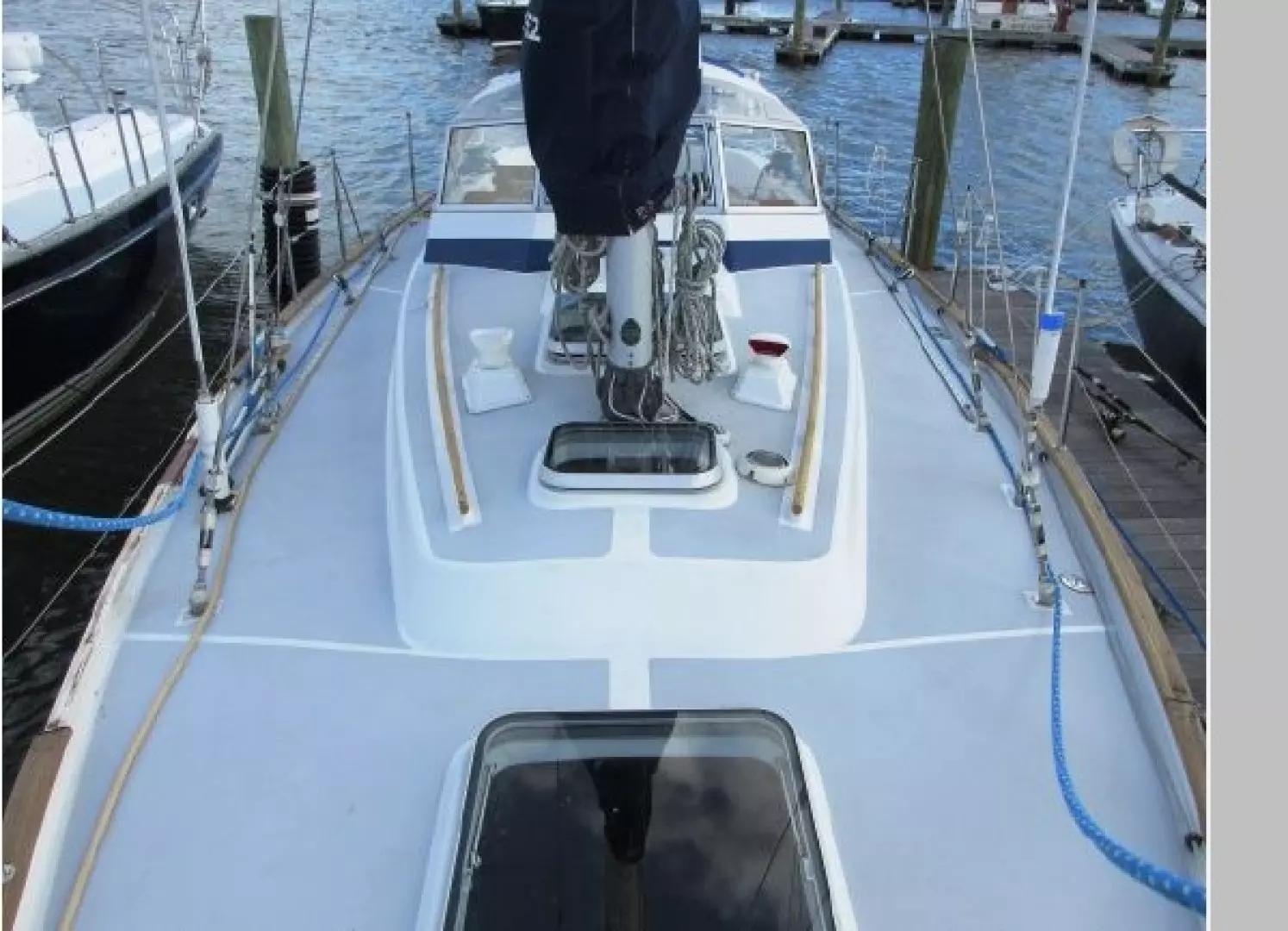

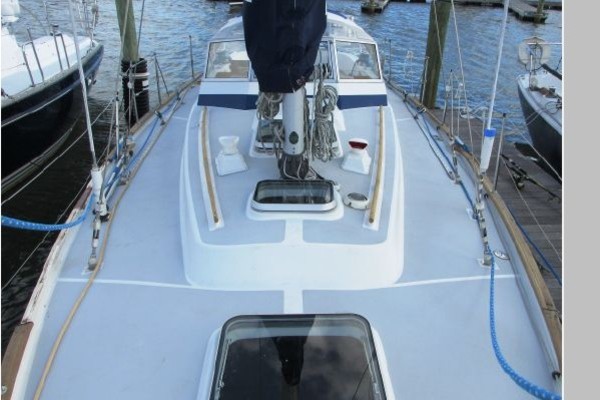

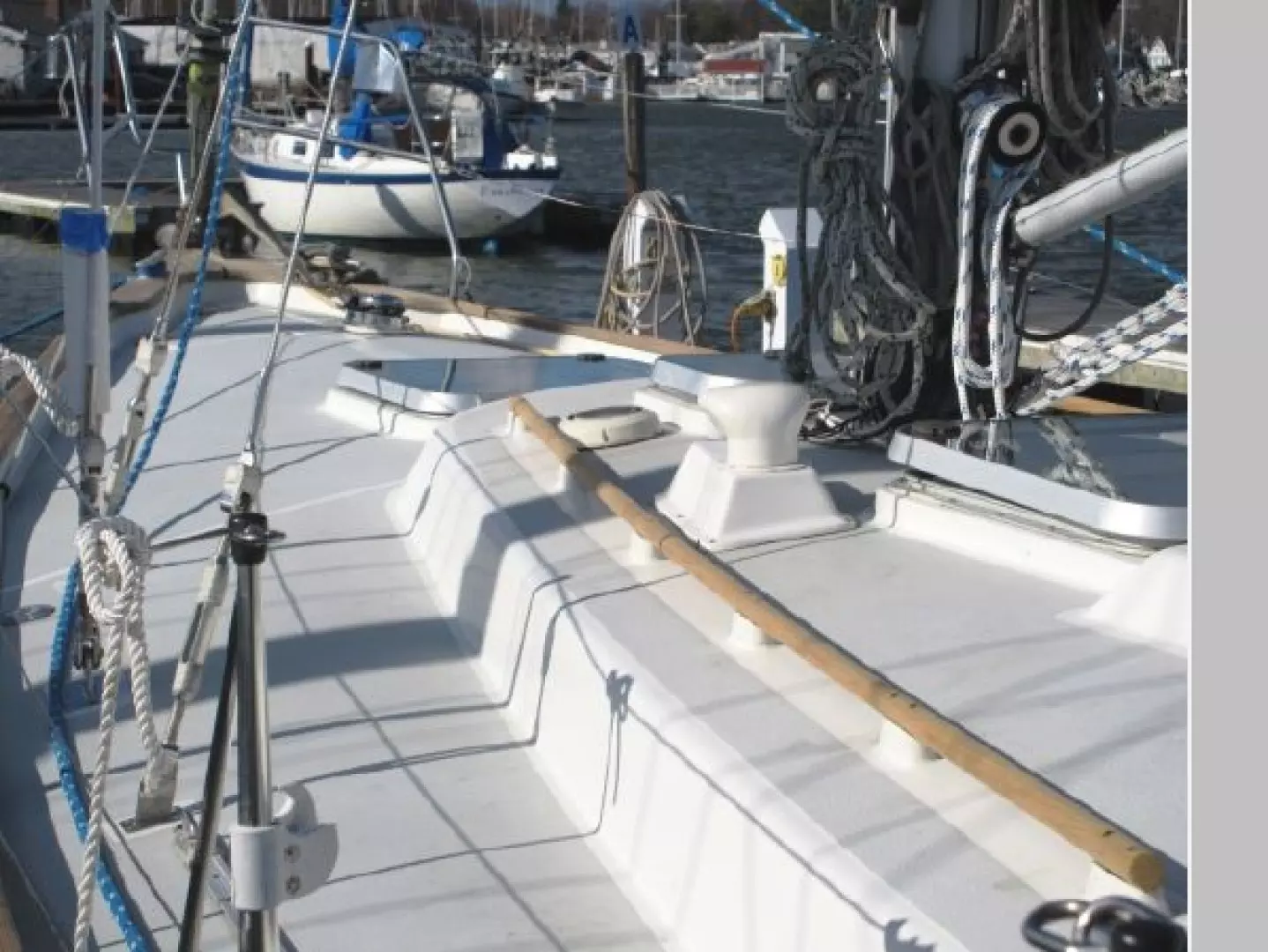

• IVORY WHITE Gelcoat finish for the decks. coachroof & cockpit areas

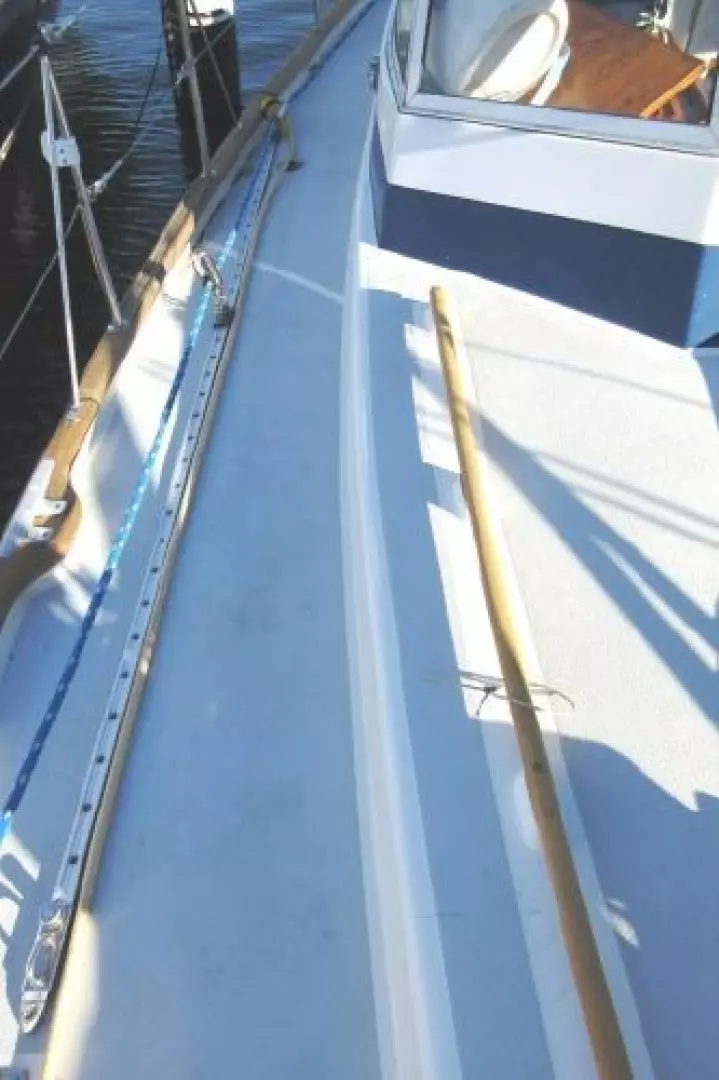

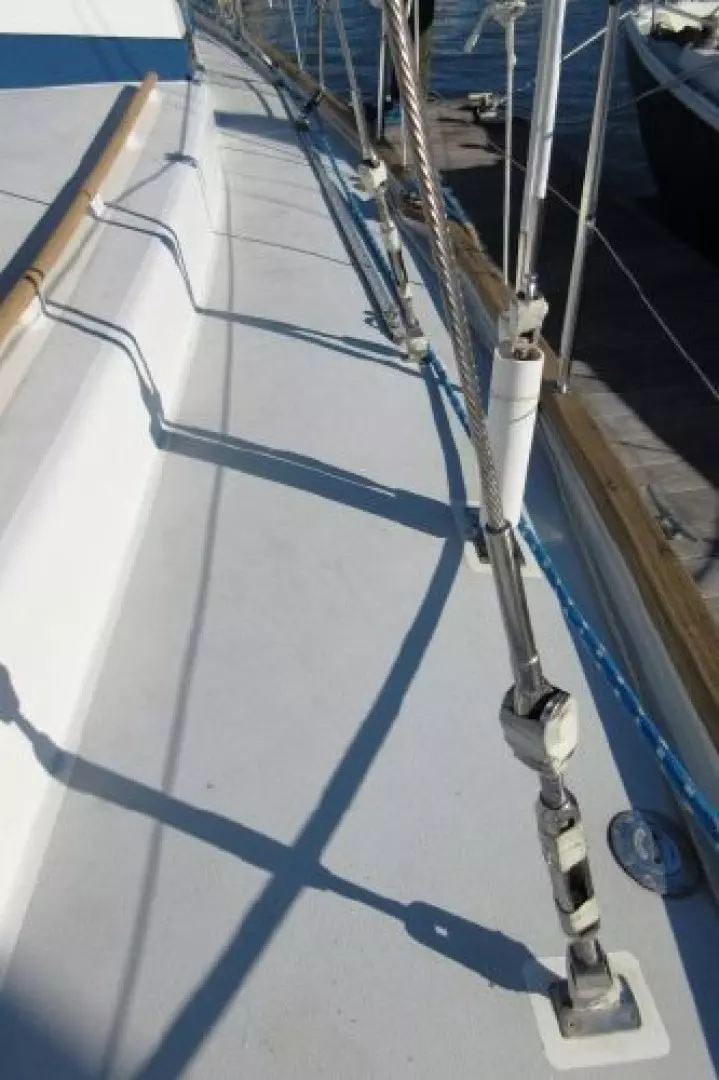

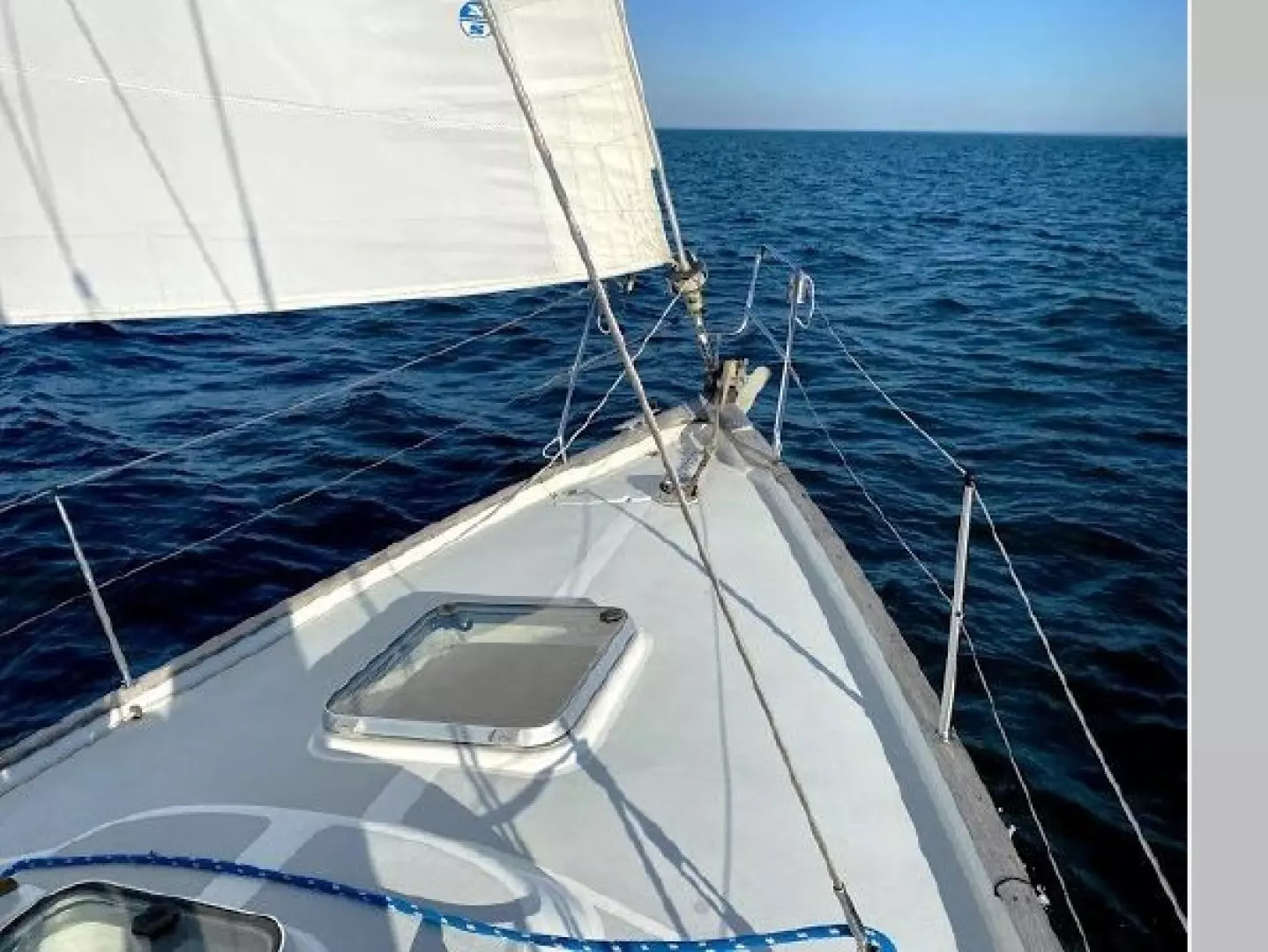

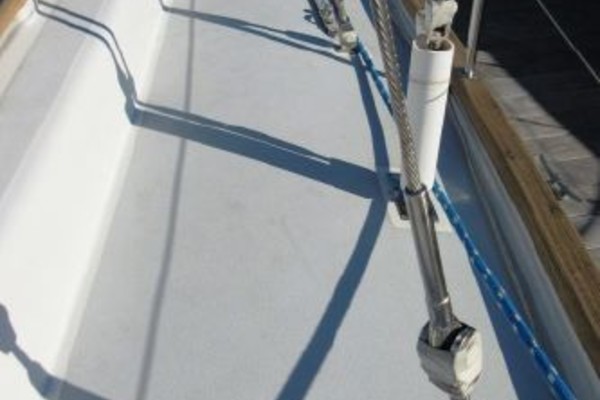

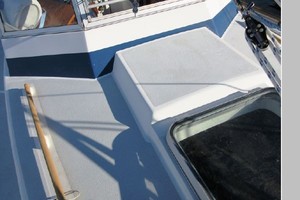

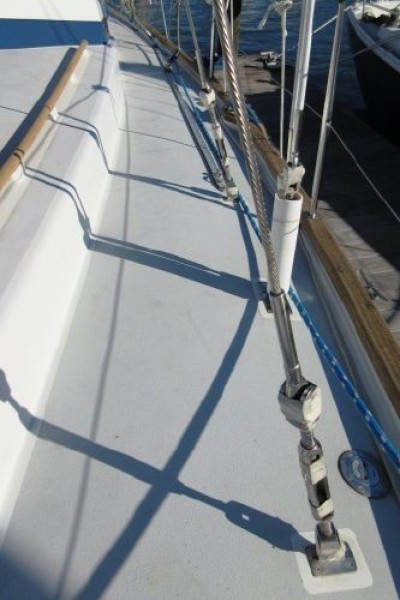

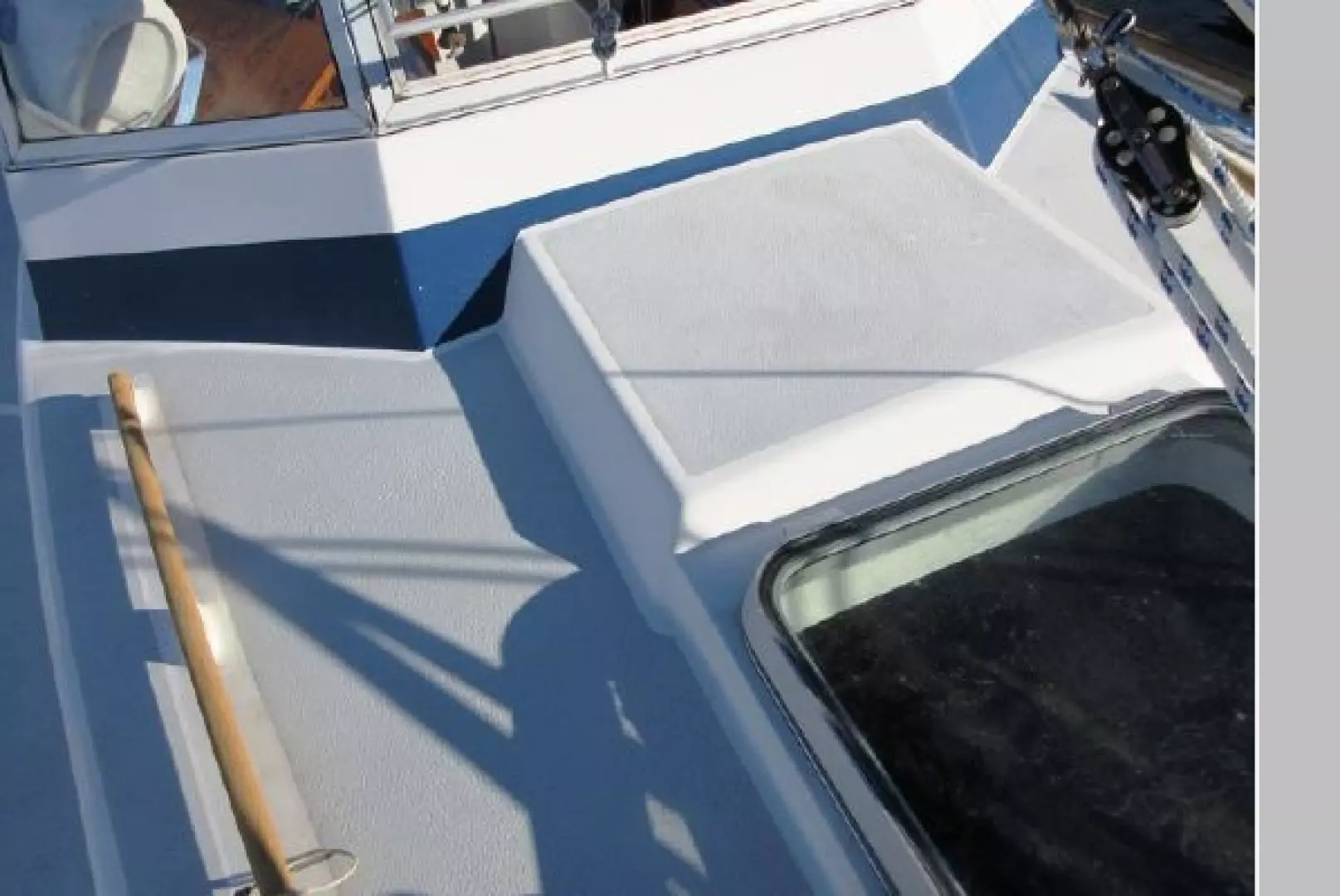

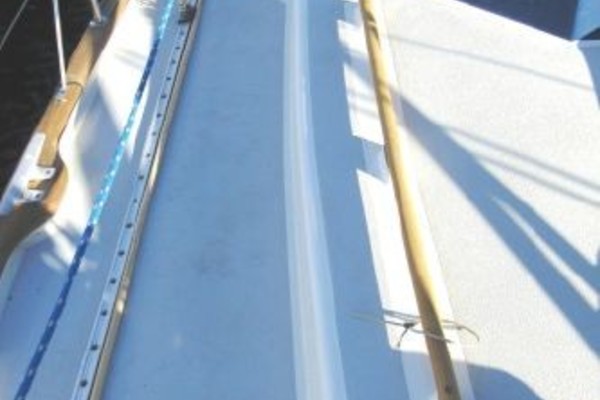

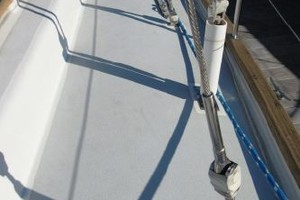

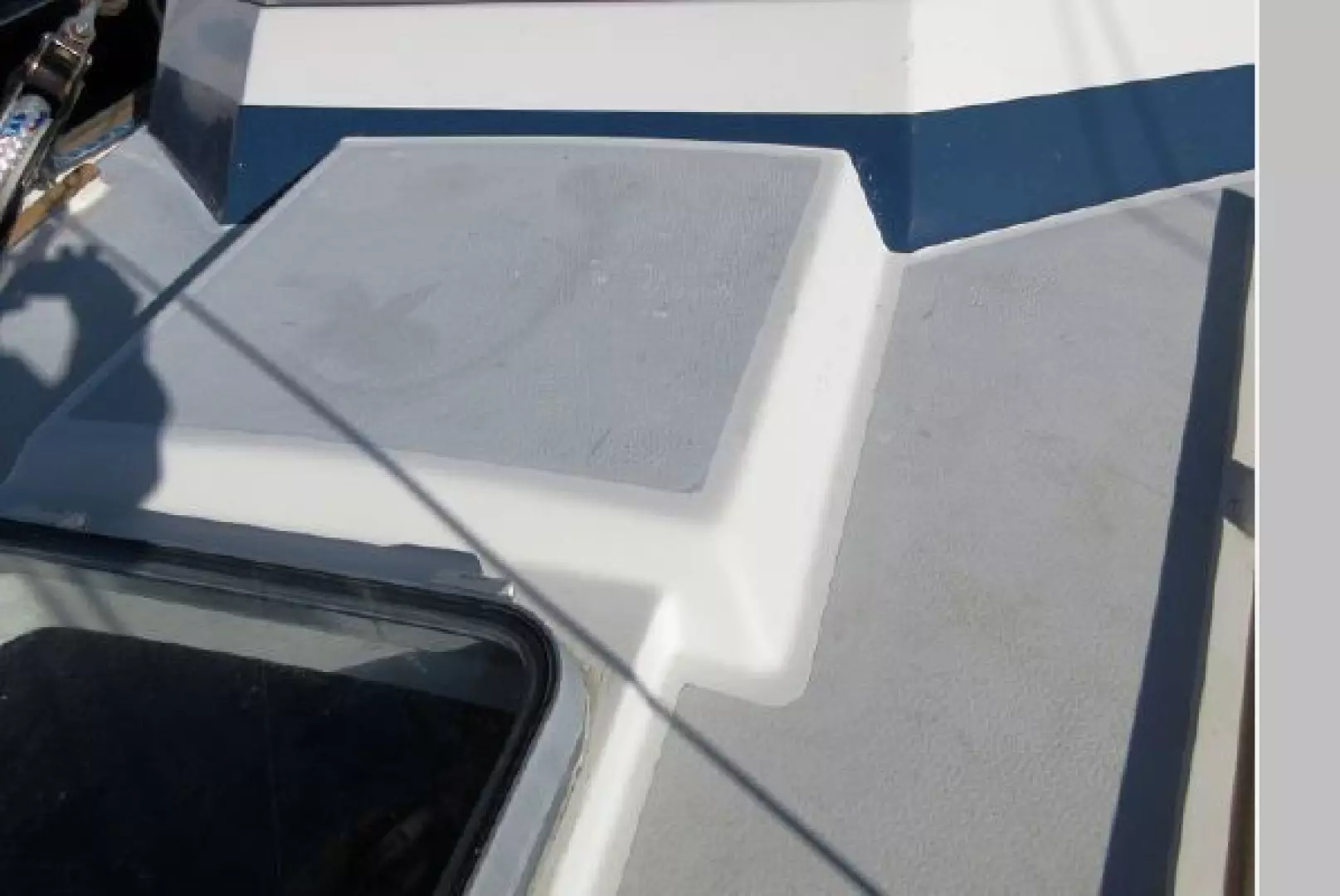

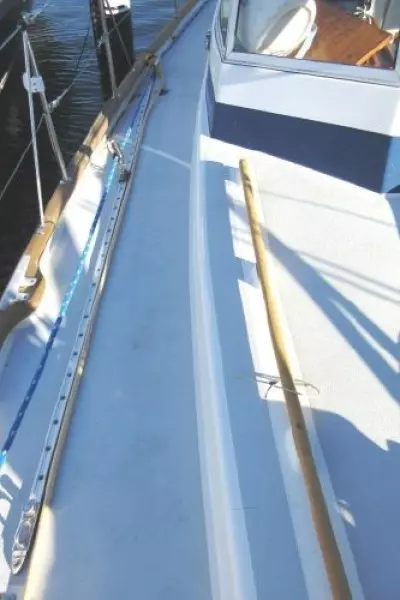

• Contrasting GRAY non-skid finish for the side decks (note: 2012 custom work with AWLGRIP application for the de-teaked non-skid areas)
• MARINE BLUE AWLGRIP for coachroof accent stripe (2002)
• Deck / hull joint includes raised bulwark w. teak cap rails
• (8) Stanchions, (4) per side, 26" high, stainless steel
• (4) Scupper drains, 1"

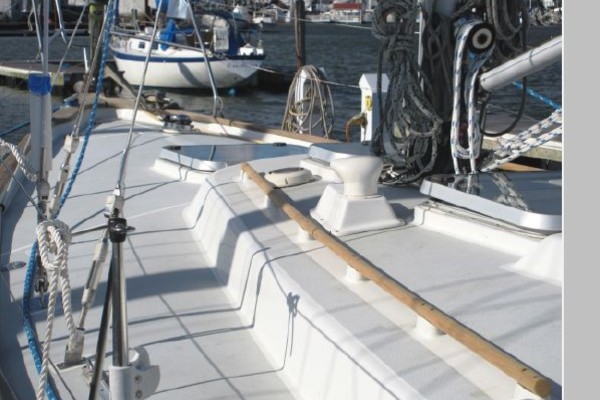

• (2) Grab rails, teak (note: mounted on raised fiberglass sections of the deck mold)
• Bow pulpit, "Butterfly" style w/ provision for bow boarding, double-rail, stainless steel
• Stern rail w/ boarding gate, double-rail, stainless steel
• (4) Mooring cleats, 12"
• (2) Mooring cleats, 10"
• Bow anchor well
• Cockpit storage locker, large (note: located starboard side)
• Lazarette locker aft w/ solar ventilator

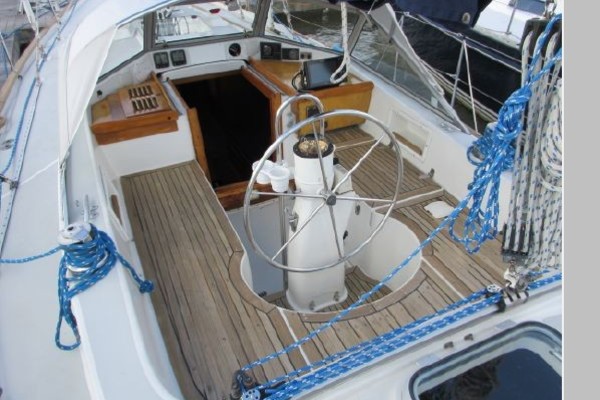

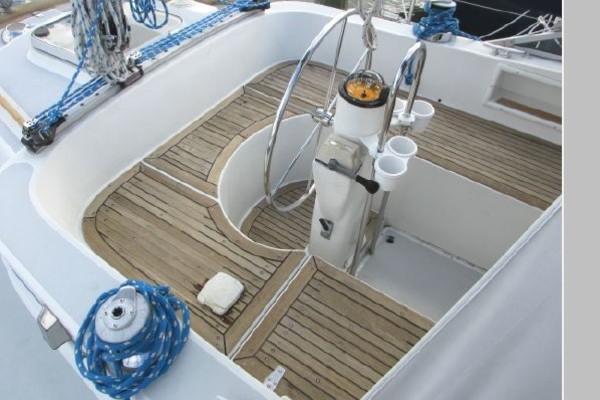

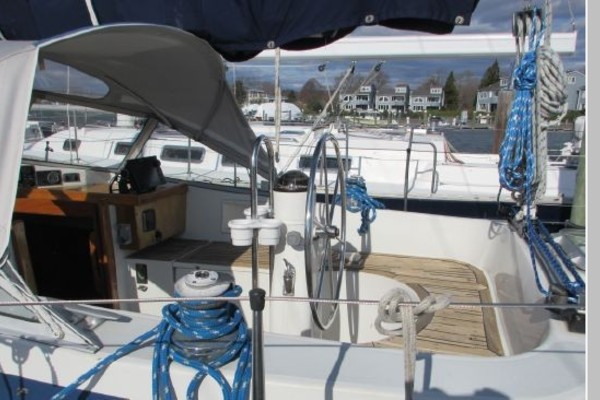

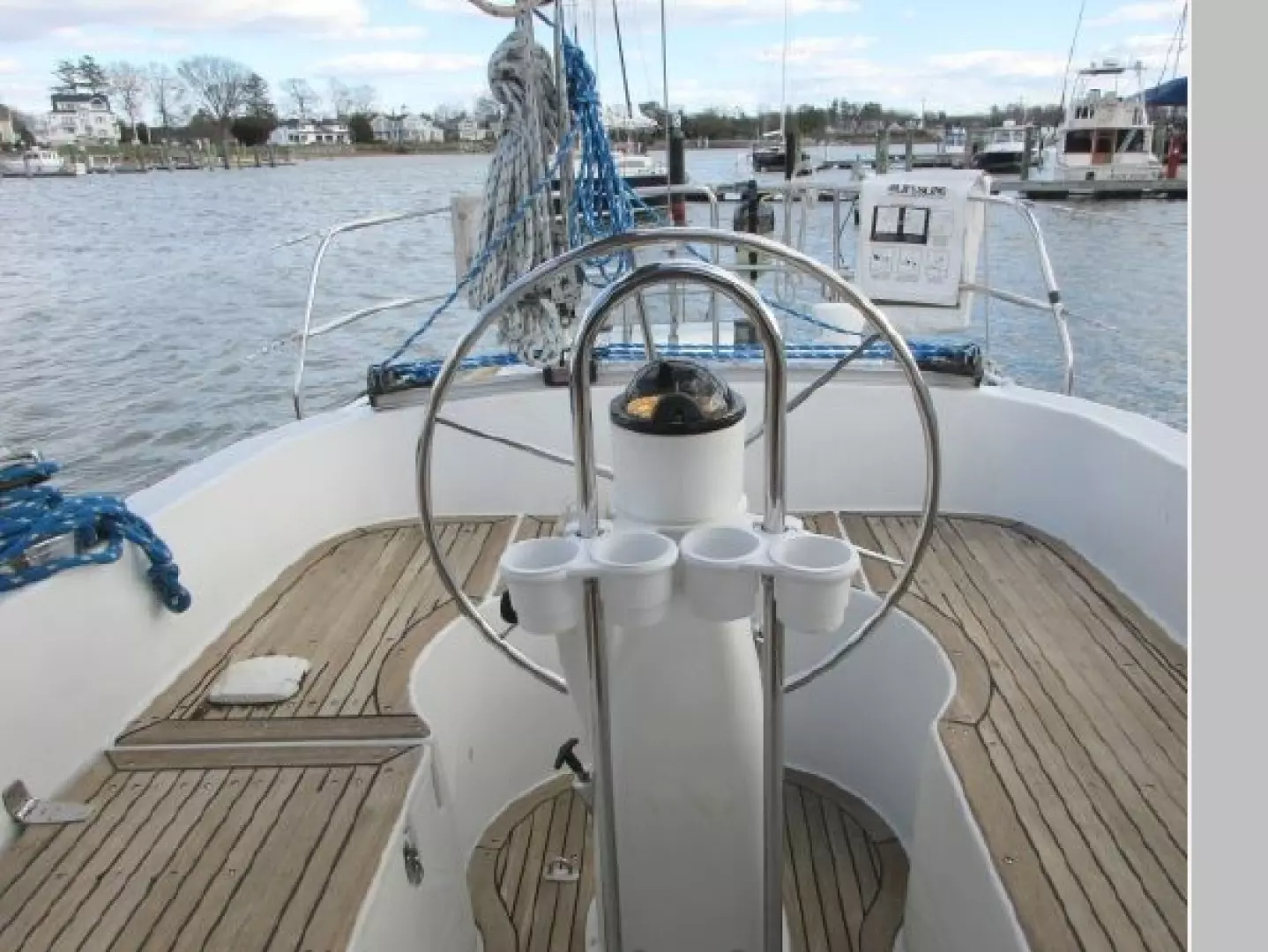

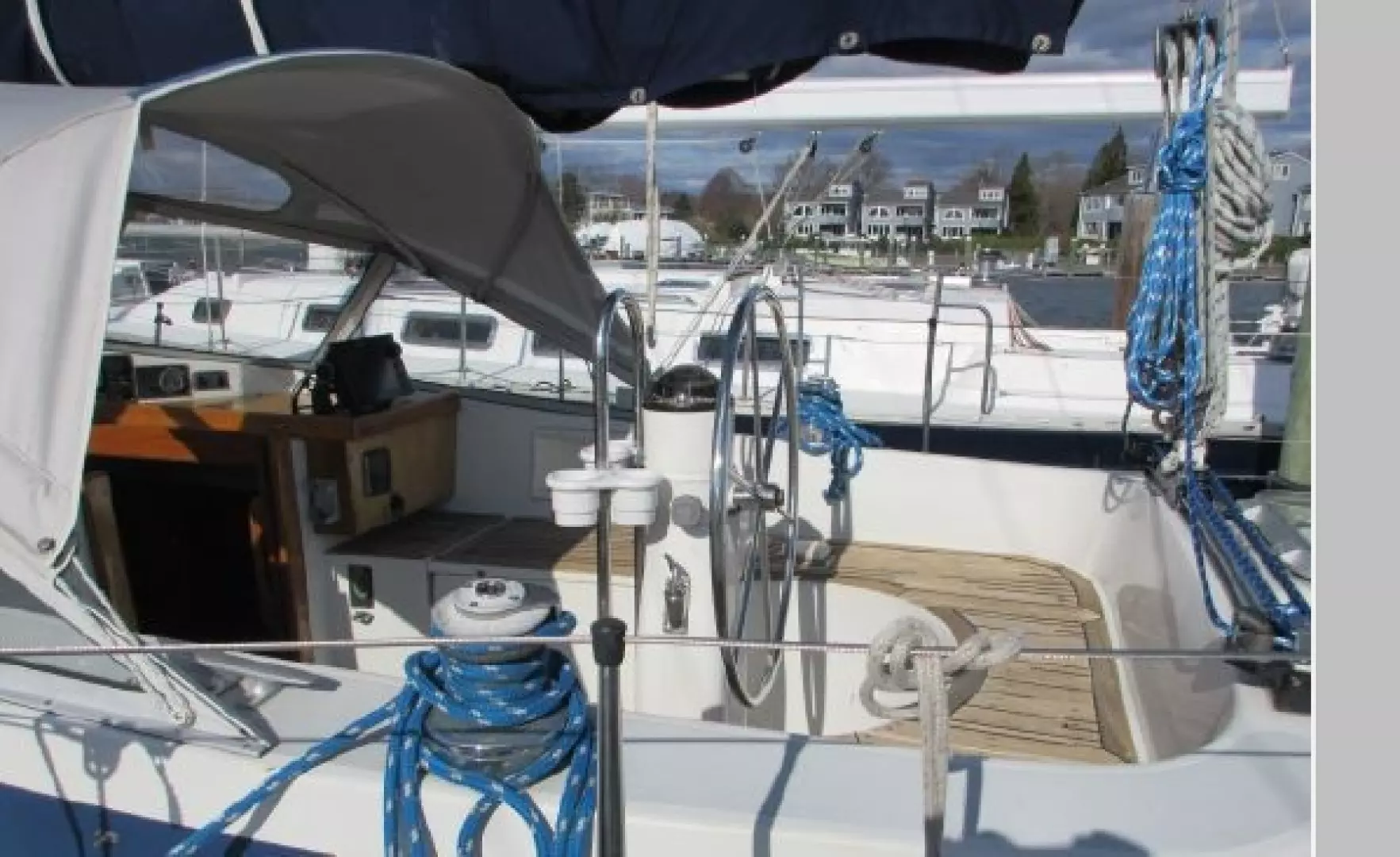

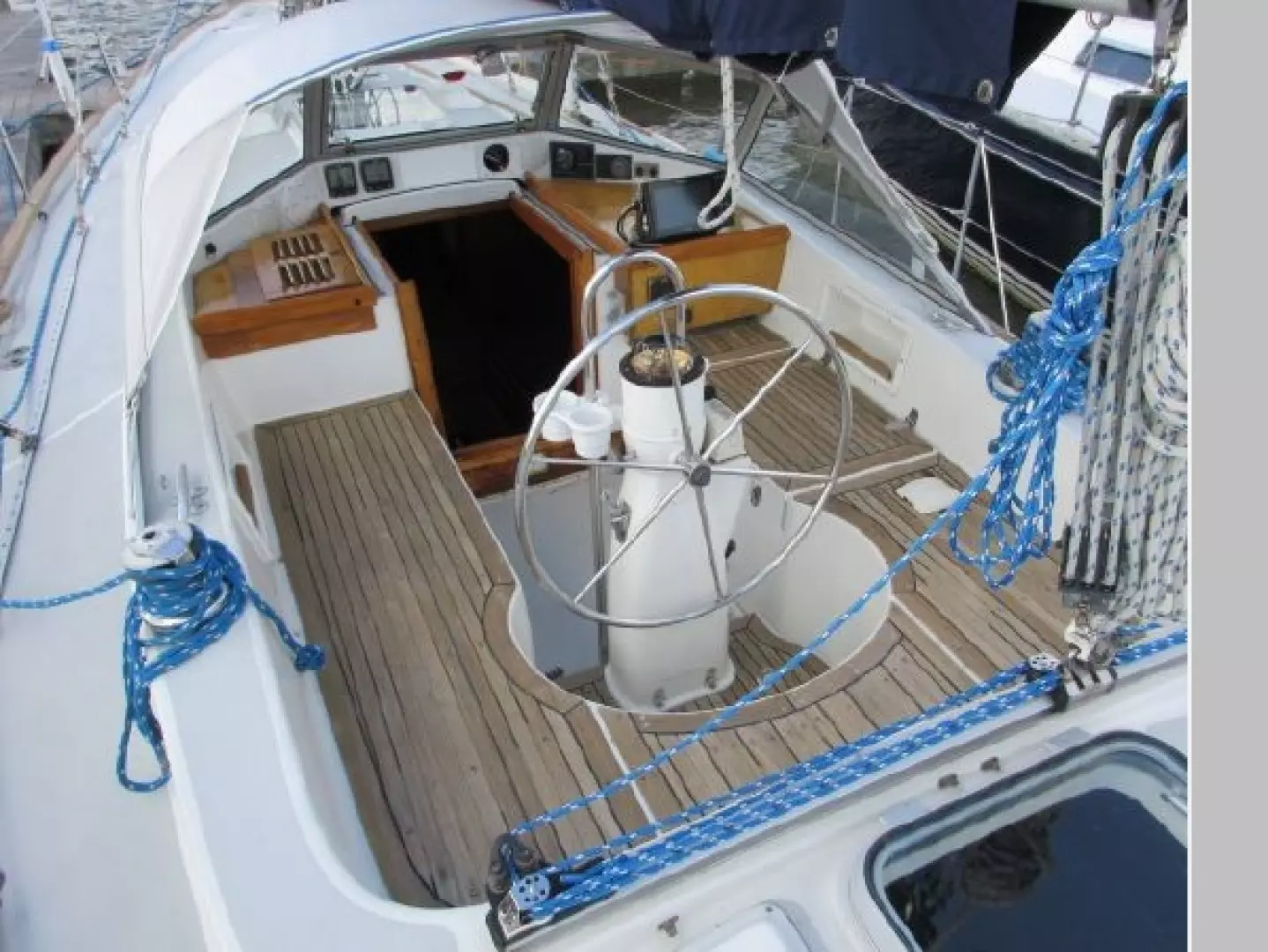

Cockpit

The cockpit area has the standard original Hallberg-Rassy teak overlay, 12mm (about 1/2") thickness.

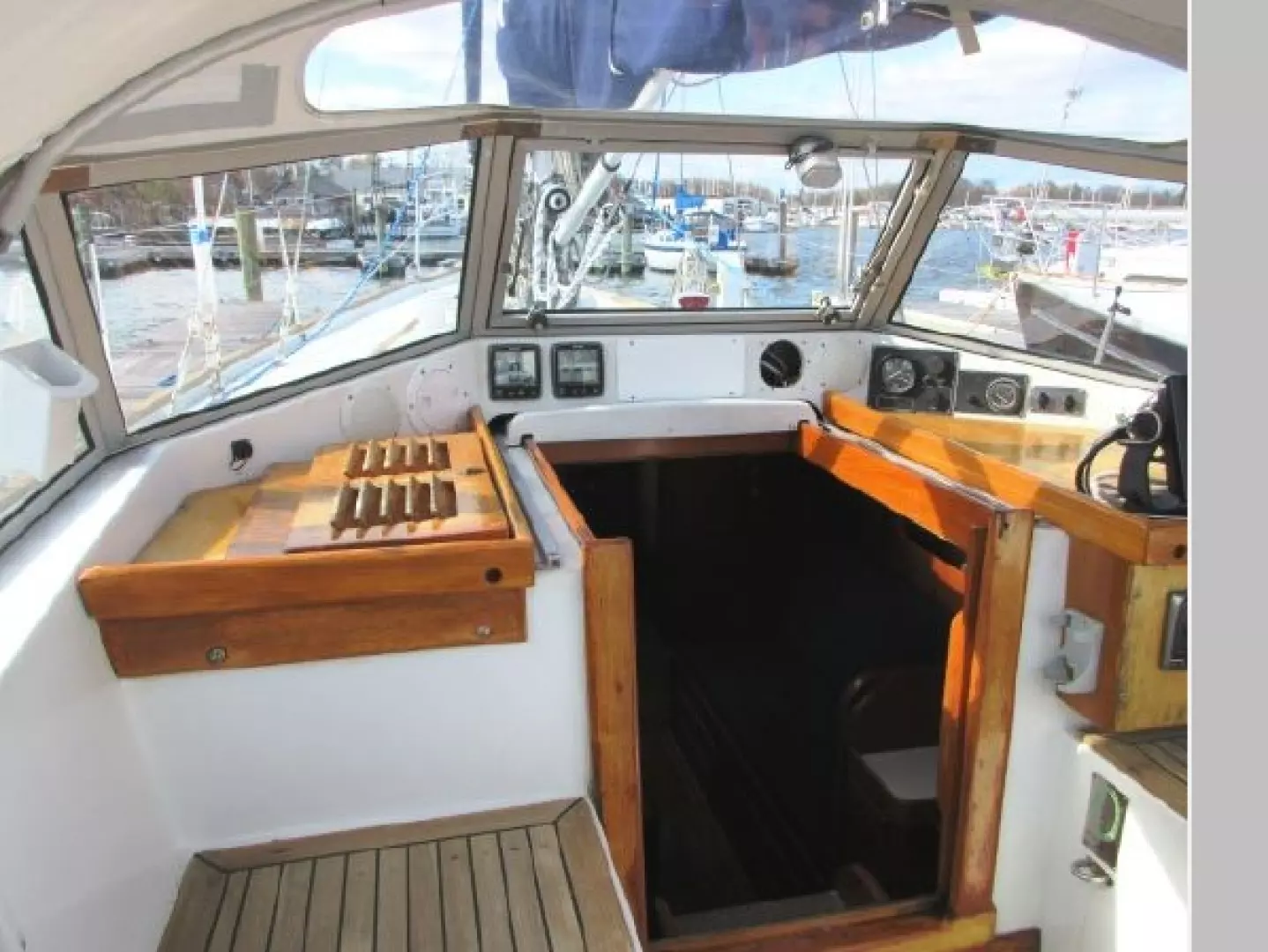

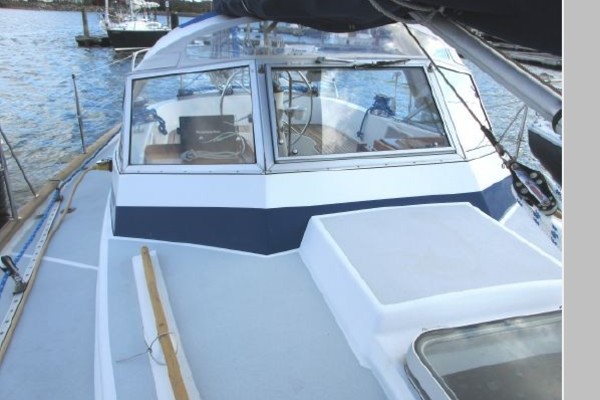

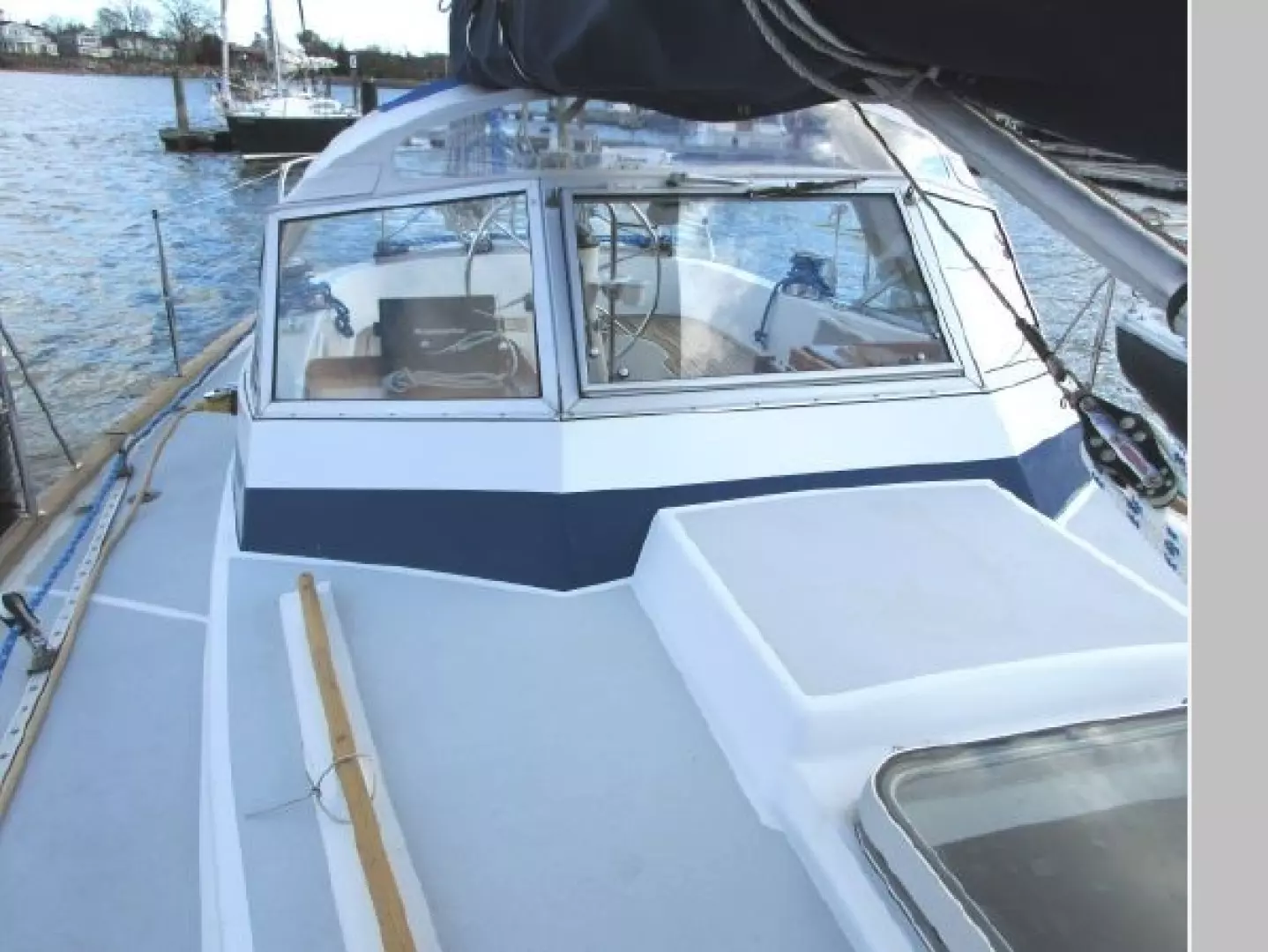

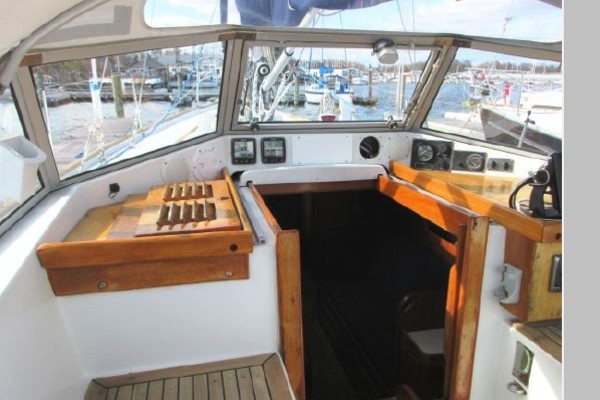

• Windshield, tempered glass w/ light alloy frames (note: mid-section does open)
• Teak overlay for interior sections forward & underneath the windshield area
• Teak Companionway boards
• (2) Cockpit drains, 1-1/2"

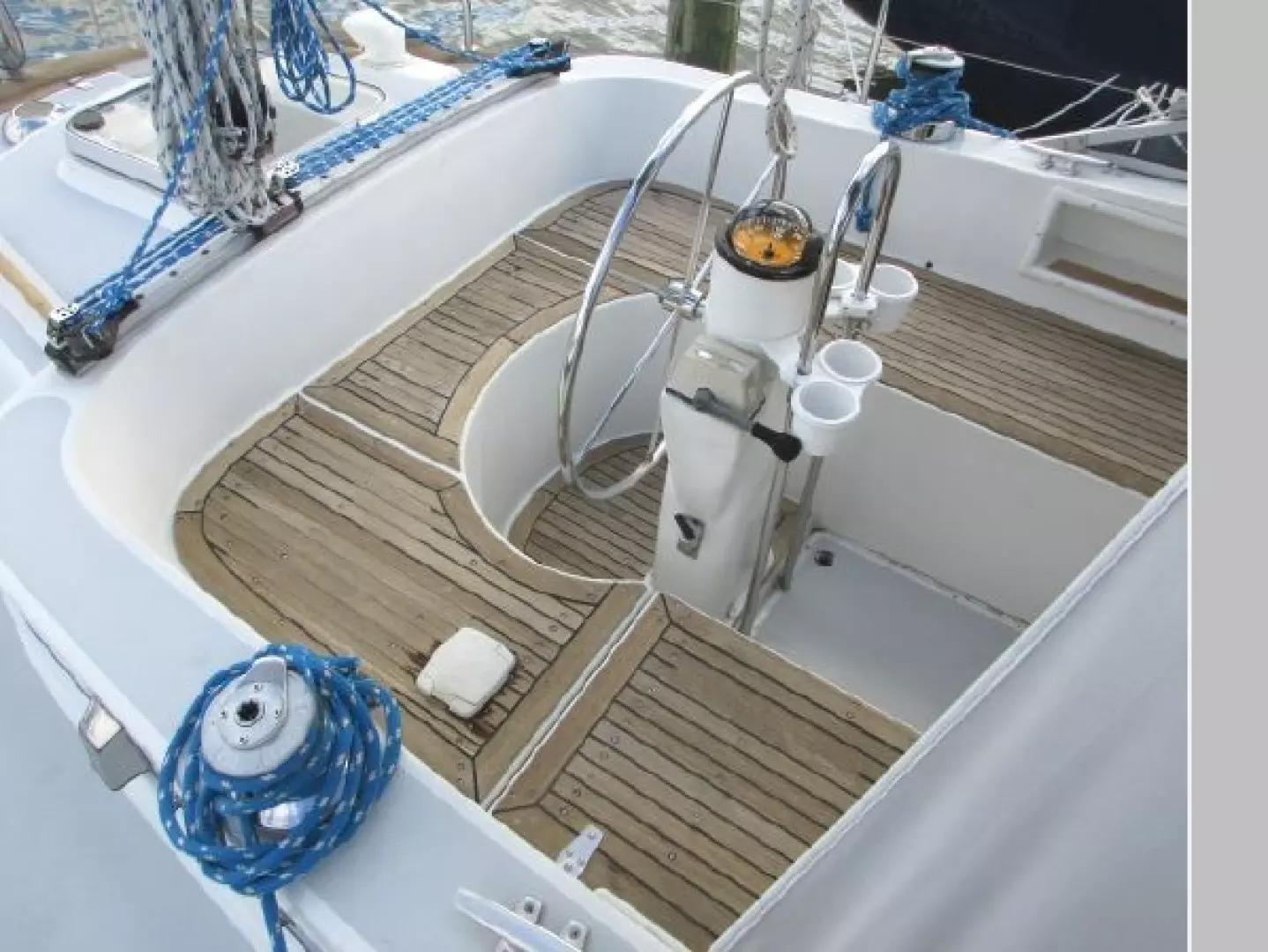

• Teak decking for Cockpit (note: for seats & area just aft of the Binnacle)

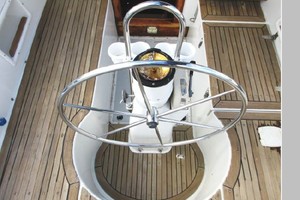

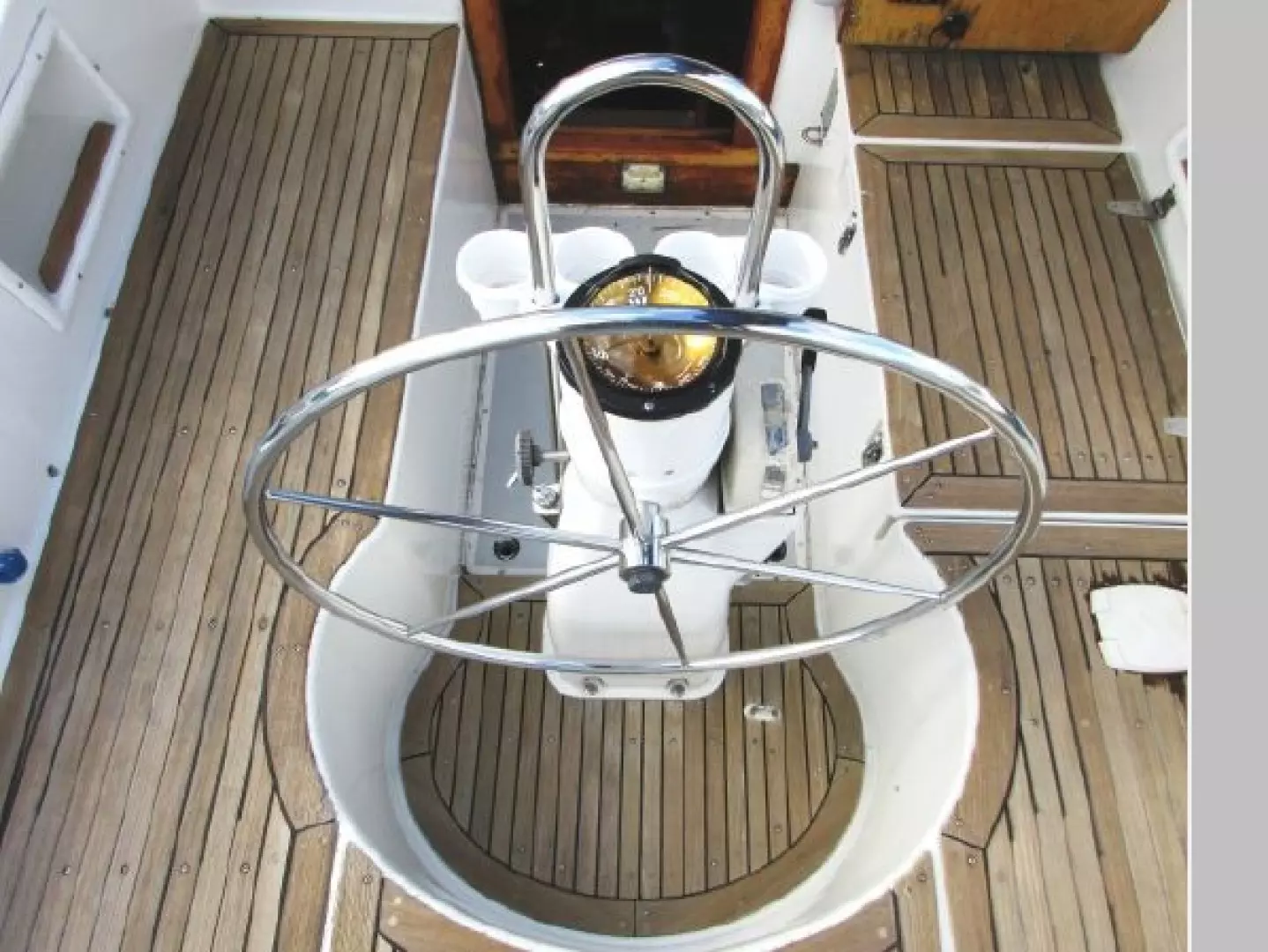

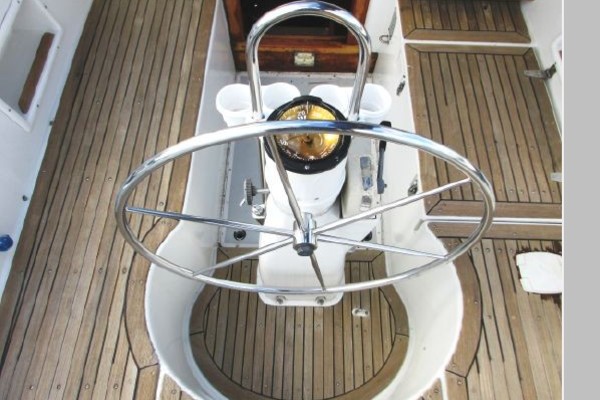

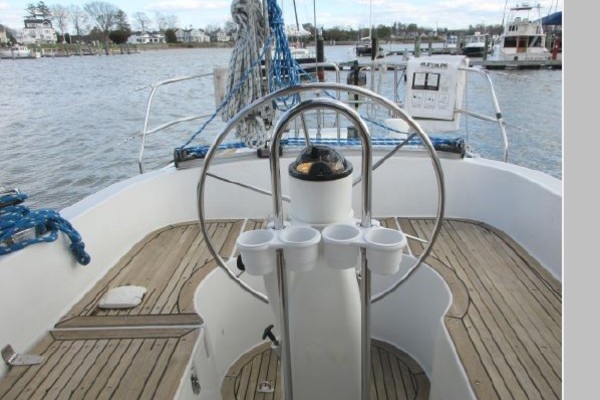

• SOLIMAR Wheel steering, 30", stainless steel
• SOLIMAR Binnacle w/ guard, stainless steel
• Wheel brake
• C. PLATH Venus binnacle compass (note: professionally serviced, 2016)

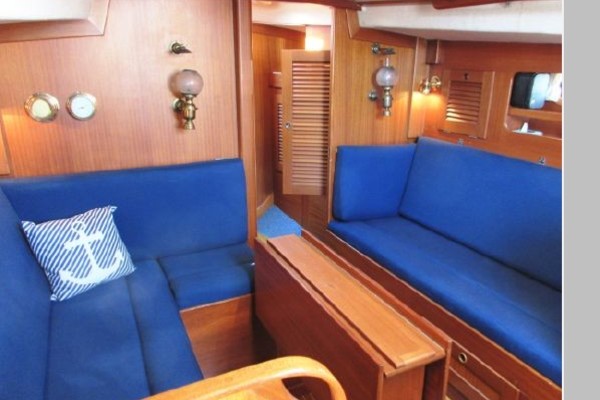

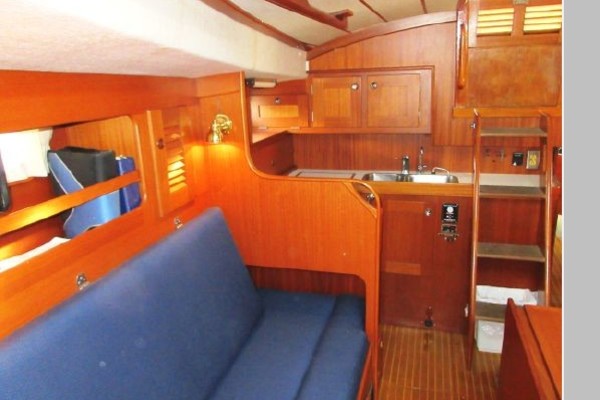

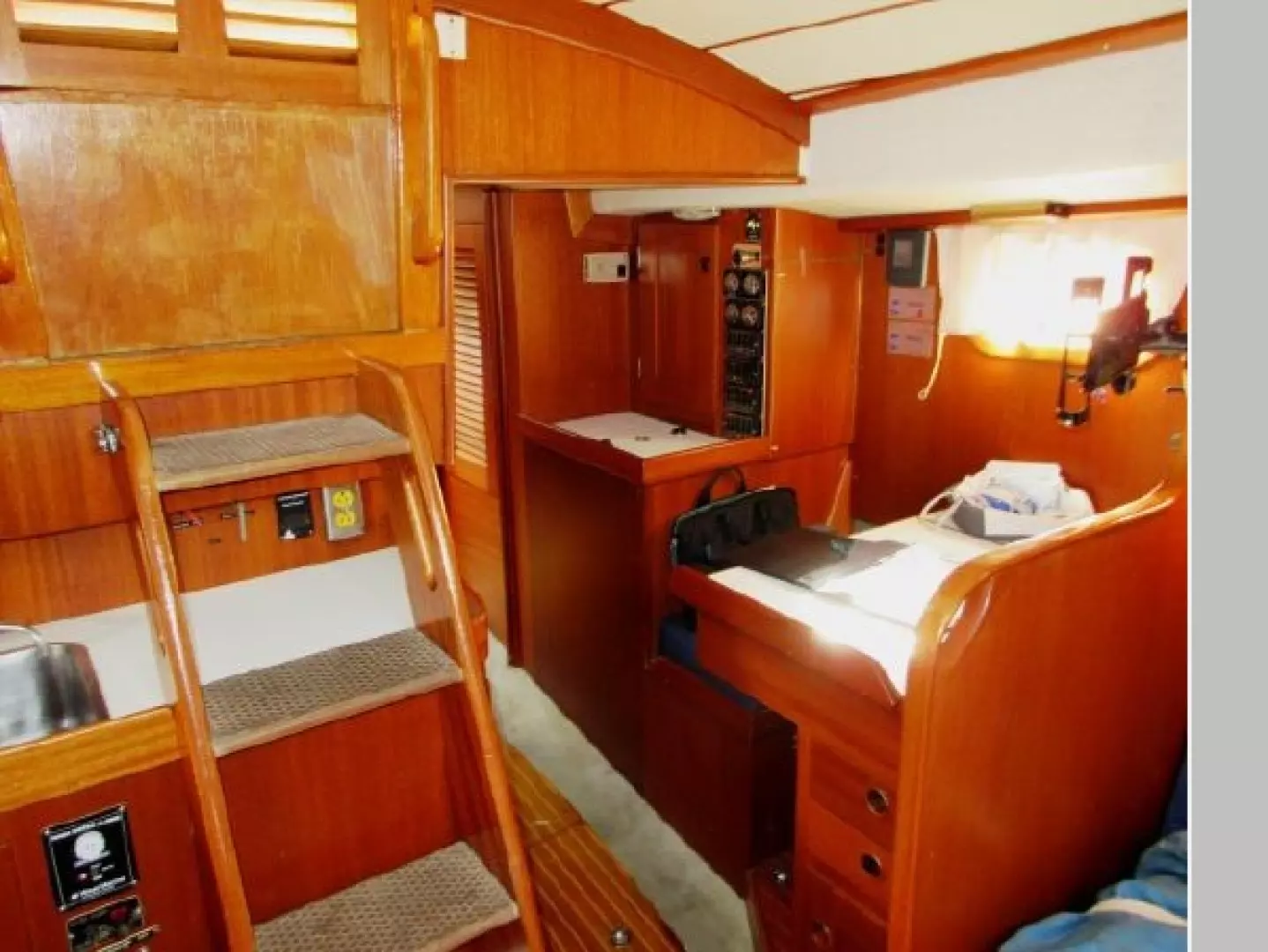

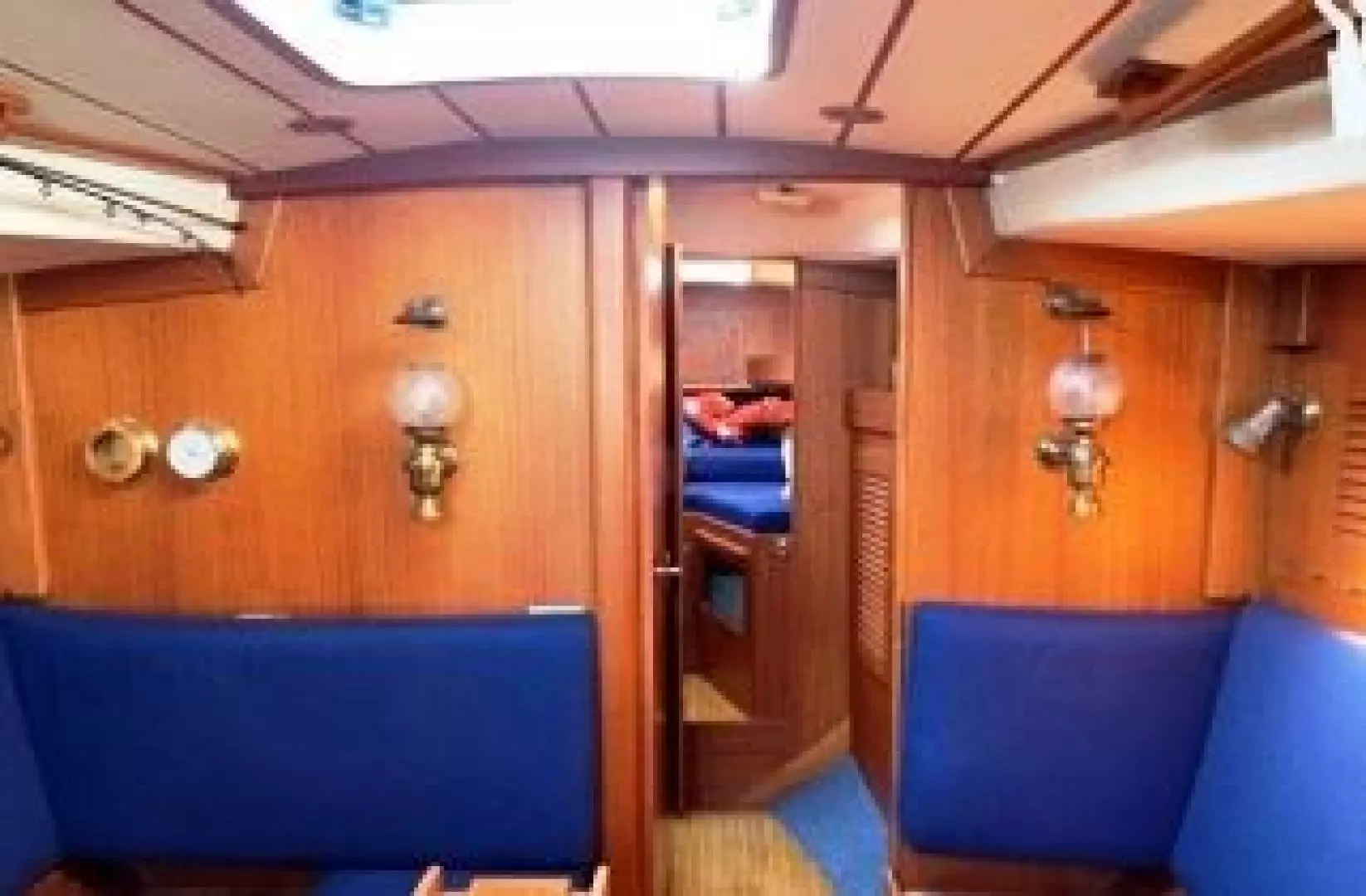

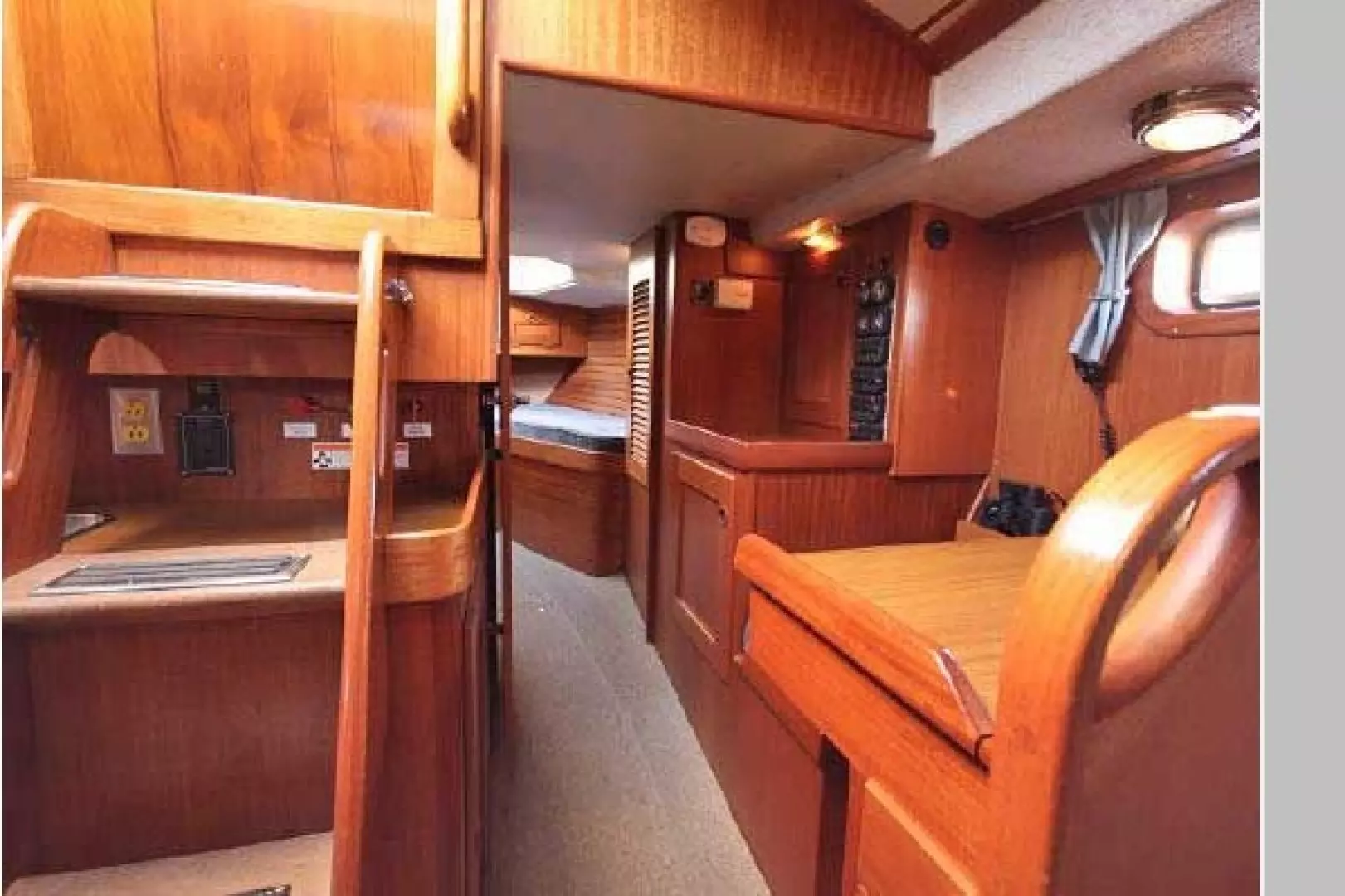

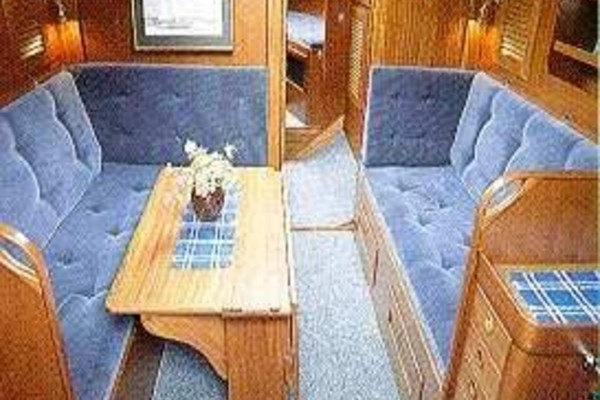

Accommodations

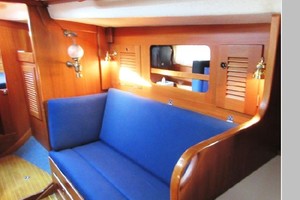

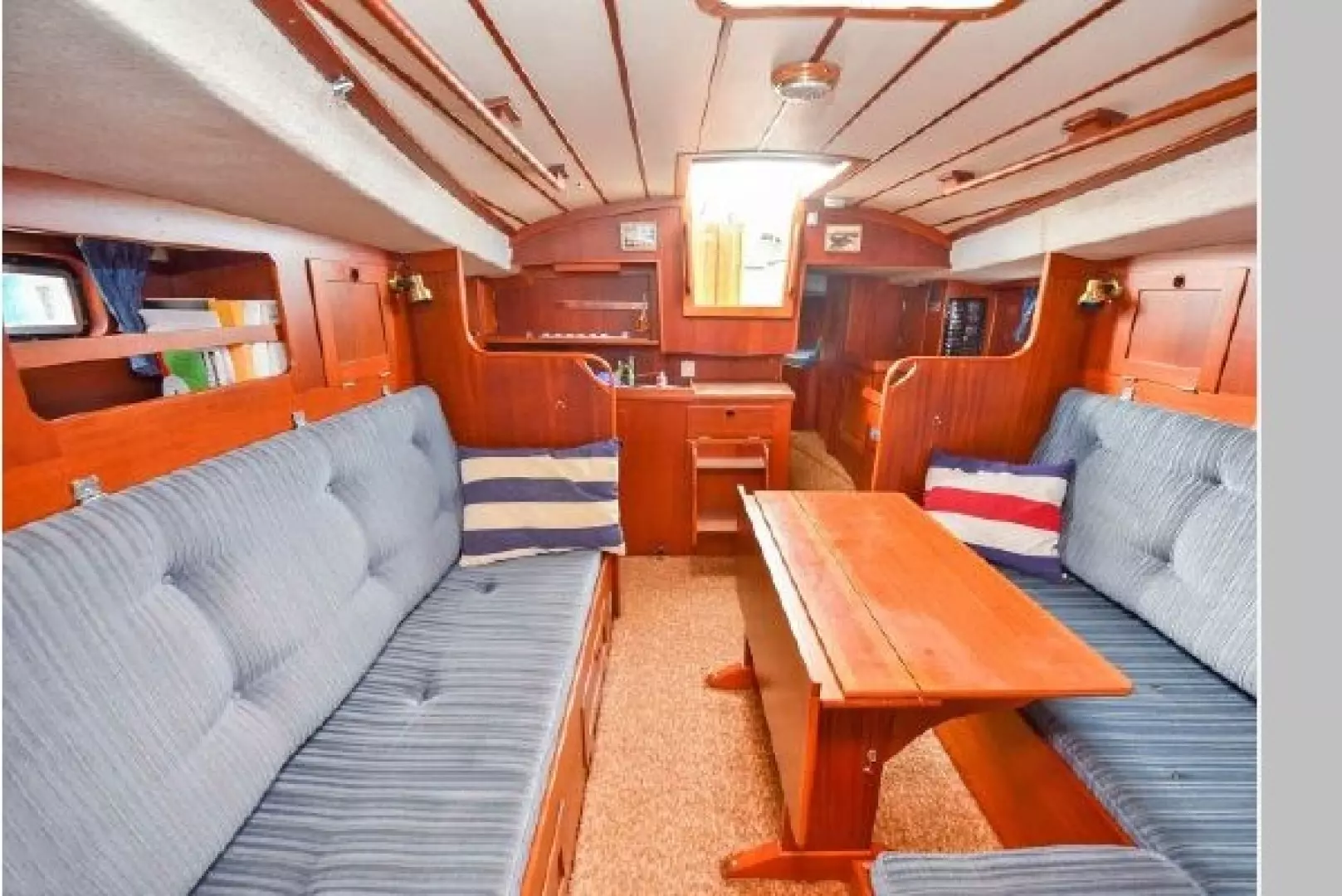

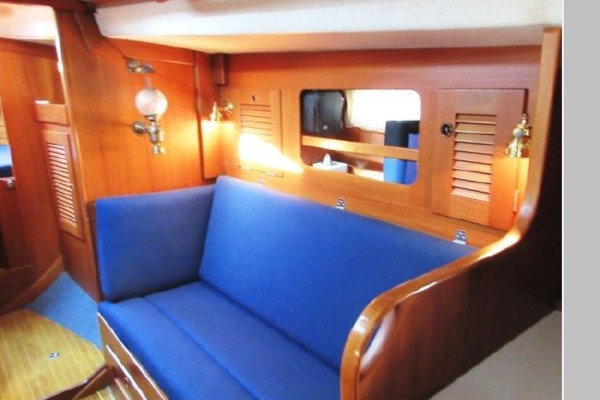

The Hallberg-Rassy 352 is produced with the HR-standard superb high-grade Mahogany interior joinery. It is hand-rubbed and with a satin varnish finish.

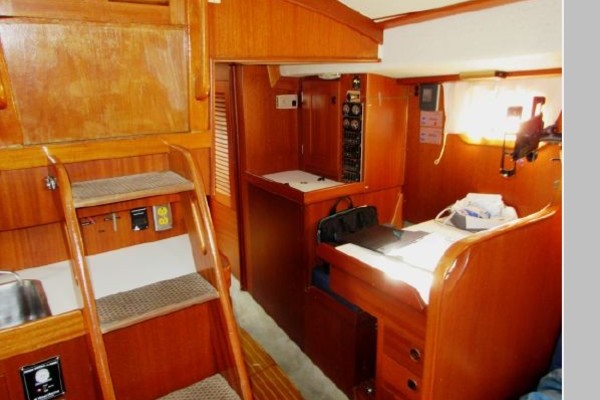

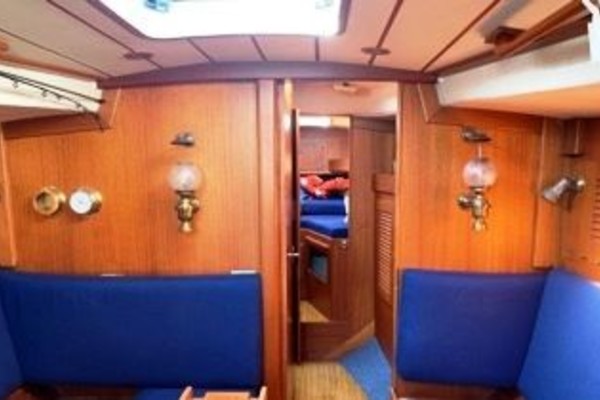

Interior Walk-Through

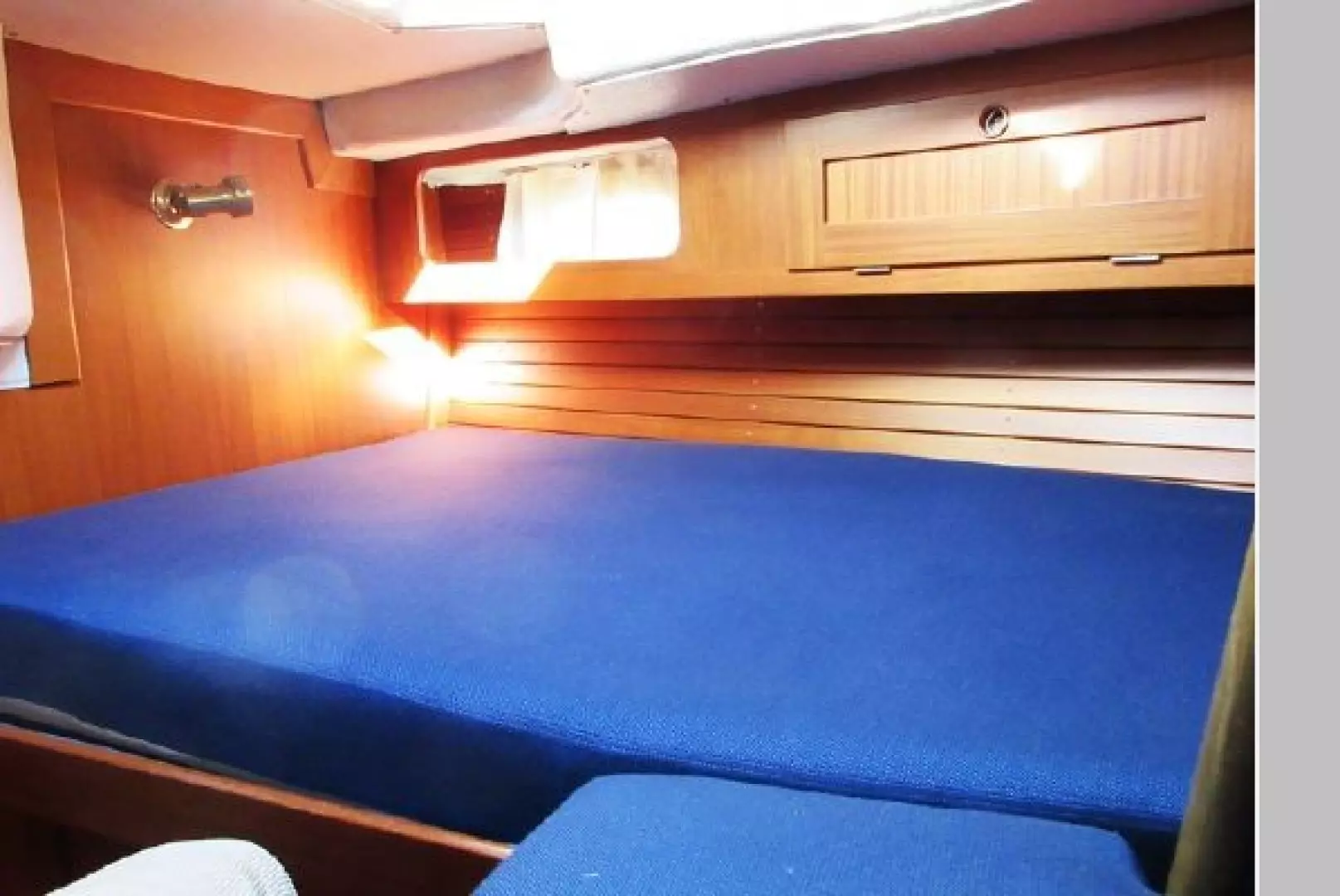

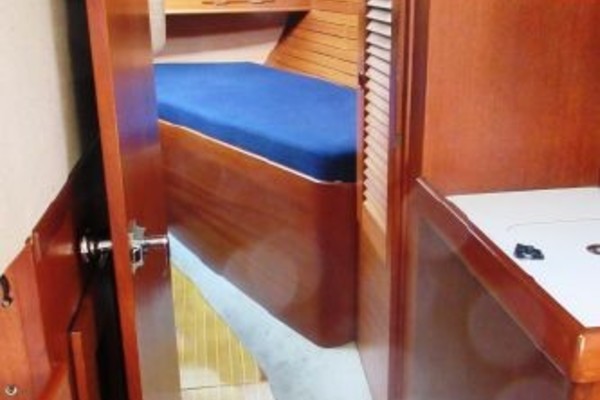

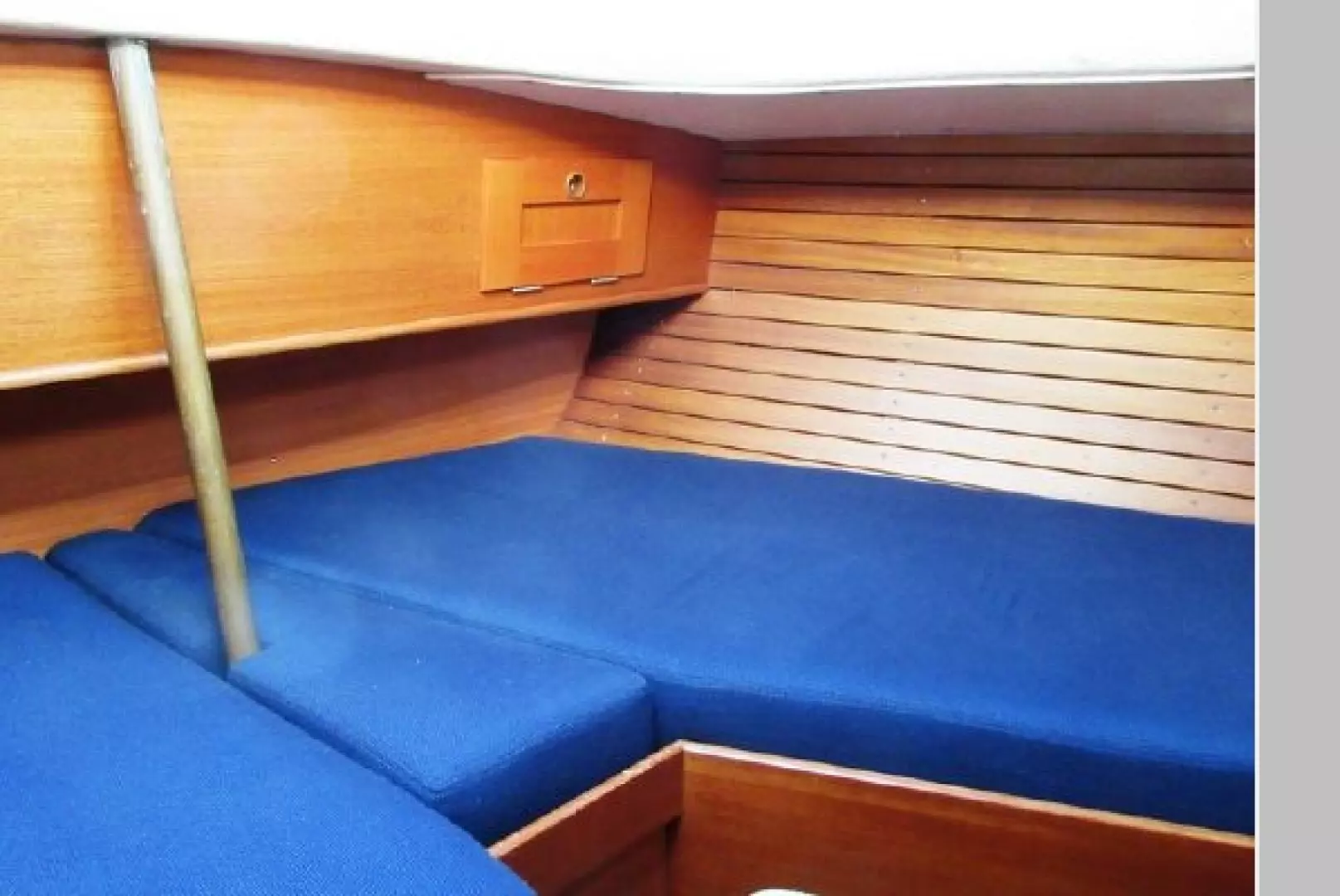

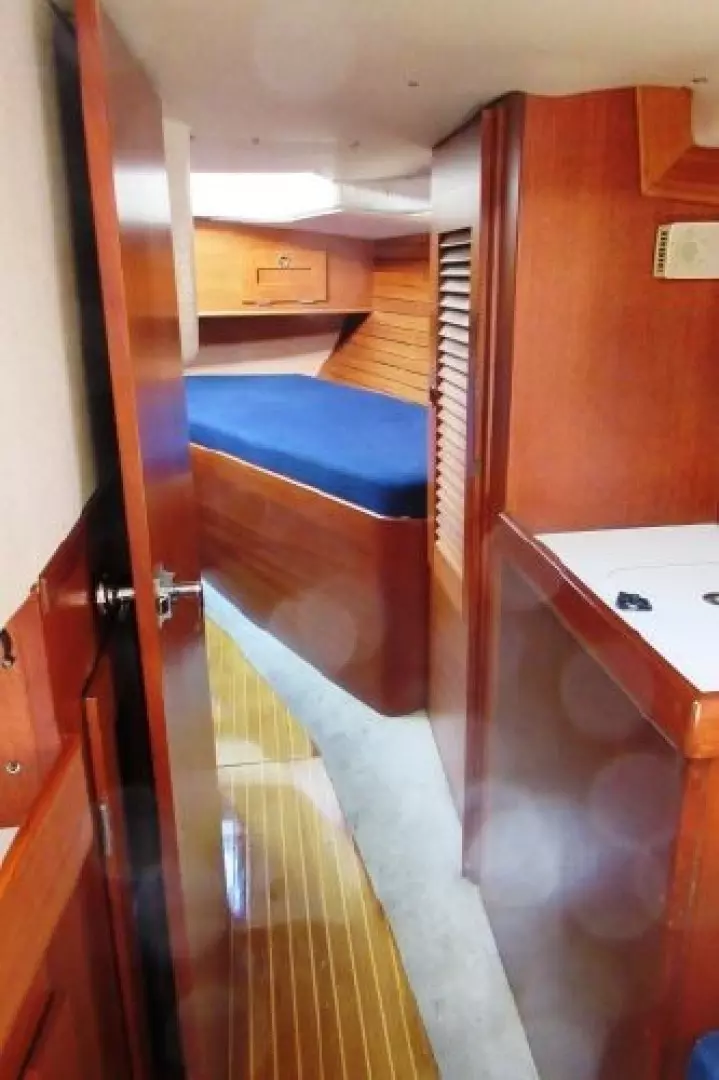

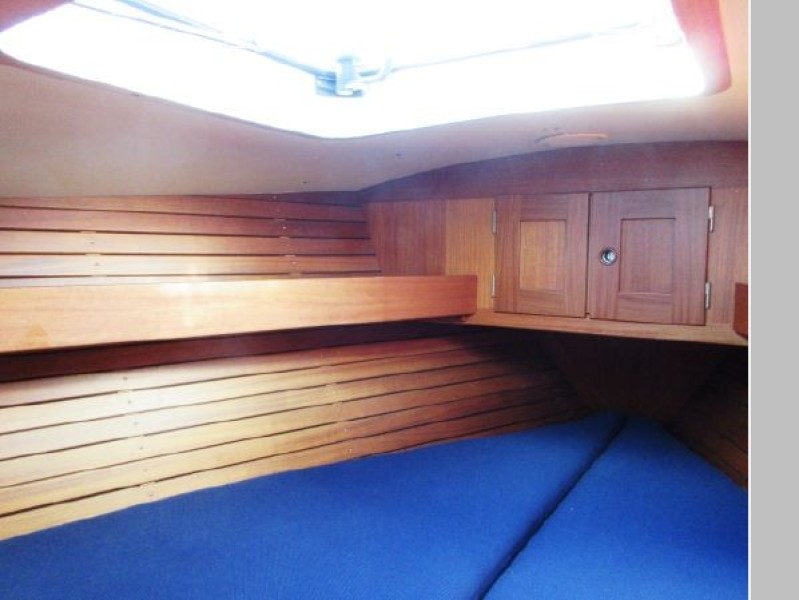

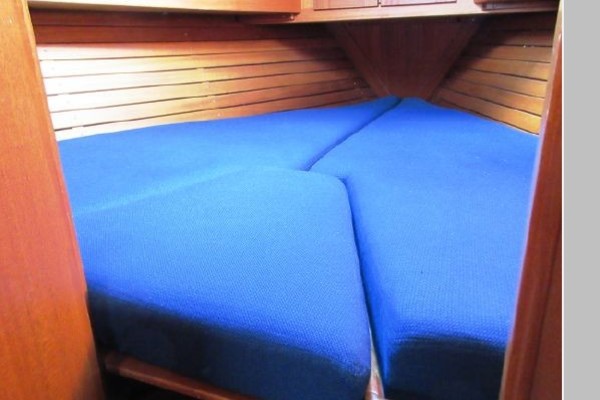

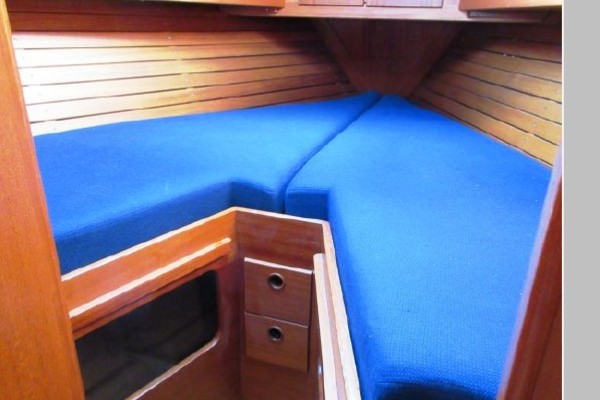

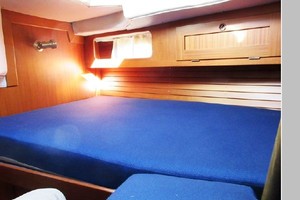

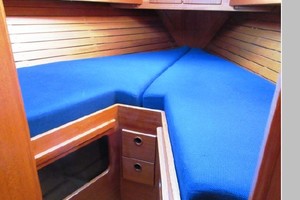

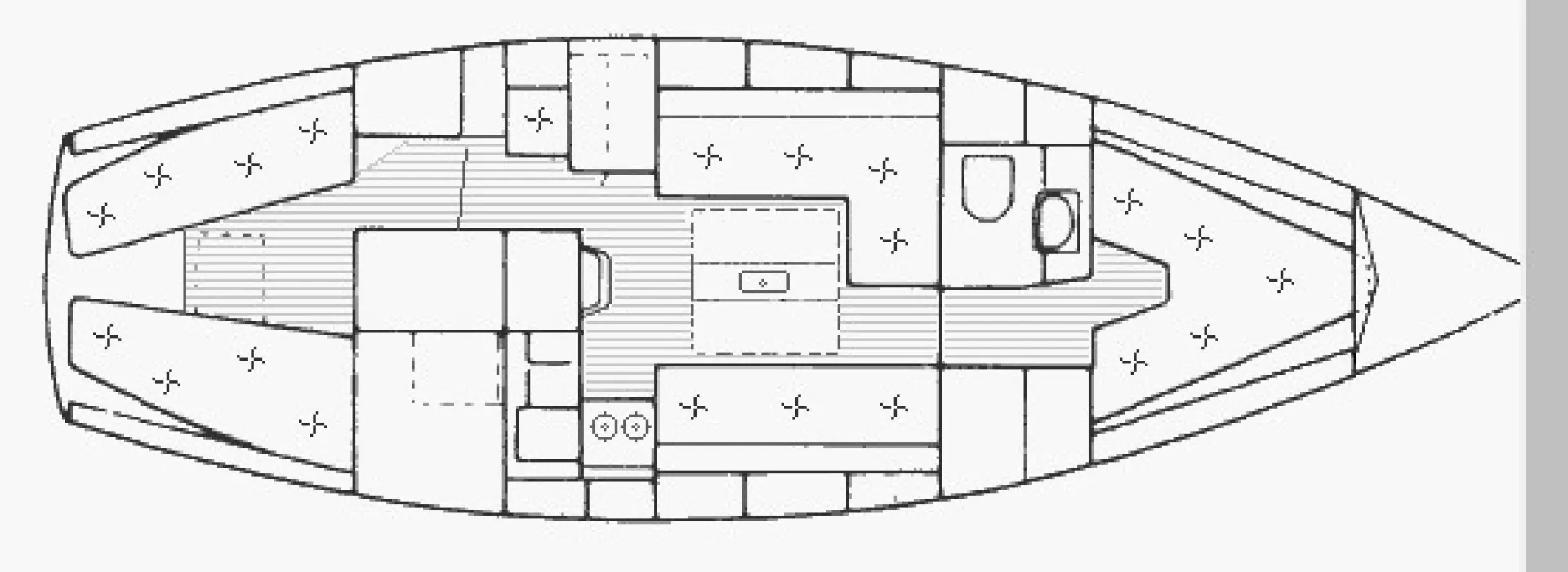

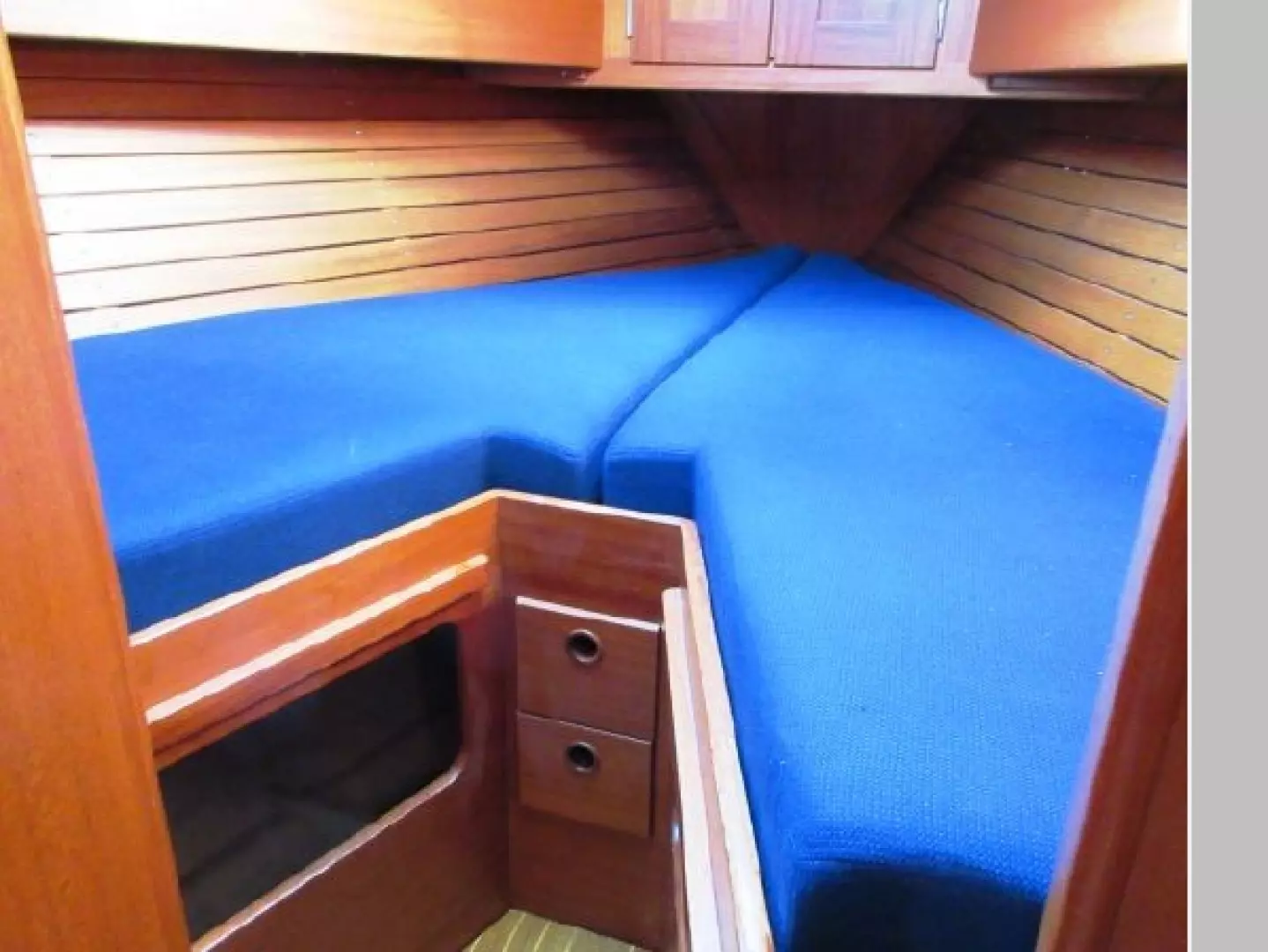

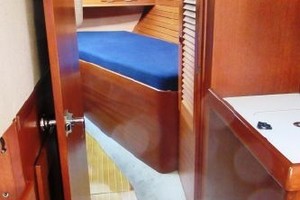

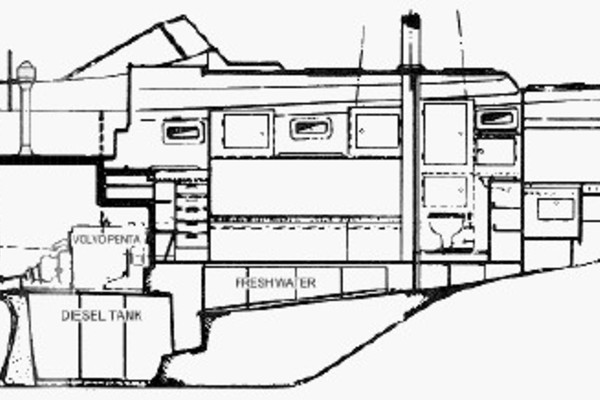

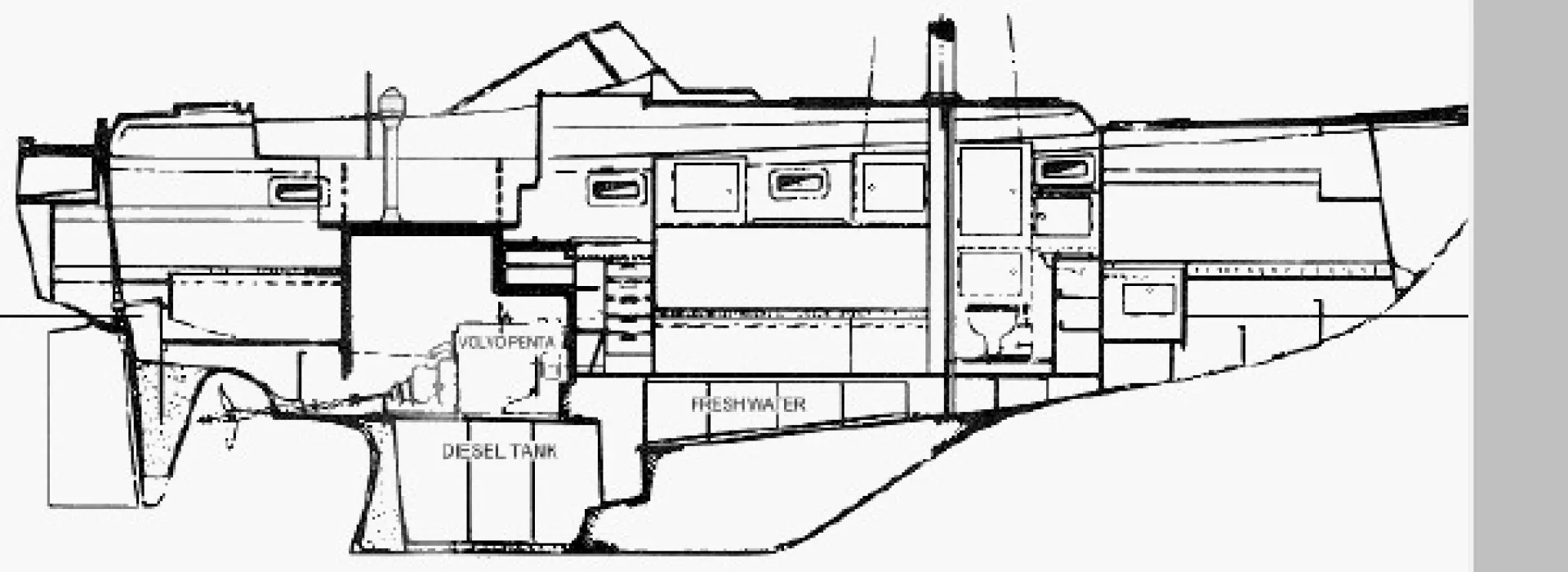

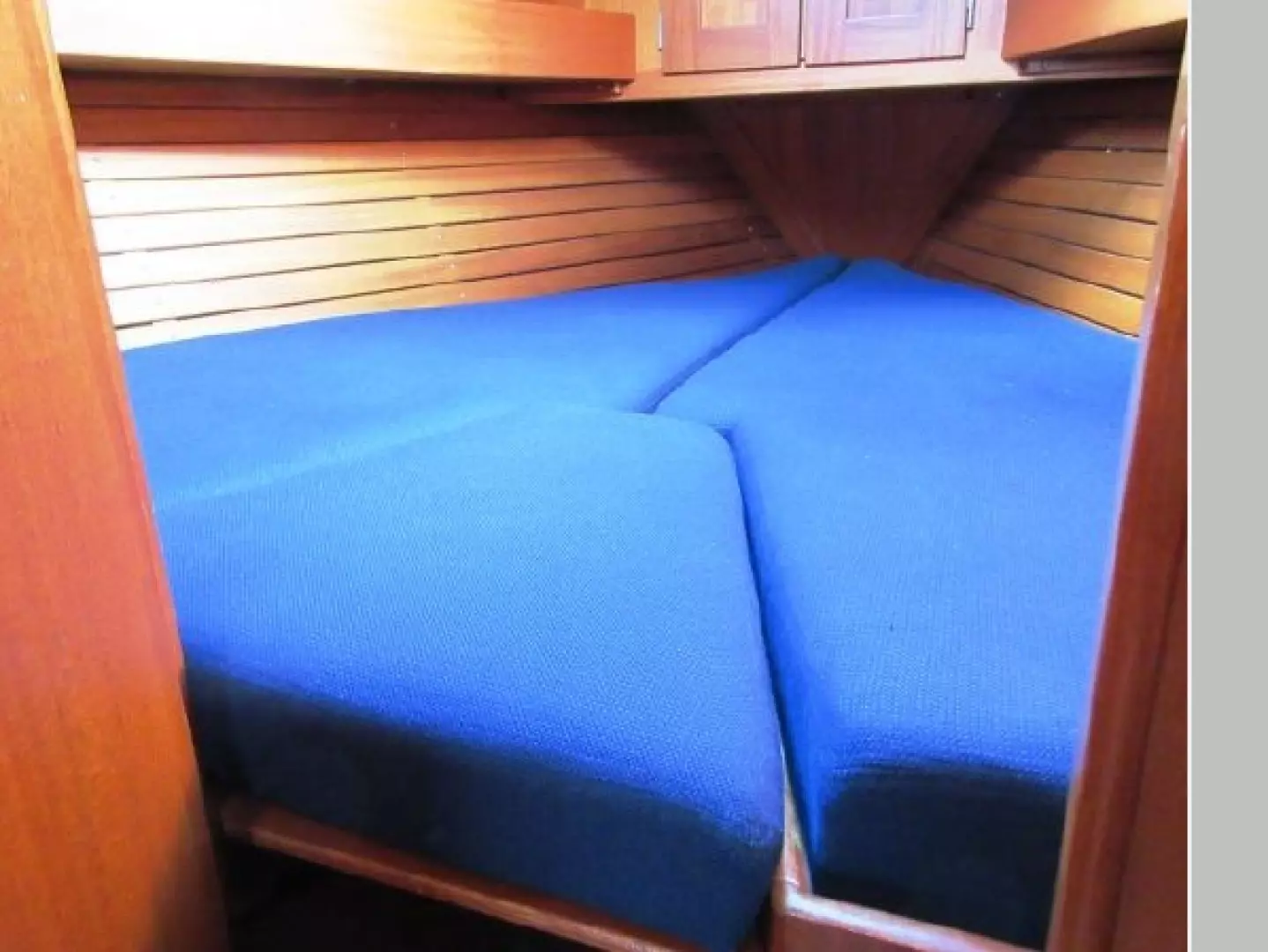

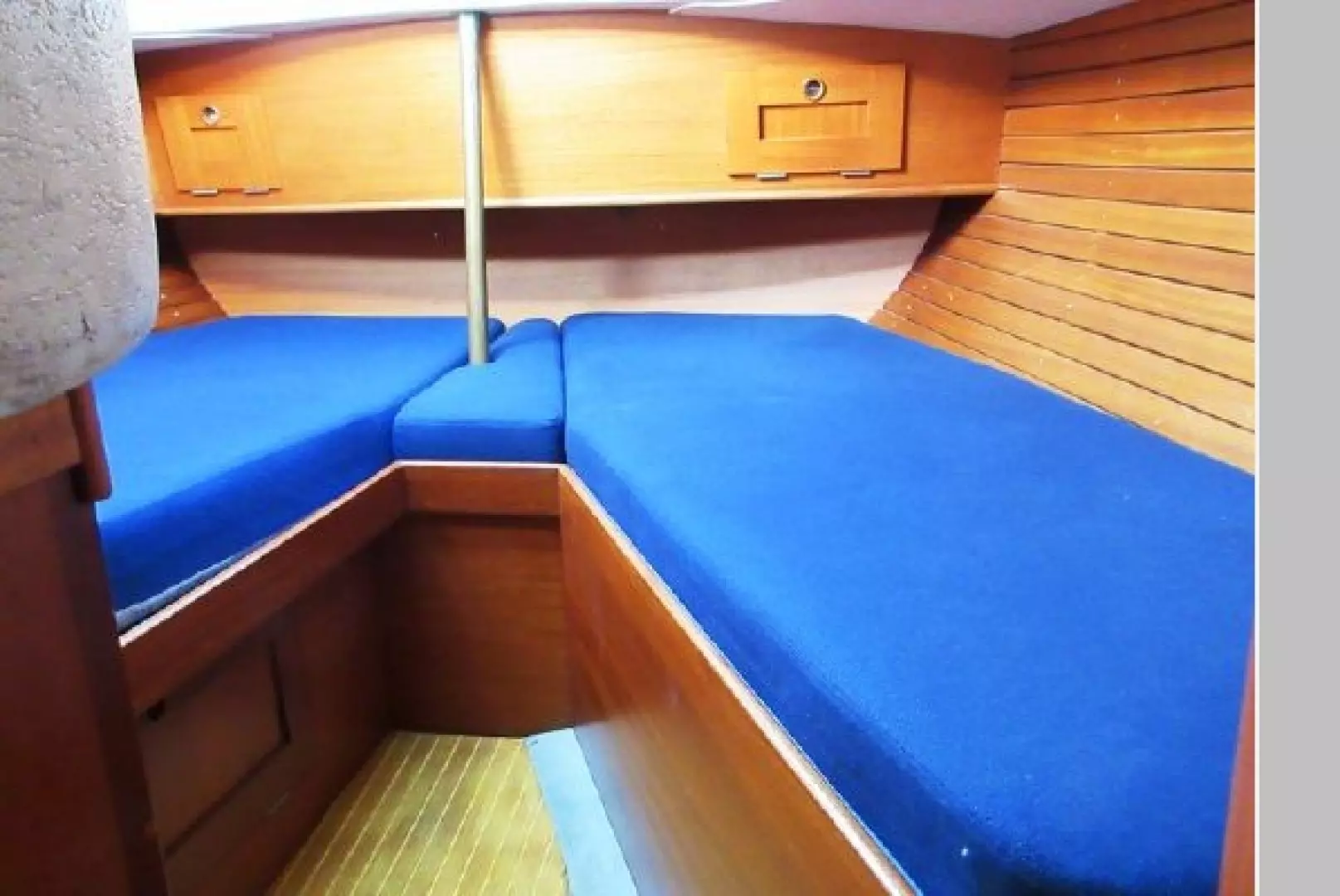

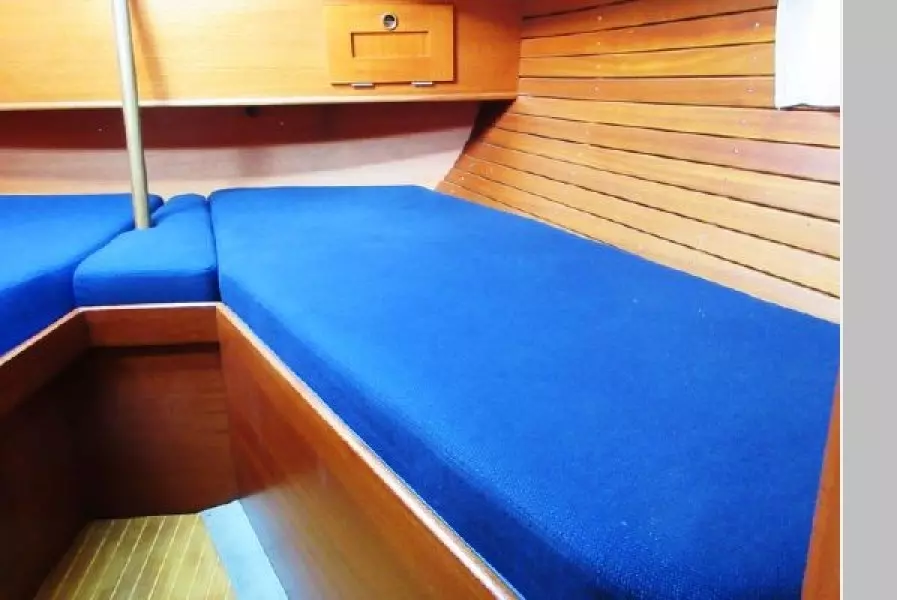

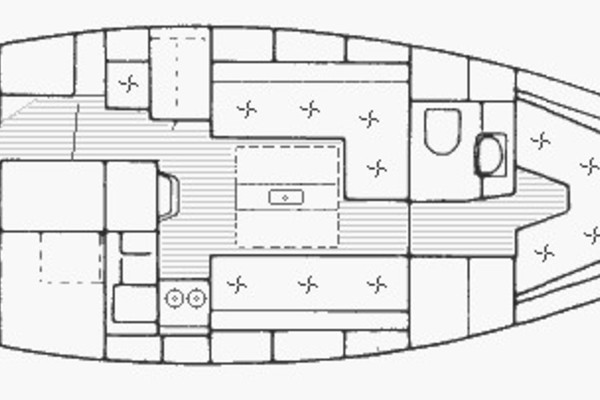

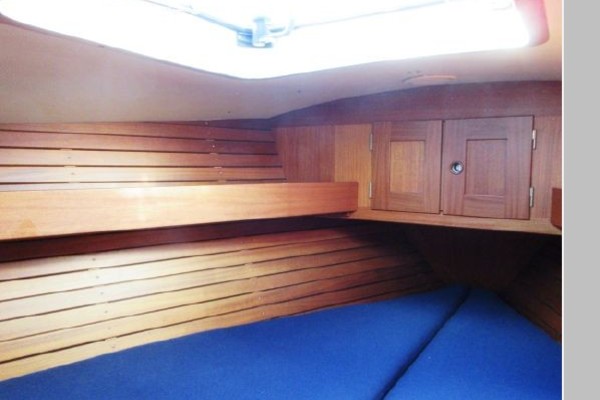

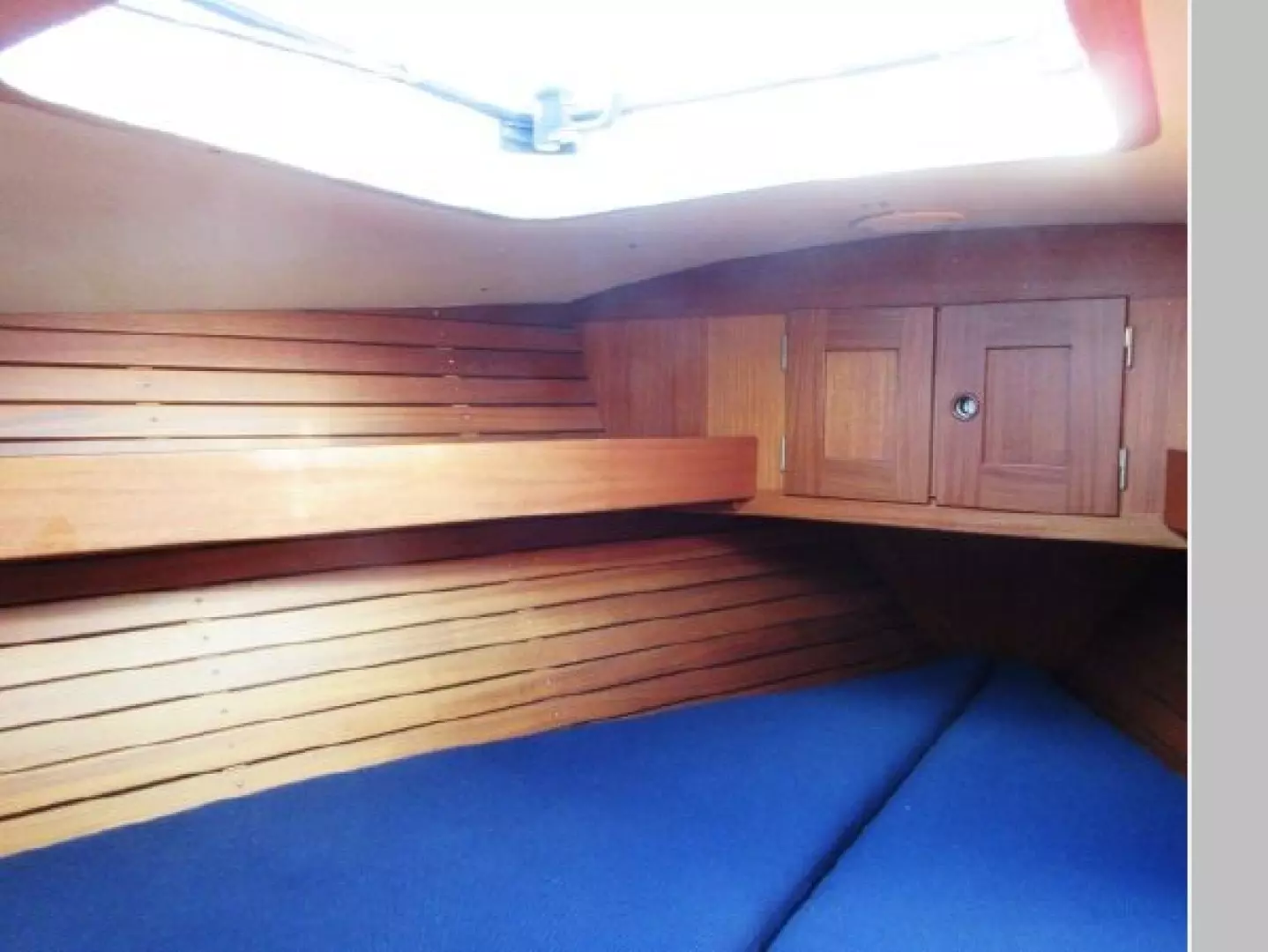

"Sleeps (7) in (3) cabins; V-berth forward with storage under & shelves outboard; Head next aft to port with marine toilet, porcelain wash basin, hot and cold pressure water, and shower with teak grate; (2) hanging lockers opposite to starboard; Salon has "L" shaped settee to port & straight settee to starboard; Shelves & lockers outboard of settees; Large centerline drop-leaf table with storage; "U" shaped Galley aft to starboard; Forward-facing Nav Station with chart locker & drawers opposite Galley to port; Passageway to Aft Cabin is to port and has a large top-loading icebox & lockers; Aft Cabin has a double berth to starboard, a single berth to port, drawers & shelves & an escape hatch to deck.

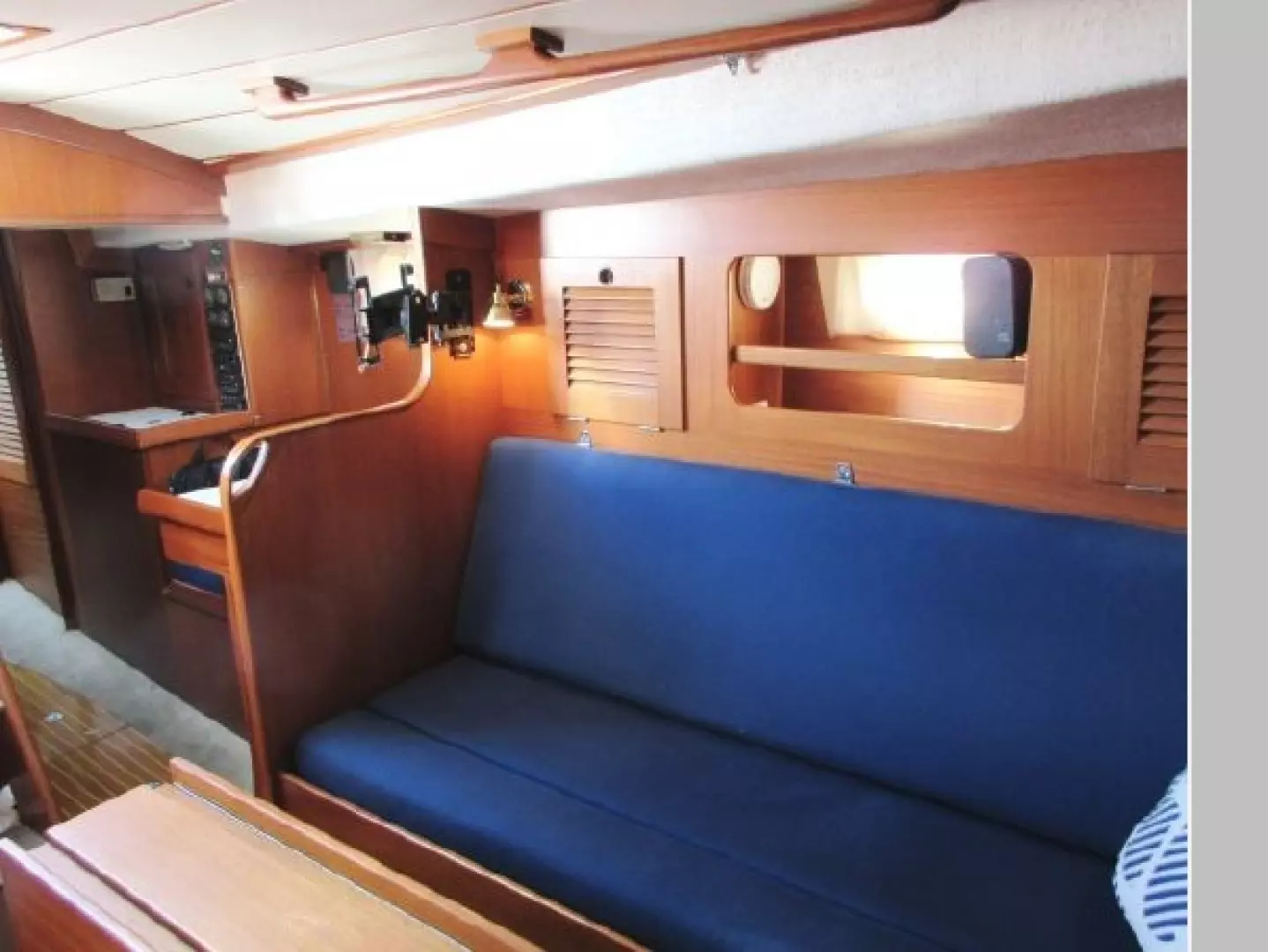

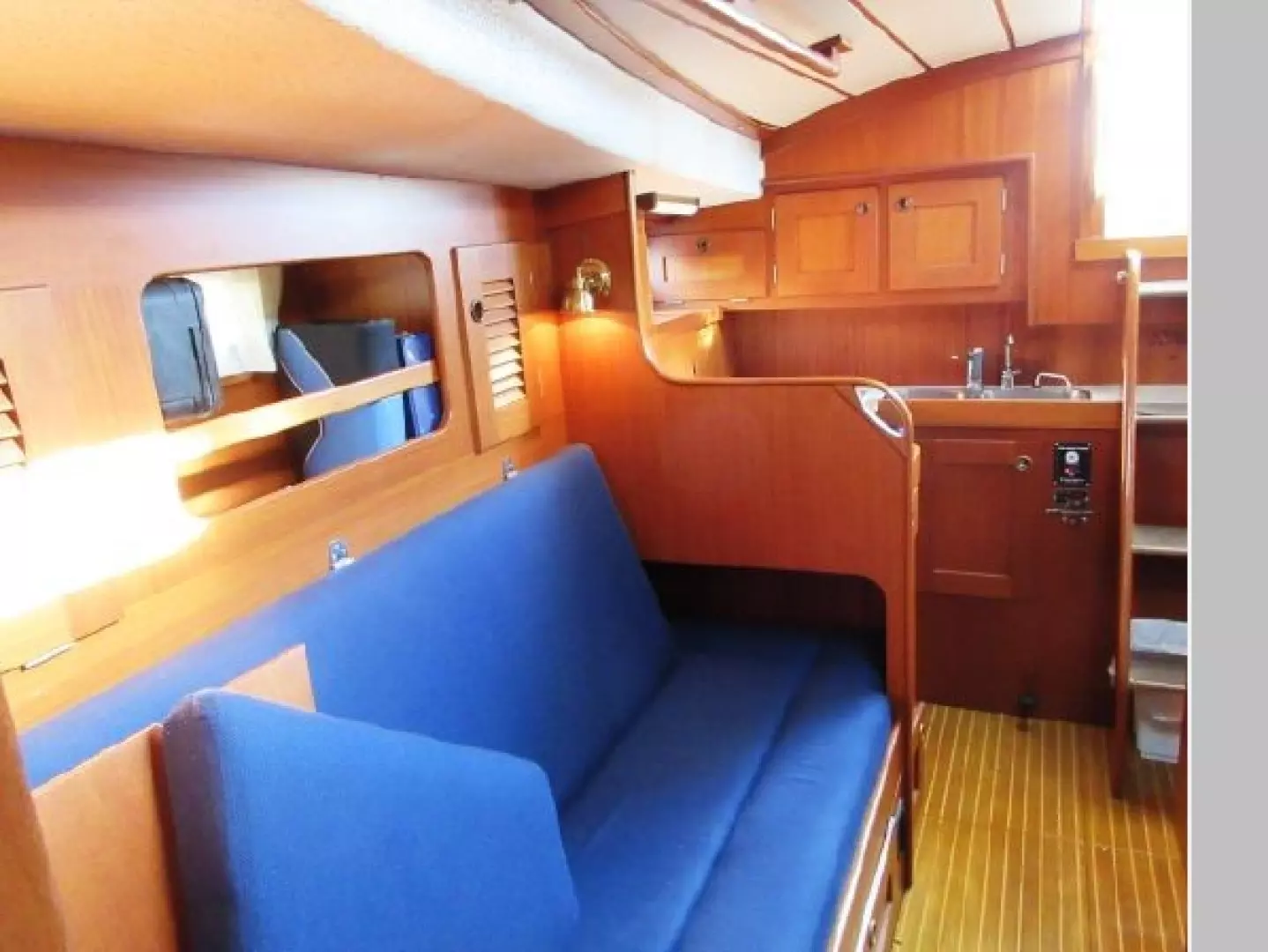

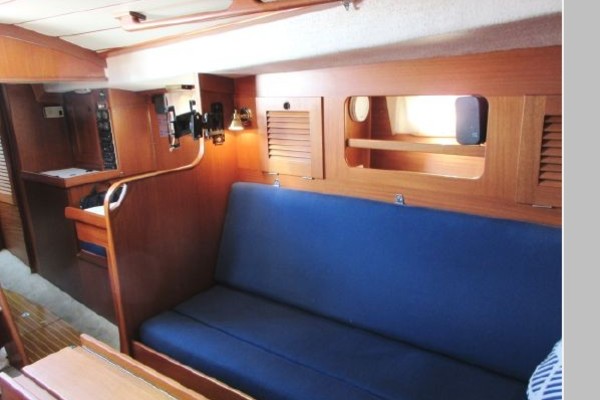

The interior is hand-rubbed varnished mahogany with a varnished teak and holly sole. 6'3"+ headroom; Dark Blue fabric upholstery; Beige fabric curtains for all ports; Bright & airy interior with (4) deck hatches, (8) opening ports & (3) Dorade vents."

The WINDSONG II had her interior cushions replaced in 2020.

• Headroom: 6'3"+ (1.89m)
• Overhead finished w/ removable vinyl panels

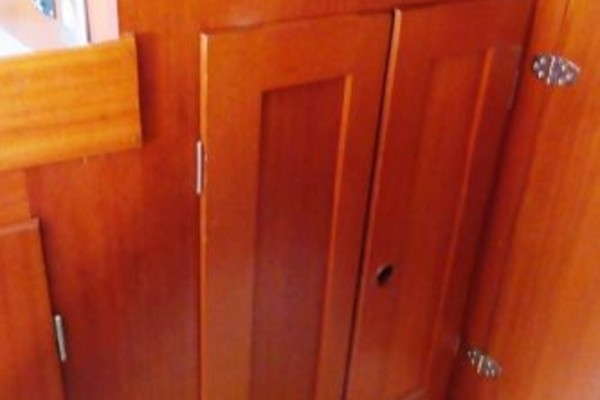

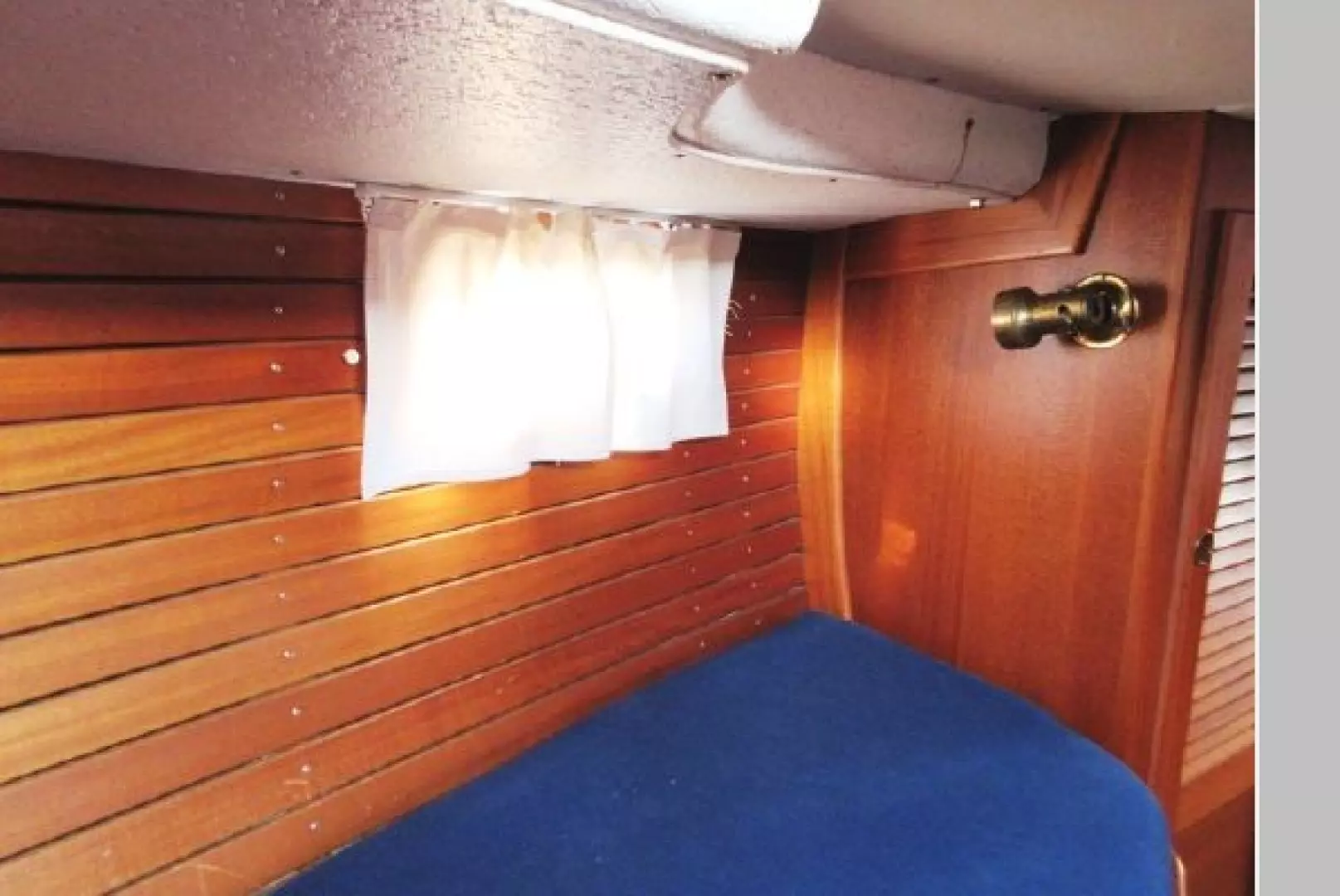

• Ceilings (sides of the hull) are insulated & protected w/ finished Mahogany sections

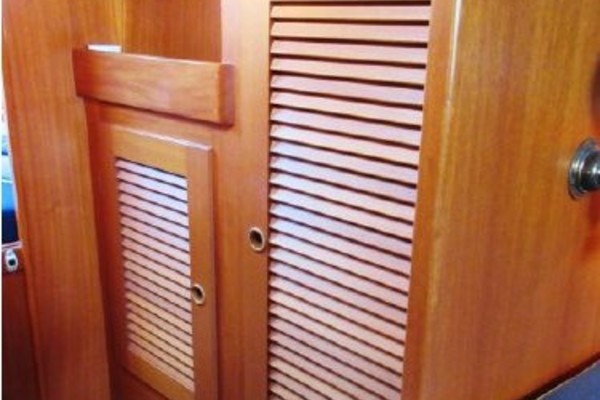

• Lockers are lined

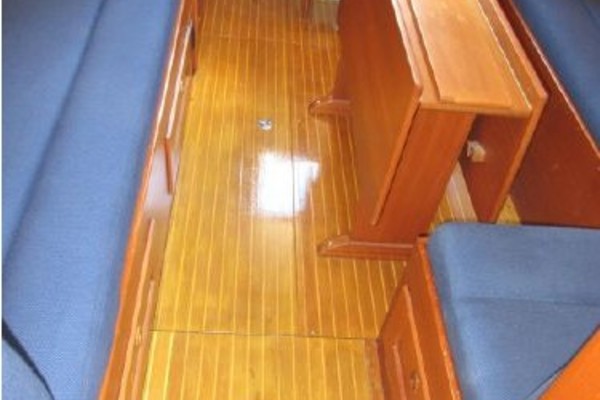

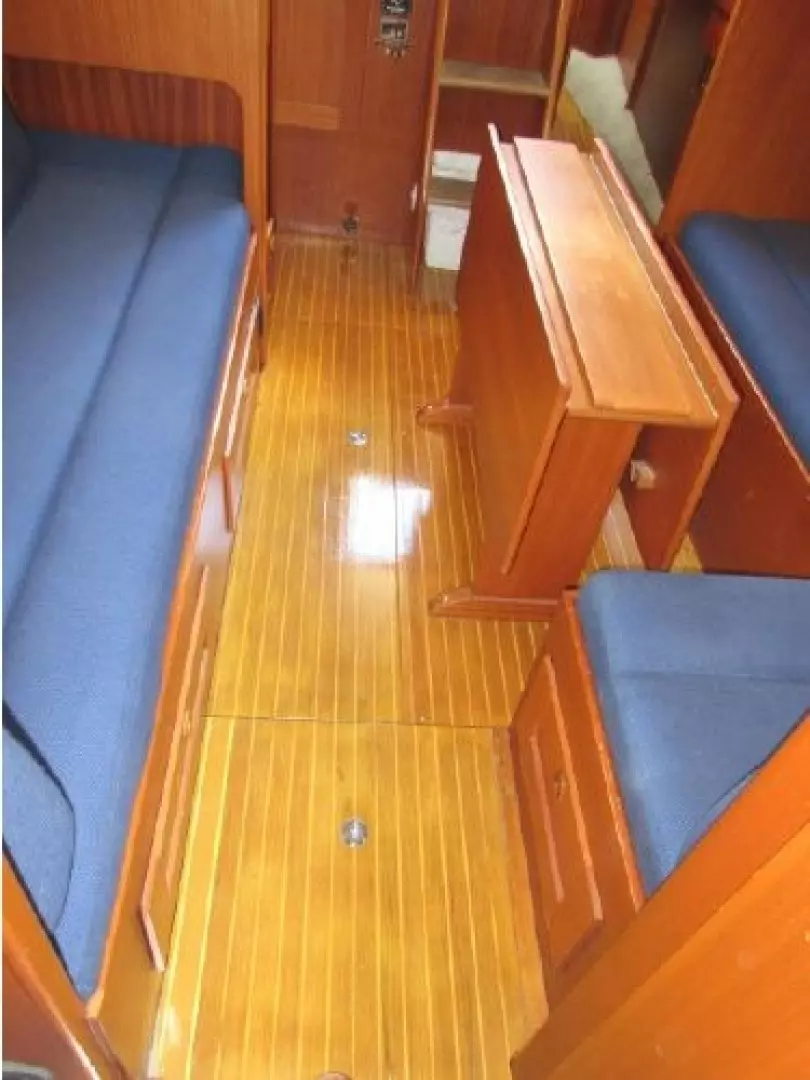

• Teak & holly cabin sole (note: approx. 1" / 20mm thickness & w/ carpeting on outboard sections w/ compound curves in the hull)

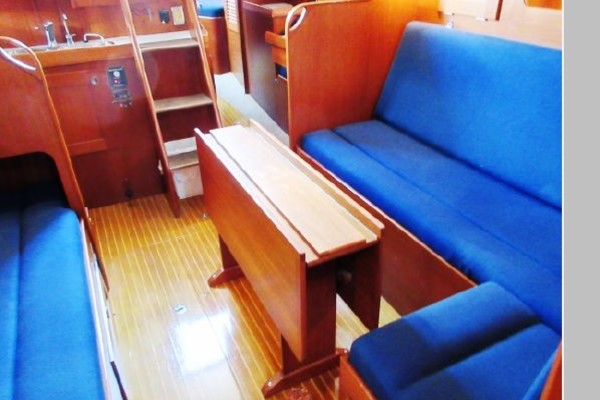

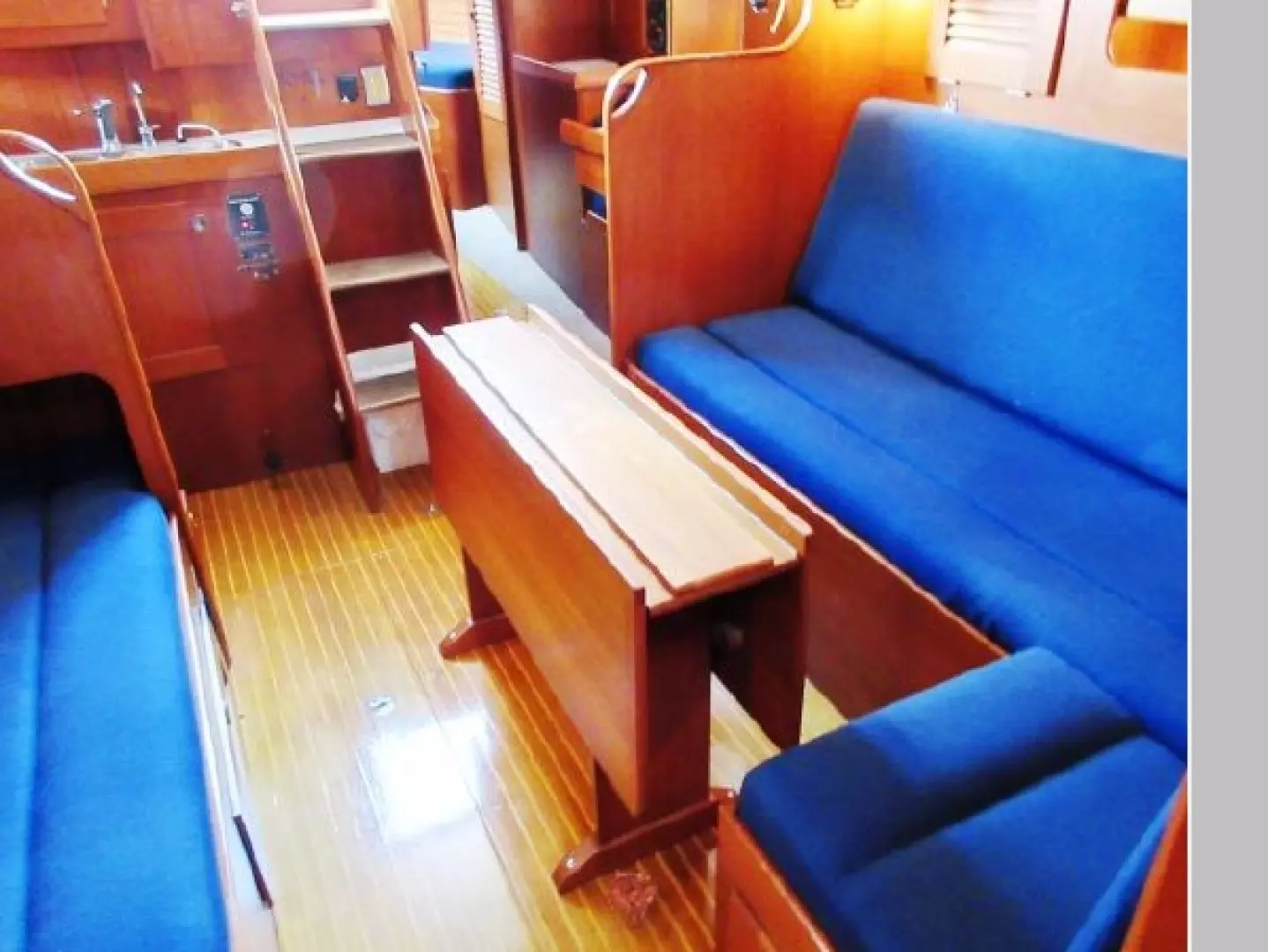

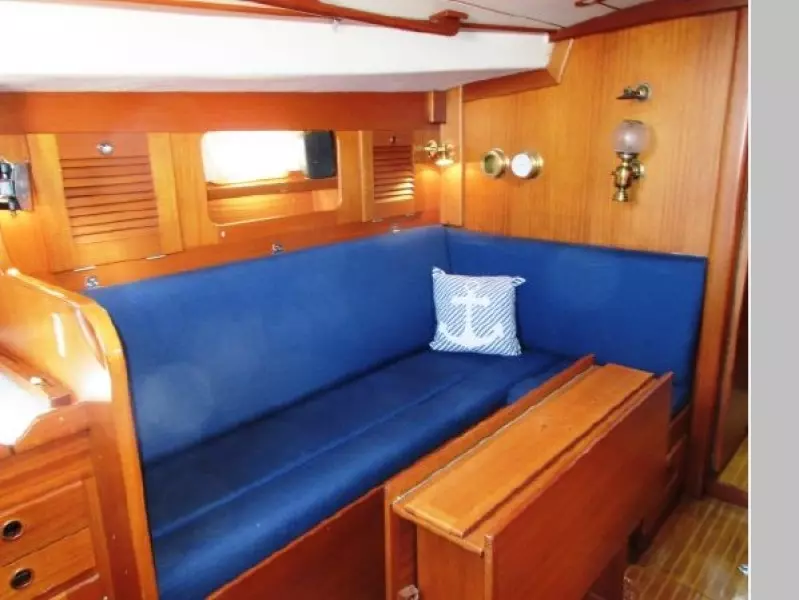

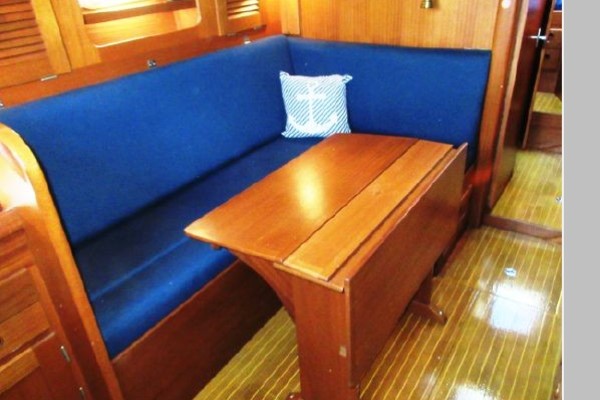

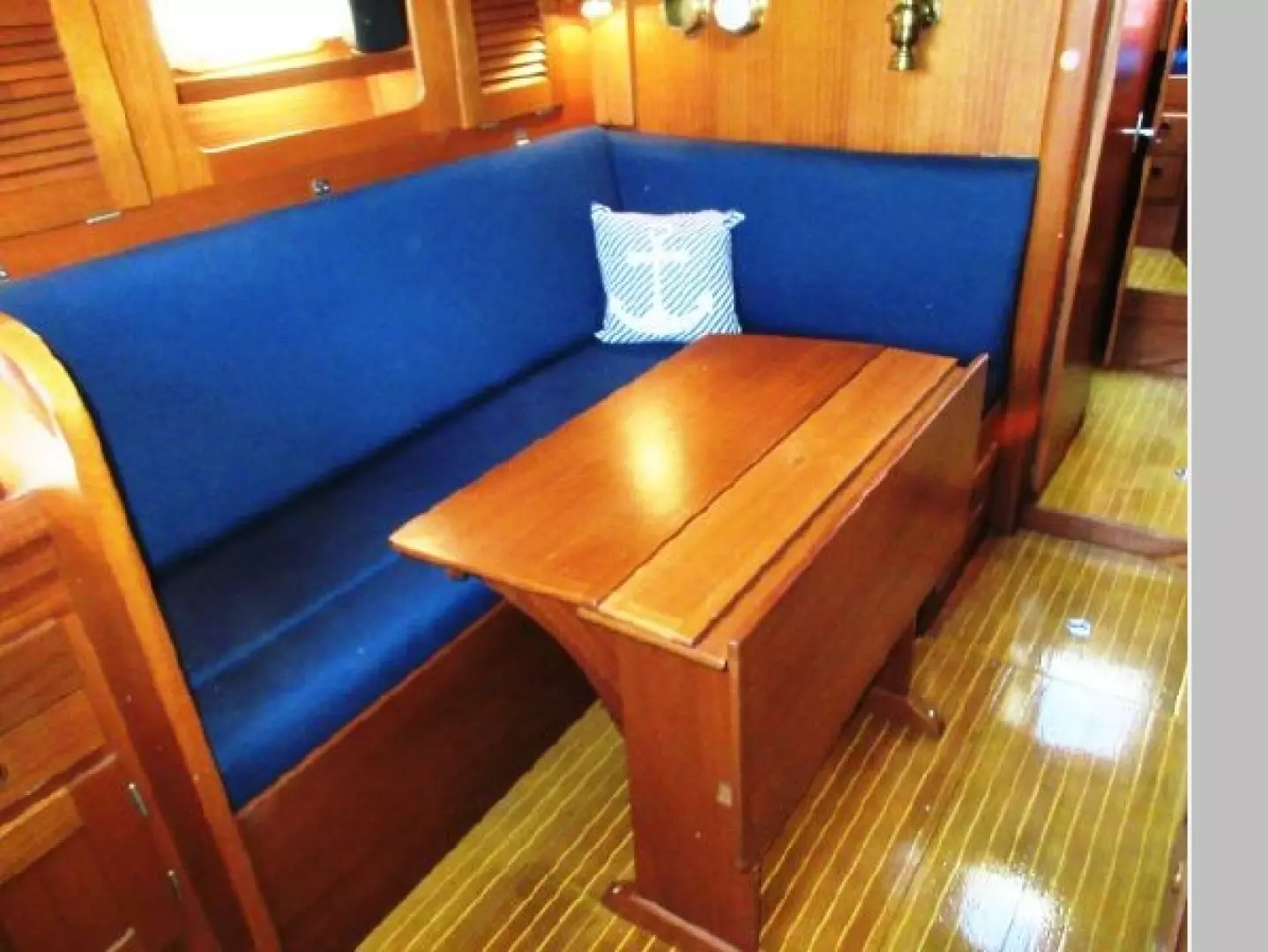

• Centerline dinette table w/ (2) folding leaves
• Curtains for all opening ports

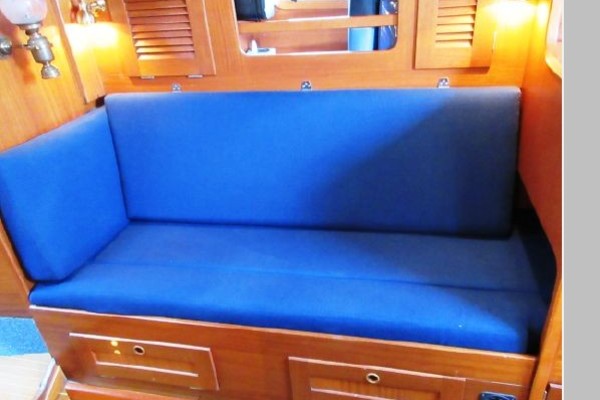

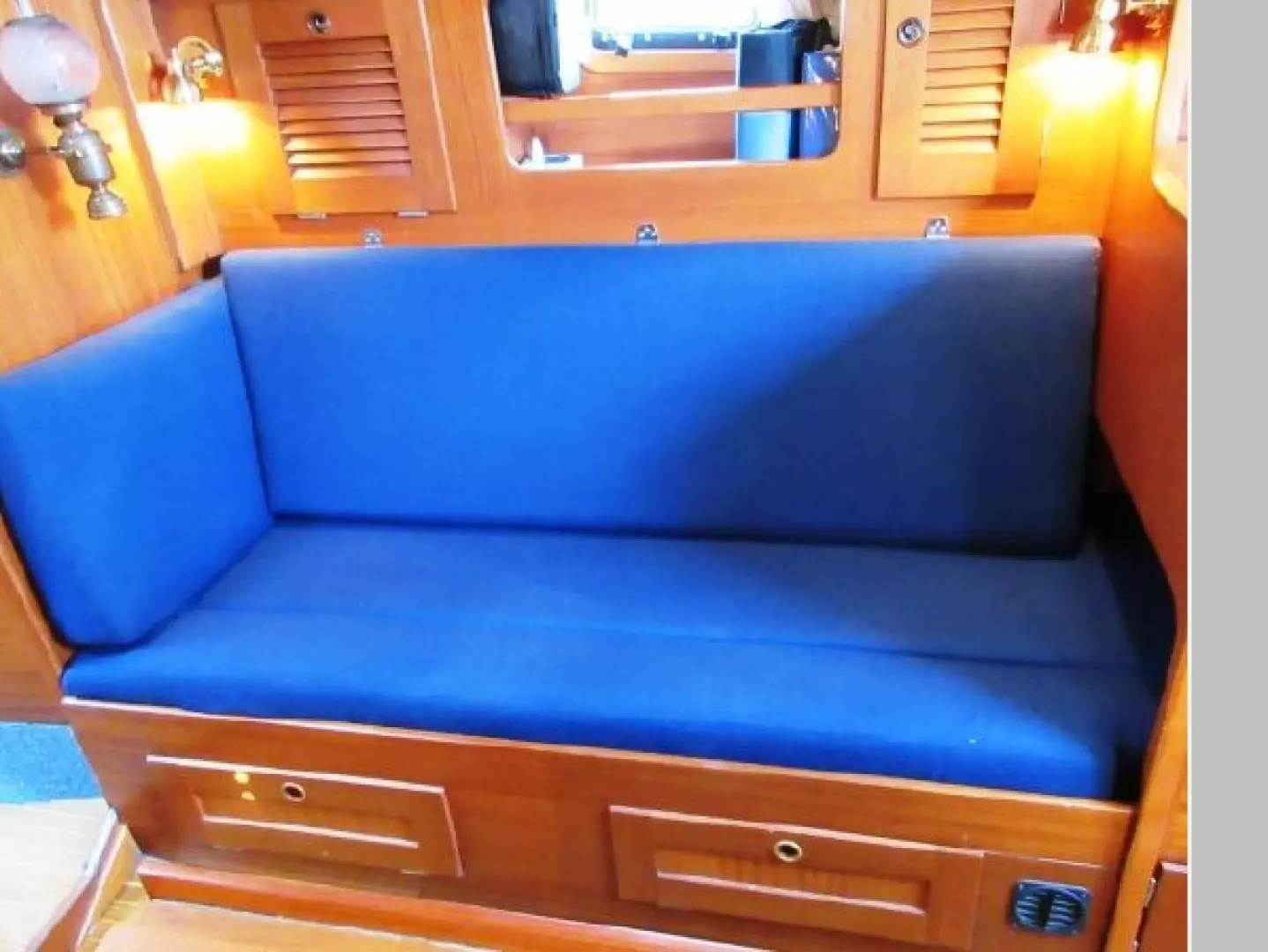

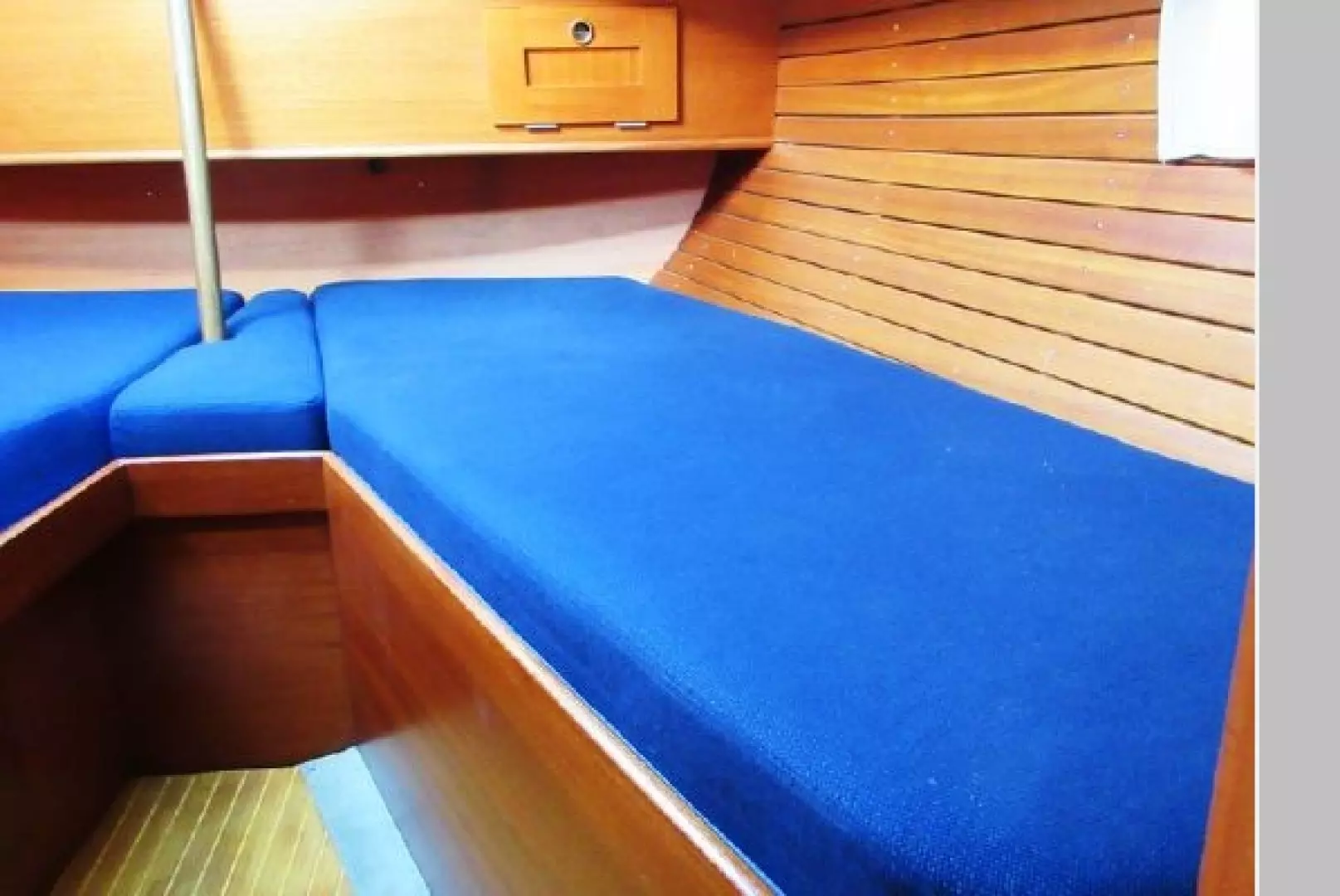

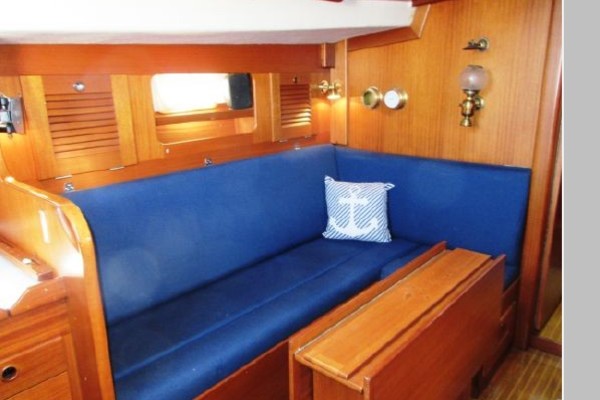

• Interior cushions, BLUE Fabric w/ 4" foam (note: new, 2020)
• Lee-cloths for berths; (2) Aft Cabin & (2) Salon
• Cabin sole refinished & varnished (2018)

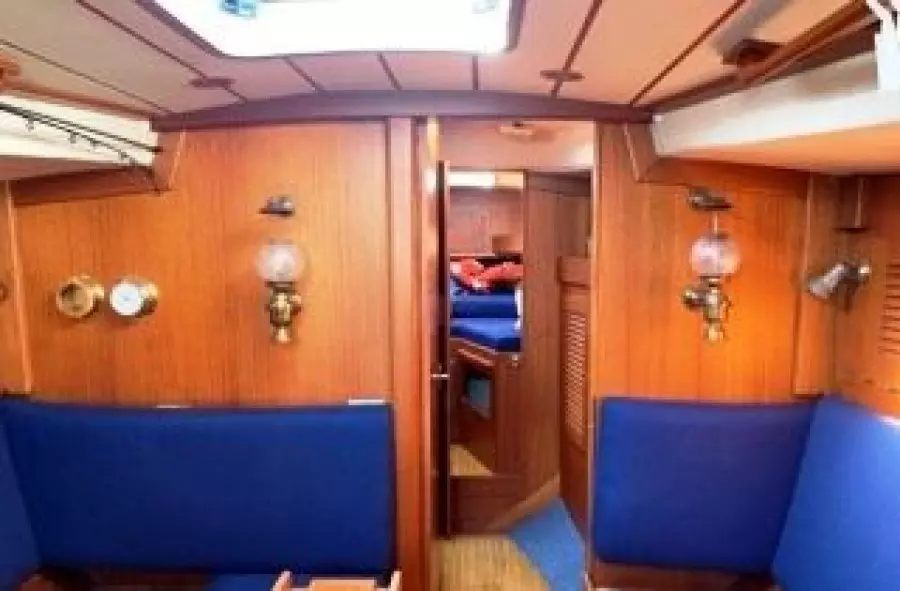

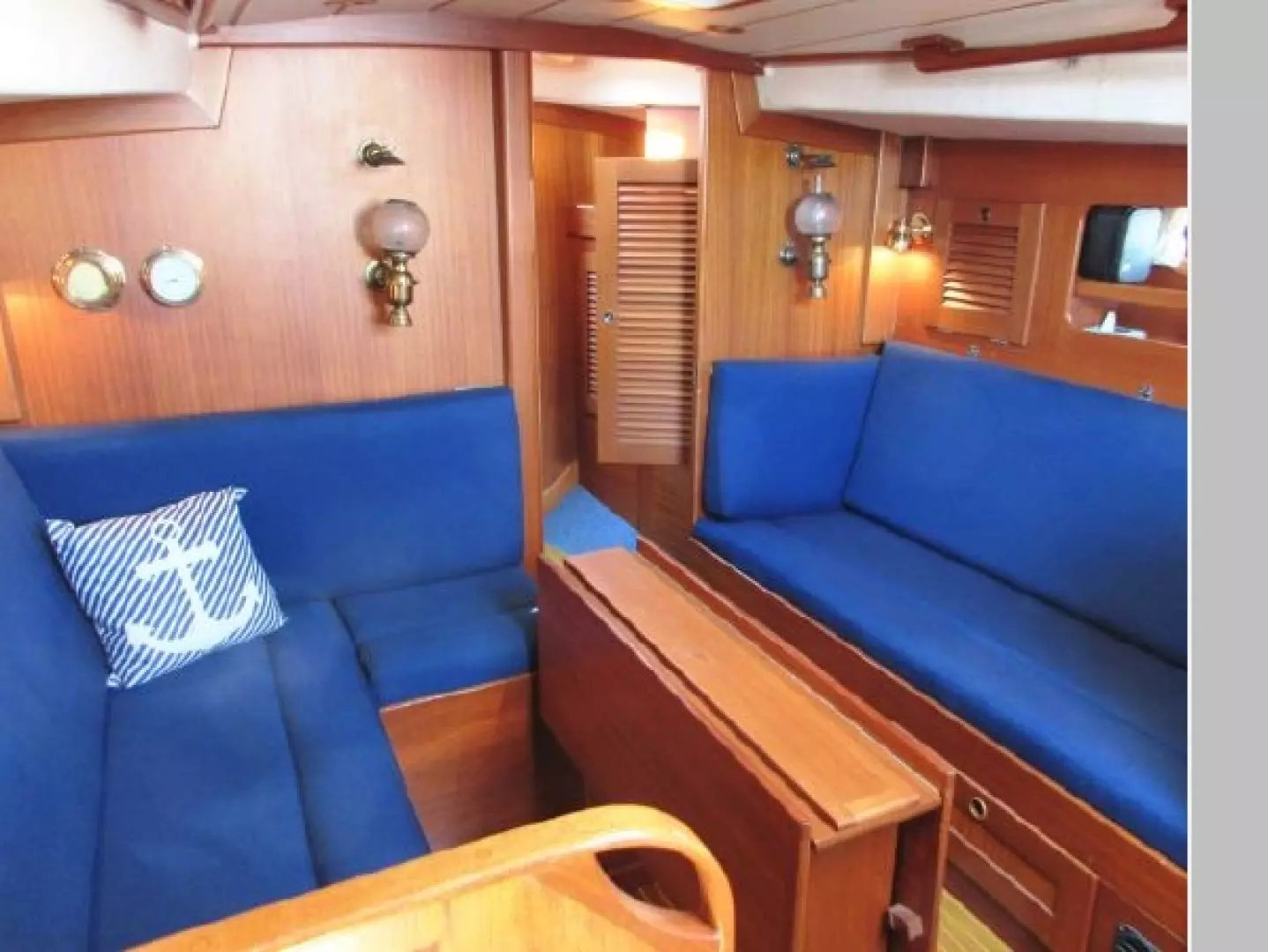

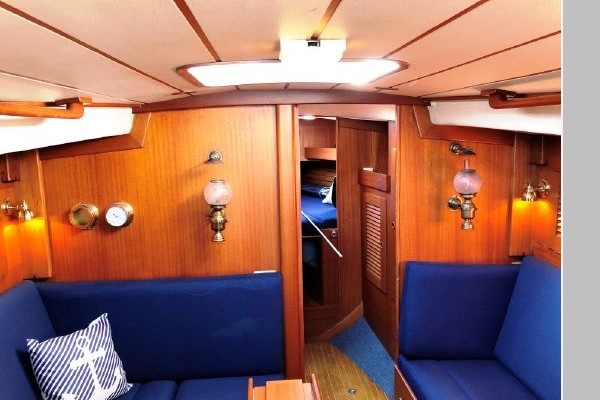

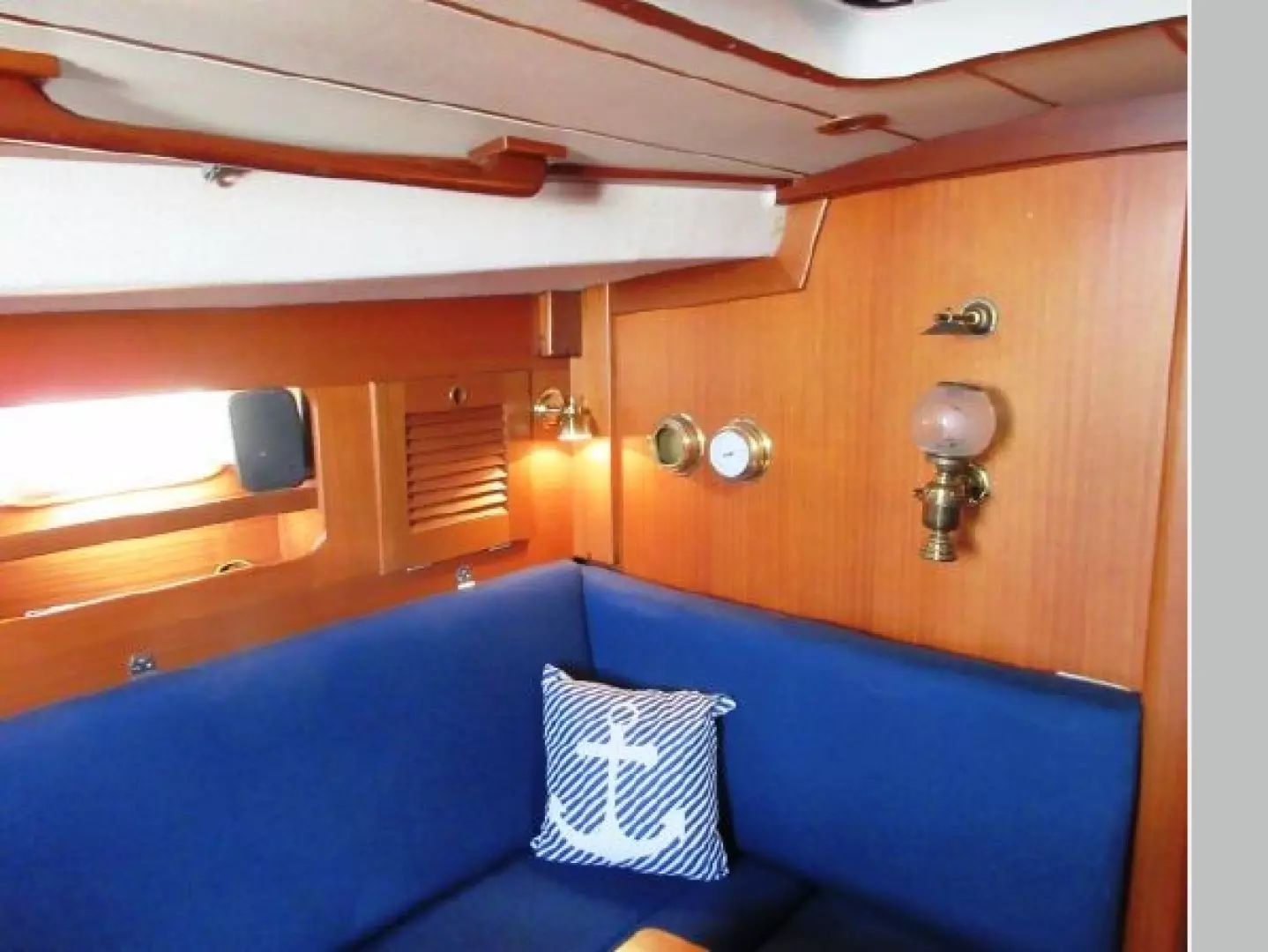

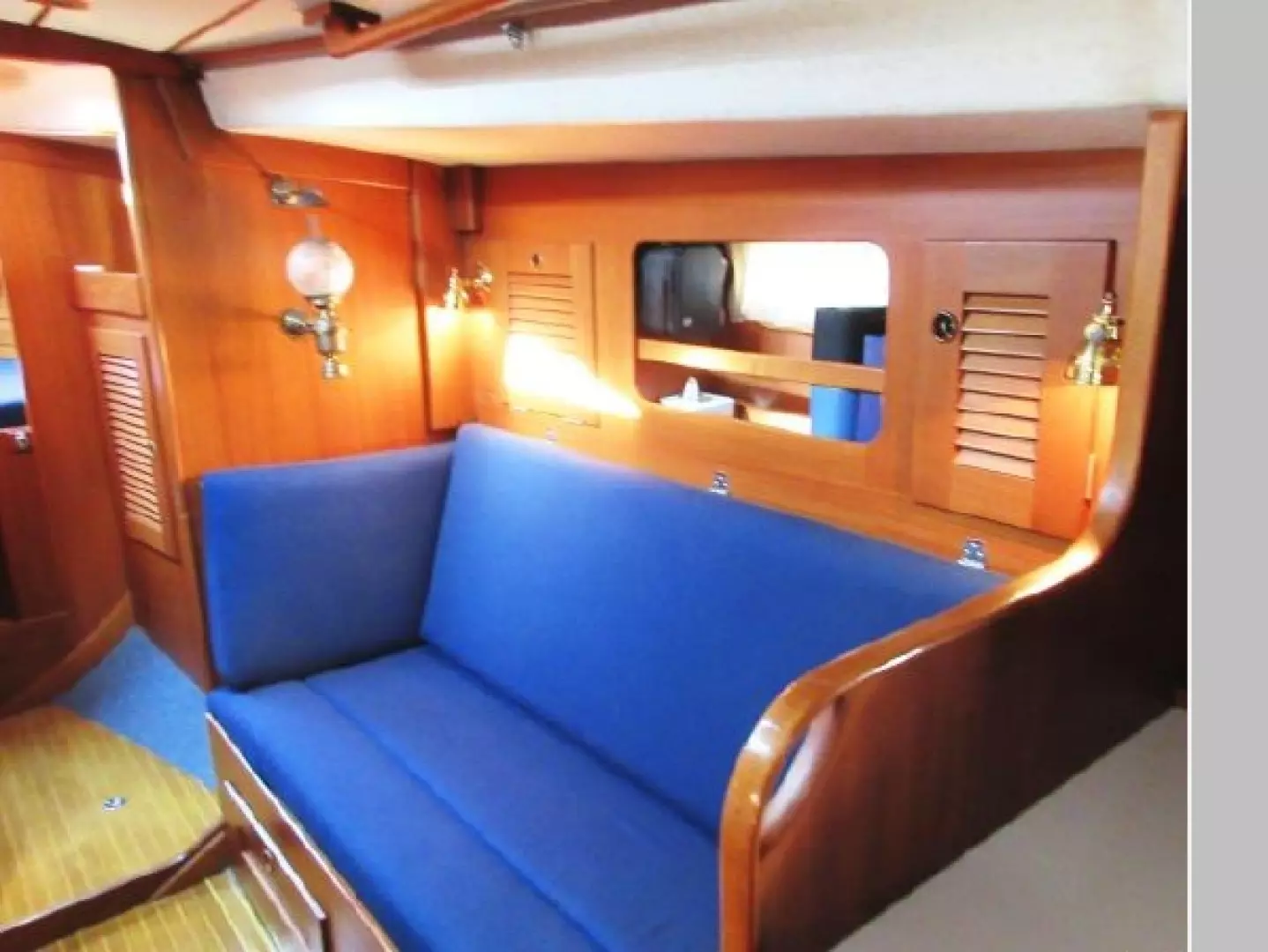

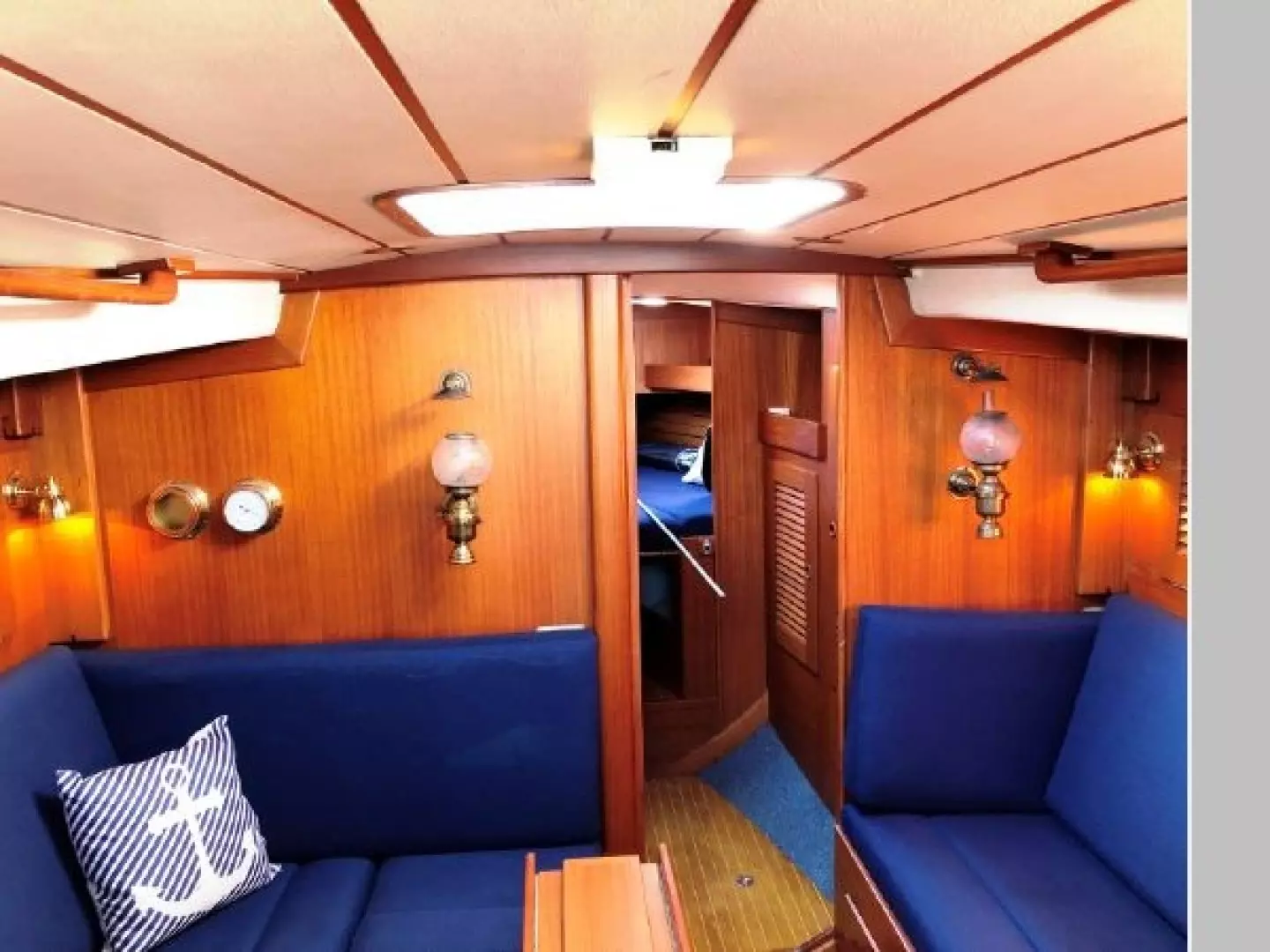

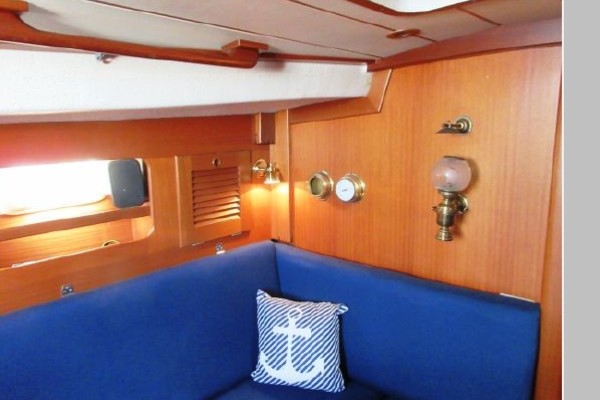

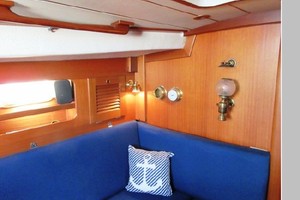

• (2) Brass oil lamps, gimballed (note: in Salon on main bulkhead forward, port & starboard)

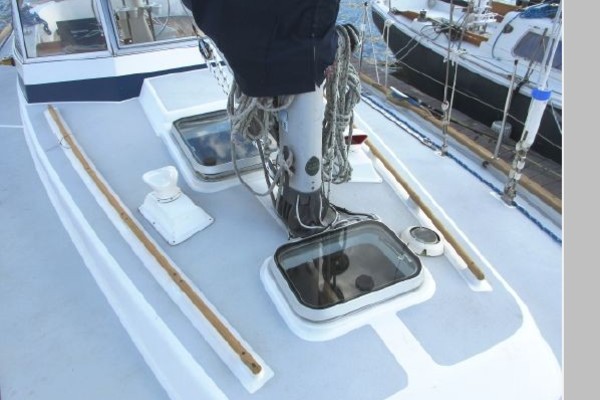

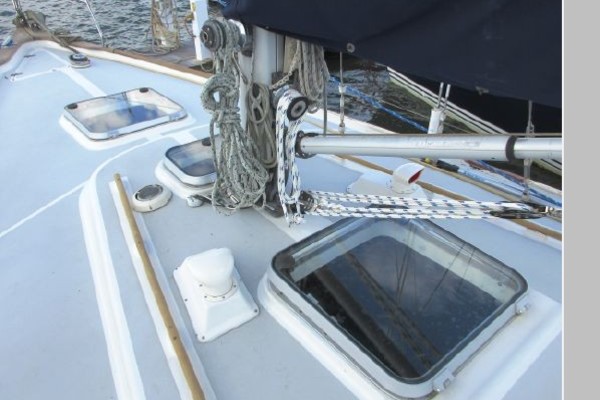

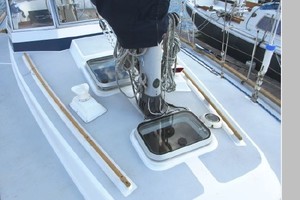

• Ventilation(4) Deck hatches, AXHEDE & HANSSEN (Sweden) w/ aluminum frames, opening; (1) Fore Cabin, (1) Head, (1) Salon & (1) Aft Cabin
• (2) Ventilators; solar (1) Head & (1) for Lazarette locker
• (2) Ventilators, Dorade-type on fiberglass boxes
• (8) Opening ports (note: w/ curtains)

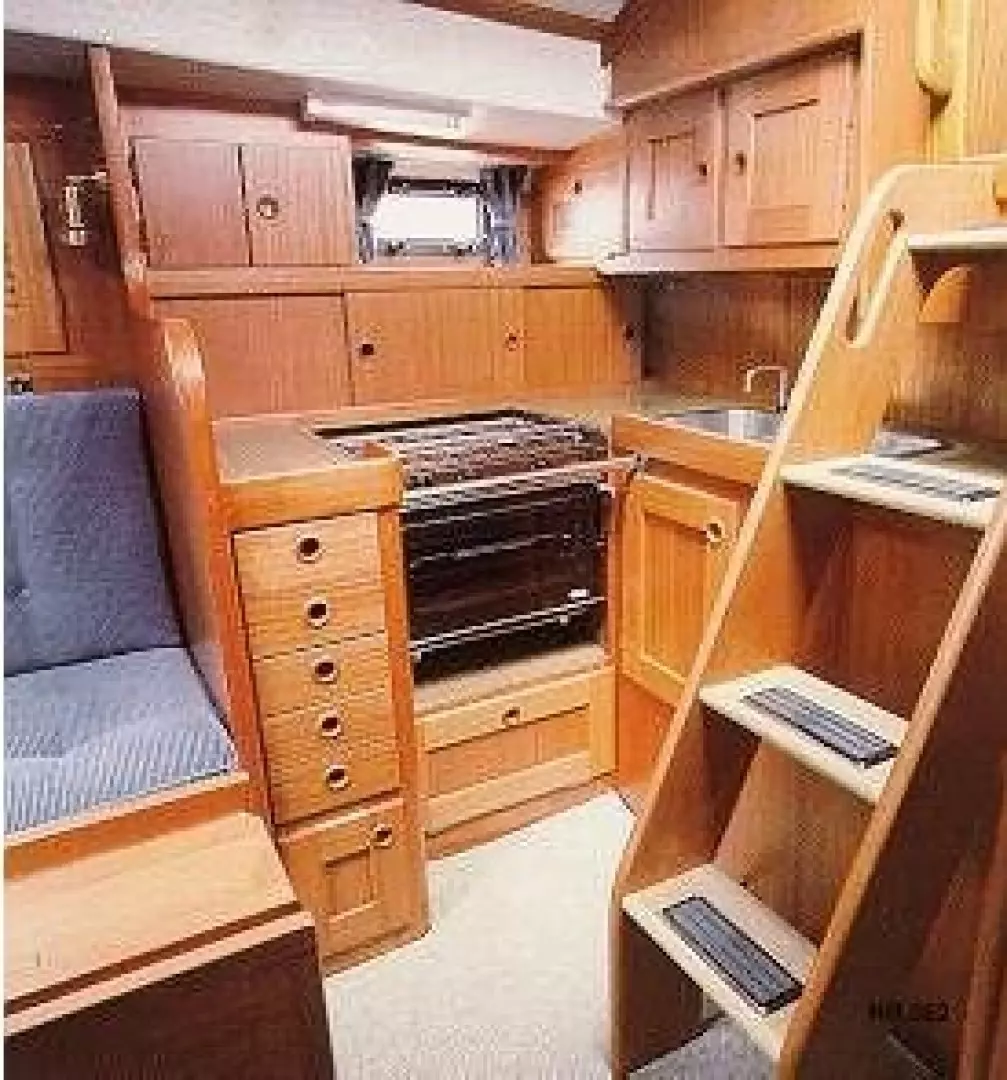

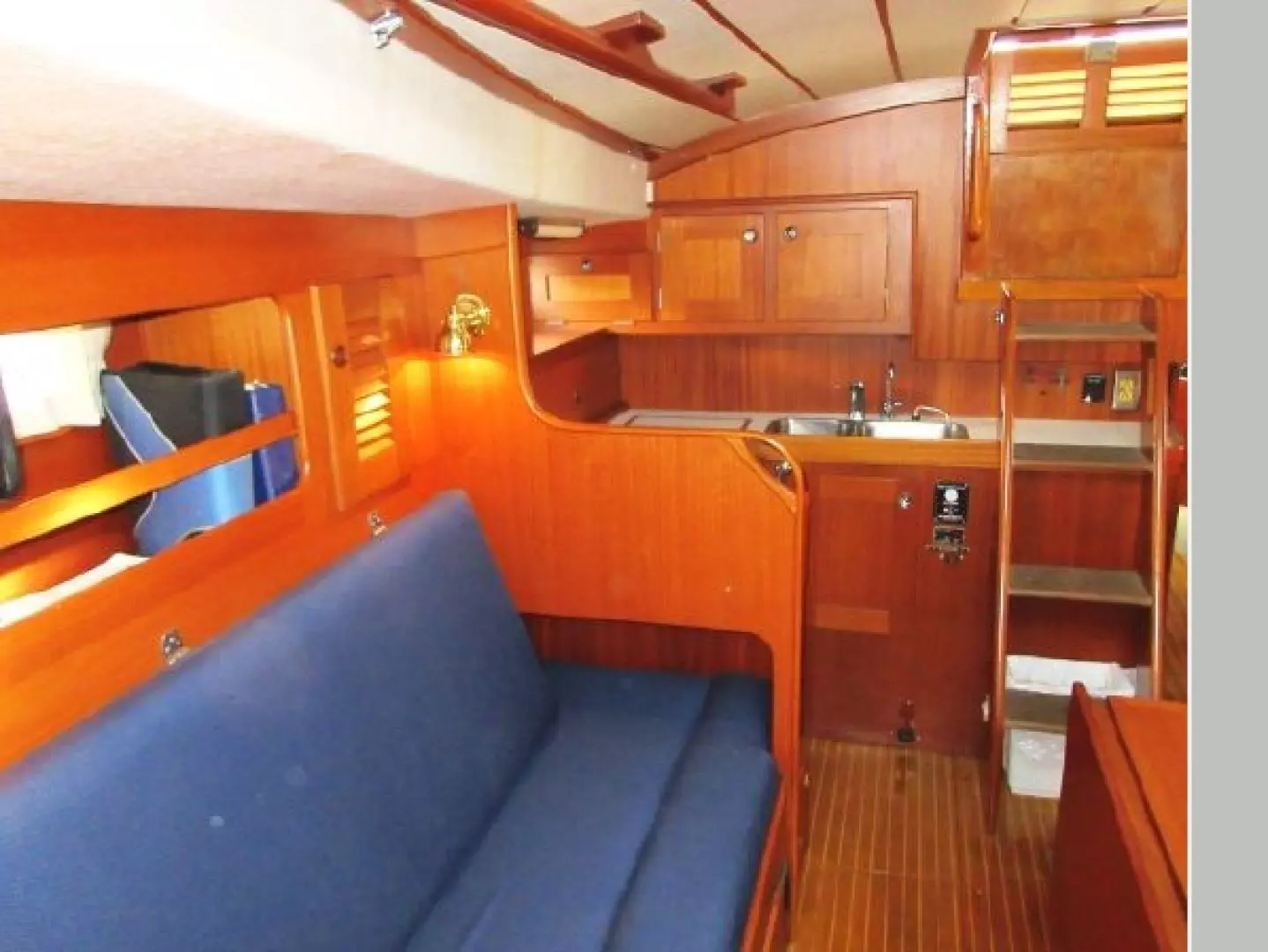

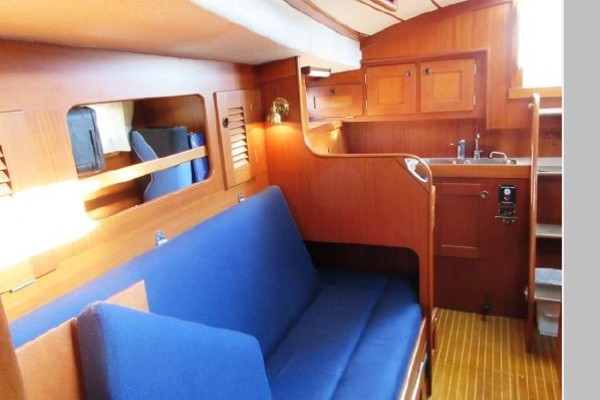

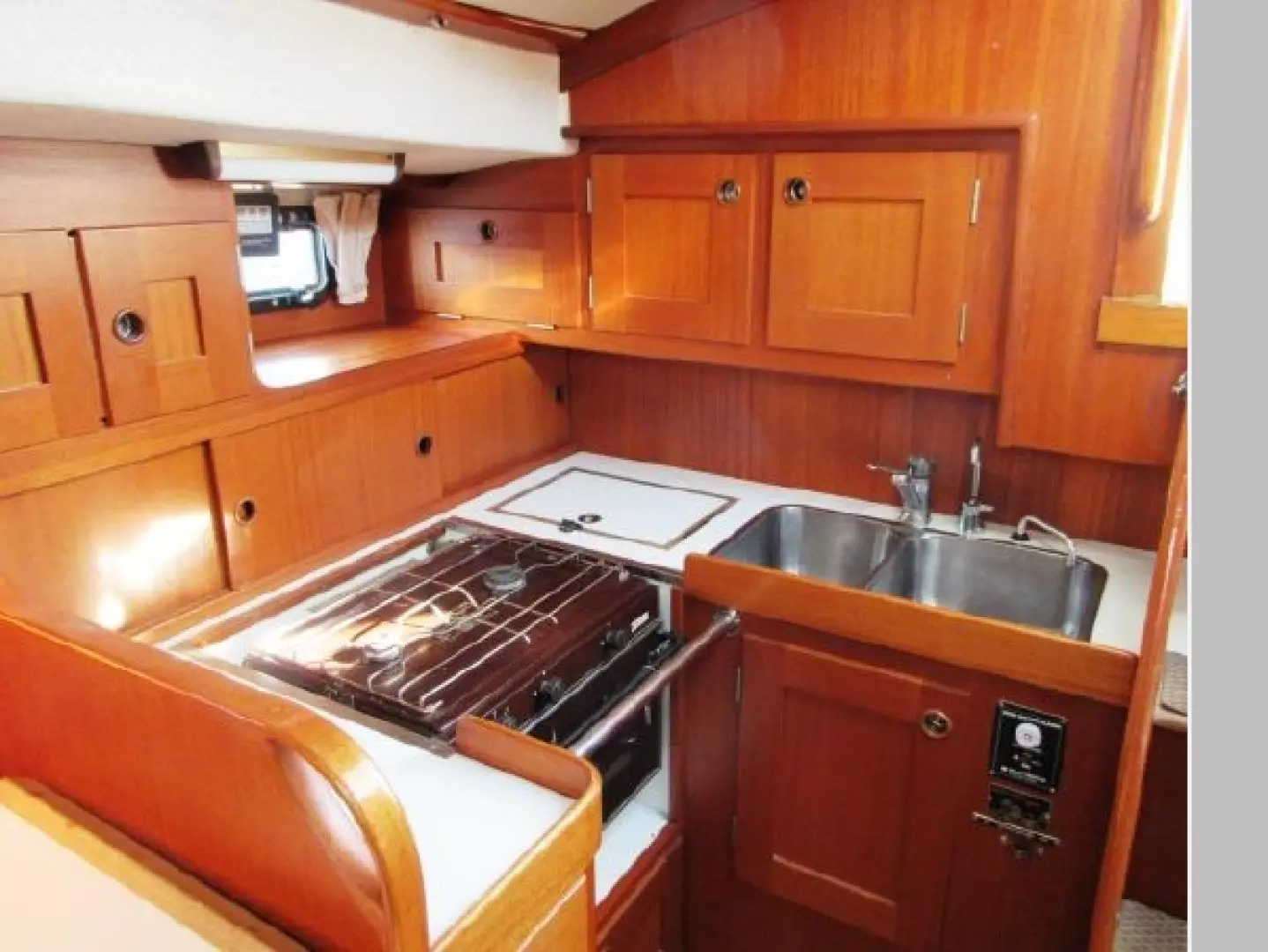

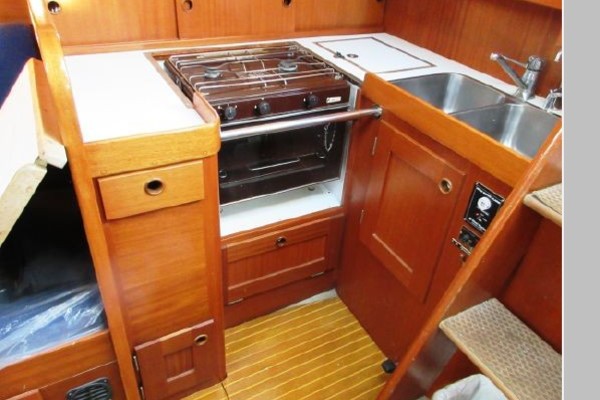

Galley

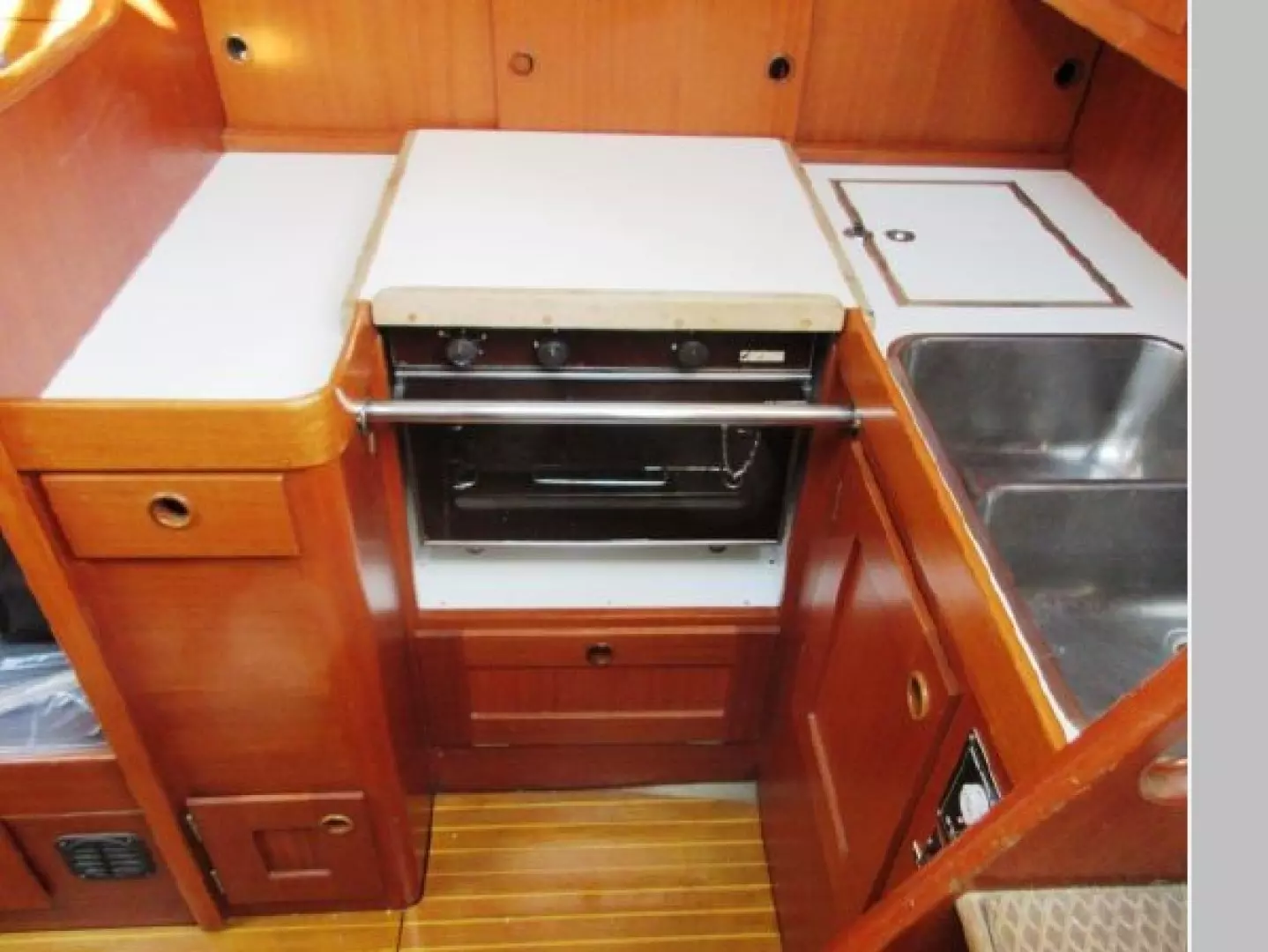

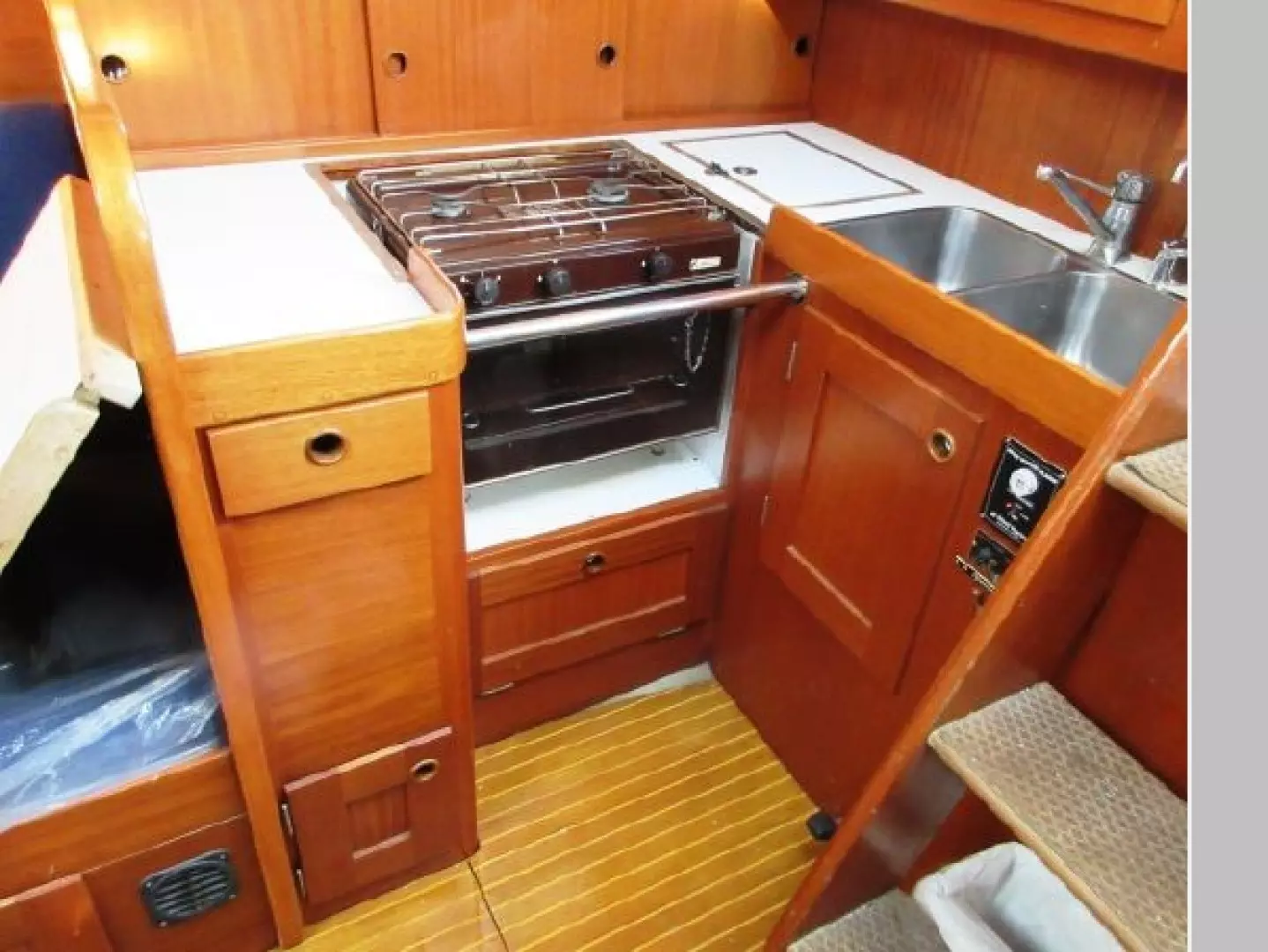

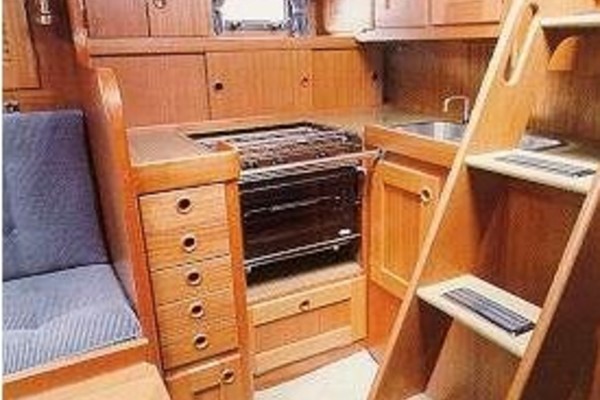

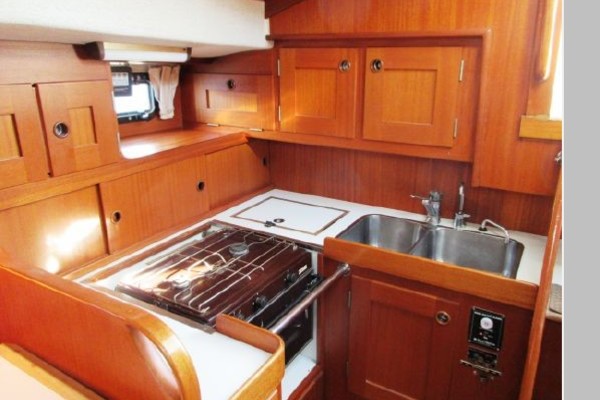

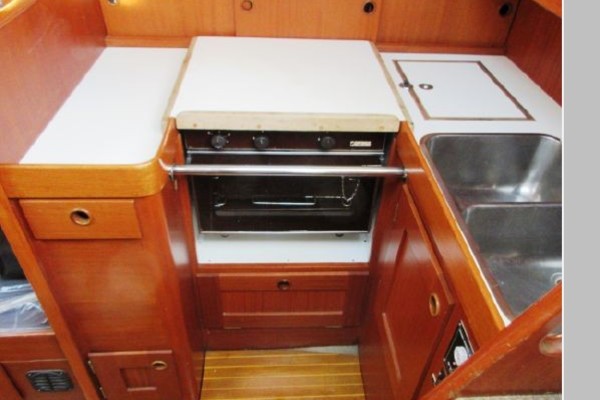

• The Galley for the HR 352 is located in the Salon. starboard side aft.OPTIMIST Stove w/ oven, (2) burner, propane & gimballed
• Safety bar, stainless steel
• Remote propane gas shut-off solenoid switch at Galley
• MS-2 Remote Sensor / Sniffer for propane fume detection (note: panel at Galley)
• (2) Ice chests, top-loading (note; (1) at the Galley w/ 21 USG / 80l capacity & (1) smaller secondary on the port side & just aft of the Nav Station)
• FRIGOBOAT Refrigeration system, 12 VDC (note: unit is not currently operating)
• Galley sink, split type. stainless steel (note: measures 24" x 14")
• Hot & cold pressure water service
• Fresh-water pump, manual w/ separate faucet & SEAGULL water purification system

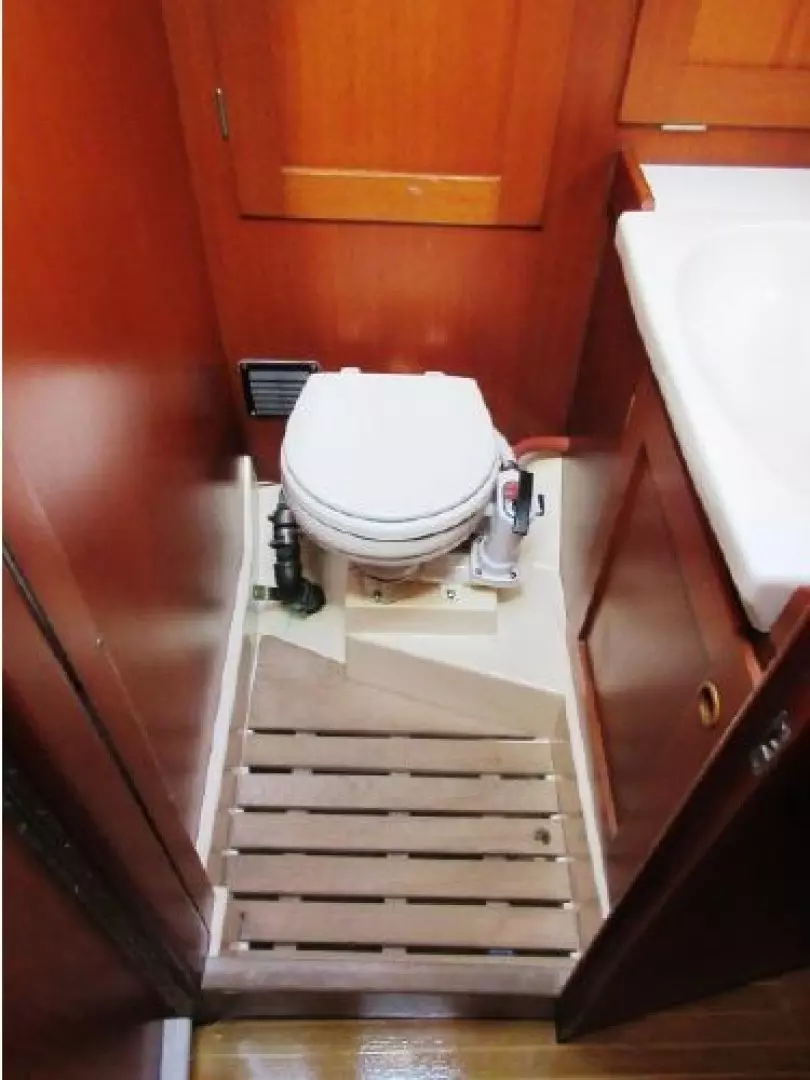

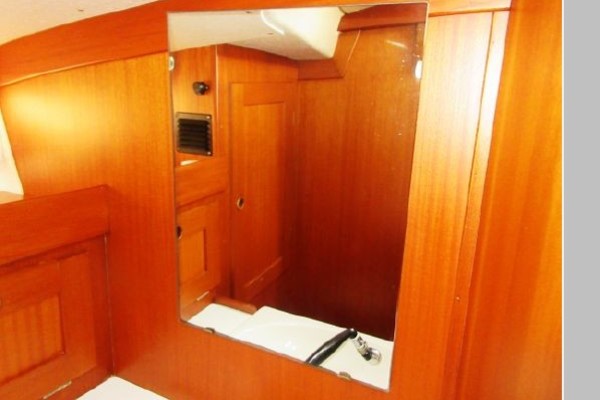

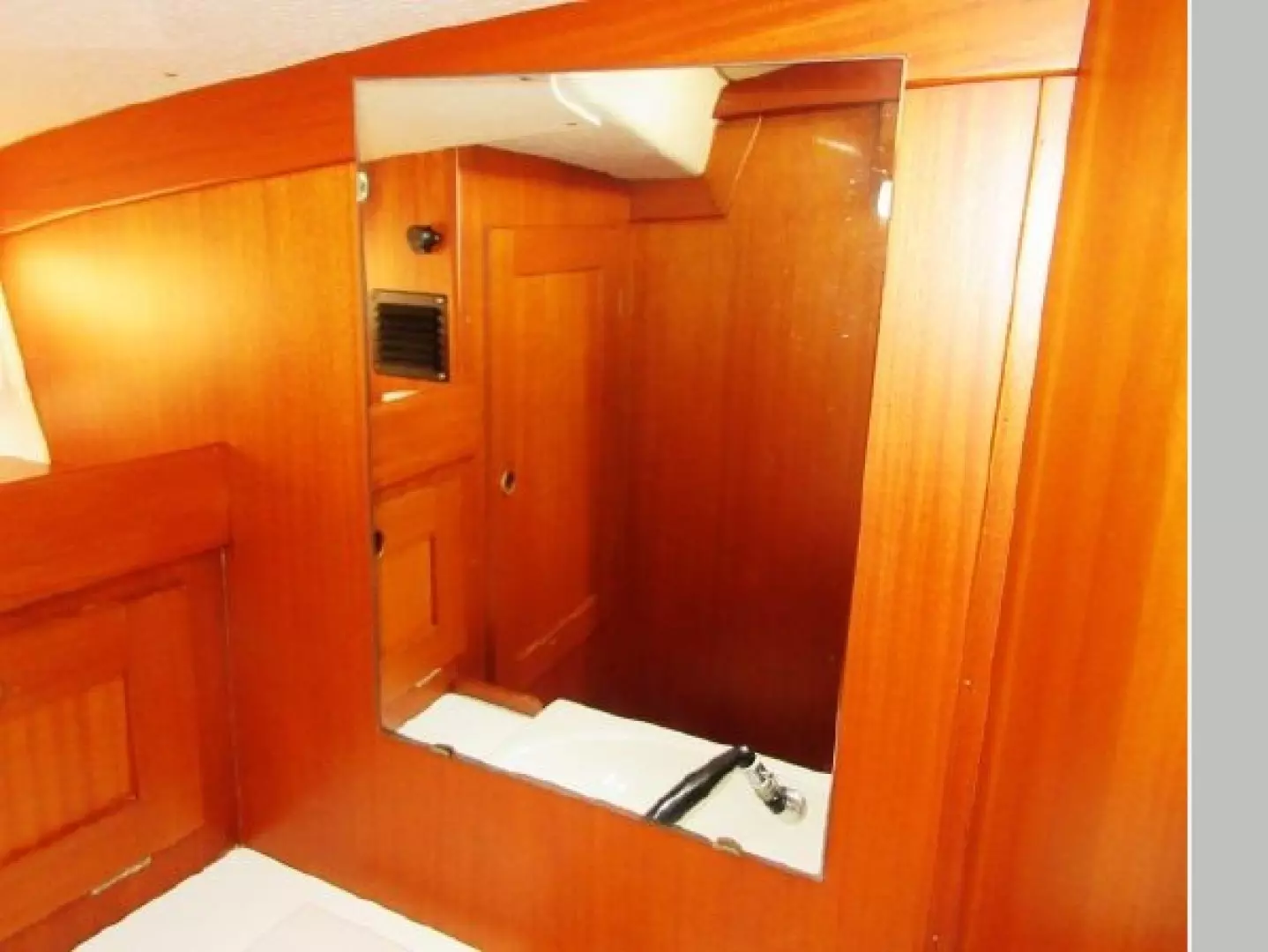

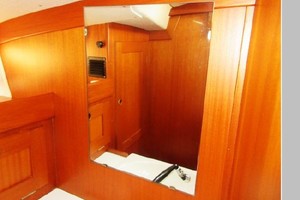

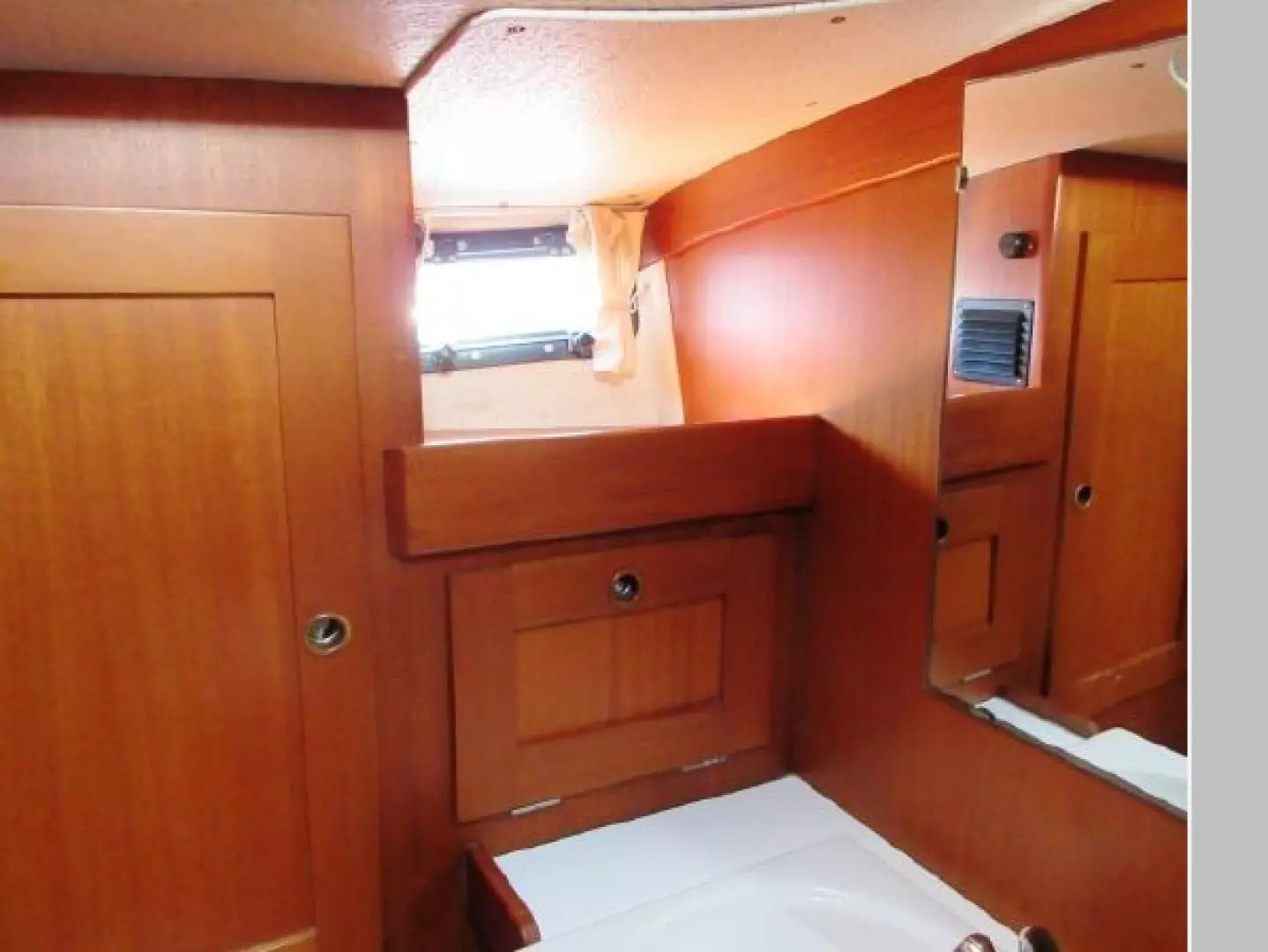

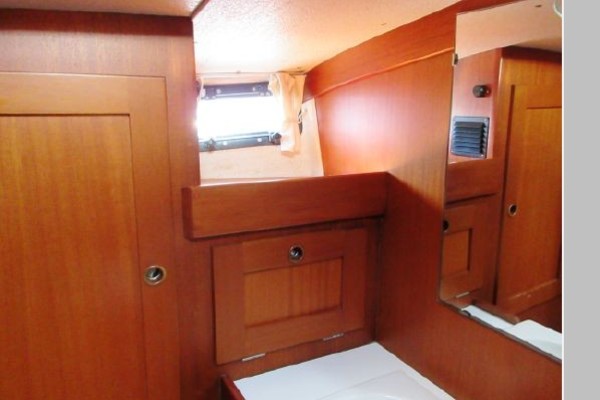

Head

• The HR 352 has a single Head & is located forward, port side.Headroom: 6' (approx.)

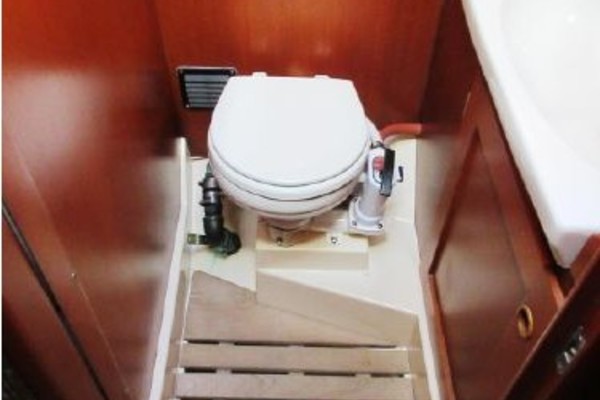

• Manual Head
• Holding tank (note: capacity 16 USG / 60l
• "Y" Valve for overboard discharge (note: where permitted)
• Hot & cold pressure water service
• Shower, hand-held
• Teak grating for shower area

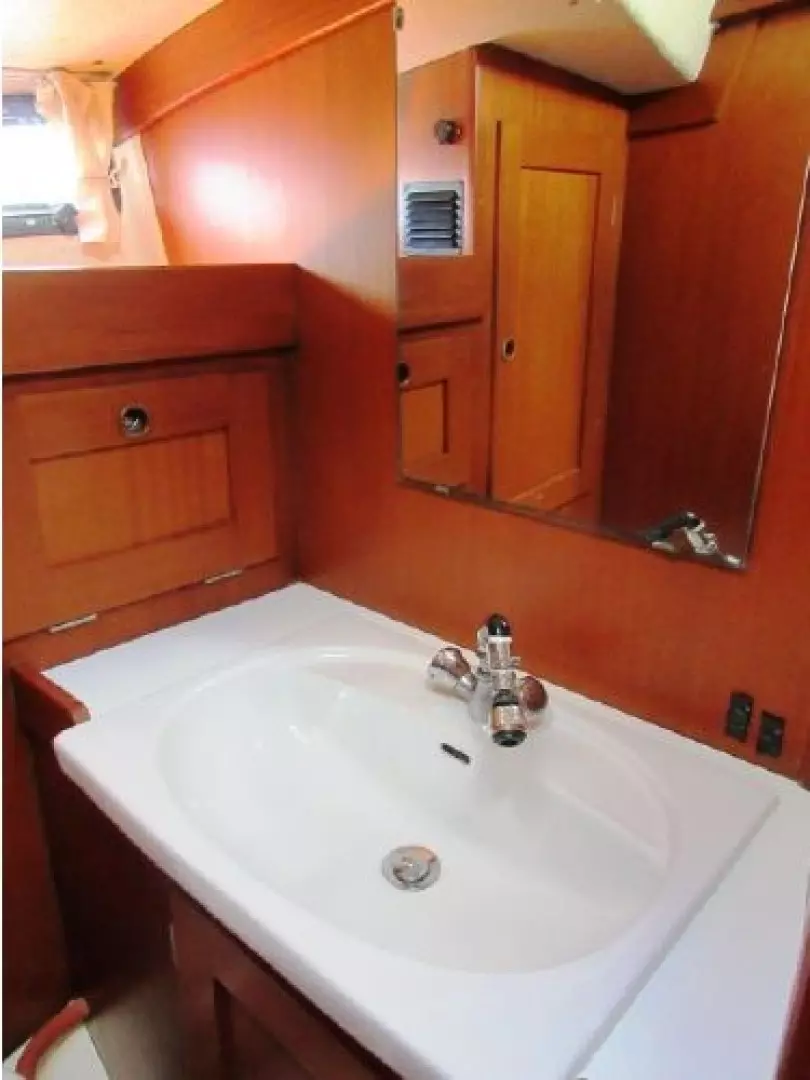

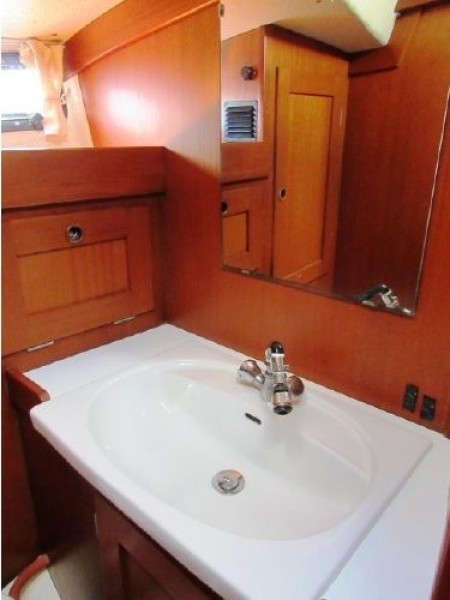

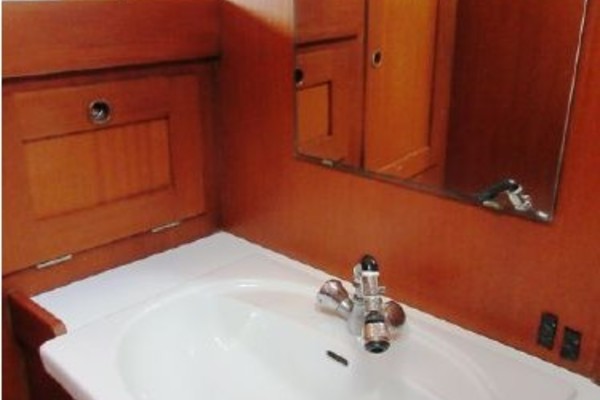

• Porcelain bowl for wash basin

Rig, Rigging, Winches & Sails

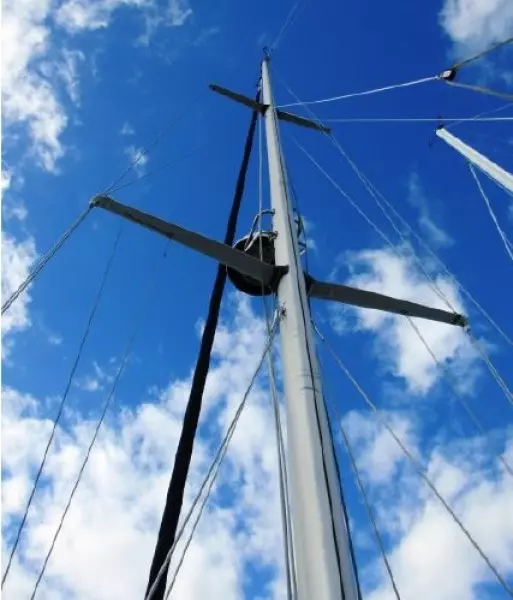

Rig

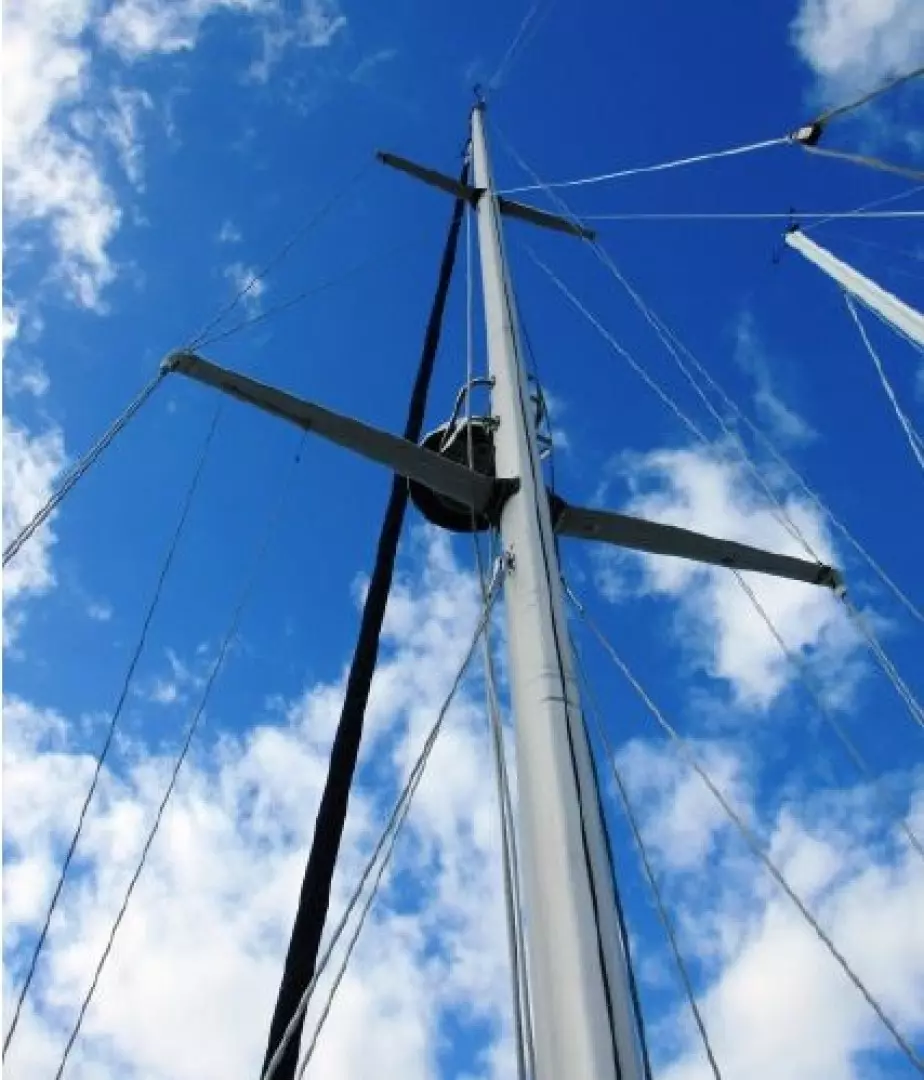

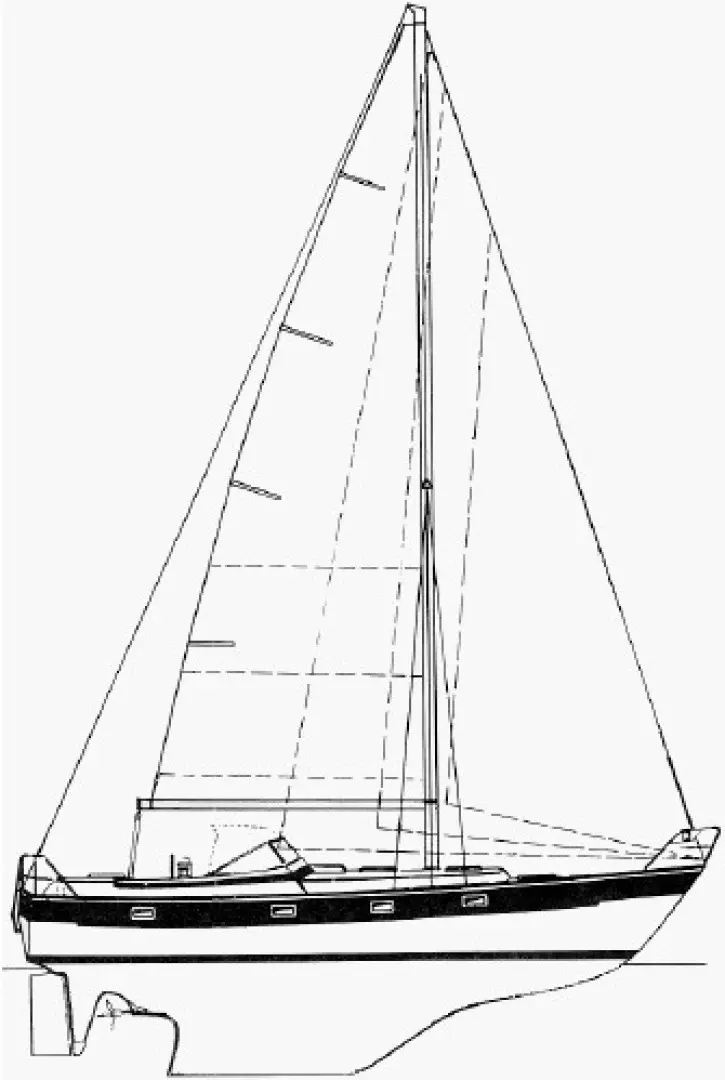

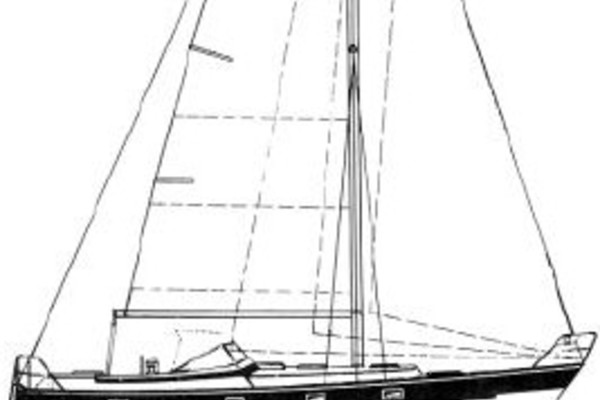

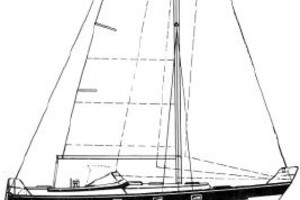

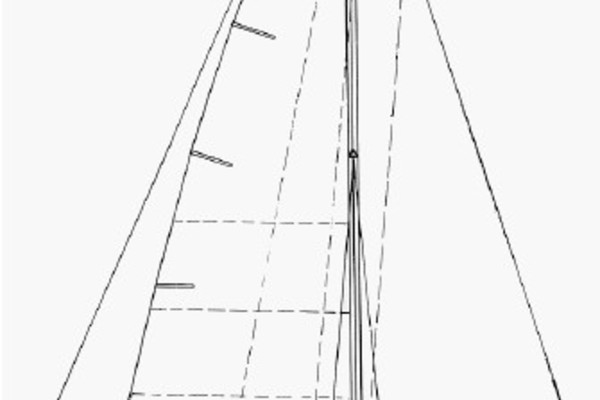

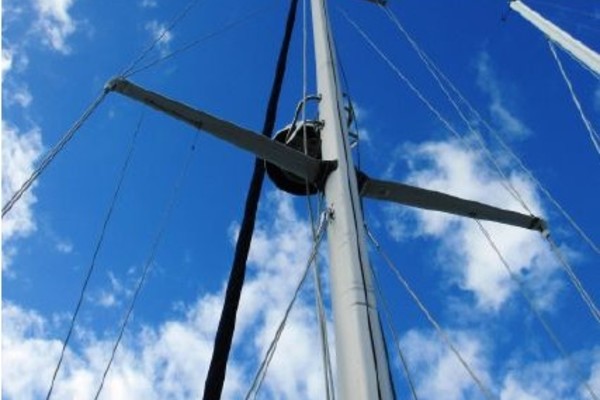

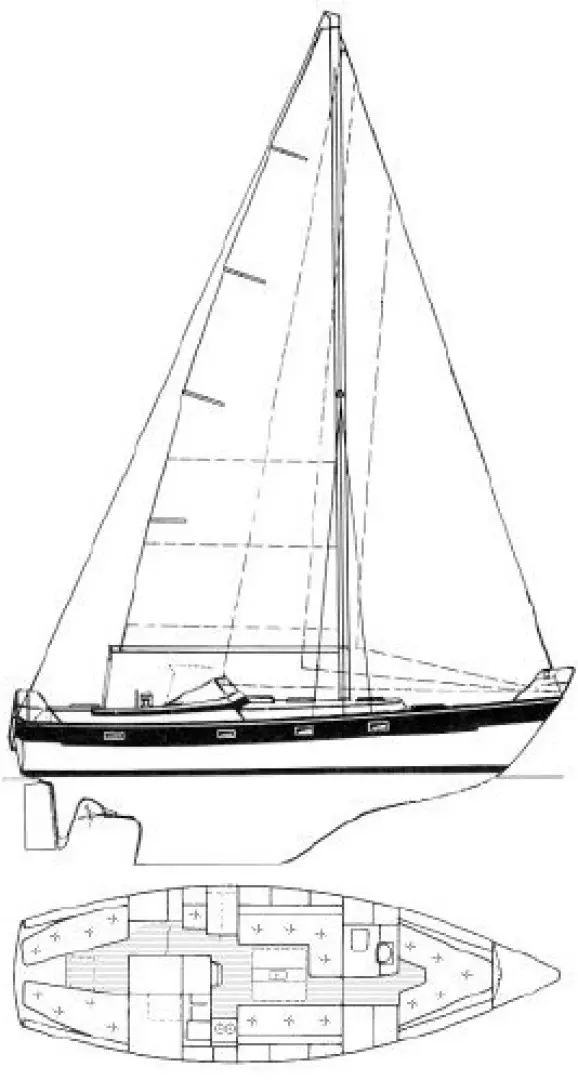

The Hallberg-Rassy 352 was produced with the Factory Optional "Tall Rig" SELDEN MAST (of Sweden) silver-anodized aluminum mast & boom with double spreaders. The rig is deck-stepped and the support is provided by the main transverse bulkhead and a large compression column below. She spar is provided with internal halyards.

• Tall Rig Dimensions: I=50.28', J=13.30', P=45.48' & E=13.80' (note: I=47.67' for Std Rig)
• Sail Area (100% Main & Fore Triangles): 630.8 sq / ft (Std Rig = 599.7 sq / ft)
• Mast Height from DWL: 51.25' (note: without antennas and so forth)

Rigging & Sail Management

• Standing rigging: 1x19 wire, stainless steel & approximately .64" / 8mm diameter
• Chain plates set w/ main shroud w. forward & aft lower shrouds
• Boom vang, SELDEN rigid rod spring / oil type (note: new control lines, 2020)
• PROFURL Roller-Furling (note: overhauled, 2018)
• Running rigging; Main, Genoa & Spinnaker halyards, Boom Topping Lift
• Provision for 2nd forward halyard
• Backstay adjuster, manual
• Jiffy / Slab reefing system for mainsail (note: set up for (3) reefs)
• Lazy-jacks for mainsail
• (3) Flag halyards; (2) to port spreader, (1) to starboard spreader
• Genoa tracks, inboard w/ (4) cars
• Mainsheet traveler, RUTGERSON (Sweden)
• Mainsheet System w/ HARKEN ball bearing car w/ HARKEN lower block & RUTGERSON upper block assemblies, 8:1 purchase tackle (note: new lines, 2020)
•


Winches (LEWMAR)

• (2) L-43 STC (2) speed Primary / Genoa sheet in Cockpit
• (2) L-16 STC (2) speed halyard / line (note: installed on mast)
• (1) L7 C (1) speed reef (note: installed on mast)

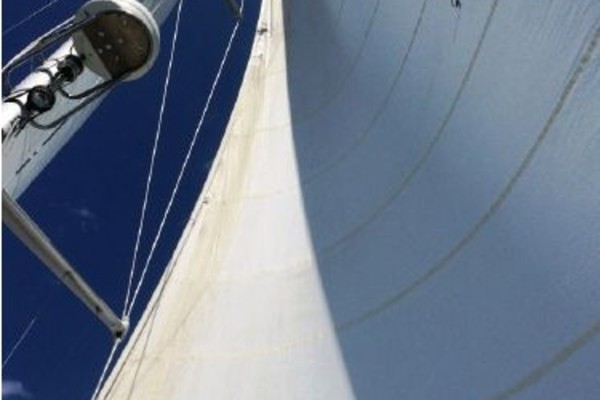

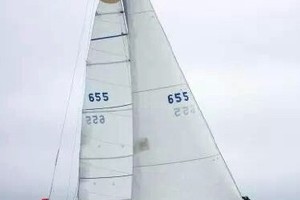

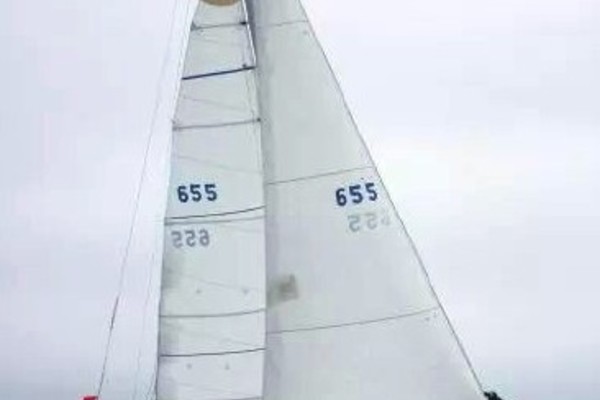

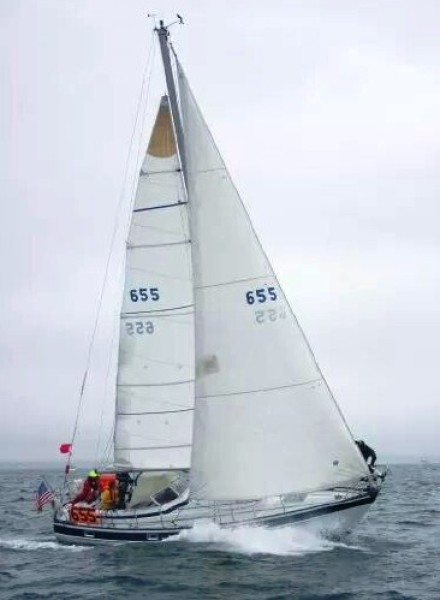

Sails

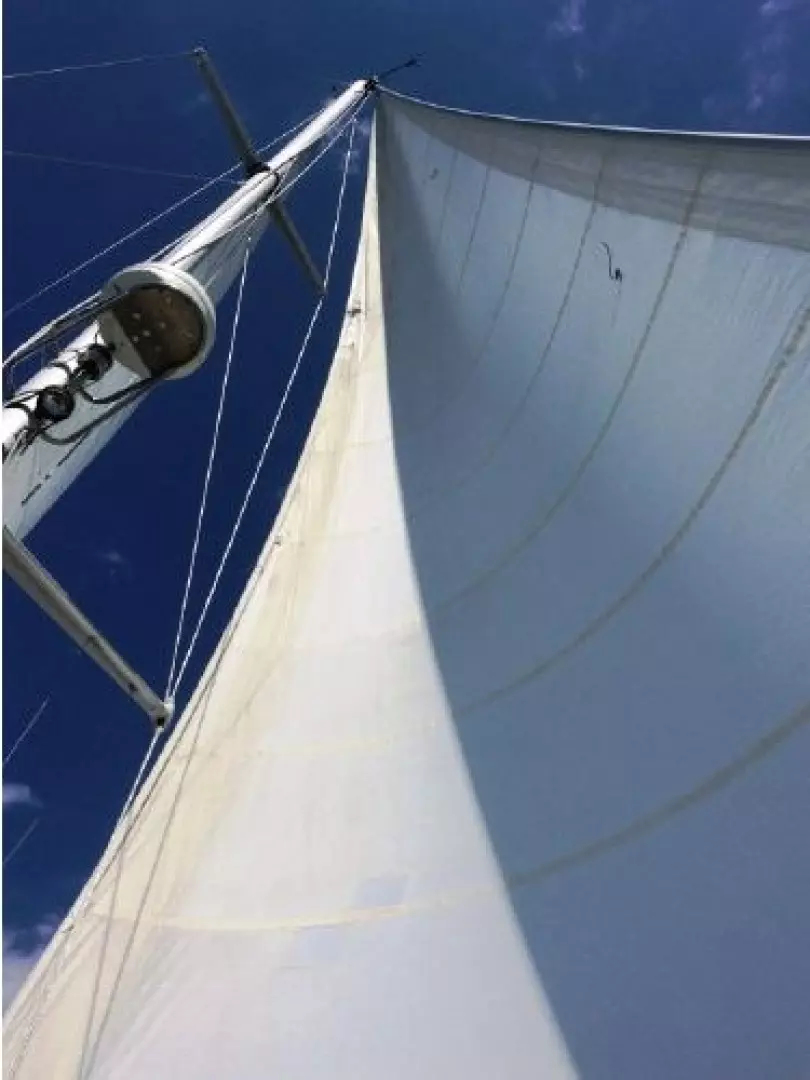

• Mainsail, NORTH Dacron w/ (3) rows reef points (2004)
• Mainsail cover, SUNBRELLA Dark Blue
• Genoa, #2 135%, DOYLE SAILMAKERS Durasail w/ SUNBRELLA Blue tabling cover (all new, 2020)
• Jib, 100%, Dacron "Heavy Weather"
• Drifter, light-air, 170% (approx)

Electronics

• CommunicationVHF, STANDARD Horizon GX2200 Matrix AIS / GPS (note: new, 2016 & the AIS data "receive only" is shown on the QUANTUM Radar display)

Performance

• RAYMARINE I50 / I70 Package for AWI / WS (note: new, 2018 & masthead unit replaced, late Fall 2018)
• RAYMARINE I50 / I60 Package for Speed & Log (new, 2018)

Navigation

• RAYMARINE ES97 HybridTouch Digital Chart Plotter / GPS, Wi-Fi w/ 9-inch screen (new, 2018 & mounted in Cockpit, starboard side of Companionway entrance)
• QUANTUM Radar, Q24C 18" (new, 2018), wired & Wi-Fi (note: AIS data from the VHF does display & the radome is mounted on mast w/ custom protective cage, stainless steel)
• RAYMARINE I50 / I60 Package for Depth-Sounder (new, 2018)

Autopilot

• RAYMARINE I70 Series Autopilot control (new, 2018)
• RAYMARINE EV200 "Sailpack" Autopilot Course Computing Package (new, 2018)

Entertainment

• Stereo, AM / FM w/ Bluetooth & (4) speakers; (2) in Salon & (2) in Cockpit

Systems

Electrical

The HR 352 has both a 12 VDC Ship's Service & 110 VAC Shore Power Systems

• Batteries, (4) 12 VDC; (3) Ship's Service BG 24M Gel Cell & (1) Engine Start BG 24 Gel Cell
• (2) Battery circuit switches; (1) Ship's Service & (1) Engine Start
• Battery charger, XANTREX 40 AH (note: new, 2020)
• Inverter, PROWATT 600
• Engine alternator, 50 AH
• Shore Power, 110 VAC w/ cord
• Outlets, 110 VAC
• (4) Outlets, 12 VDC (note: Head, Galley, Aft Cabin & Cockpit)

Lighting, Interior

Total of (15) lights throughout:

• (8) Reading lights; (4) Brass-finish units in Salon (new, 2020) & (2) Fore Cabin & (2) Aft Cabin
• (3) Overhead lights (note: switch at Companionway for Salon light activation)
• (1) Florescent light, Galley
• (1) Florescent light, Engine Room

Lighting, Exterior

• Nav lights, International
• Masthead light, Tri-Color
• Steaming light
• Foredeck light

Plumbing

• Fresh-water capacity: 79 USG / 300l (note: water in single fiberglass tank located in the keel area of the HR 352 w/ (2) removable access cover plates for inspection & cleaning)

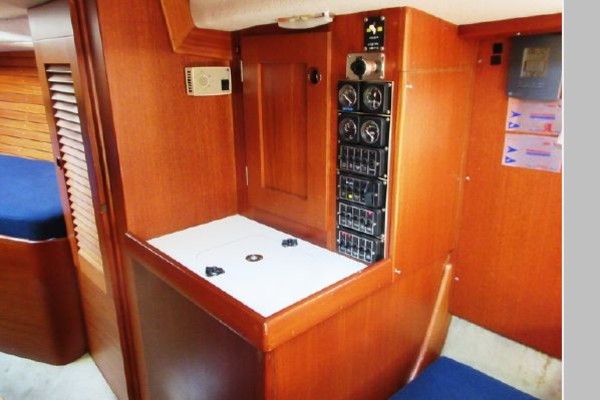

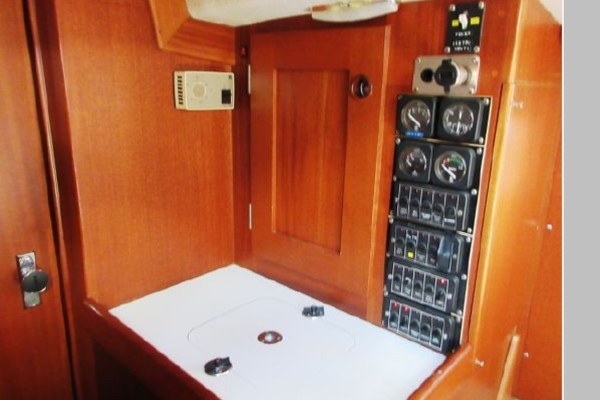

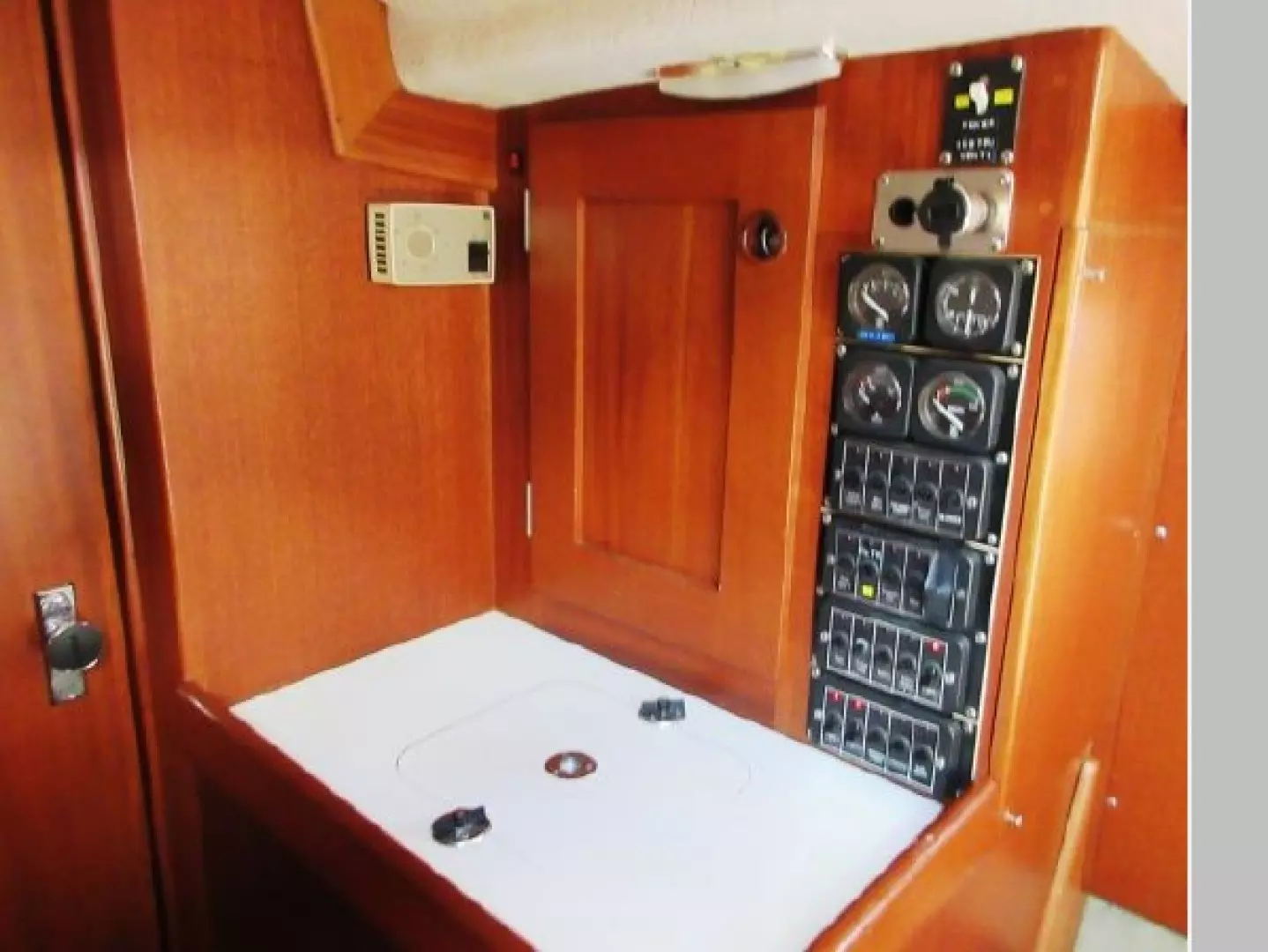

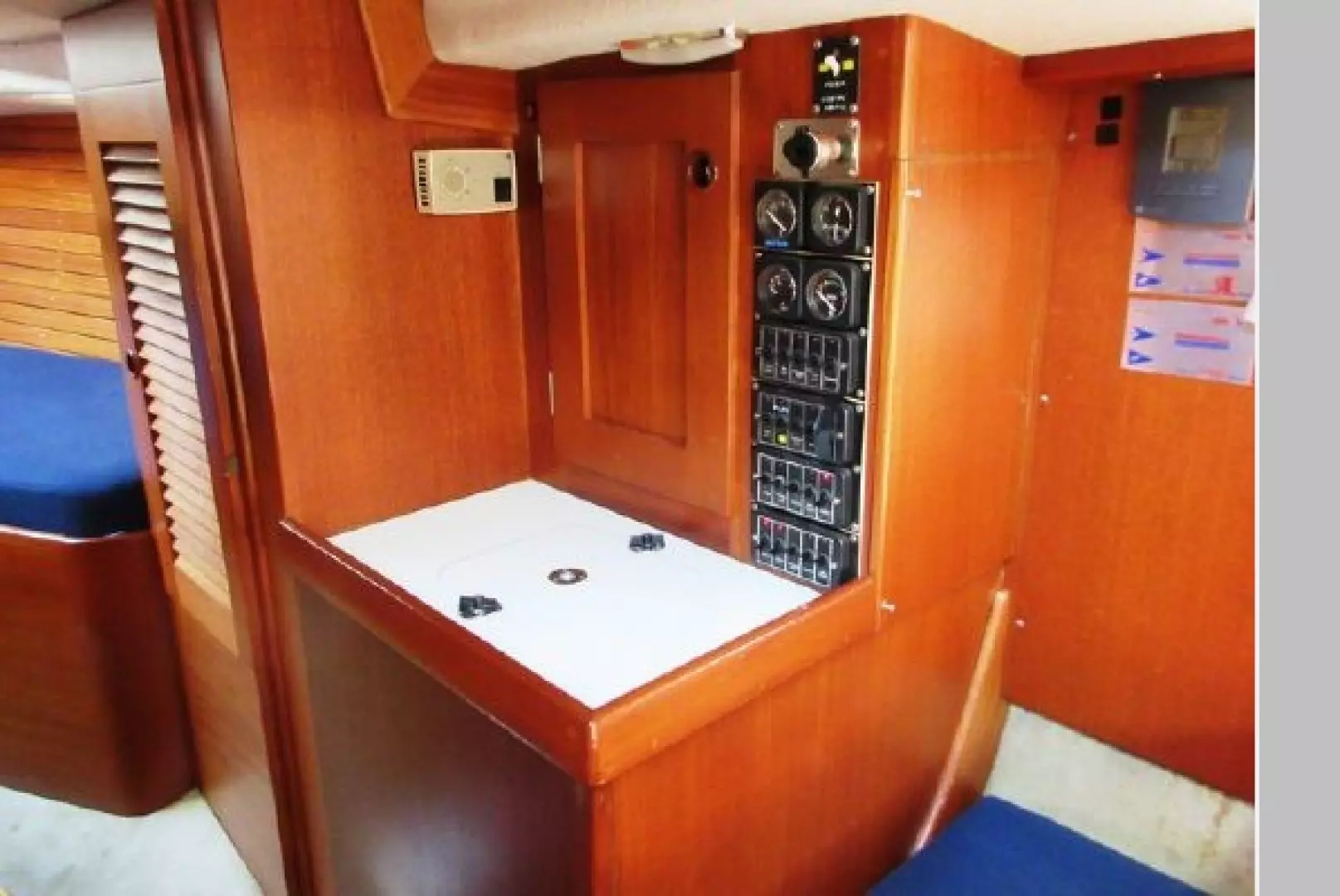

• Water quantity gauge (note: located on panel at Nav Station)
• (2) Bilge pumps, manual diaphram-type (note: installed in hanging locker aft of the Companionway & 2nd unit in Cockpit, starboard side)
• Bilge pump, electric / automatic w/ High Water Alarm
• Bilge pump, engine-driven (note: separate hose installed for emergency pump via the VOLVO PENTA 2003T diesel engine raw water intake)
• Shower sump pump, JABSCO Model 37202-2012 (new, 2017)
• Pump, SHURFLO AquaKing II for pressure fresh-water system (new, 2020)
• Hot water tank

HVAC

• ESPAR Diesel heater (note: system not functioning & noted as never used by this Owner)

Propulsion

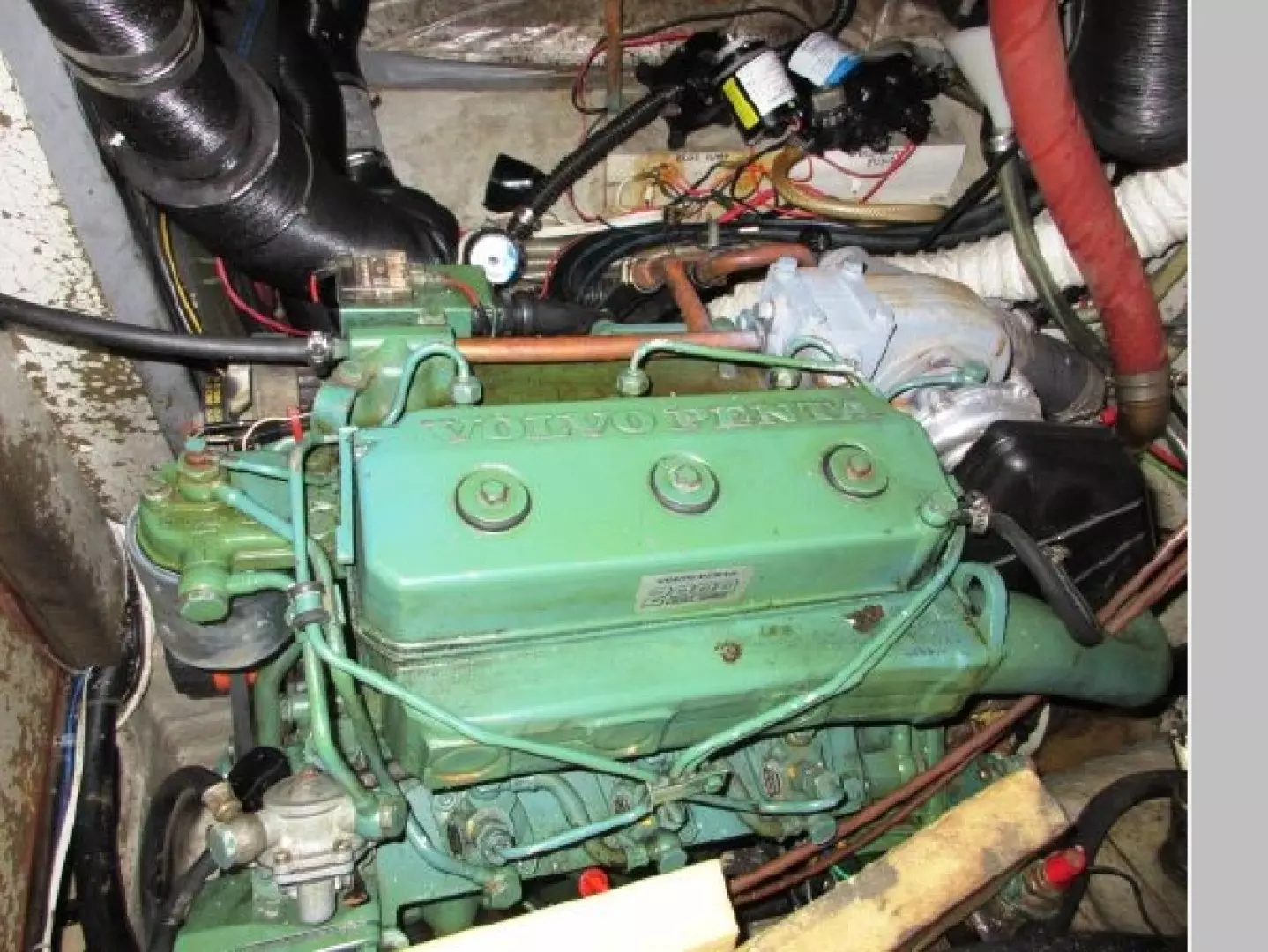

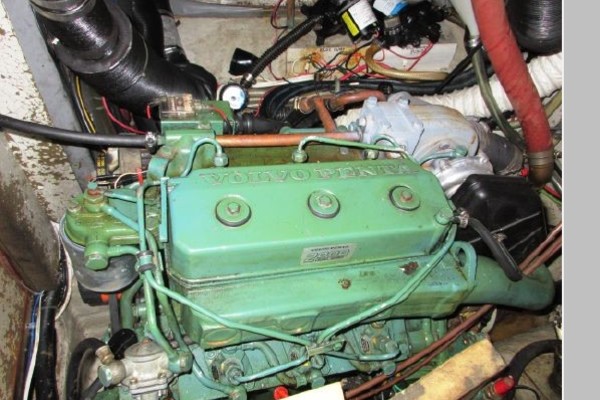

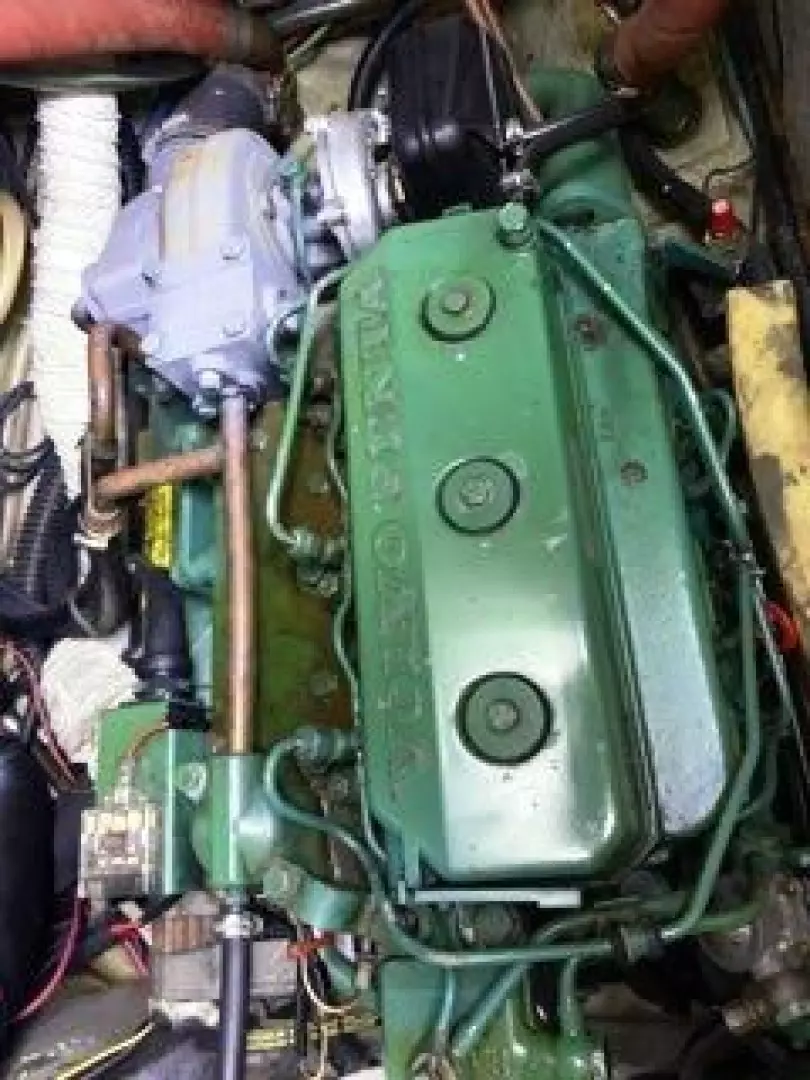

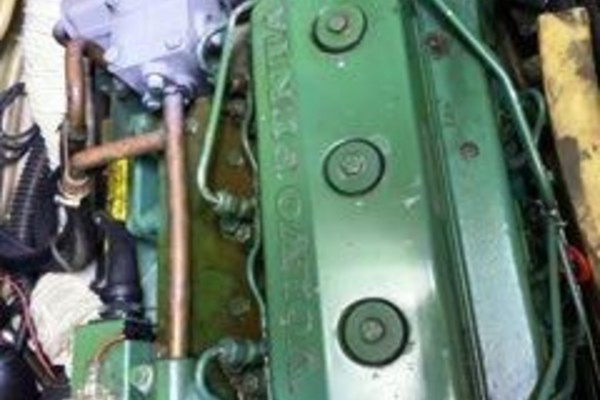

The Hallberg-Rassy 352 is powered by a VOLVO-PENTA MD 2003T Turbo (3) cylinder fresh-water cooled marine diesel that is rated at 43 HP at 3,200 RPM's.Engine access provided through secure-bolted cockpit hatch (for possible removal) & side panels aft

• Engine hours: 1,280 (approx)
• Fuel capacity: (2) tanks total 63.4 USG / 240l (note: (2) standard tanks (39.6 USG / 150l) main & 23.8 USG / 90l reserve; 2nd tank installed under port side settee in Salon)
• Single-lever throttle & shift control (note: mounted on the Binnacle, starboard side)
• Fuel gauge for main tank (note: readout located in engine instrument panel but not currently functioning)
• Separate pump, electric, to empty fuel tank(s) (note: if necessary for maintenance)
• Strainer for raw (exterior) water intake for engine cooling system
• Propeller shaft, 1-1/4" (30mm), stainless steel
• Propeller, (3) blade, bronze (16" pitch x 15" diameter, left-hand turn)
• RACOR fuel filter
• Insulated engine room

Engine Maintenance

• Turbo unit replaced, 2018
• Exhaust mixing elbow replaced, 2018
• Prop shaft seal replaced, 2019
• Raw water pump (replaced, 2020)

Additional Inventory



• Ground TackleCQR Plow anchor, 35# w/ 200' (60m) chain rode
• DANFORTH HT anchor w/ chain & rode

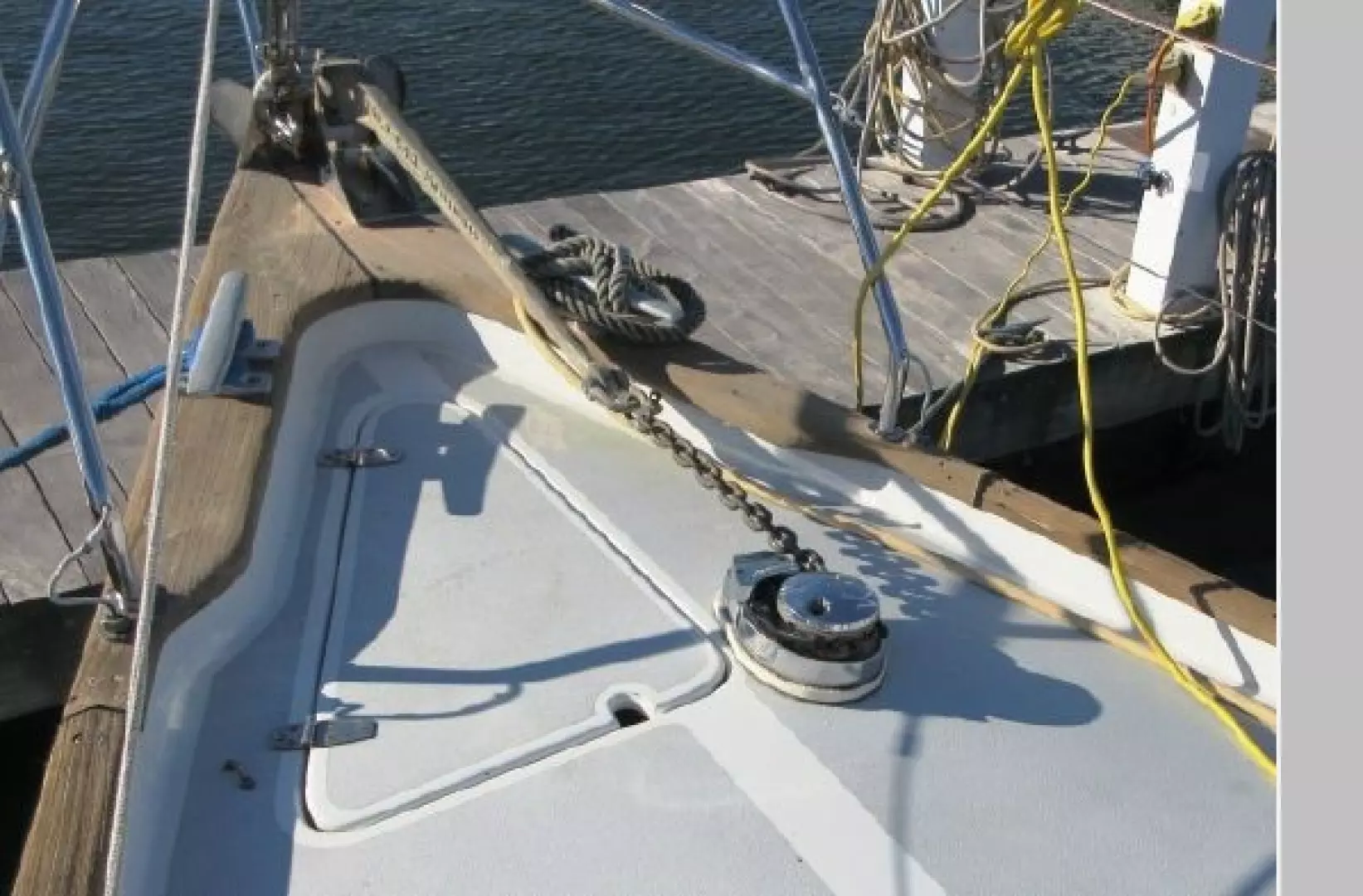

• Anchor windlass SIMPSON LAWRENCE Spirit 1000, electric / manual (note: new motor 2016 & remote control to cockpit, new 2018)

Canvas

• Dodger / Sprayhood, LIGHT GRAY fabric by ROSSY KAPPELL (note: producer for HALLBERG-RASSY AG, Sweden & extends from windshield aft)
• Compass cover, SUNBRELLA Dark Blue
• Chart Plotter / GPS cover, SUNBRELLA Dark Blue

Safety

• M.O.M. Safety (note: mounted on stern rail)
• USCG gear (PFD's, horn, bell)
• Fire extinguishers
• Emergency tiller
• (2) Lifeline tether attachment points, stainless steel (note: in Cockpit at Companionway & Helm Station)

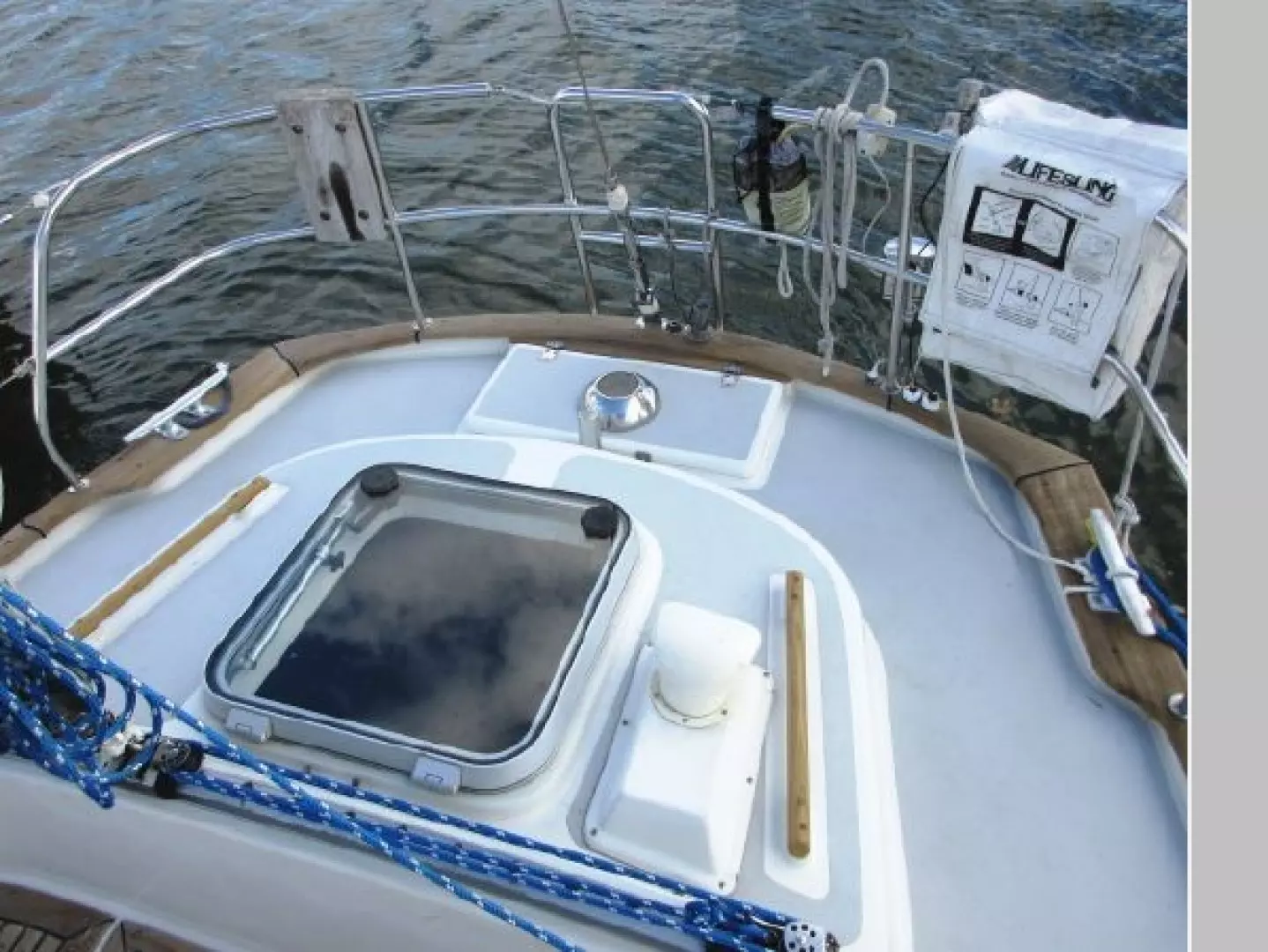

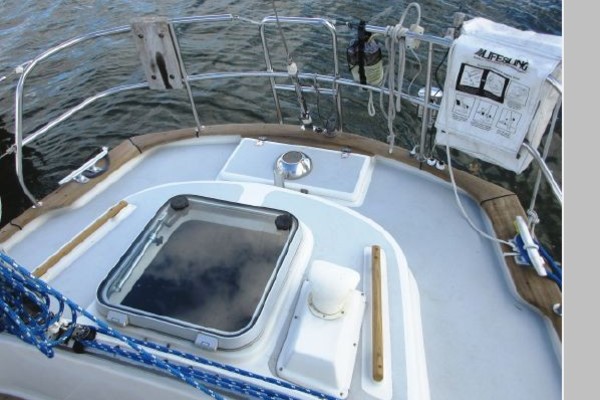

• LIFESLING (note: mounted on stern rail, port side)
• (4) Buoyant seat cushions, throwable

Misc

• Dock lines & fenders
• Swim ladder, folding. stainless steel (note: mounted at transom)
• Yacht ensign w/ teak jackstaff
• Cockpit table, removable, varnished (note: stored in custom rack in Cockpit seat locker, starboard side)
• Angle of Heel Indicator (note: installed in Cockpit)
• WINDEX Spar-fly
• (2) Drink holders for (2) glasses (ea) (note: installed on Binnacle guard
• Outboard motor mount pad, teak (note: installed on stern rail starboard side)
