1981 C&C 40' _{(12.19 m)} 40 TR/DK

Overview

Hull & Deck

The C&C 40 TR/DK is constructed with a hand-laid up fiberglass hull with balsa coring for strength & weight reduction.

• DARK BLUE AWLGRIP topsides (2008)
• RED Boot-top
• GOLD Cove Stripe

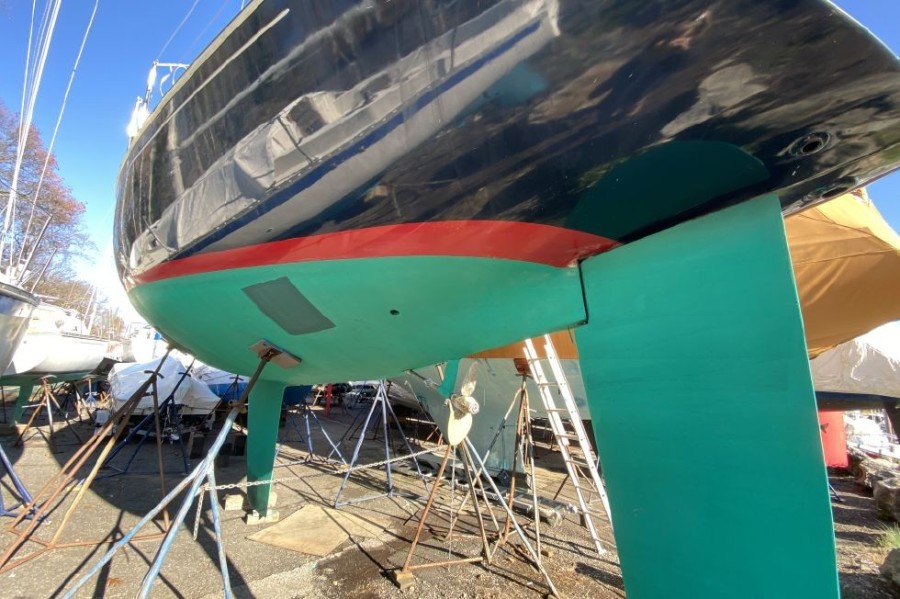

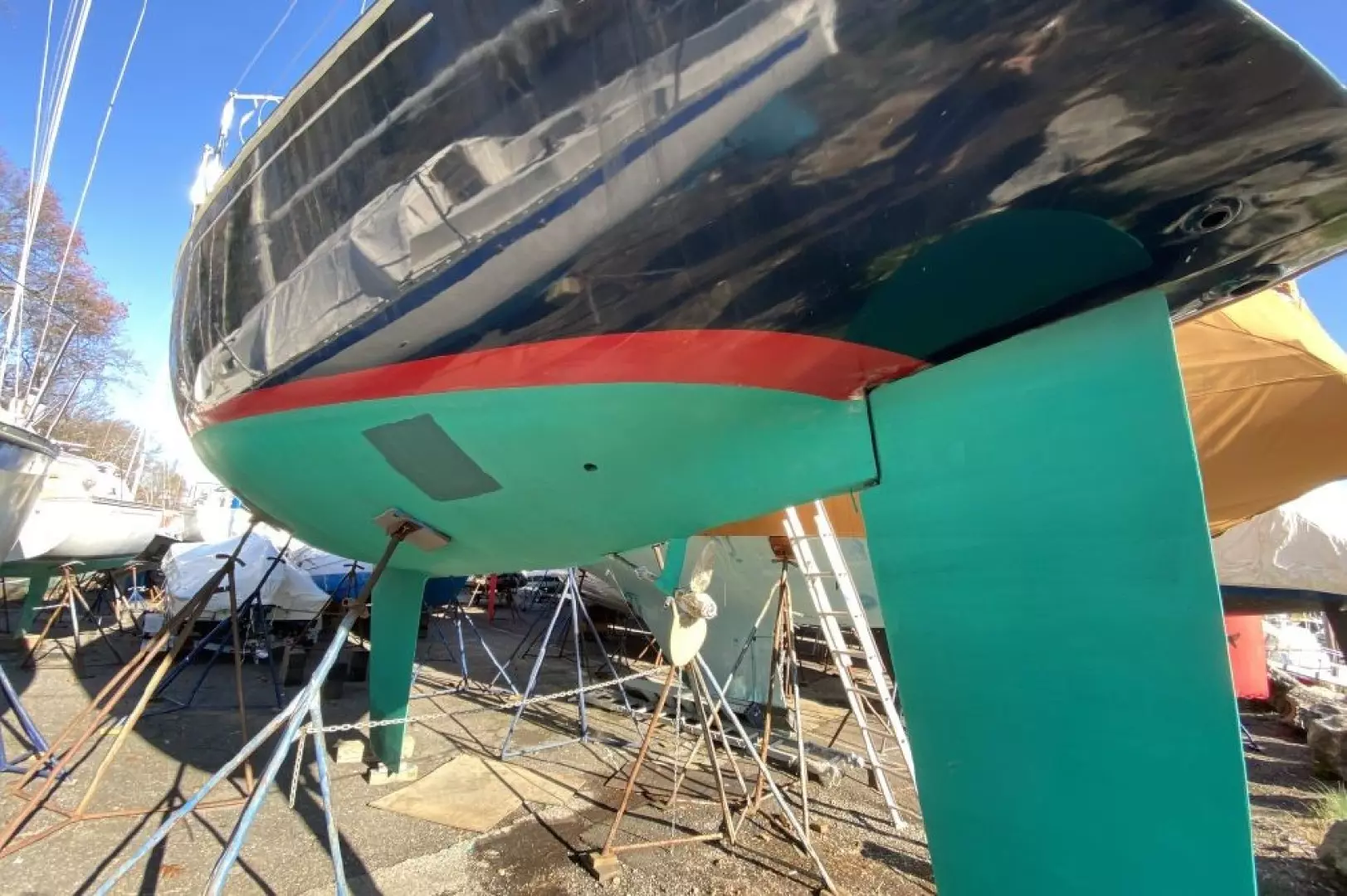

• Lead keel, external ballast (note: draft 7')
• Deep Keel Factory Option: external ballast 300# lead shoe bolted on & faired (note: adds approximately 4-6" to Standard Draft to total 7.5')
• Deep Keel Ballast: 9,095# (note: standard 8,795#)
• Deep Keel Displacement: 18,285# (note: standard 17,985#)
• Spade rudder
• Bottom job w/epoxy barrier coat, Aqua paint, wet sanded for racing finish (2020)

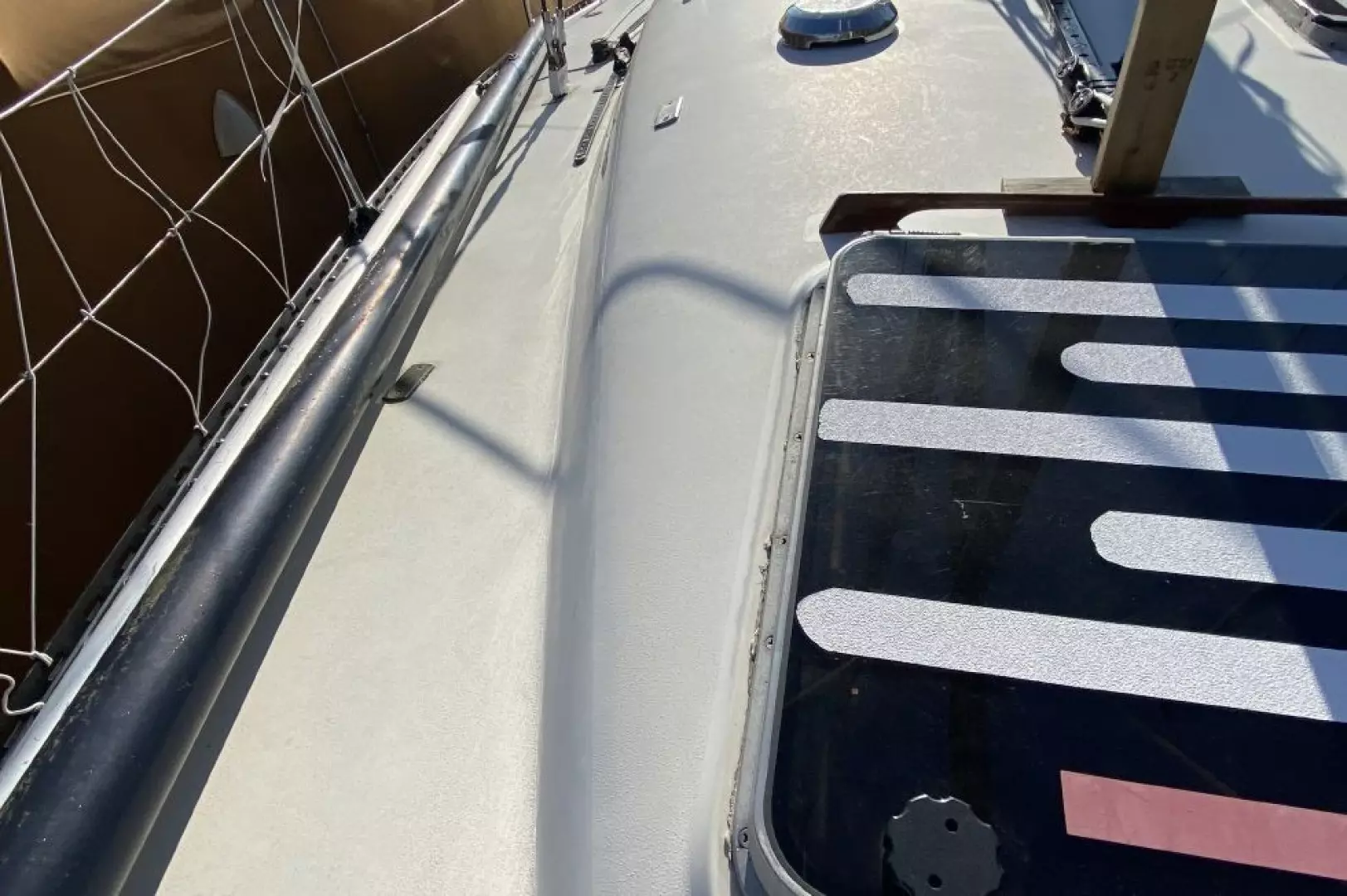

• DeckOFF WHITE Awlgrip for coachroof, side decks & cockpit

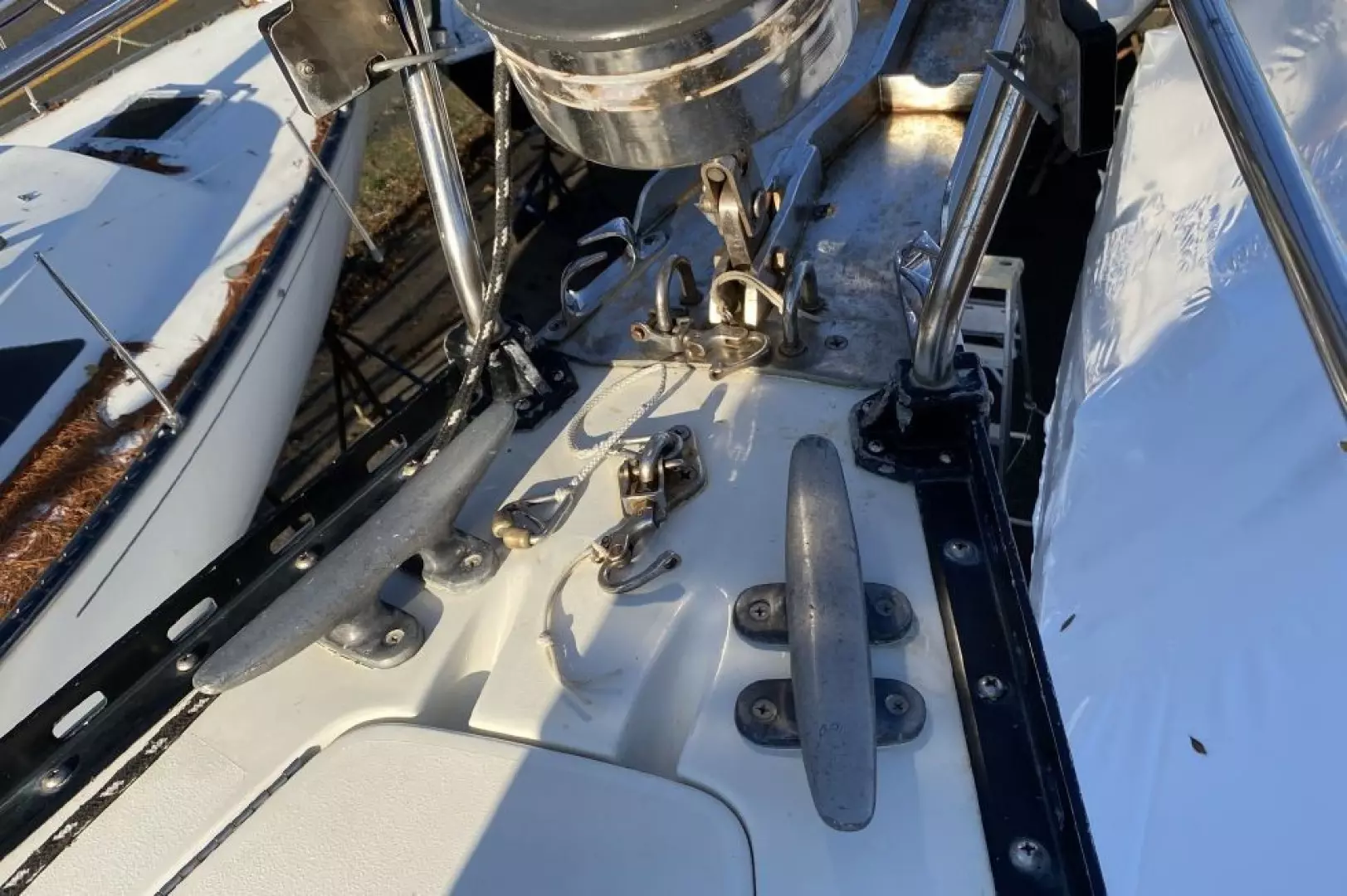

• Bow pulpit, double rail, stainless steel
• Stern rail w/gate for top rail (bottom rail solid), stainless steel
• Stainless steel swim ladder
• Double lifelines w/gates port & starboard, 1x19 stainless steel wire
• Toe Rail, black anodized aluminum
• Custom stainless steel bow anchor roller

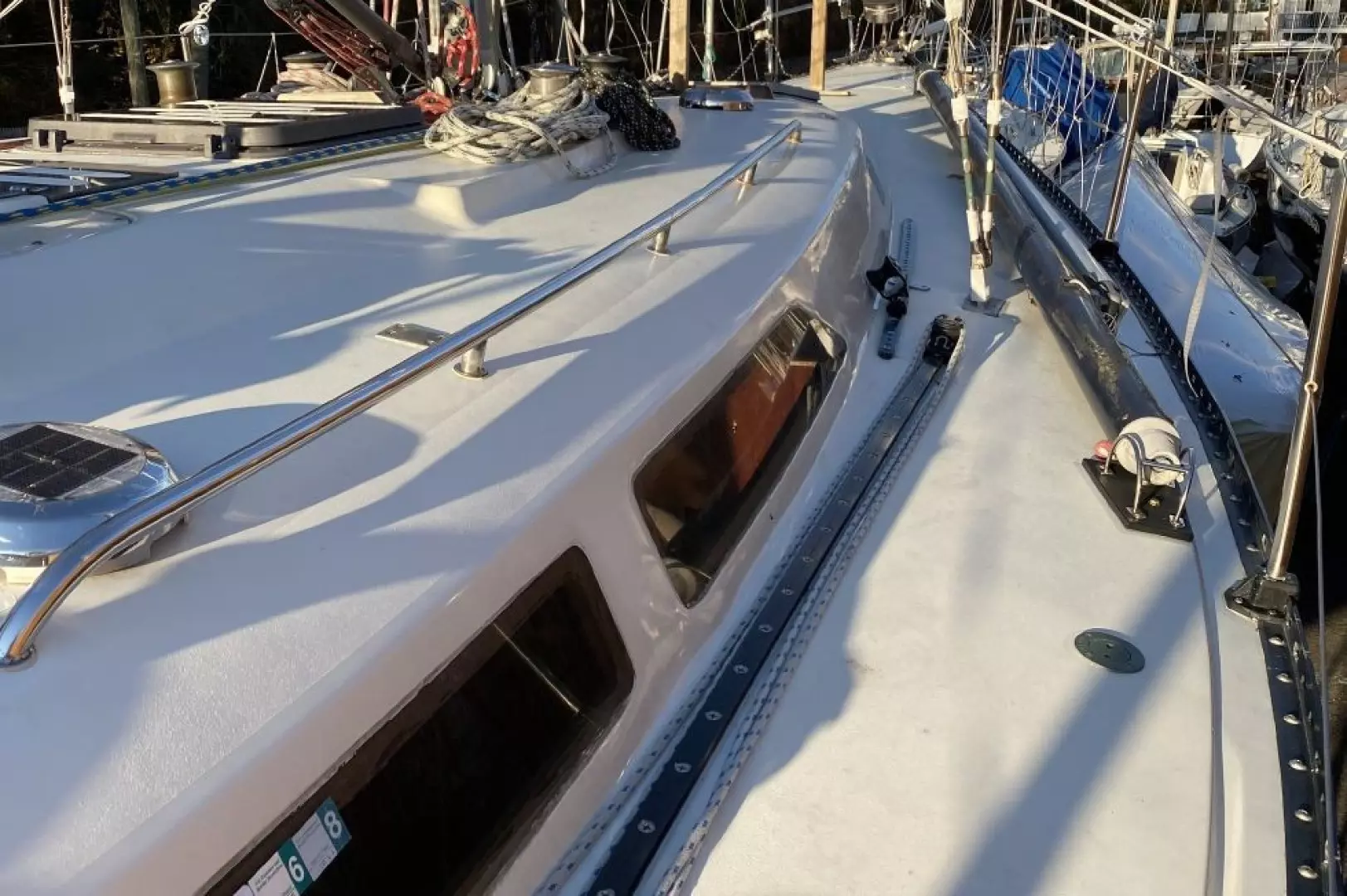

• Stainless grab rails on coachroof
• (1) Storage locker on coachroof, aft of main hatch, w/ non-skid strips
• Custom bow anchor roller, stainless

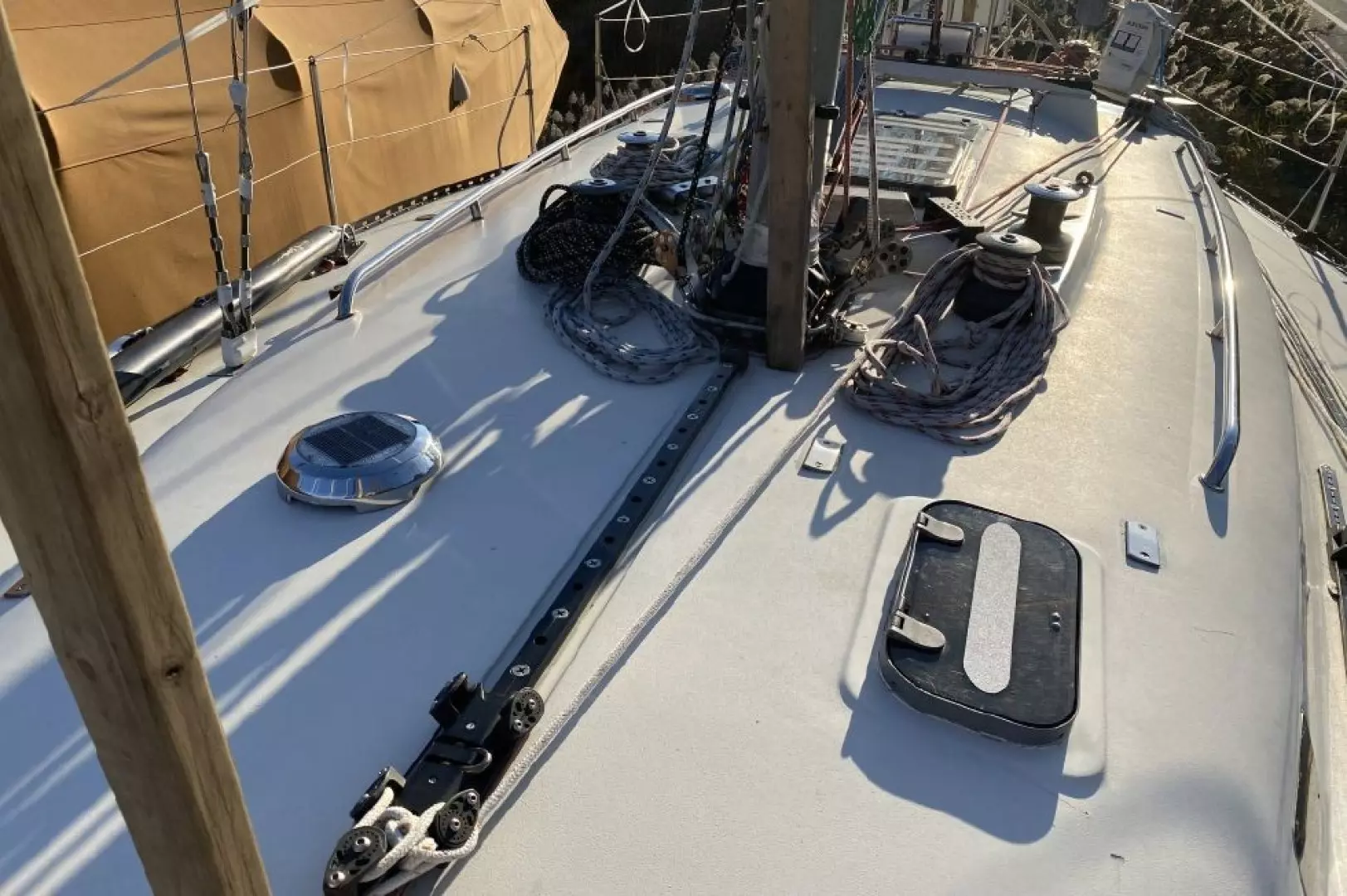

• (2) NICRO vents on coachroof, solar-powered
• (4) Portlights in Salon, large (replaced & re-bedded)
• (2) Portlights, in Head & above hanging locker, small

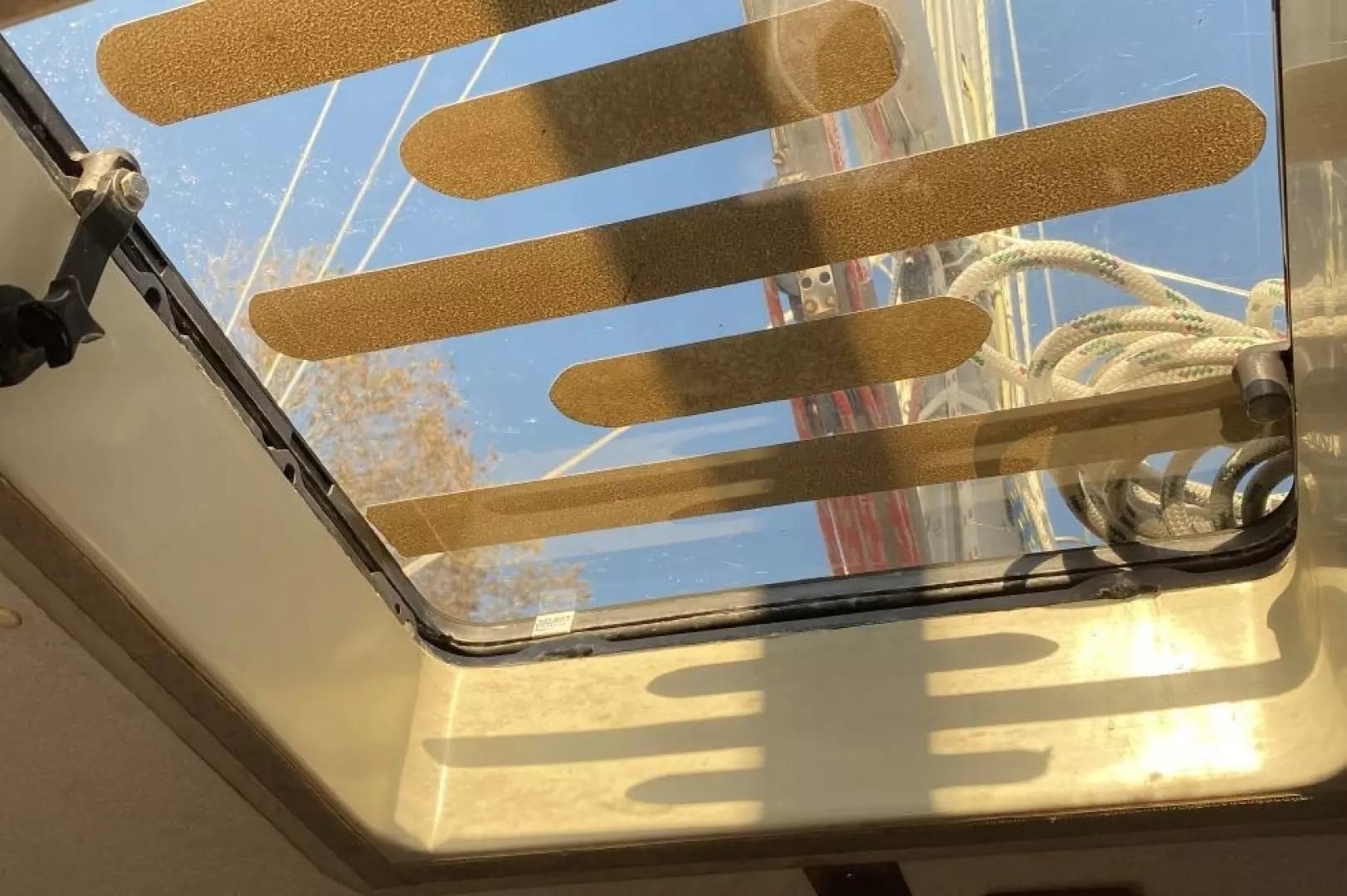

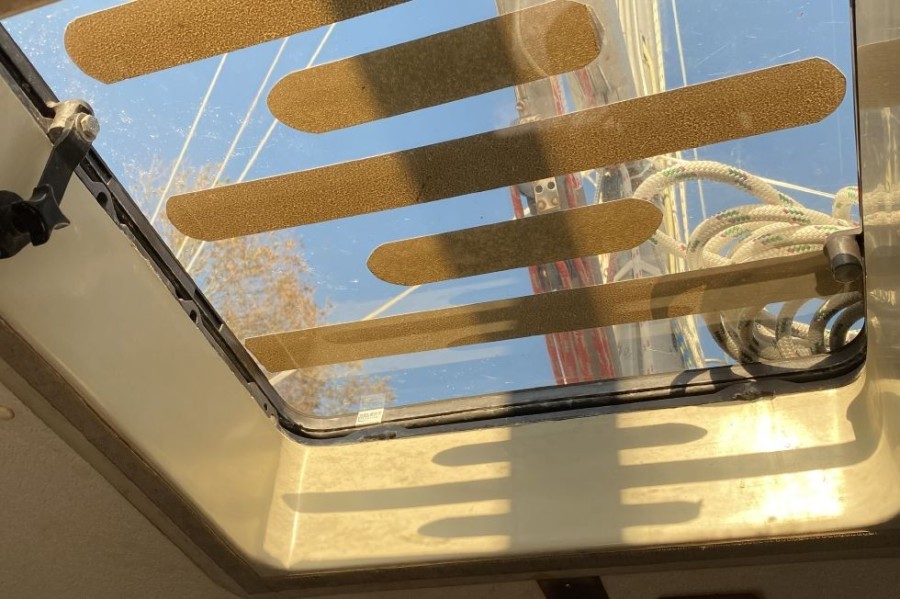

• (2) BOMAR Deck hatches (Salon and Fore Cabin) w/aluminum frames, opening (Note: New hatch glass, SELECT PLASTICS)
• (1) BOMAR Deck hatch, small (Head)

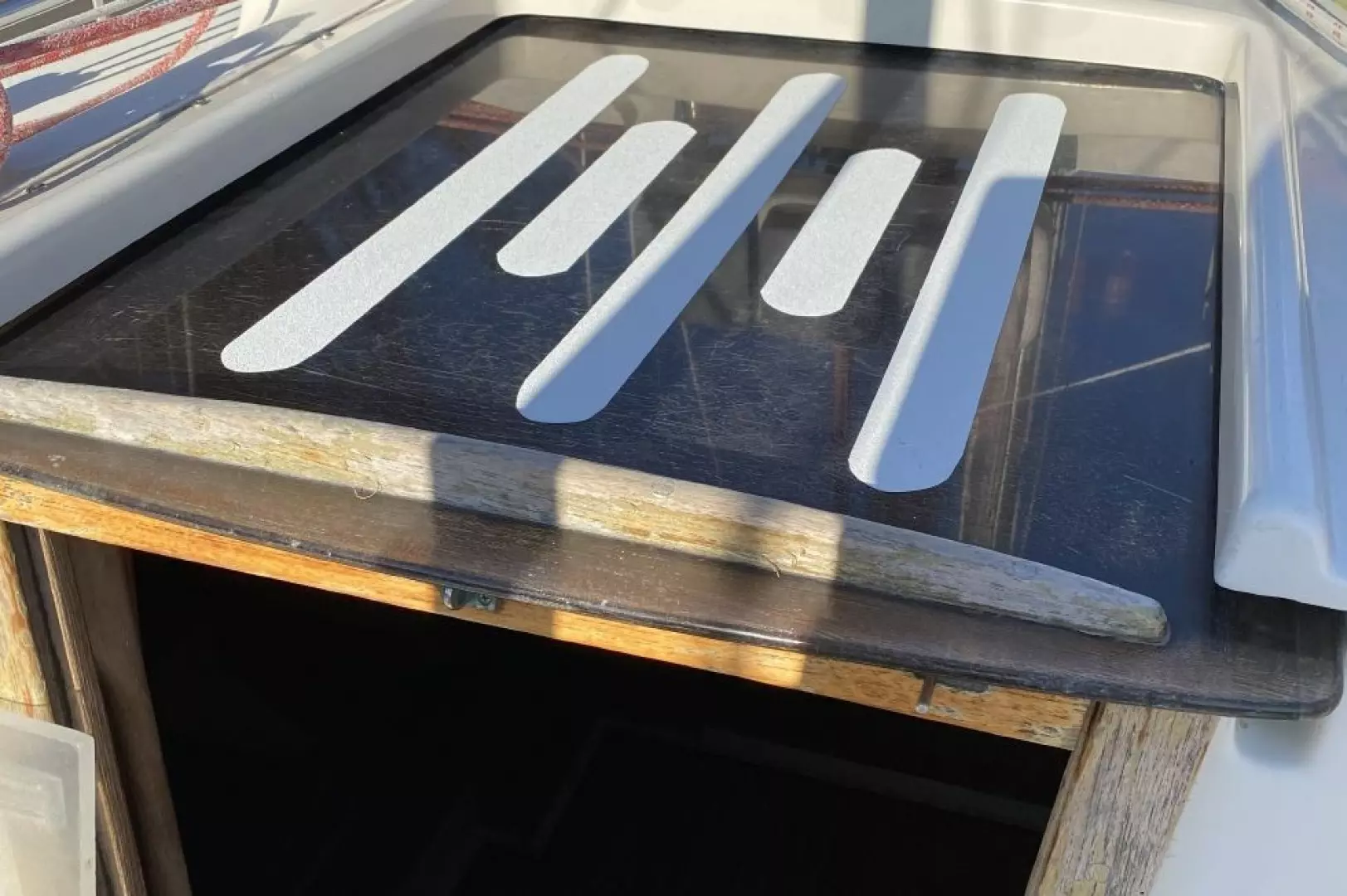

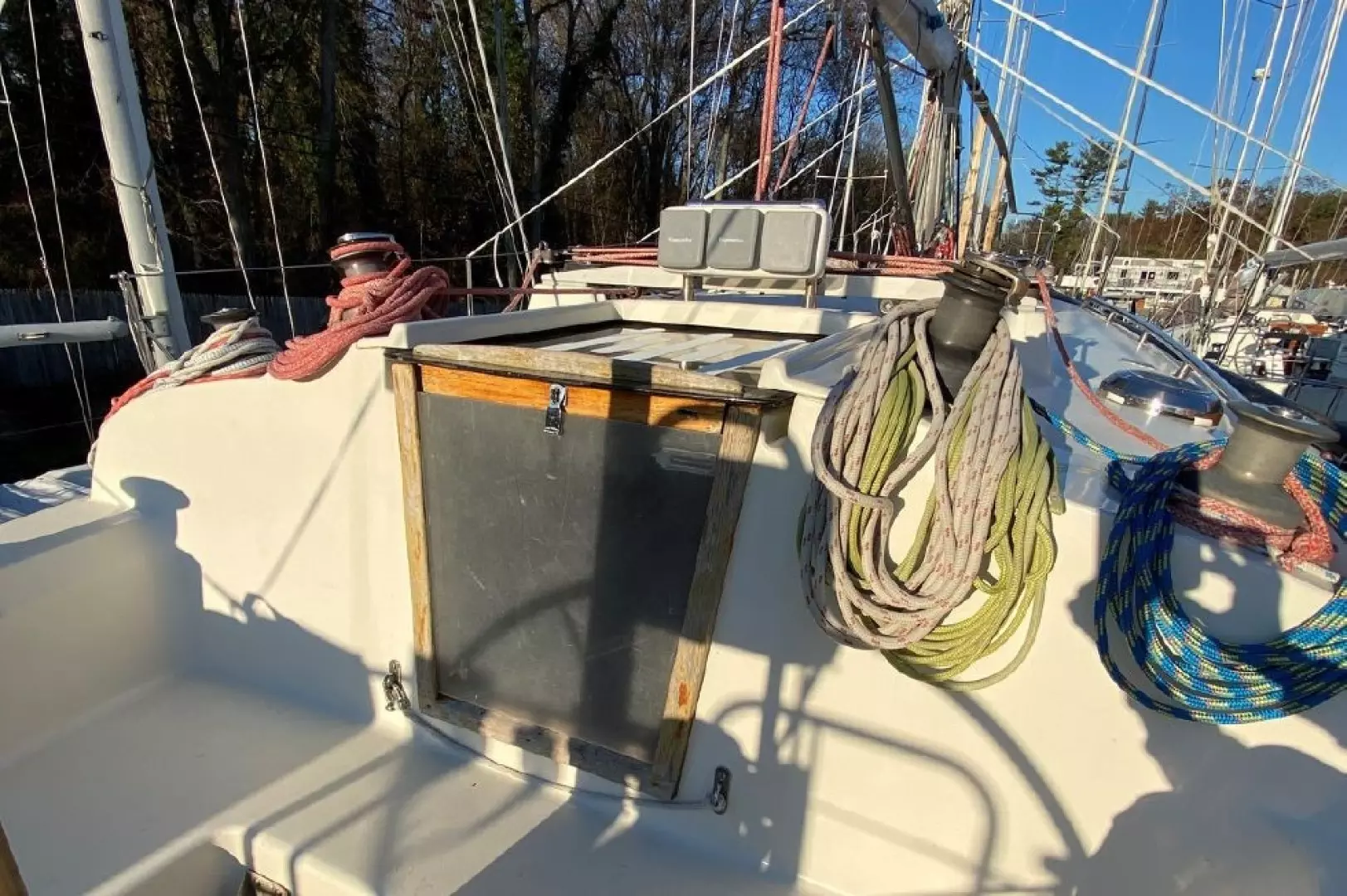

• Companionway hatch, sliding LEXAN w/teak frame and non-skid strips
• (1) Companionway LEXAN board

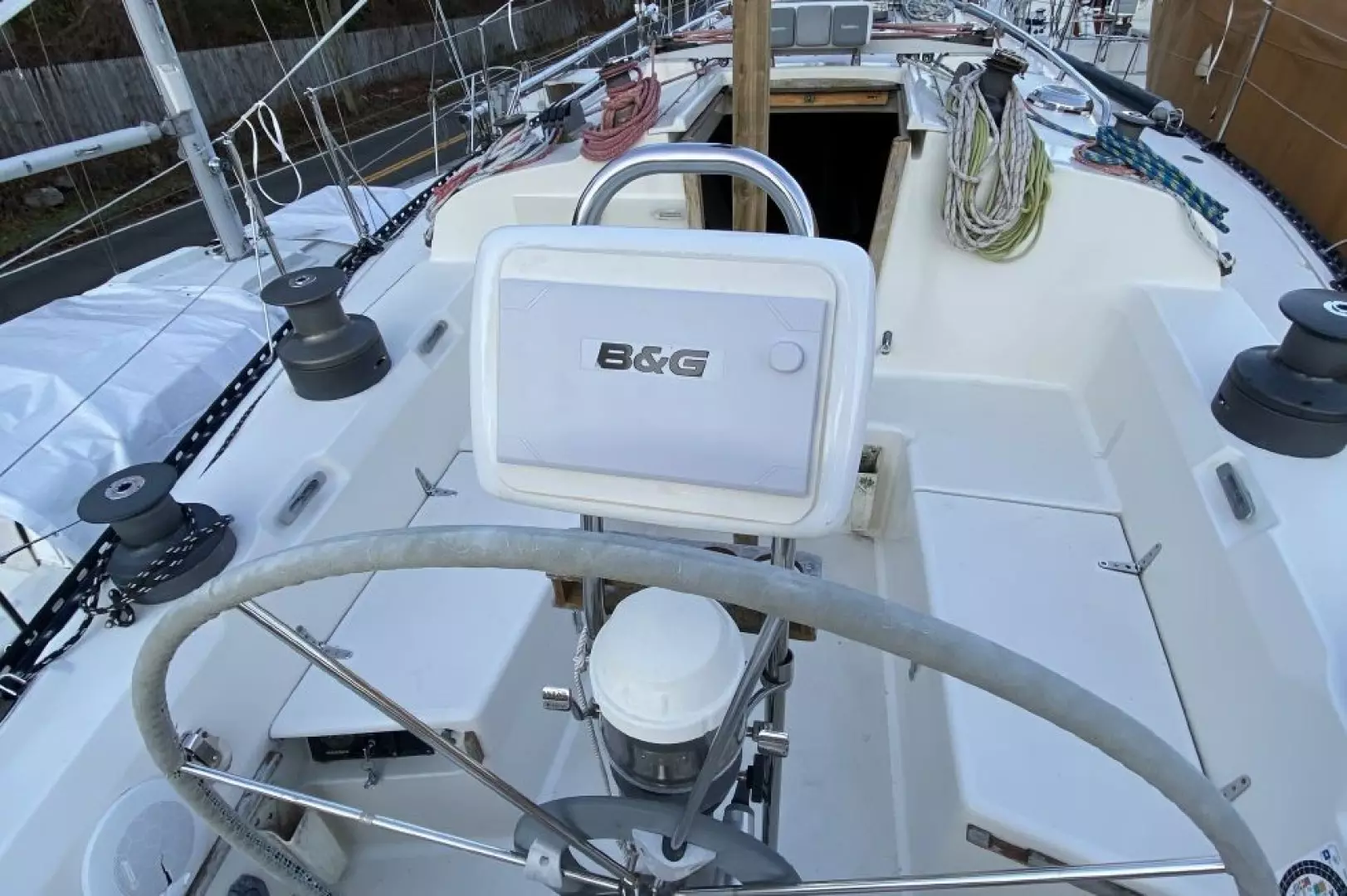

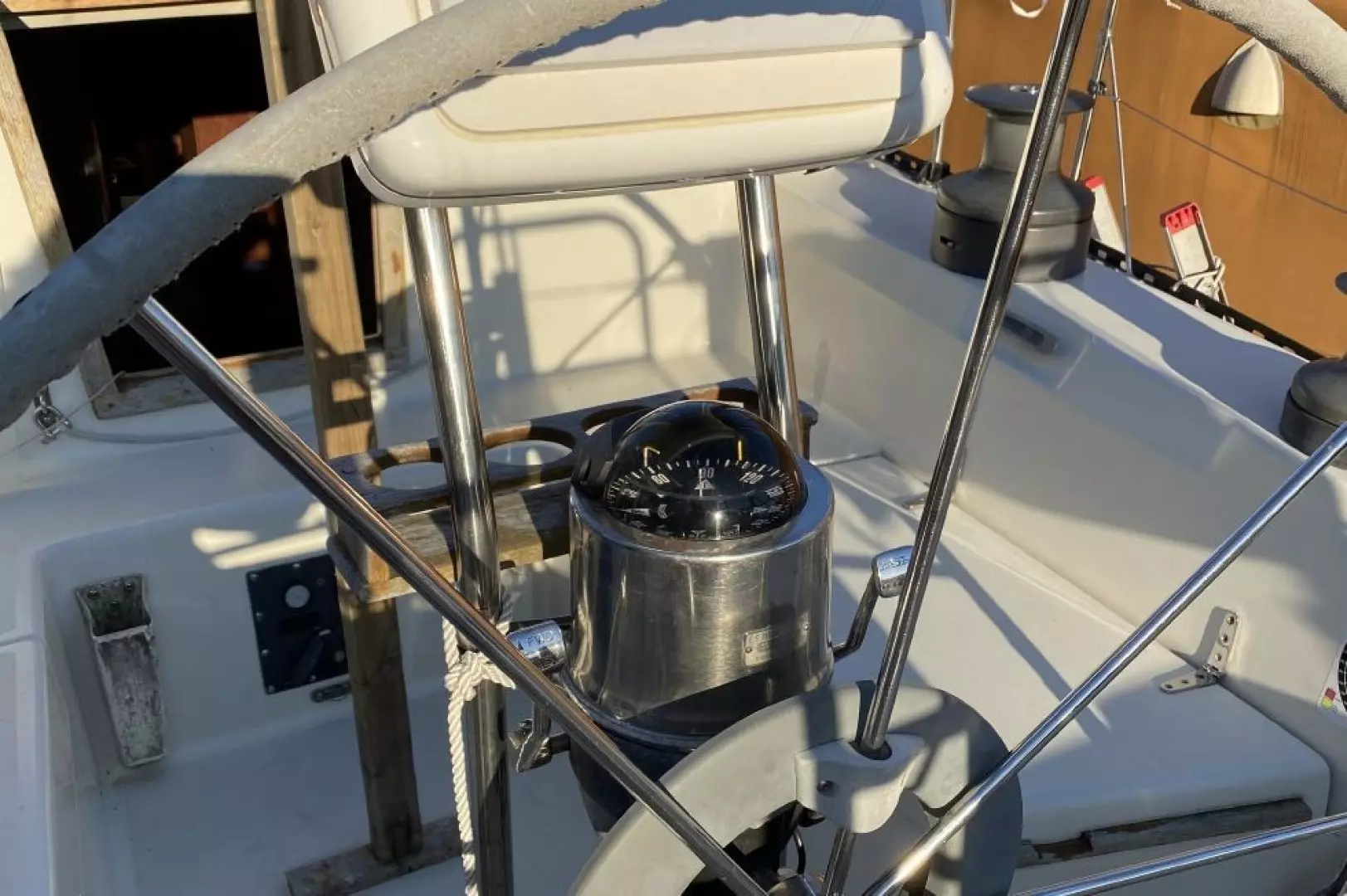

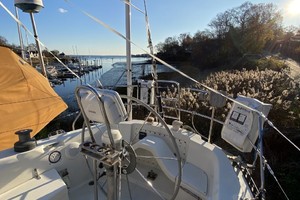

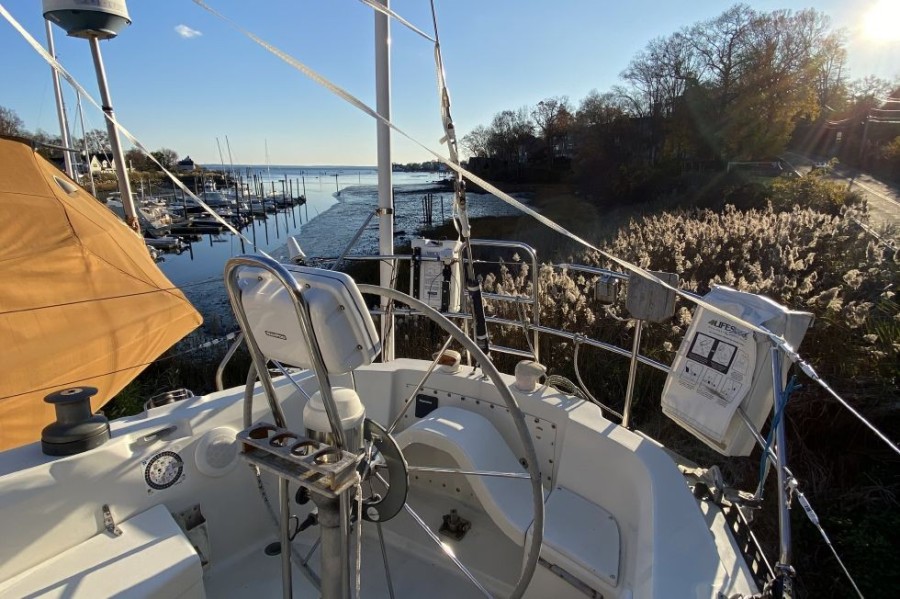

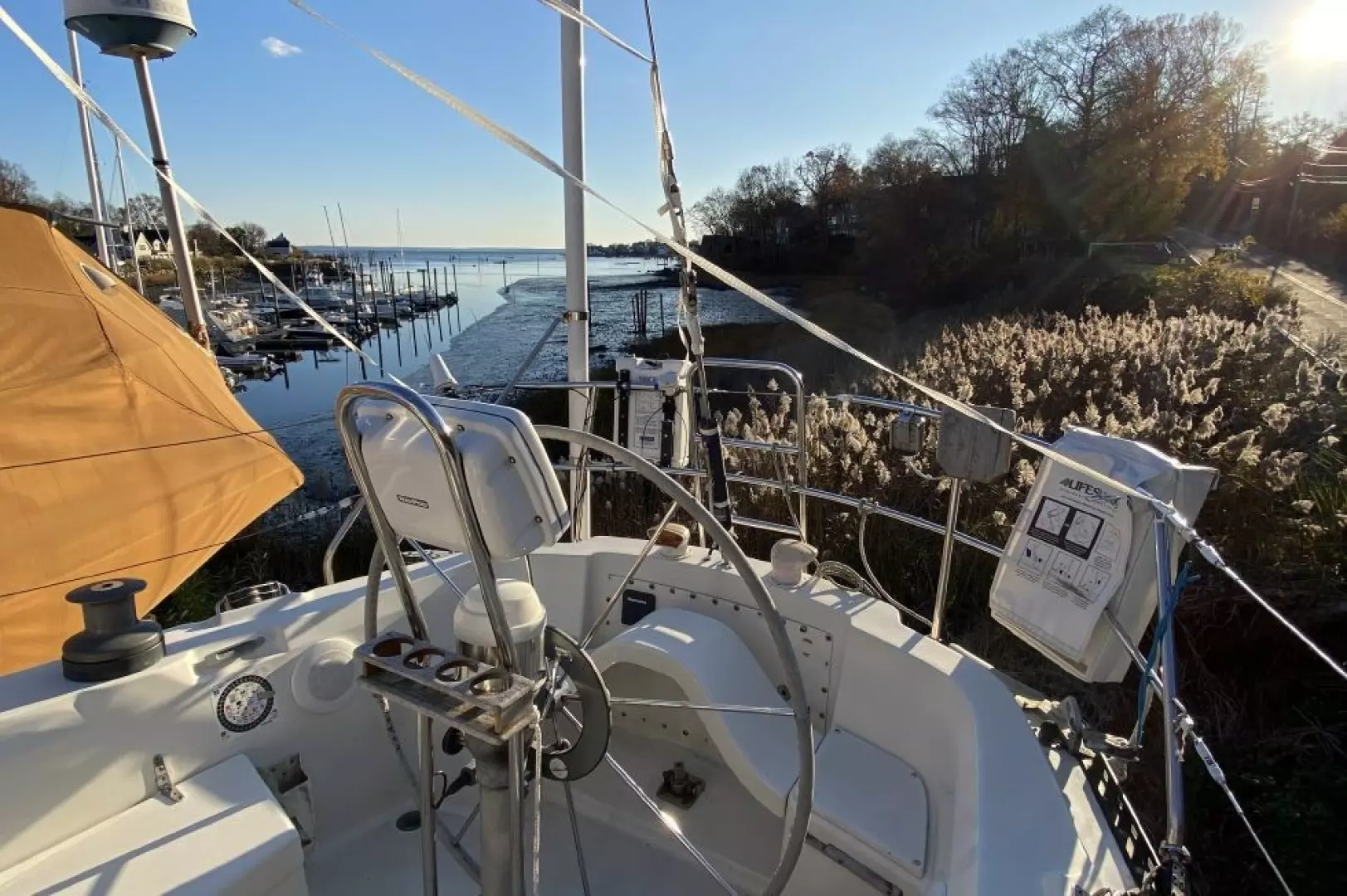

• EDSON Wheel steering w/stainless 48" wheel w/elk-hide covering, binnacle guard & brake (note: engine controls mounted on the pedestal)
• RITCHIE Binnacle compass w/cover

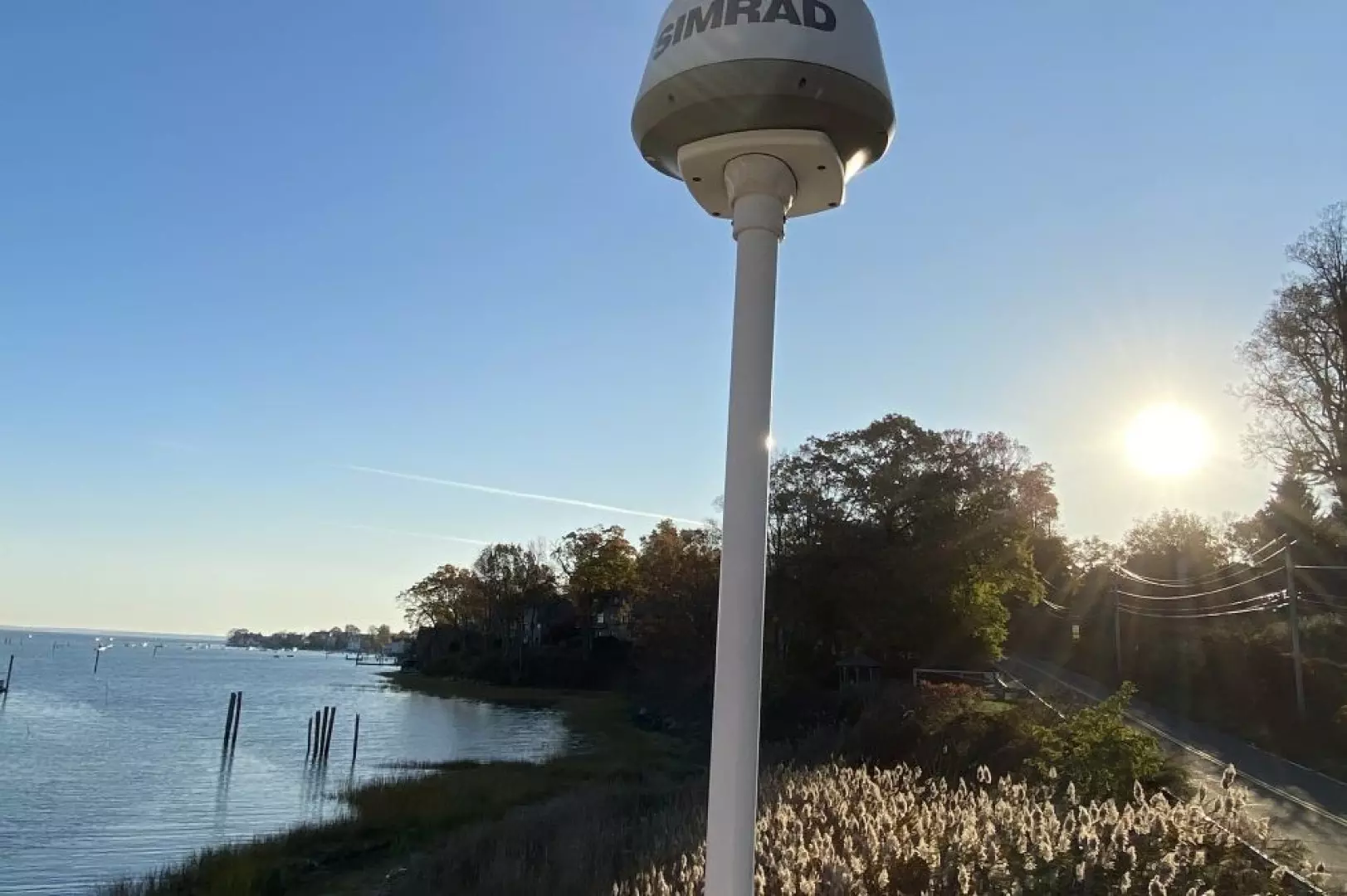

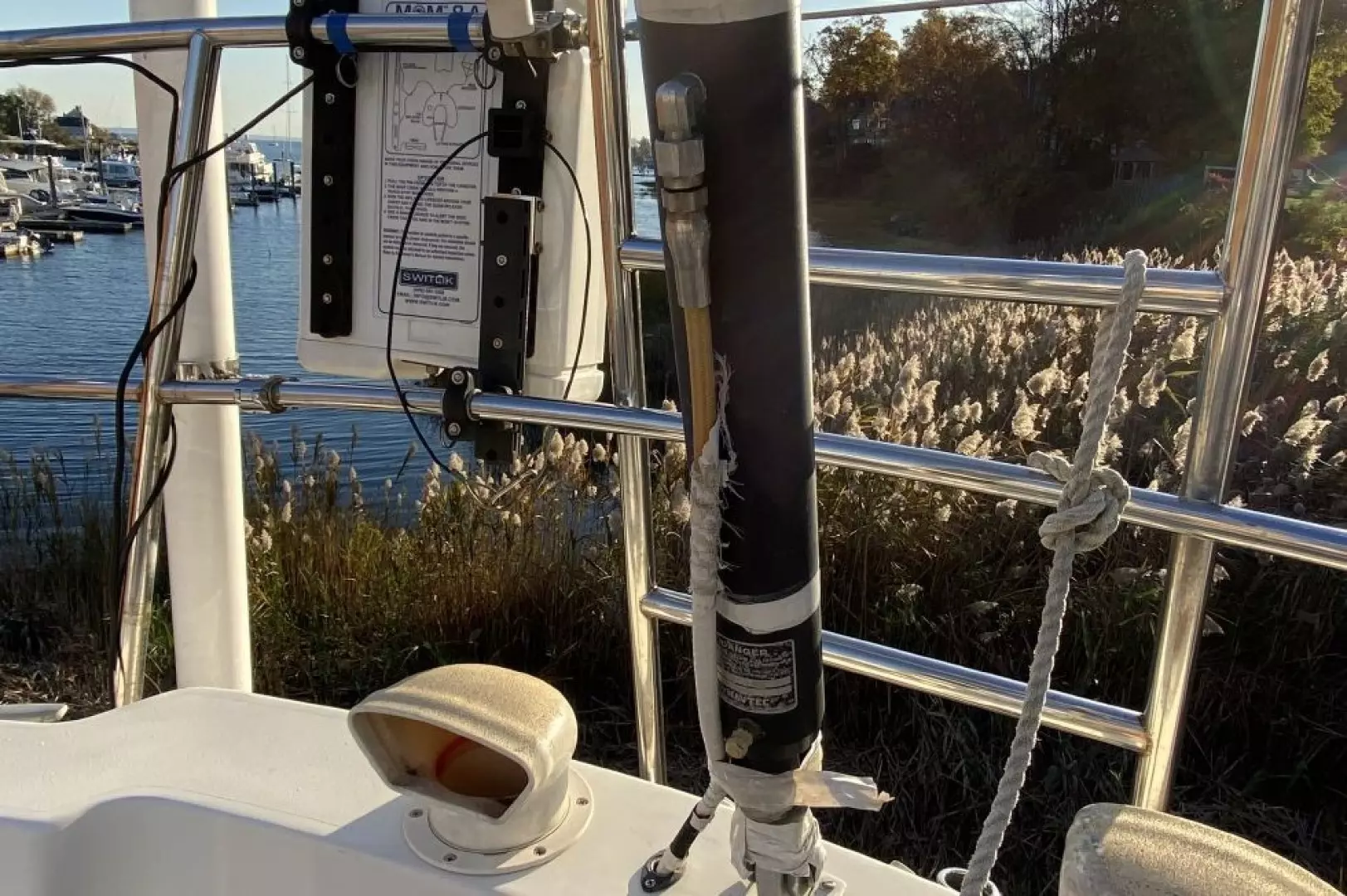

• SIMRAD Radar on post w/pole support, transom, starboard side
• Wood outboard motor bracket on stern rail

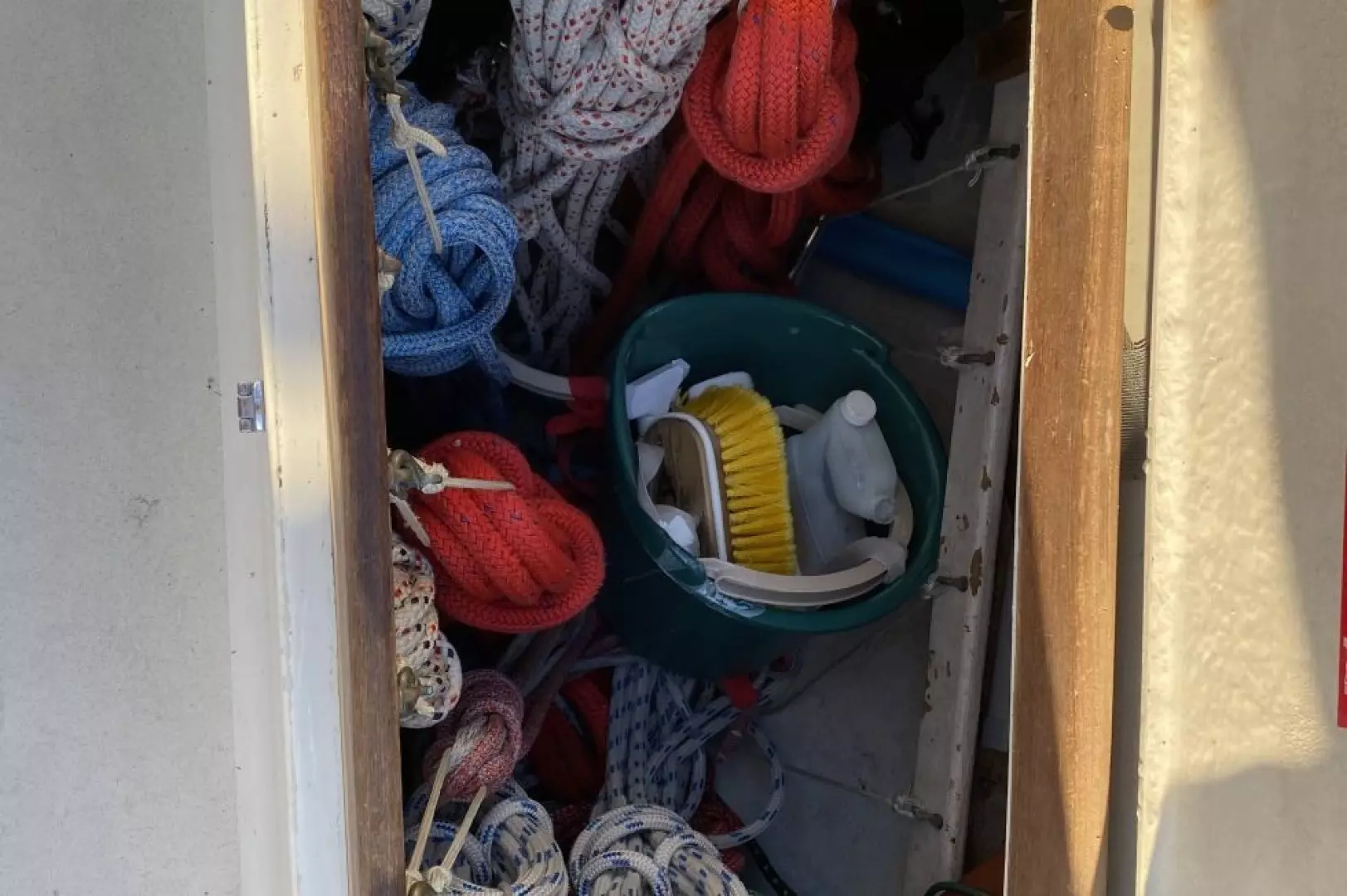

• (2) Cockpit storage lockers
• (1) Lazarette propane locker w/tank (2 gal)
• (2) BOSE Cockpit speakers
• Scupper valves (New 2015)

Rig, Rigging, Sails & Winches

Rig & Rigging

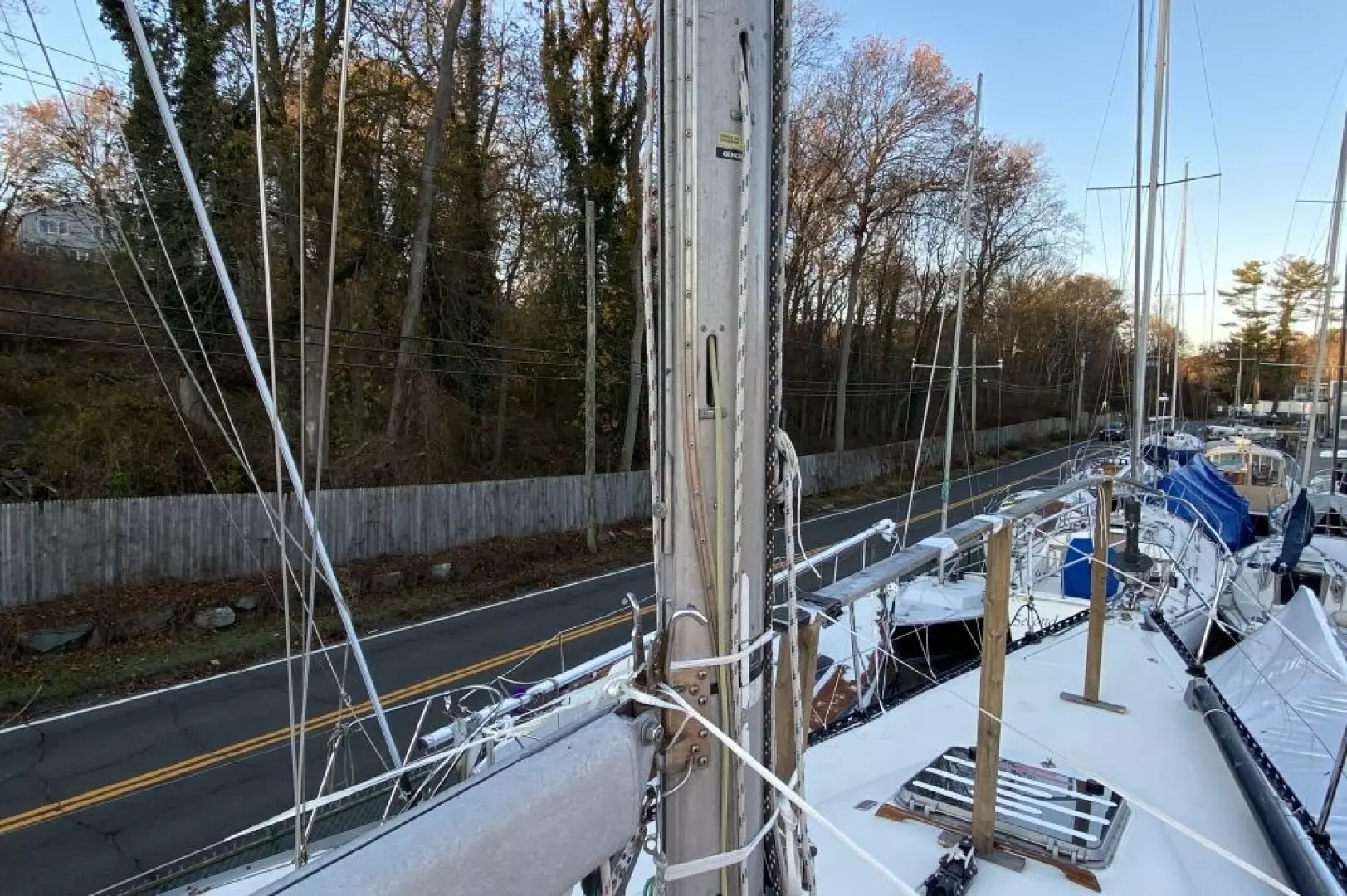

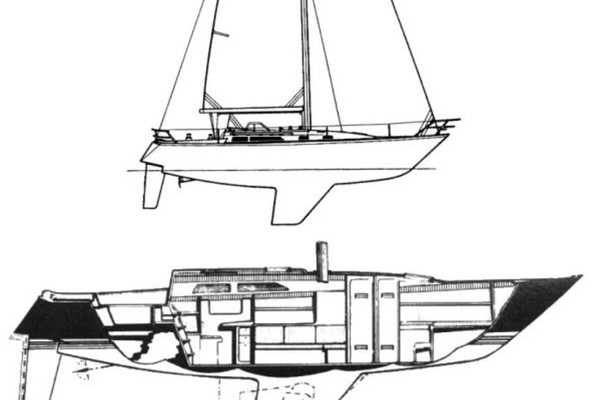

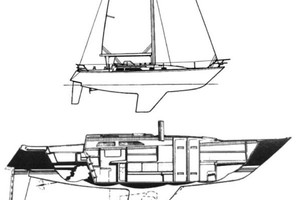

GLIM was produced with the Factory Optional C&C 40 Tall Rig / Deep Keel rig with an "I" dimension of 2.0' more than the Standard Rig. The spar is a silver anodized aluminum (mast & boom) & has a double-set of spreaders & is keel-stepped. The mast has internal halyards.

Dimensions (Tall Rig): I=55.50', P=48.5', J=16.60', E=13.30' Rating (PHRF LIS)   93

• Sail Area (Tall Rig):  779 sq. ft DWL to MH:              61.6' (approximate)HARKEN Roller-Furling
• NAVTEC Stainless steel rod standing rigging (re-headed 2009)
• Running backstays, 1x19 stainless steel wire w/ rope tails

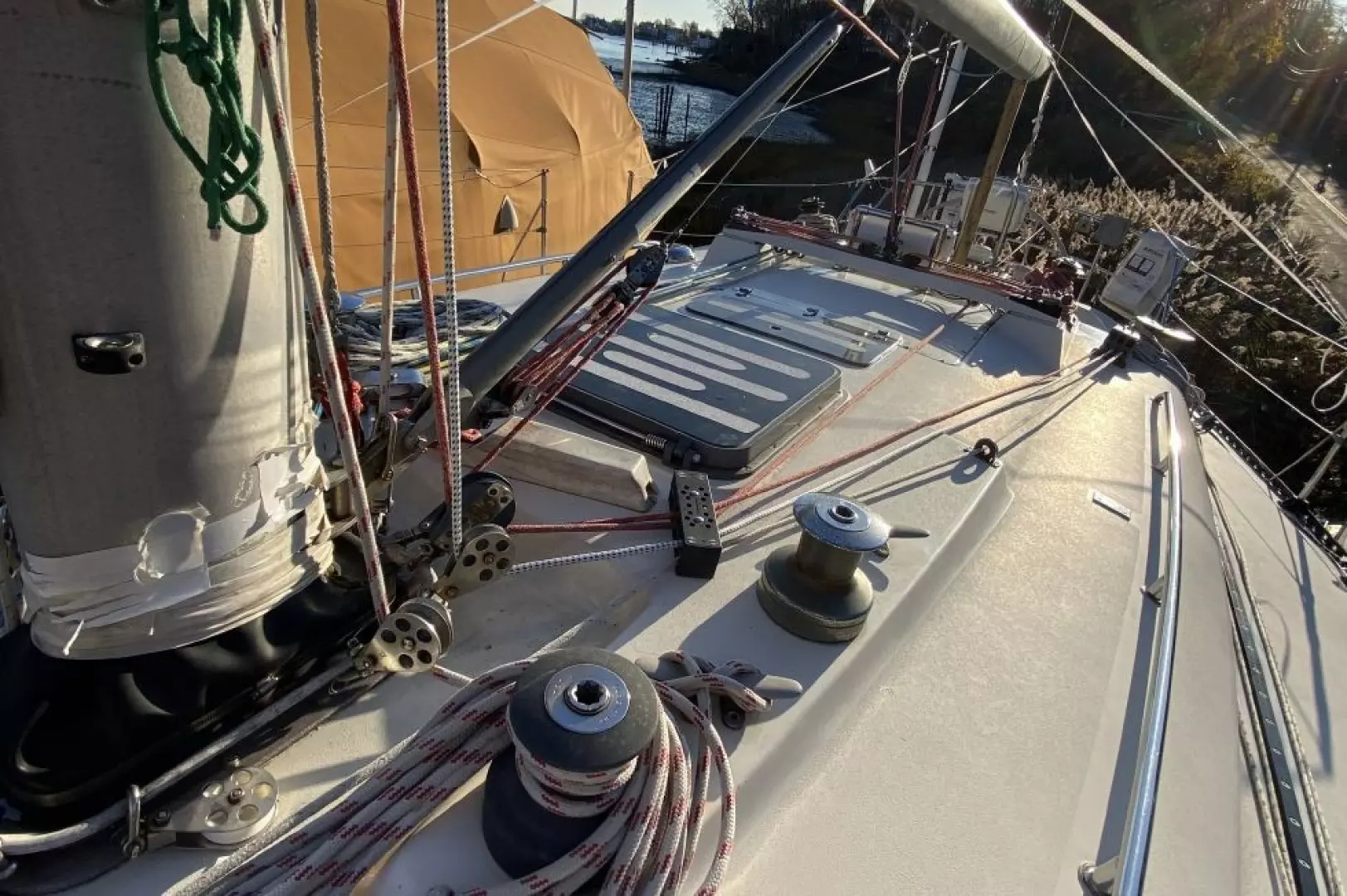

• Lines lead aft to cockpit w/HARKEN line organizers & (2) SPINLOCK triple clutches

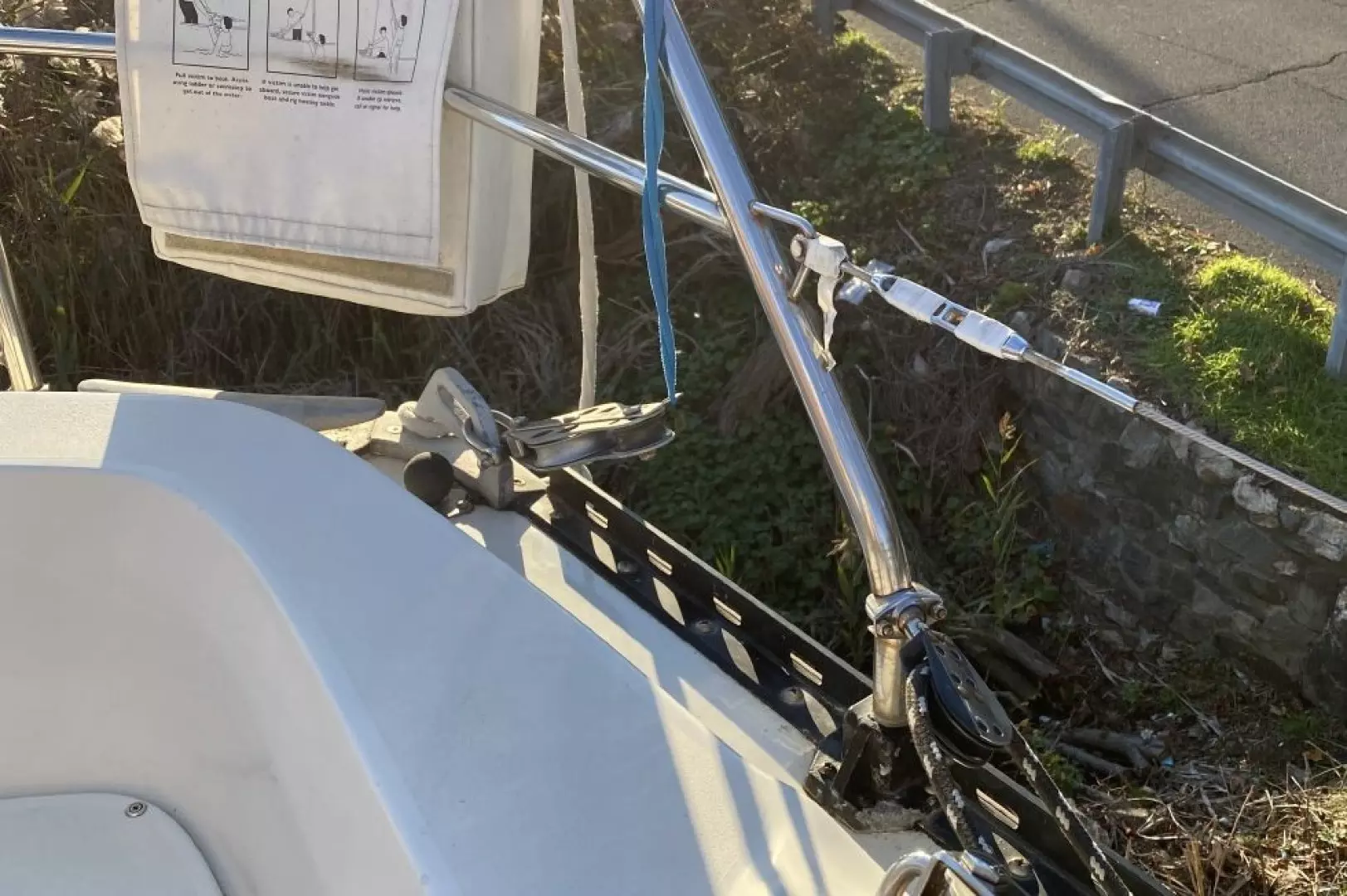

• Genoa tracks, 12' outboard w/ HARKEN ball-bearing adjustable cars
• Genoa tracks, 4' inboard w/ HARKEN cars
• Babystay track, 4' centerline on forward cabintop w/HARKEN adjustment tackle

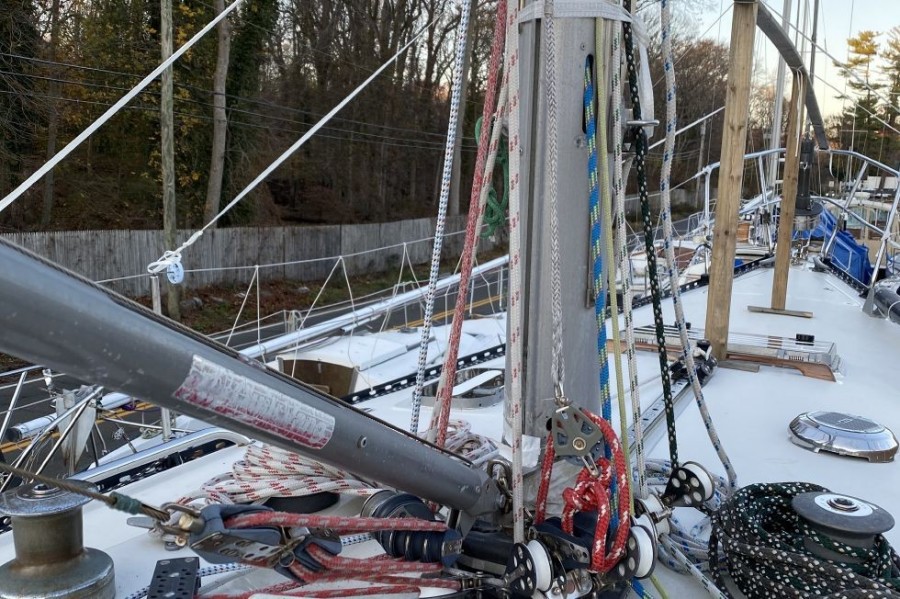

• Spinnaker pole adjustment track, 12' on mast, HARKEN w/spin pole car

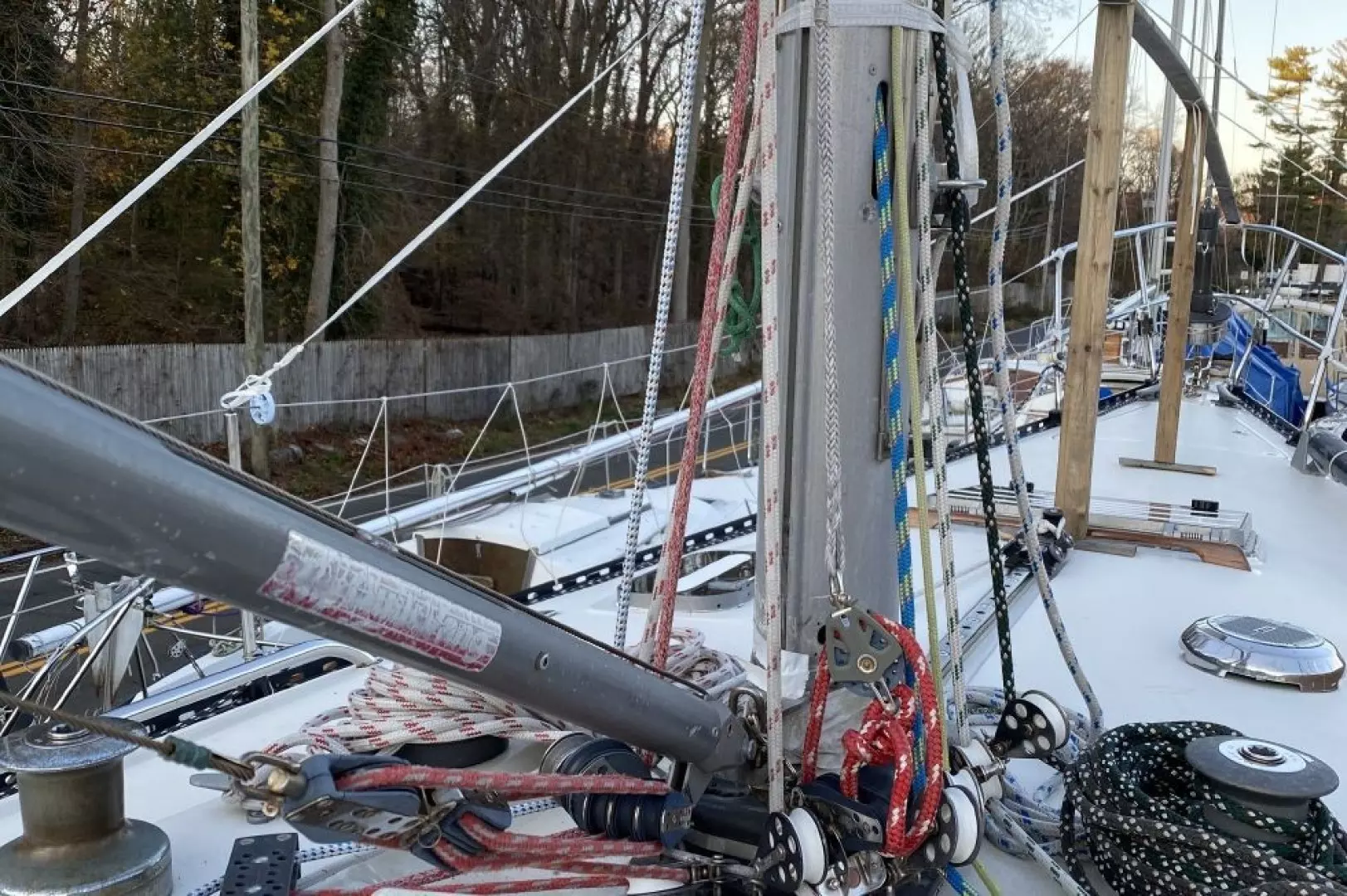

• HALL SPARS Quik-Vang boom vang, rigid / oil w/HARKEN block & tackle
• Backstay adjuster, NAVTEC hydraulic, remote control on aft face of bridge deck
• Mainsheet System w/ HARKEN block & tackle
• HARKEN Cabintop Traveler system with ball bearing car & w/ cross-hauls
• Running Rigging: main, genoa & spinnaker halyards, boom vang control, cross-hauls for traveler, boom tipping lift, reef lines, main sheet
• Four-forward halyard system (2 genoa & 2 spinnaker)
• Spinnaker pole, carbon-fiber, (Note: mounted on starboard side, forward)
• Whisker pole, aluminum, adjustable, (Note: mounted starboard side, forward)

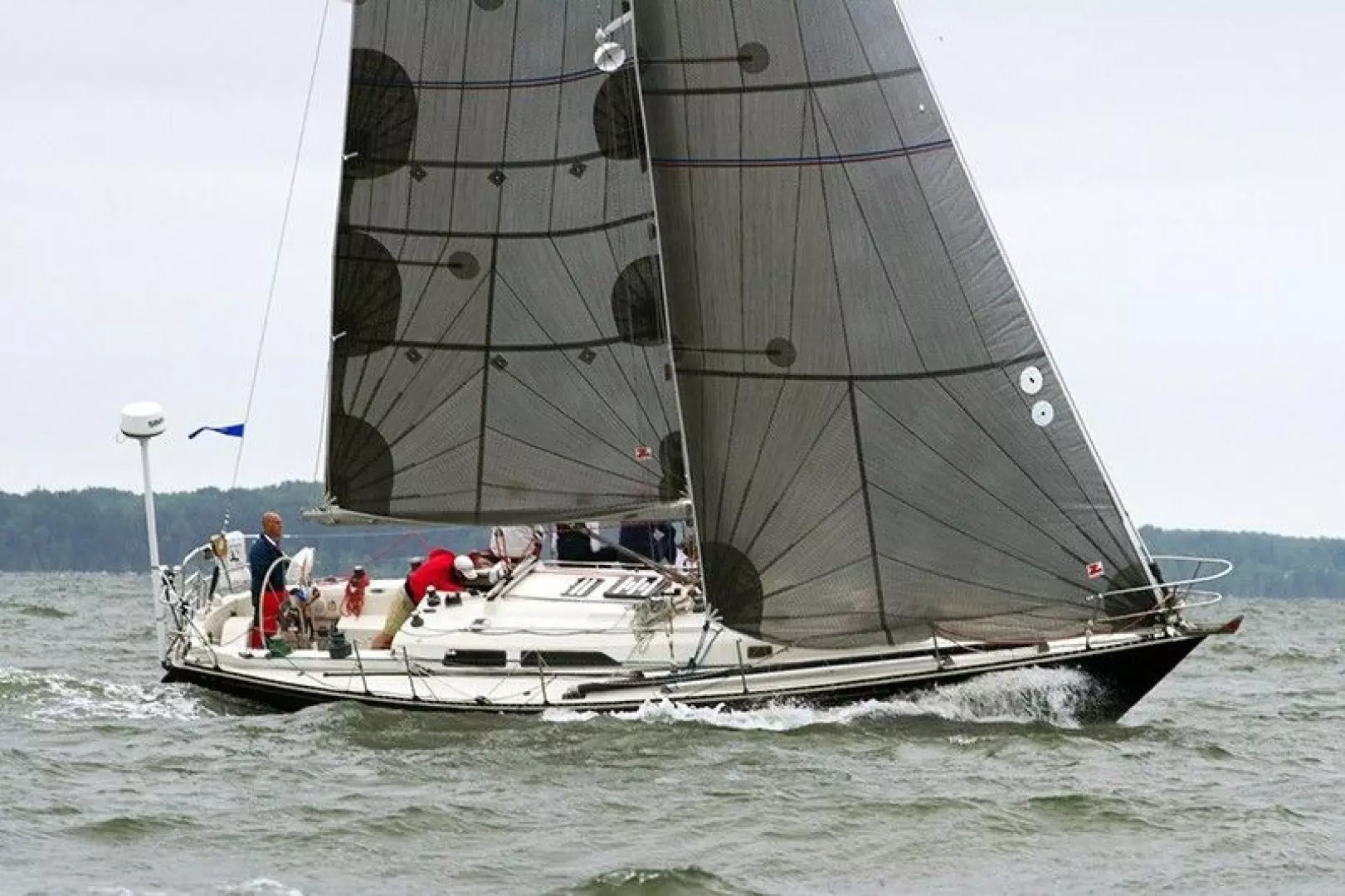

• Sails Mainsail, Racing Carbon w/1 row reef, Z-Sails (2018)
• Mainsail, Cruising Carbon w/1 row reef, Z-Sails (2015)
• #1 Roller jib, Carbon
• #2 Roller jib, Dacron
• #2 Jib, Carbon
• #3 Jib, Carbon
• #4 Jib, Carbon
• Jib Top Reacher, (2020)
• Spinnaker, symmetrical, (2016)
• Spinnaker, A3, (2015)
• Storm Trysail and Jib
• Additional practice sails available

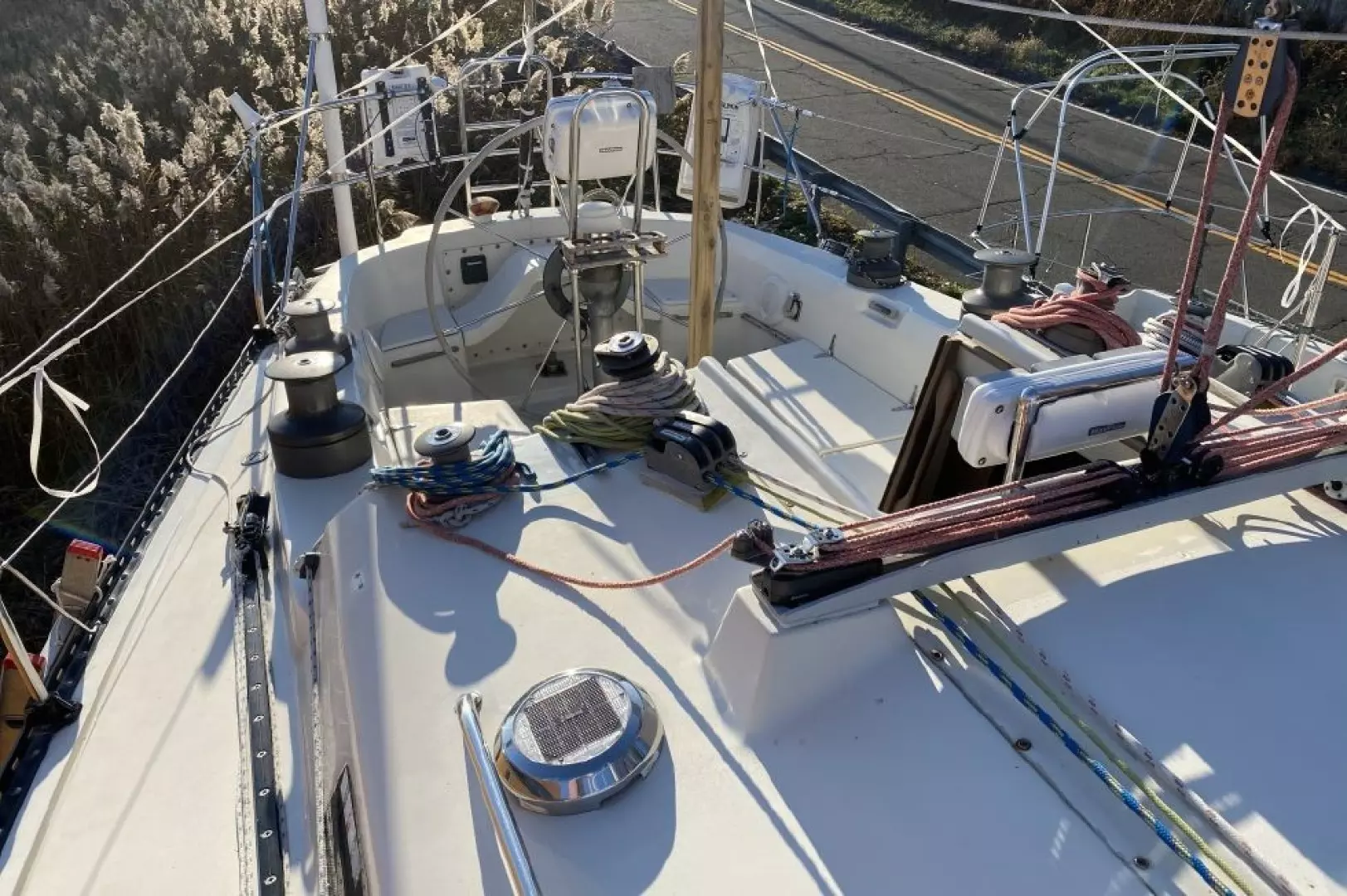

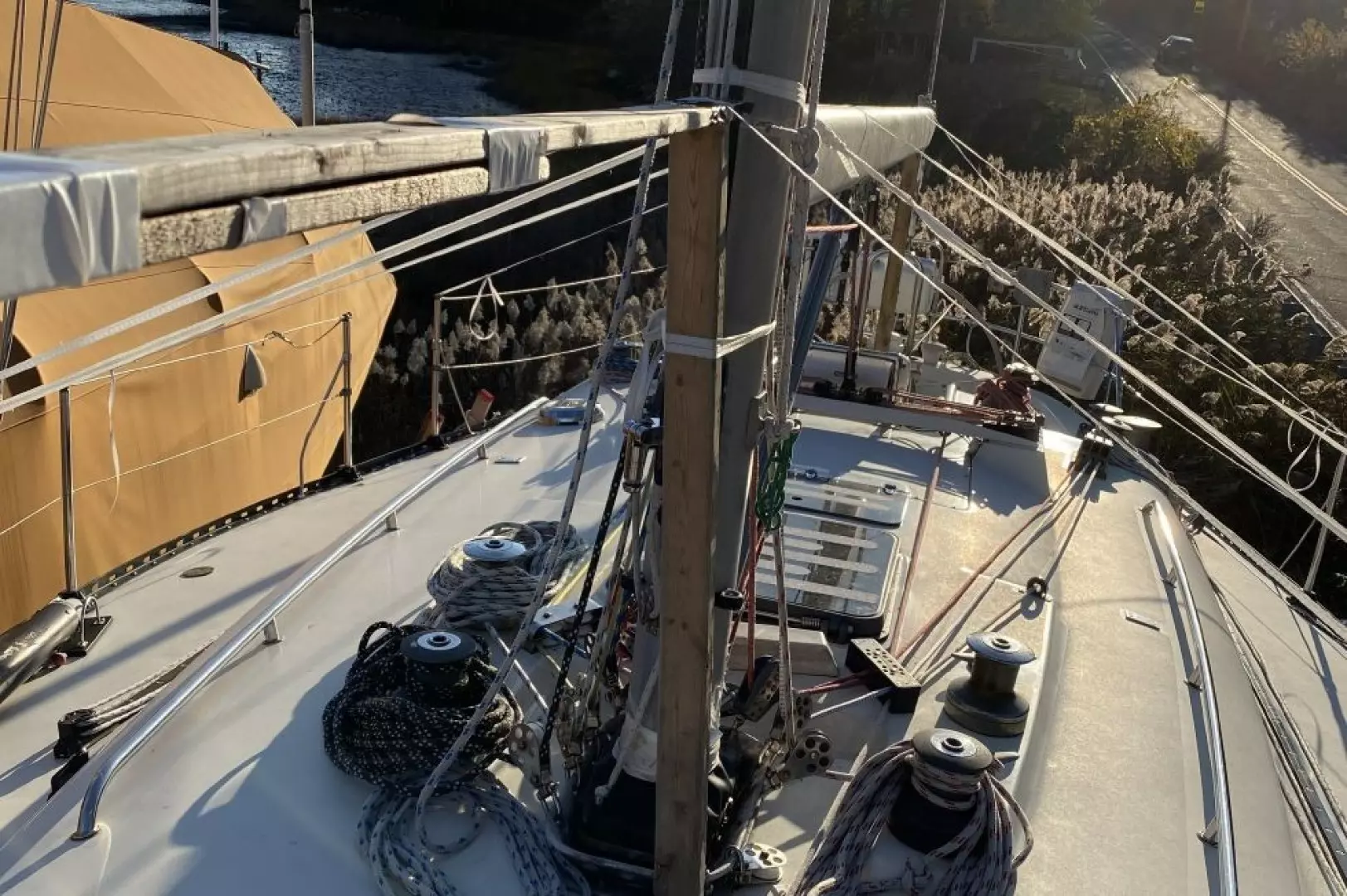

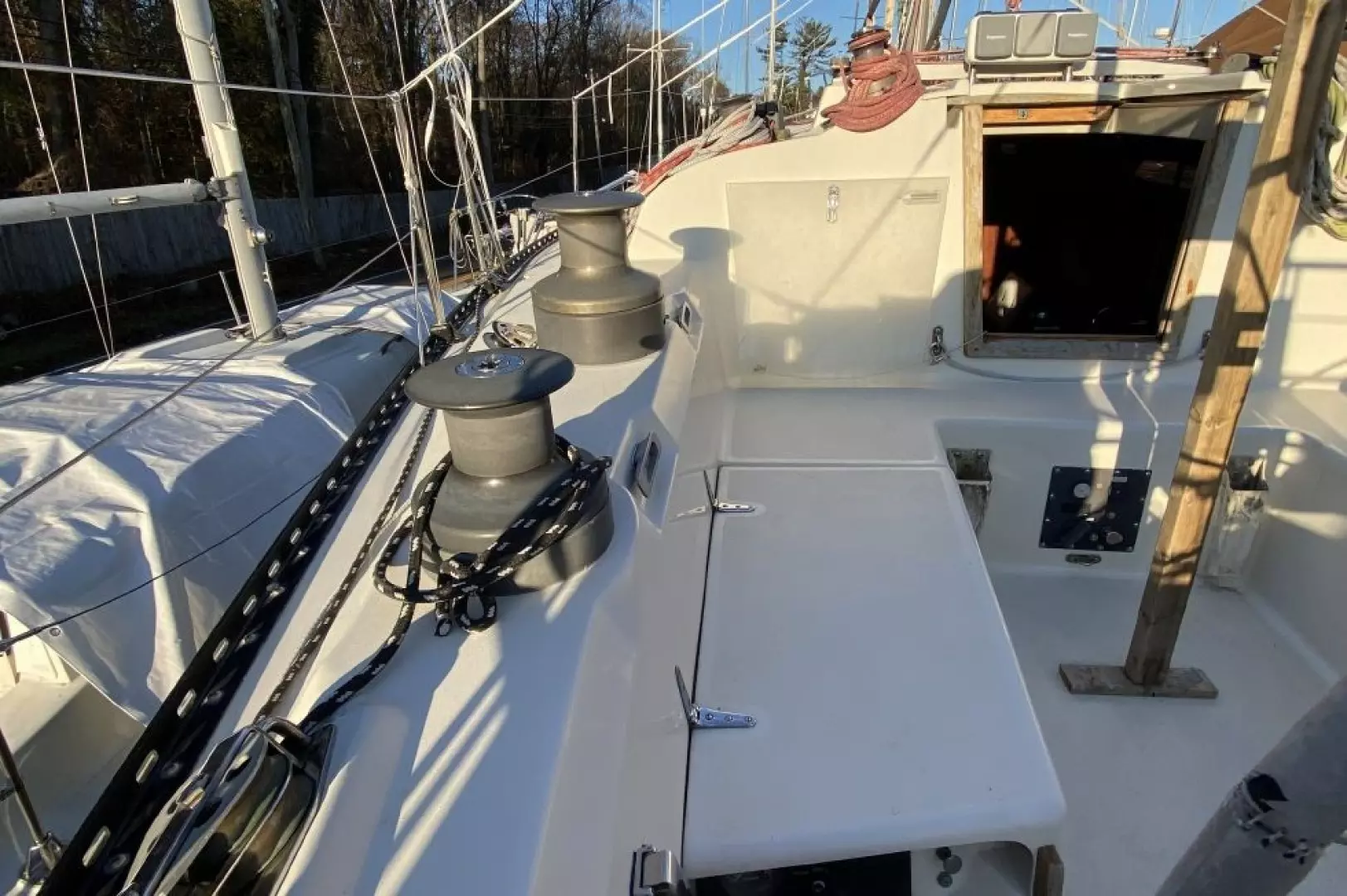

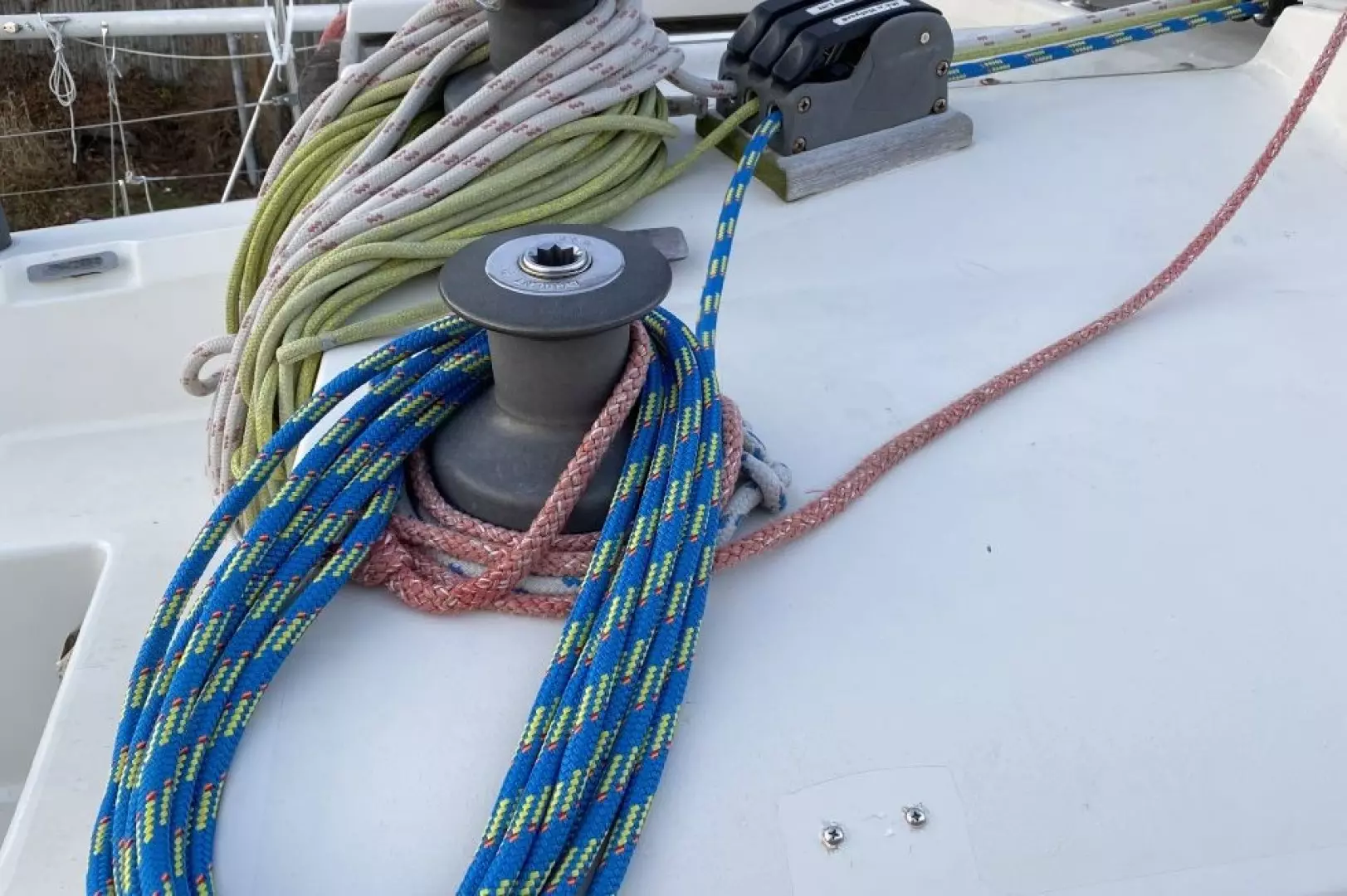

• Winches (BARIENT)(2) B 32A (Hi-Lo) Primary, anodized aluminum, (cockpit combing)
• (2) B 28A (1 speed) Secondary, anodized aluminum, (cockpit combing)
• (2) B 23A Self-tailing, anodized aluminum, (aft end of coachroof)
• (2) B 21A Anodized aluminum, (aft end of coachroof)

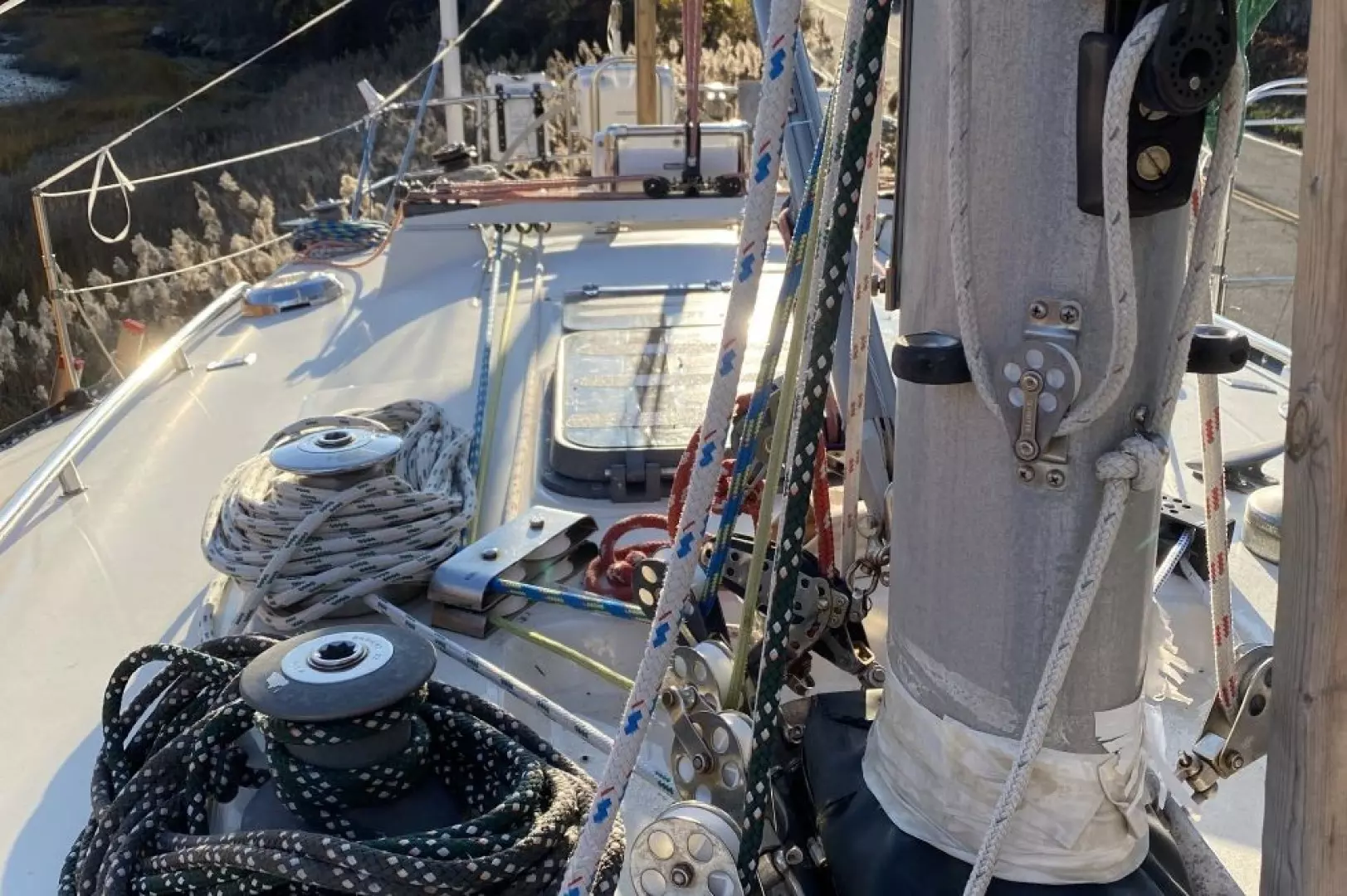

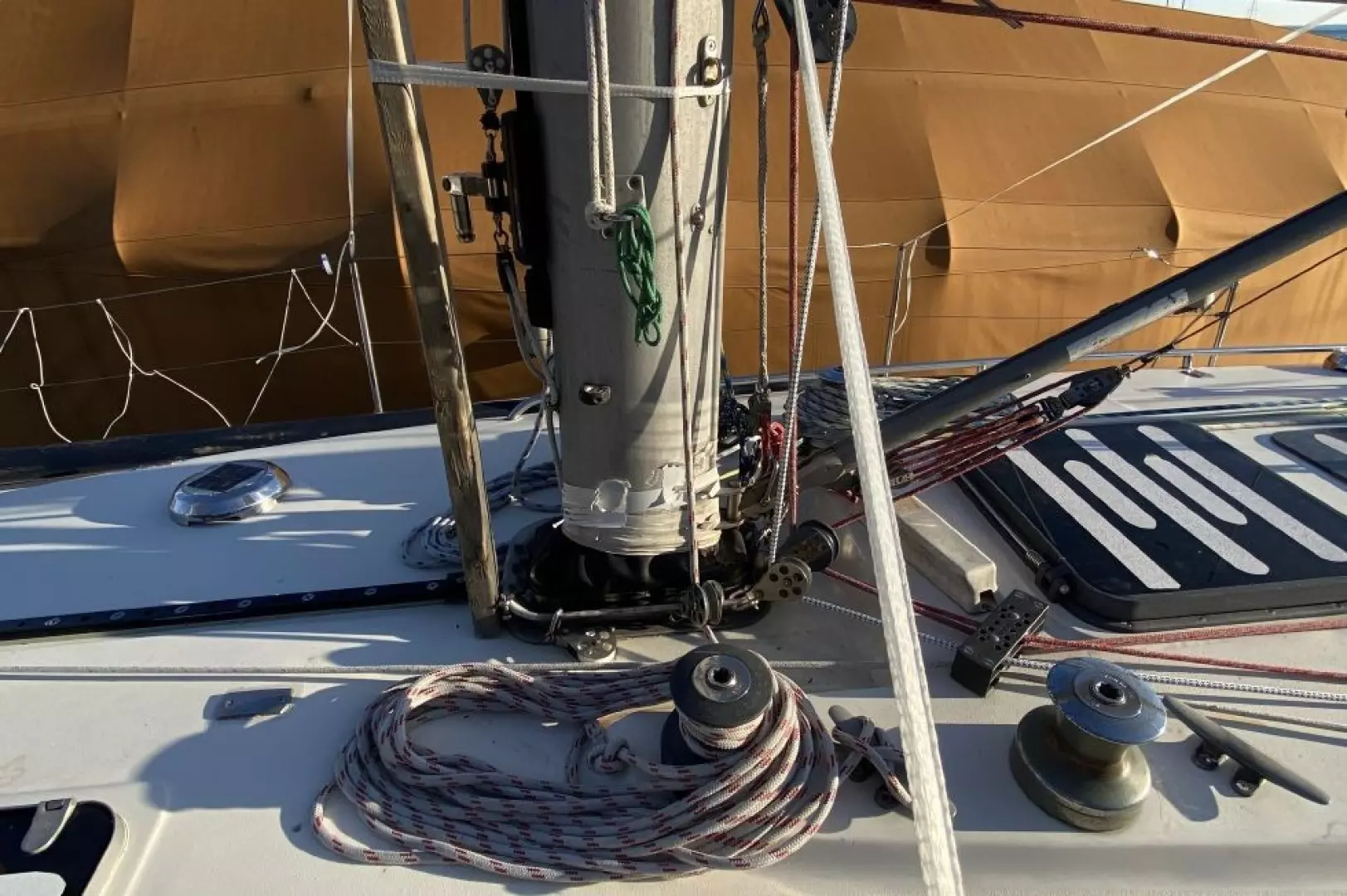

• (2) B 22A Anodized aluminum, (at mast on coachroof)
• (2) B 22S Stainless steel, (at mast on coachroof)

Accommodations

The C&C 40-2 has approximately 6"3" headroom throughout.

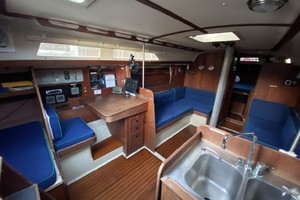

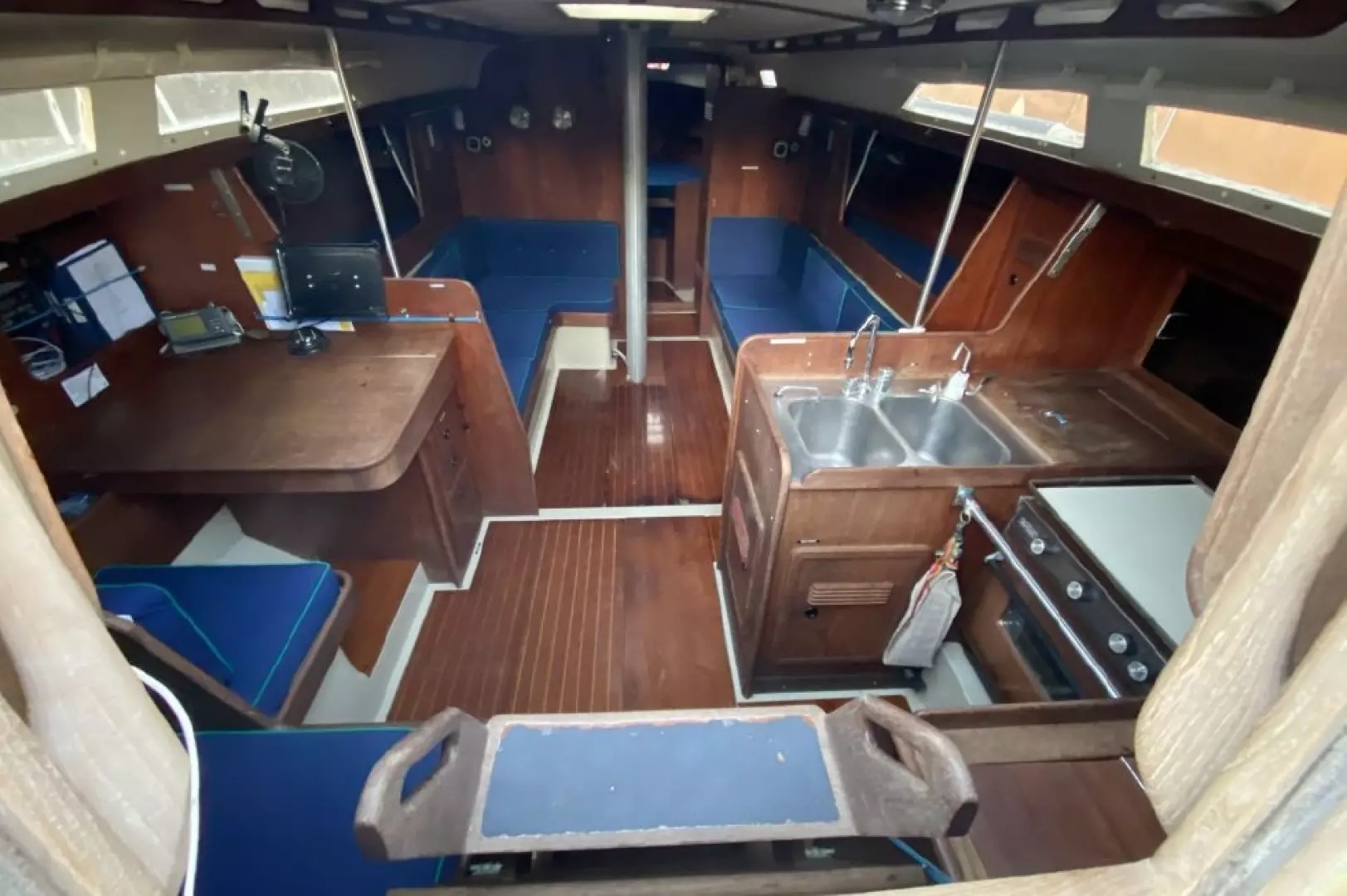

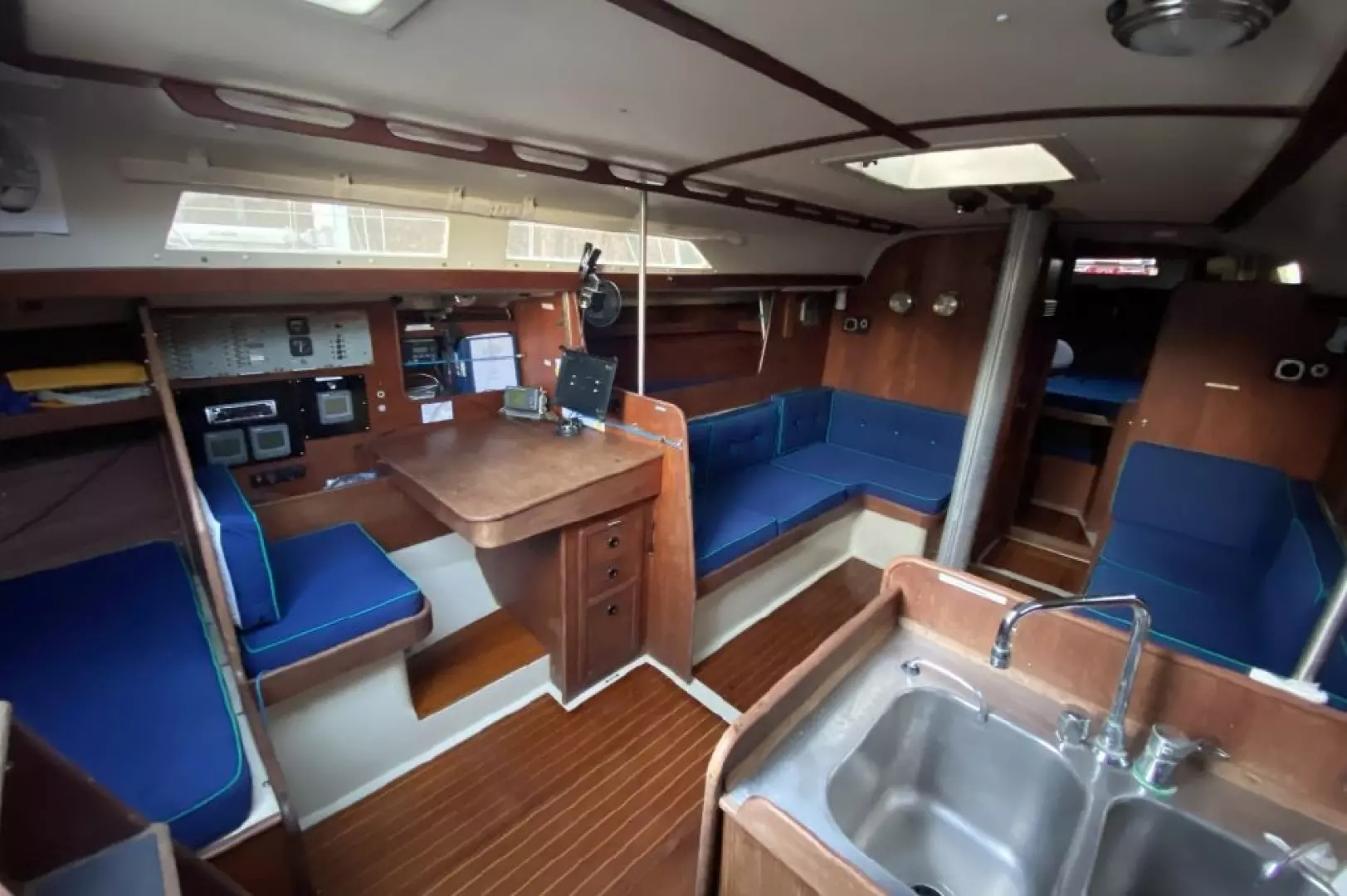

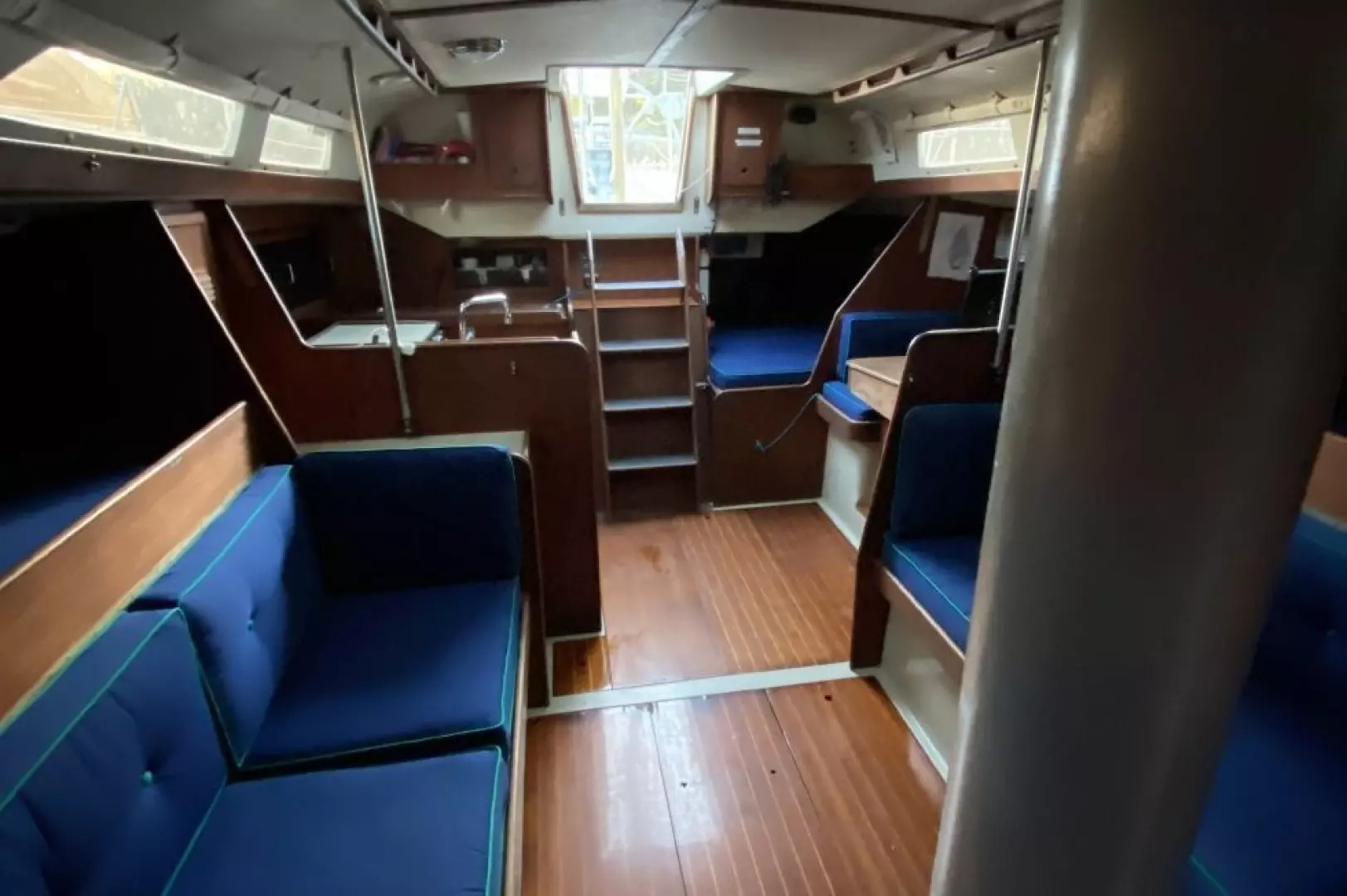

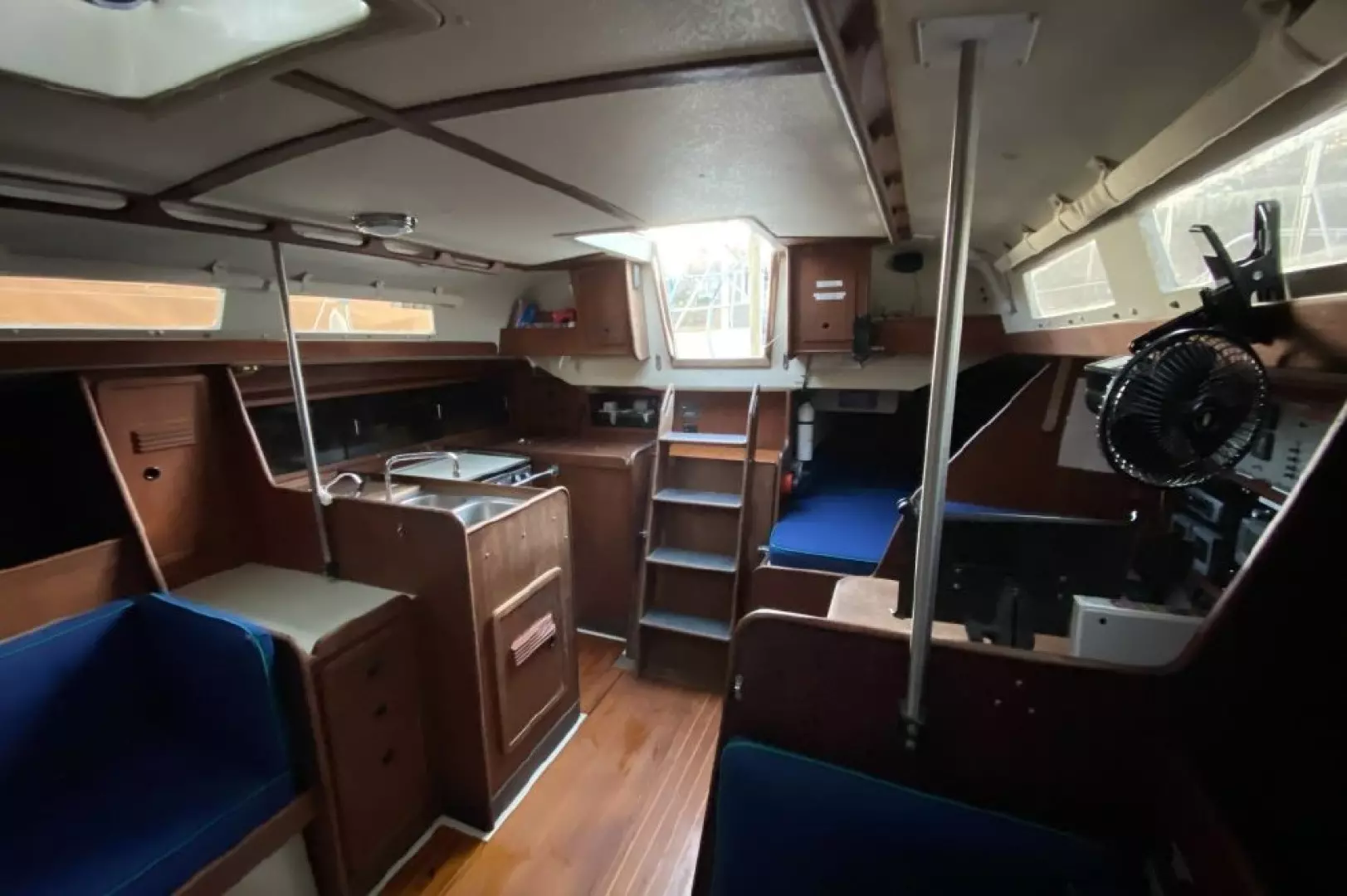

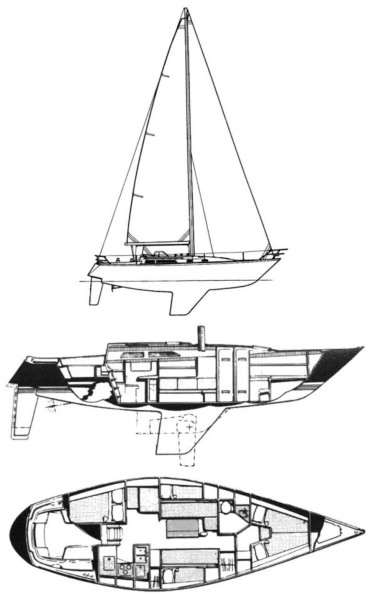

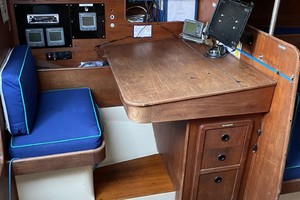

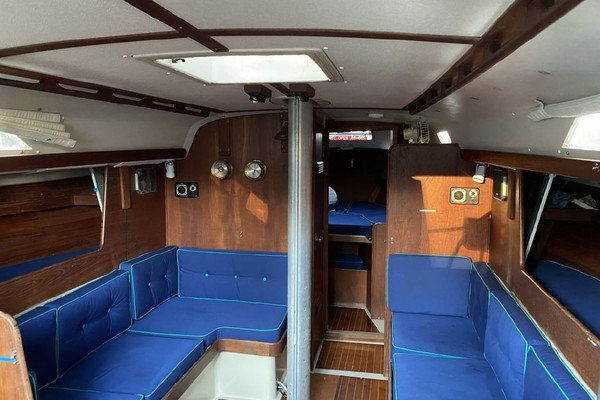

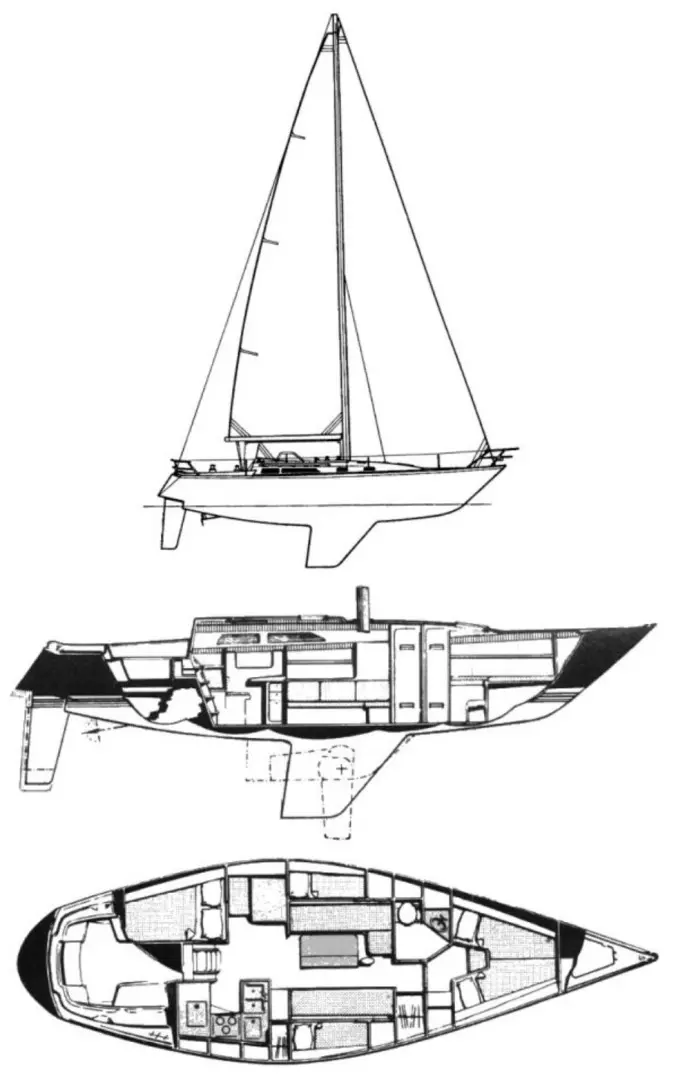

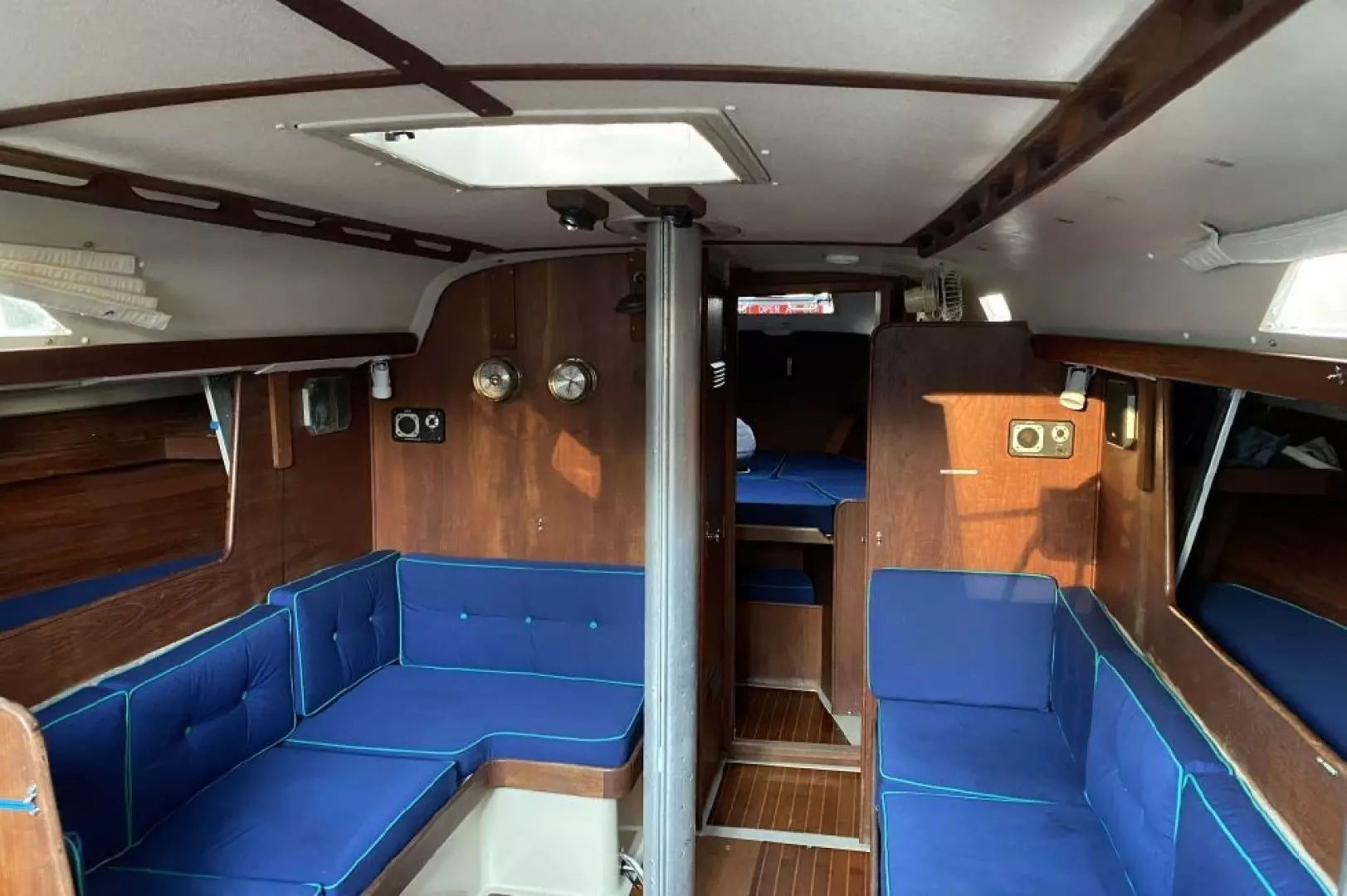

• The standard layout for the C&C 40-2 is with a Fore Cabin with drawer storage to starboard and the Head to port. The Head is accessible from the Salon as well and there is a hanging locker to port just aft of the bulkhead. A removable table with drop sides is on centerline with settees to port and starboard in the salon. Pilot berths are outboard of both settees on port and starboard. The U-shaped Galley is aft to starboard. The Nav Station, with it's own seat, is aft to port and the quarter berth is immediately aft.Teak interior joinery, oiled
• Interior cushions: Flag blue with green accents (all new in 2019)
• Berths are all 6'4" in length

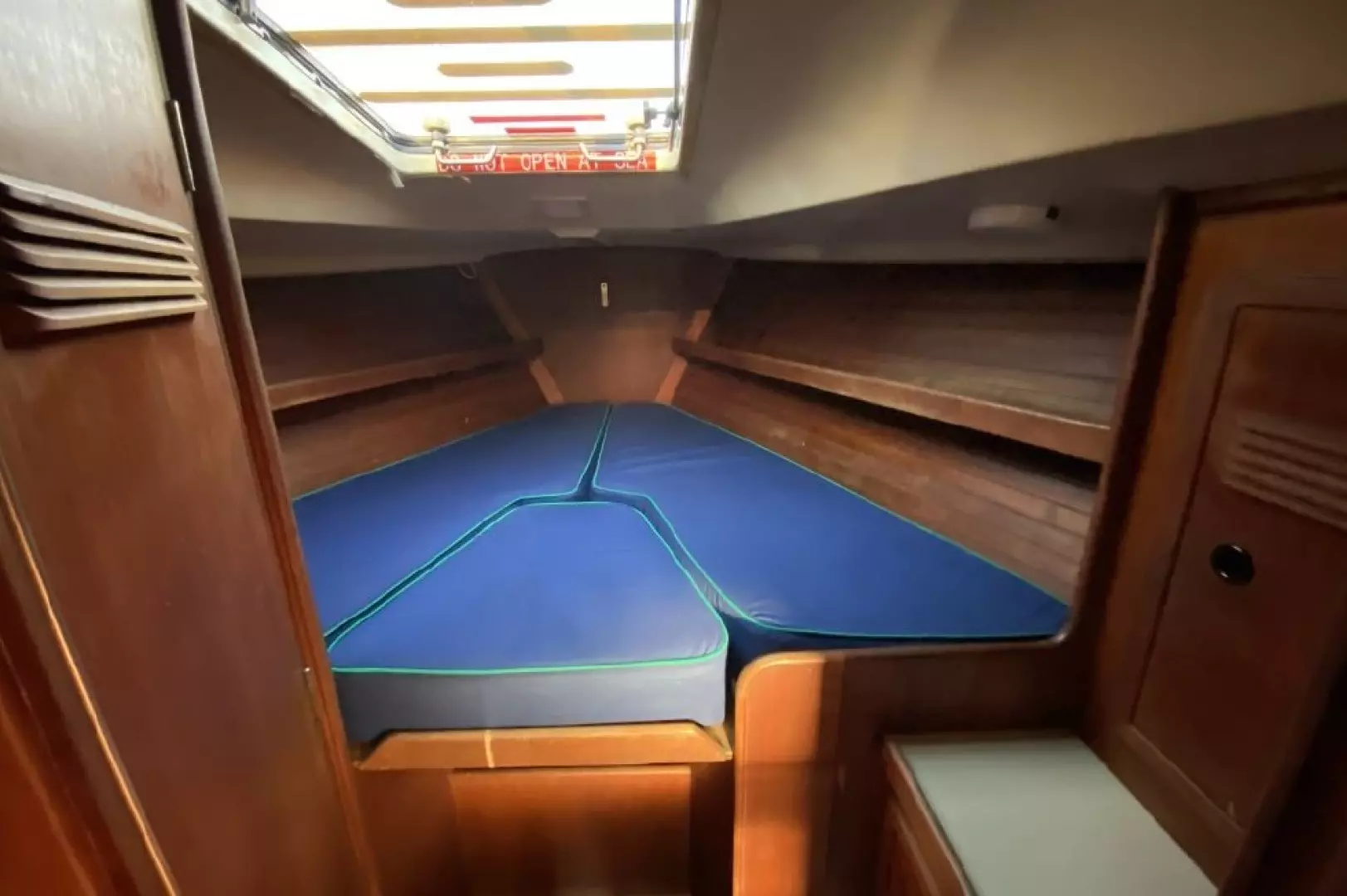

• V-Berth forward with filler piece
• Salon berths port & starboard
• Pilot berths outboard, port & starboard
• Quarter berth aft, port side
• Teak & holly cabin sole throughout
• Salon table, teak w/folding leaves on centerline (removable-not shown in photos)

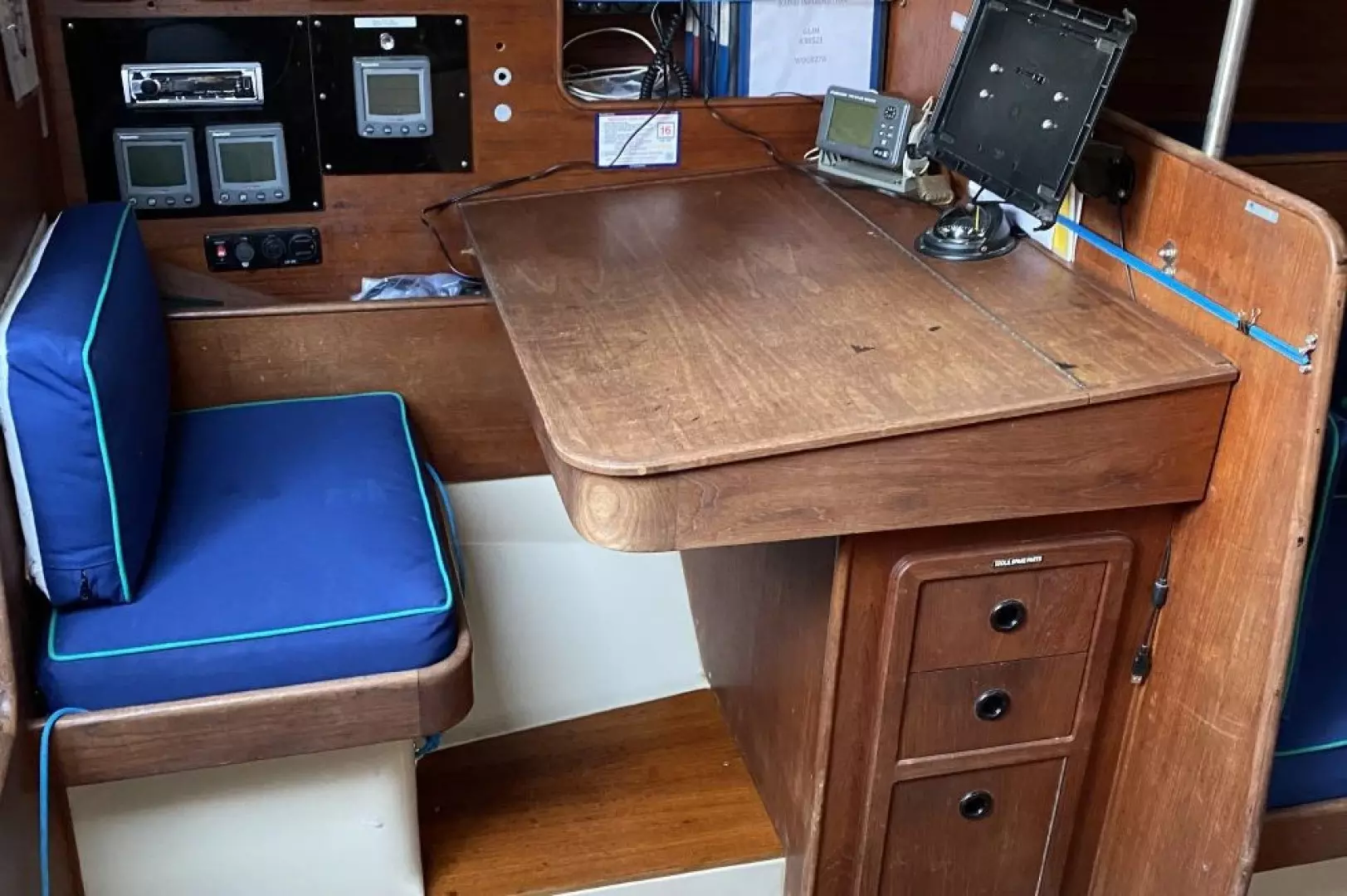

• Bookcase outboard of Nav Station

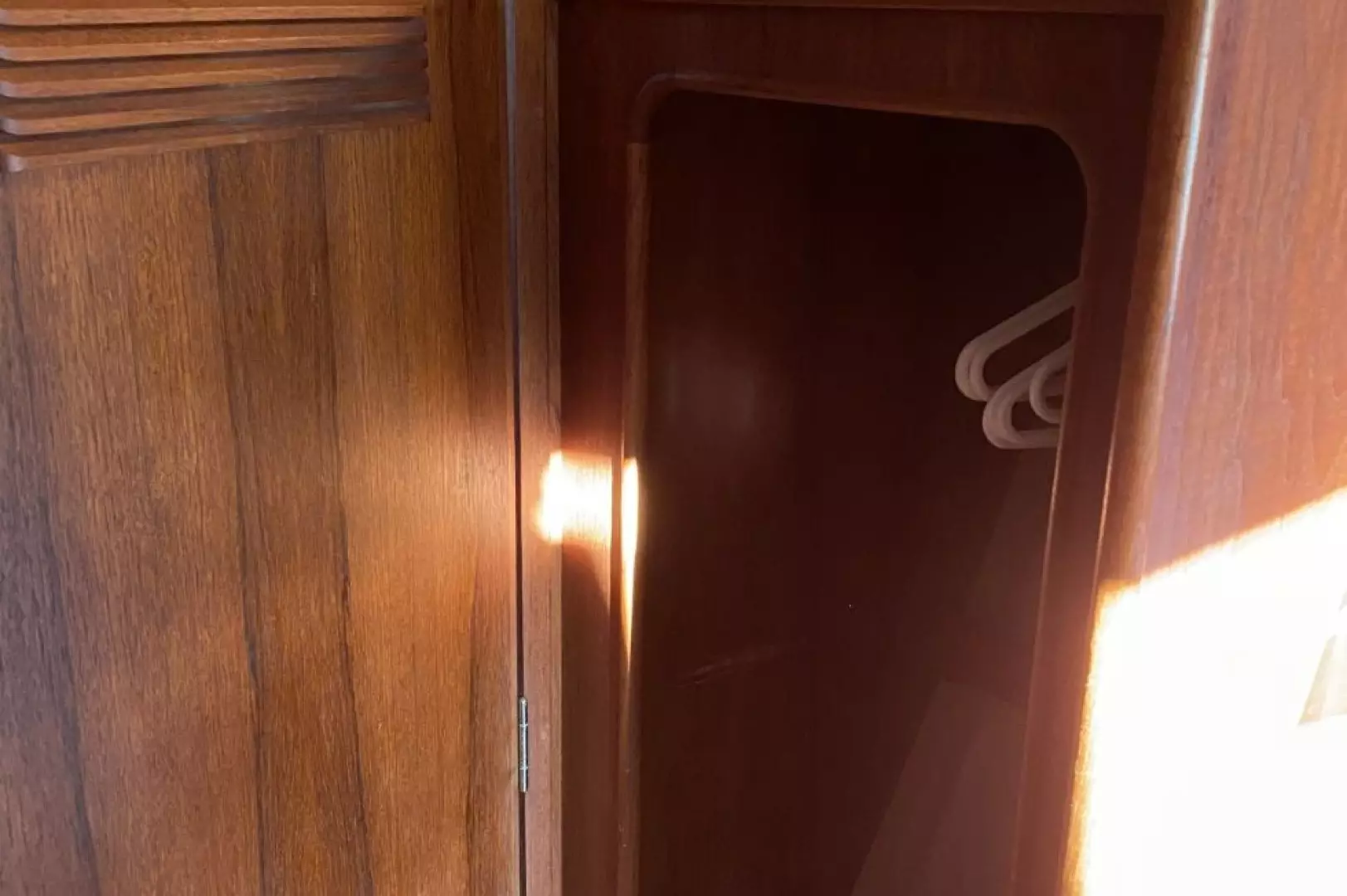

• Hanging locker forward of salon, starboard side
• Hanging locker and drawer storage forward of galley, starboard side
• Circulating fans in salon (2)

Galley

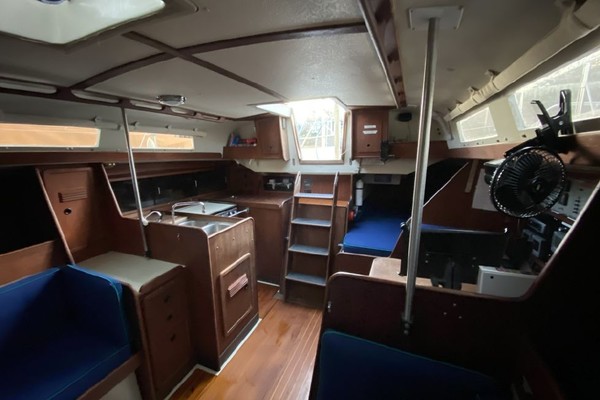

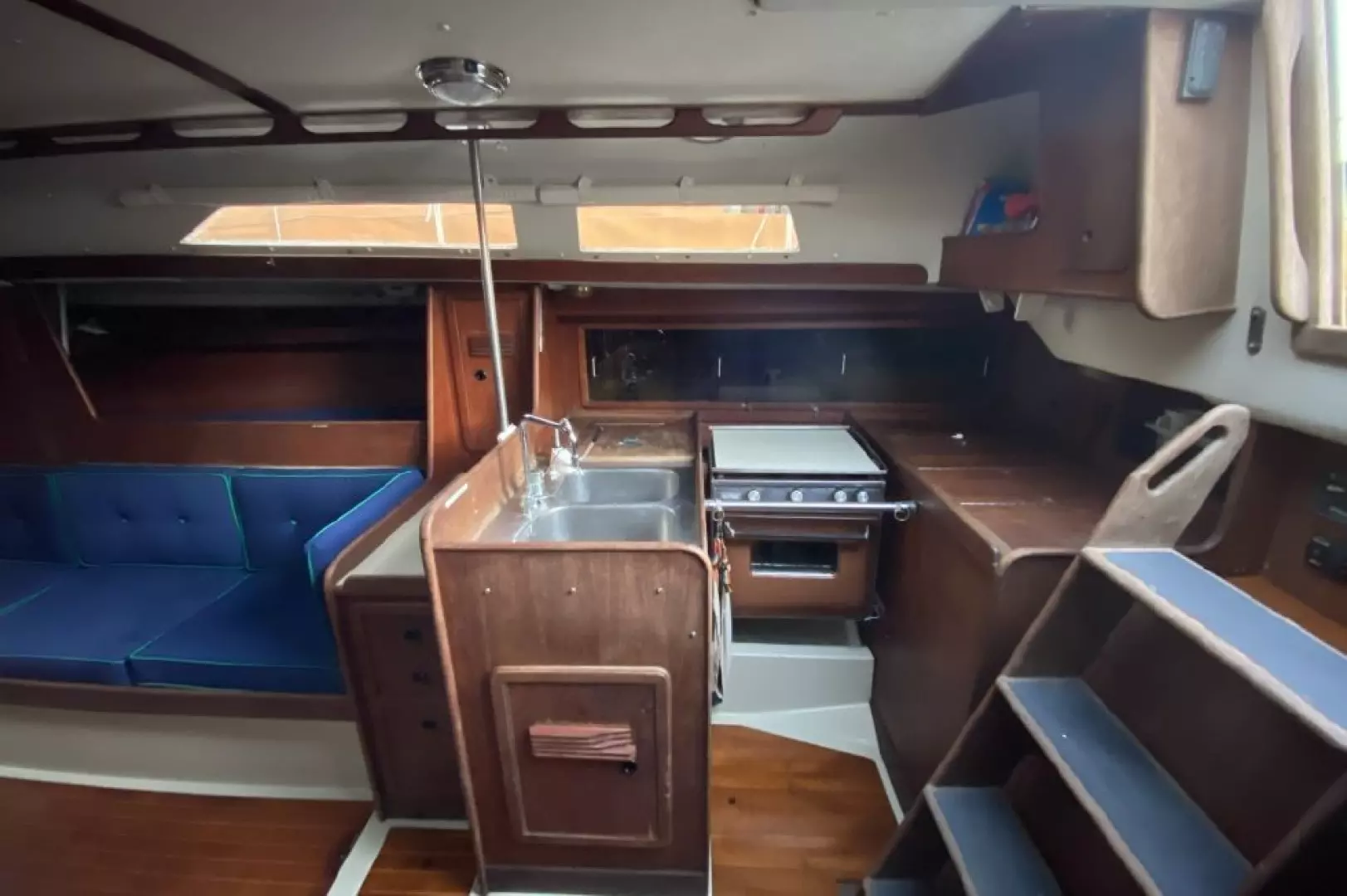

• The Galley for GLIM is "U" shaped and located on the starboard side, aft & opposite the Nav Station.HilleRange 3-burner stove w/Oven, propane, gimballed
• Ice-chest
• Sink, double, stainless steel
• Wood countertops
• Galleyware

Head

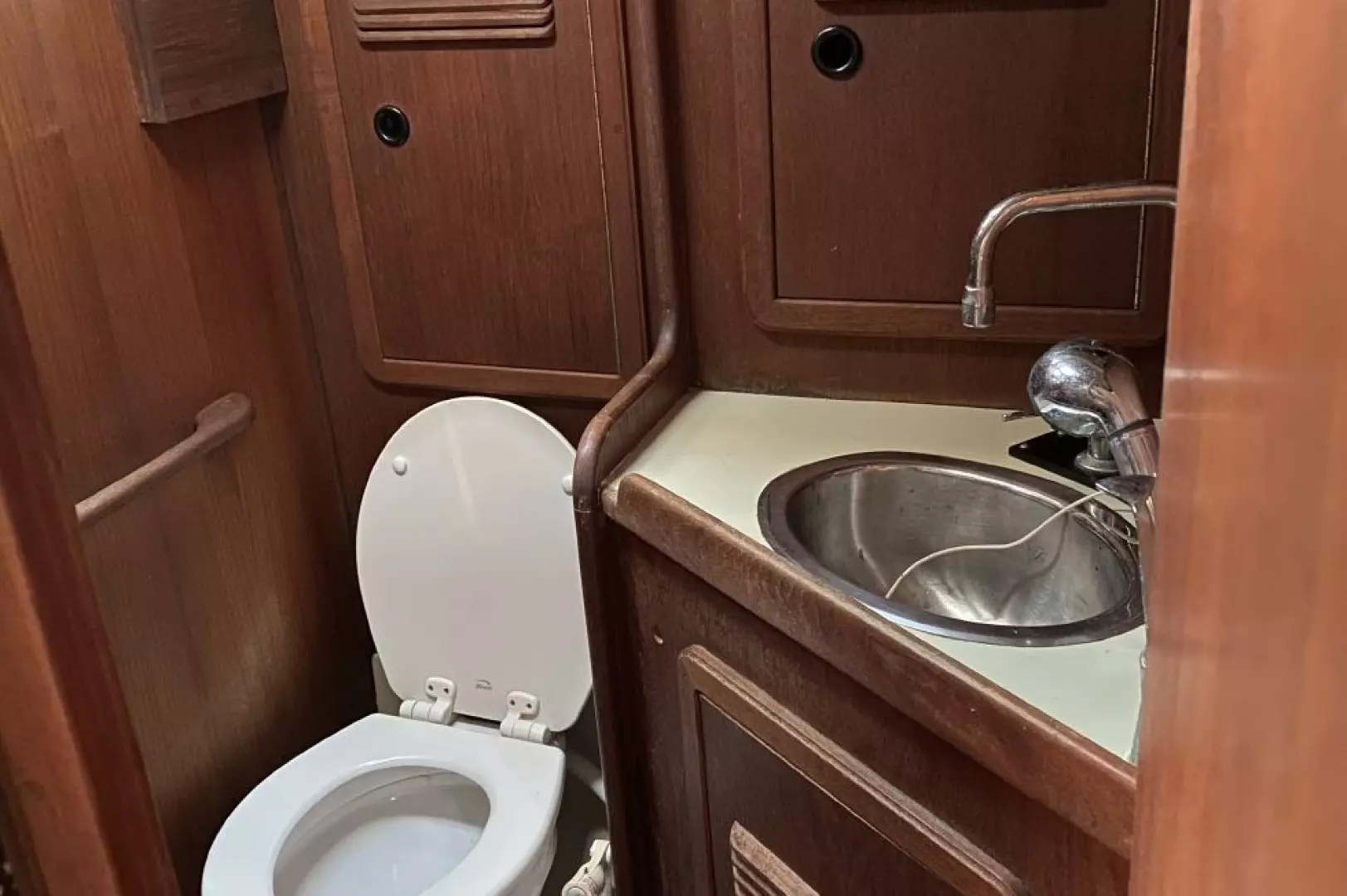

• The Head for the C&C 40-2 is located forward, port side. The Head may be entered via the Salon or the Fore Cabin.Head, manual w/ raw water flush
• Holding tank (12 gal) plastic
• "Y" Valve for overboard discharge (note: where permitted) (New 2019)
• Wash basin, stainless steel w/tall faucet head
• Hot & cold pressure water service
• Shower, hand-held

Electronics

• CommunicationICOM VHF IC-M502
• Wired for SAT Phone

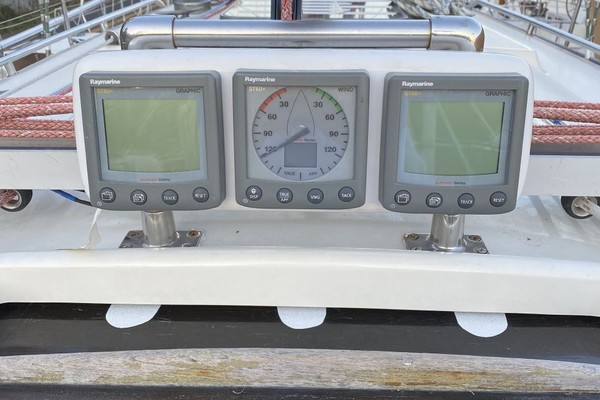

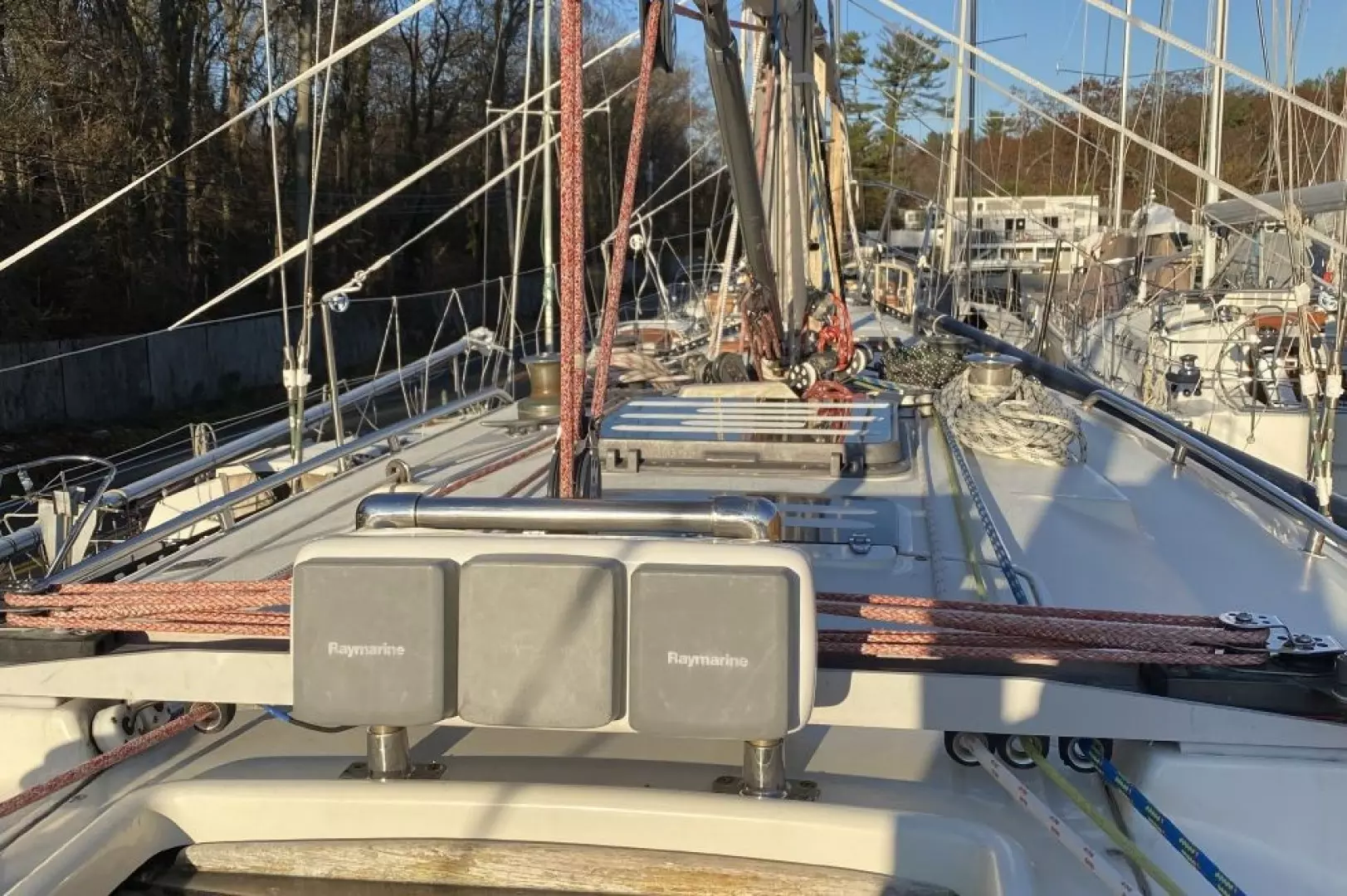

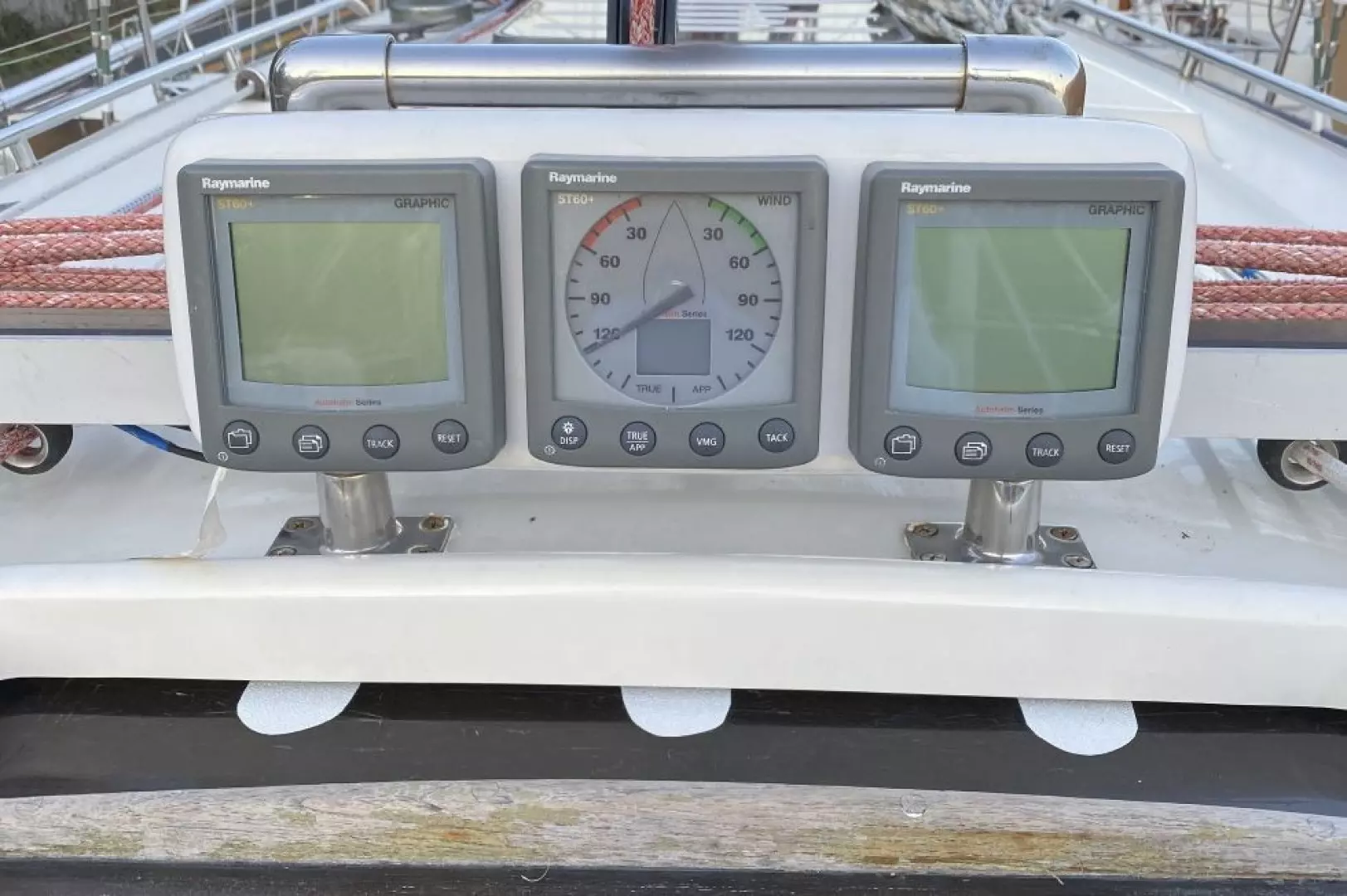

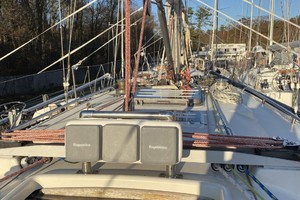

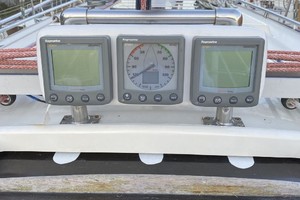

• PerformanceRAYMARINE ST60 AWI / WS
• RAYMARINE Speed / Log
• NavigationB&G Zeus 3 Glass Helm ChartPlotter/GPS Multi-function Display
• B&G / SIMRAD Radar
• RAYMARINE Depth-Sounder
• Ritchie compass at Nav Station
• AutopilotRAYMARINE 4000 (new control head, 2019)
• EntertainmentBluetooth Tuner w/ BOSE cockpit speakers, ALPINE speakers in Salon

Systems

Electrical

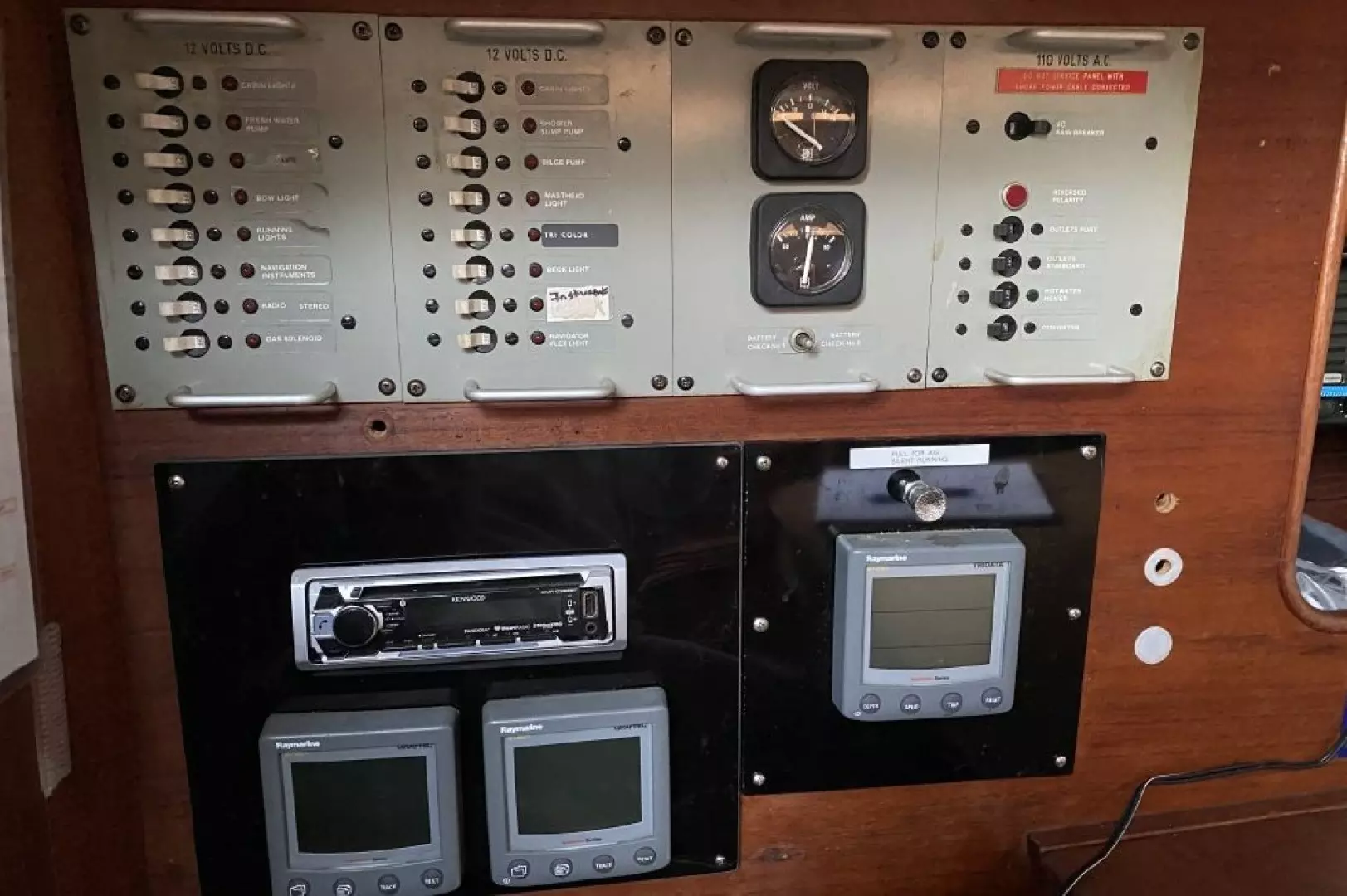

• The C&C 40 has both a 12V DC Ship's Service & 110V AC Shore Power Systems3 Gelcell Batteries, 12V DC
• ProSport20 Marine Battery charger
• Shore Power System, 30 AH w/ cord
• 12V DC Accessory charge access at Nav Station

Lighting, Exterior

• Custom running lights
• LED Tricolor (New 2019)
• Steaming light

Lighting, Interior

• Reading and dome lights throughout, LED
• Navigator's Chart light at Nav Station
• PlumbingFresh water capacity: 60 USG (Tanks replaced 2016)
• Hot water tank, 6 gals (New 2019)
• PumpsBilge pump, electric / automatic highflow
• Keel sump, manual electric
• Manual whale located in starboard hanging locker
• Bilge pump, manual (cockpit)

Propulsion

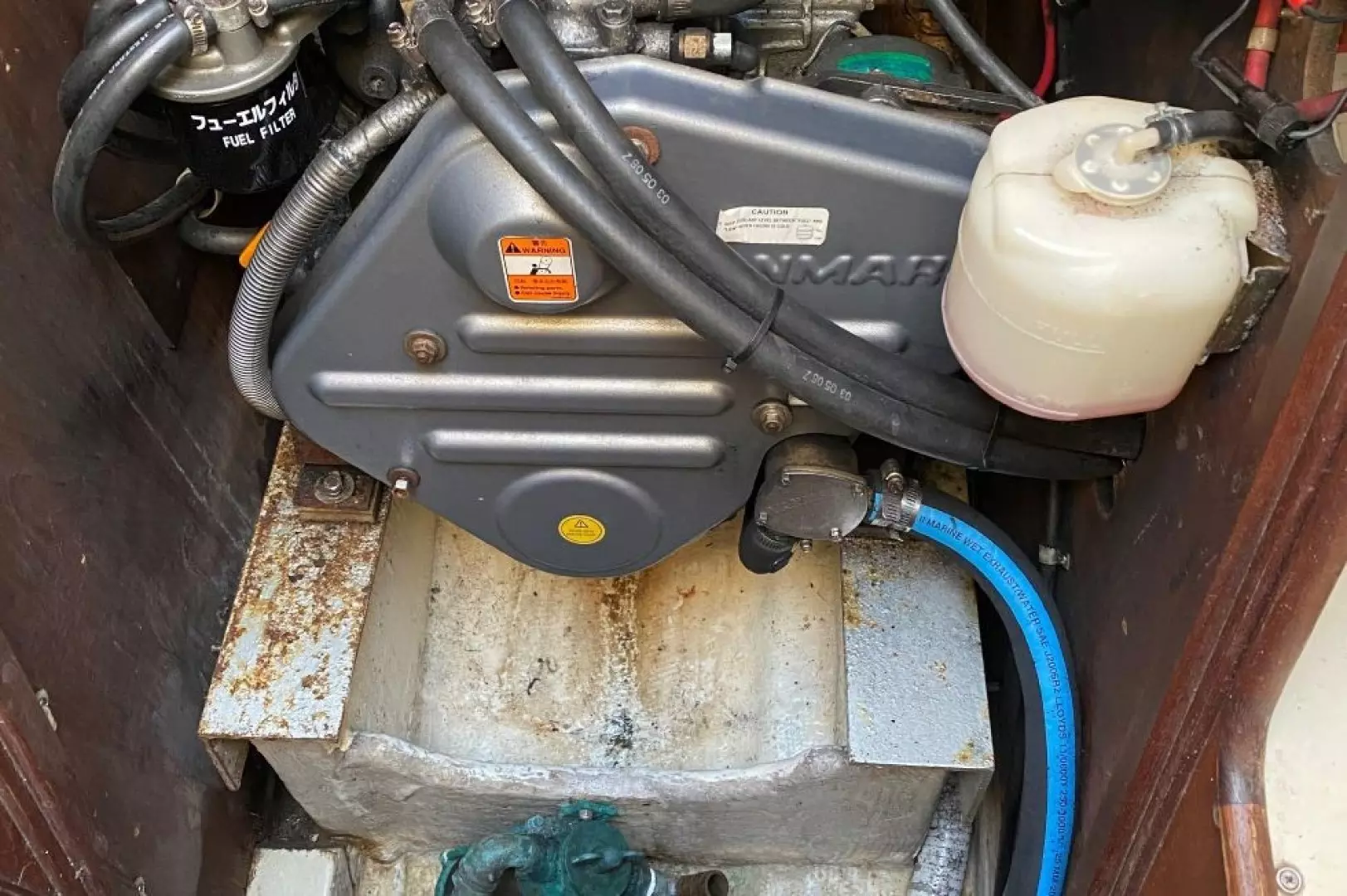

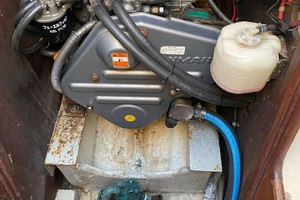

• Engine Make: YANMAR
• Engine Year: 2007
• Engine Model: 3JH4-E
• Power: 39 HP
• Drive: Direct Drive
• Hours: 1,500 (estimated)
• Fuel Capacity: 20 USG
• Propeller:        MAXPROP Feathering (2) blade (new 2020)
• Prop Shaft: New shaft and dripless shaft seal (2018)
• Cruising Speed 7.0 kts (approximate)

Additional Inventory

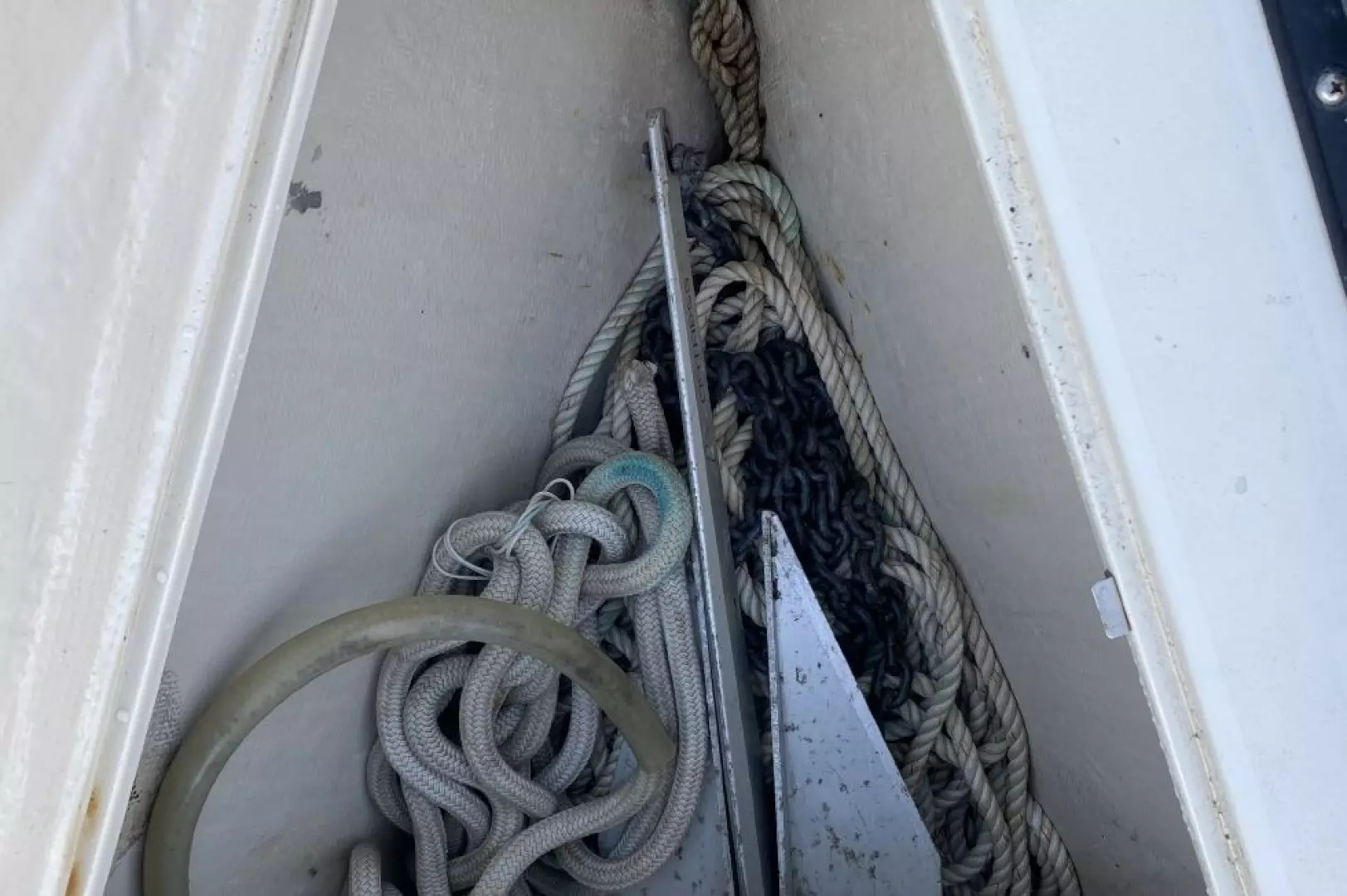

• Ground TackleAluminum Fortress Anchor w/ rode

Canvas (SUNBRELLA Fabric)

• Dodger, Flag blue, good condition
• SafetyUSCG Gear (horn, bell, PFD's)
• Compliant with US Sailing Cat 1 Offshore Safety Regulations
• Life-Ring
• Fire extinguishers
• Emergency tiller
• Life-line tether attach points in Cockpit, stainless steel
• MiscWinch handle holders
• Cockpit cushions
• Dock lines (3) 35', red
• Fenders (4) with covers
• Boat hook
• Shore power cord 30'
