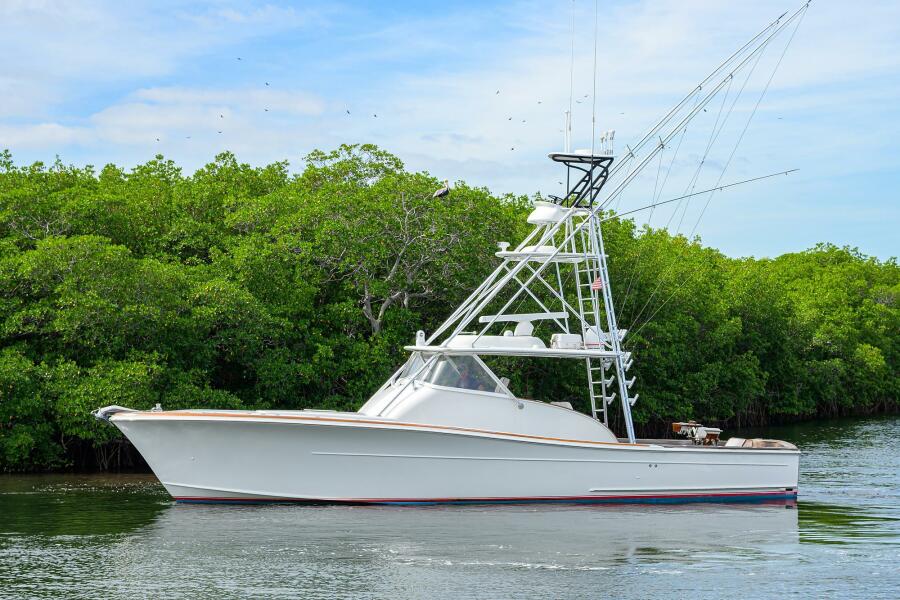

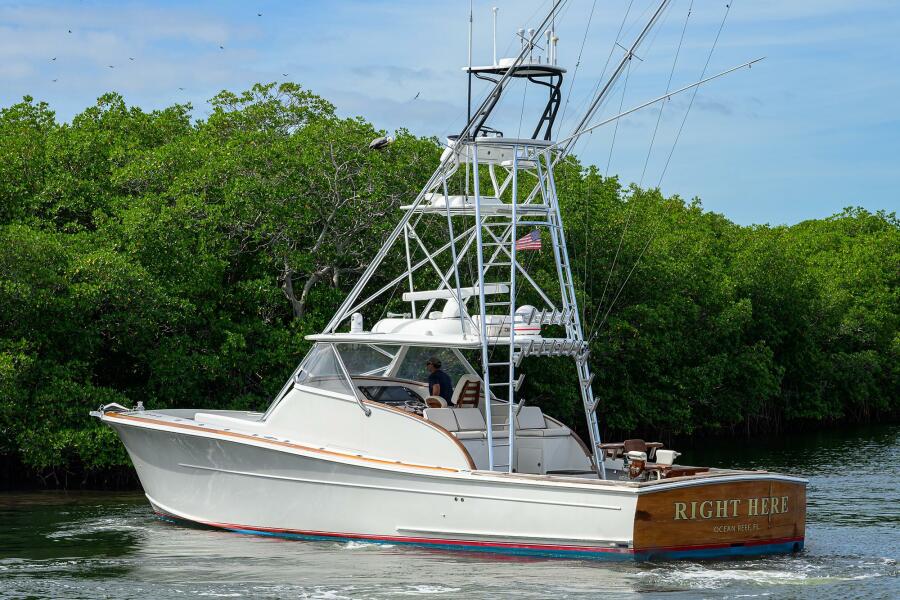

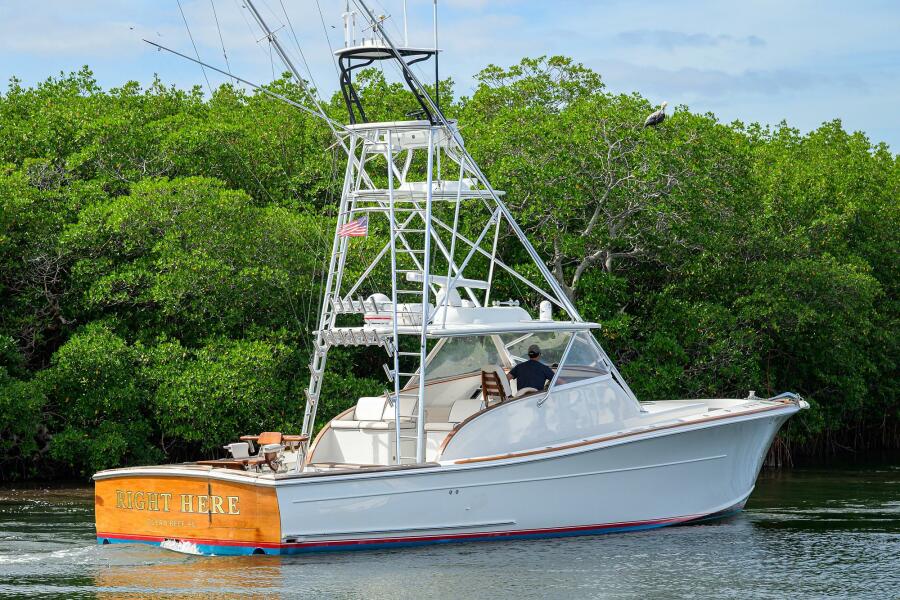

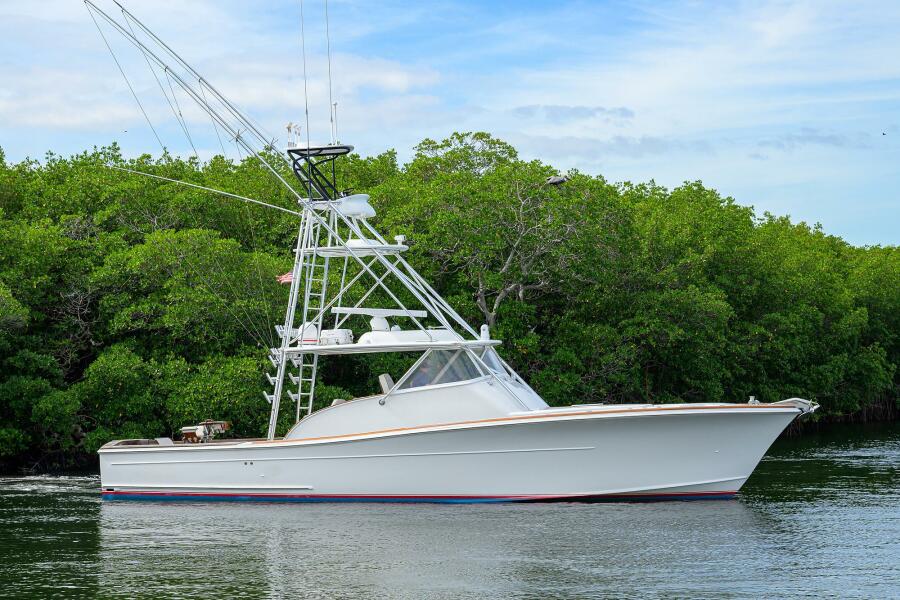

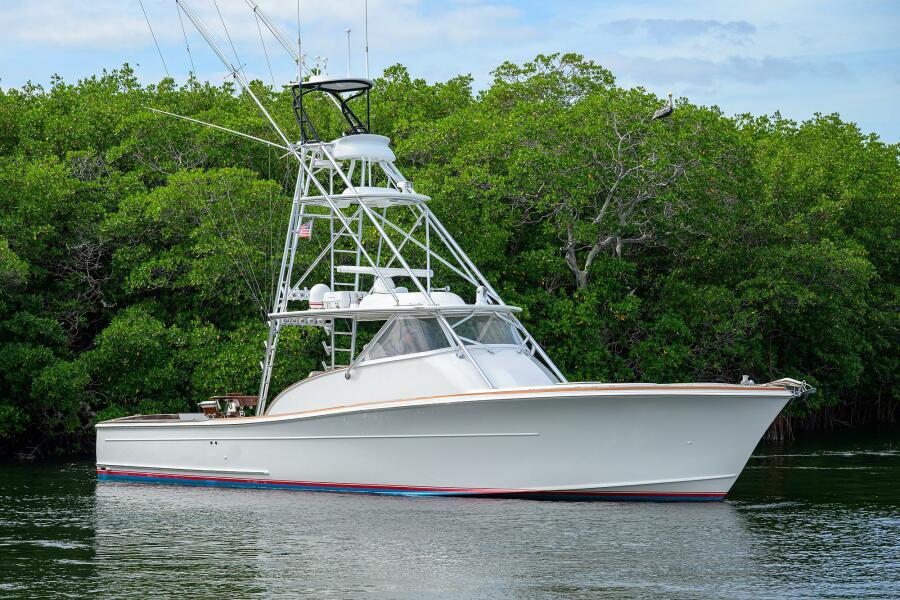

2014 Release 46' _{(14.02 m)} Walk Around

Main Characteristics

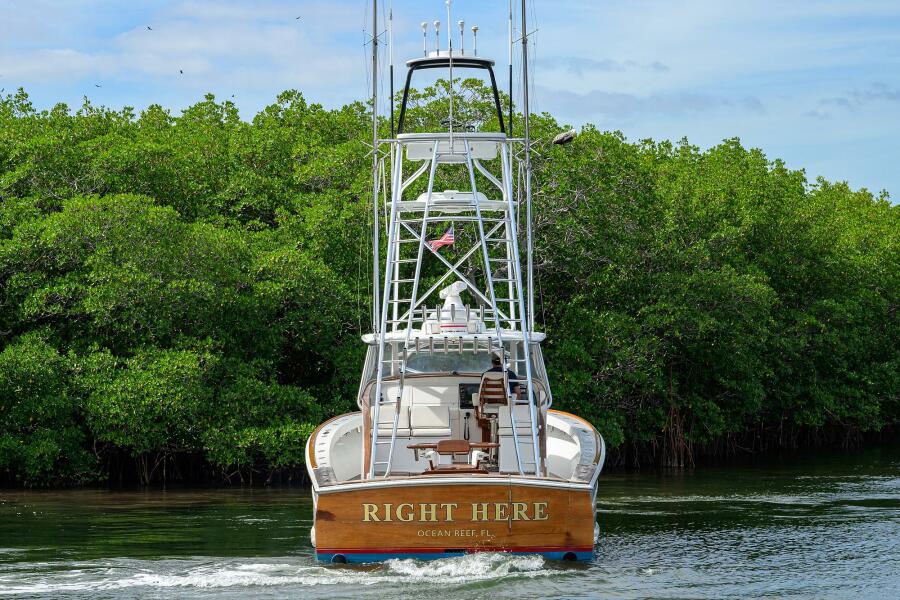

Name: Right Here

Model: 46’ Walk Around

Builder: Release Boatworks

Year: 2014

Hull No: RLB46009E414

LOA (M/FT): 14 M 46’’ 00”

Beam Overall (M/FT): 4.67 M 15’’ 04”

Draft (M/FT): 1.14 M 3’’ 09”

Gross Tonnage: 37 Gt

Displacement (Fully Loaded): 35,000 lb.

Hull Material: Fiberglass

Decks: Teak

Main Engines: 2 x Cummins QSC 600 HP

Port: 3700  Starboard: 3685

Speeds: 38 Kn Max

32 Kn Cruising

Classification & Regulation

Flag: USA

Port of Registry: Ocean Reef, Florida

Classification: Member of IACS / Non - IACS

US Tax Status: Paid

IMO Number: RLB46009E414

Vessel Registration No.: 1254140

Capacities

Gross Tonnage: 37 Gt

Net Tonnage: 29 Nrt

Displacement: 35,000 lb.

Fuel Capacity: 2,271.25 Litres 600 Gallons

Holding Tanks: 45.42 Litres 12 Gallons

Fresh Water Capacity: 143.85 Litres 38 Gallons

Construction

• Ablative/Copolymer blue anti-fouling bottom paint, 2 coats, primed

• Alexseal painted engine room and lazarette for enhanced visibility and easier maintenance

• Blister resistant modified epoxy resin in entire hull skin

• Custom blended vinylester resin used in all structural laminates

• High performance isophthalic gelcoat npg superior gloss, flexibility and outstanding weathering characteristics

• Molded fiberglass construction using premium vinylester resins; biaxial & triaxial stitched fabric reinforcement; cored construction

• Vacuum Infused Resin (VIR) construction

• Aluminum fuel tanks with baffles inside; sealed with coal tar

• Molded fiberglass bridge deck/engine room ceiling with foam core for acoustical and thermal insulation

• Non-skid applied for traction and durability

• Stringers, fiberglass / carbon encapsulated foam

• Vacuum Infused Resin (VIR) foam cored bulkheads – Main engine room bulkheads, lazzerette and anchor locker bulkheads

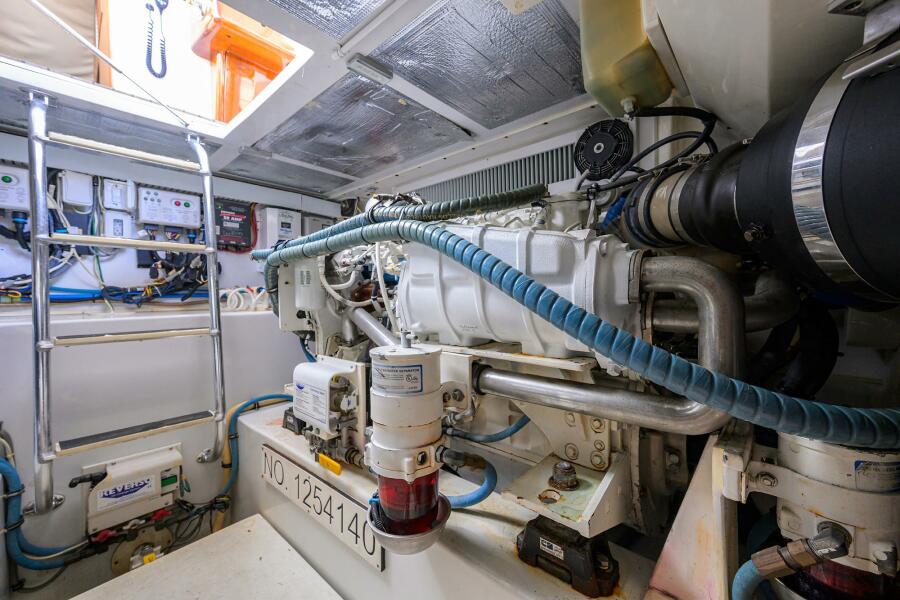

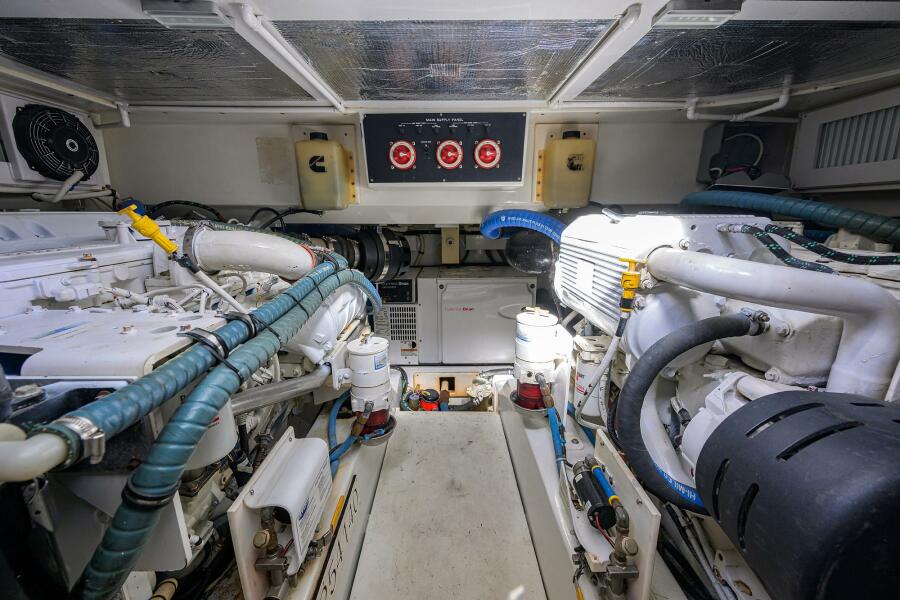

Mechanical

• Air conditioning – direct expansion zoned with reverse cycle heat for complete climate control throughout the interior

• Bilge pumps linked into monitoring system and connected to float switches for automatic and manual operation

• D/C pressurized freshwater system with on deck freshwater fill and cockpit dockside supply inlet with pressure reducing valve

• Dockside and overboard pump out for holding tank

• Aft facing dual propeller pods with stainless steel propellers

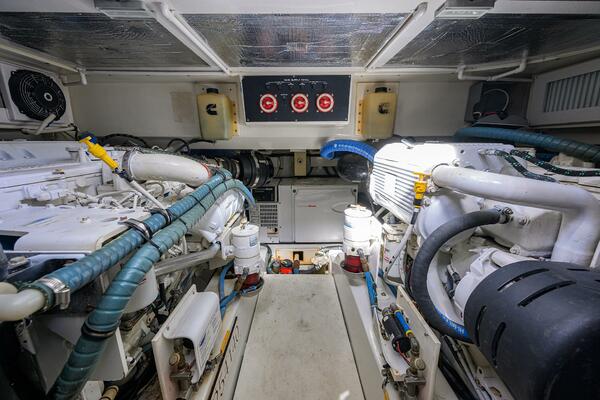

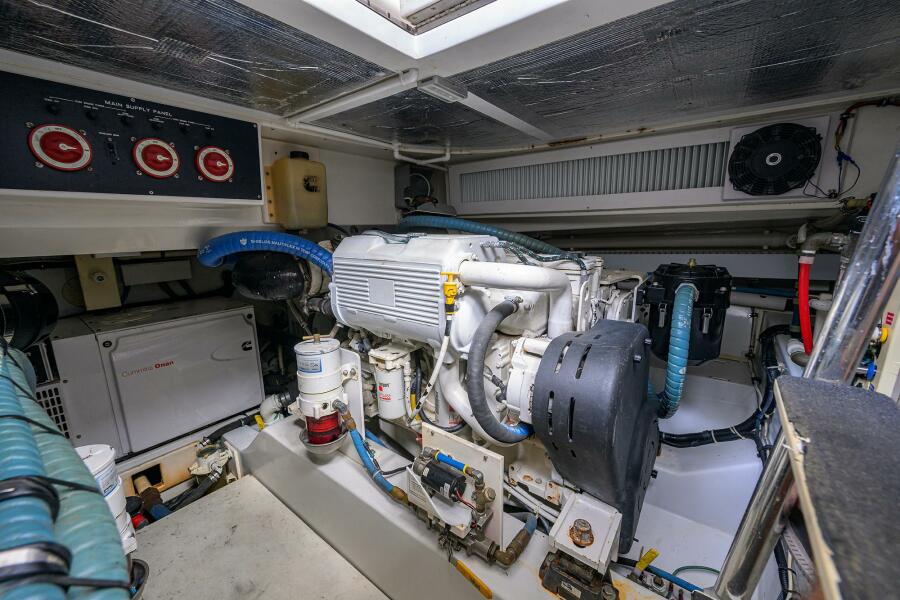

• Engines, Cummins QSC-600 with Zeus Drive with smart craft vessel view display

• Joystick control for low-speed manoeuvring and docking

• Idle and low speed exhaust relief for reduced vibration and cleaner wake at low speeds and trolling

• Integrated trim tabs with auto trim

• Custom engineered engine room ventilation system with supply and discharge fans for proper fresh air supply and water intrusion suppression from Livos Technologies

• Fire suppression system, automatically or manually operated and tied into main engine and generator ignition systems

• Fresh water supply in engine room for general maintenance and cleaning

• Fuel and oil lines, flexible, steel reinforced USCG approved

• Internal sea strainers for generator, air conditioning and all other sea water pick-ups – painted white

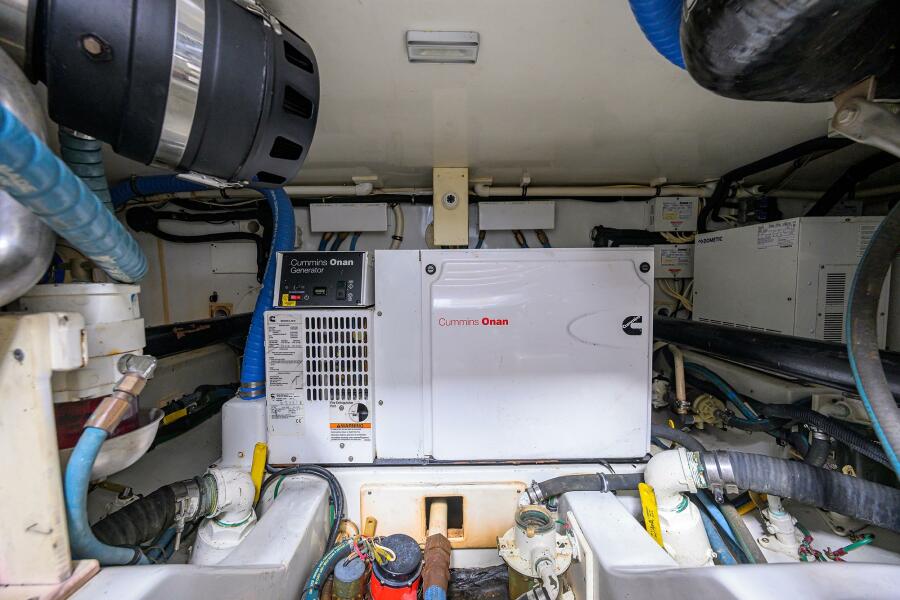

• Mufflers – generator, lift muffler with gas water separator for cleaner, quieter operation

• PEX plumbing, freshwater system plumbing with manifold system shut off in engine room and forward bilges

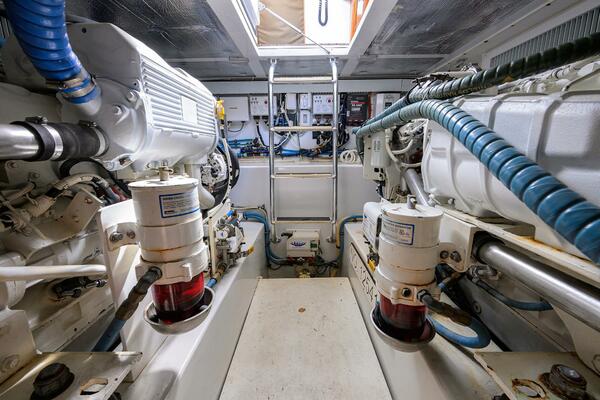

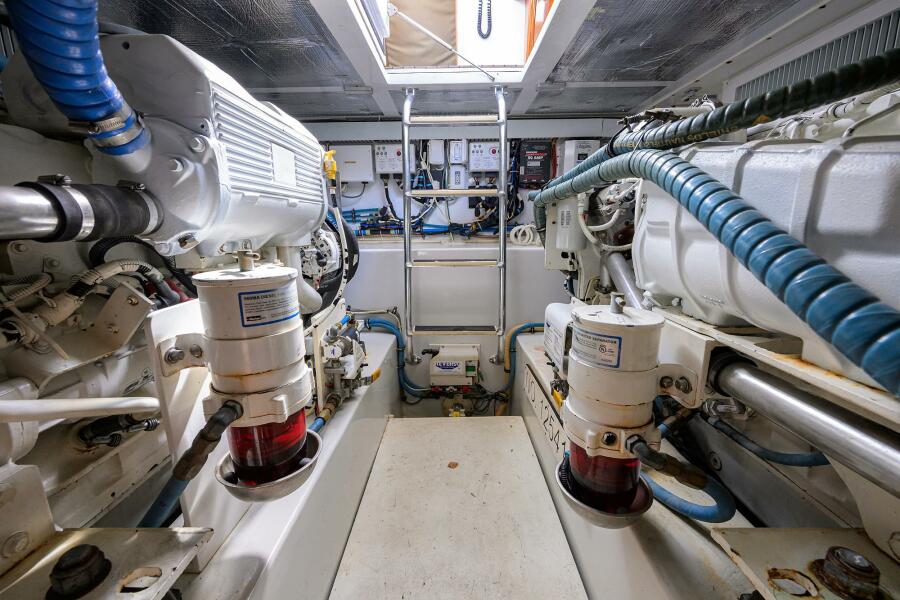

• Racor fuel water separators for main engines and generator glass bowl type, top loading for easier maintenance – includes vacuum gauge for fuel filter restriction – painted white

• Seacocks, bronze, ball-type sea valves and strainers for all thru-hulls below the water line – painted white

• Water heater quick recovery, electric

Electrical

• 24V DC ship’s service throughout

• 24V/12V power supply with breakers on flybridge for future electronics

• 110V outlet in engine room

• Anchor light/navigation lights

• Batteries, (2x) independent 24V banks mounted in fiberglass storage boxes

• Battery charger with thermal cutoff and switching system

• Battery distribution panel with battery cutoff and charging system breakers

• Battery parallel system for main engines and generator start

• Bonded electrical system

• Engine room lights

• Lighting, overhead recessed in ceiling, 24V throughout

• Master electrical control panel located in salon with 24V/120V circuit breakers

• Receptacles, 120V duplex with GFCI throughout

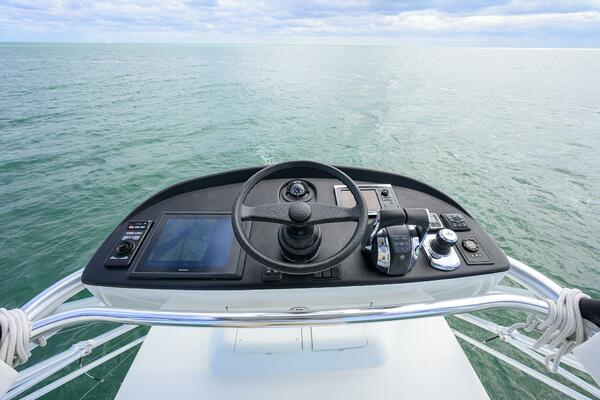

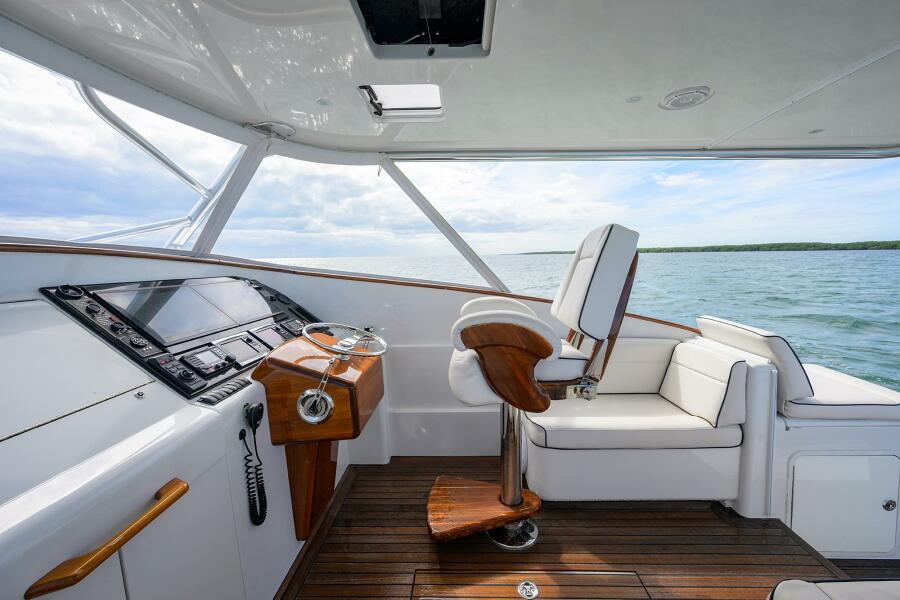

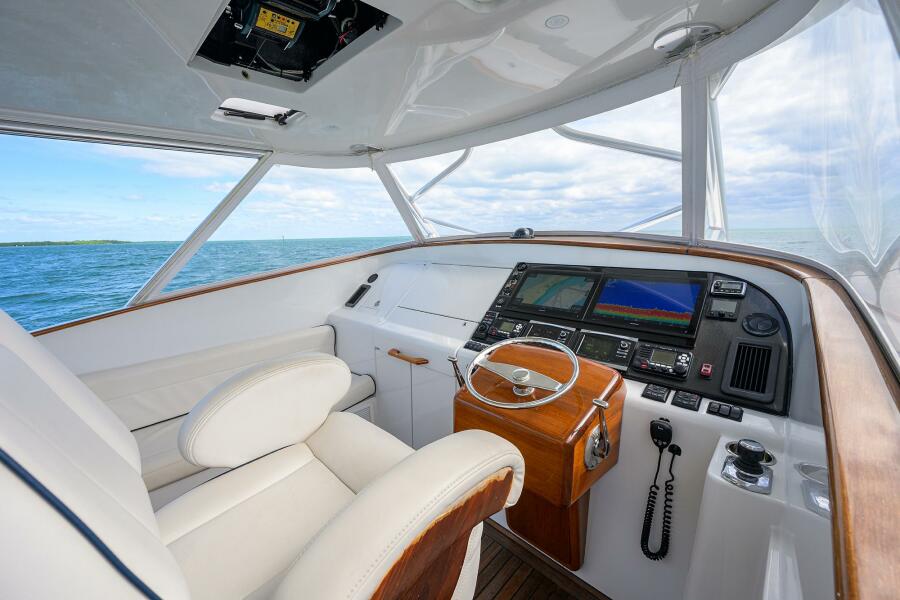

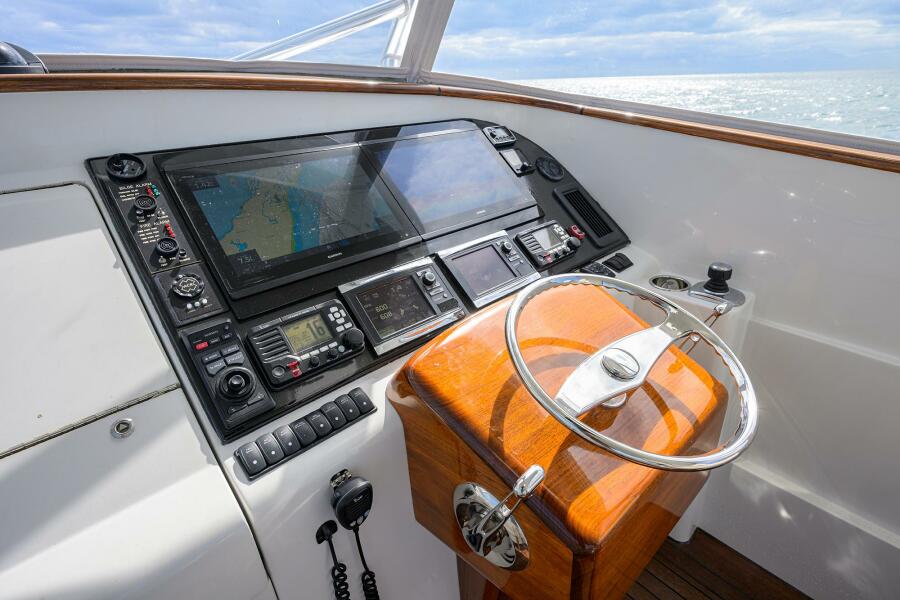

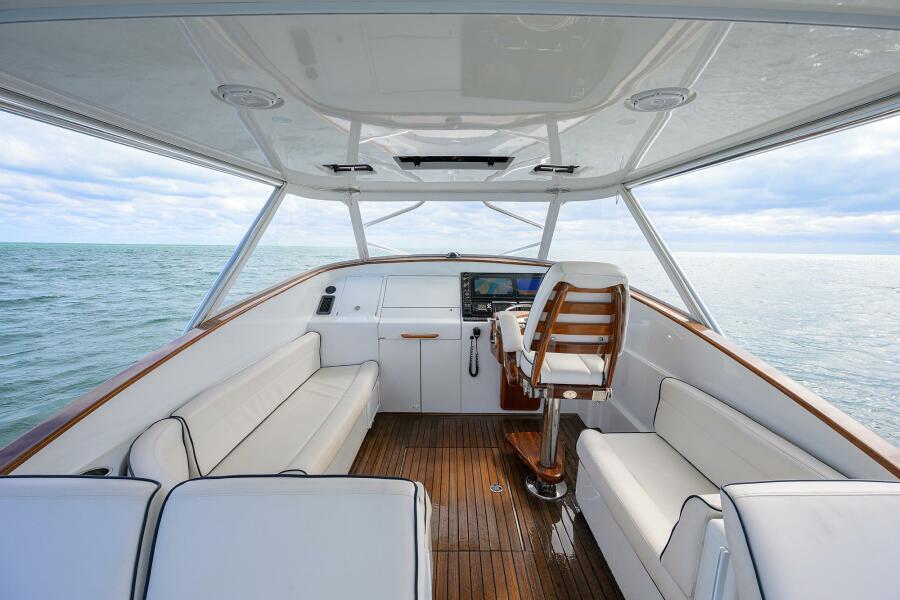

Bridge Deck

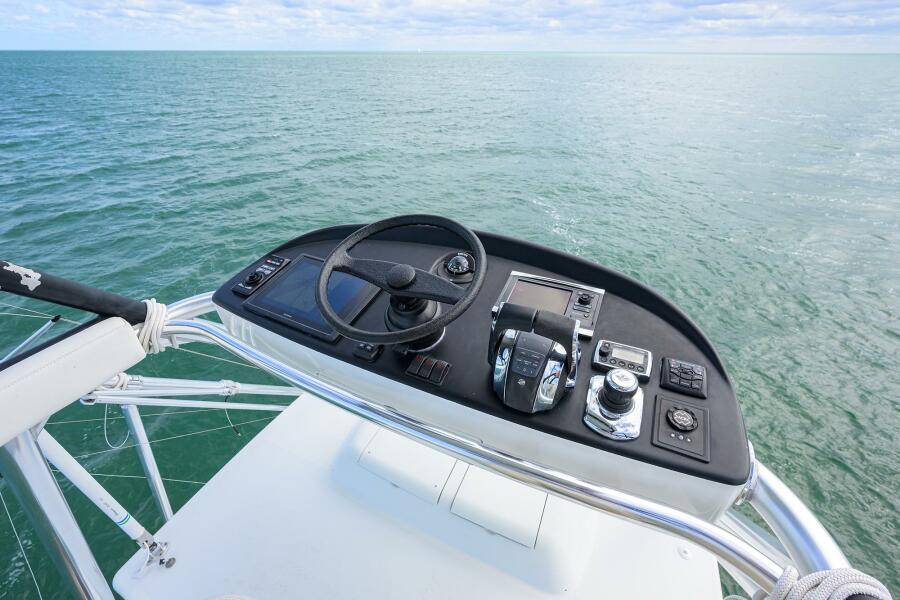

• Controls: Top-mounted single-level electronic controls with station select and keypad

• Engine room access hatch with ladder

• Fire system control with automatic and manual discharge and override system

• Helm seat – Bluewater Chairs white ladder back with S.S. pedestal and removable cushions

• 2-Insulated drink box with lid located in port aft cabinet

• Lighted compass, flush-mounted on centerline

• Manual engine shutdown switches at helm console

• Custom safety monitoring system with audible and visible alarms: fire, engine room temperature, high bilge water, high exhaust temperature, high coolant temperature, low oil pressure, and generator as well as confirming correct system operation

• Port and Starboard bench seating with vinyl cushions and lift tops with storage underneath

• Trim tab control switch mounted at helm

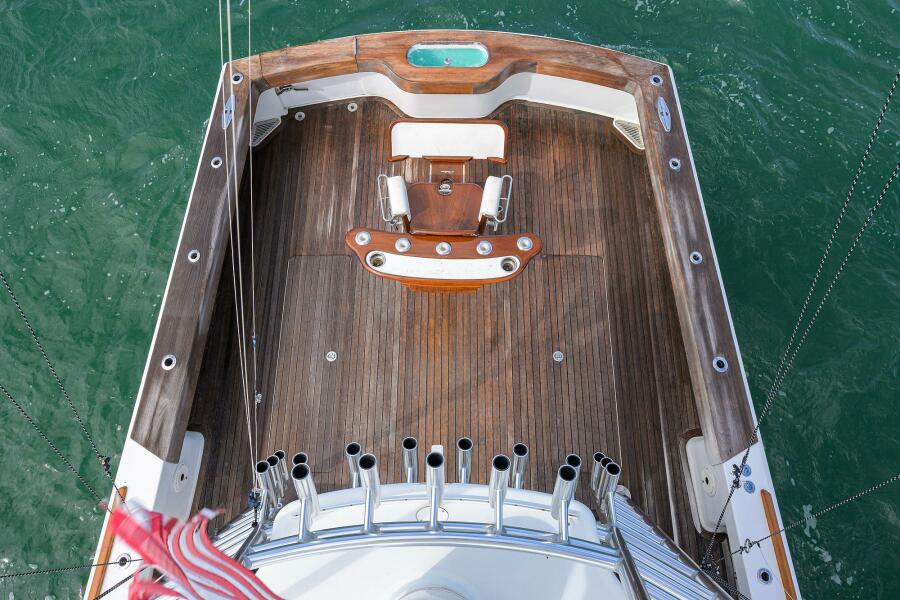

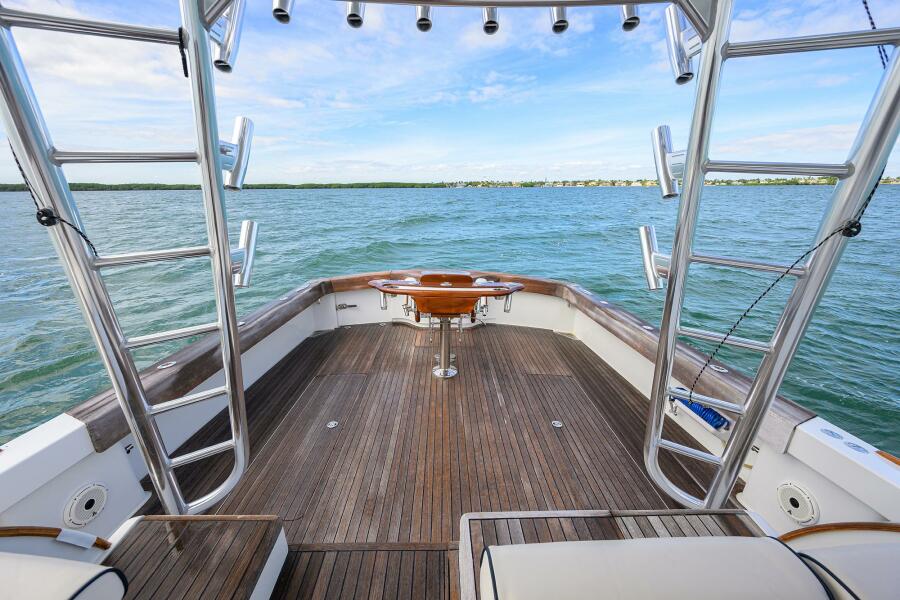

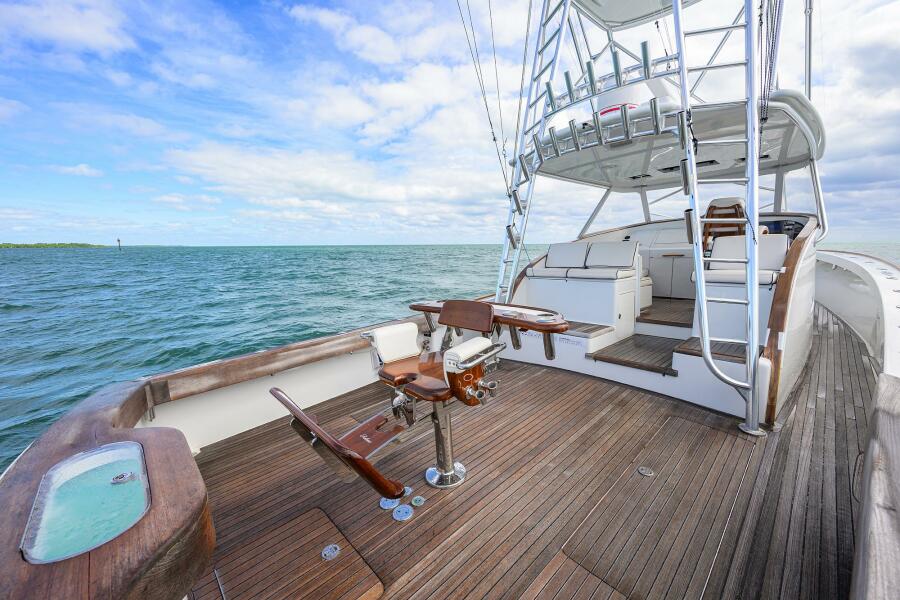

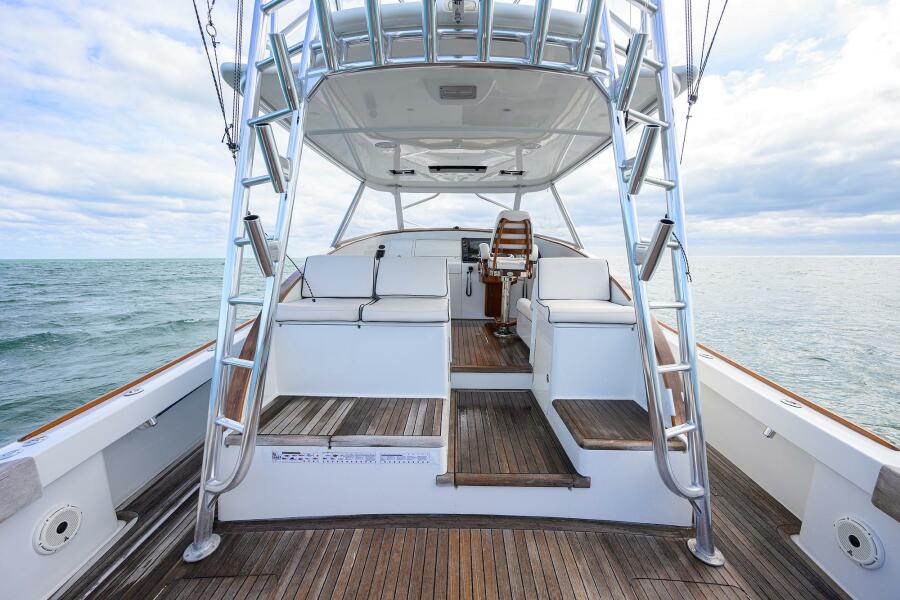

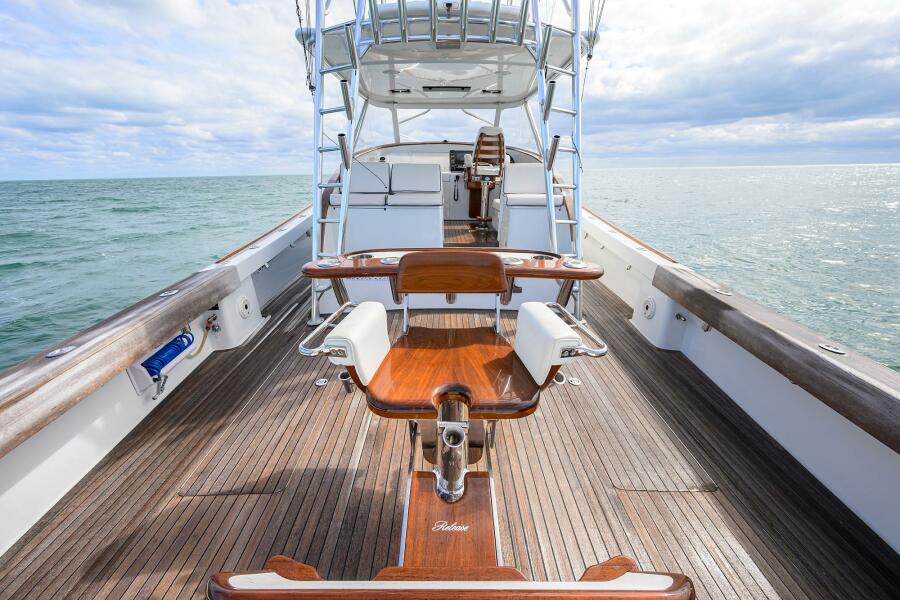

Cockpit

• Dockside electric connection – 50 amp/220V electric, located under gunwale

• Dockside water connection with pressure reducing valve under gunwale

• 2 - Fresh water wash downs with hose bib located forward & aft

• Gaskets for all lids, doors, and access doors

• Indirect rope lighting under coaming

• Laminated mounting plate in-deck for future fighting chair

• Lazarette hatch for inspection of aft bilge

• Molded-in insulated fish boxes, port & starboard with hatches and drains plumbed to macerator pump-out

• Rod holders, (12x)

• Sea water wash down with pump in lazzeratte and supply under forward and aft gunwale to keep deck clean while fishing

• Self-bailing cockpit with large cockpit scuppers

• Stainless steel gas springs on all hatches and lids

• Traditional transom tuna door under gunwale

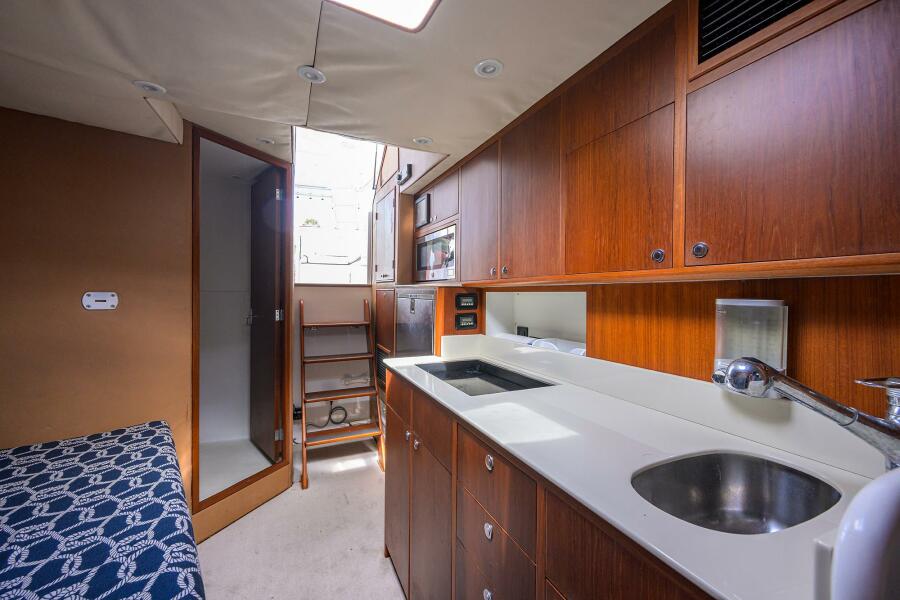

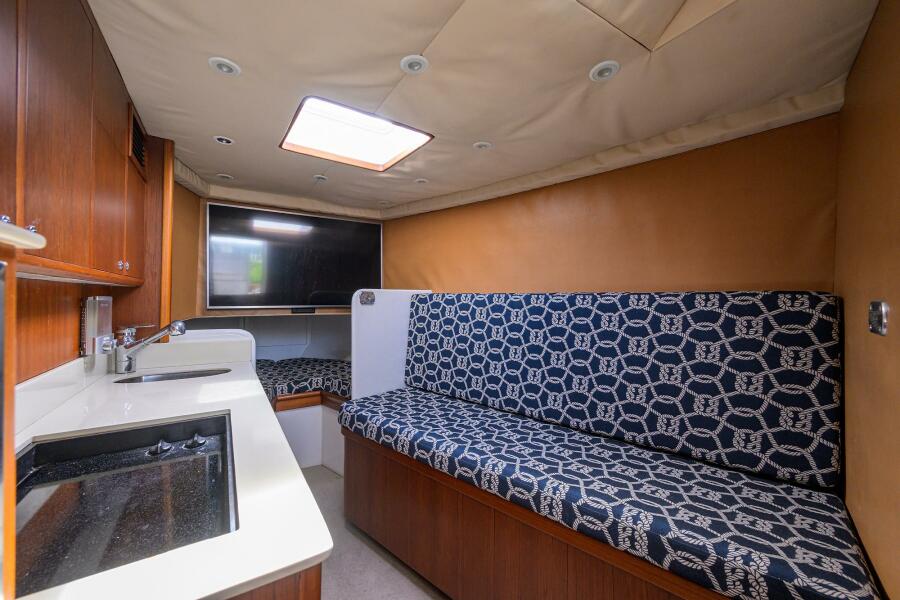

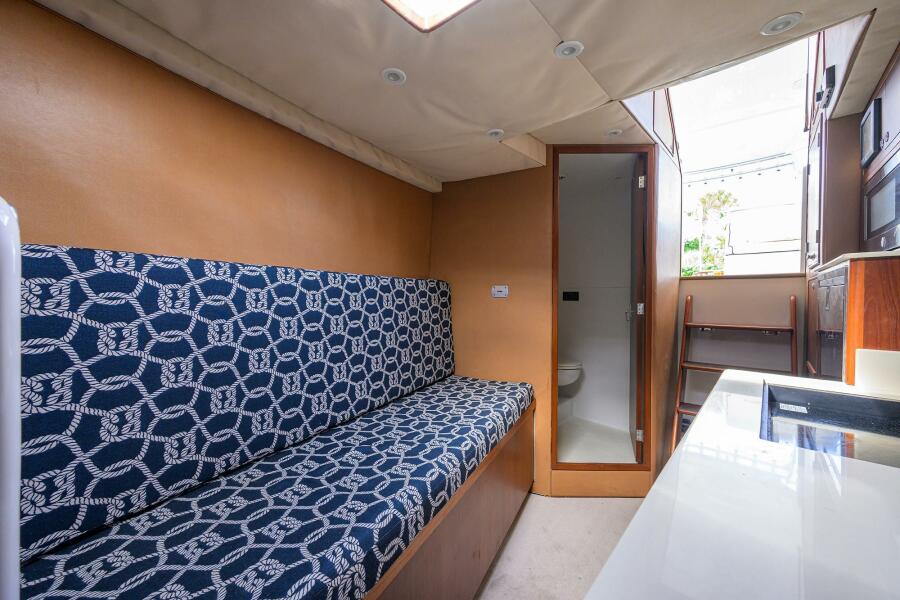

Cabin / Galley

• Air conditioning with reverse cycle heat

• Fresh water gauge

• Lighting, overhead recessed in headliner

• Main electrical service panel, AC/DC

• Majilite headliner, natural color, 1/8” foam & tricot backing

• Custom door to bridge deck

• V - berth with storage below

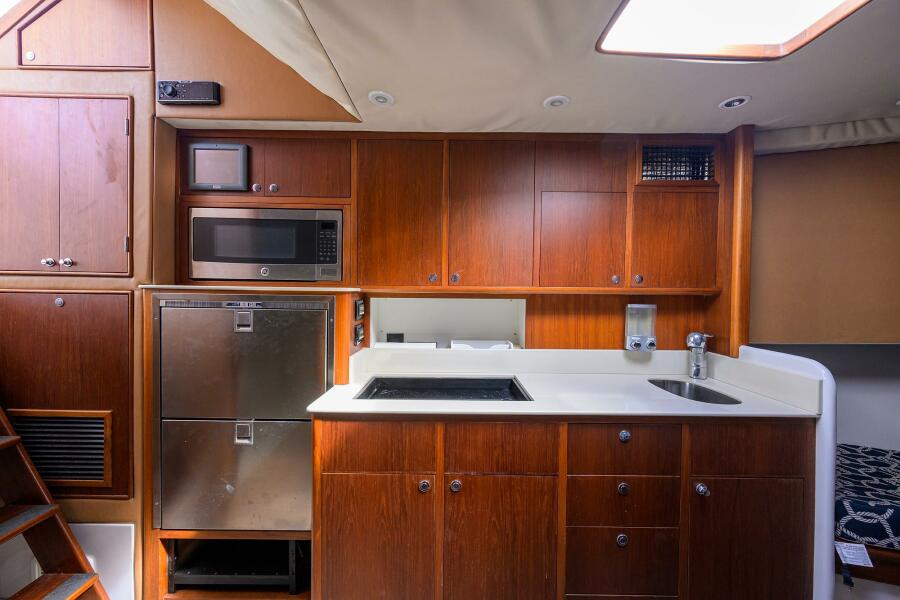

• Galley countertop, bone-color Avonite

• Microwave/convection oven located in upper galley cabinet

• Refrigerator freezer, drawer type

• Sink, stainless steel recessed in countertop with chrome galley faucet

• Storage cabinets and drawers in lower galley, varnished doors and faces with stowage for, utensils, and other items. Finished maple interior

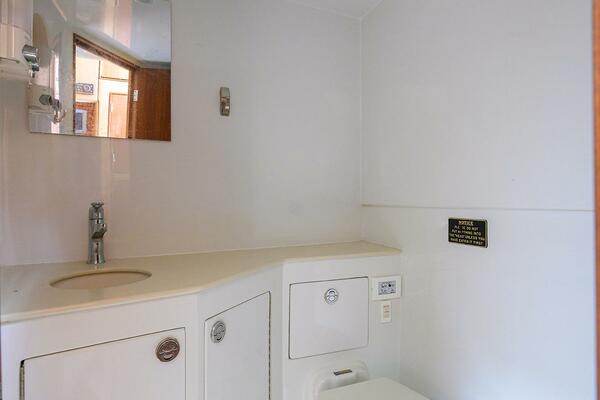

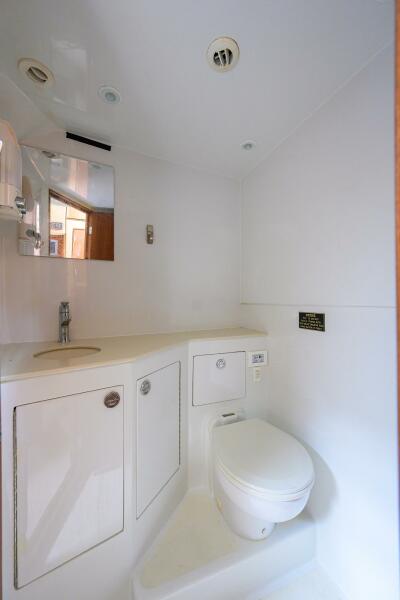

Head

• Air conditioning/heat with vent in soffit

• Exhaust fan with vent in soffit

• Lights, recessed in soffit and in ceiling

• Molded fiberglass vanity and sink with Avonite top and chrome faucet

• Receptacle, 120V

• Tecma with overboard and holding tank discharge

• Chrome shower fixtures and with drain to automatic sump pump in bilge

• Towel bar – chrome

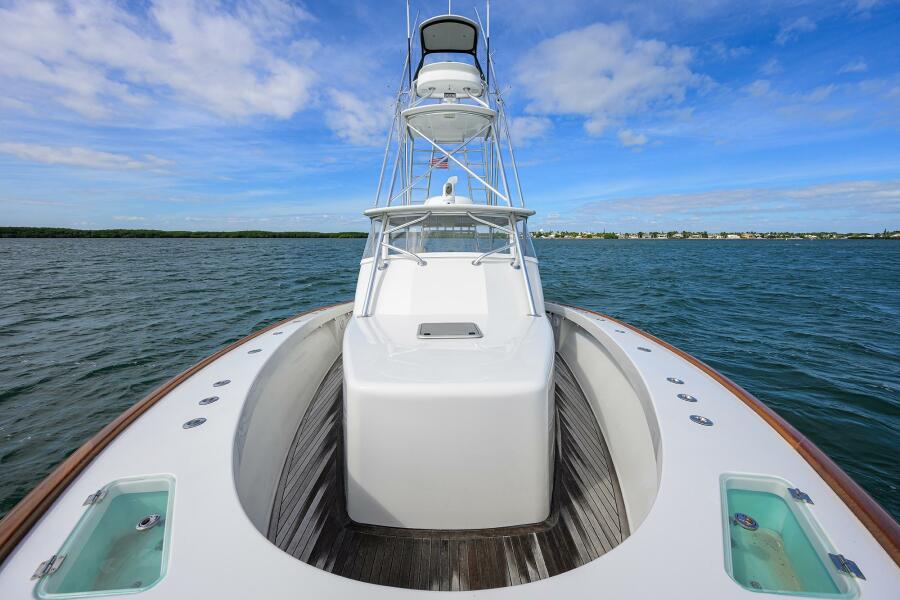

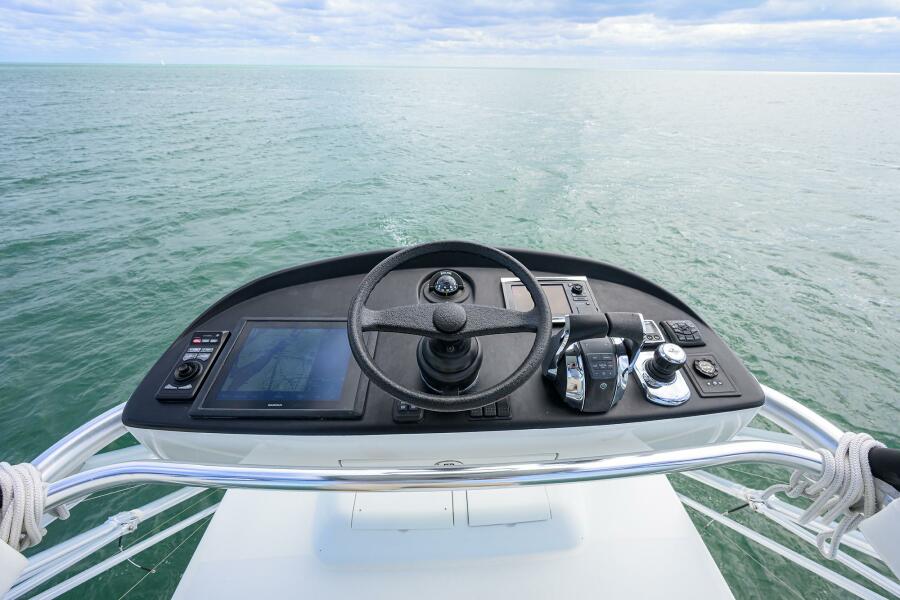

Tower

• Tuna tower with molded hardtop

• 3-degree forward angle radar pod

• Control Box w/Flush Mounted Compass

• Anchor, red/green running and stern lights molded (led) U.S.C.G. certified

• Tri color hardtop lights (5x)

• Spreader lights 2 in 1 molded LED

• Rupp double spreader outriggers

• Rupp Center Rigger

• Eight rod holder’s aft legs and top

Miscellaneous

• Anchor – Fortress

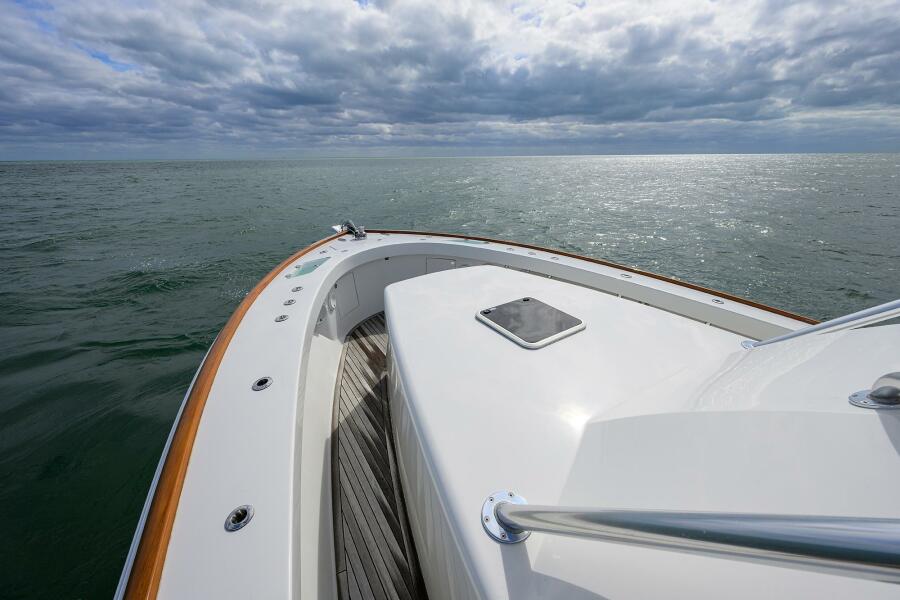

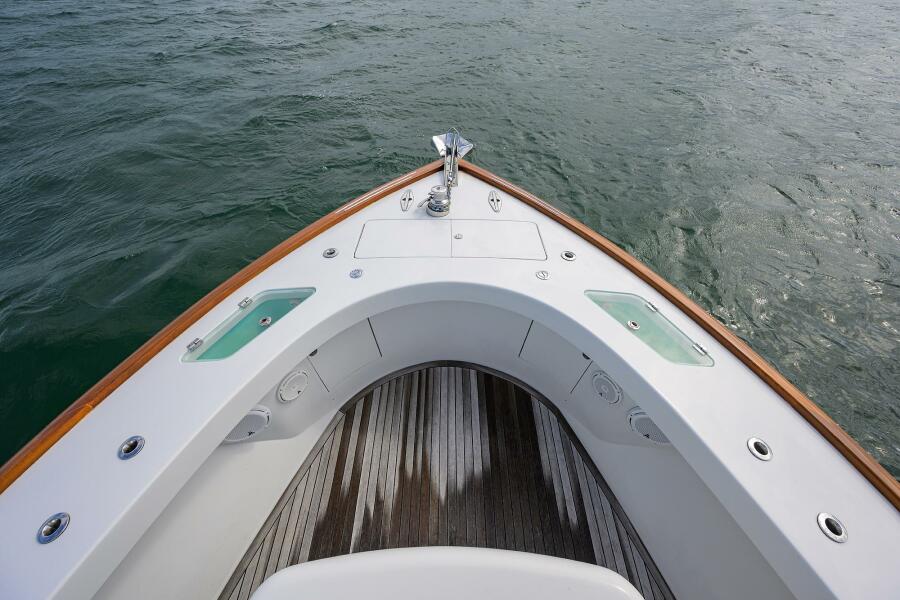

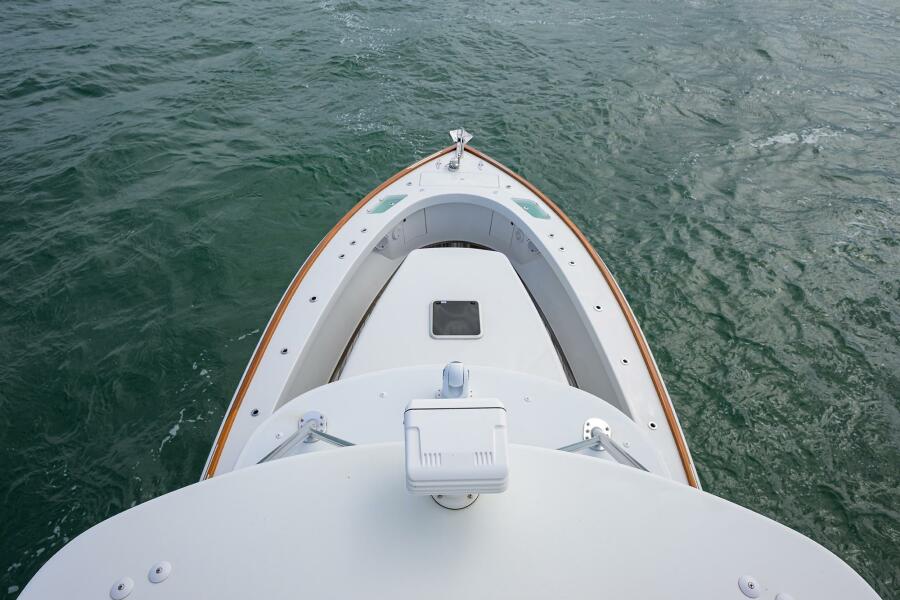

• Anchor locker with access from foredeck

• Anchor Rode

• Stainless steel pop -- up bow, spring and stern cleats thru-bolted

• Standard Décor package

• Zinc on transom
