ARCHIMEDES
2005 Back Cove 29 Hard Top
2005 Back Cove 29' (8.84 m) 29 Hard Top
South Dartmouth, Massachusetts, United States
ARCHIMEDES
Classic looks with modern systems, the Back Cove 29 continues to be one of the hottest boats on the market.
Flag of Registry: United States
- Downeast
- Power
- Used
- Diesel
- Fiberglass Hull
- HIN/IMO: NEH29030G405
Vessel ID# Last Updated: 2026-01-15 08:16:00
| FEATURES: |
|---|
| Nicely equipped, well-kept |
| Garmin 7612 XVS Touchscreen |
| 18" Fantom Radar |
| Batteries new, 2026 |
| Low hours! |
| Notable Upgrades: Custom Cockpit Seating |
Description

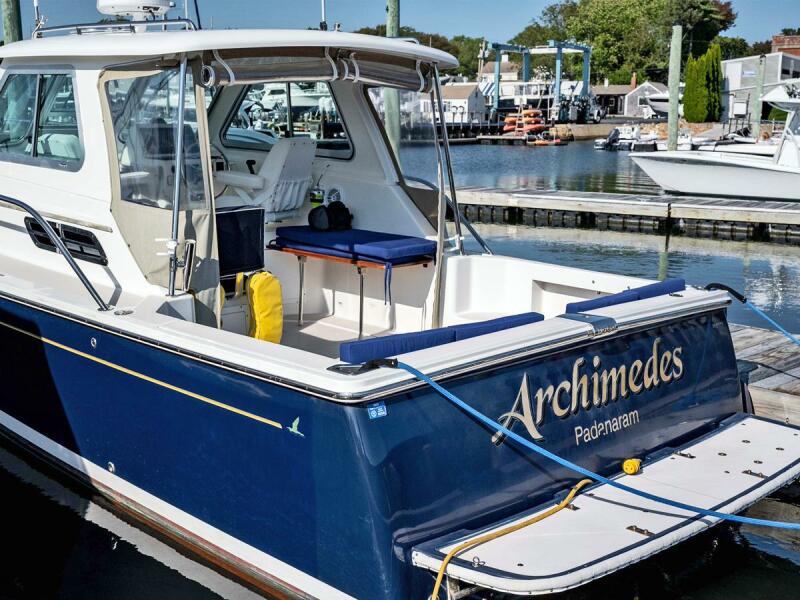

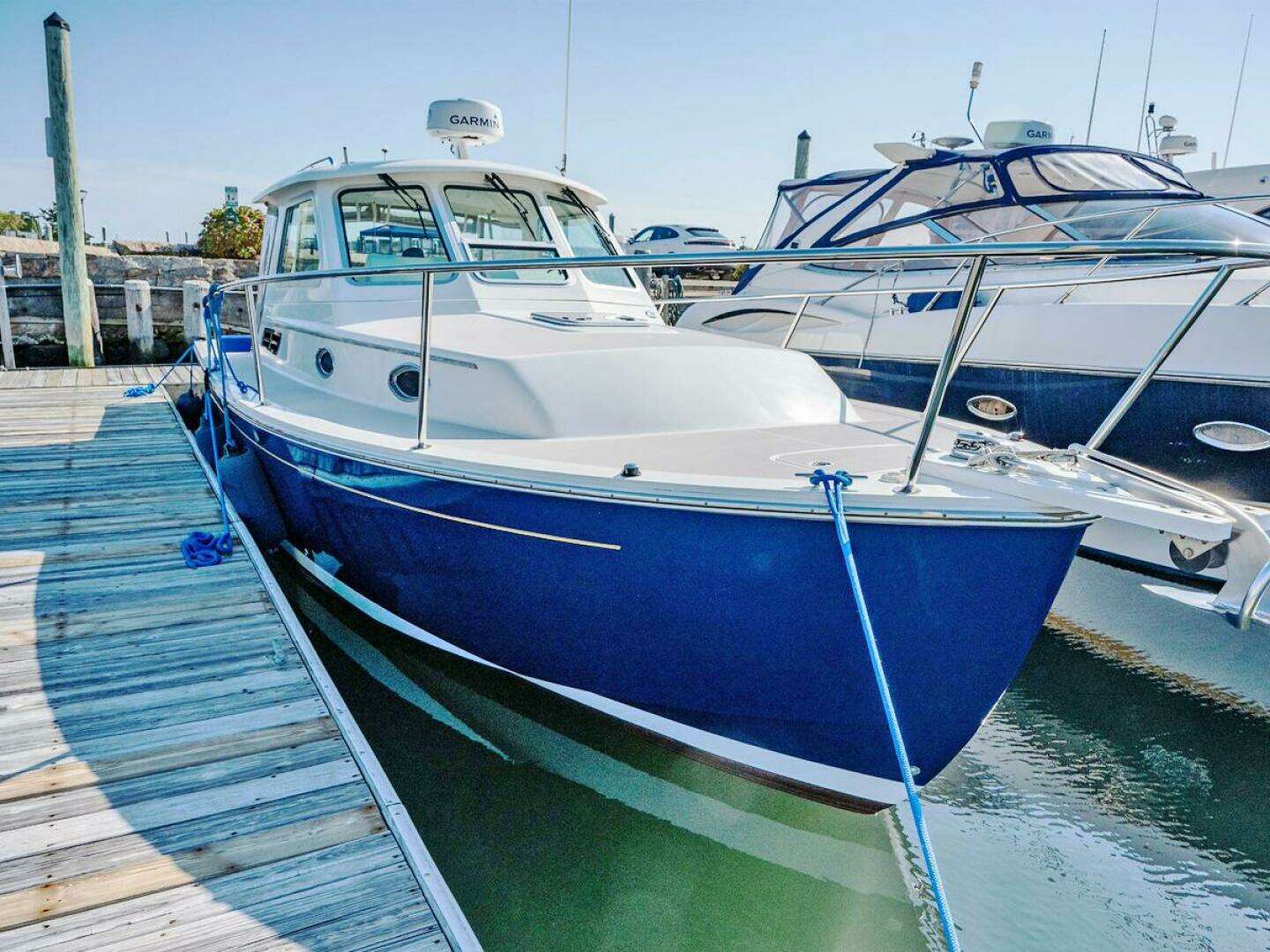

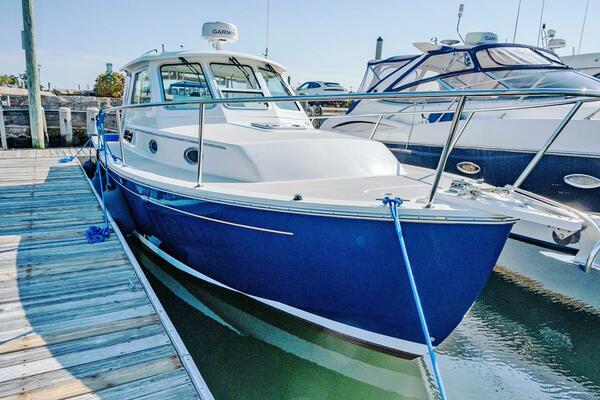

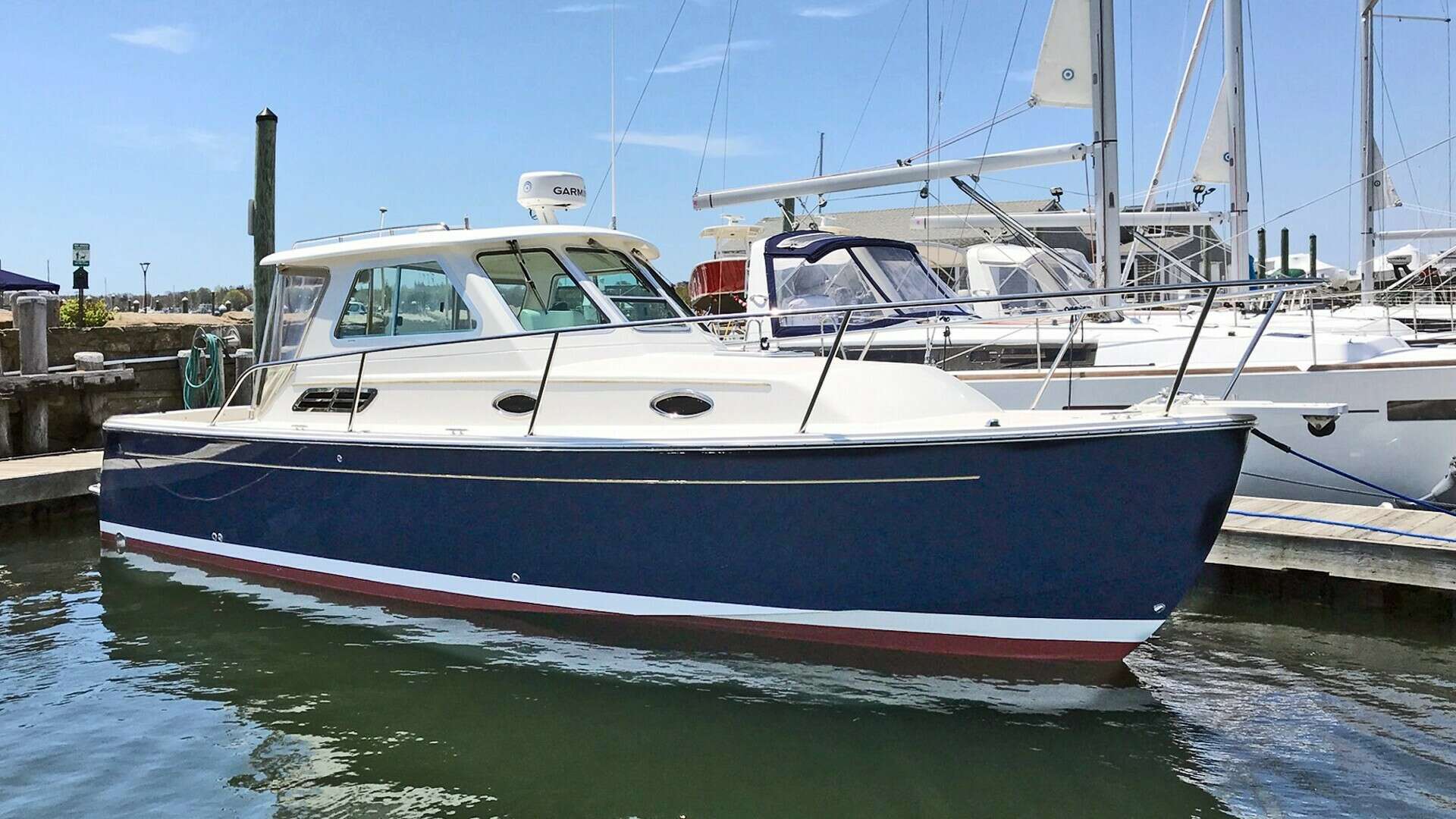

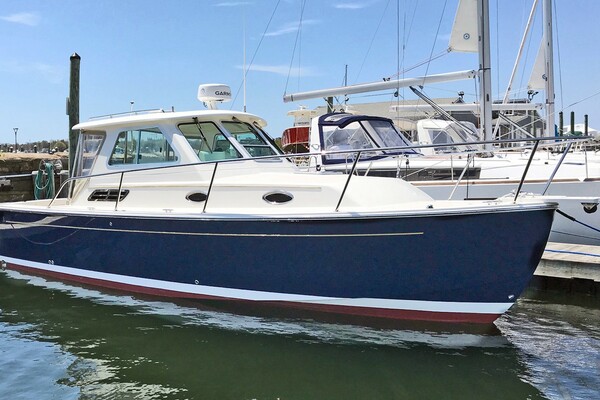

ARCHIMEDES is a nicely equipped and kept example of the very popular Back Cove 29. Her optional equipment list includes a Garmin 7612 MFD, 4kW 18" Fantom radar, autopilot, custom cockpit seating, Awlgrip dark blue hull, windlass, and much more.
Below the surface, she is modern and contemporary. A deep-vee hull with prop recess and standard trim tabs offers comfort and performance. With her upgraded 315 horsepower, 6-cylinder diesel engine, she reaches a top end of 26 knots and will cruise very comfortably in the mid 20's. Around the docks, you will appreciate the maneuverability provided by her bow thruster.
The Back Cove 29 Hard Top is practical and beautiful and proves to be more than the ordinary boat. See why the Back Cove 29 continues to be one of the hottest boats on the market today. With over 200 built and very few available on the brokerage market, ARCHIMEDES will not last long.
Brewer Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Wellington Yacht Partners. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
HIN/IMO: NEH29030G405
Official Number: 1209788
LOA: 29' (8.84 Meters)
Type: Power- Used
Year: 2005
Documented Year: 2005
Beam: 10' 5''
Draft Max: 2' 6''
Draft Min: 2' 6''
Cabins: 1
Sleeps: 2
V Berths: 1
Heads: 1
Maximum Speed: 26 Knots
Cruise Speed: 20 Knots
Range NMI: 218
Fuel Type: Diesel
Hull Material: Fiberglass
Hull Finish: Awlgrip
Hull Shape: Deep Vee
Fuel Tank: 150 Gallons (567.81 Liters)
Fresh Water: 30 Gallons (113.56 Liters)
Holding Tank: 30 Gallons (113.56 Liters)
Dry Weight: 10000
Builder: Back Cove
Exterior Color: Dark Blue
Photos click to view all
Engines
Engine 1
- Engine Make: Yanmar
- Engine Model: 6LYA-STP
- Engine Year: 2005
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 315.00
- Power KW: 234.90
- Fuel Type: Diesel
- Hours: 700.00
- Hours Date: 01-14-2026
- Engine Location: Middle
Full Details

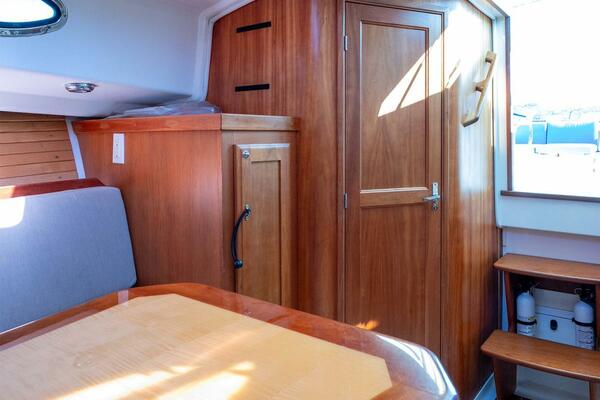

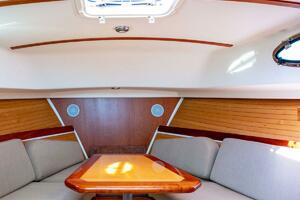

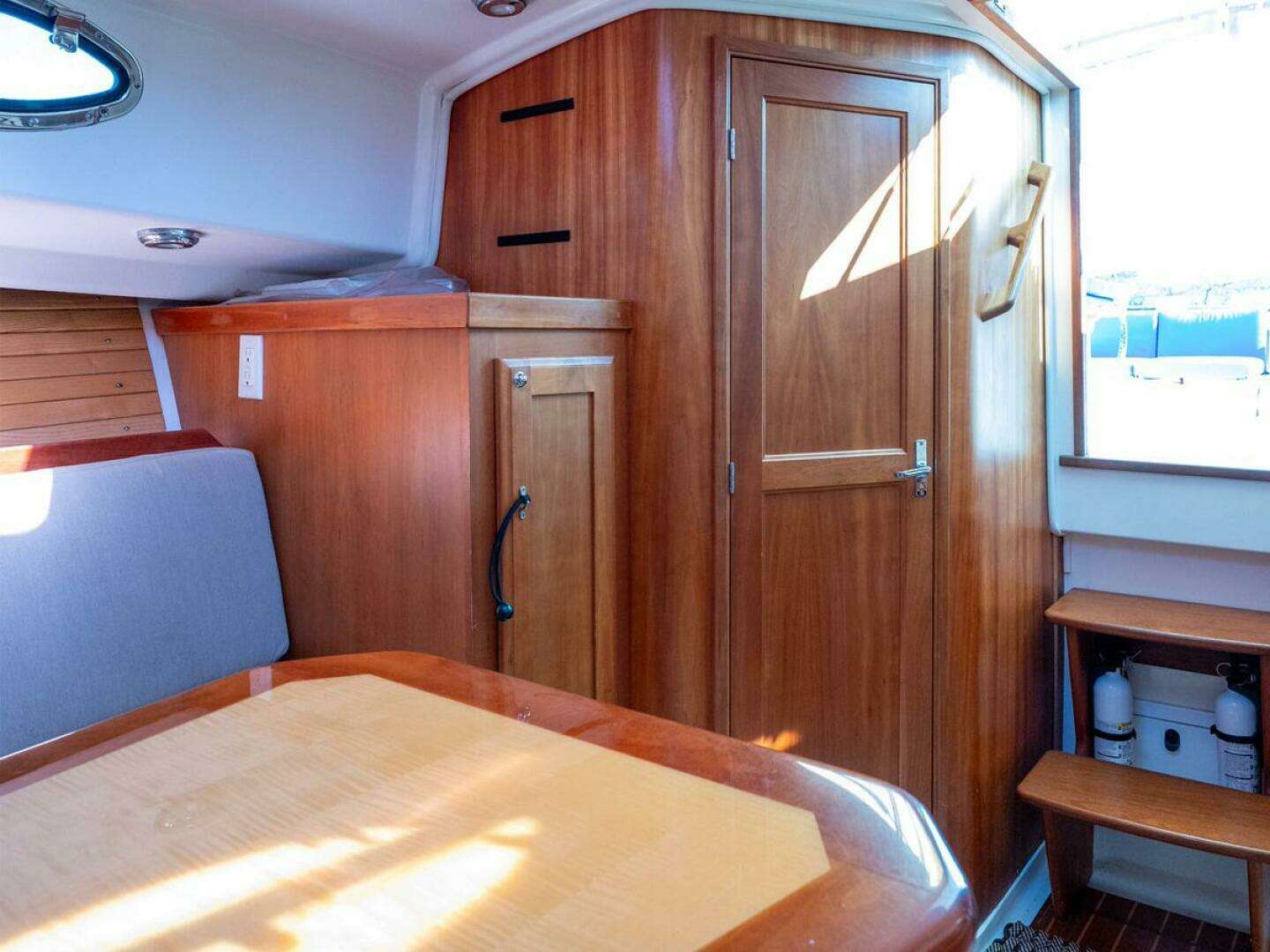

ACCOMMODATIONS

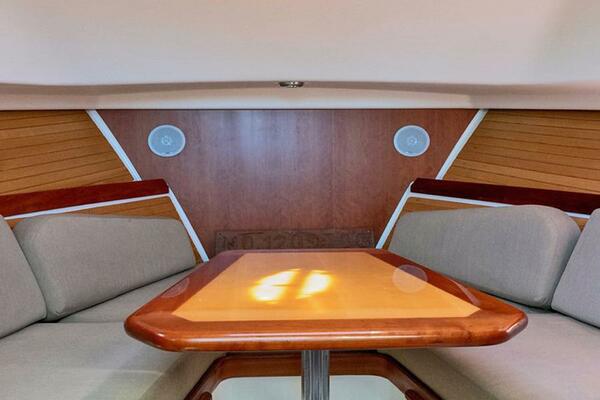

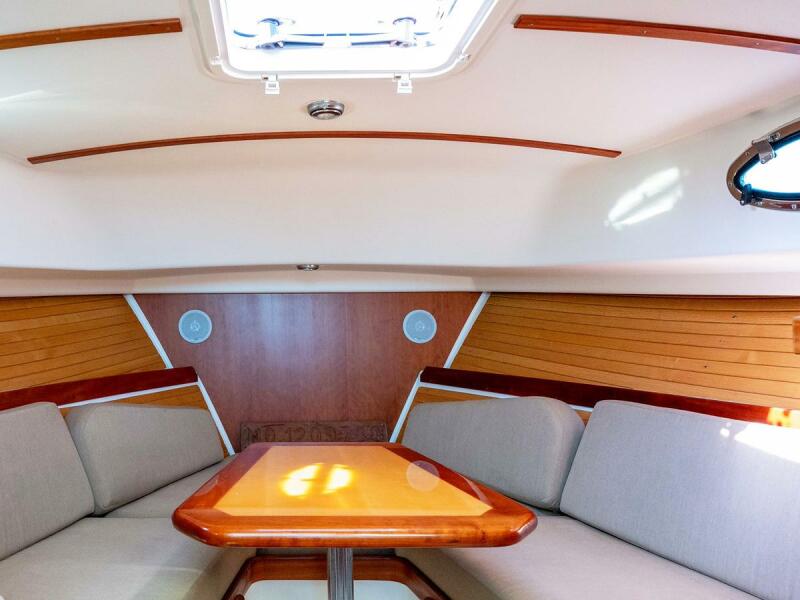

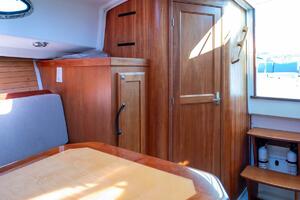

- Varnished cherry interior

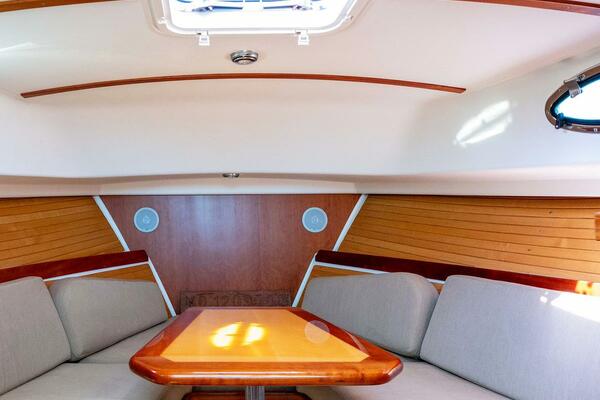

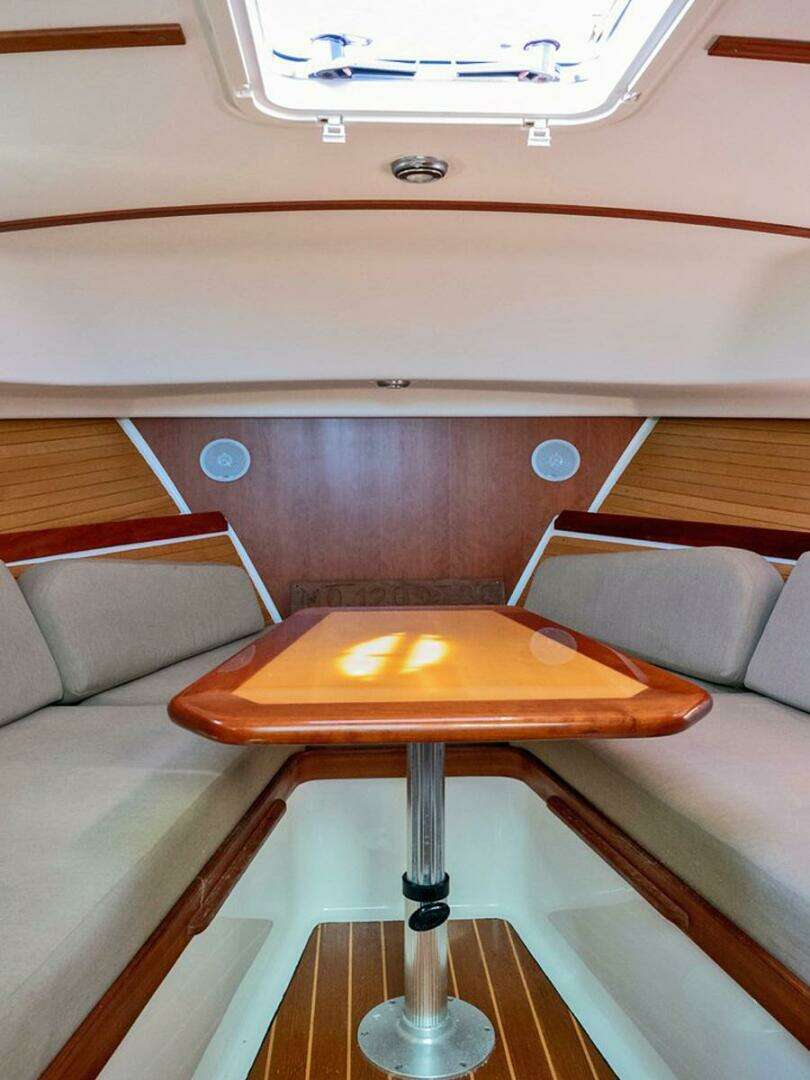

- Hi-lo table with maple inlay
- V-berth with filler cushion
- Shelves above berth
- Cedar lined hanging locker
- Reading light in dinette/ berth area
- Ash hull ceilings
- Teak and holly cabin sole
- Overhead lighting
- (3) Stainless steel opening ports with screens
- Stereo system with CD and interior/helm speakers
- Storage under dinette and forward berth
Galley

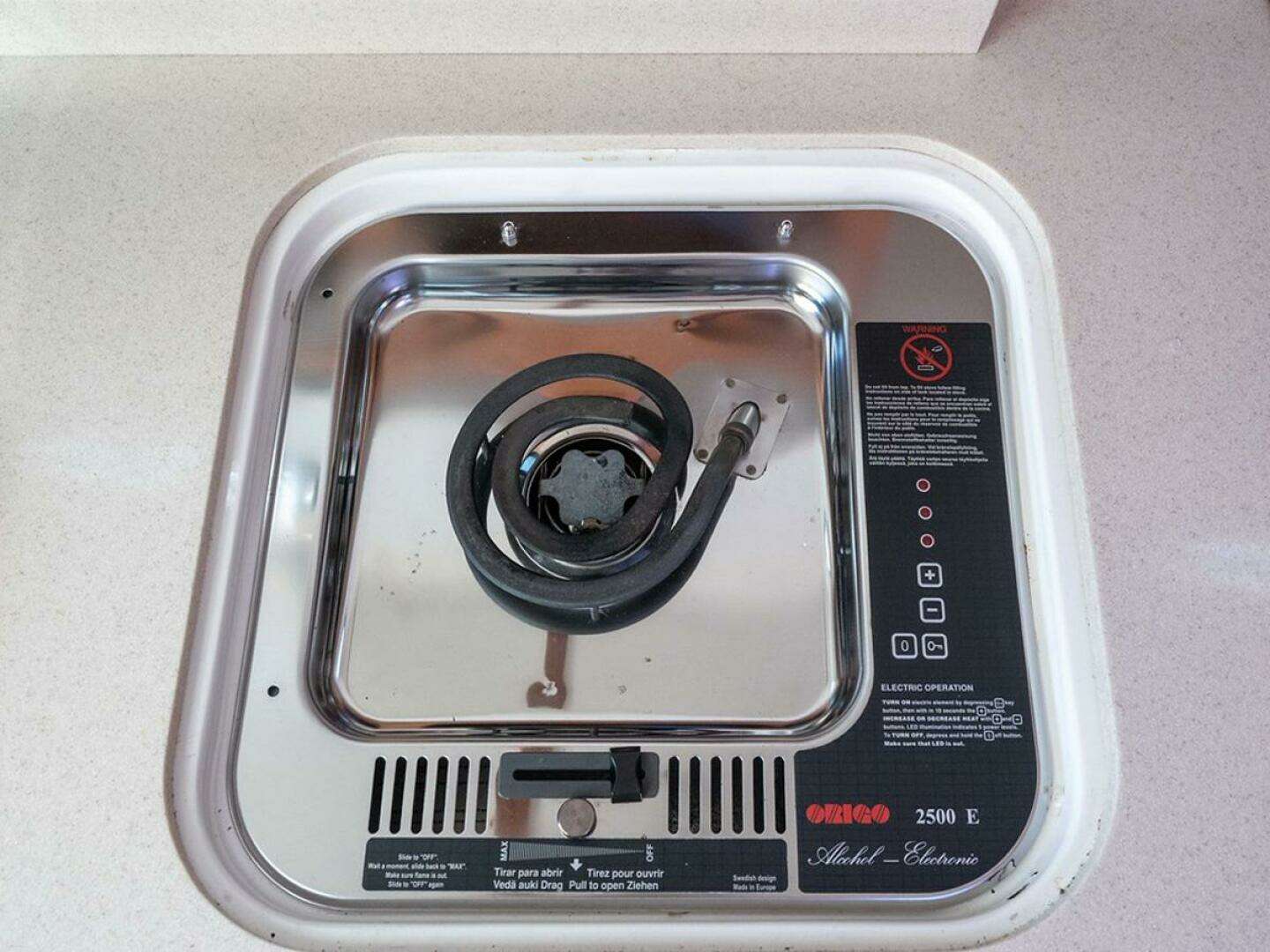

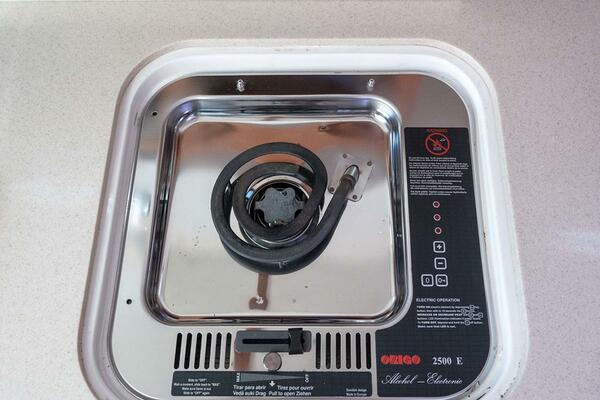

- Origo Alcohol/ 110V single burner stove

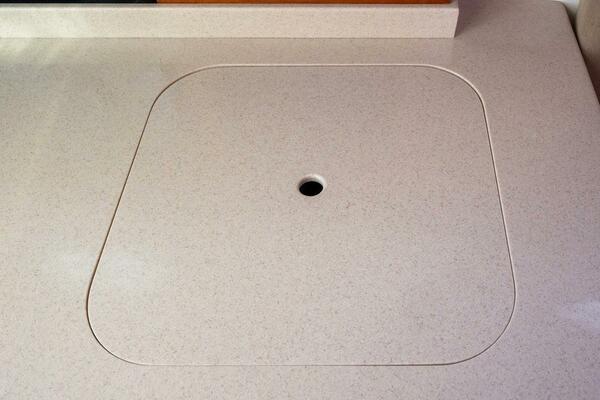

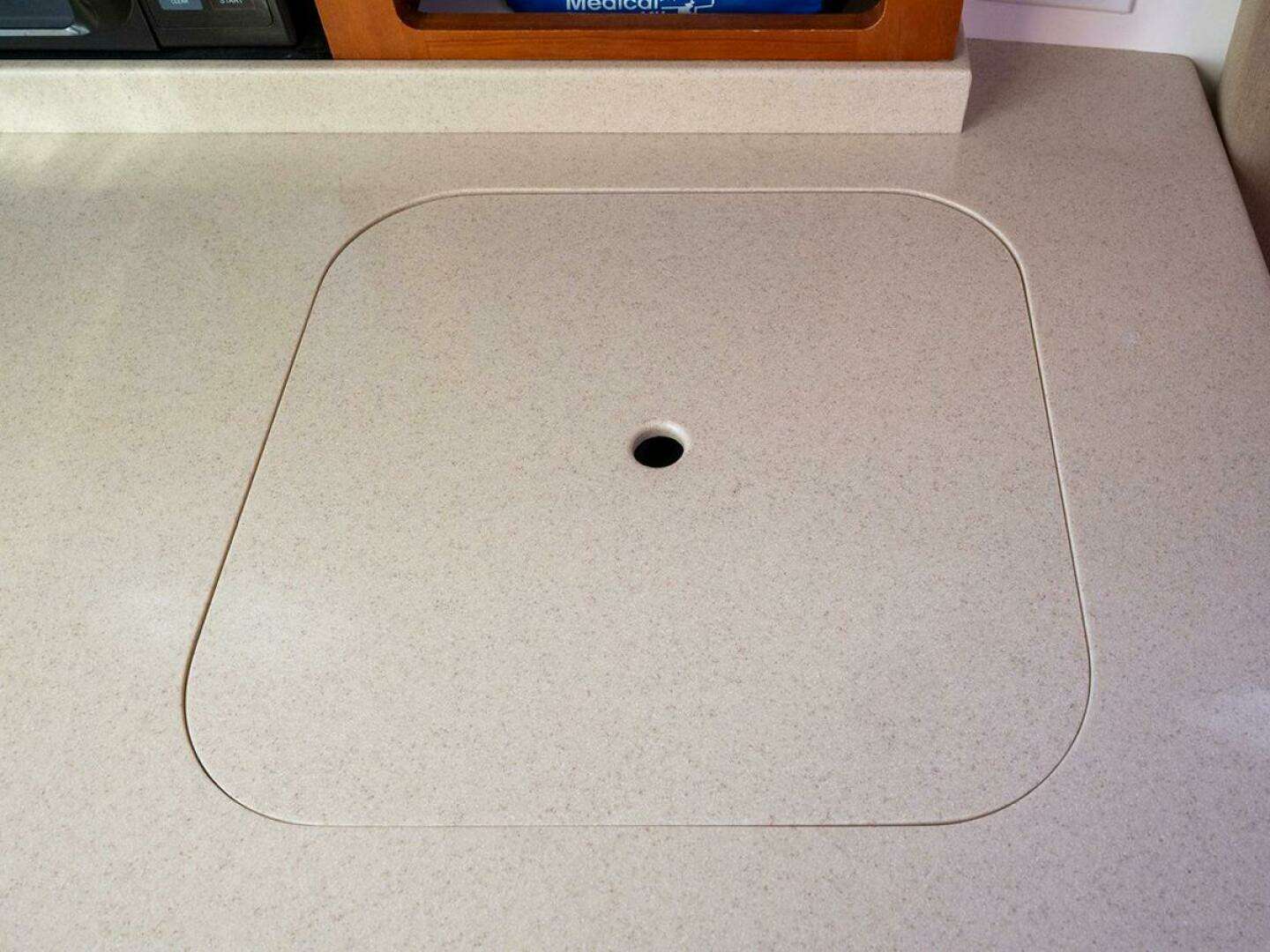

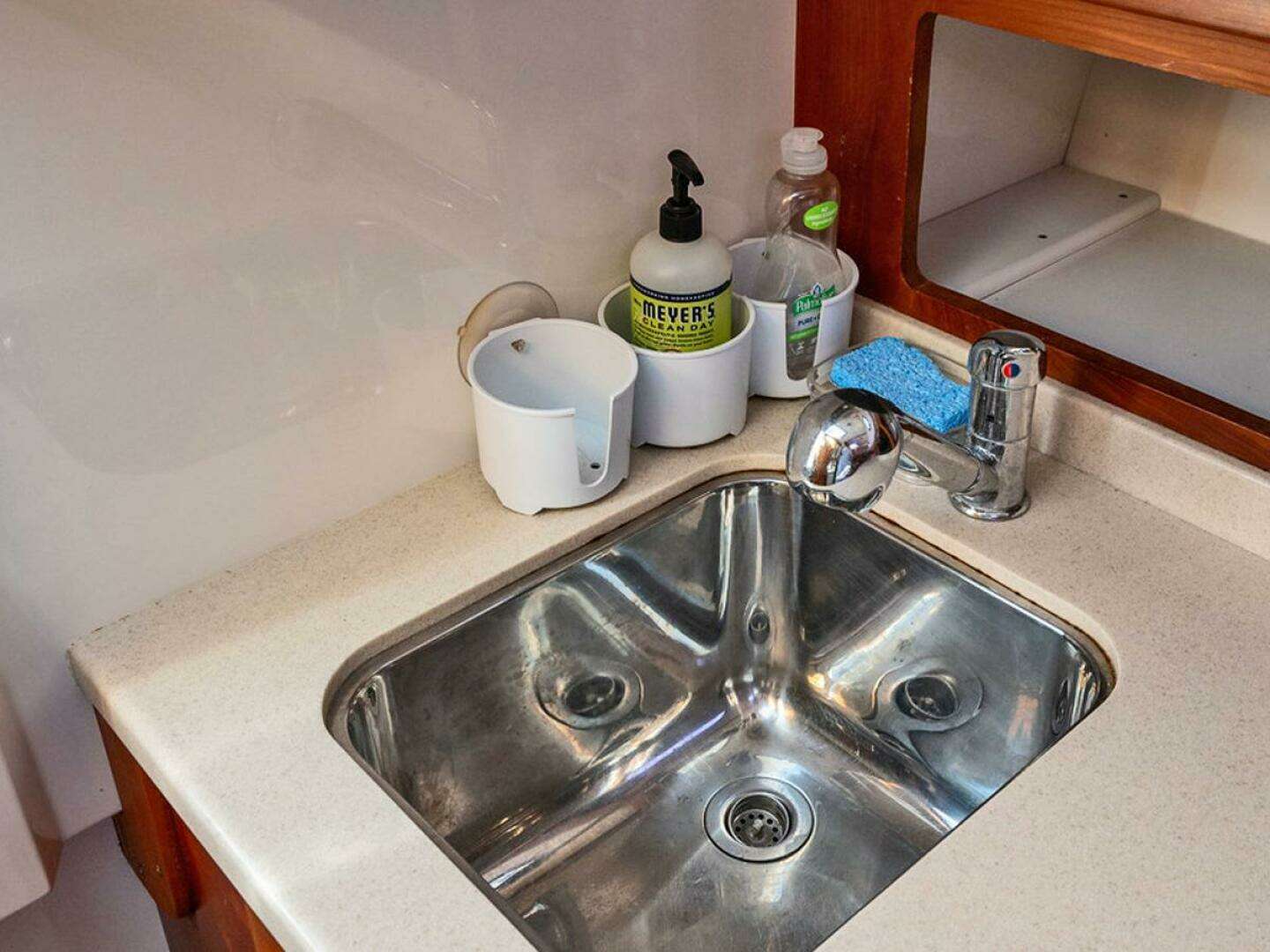

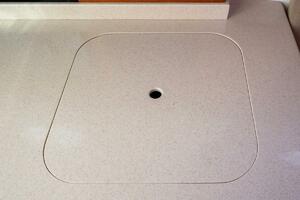

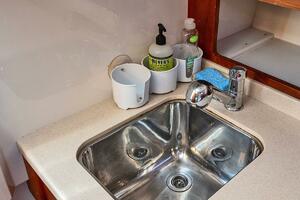

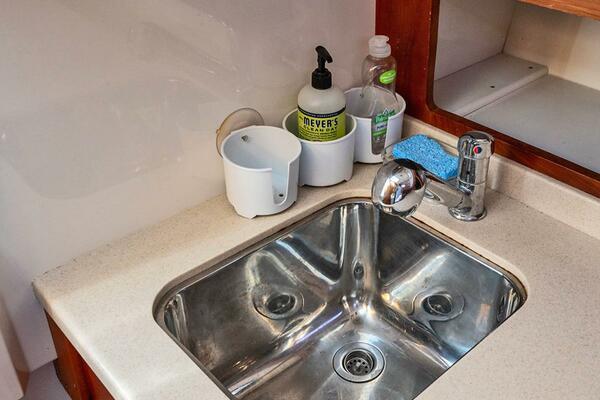

- Galley sink with single-lever faucet and drop-in cover
- Solid surface countertop
- Countertop cabinet

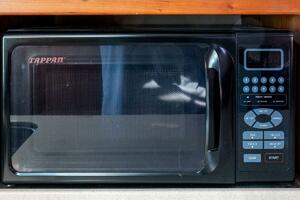

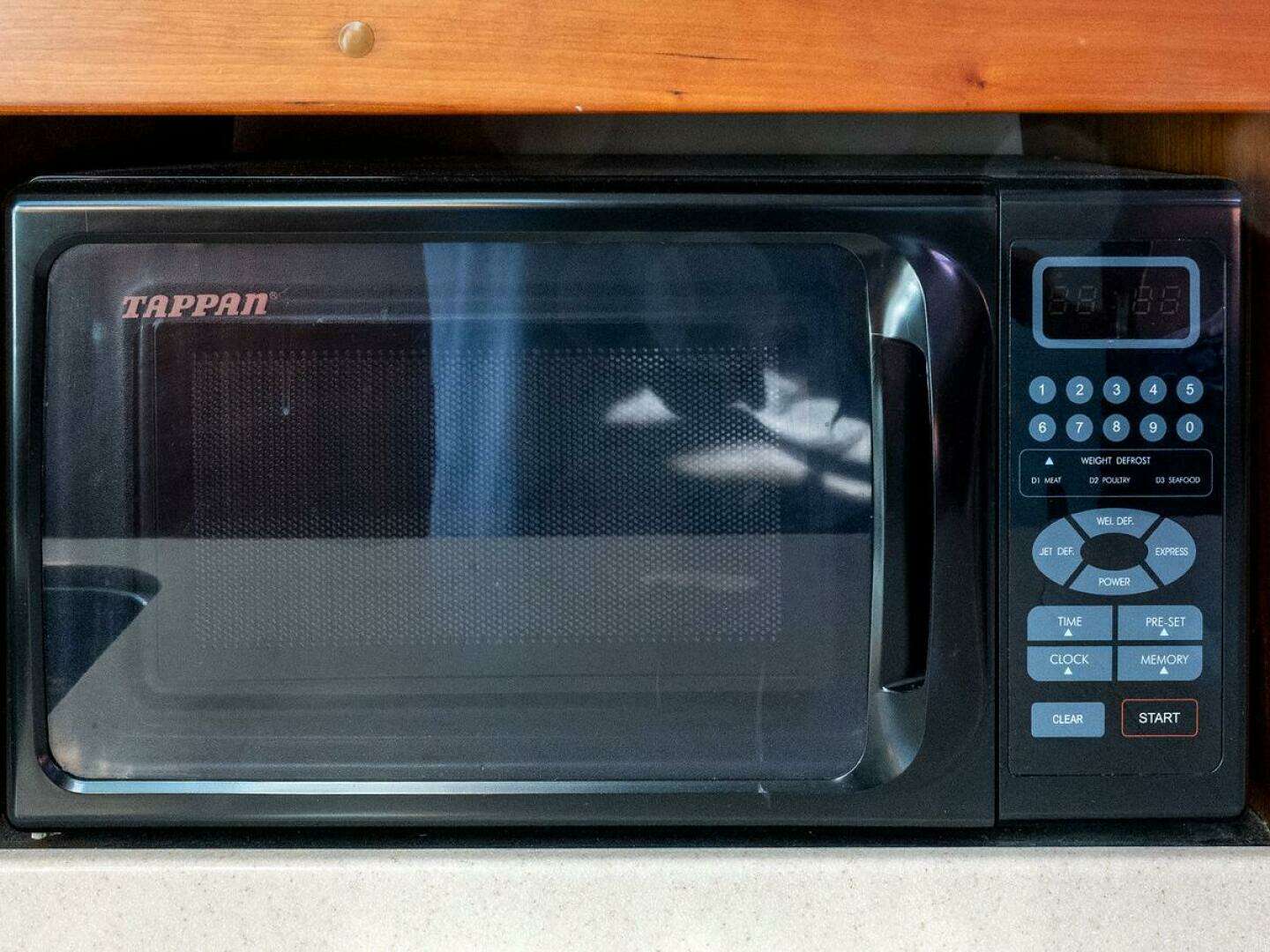

- Microwave built into cabinet
- Drawer and doors below counter

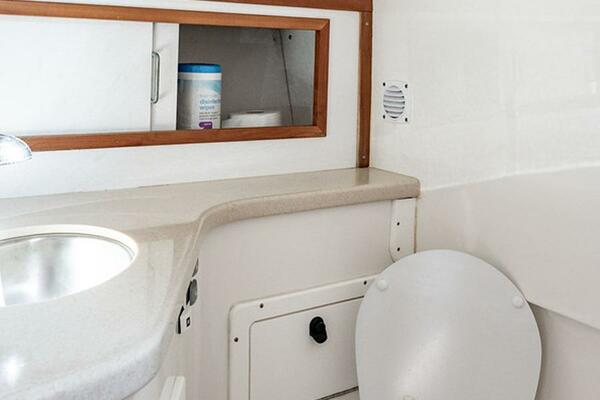

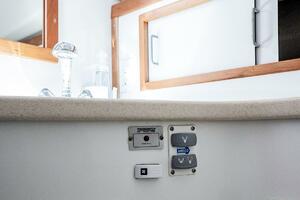

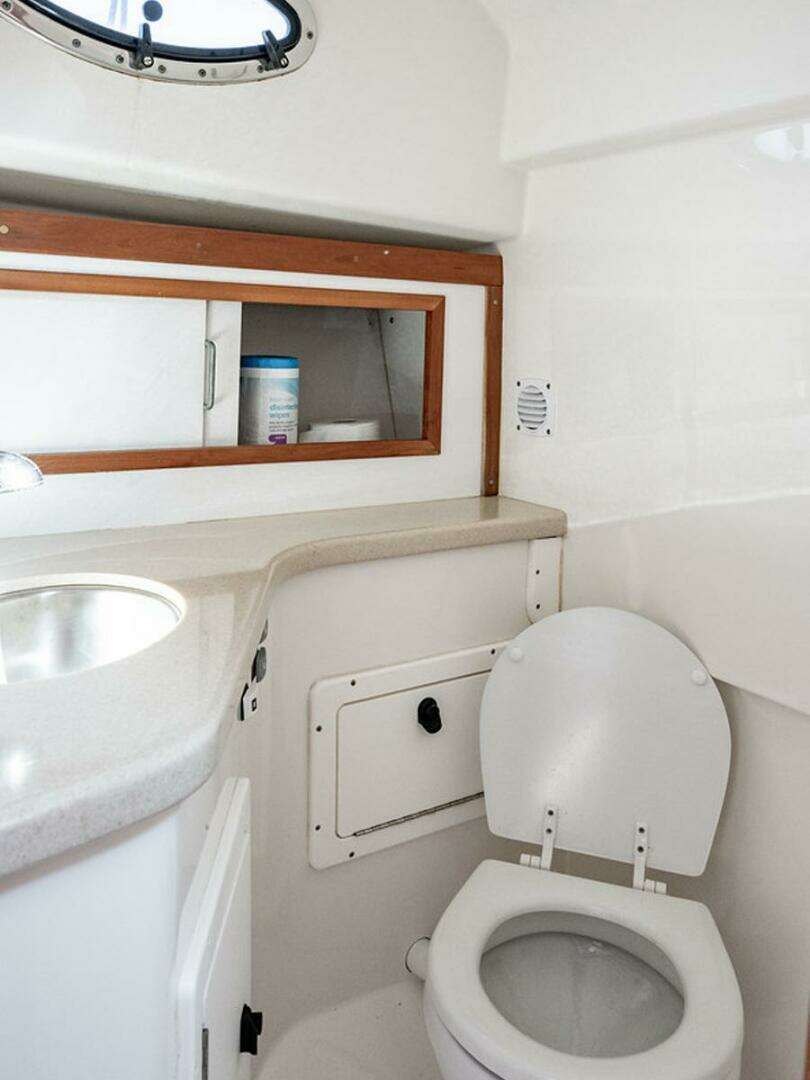

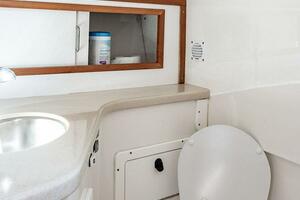

Head

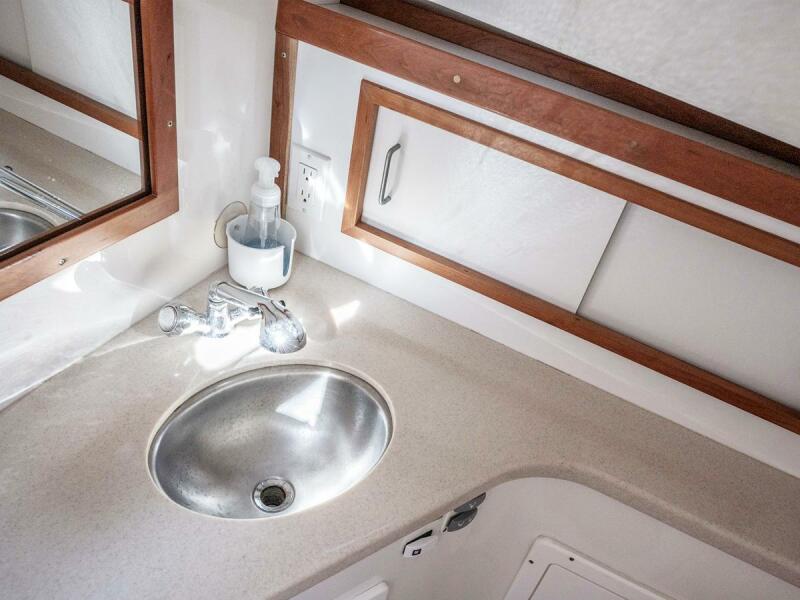

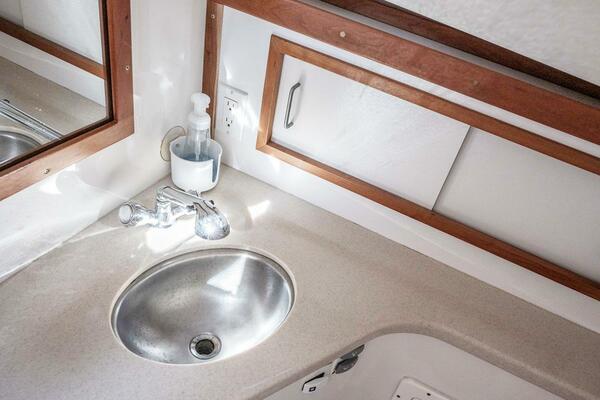

- Built-in vanity with sink
- Solid surface countertop
- Mirror
- Pull out single lever faucet/ shower
- Shower drain/ pump system
- Electric toilet with holding tank

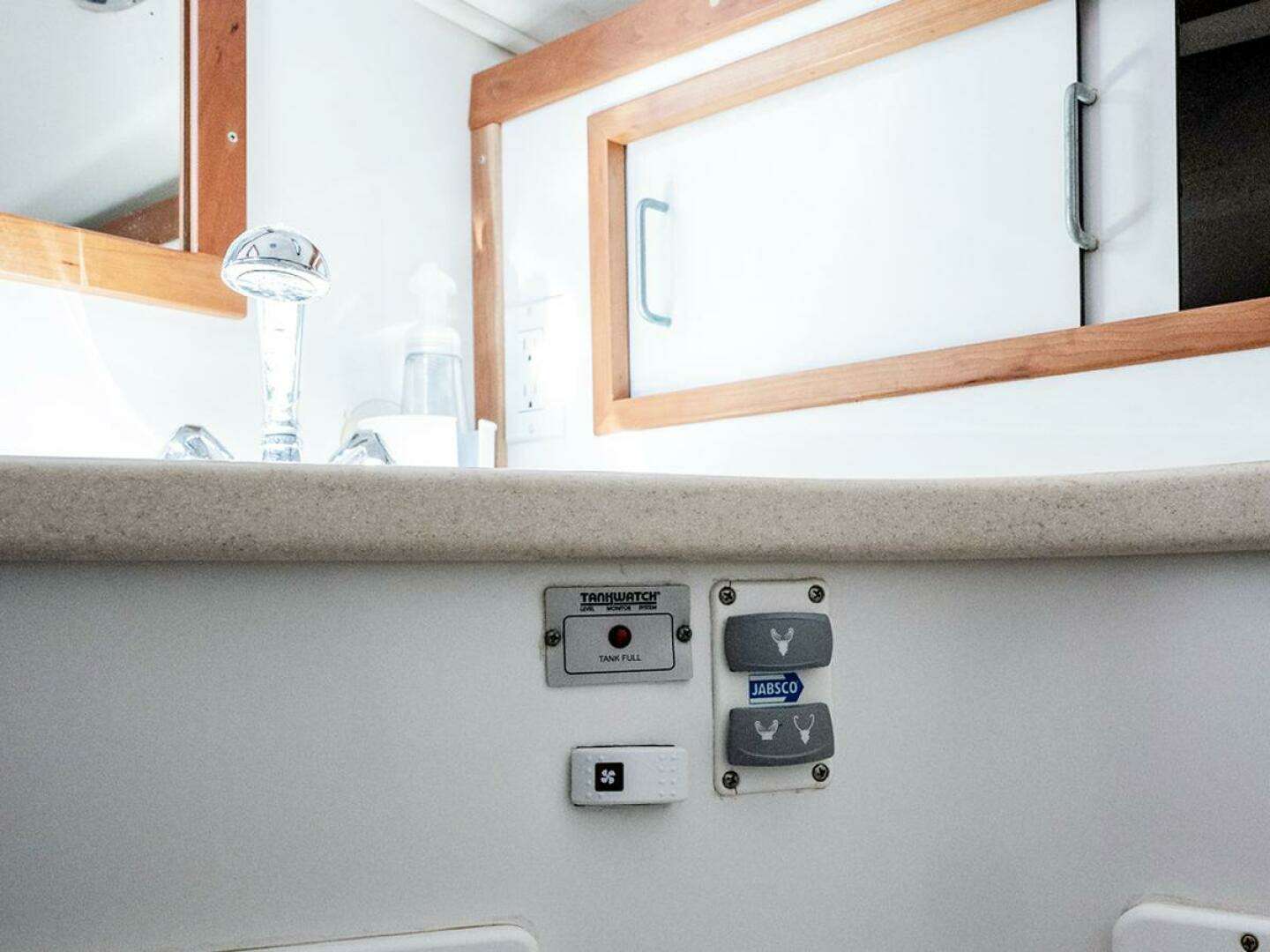

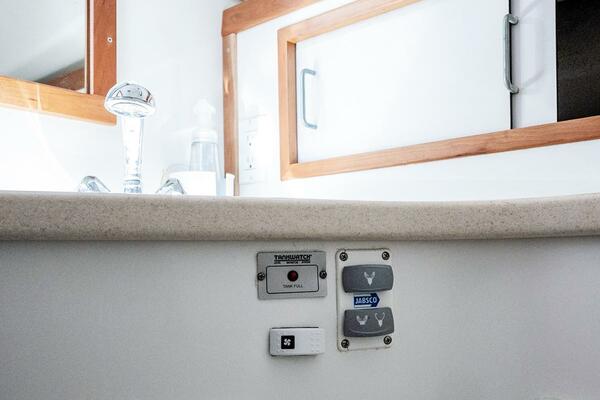

- Waste tank monitor
- Macerator for overboard discharge
- Pump out fitting on deck
- Stainless steel opening port with screen
- Vent fan
MECHANICAL

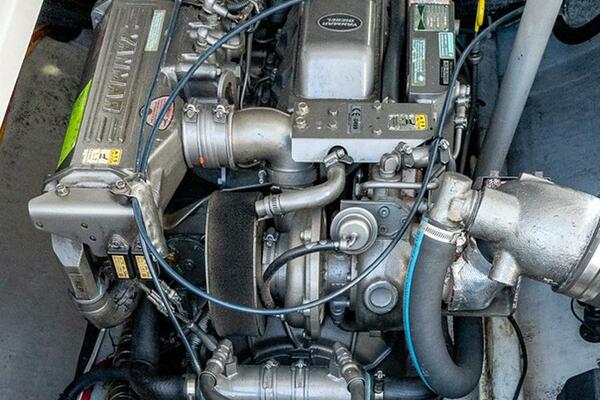

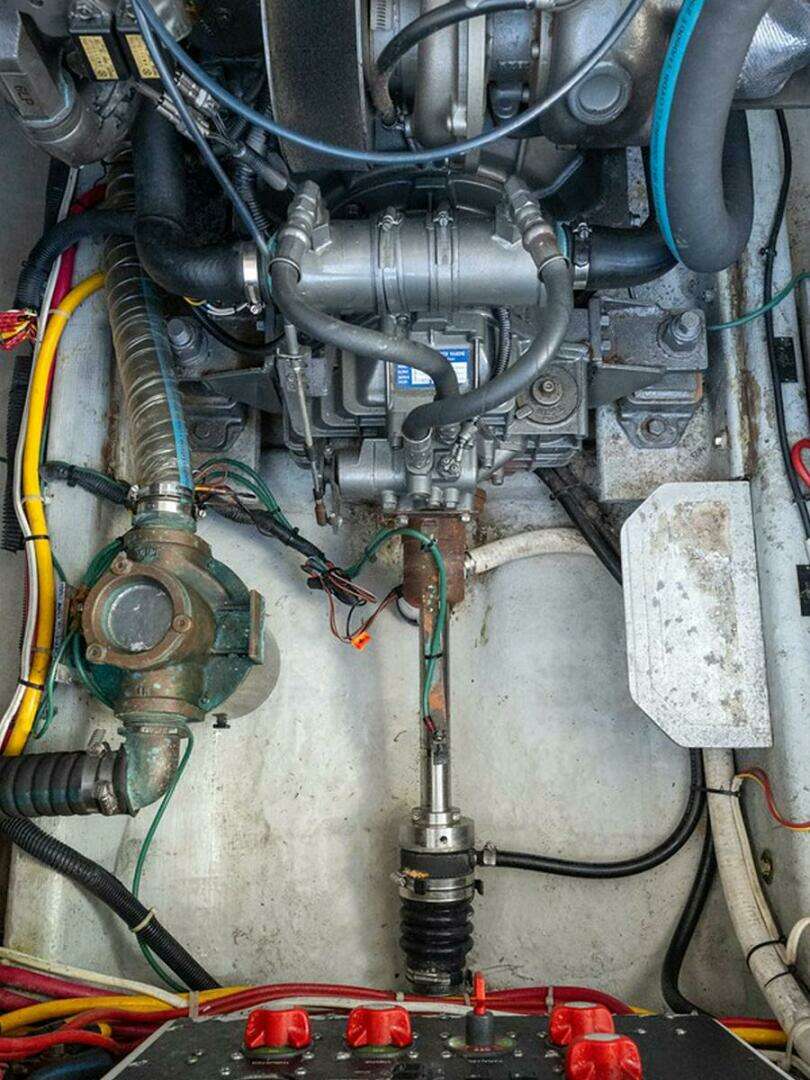

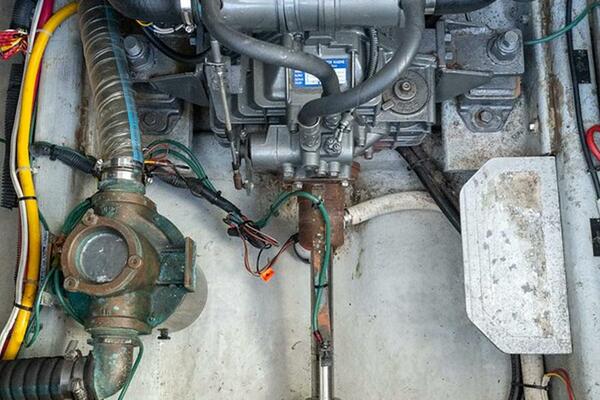

- Yanmar 6LYA-STP 315 hp engine with ZF 63A Marine gear (700 hours, Jan 2026)
- Single lever engine control

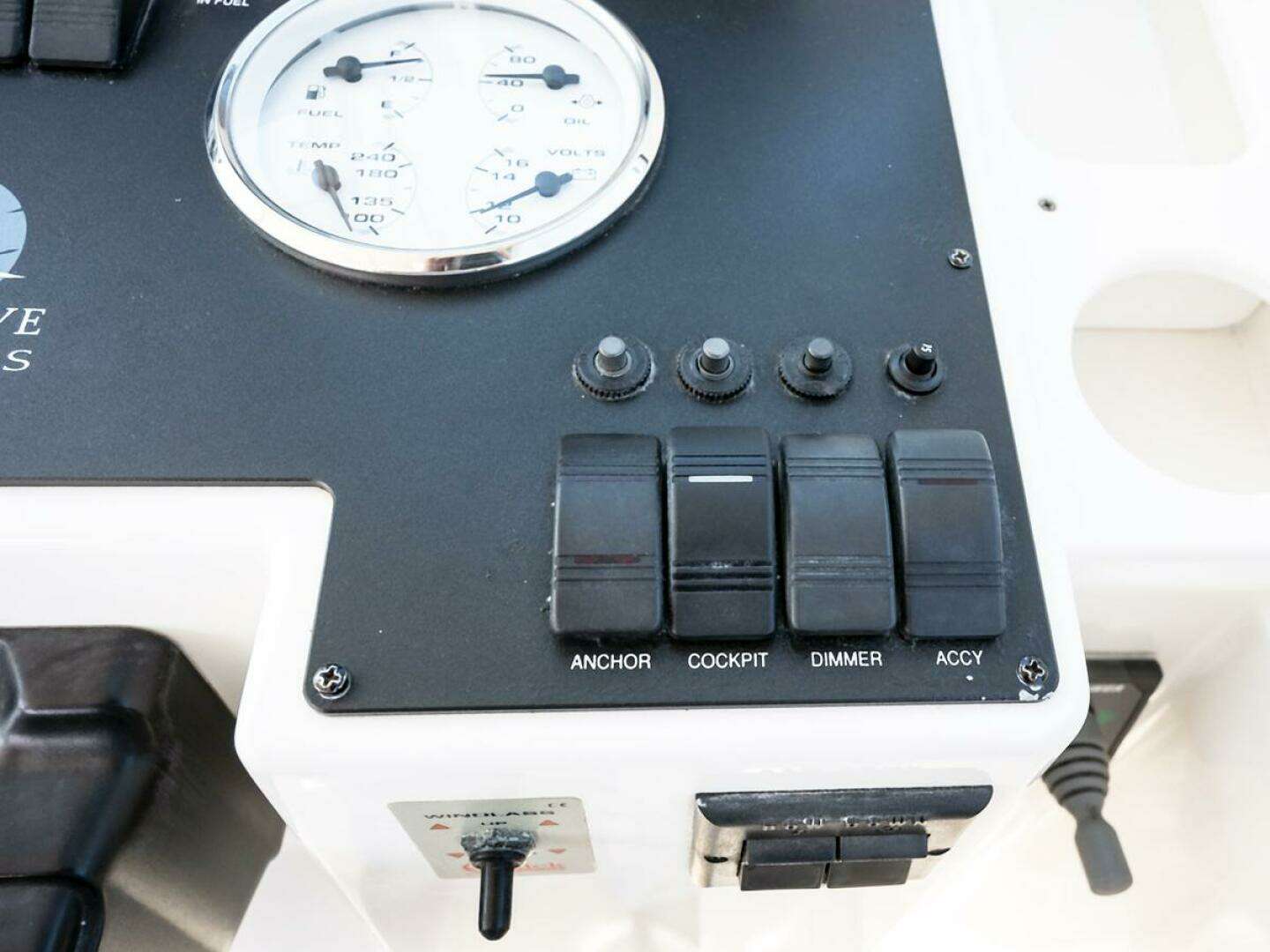

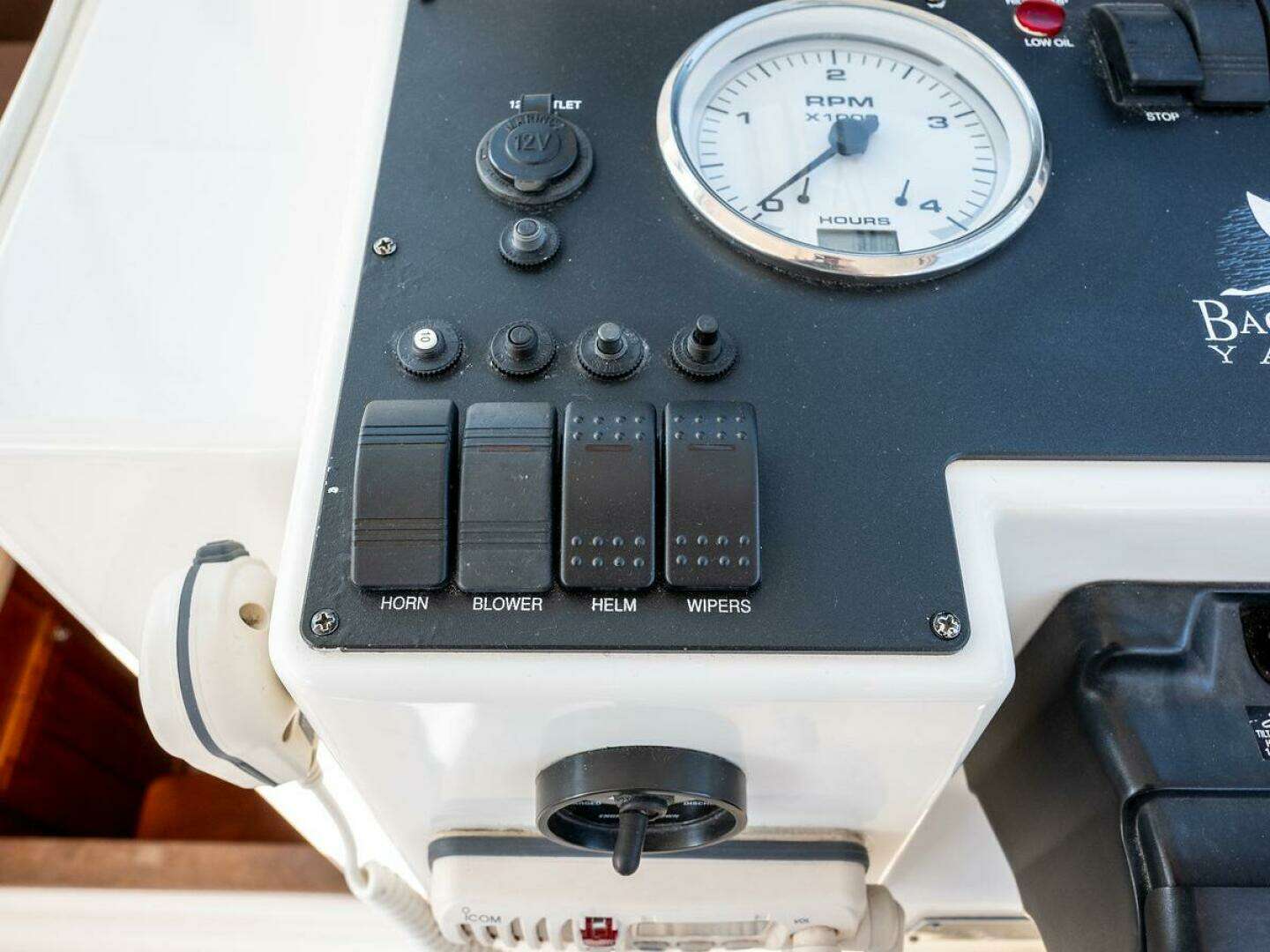

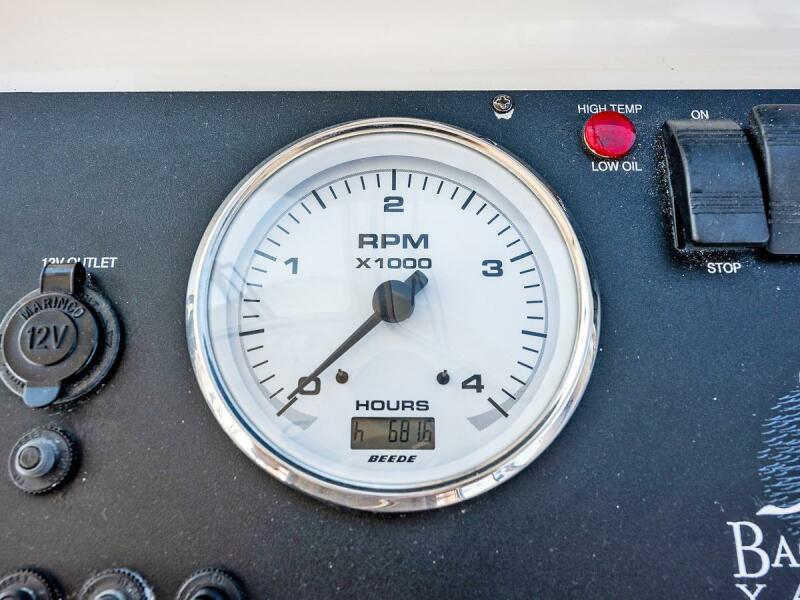

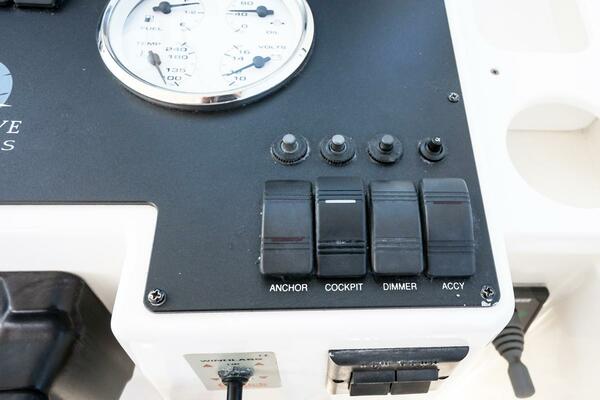

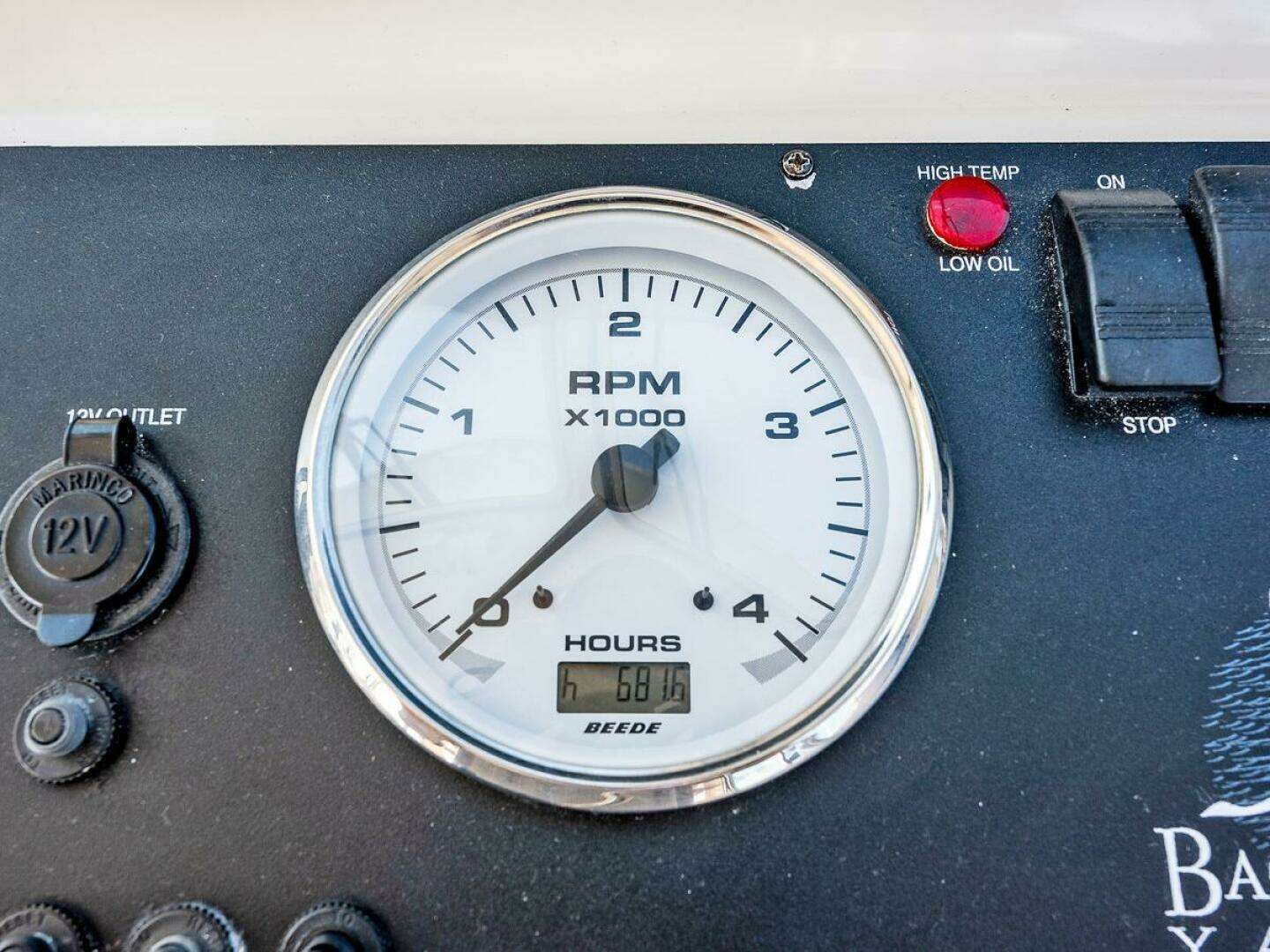

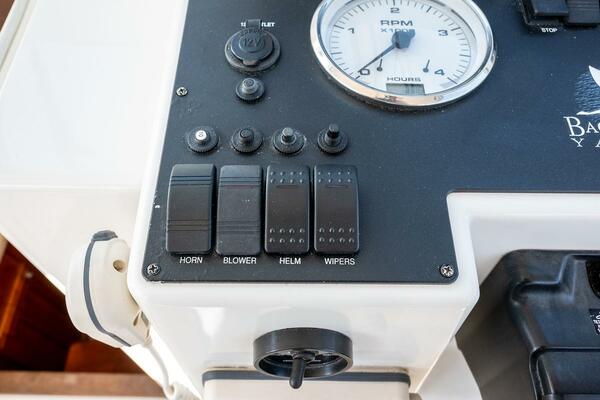

- Engine control panel with alarms and hour meter
- Emergency crossover switch
- Internal sea strainer
- Fuel filter
- Engine room lights
- 1.5 Aquamet shaft
- 4-Blade bronze propeller
- Dripless shaft log
- Electric trim tabs
- Tilting helm pump driven hydraulic steering
- Hot and cold pressurized water (110V and engine heated)

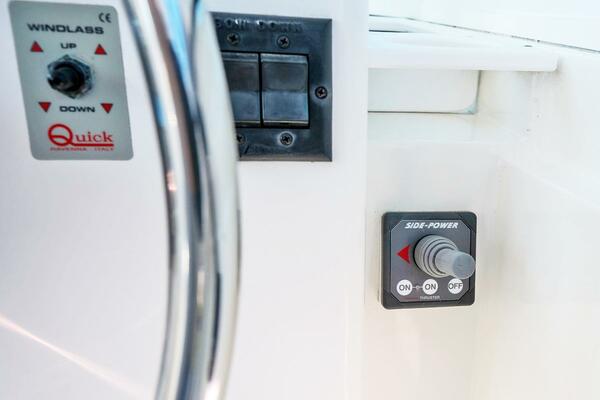

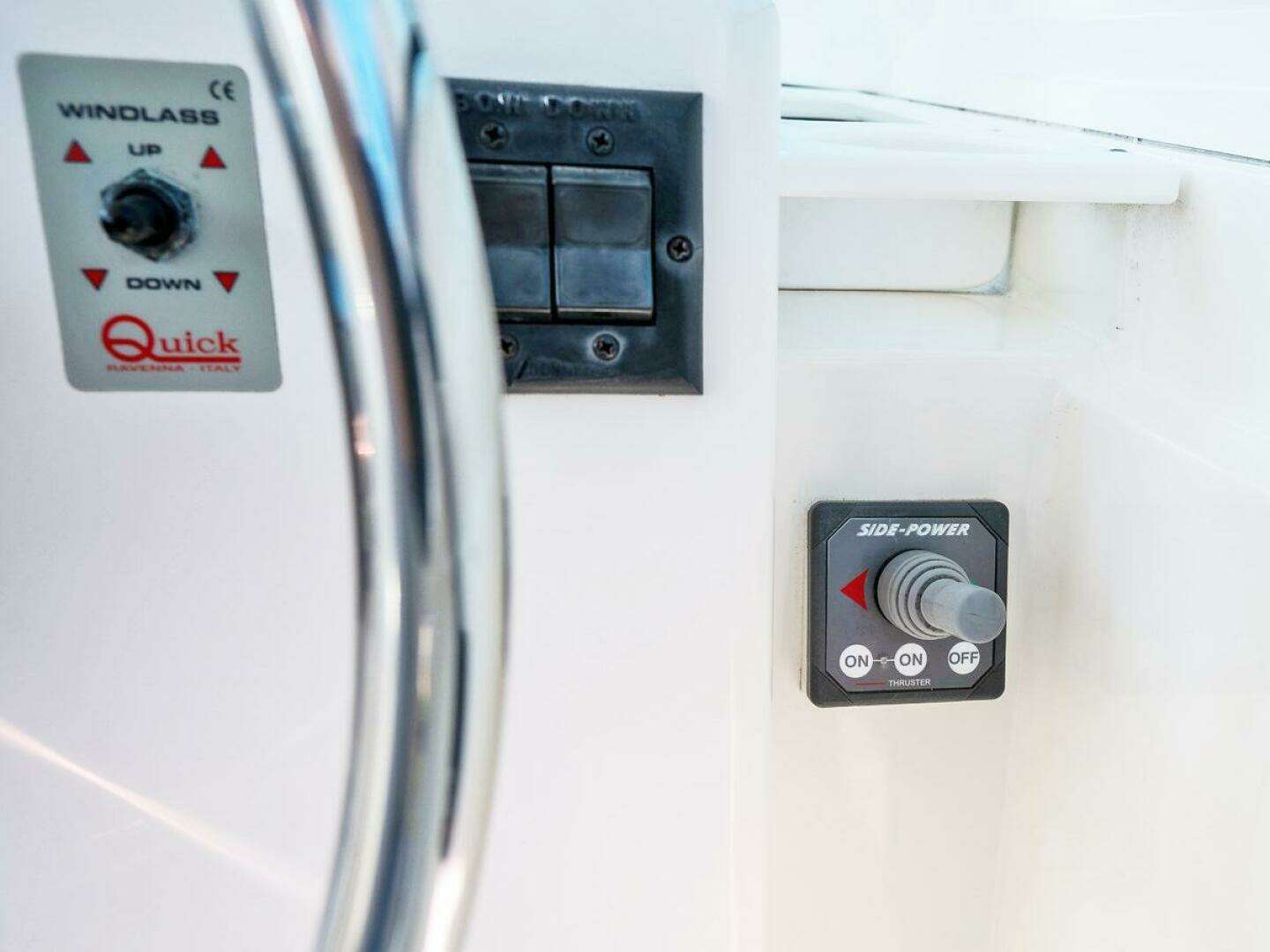

- SidePower bow thruster with joystick control, 88 pounds thrust
- Marelon sea valves on underwater thru hulls
- Welded 150-gallon aluminum fuel tank with 2” fill
- Fireboy extinguisher system
- Macerator with overboard discharge
ELECTRICAL

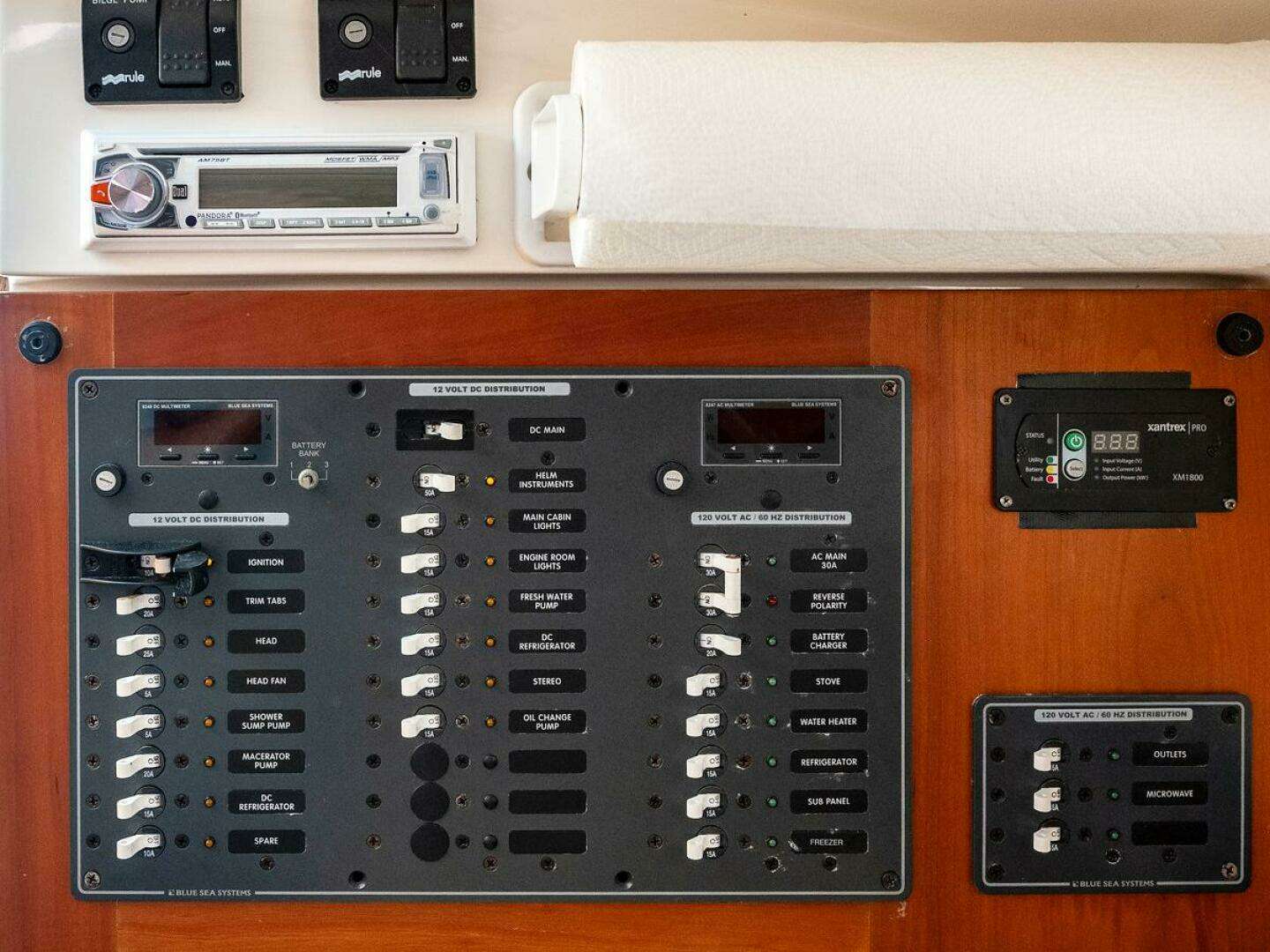

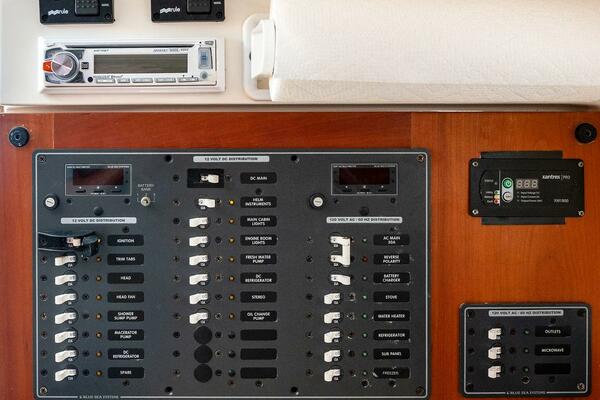

- AC and DC control panel with polarity indicator
- DC system battery management switching
- DC breakers for electronics
- 110VAC 30-amp shorepower with 50-foot cord set
- Galvanic isolator
- AC to DC converter/ charger, 40amp
- (2) 31 House batteries (New 2026)
- (1) 31 Engine start battery (New 2026)
- (2) 12VDC bilge pumps
- 12V outlet at helm
- Bonding system w/ zinc anode
- Cockpit courtesy lights/ LED
- GFI protected 110V circuits
HULL/DECK
- Molded in Graystone contrasting anti-skid on walk surface
- Port and starboard molded steps with teak accent stripe
- Back Cove white iso-NPG gelcoat with contrasting anti-skid
- Multiaxial E glass reinforcement
- (2) Overhead Lewmar #44 hatch in main salon, with screen
- (4) Schmidt opening port lights with screens
- Clear anodized aluminum windshield with side vent panels and integral handrails
- (3) Windshield wipers
- Horn
- Ritchie compass, illuminated
- Running lights/ LED

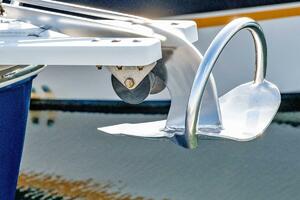

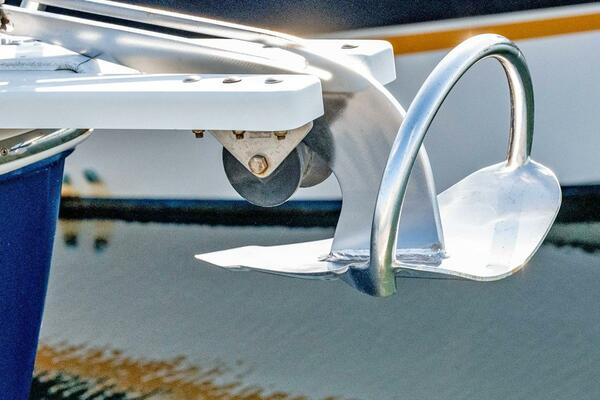

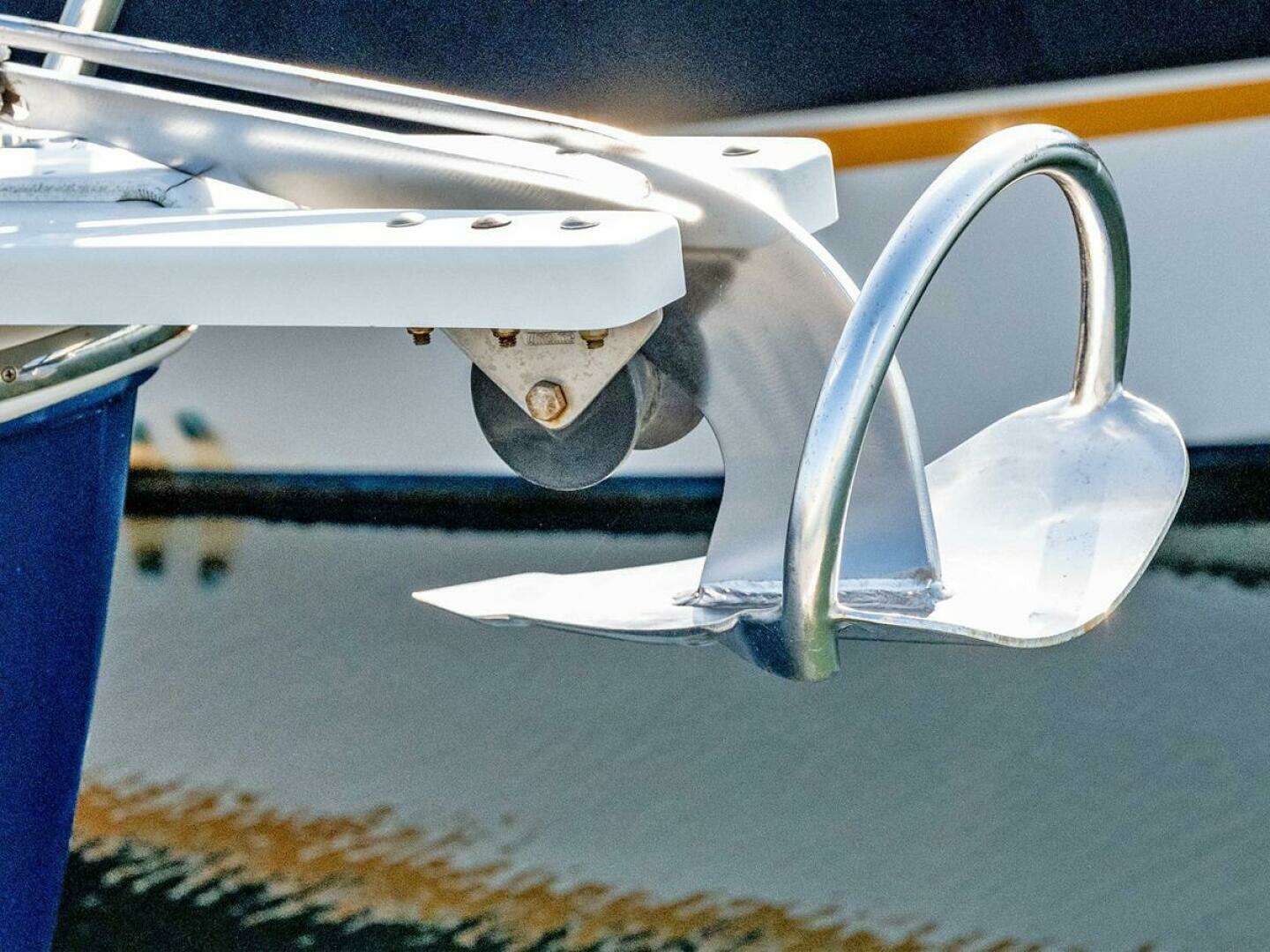

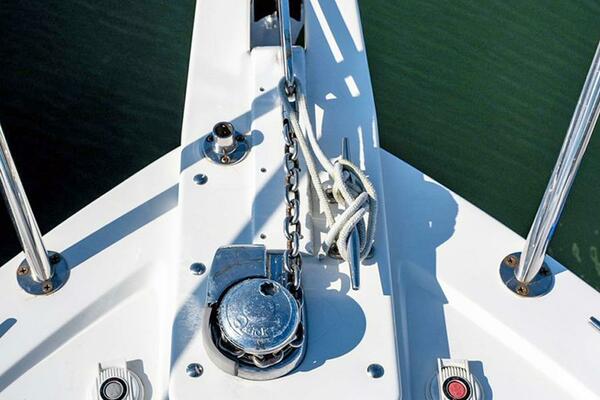

- Stainless Steel Manson 25 lb anchor with approximately 24’ chain and 150’ rode
- 15 lb plow secondary anchor with rode
- Anchor locker
- SS anchor roller
- Mooring cleats with skene chocks forward, aft and springline cleats
- 1” 316L stainless steel bow rail

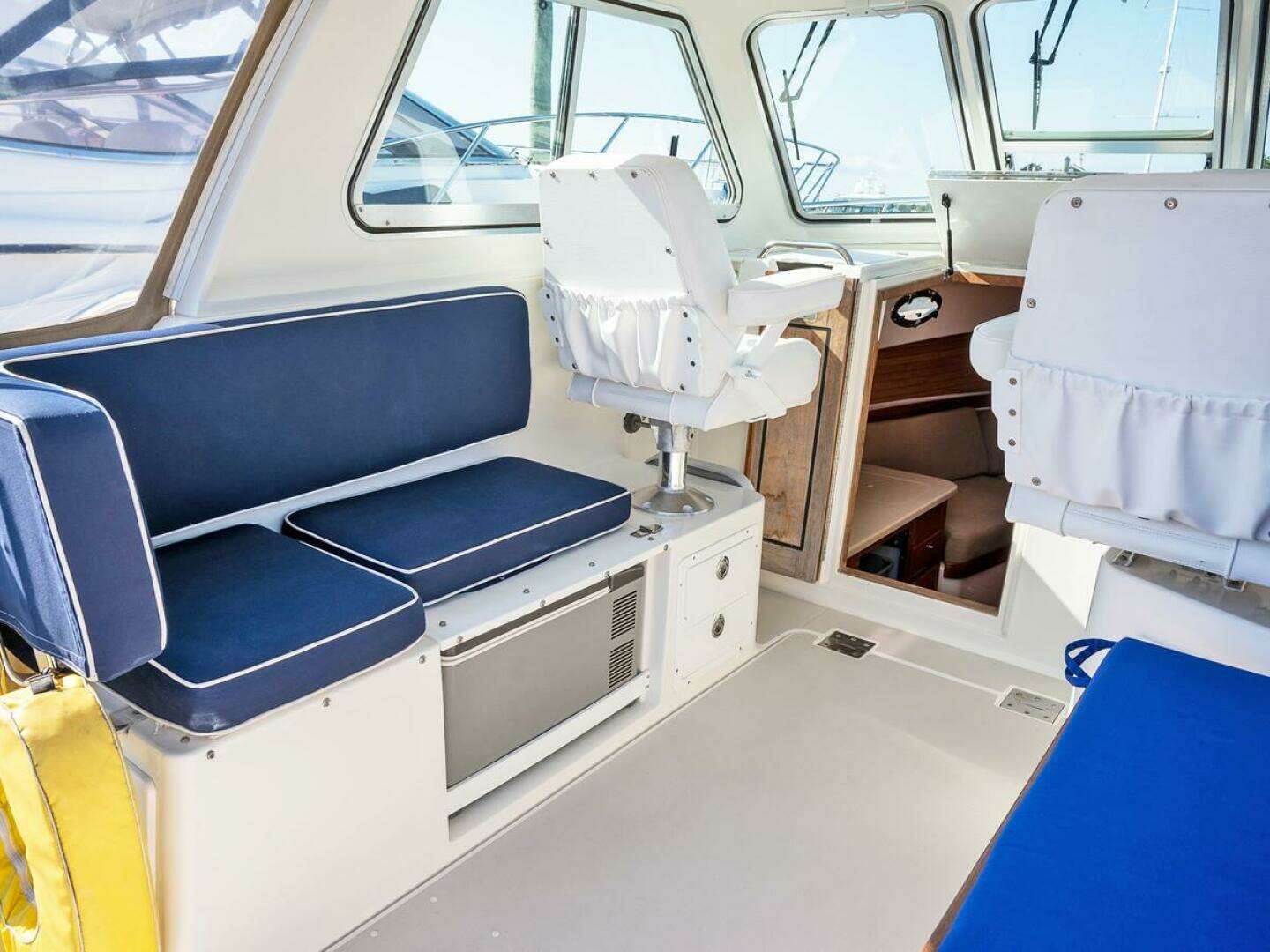

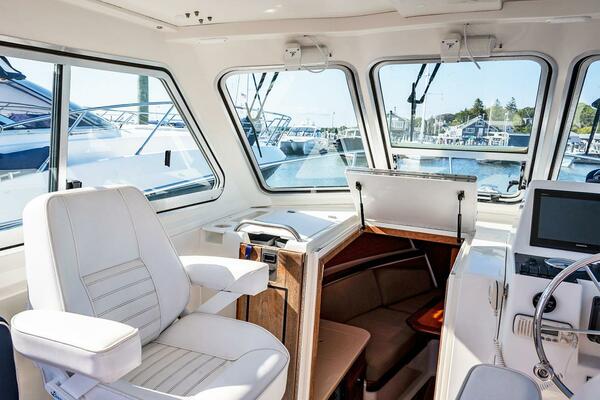

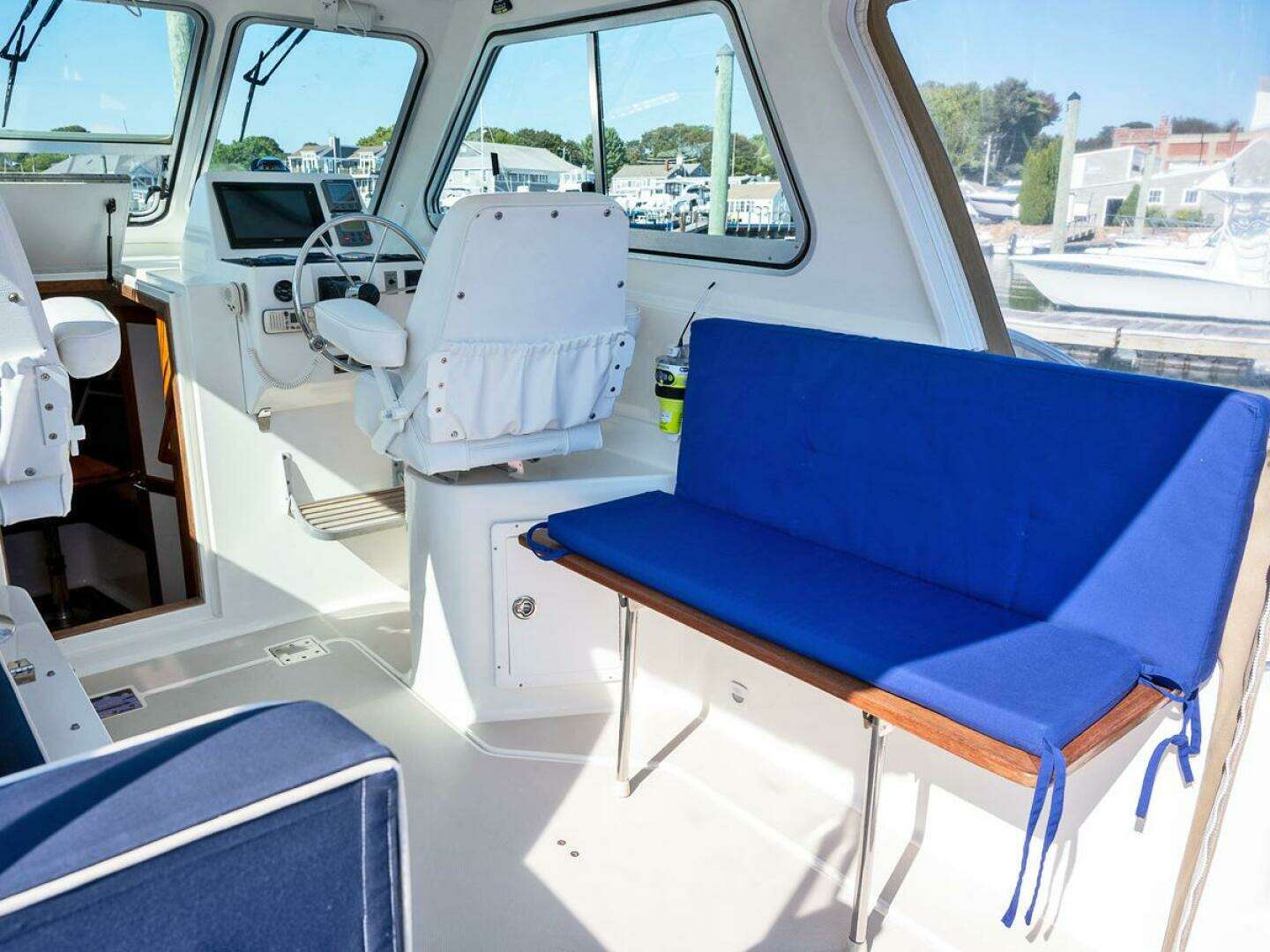

- Captains helm seat (2)

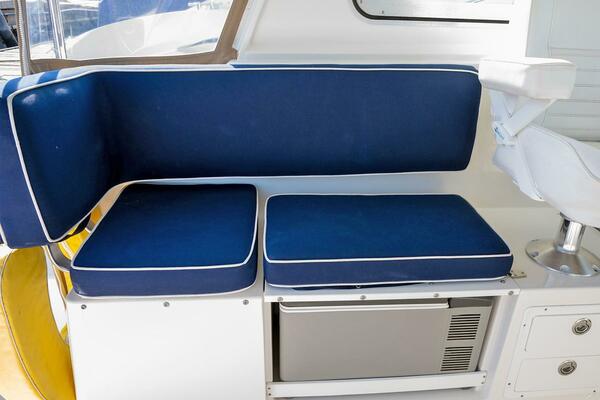

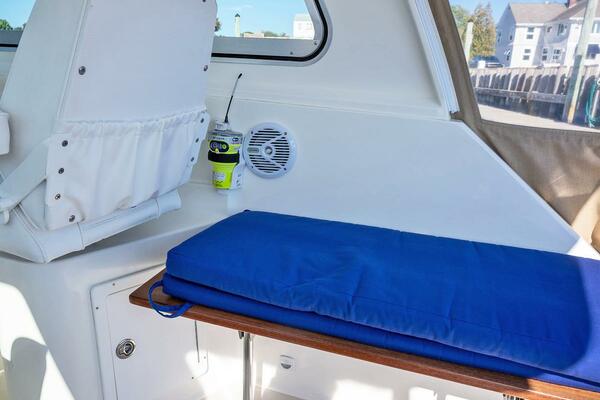

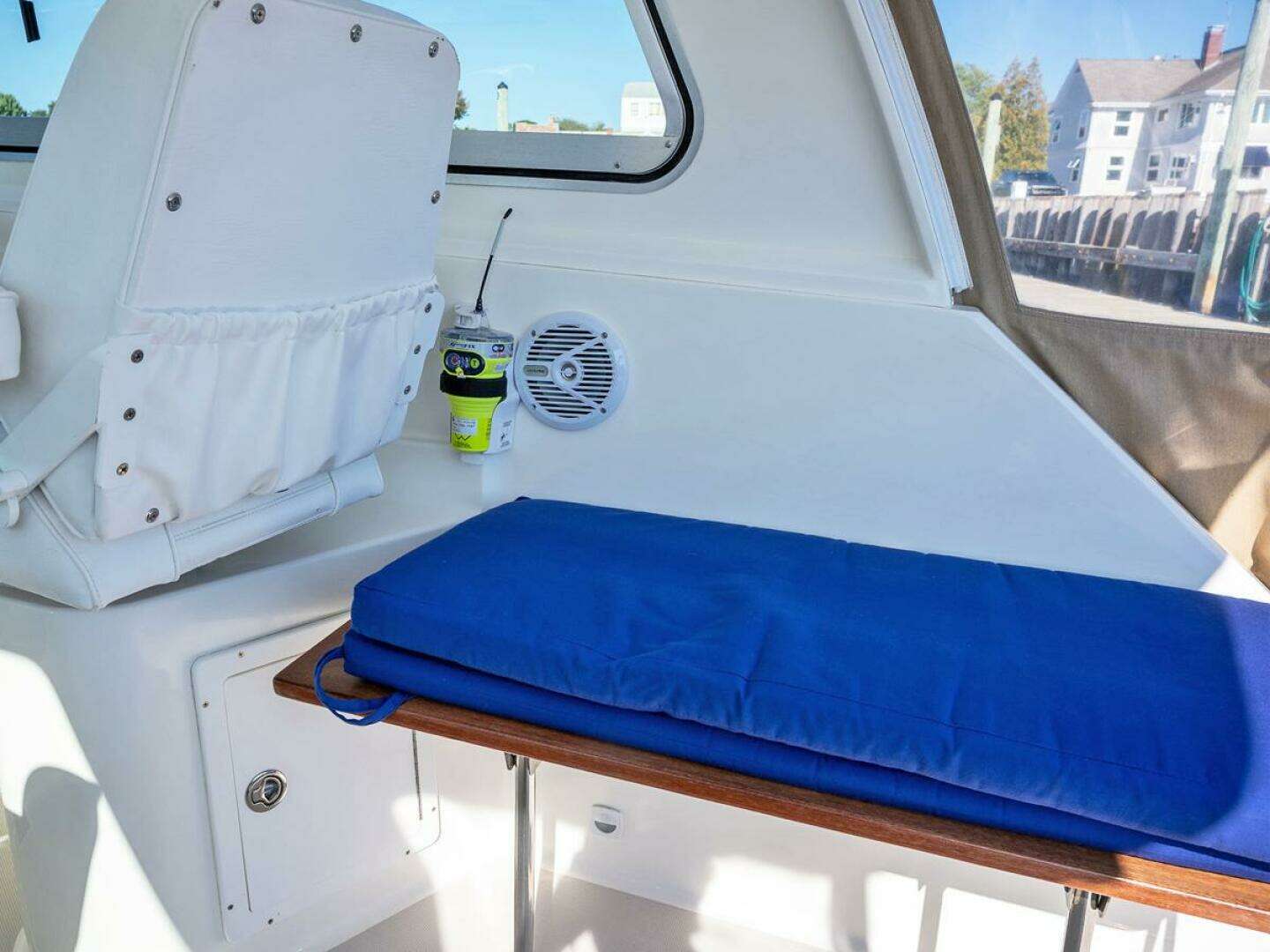

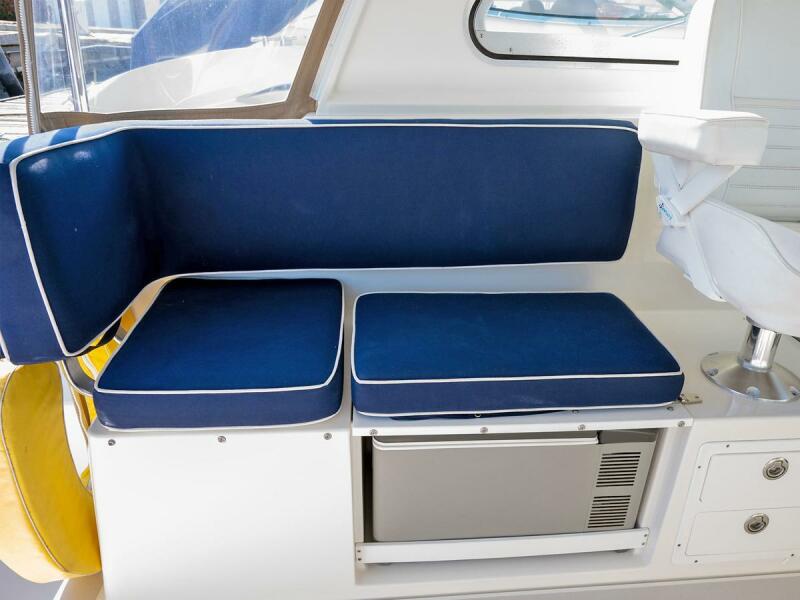

- L-settee to port with backrest

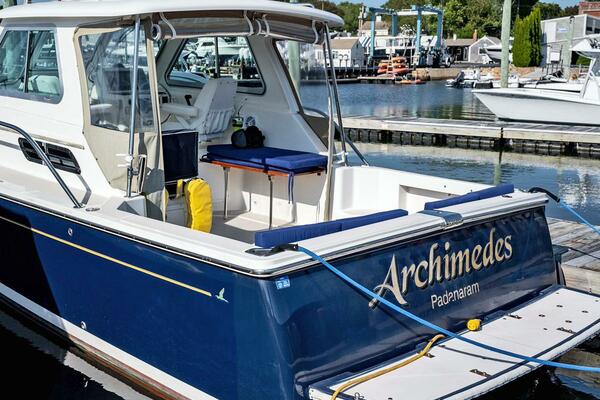

- Swim platform and swim ladder
- Hot and cold cockpit shower
- Self-bailing cockpit

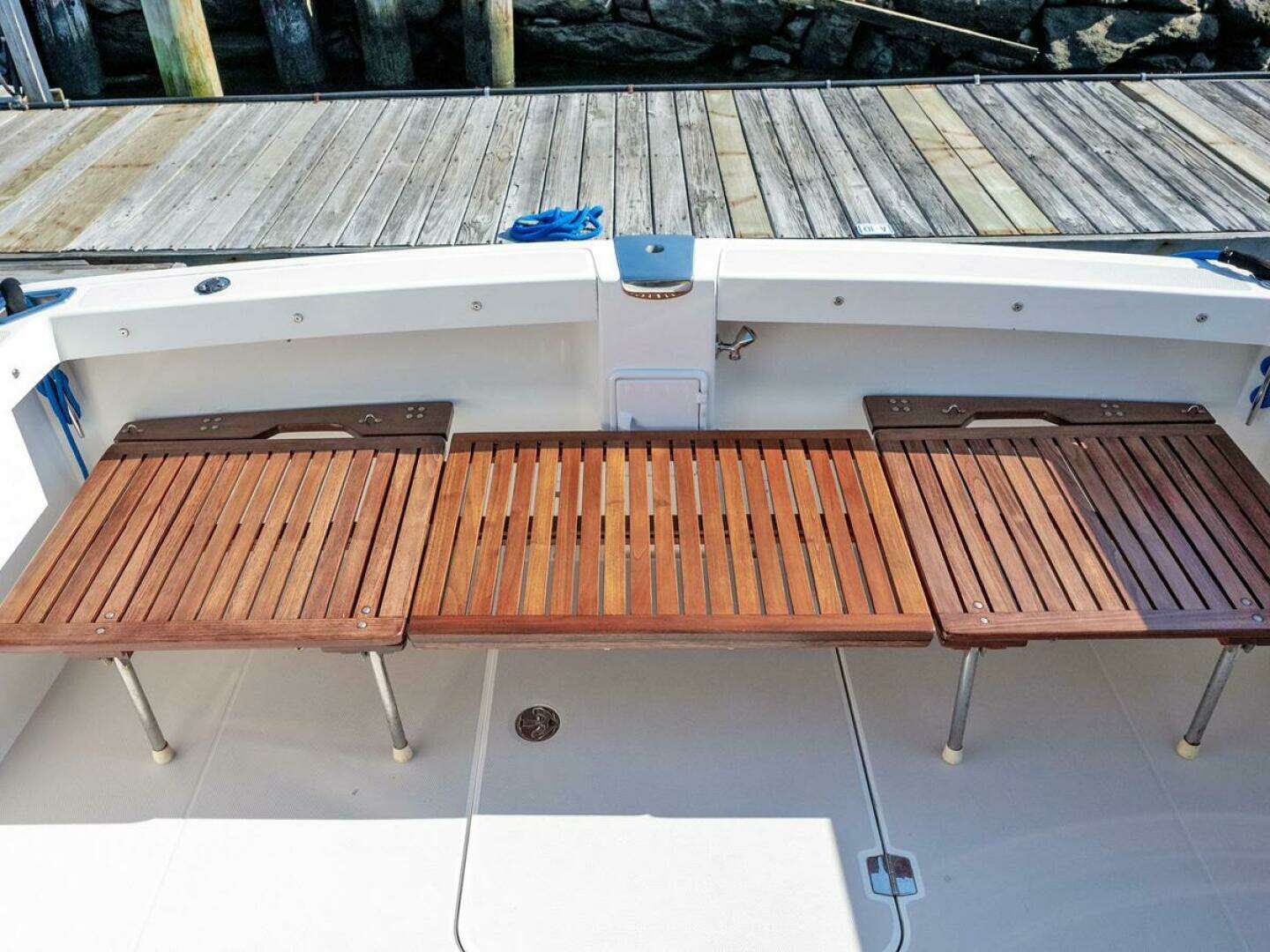

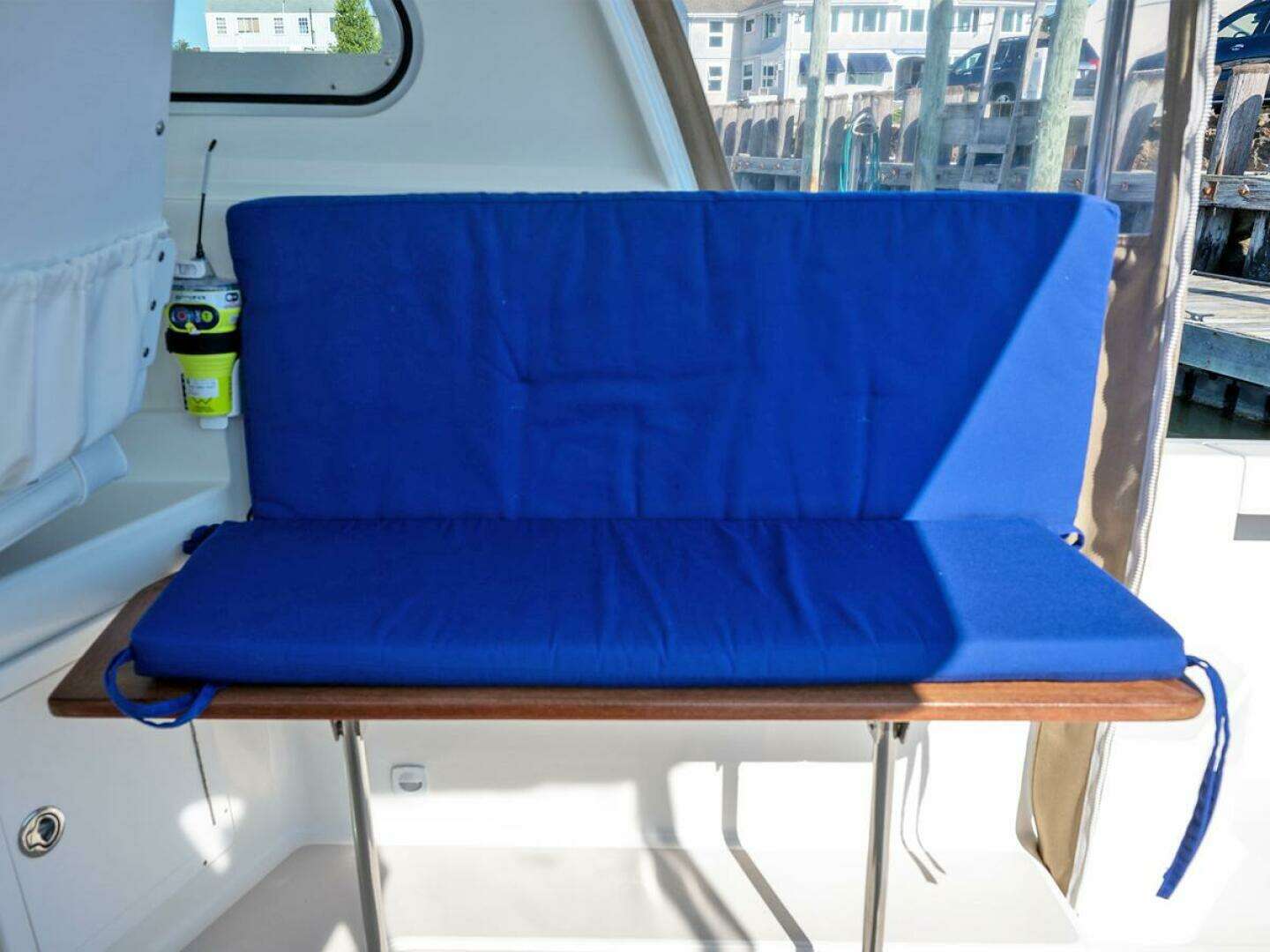

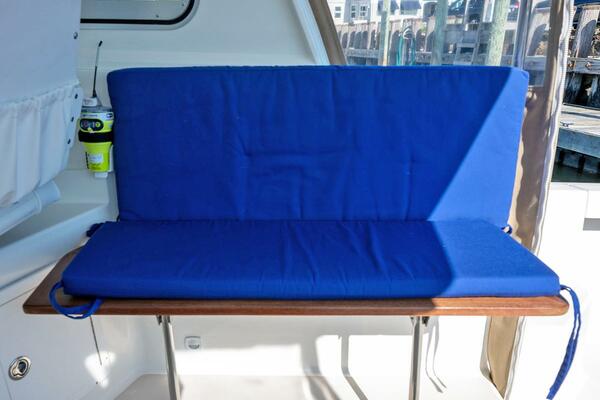

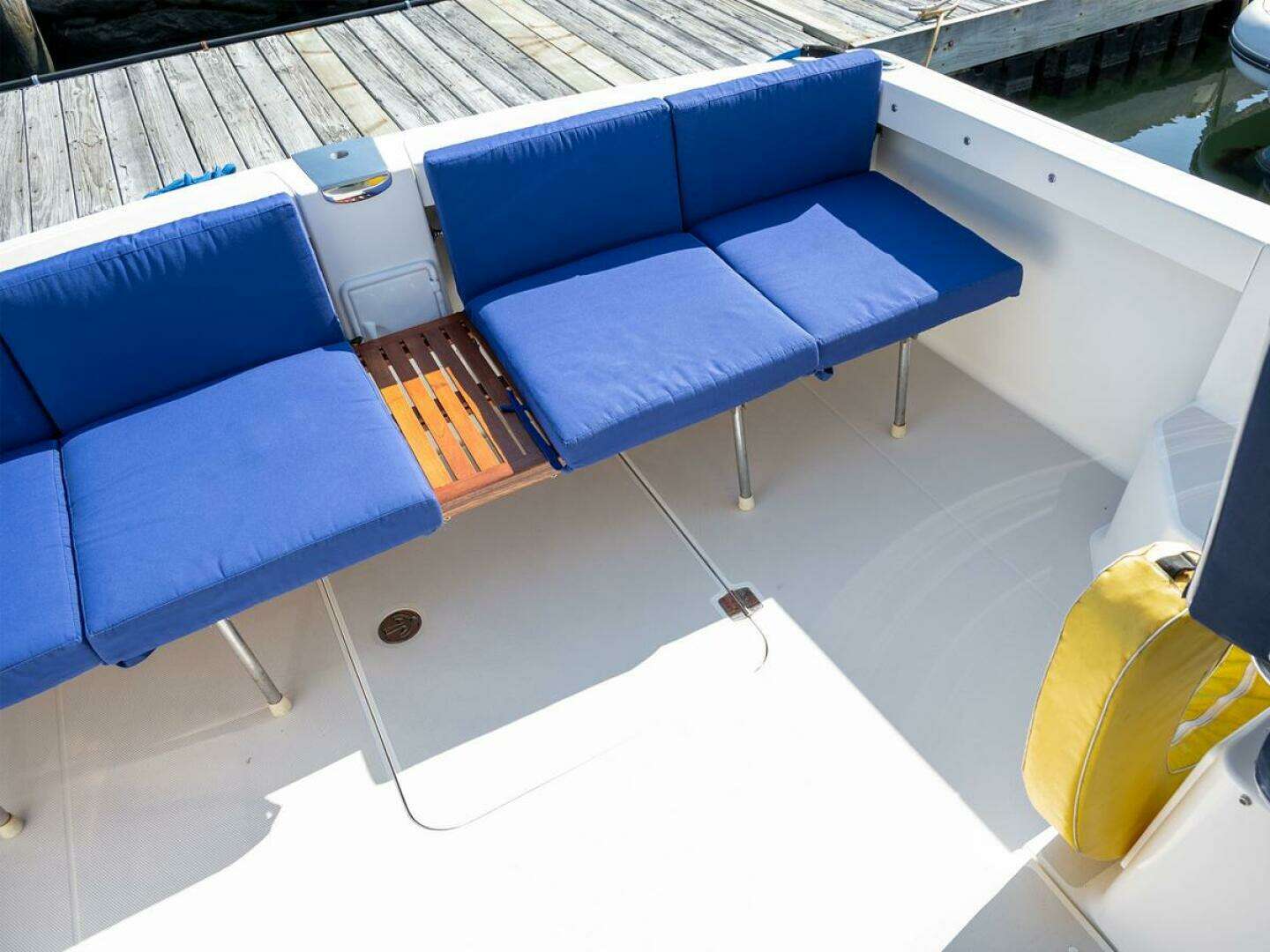

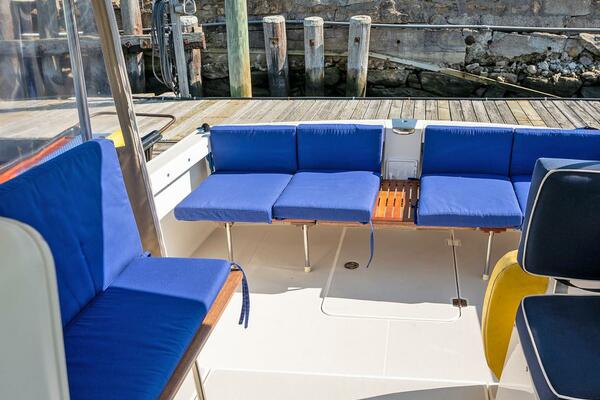

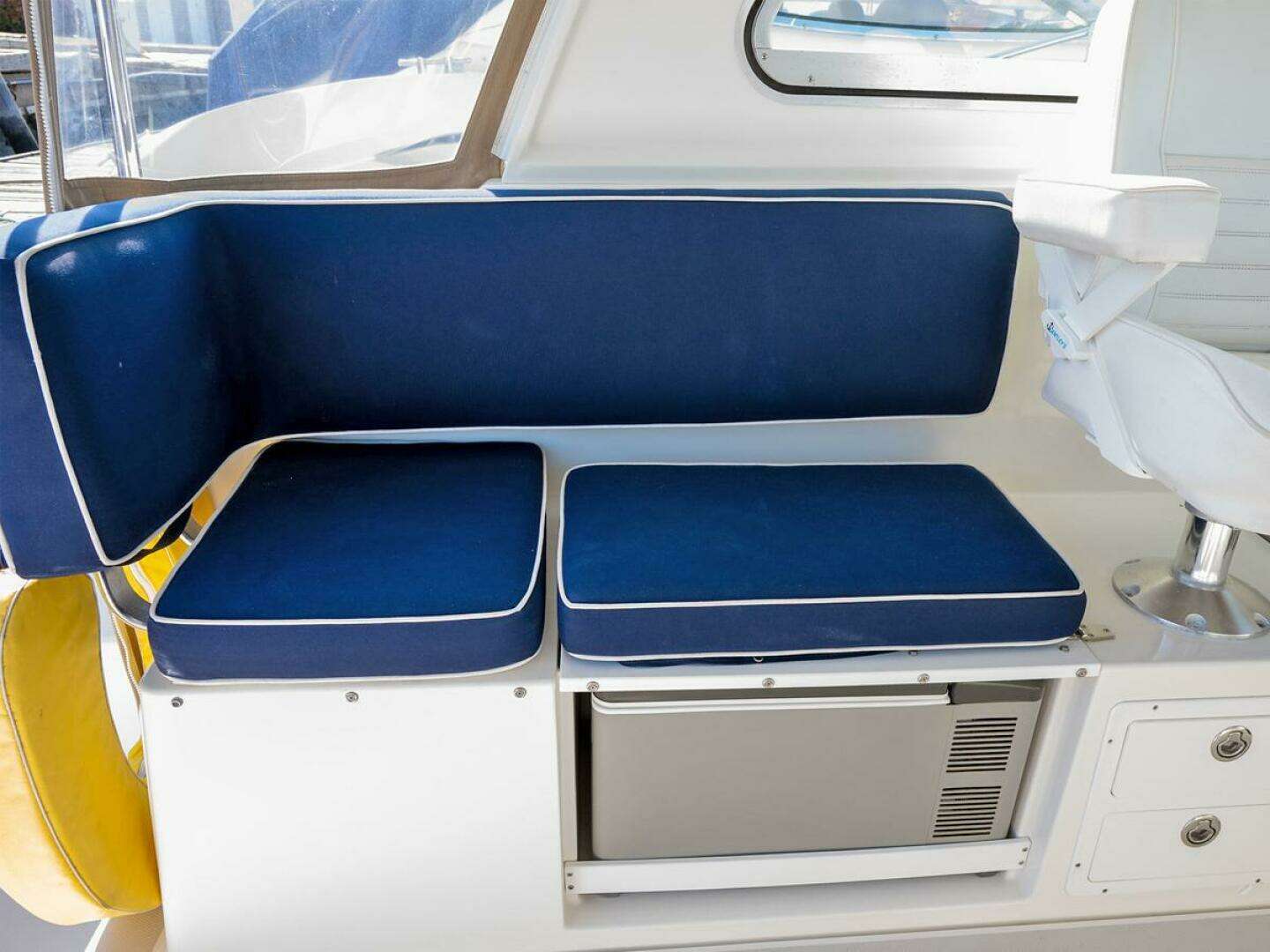

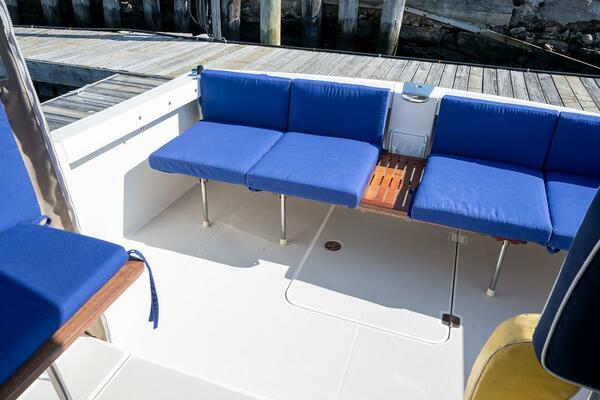

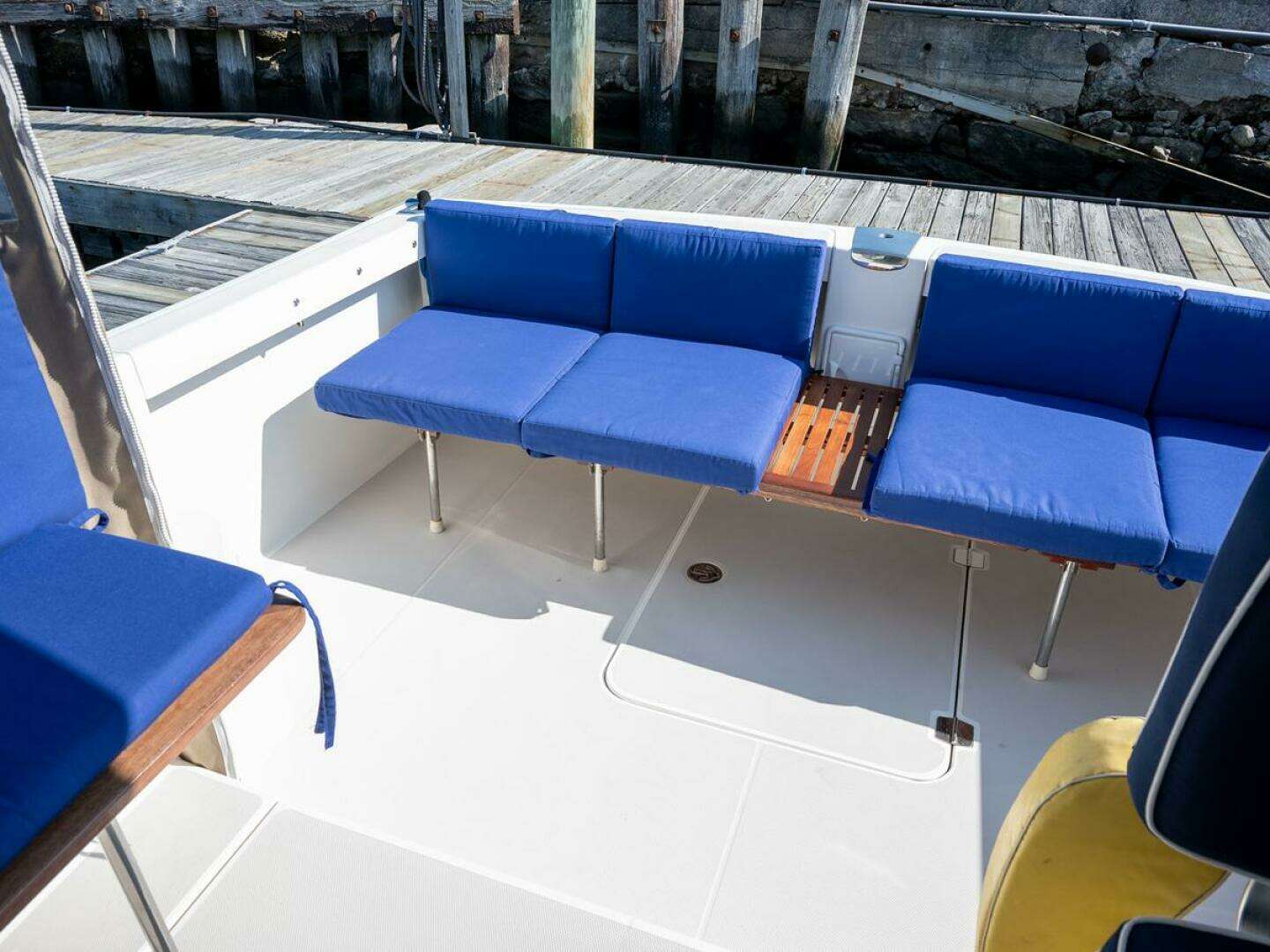

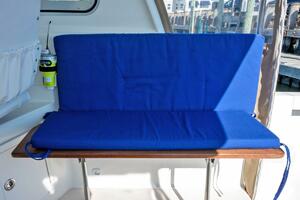

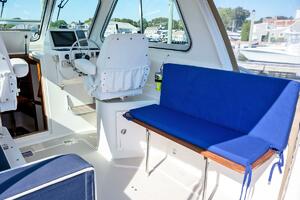

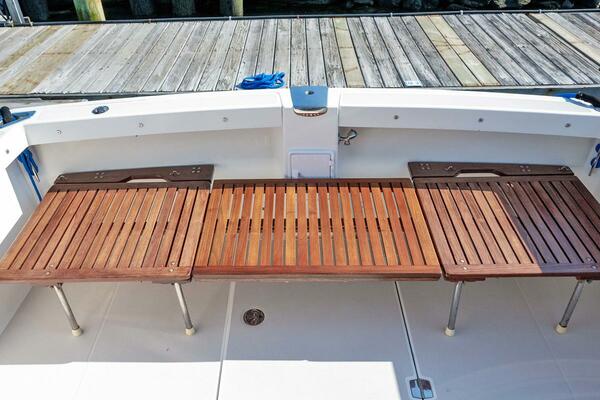

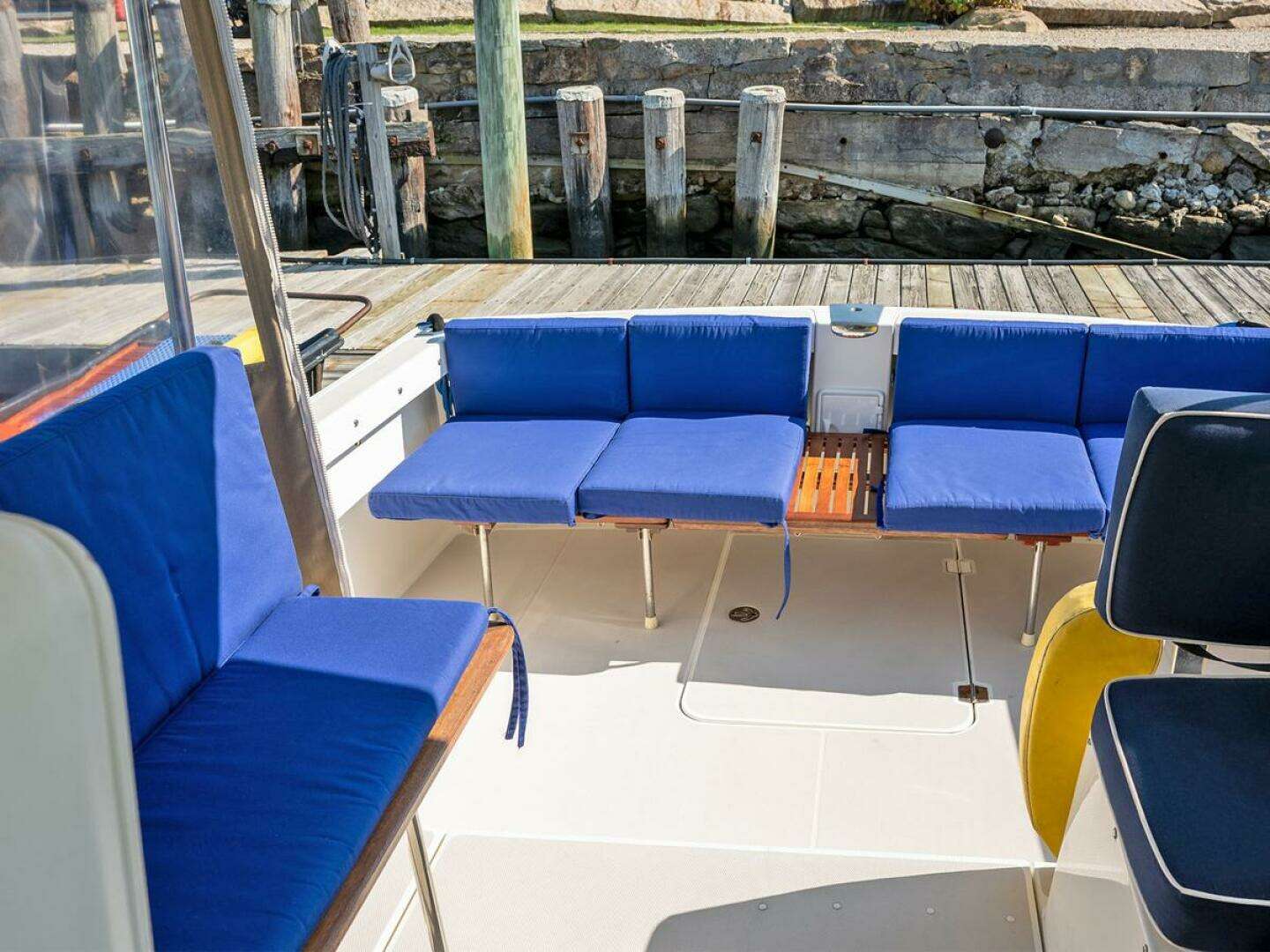

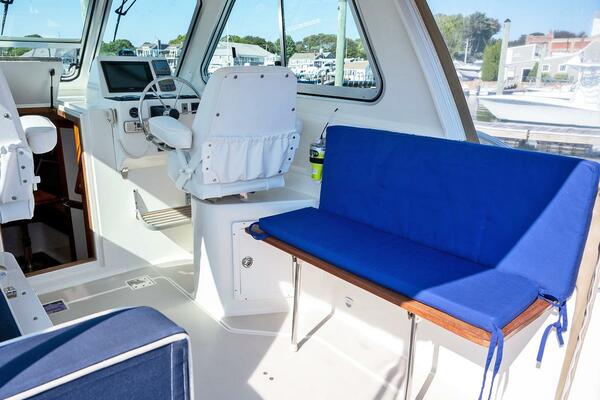

- Custom cockpit seating

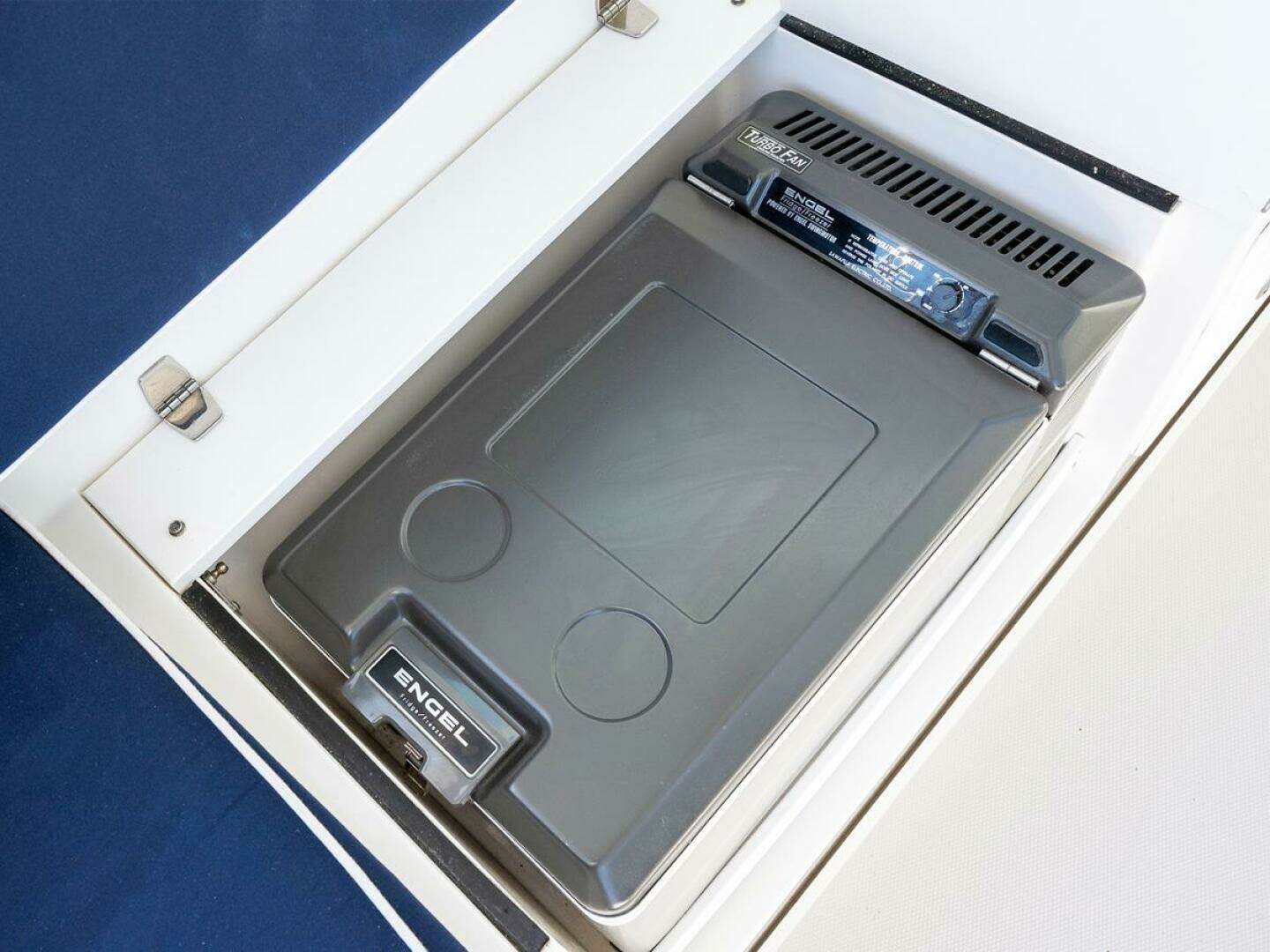

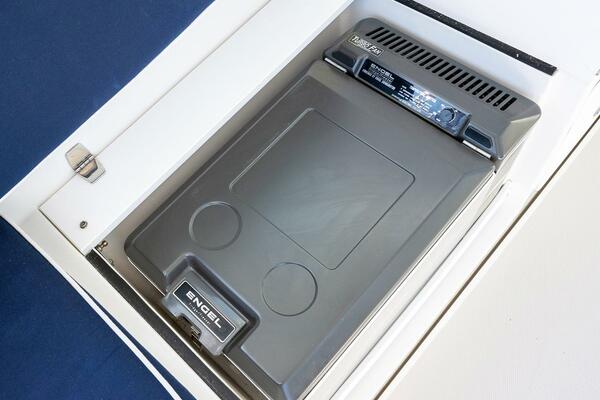

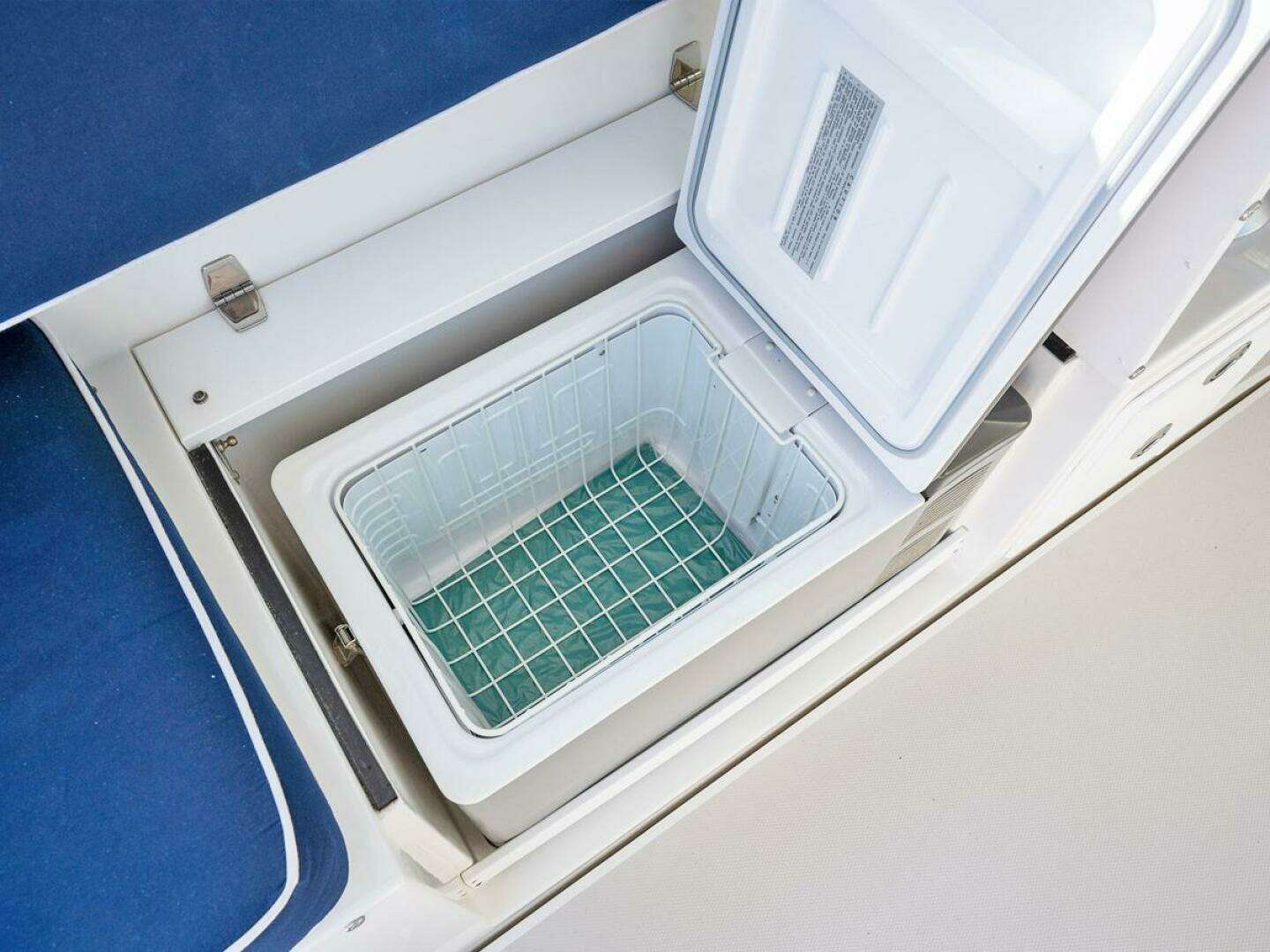

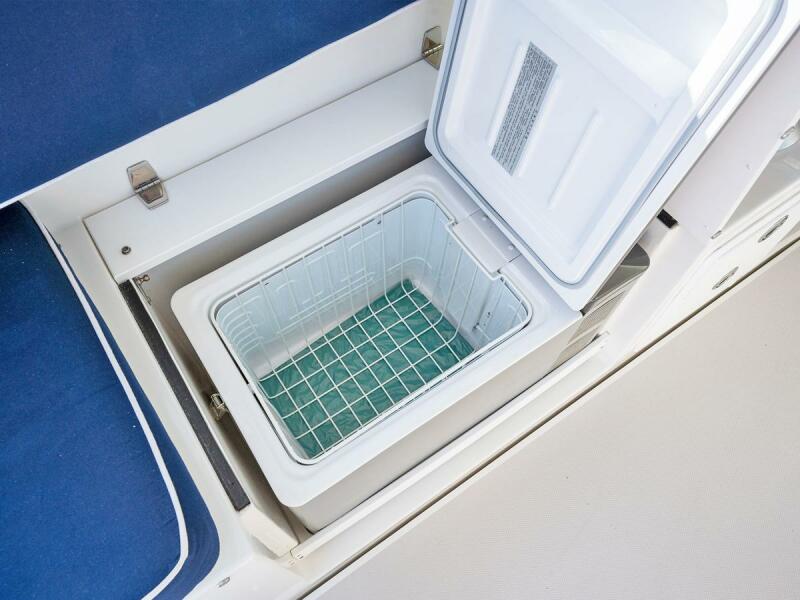

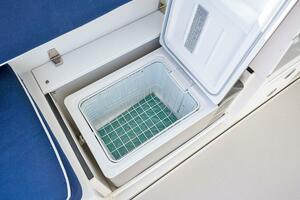

- Cockpit fridge
- Advanced prop pocket hull design
- Back Cove white iso-NPG gelcoat
- Vinylester backup resin
- Vacuum bagged Divinycell core in running surfaces
- Multiaxial E glass reinforcement
- Awlgrip boot top
- Encapsulated foam stringers
NAVIGATION EQUIPMENT

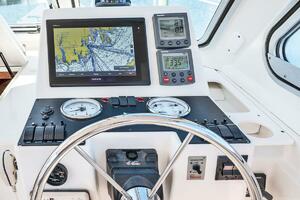

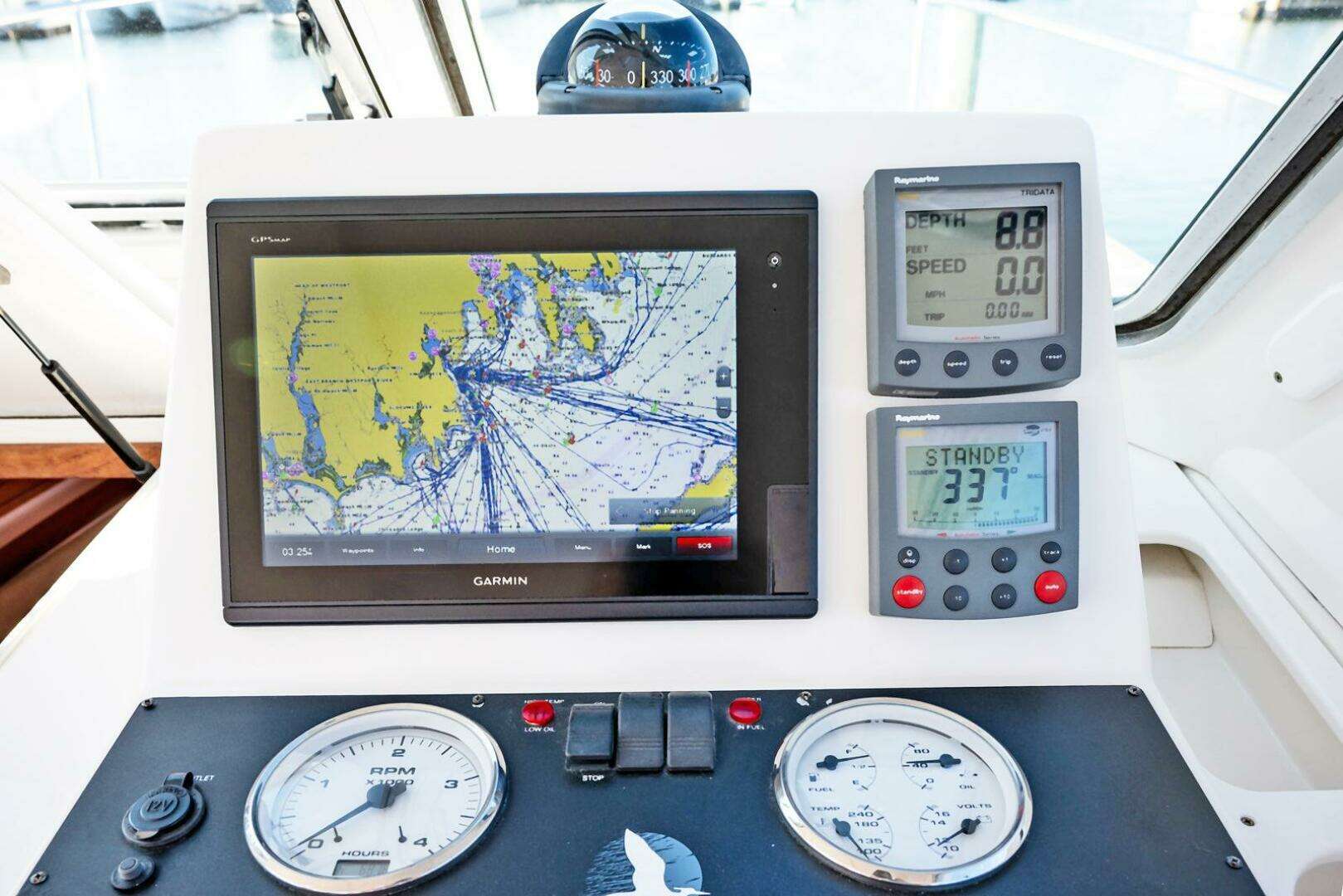

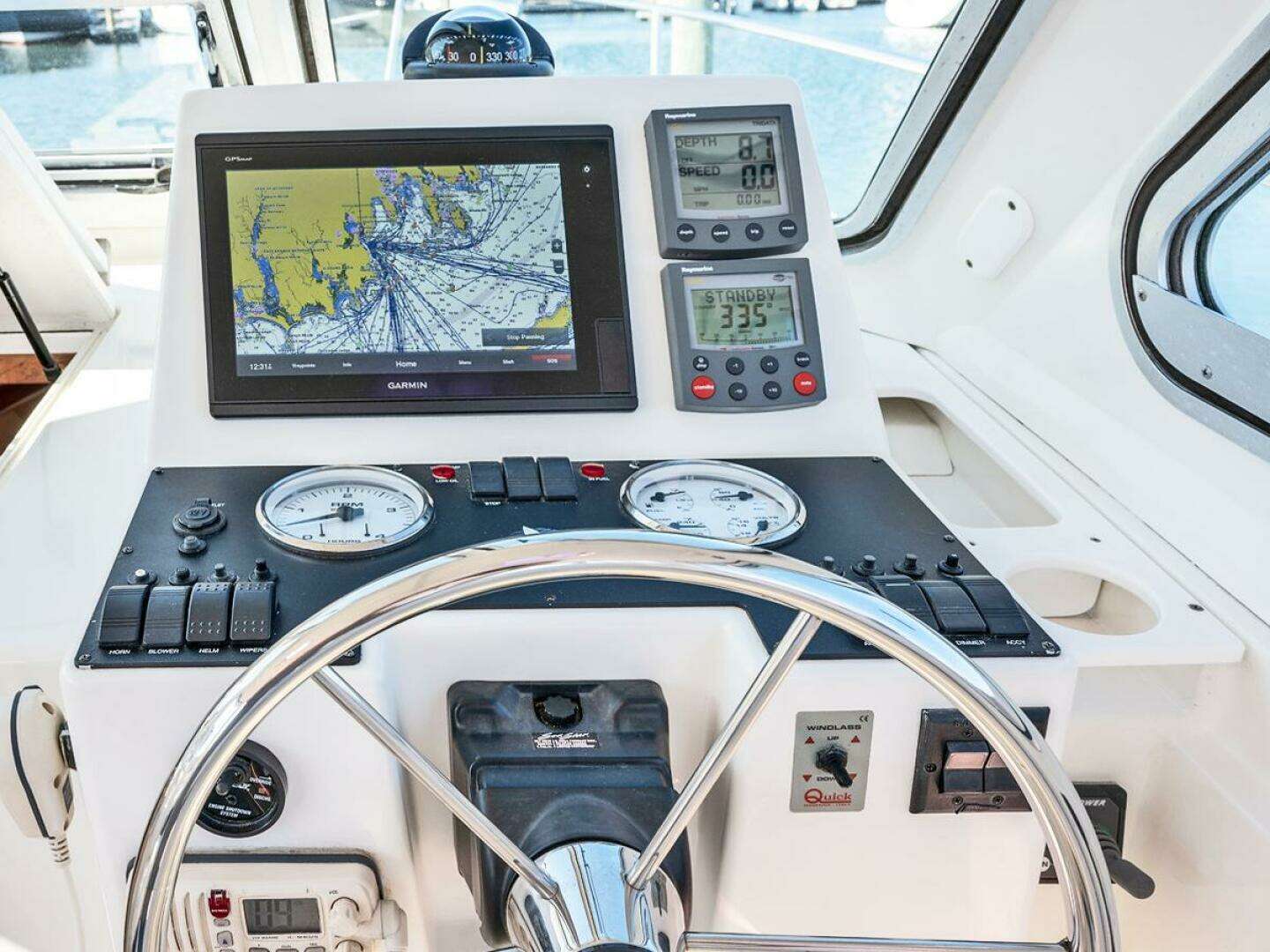

- Garmin 7612 XVS touch screen/ GPS/Chartplotter

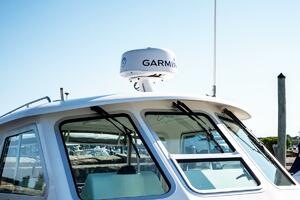

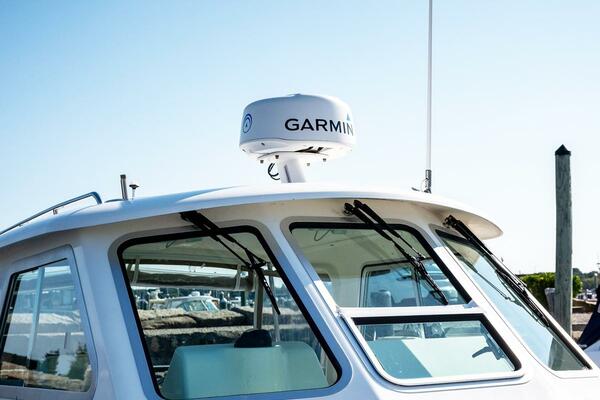

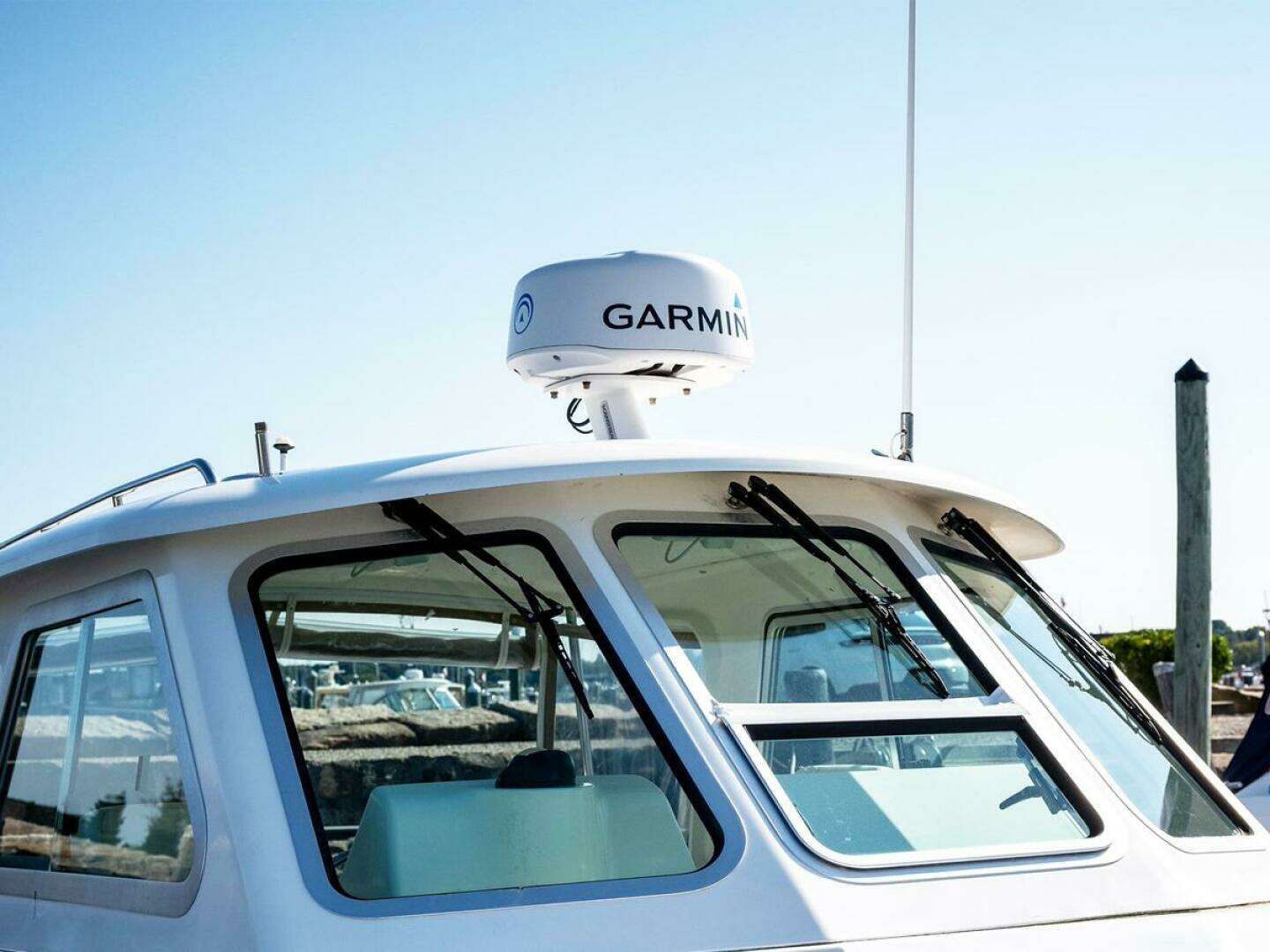

- Garmin Fantom HD 18" Radar
- Raymarine Autopilot

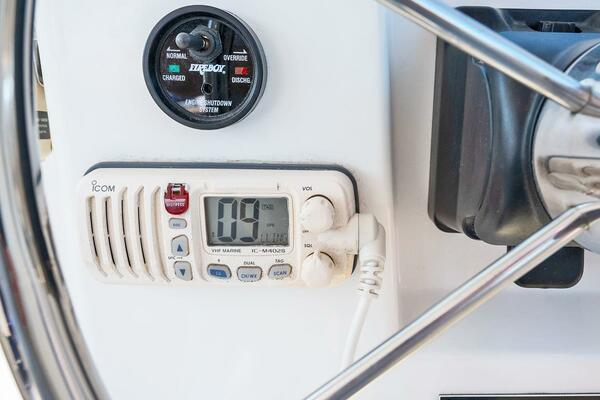

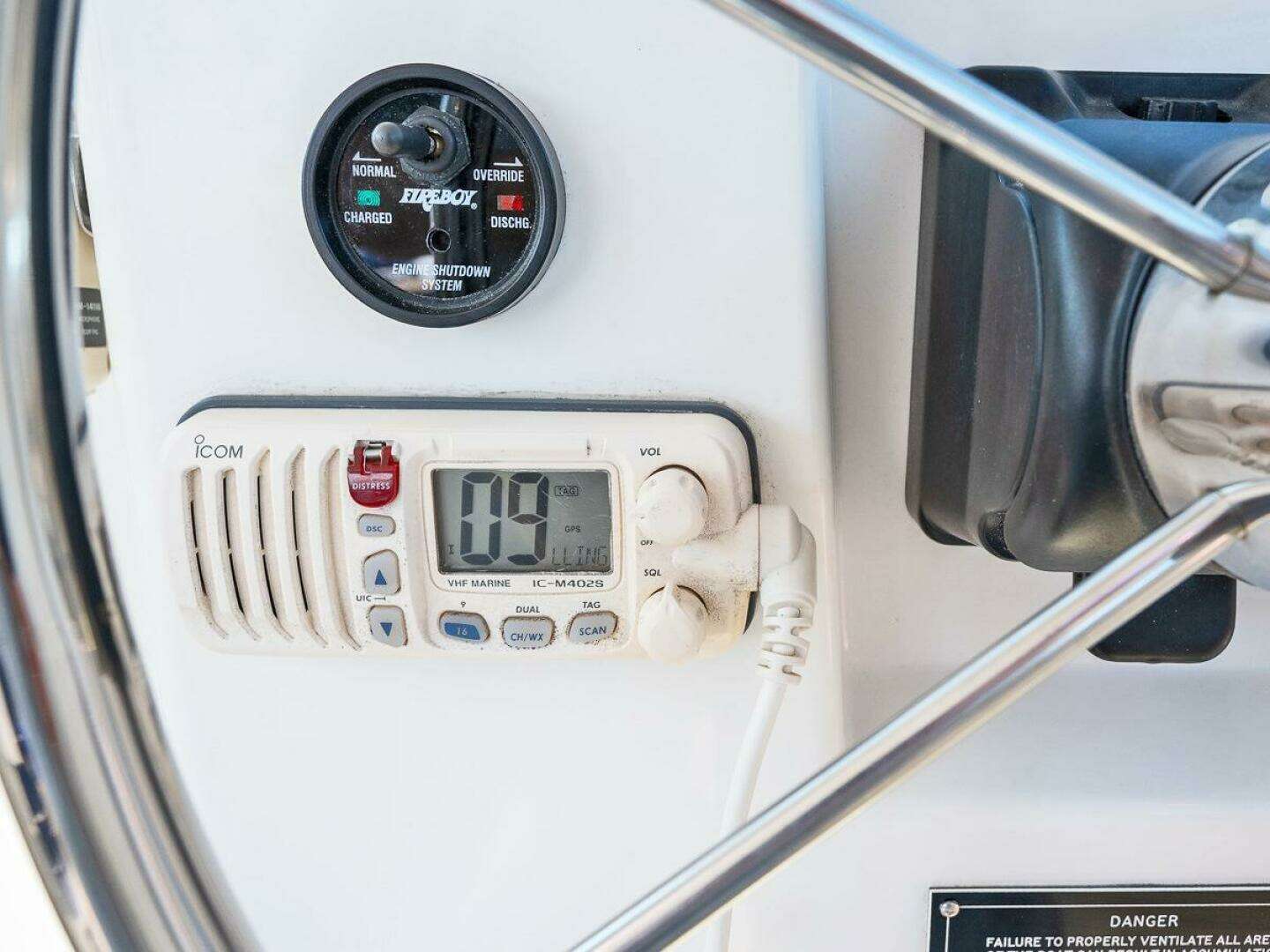

- Icom VHF
ADDITIONAL
- After pilothouse canvas enclosure

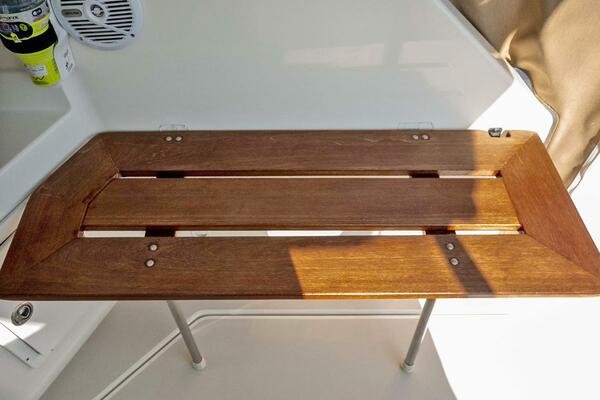

- Custom cockpit seating
- Spare cockpit seat and cushion
- (7) Fenders
- (7) Dock lines
- Swim platform dinghy lift
- Swim ladder
- Hose and bucket
SAFETY
- EPIRB
- Rescue mate throw bag
- (8) PFDs
- Horn, flares, nav lights, courtesy lights
- (2) Fire extinguishers
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
