2004 Custom 22' _{(6.71 m)} Beals Island 22

Principle Dimensions and Information

Designer: Calvin Beal

Builder: David P. Bradley & Company

LOA: 22’, 0” (plus Armstrong outboard bracket)

Beam: 8’, 9”

Draft: 10”

Propulsion: 2003 / Honda outboard / Model BF130A3XA / 130 HP / 4-stroke

Fuel Capacity: 60 Gallons

Hull, Deck and Cabin Construction

FRP Hull, deck and cabin construction

Overlapping, bolted and bonded hull to deck joint protected by molded toe rail and PVC Rib rail

PVC Spray rails

Molded FRP bow pulpit / anchor roller

Armstrong outboard motor bracket

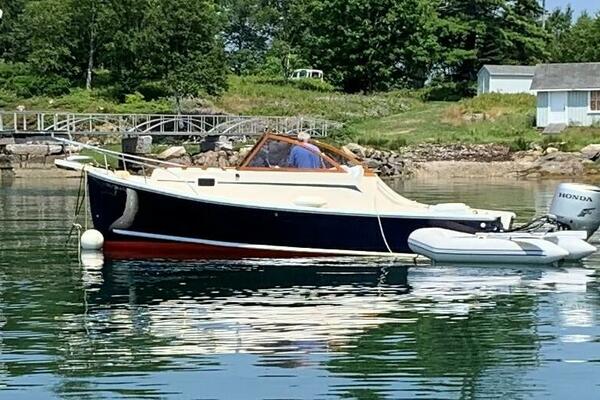

Navy Blue topsides with White spray rail and Red antifouling bottom paint

Cream colored decks, cabin and cockpit with Navy Blue accent stripe on cabin sides

Varnished Teak windshield frame

Deck Hardware (fore to aft)

Molded FRP bow pulpit / anchor roller

Polished stainless steel bow rails

Polished stainless steel ½ oval cap rails port and starboard

Docking line chocks port and starboard at bow

Samson post style mooring bit at bow

Anchor hawse pipe to anchor locker below decks

Varnished Teak handrails on cabin top port and starboard

Opening hatch on cabin top

Opening ports on cabin sides port and starboard

Fuel deck fills

Spring line cleats port and starboard

Rod holders post and starboard

Stern line cleats port and starboard

Cockpit Features and Equipment (aft to fore)

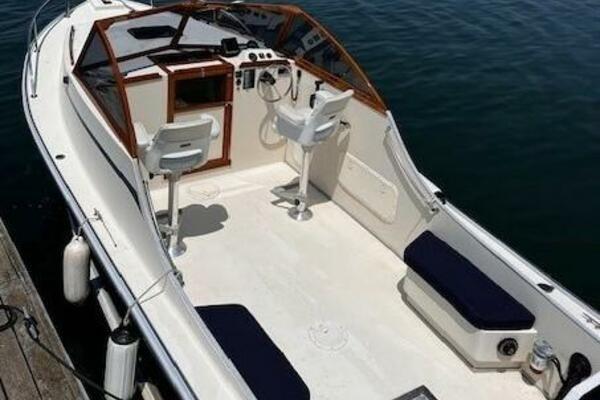

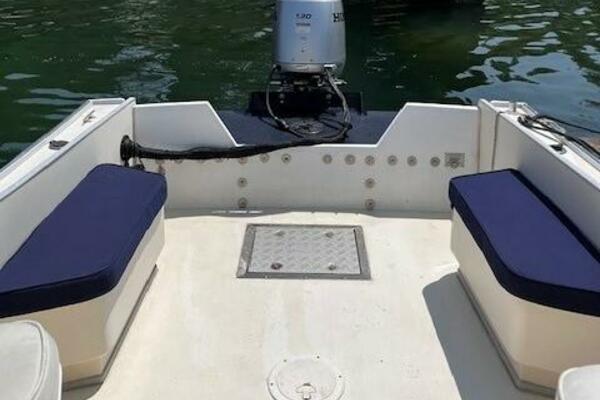

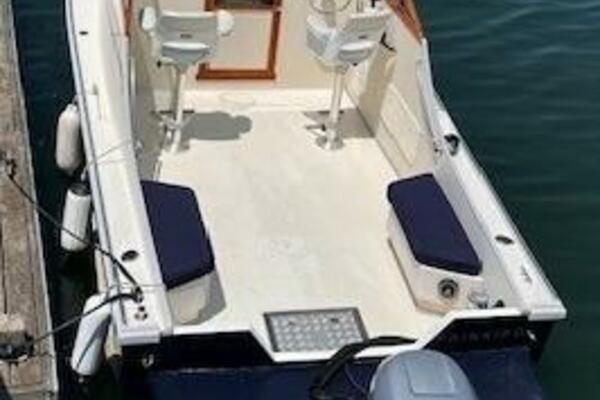

Large open cockpit with opening hatches and inspection ports in cockpit sole for bilge access

Molded cockpit step / seats (with cushions and storage under) port and starboard

Polished stainless steel hand rails port and starboard

Storage compartments under side decks port and starboard

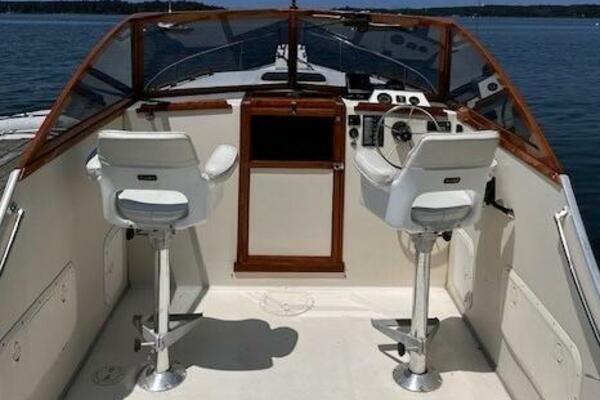

Pedestal seating for helmsman and passenger port and starboard

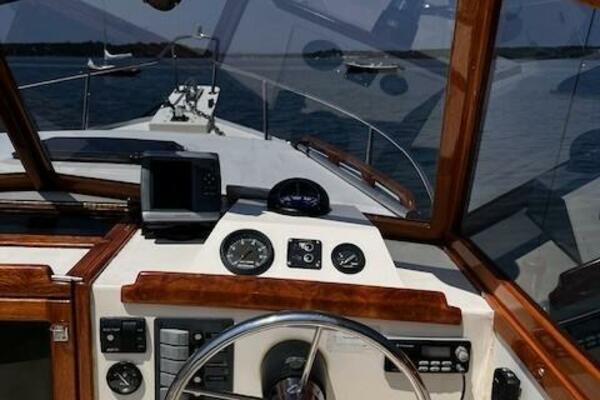

Steering wheel, engine controls, electronics and electrical controls to starboard forward of helm

Varnished teak fiddles port and starboard

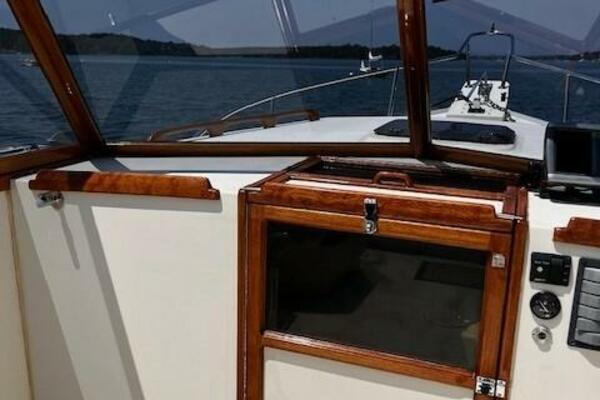

Varnished teak framed companionway door

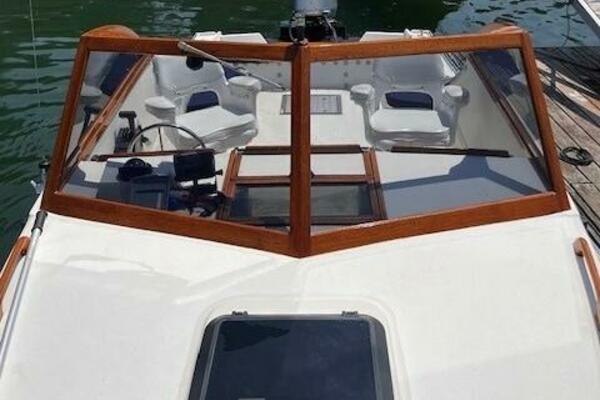

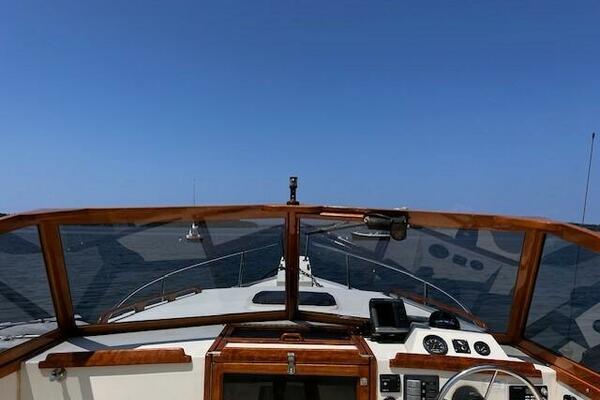

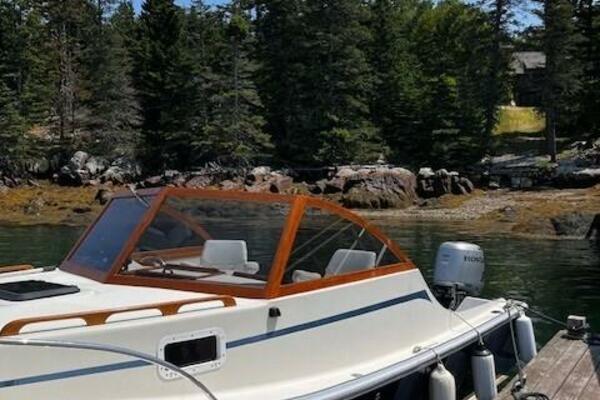

Varnished teak framed windshield and side windows

Interior Accommodations and Features(fore to aft)

Furthest forward is anchor / chain locker separated from the interior by fixed bulkhead with access door

Sleeping accommodations for two (2) persons in V-berth configuration with storage under berths.

Head pedestal aft of V-berth to port

Opening hatch overhead and opening ports on cabin sides (port and starboard) provide natural light and ventilation.

Teak and holly cabin sole

Propulsion , Steering and Fuel Systems

2003 / Honda outboard / Model BF130A3XA / 130 HP / 4-stroke

Honda single lever throttle and transmission control

Honda engine status gauges

Engine mounted on Armstrong outboard motor bracket

Polished stainless steel steering wheel

Sea Star hydraulic steering system

Fuel Capacity: 60 Gallons in aluminum tankage

Primary water separator style fuel filter

Electronics and Navigational Equipment

Helm compass

Garmin GPS chart plotter

Standard Horizon VHF radio

Electrical Systems and Equipment

12-Volt DC ship’s electrical system

Two (2) heavy duty 12-Volt marine batteries

4-position, rotary style main battery selector switch

Water proof circuit panel at helm

12-Volt DC plugs

Ground Tackle

Bruce Anchor with appropriate chain and rode

Dewatering Equipment

Rule electric / automatic bilge pump

Additional Equipment

Navigational lighting

Windshield wipers
