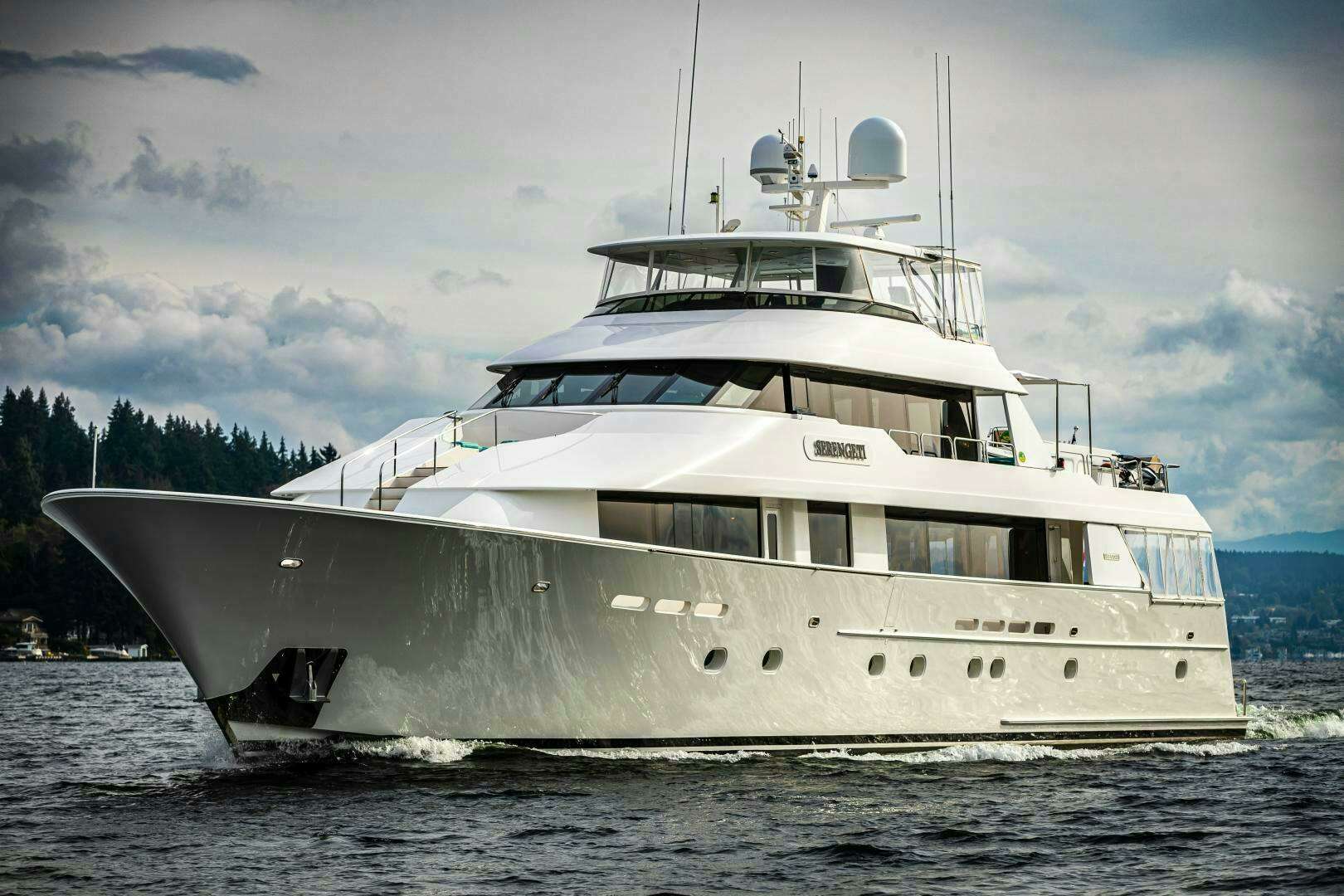

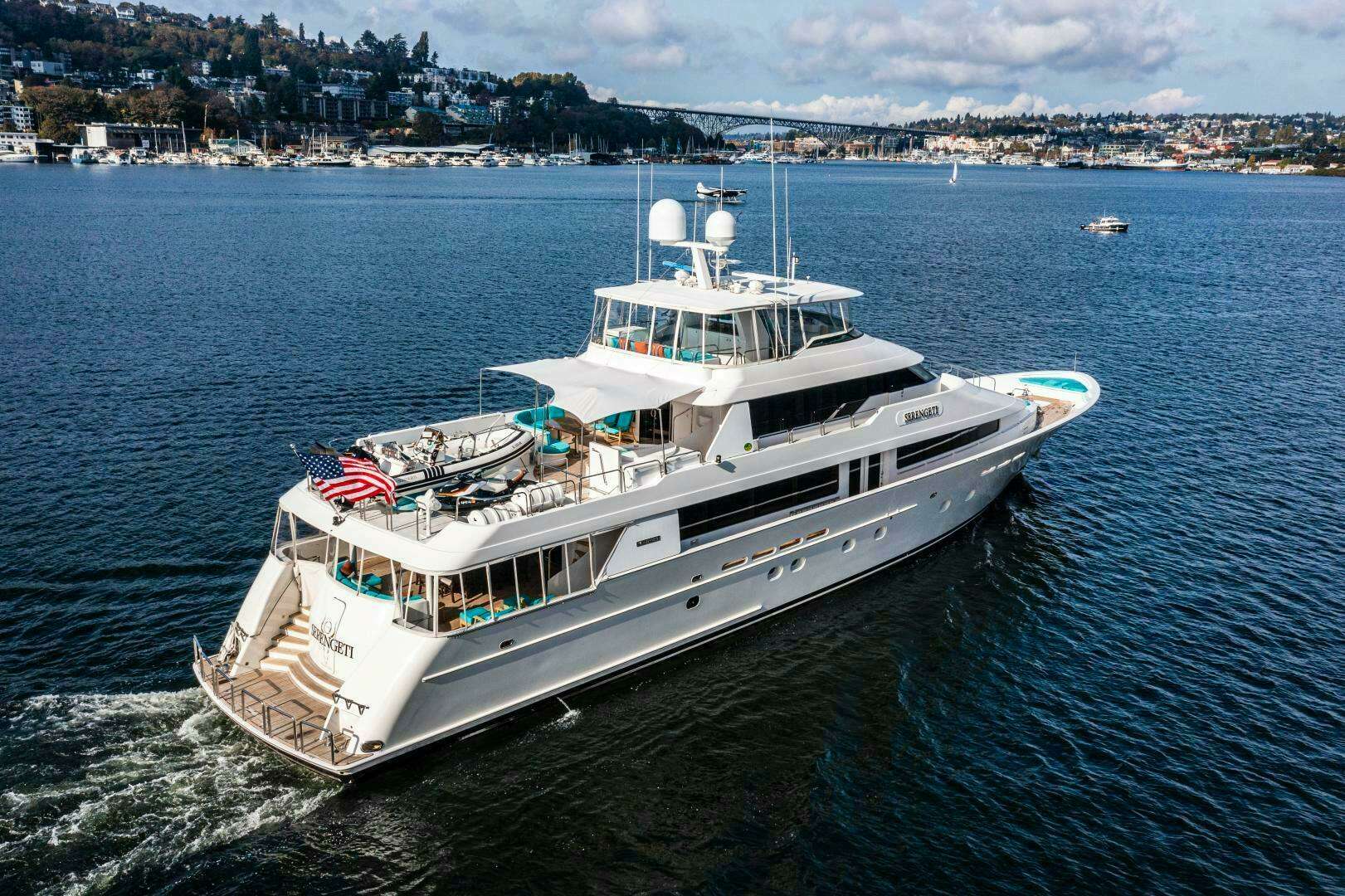

2002 Westport 130' _{(39.62 m)} Westport 130

CONSTRUCTION

• Fiberglass hull and superstructure
• Teak decks
• Hull painted in 2022 at Westport

DIMENSIONS

• Length Overall:    130' (39.6m)
• Beam:    26' (7.9m)
• Draft min:    6' 6" (1.98m)
• Tonnage:    GRT 180, GRT ITC 309

• Fuel Capacity:    9,900 US Gallons    (37,475 liters)
• Aft reservoir for tender:    100 US Gallons    (378 liters)
• Water Capacity:    1,620 US Gallons    (6,132 liters)
• Grey Water:    940 US Gallons    (3,558 liters)
• Black Water:    1,360 US Gallons    (5,148 liters)
• Watermakers:    (2) x 1,200 US GPD    ((2) x 4,542 liters/day)
• Fresh Oil:    78 US Gallons    (295 liters)
• Waste Oil:    33 UG Gallons    (125 liters)

ACCOMMODATIONS

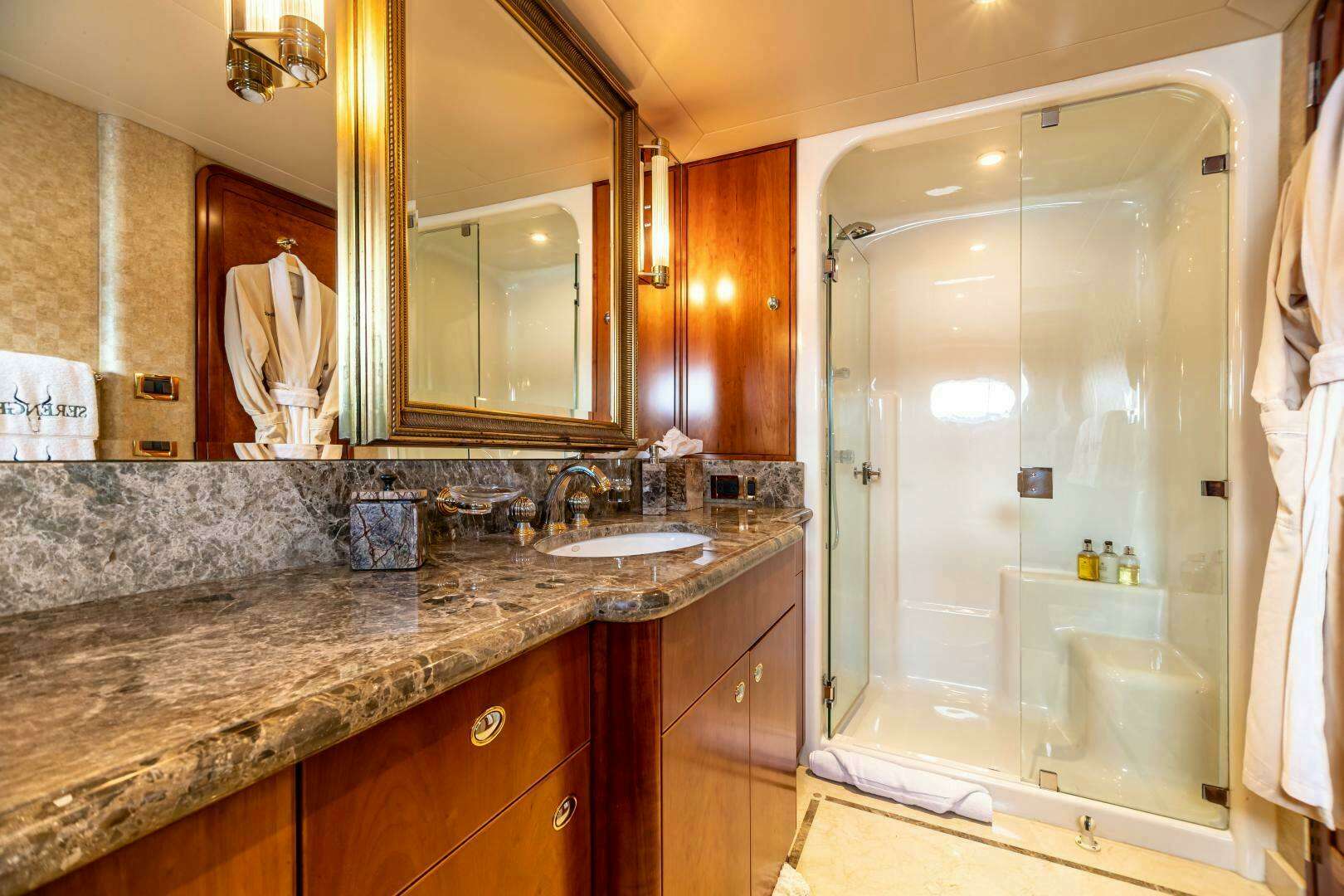

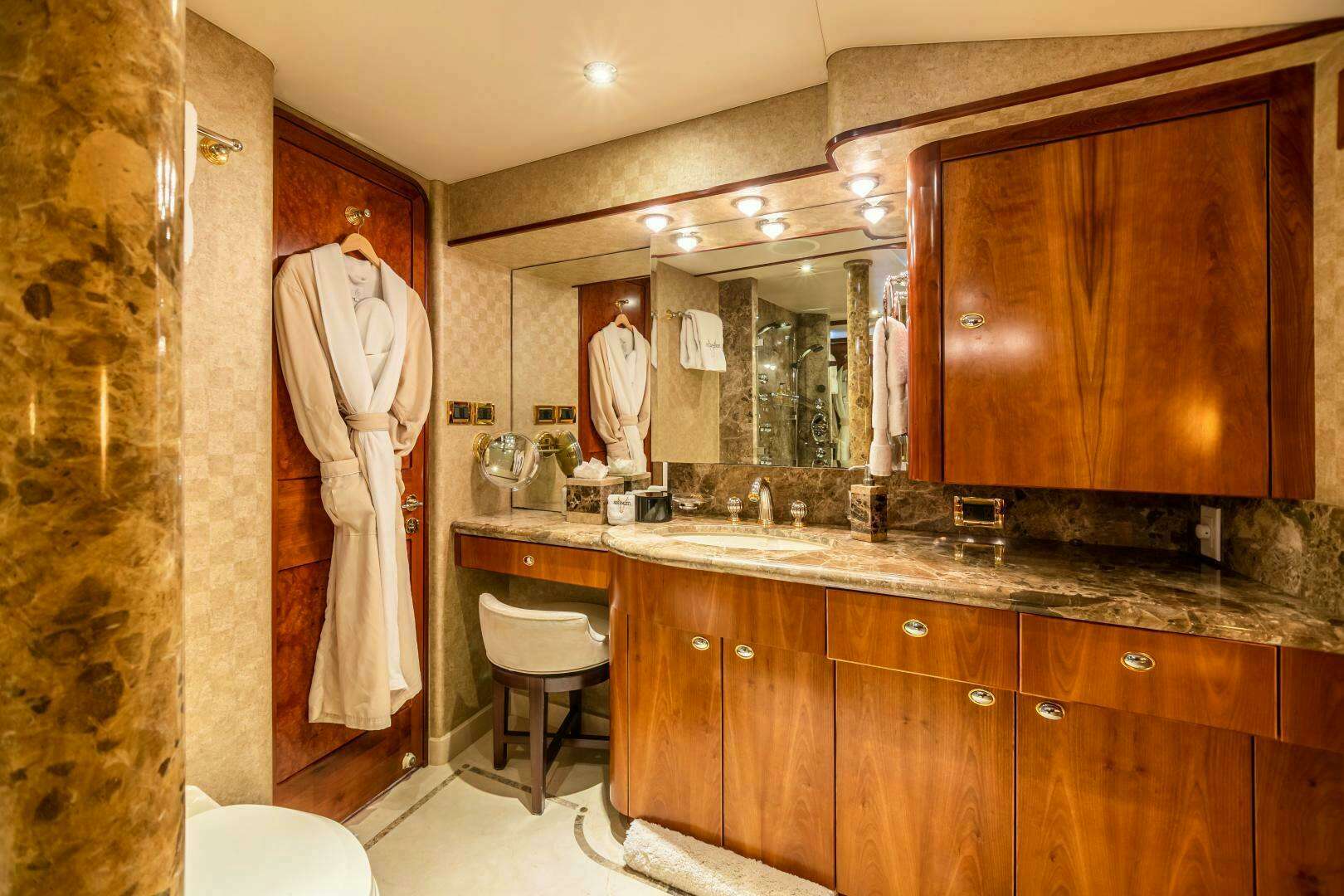

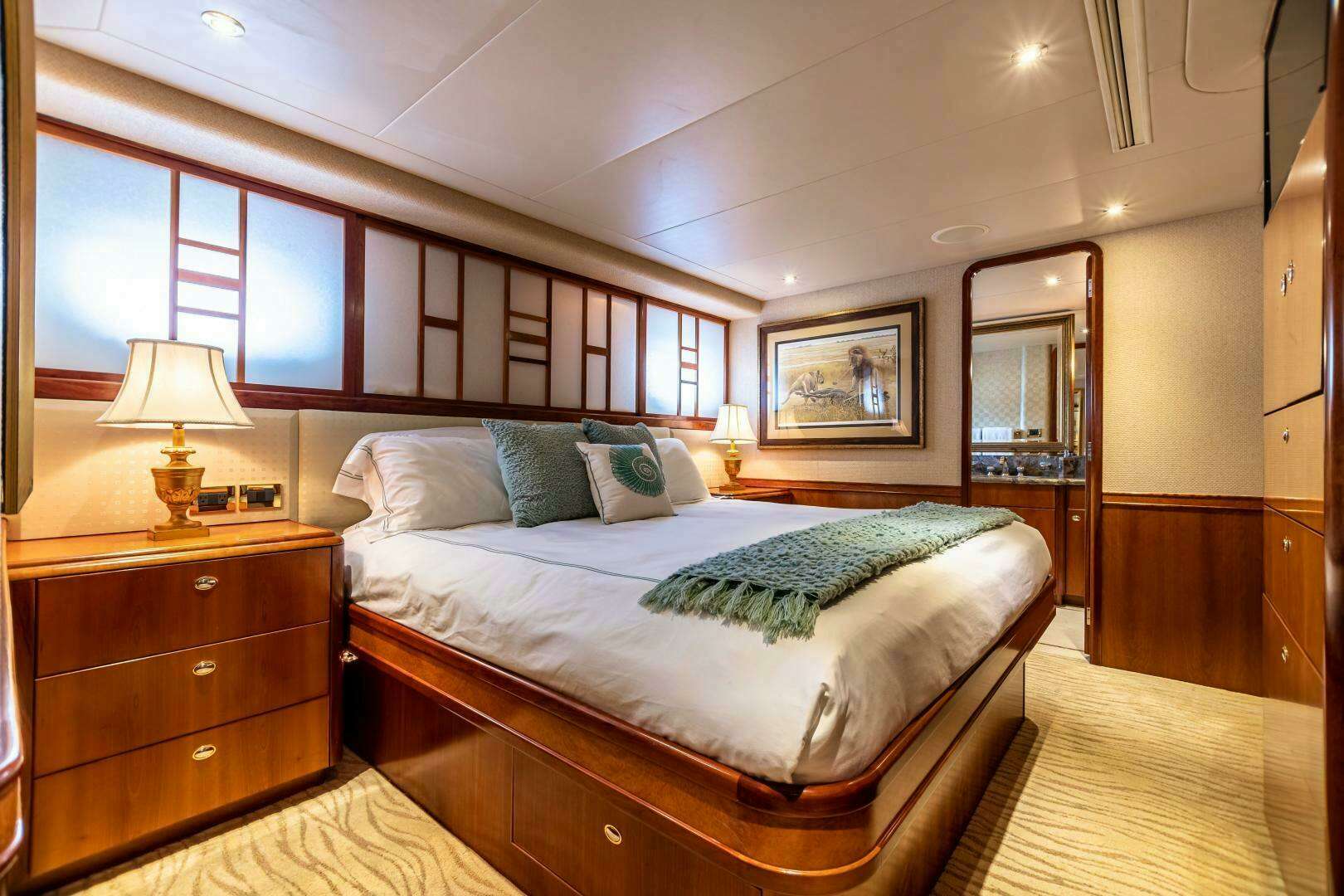

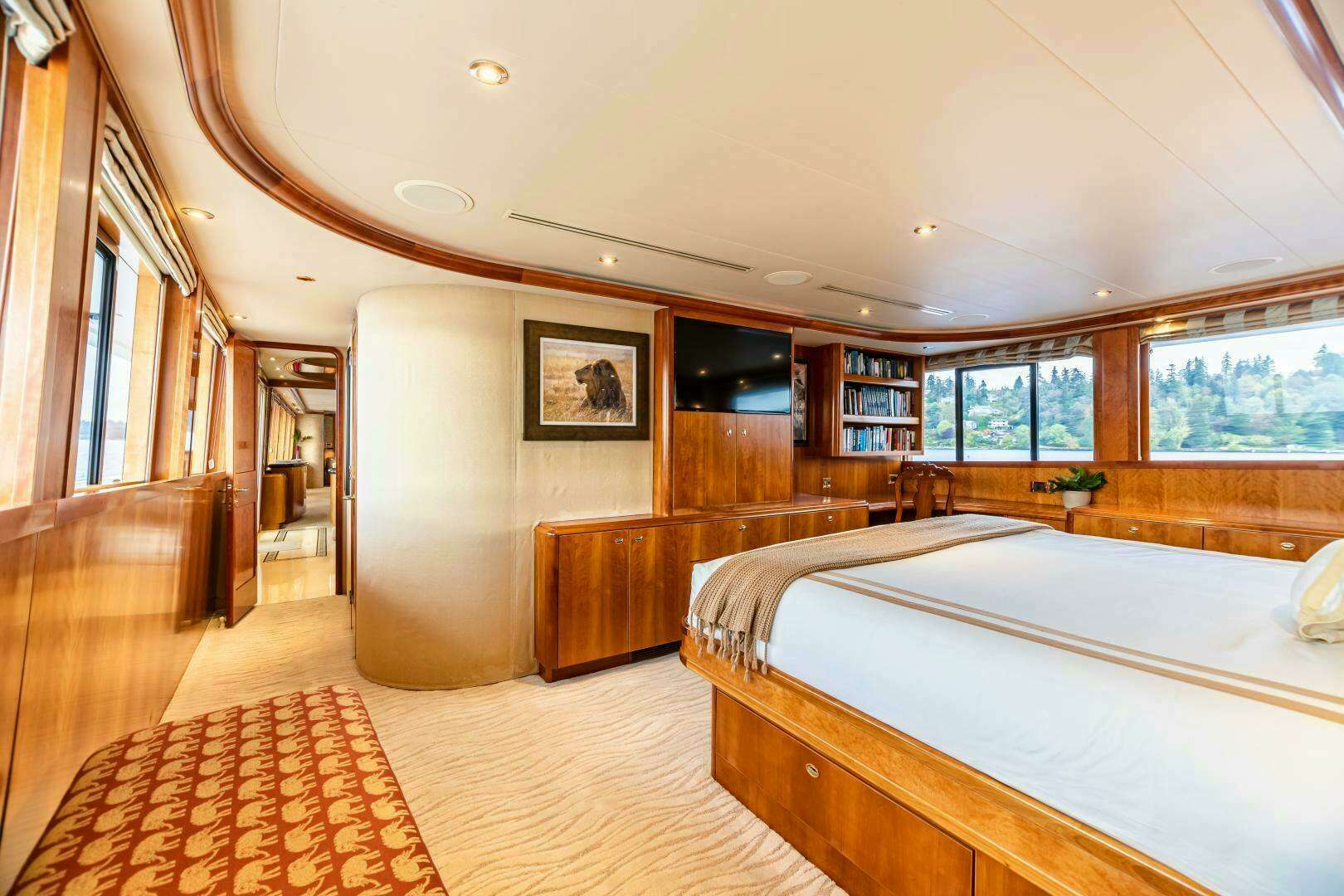

• (2) x King Stateroom with king size beds and ensuites

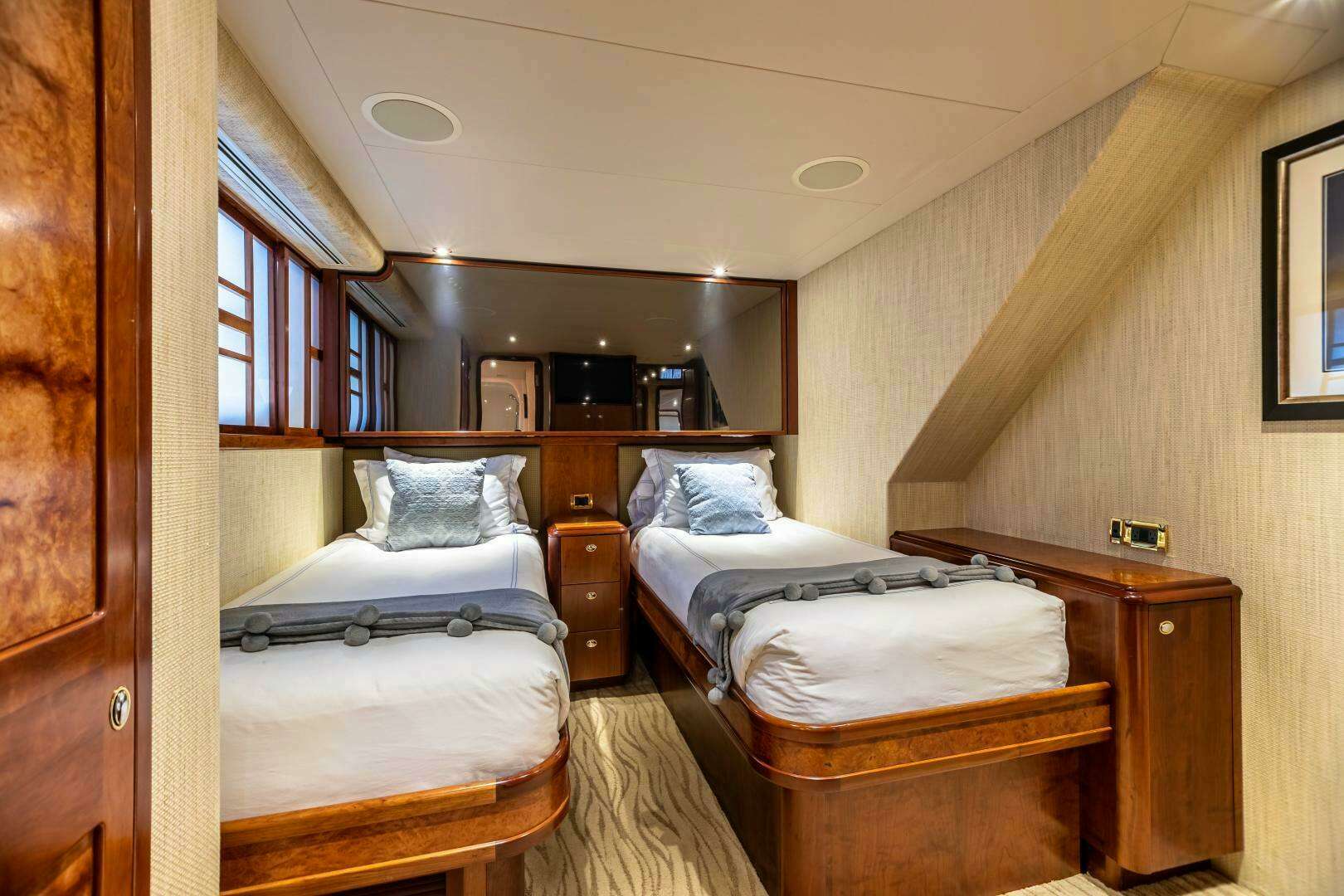

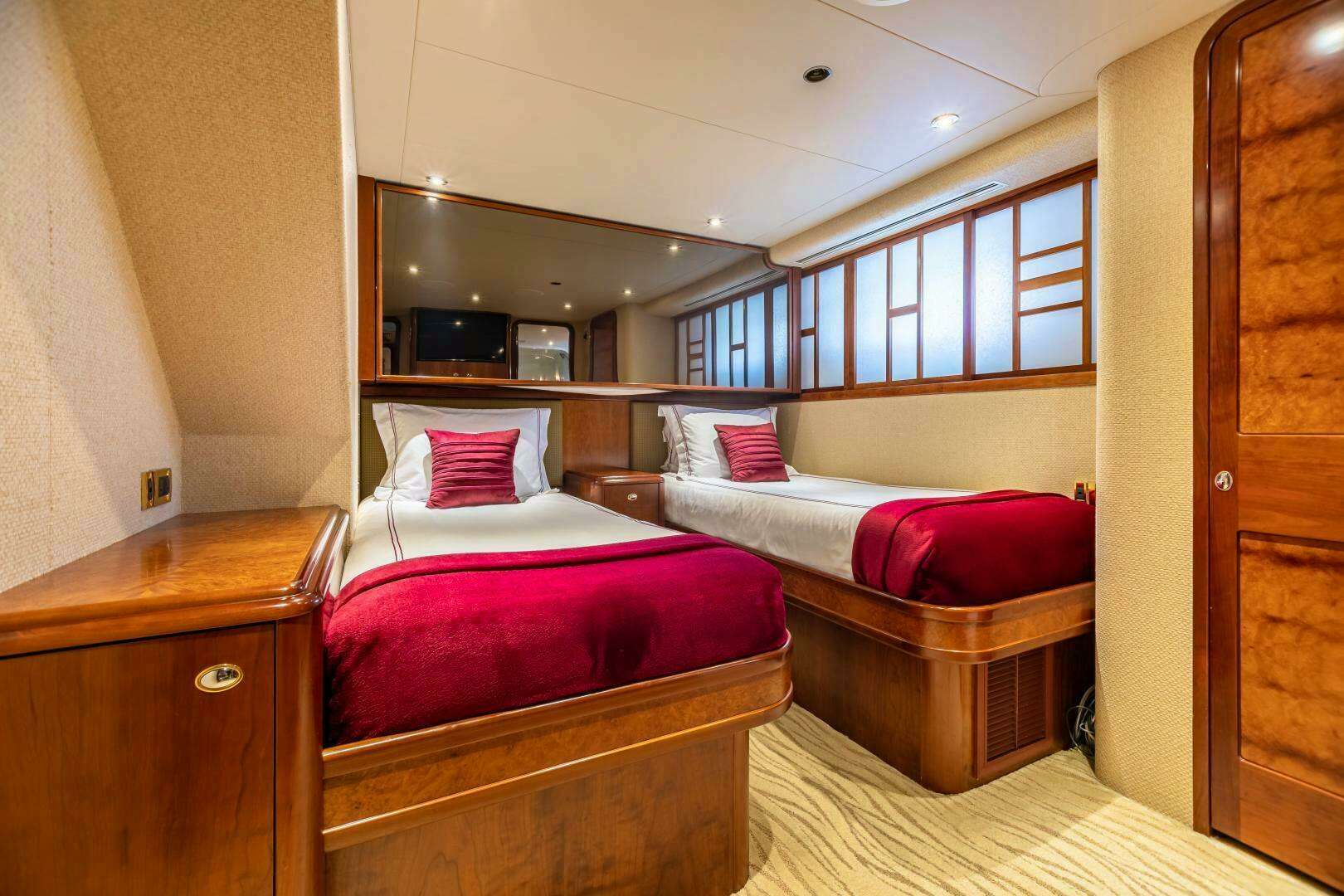

• (2) x Twin Staterooms with Pullman berths and ensuites

• (1) x Captain's cabin located forward, with full size berth and additional pull down bunk
• (2) x crew cabins located forward, each with over/under berths
• (1) x engineers cabin aft in the engine room, full size berth

MACHINERY

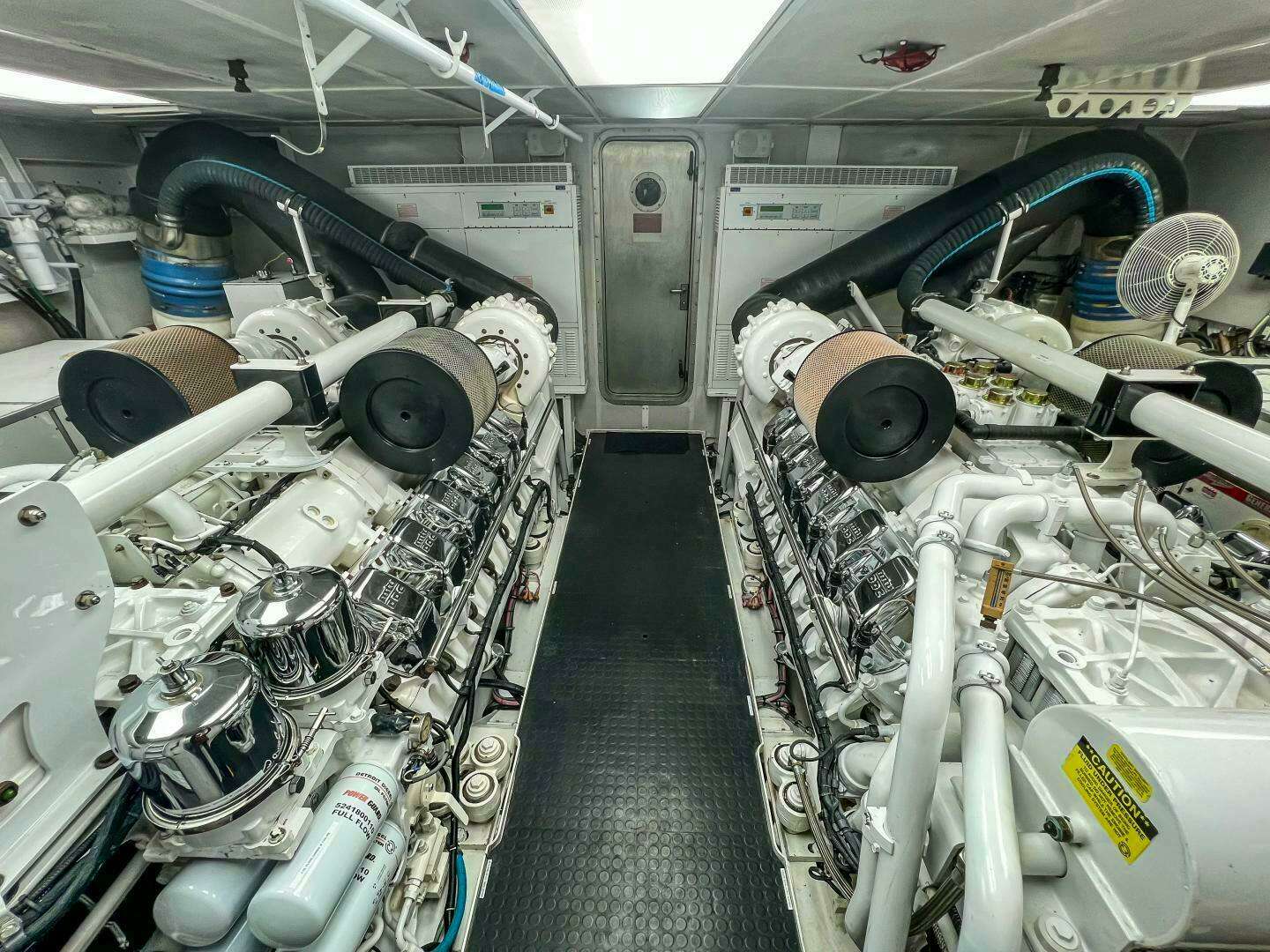

• Engine Type:    (2) x MTU/DDC 12V4000 / 2,735 hp each

• Hours (April 2024):

  • Port: 13,693 hrs (Top end completed at 10,789 hrs)

  • Starboard: 13,651 hrs  (Top end completed at 10,790 hrs)

• Gearboxes:    Twin Disc 2.5:1

• Propellors:    Michigan 5-blade props 50" x 44" (pulled and turned during 2023 yard period)

• Generators:    (2) x Northern Lights 65Kw

• Generator Hours (April 2024):

  • Port: 3,834 hrs since rebuild (full rebuild completed March 2023 at 29,500hrs)

  • Starboard: 50 hrs since full rebuild (full rebuild completed in Spring 2025 at 33,500 hrs)

• Shore Power Converter:    Magnus - New in 2025

• Shore Power:    Incoming: 480/100amp 3-phase

• Dometic 20 ton VARC-X Chiller Plant - New in 2025

• Watermakers:    (2) x SeaRecovery 1,200 GPD each

• Stabilizers:    Naiad Zero-Speed, 26 square foot fins

• Bow Thruster:    Hydraulic

• Stern Thruster:    Hydraulic

• Steering System:    Jastrom with dual pumps

• Back-Up Emergency Systems:    Manual

• Fuel Filtration:

  • (2) fuel filters on each engine

  • (1) fuel filter on each generator

• Sewage System:    Headhunter with discharge pumps


COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems

• Satellite Communications: VSAT
• Telephone System: Panasonic
• Satellite Telephone System: KVH Tracphone 252 with phone switch
• VHF:
  • Icom VHF with GMDSS
  • (2) x Icom M-127 (crew lounge & galley)
• Ship's Computer: Dell with HP Printer
• Air Horn: Kahlenberg

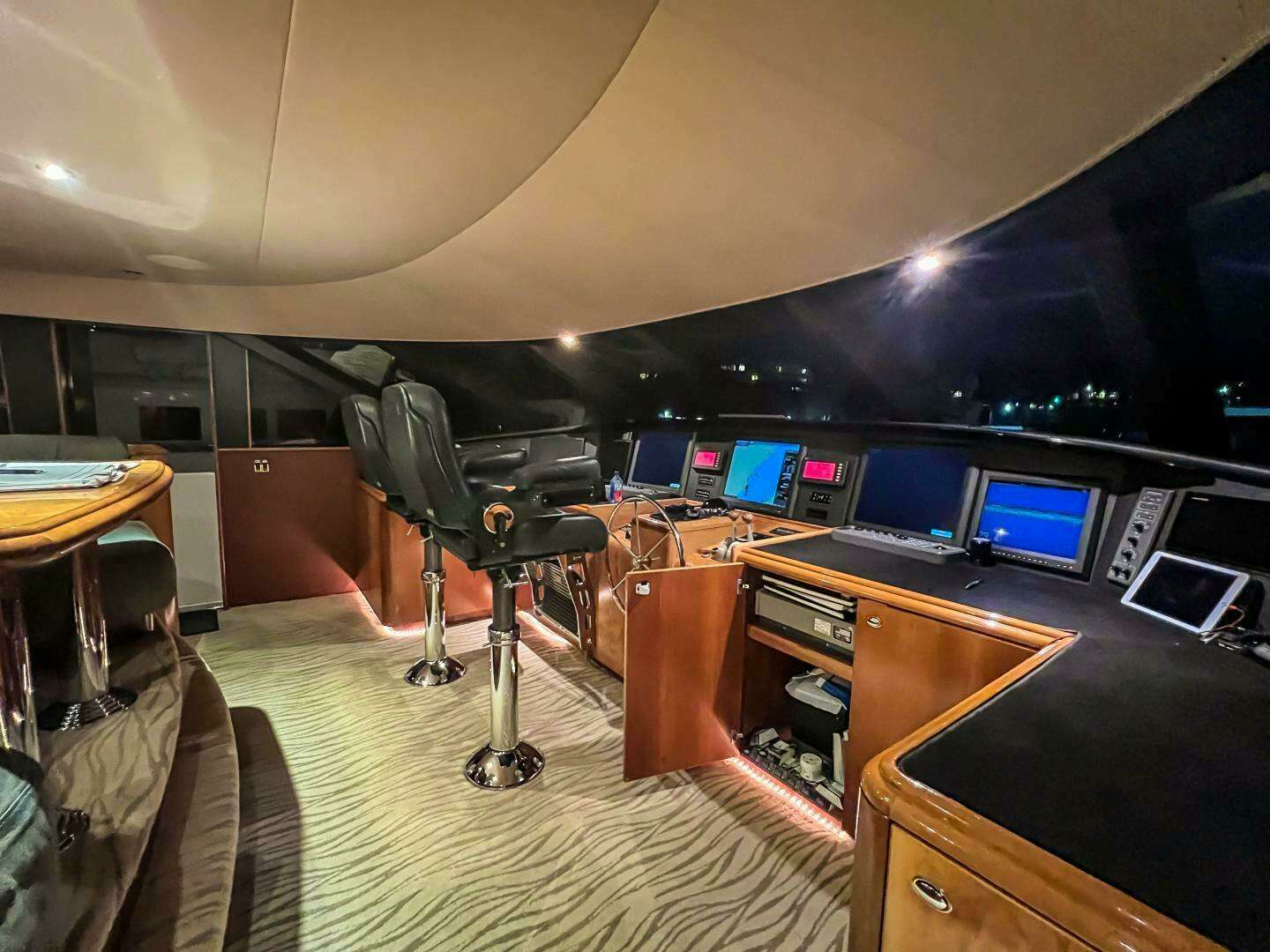

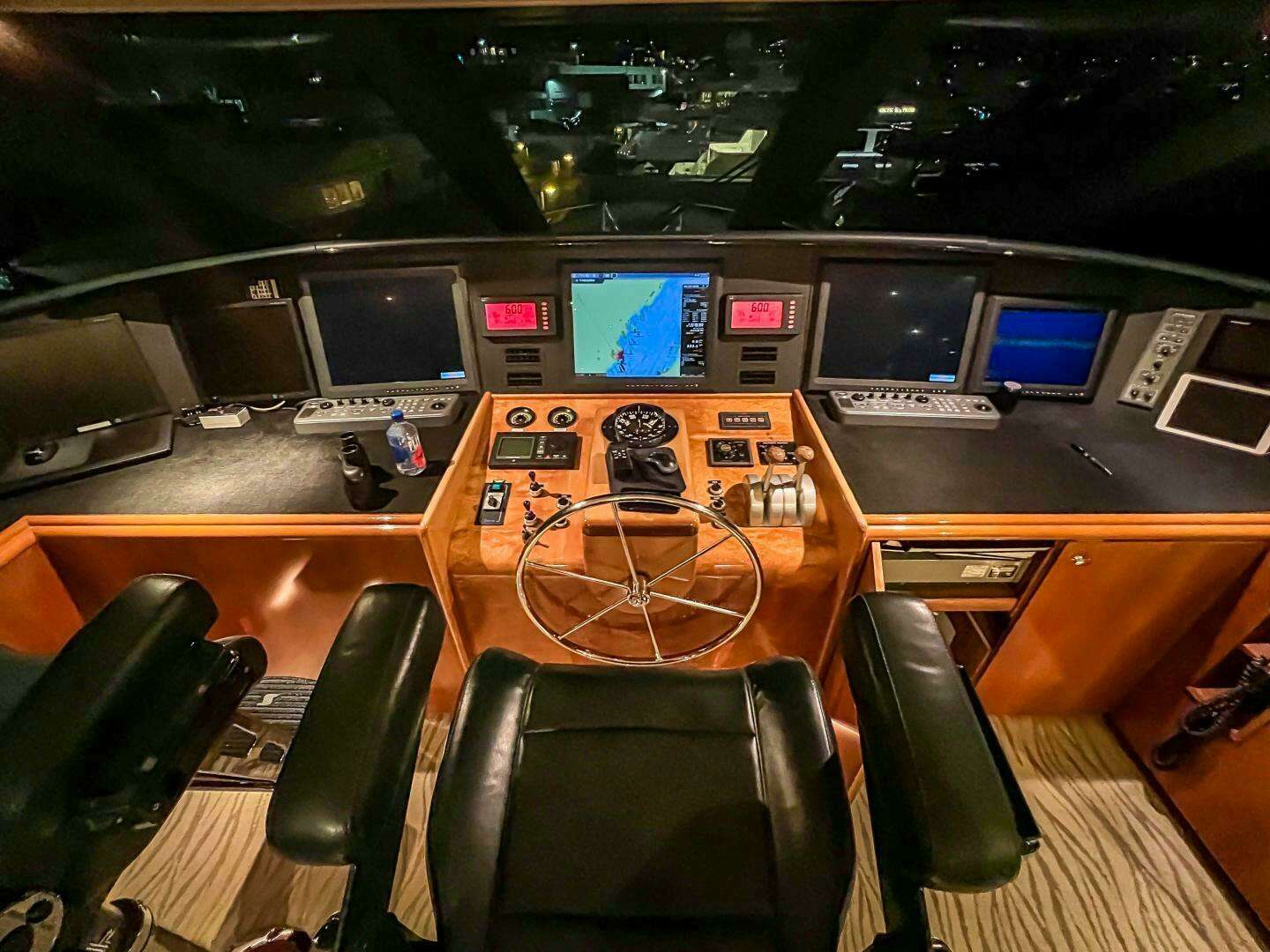

Navigation System

• AIS:    Starlink
• GPS:    (2) x Furuno GP33
• Gyrocompass:    Simrad Robertson with interface box
• Compass:    Ritchie Globe Masters
• Furuno SC70 Satellite Compass
• Automatic Pilot:    Simrad
• Radar:    (2) x Furuno 96 mile radar
• Wind/Depth/Speed:    B&G Hydra
• Software:    Timezero, Nobeltec
• Navtex:    Furuno
• Weatherfax:    Furuno
• Searchlight:    ACR-100, mounted on mast
• Starlink:

Entertainment System

• System: KVH M9 with 40" dome
• (1) x 60" HDTV    (Sky Lounge)
• (2) x 42" HDTV    (Master Stateroom, Main Salon)
• (4) x 20" Samsung HDTV's    (Guest Cabins)
• (2) x HDTV's    (Main Deck Aft and Flybridge Deck)
• Systems:
  • Kaleidescape
  • Xbox, Nintendo Wii
  • iPod docking stations
• Apple TV's    (installed in all cabins and guest areas)

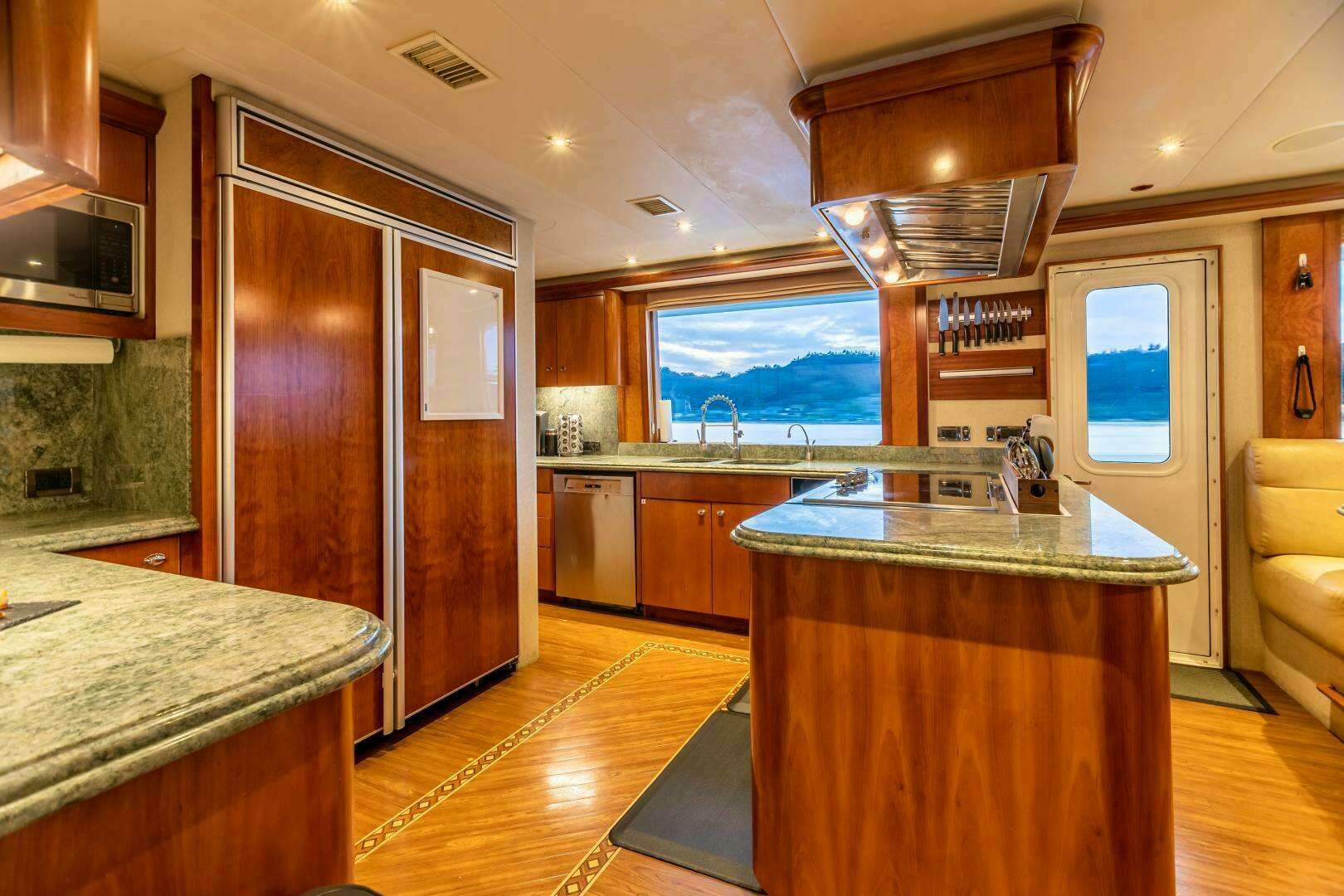

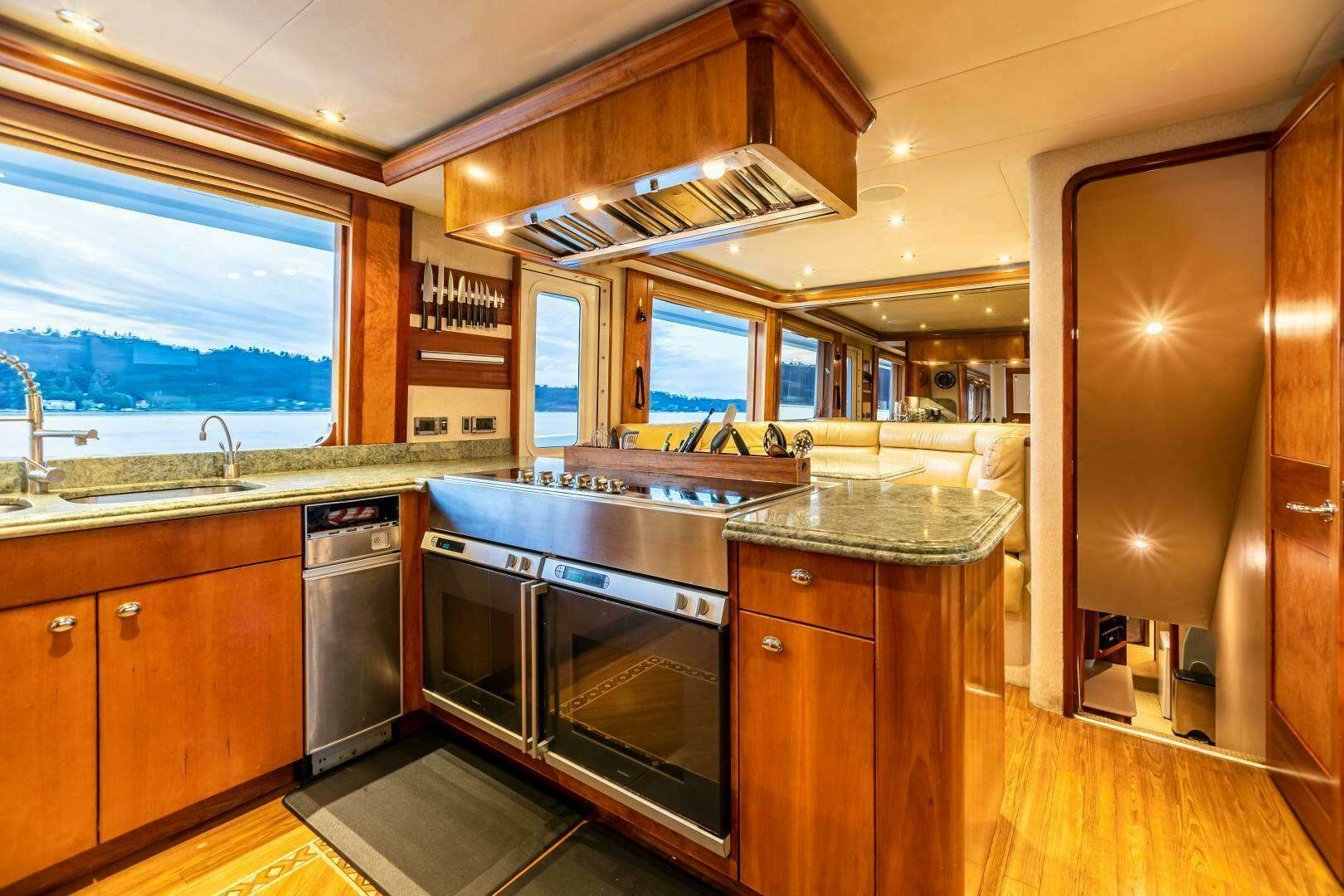

GALLEY AND LAUNDRY EQUIPMENT

• Cooking Equipment:
  • Viking 6-burner range
  • Double Gaggenau ovens (new in 2023)
  • Custom overhead exhaust fan
  • LG microwave
• Refrigeration & Freezer:    Viking (new in 2023)
• Icemakers:    (1) Vevor
• Garbage Disposal:    Insinkerator
• Dishwasher:    Miele

• Refrigerator & Freezer:
  • (1) Whirlpool (Main Deck Aft)
  • (1) Nor-cold (Flybridge)
  • (1) Mini-fridge (Skylounge)
• Icemakers:
  • (1) Scotsman (Main Deck Aft)
  • (1) Max Ice (Flybridge)
  • (1) Scotsman (Skylounge)
• BBQ Grill:    (1) Alfresco (Bridge Deck Aft)
• Chest Freezer:
  • (1) in the Lazarette
  • (3) on the Fly Bridge
• Commercial Refrigerator & Freezer:    (1) Located in the Lazarette
• Wine Cooler:    50 bottle wine cooler (Main Salon)

• Refrigerator/Freezer:    (2) Sub Zero
• Microwave:    (1) LG
• Misc.:    Stainless steel sink

• Washer:
  • G.E. (Lower guest passage)
  • G.E (Crew Mess)
• Dryer:
  • G.E. (Lower guest passage)
  • G.E. (Crew Mess)


TENDERS AND TOYS

• 32' 2016 ACI with enclosed cabin, (2) x Yamaha 250hp
• 18' Novurania expedition tender

• (2) x 3-person high performance SeaDoo's
• (2) x Wakeboards (Adult and Child)
• (2) x Paddleboards
• (2) x Tandem Kayaks
• (2) x Waterskis (Adult and Child)
• Snorkeling gear (12 sets, adult and child)
• Comprehensive sport-fishing set-ups
• Towed Inflatable
• Big Mable inflatable (4 seater)
• (2) x surfboards
• Beach toys
• Gym Equipment

DECK EQUIPMENT

• Anchor Windlass:    (2) x Maxwell 6000 lb, hydraulic winches and chain
• Anchors:    (2) x 350 lbs each
• Anchor Chain:
  • (1) x 400' x 5/8" chain
  • (1) x 300' x 5/8" chain (Port side chain new in 2023)
  • Washdowns for anchor chains
• Aft Deck Capstans:    (2) x Maxwell 3500 lb hydraulic capstans
• Crane and Davit:    Nautical Stuctures 2000 lb, hydraulic and telescopic
• Passerelle:    Opacmare two-section hydraulic with remote control
• Boarding Ladder:    (1) x Marquipt 24" x 9-steps
• Swim Ladder:    Yes, transom
• Wing stations:    Port & Starboard on Portuguese brudge
• Gas Fuel Tank:    100 Gallon in swim platform with air dispensing pump for tender and toys

FIRE FIGHTING AND SAFETY EQUIPMENT

• Fire Control System:    FM200 Fire system auto/manual
• Fire Extinguishers:    Throughout

• Life Rafts:
  • (1) x 16-person Viking
  • (1) x 10-person Viking
• Life jackets:    (18) x USCG approved
• EPIRB:    (1) x Northern Airborne
• Life Rings:    (2) x 24" Ring buoys
• Misc:    Flare kit


HULL DAMAGE & REPAIR

2025 YARD PERIOD WORK LIST

• New Magnus Shorepower Converters

• New Chiller Plant - Dometic VARC-X 20t plant

• Full rebuild of Starboard Generator at 33,500 hours

2023 YARD PERIOD WORK

• Props pulled and tuned
• Main Engine Thru-Hull valves replaced
• New Bottom Paint
• New Prop Speed
• New Viking fridge in Galley
• New Gaggenau Ovens in Galley
• Ice Maker fit to the Galley
• New port side Anchor Chain (300ft)
• Water Pump upgraded to Headhunter Aquabox
• Shore Power converters recommissioned and operational
• Refinishing of exterior tables and bars
• Apple TV's installed in all cabins and guest areas, switching to full Direct TV Streaming and other app capable via Starlink with VPN service

EXCLUSIONS

Owner's and crew's personal effects. A detailed list of exclusions will be provided at the time of sale.

DISCLAIMER

Specifications and details of this vessel are provided in good faith for informational purposes only. Data regarding the specifications, operating characteristics and condition of the vessel was obtained from sources believed reliable but is not guaranteed by owner or brokers. Buyer assumes responsibility to verify all speeds, capacities, consumptions and other measurements contained herein and otherwise provided and agrees to instruct his agent or surveyor to confirm such details prior to purchase. Vessel is offered subject to prior sale, price and inventory changes and withdrawal from market without notice.

Engine hours are as of the date of the original listing and are a representation of what the listing broker has been told by the owner and/or actual reading of the engine hour meters. The broker cannot and does not guarantee the true hours. It is the responsibility of the purchaser to verify engine hours, warranties implied or otherwise, and major overhauls as well as all other representations noted on the listing brochure.
