2004 Catalina 36' (10.97 m) C36
Old Saybrook, Connecticut, United States
WHIMSEA
WHIMSEA" is a thoughtfully executed wing keel, tall rig version of the desirable and popular Catalina 36 MK II. Whimsea has been outfitted for safe and comfortable cruising by a couple or a family and is powered by a Universal M-35B diesel engine with ZF Hurth transmission with 1347 hrs.
- Cruisers
- Sail
- Used
- Diesel
- Fiberglass Hull
- HIN/IMO: CTYR2170J304
| FEATURES: |
|---|
| Super Clean |
| Notable Upgrades: N2K NEMEA Backbone Raymarine |
Description

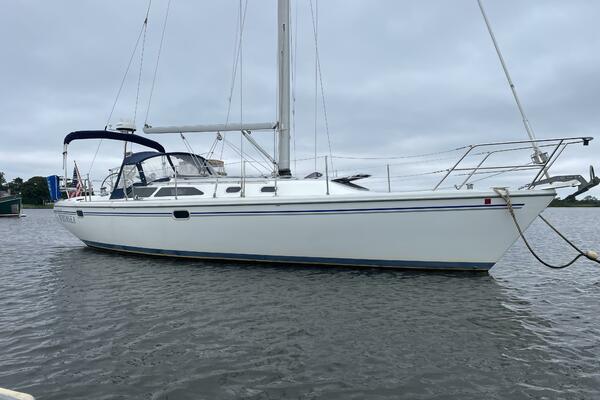

2004 Catalina C-36 MKII Tall Rig Wing Keel
"WHIMSEA"
"WHIMSEA" is a thoughtfully executed example of the desirable and popular Catalina 36 MK II has been outfitted for safe and comfortable cruising by a couple or a family. Powered by a Universal M-35B diesel engine with ZF Hurth transmission with 1347 hrs.
"WHIMSEA" has been maintained and continuously upgraded by knowledgeable owners, and includes the following:
Wing keel, tall rig, and in-mast mainsail furler for easy and safe mainsail reefing.
Solid and well-maintained diesel engine starts immediately and runs without a hiccup. Dripless shaft seal and line cutter.
Stress-free power management with automatic charging relay (no battery switch to worry about) and comprehensive battery monitoring system. 500 Ah newer AGM batteries.
300 W rigid solar panels on the bimini , with a Victron Bluesolar MPPT controller. Run the refrigerator and cover all your power needs for extended time on the hook.
Full suite of newer instruments on NMEA backbone providing for full customization and data overlays, including Raymarine Axiom 9 MFD; 2 ea Raymarine I70s displays; Raymarine autohelm with navigate to heading, navigate to waypoint, or navigate to wind; masthead wind angle and wind speed; tridata transducer with depth, speed through water, and water temperature; Vesper AIS send & receive; Raymarine CHIRP wifi radar; and Fusion black box stereo with remote display. Use the Raymarine app to monitor and control the MFD and all NMEA systems through your phone or tablet.
Icom VHF with DSC, redundant GPS and AIS, and wired remote mic in the cockpit.

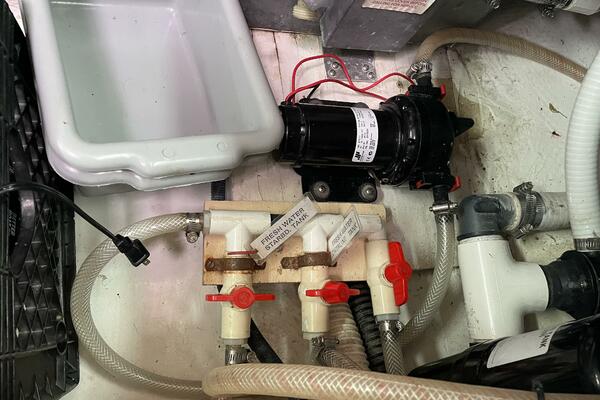

Whole house water filtration system, no need to carry bottled water.
Freshwater head, new sanitary lines, and holding tank vent filter, no odors!
Rocna 15 modern anchor with 150' chain spliced to 125' rode; windless and custom snubber. Backup Fortress anchor with additional chain and rode.
Custom winter cover.
Achilles LEX 9.6 dinghy (tow or stow on deck) with bomb-proof Yamaha 2.5 dinghy motor; with crane and mount for carrying and storage.
Sail away and enjoy "WHIMSEA" as much as we have!
"WHIMSEA" can be seen in Old Saybrook, CT by appointment only
Specifications
HIN/IMO: CTYR2170J304
Official Number: 1150443
LOA: 36' 4'' (11.07 Meters)
Type: Sail- Used
Year: 2004
Beam: 11' 9''
Draft Max: 4' 5''
Cabins: 1
Sleeps: 7
V Berths: 1
Queen Berths: 1
Heads: 1
Fuel Type: Diesel
Hull Material: Fiberglass
Bridge Clearance: 52' 2''
Fuel Tank: 25 Gallons (94.64 Liters)
Fresh Water: 78 Gallons (295.26 Liters)
Holding Tank: 15 Gallons (56.78 Liters)
Ballast Weight: 6600 lbs
Dry Weight: 14100
Photos click to view all
Multimedia
Engines
Engine 1
- Engine Make: Universal
- Engine Model: M-35B
- Engine Year: 2004
- Engine Type: Inboard
- Drive Type: Direct
- Fuel Type: Diesel
- Hours: 1347.00
- Serial Number: 203218 E209
- Engine Location: Middle
Full Details
Standard Equipment
Mechanical:

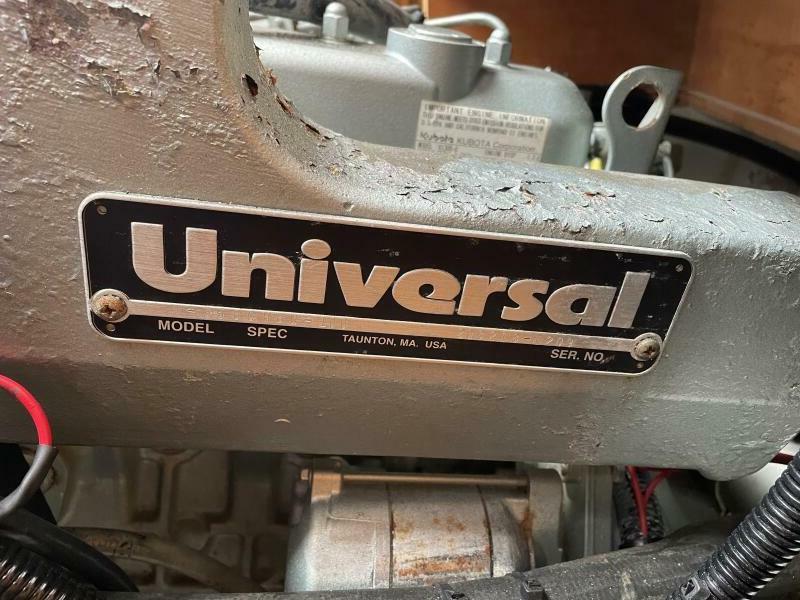

Universal M-35 B Diesel Marine Engine Fresh Water Cooled (1347hrs)
ZF Marine Hurth Transmission

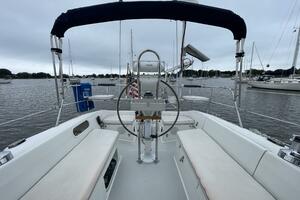

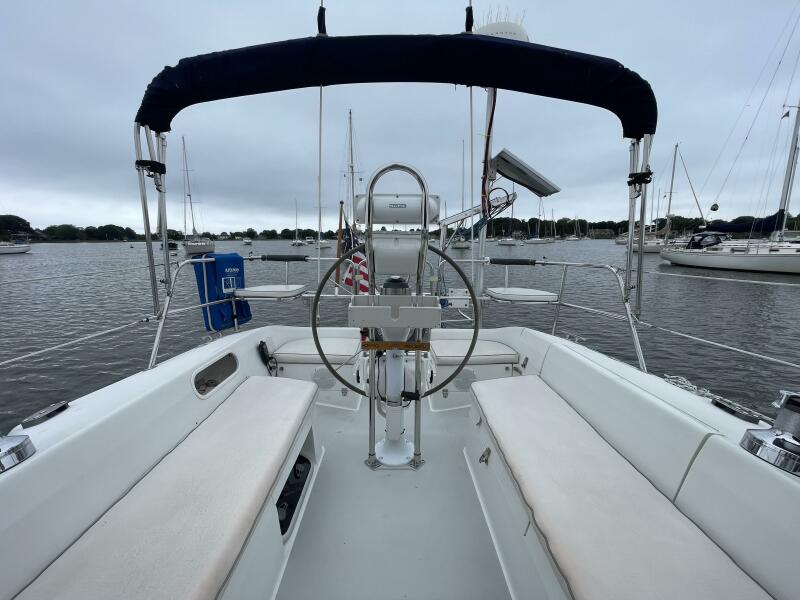

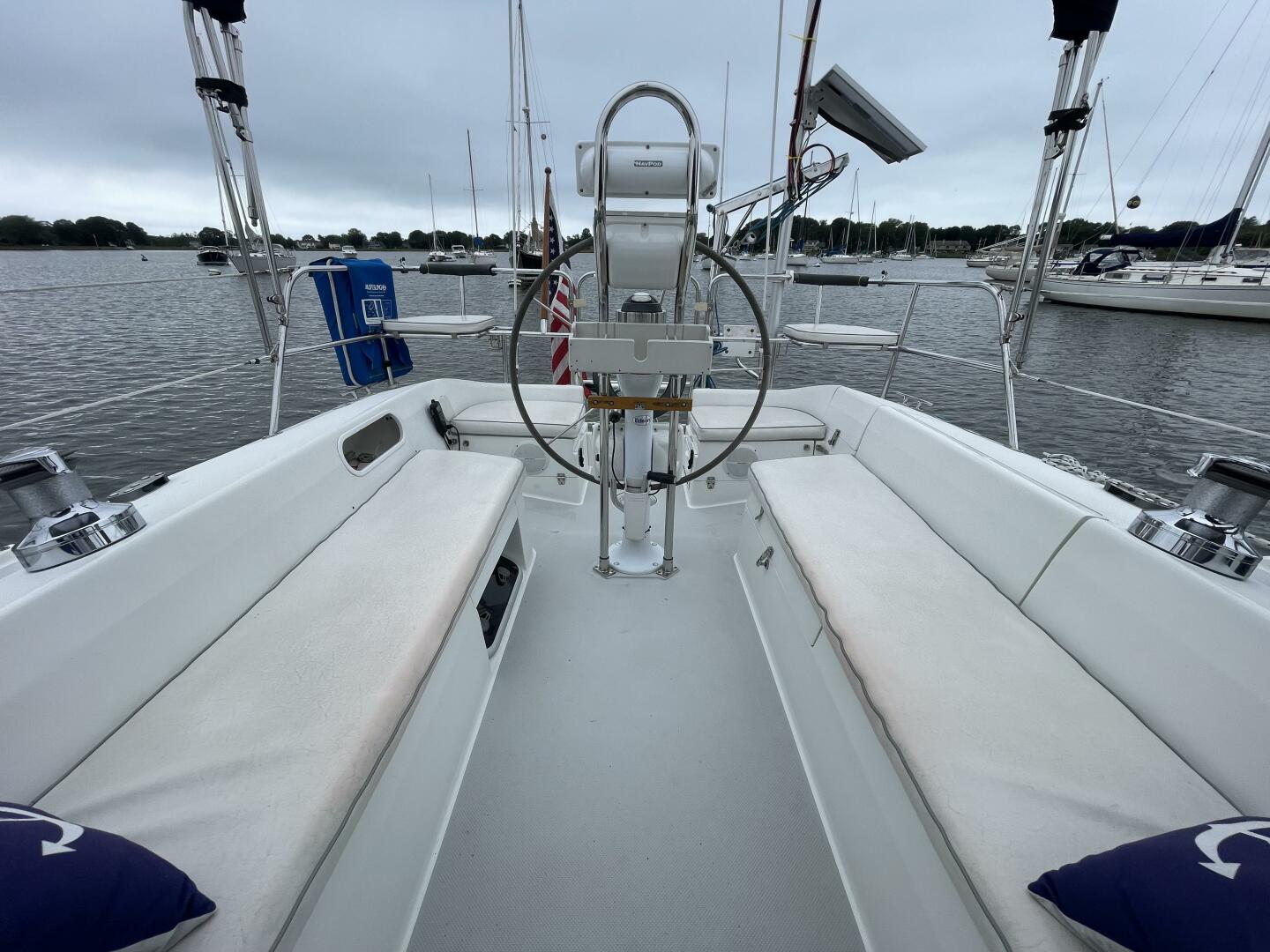

Edson Pedestal Wheel Steering
Raw Water Pump (replaced 2021)
PSS Shaft Seal (rebuilt 2020)
3 Blade Bronze Propeller
1' Bronze Propeller Shaft
Cutlass Bearing (replaced 2019)
Balmar 70-amp High Output Alternator (replaced 2018) with backup re-built Balmar alternator onboard
Shaft Shark Line Cutter
Rule Bilge Pump with Float Switch
Electrical:
Lifeline 4D AGM House Batteries x2 (purchased 2019)
West Marine AGM Group 24 Cranking Battery (purchased 2019)
Charles 5000 Series 30-amp Battery Charger
Renogy 100-watt Solar Panels x3 (purchased 2020)
Victron Blue Solar 30-amp 3-stage MPPT Controller
Victron Battery Monitoring System
Balmar MC-612 external Voltage Regulator
Blue Seas Automatic Charging Relay - no battery switch
30-amp Shore Power with Cable
Electronics:
N2K NMEA Backbone
Raymarine Axiom 9" Multi-Function Display
Raymarine I70s Displays x2 to display any desired data from the NMEA backbone
Raymarine Evolution AutoHelm system new in 2019, on the NMEA backbone to integrate with MFD and allow navigate to heading, waypoint or wind
Raymarine 18' Quantum Radar dome on stern pole with CHIRP and WIFI
Raymarine hardwired masthead transducer wired to Raymarine ITC-5
Raymarine ITC-5 converts analog transducer data to NMEA format on the backbone
Airmar DST-800 tri-data transducer (depth, speed, temp) new 2022 wired to ITC-5
Vesper AIS Send & Receive

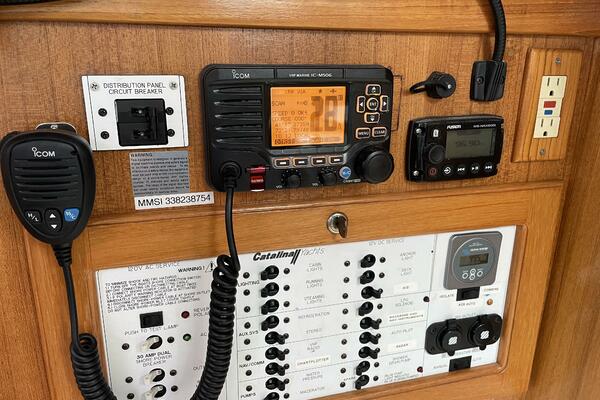

ICOM IC-M506 VHF Marine Radio on the NMEA backbone with hardwired iCom Command Mic at the helm
Ritchie Binnacle Compass
Fusion BB3000 black box stereo on the NMEA backbone, with Remote Display and control at the nav station
Galley:
Hillerange 2 Burner Gimballed LPG Stove with Oven
Propane Tank (purchased 2016)
Magna BBQ Grill
Double Stainless Steel Sinks with Hot and Cold Pressure Water

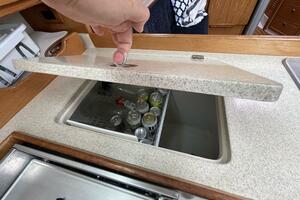

Large Ice Box with 12vdc Refrigeration
Seaward 6gal Water Heater plus Engine Heating
Raritan Manual Pump Fresh Water Head (rebuilt 2021)
Vanity Sink with Hot and Cold Pressure Water
Holding Tank with Macerator And carbon vent filter
Hull and Deck:

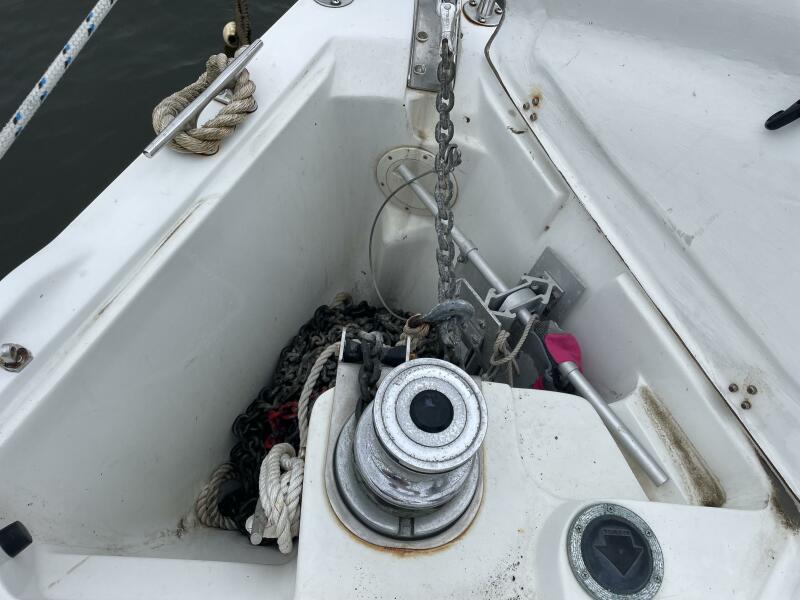

Rocna 15 Anchor on a Stainless-Steel Bow Roller with 150' Chain plus 125' Line

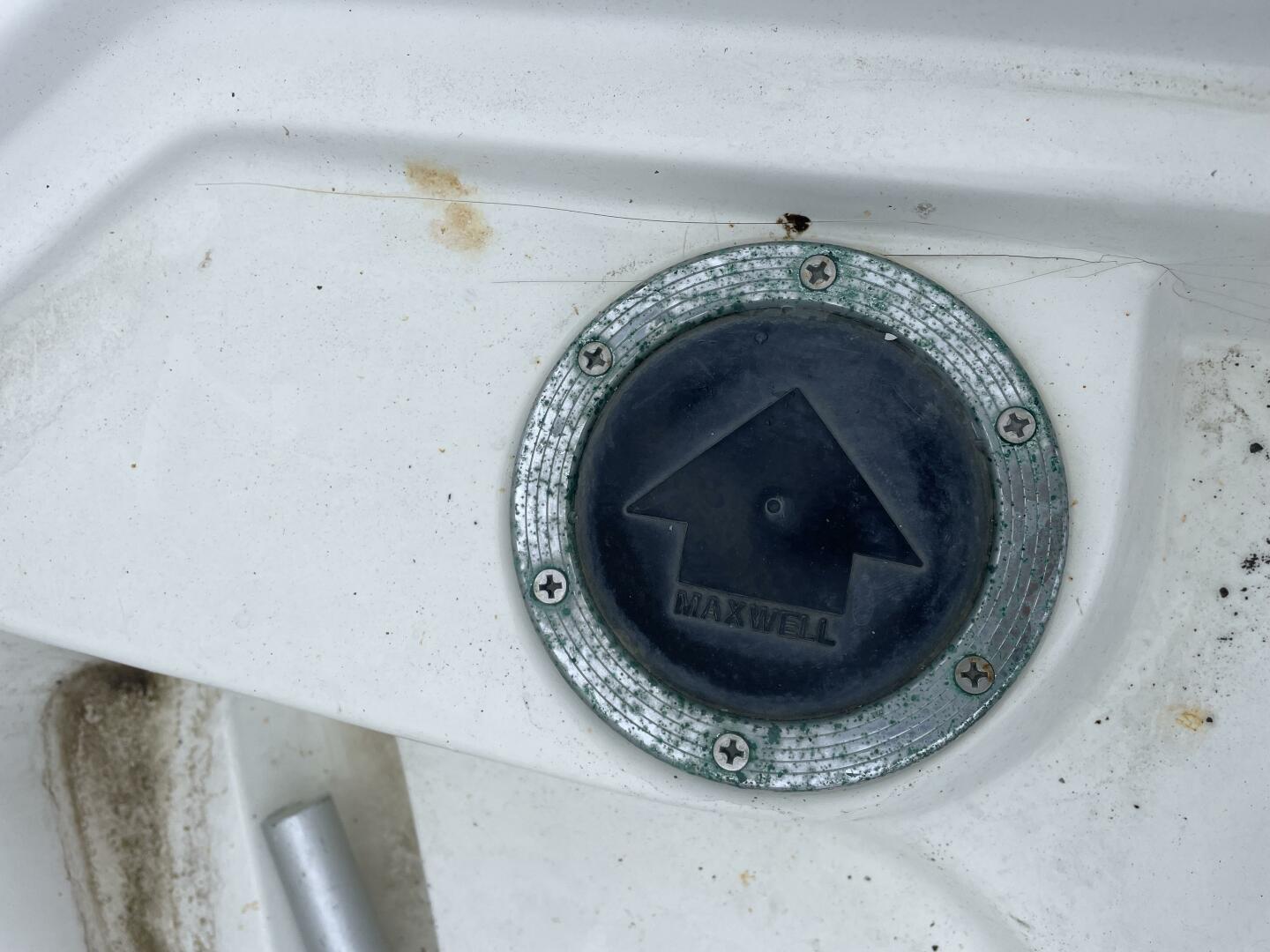

Maxwell 800 Vertical Windlass
Fortress FX16 Anchor (secondary)
Sunbrella Dodger and Bimini
Winter Cover Custom by Canvas Shop
Wood Cockpit Table
Cockpit Cushions
Helm Seat
Stern Corner Seats
Walk-thru Transom to Swim Step with Boarding Ladder
Various Life Jackets, Fenders and Mooring Lines
Dinghy:
2016 Achilles 9' Dinghy LEX-96

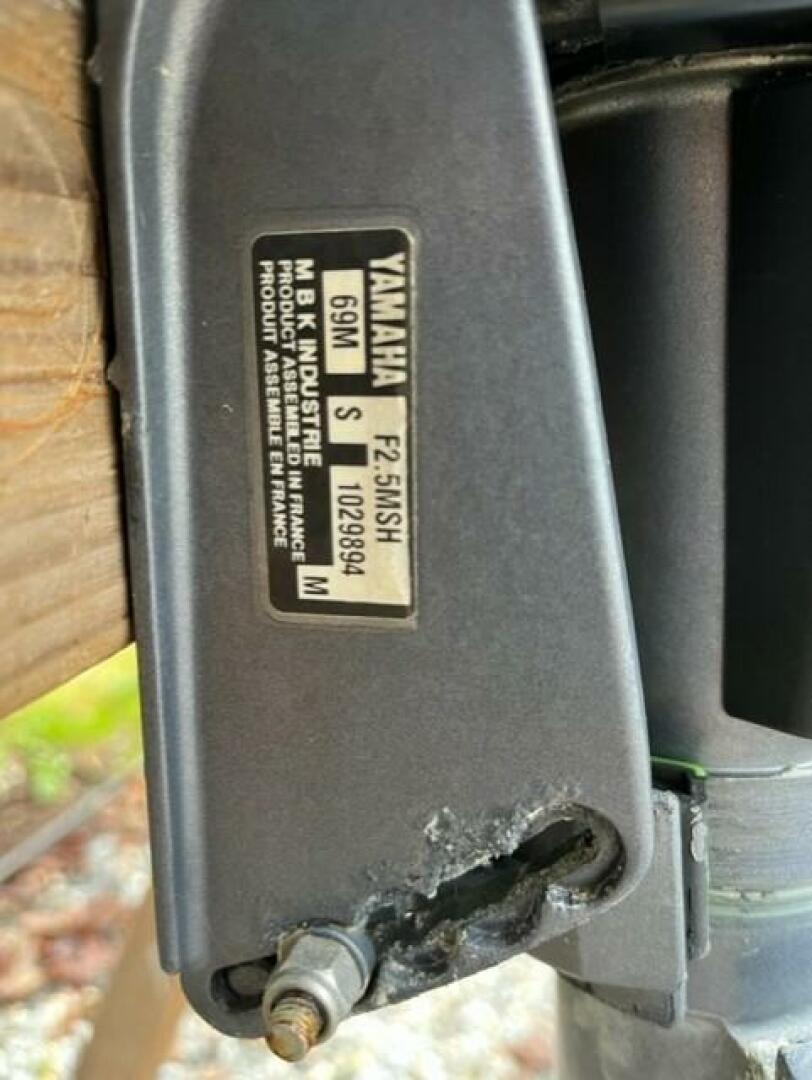

2005 Yamaha 2.5hp 4-stroke Outboard
Stern Mounted Dinghy Davit Crane
Dinghy Engine Stern Mount
Sails and Rigging:

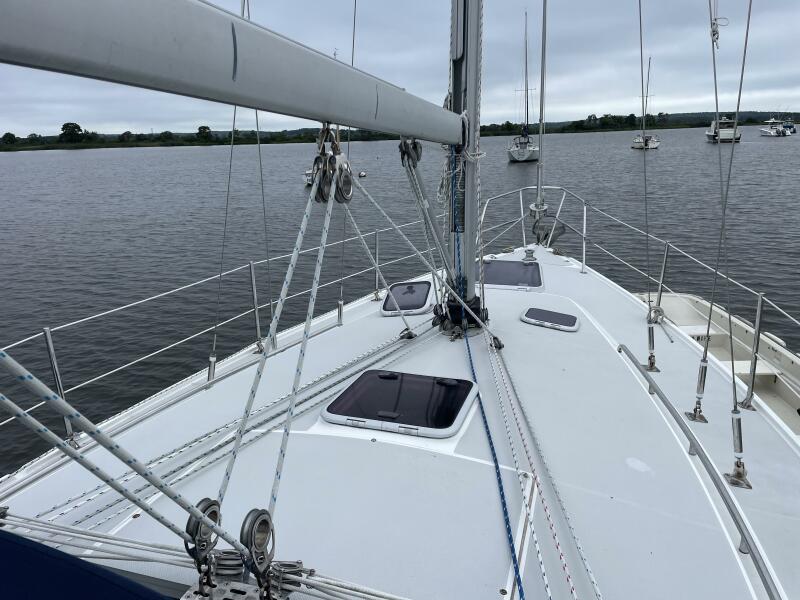

Charleston Spar furling mainsail Aluminum Mast Stepped onto the Keel
Schaefer System 2100 Furling Forestay
Garhauer Mainsheet Traveler
Mainsail (inspected and found in very good condition)
Genoa 135% (inspected and found in very good condition)
Lewmar 48ST Primary Winches x2
Lewmar 30ST Halyard Winches x2
Main, Genoa, Spinnaker and Topping Lift Halyards were recently replaced
